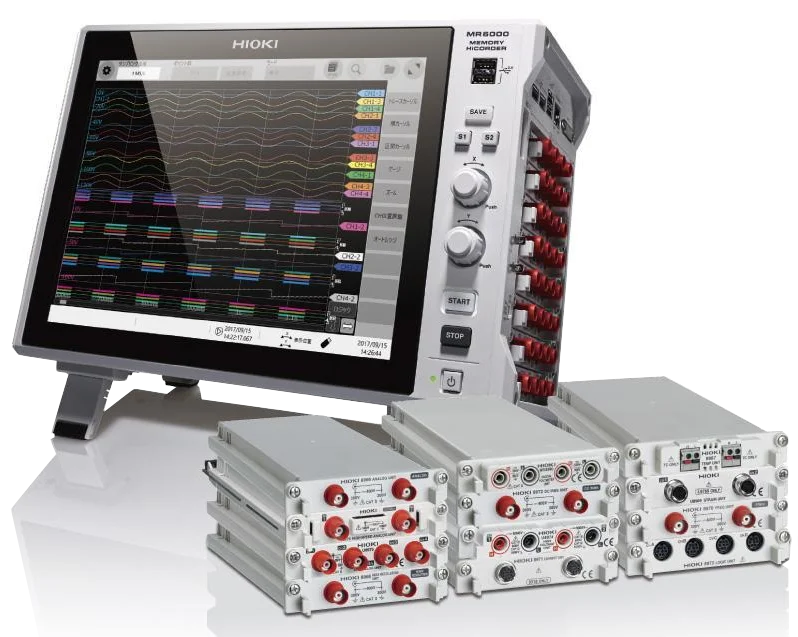

HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen

Name: HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen
SKU: MR6000
Price: 5000.0 EUR
Availability: OutOfStock

Modular memory recorder, up to 32 channels, max. sampling rate 200 MS/s, max 1000 VDC isolated direct voltage input, up to 1 TB storage with SSD option, intuitive user interface, touchscreen, real-time waveform calculation and real-time saving

Product number: MR6000

GTIN/EAN: 4536036010707

Length: 353 mm

Width: 154.8 mm

Height: 235 mm

Weight: 6.5 kg

Product information HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen

Models: The MR6000 is offered in two models: the standard MR6000 and the advanced MR6000-01, which includes two additional features – real-time waveform calculation and real-time data saving.

Model No. (Order code)	Options
MR6000	Main unit only, up to 8 input modules
MR6000-01*	Main unit only, up to 8 input modules Integrated real-time waveform calculation and real-time saving function

*The real-time waveform calculation function enables users to monitor calculated results instantly during measurements, providing immediate insights.
The real-time saving function allows data to be recorded at a maximum sampling rate of 20 MS/s directly onto an external memory device. This feature offers several key benefits:

Long-term recording with up to 20 MS/s
Extended recording durations, limited only by the storage capacity of the external device
Record on the SSD, USB stick or choose any other device (via FTP)
Data integrity with non-volatile memory ensures recorded data stays secure and ready for retrieval, even when the device is powered off

Key Specifications

8 slots for modules with up to 32 isolated analog channels
15 different input and 3 output modules
High-speed data sampling with 200 MS/s
Real-time data saving with up to 20 MS/s
User-friendly software and touchscreen display
Compatibility with a wide variety of HIOKI current sensors

Typical Applications

Testing and evaluation of railway, aerospace and automotive components including electric vehicle motors, inverters, and battery systems
Development and maintenance of renewable energy technologies, such as wind turbines and solar panels - monitoring electrical outputs and mechanical performance
Testing of household and industrial appliances by capturing high-speed transient events and long-term trends
Monitoring of SMPS (Switched-Mode Power Supply) output currents over extended periods with high sampling rates
Electric Vehicle (EV) motor shaft angle sensing thanks to its built-in resolver calculation function

Detailed Product Overview

The MR6000 Memory Recorder is a high-performance waveform recorder designed for capturing high-speed, high-accuracy data across multiple channels. It is ideal for complex applications such as inverter testing, ECU signal analysis, and monitoring physical phenomena. Featuring user-friendly software, a touchscreen interface, and various calculation and analysis functions, the MR6000 ensures precise and efficient data acquisition for professionals in research, development, and industrial settings.

Input and Output Modules:

The MR6000 offers exceptional versatility with its plug-and-play modular design with 8 slots. Modules can be easily swapped and are automatically recognized by the device. The MR6000 supports 15 different input modules for various measurements, such as high voltage monitoring up to 1000 VDC/700 VAC with the U8974, multi-channel configurations using the U8975 for up to 32 channels, and high-speed applications with the U8978, which offers a sampling rate of 200 MS/s. DC modules with 24-bit resolution allow ultra-precise voltage measurements with a resolution of 0.1 μV.

INPUT MODULES

Modules	U8976 High-speed Analog Module	8966 Analog Module	U8975 4ch Analog Module	U8978 4ch Analog Module	8968 High Resolution Module	8972 DC/RMS Module	U8974 High Voltage Module	MR8990 Digital Voltmeter	U8977 3ch Current Module	8967 Temperature Module	U8969 Strain Module	8970 Frequency Module	U8979 Charge Module	8973 Logic Module
Channels	2	2	4	4	2	2	2	2	3	2	2	2	2	16
Max. sampling / Bandwidth	200 MS/s 400 kHz	20 MS/s DC...5 MHz	5 MS/s DC...2 MHz	5 MS/s DC...2 MHz	1 MS/s DC...100 kHz	1 MS/s DC...400 kHz	1 MS/s DC...100 kHz	2 ms -	5 MS/s DC...2 MHz	1.2 ms DC	200 kS/s DC...20 kHz	200 kS/s DC...100 kHz	200 kS/s DC...50 kHz	-
Max. input voltage	400 VDC	400 VDC	200 VDC	40 VDC	400 VDC	400 VDC	1000 VDC, 700 VAC	500 VDC	for current sensors	thermocouples	strain gauges	400 VDC	40 VDC	-
Terminal	BNC						Banana		HIOKI ME15W	Push-button type	NDIS	BNC		Mini DIN

MR6000-01 Memory Recorder
Power cord
Quick start manual
Precautions concerning use
Application disk, Instruction manual (CD-R)
Blank panel (for blank slots only)

8966

HIOKI 8966 - Analog Unit

The 8966 Analog Unit is a 2-channel voltage input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It expands these instruments with two electrically isolated voltage input channels and is designed for high-speed, multi-channel measurements in development, testing and analysis applications. With a maximum sampling rate of up to 20 MS/s and a frequency bandwidth of DC to 5 MHz (–3 dB), the module is suited for capturing fast signal transitions and transient events in power electronics, control systems and general waveform analysis. Multiple measurement ranges up to 400 V DC enable flexible integration into various measurement environments. Channel-to-channel isolation allows safe parallel measurements at different potentials.Typical applications include high-speed voltage measurement, transient waveform capture, signal integrity analysis and validation of analog and control circuits.Technical Specifications2-channel isolated voltage inputInput connector: insulated BNCA/D resolution: 12-bitMaximum sampling rate: 20 MS/sFrequency bandwidth: DC to 5 MHz (–3 dB) Measurement accuracy: ±0.5% of full scaleMeasurement range: 5 mV to 20 V/div (12 ranges)Maximum allowable input: 400 V DC Compatible memory recorders: MR6000MR6000-01 MR8848MR8847AMR8827MR8740MR8741MR8740T

U8975

U8975 - 4ch Analog Unit

The U8975 4ch Analog Unit is a 4-channel voltage measurement module for the memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741 and MR8740T. It enables simultaneous voltage measurement across four channels with isolated inputs and supports direct signal acquisition. The module provides measurement ranges from 4 V to 200 V full scale and supports AC voltage display up to 140 V rms using the memory function. Simultaneous sampling across all channels is performed at up to 5 MS/s with 16-bit A/D conversion. A frequency characteristic from DC to 2 MHz and integrated low-pass filters support detailed waveform analysis. Typical applications include multi-channel signal monitoring, analysis of control systems, evaluation of analog circuits and synchronized waveform acquisition in development and industrial environments. Technical specifications Channels: 4 (voltage measurement) Input: isolated BNC, 1 MΩ, 30 pF, DC/GND coupling Max. rated voltage to ground: 300 V AC/DC; max. allowable input: 200 V DCMeasurement range: 4, 10, 20, 40, 100, 200 V f.s. (6 ranges), AC display up to 140 V rms Sampling rate / resolution: 5 MS/s max (4-channel simultaneous sampling), 16-bit (1/32000 of range)Accuracy: ±0.1% f.s. (5 Hz filter, zero position included) Frequency characteristic / filters: DC to 2 MHz (−3 dB), low-pass 5 / 500 / 5 k / 200 kHz Compatible memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741, MR8740T

8968

HIOKI 8968 - High Resolution Unit

The 8968 High Resolution Unit is a 2-channel high-resolution voltage input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827 and MR8740T. It expands the recorder with two electrically isolated voltage input channels optimized for precise and stable signal acquisition. The module features 16-bit A/D conversion and supports simultaneous sampling on both channels at up to 1 MS/s. The higher amplitude resolution, combined with the sampling rate, enables more detailed analysis of signal changes in both amplitude and time domains compared to standard analog input modules. With a frequency bandwidth of DC to 100 kHz (–3 dB), the unit is designed for detailed waveform analysis where high resolution is more critical than maximum speed. Twelve measurement ranges from 5 mV/div to 20 V/div allow accurate measurement of low-level signals as well as higher voltage inputs. The maximum allowable input voltage is 400 V DC between input terminals, with isolation up to 300 V AC/DC to ground. Typical applications include high-accuracy voltage measurement, analysis of low-level signals, evaluation of power supply stability, ripple and noise analysis, and detailed waveform analysis in research and development environments.Technical Specifications 2-channel isolated voltage input Input connector: insulated BNCInput impedance: 1 MΩ / 30 pF A/D resolution: 16-bitMaximum sampling rate: 1 MS/s (simultaneous sampling) Frequency bandwidth: DC to 100 kHz (–3 dB) Measurement accuracy: ±0.3% of full scaleMeasurement range: 5 mV/div to 20 V/div (12 ranges) Maximum allowable input voltage: 400 V DC Isolation to ground: 300 V AC/DC Compatible memory recordersMR6000MR6000-01MR8848MR8847AMR8827MR8740MR8741MR8740T

8972

HIOKI 8972 - DC/RMS Unit

The 8972 DC/RMS Unit is a 2-channel DC and RMS voltage measurement module for the memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848. It enables both instantaneous waveform measurement and RMS evaluation via two electrically isolated input channels.The module features a wide-bandwidth RMS measurement circuit that supports DC and AC signals from around 30 Hz up to 100 kHz without requiring external signal conditioning. With a measurement range from 5 mV to 20 V/div and 12 selectable ranges, it can capture everything from small signal details to higher voltages. Simultaneous sampling at up to 1 MS/s on both channels allows detailed waveform and RMS analysis.The high isolation rating of up to 300 V AC/DC to ground and maximum allowable input voltage of 400 V DC between input terminals ensures safe operation even in demanding electrical environments. RMS amplitude accuracy supports precise evaluation of both DC and AC components.Typical applications include comprehensive DC and AC voltage monitoring, RMS waveform analysis, verification of PWM and switching signals, and performance evaluation in power electronics and test bench environments.Technical SpecificationsRMS measurement bandwidth: DC, 30 Hz to 100 kHzMeasurement range: 5 mV/div to 20 V/div (12 ranges) Maximum sampling rate: up to 1 MS/s RMS amplitude accuracy: ±1 % f.s. Input connectors: Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF) Low-pass filter: 5 Hz, 50 Hz, 500 Hz, 5 kHz, 100 kHz Maximum rated voltage to ground: 300 V AC/DC (CAT II)Maximum allowable input voltage between terminals: 400 V DCCompatible memory recordersMR6000MR6000-01MR8740TMR8740MR8741MR8827MR8847AMR8848

U8974

U8974 - High Voltage Unit

The U8974 High Voltage Unit is a 2-channel voltage measurement module for high-voltage signals for the memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741 and MR8740T. It supports DC and RMS voltage measurement with selectable modes and enables direct input of high-voltage signals. The module provides measurement ranges from 200 mV/div to 50 V/div (DC) and 500 mV/div to 50 V/div (RMS) with a maximum input voltage of 1000 V DC and 700 V AC. Simultaneous sampling of both channels is performed at up to 1 MS/s with 16-bit A/D conversion. A frequency characteristic from DC to 100 kHz and integrated RMS measurement functions support analysis of voltage signals. Typical applications include measurement of high-voltage signals in power electronics, monitoring of power supply systems, and analysis of voltage waveforms in electrical systems. Technical specifications Number of channels: 2 (voltage measurement, DC/RMS selectable) Input: banana terminal, input impedance 4 MΩ, input capacitance 5 pF Measurement range: 200 mV/div to 50 V/div (DC), 500 mV/div to 50 V/div (RMS), 8 / 7 ranges Maximum input voltage: 1000 V DC, 700 V AC • Sampling rate: 1 MS/s Resolution: 16 bit (1/1600 of measurement range) Accuracy: ±0.25% f.s. (with 5 Hz filter)RMS measurement: ±1.5% f.s. (30 Hz to 1 kHz), ±3% f.s. (1 kHz to 100 kHz), response time 150 ms / 500 ms / 2.5 sFrequency characteristic: DC to 100 kHz (−3 dB)Input coupling: DC / GND Compatible memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741, MR8740T

MR8990

HIOKI MR8990 - Digital Voltmeter Unit

The MR8990 Digital Voltmeter Unit is a 2-channel, 6.5-digit high-precision DC voltage measurement module for the memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848. It enables high-accuracy DC voltage analysis in multi-channel recorder systems for industrial, energy and development applications. With a resolution of up to 0.1 µV and a sampling rate of up to 500 S/s, the unit enables highly stable DC voltage measurement across five selectable ranges from 100 mV to 1000 V full scale. Standard 4 mm banana input connectors allow robust and flexible connection in laboratory and validation setups.Typical applications include high-resolution DC monitoring, battery characterization, power rail stability analysis, calibration verification and long-term reference voltage measurement.Technical Specifications Channels / input: 2 (isolated, 4 mm banana) Measurement type: DC voltage, 6.5 digits Measurement range: 100 mV to 1000 V full scale (5 ranges) Resolution: up to 0.1 µVSampling rate: up to 500 S/sInput impedance: 100 MΩ (100 mV–10 V ranges), otherwise 10 MΩ Voltage limits: 500 V DC input; 300 V AC/DC to ground Basic accuracy: ±0.01% rdg. ±0.0025% f.s. (1000 mV range)Compatible memory recorders MR6000MR6000-01MR8740TMR8740MR8741MR8827MR8847AMR8848

8967

HIOKI 8967 - Temp Unit

The 8967 Temp Unit is a 2-channel temperature input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It expands these instruments with two thermocouple measurement channels and is designed for precise temperature monitoring in laboratory, development and industrial measurement applications. The module supports a wide range of thermocouple types including K, J, E, T, N, R, S, B and W, enabling flexible temperature measurements across various environments and applications. Reference junction compensation can be configured for internal or external operation, ensuring reliable temperature measurements under different installation conditions. Included two ferrite clamps help suppress high-frequency noise on thermocouple leads and improve measurement stability in electrically noisy environments. Typical applications include thermal testing, temperature monitoring in electronic systems, environmental testing and long-term temperature recording in research and development.Technical Specifications 2-channel thermocouple temperature input Supported thermocouple types: K, J, E, T, N, R, S, B, W Reference junction compensation: internal or external Data refresh rate: Fast approx. 1.2 ms / Normal approx. 100 ms / Slow approx. 500 ms Input resistance: ≥ 5 MΩ Maximum rated voltage to earth: 300 V AC/DC Compatible memory recorders MR6000MR6000-01MR8848MR8847MR8827MR8740MR8741MR8740T

U8969

U8969 - Strain Unit

The U8969 Strain Unit is a 2-channel module for strain measurement for the memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741 and MR8740T. It enables measurement of strain signals using strain gauge bridge circuits with electronic auto-balancing. The module supports strain gauge transducers with bridge impedances from 120 Ω to 1 kΩ and a bridge voltage of 2 V. The measurement range covers ±10,000 µε with 16-bit resolution. Simultaneous sampling of both channels is performed at up to 200 kS/s. Integrated low-pass filters (5 Hz, 10 Hz, 100 Hz, 1 kHz) and a frequency characteristic from DC to 20 kHz enable measurement of static and dynamic strain signals. Typical applications include structural load testing, fatigue analysis, material testing, and analysis of mechanical deformation in multi-channel measurement systems. Technical specifications Number of channels: 2 (strain measurement, electronic auto-balancing) Measurement range: ±10,000 µε, 20 µε to 1000 µε/div, 6 rangesSampling rate: 200 kS/s (simultaneous)Resolution: 16 bit (1/1250 of measurement range) Accuracy: ±0.5% f.s. ±4 µε (5 Hz filter) Frequency characteristic: DC to 20 kHz (+1/−3 dB)Low-pass filter: 5 / 10 / 100 Hz, 1 kHz Bridge parameters: 120 Ω to 1 kΩ, 2 V ±0.05 VCompatible memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741, MR8740T

8970

HIOKI 8970 - Freq Unit

The 8970 Freq Unit is a 2-channel frequency and pulse measurement module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It enables accurate measurement of frequency, rotational speed (RPM), pulse width and duty ratio via two electrically isolated input channels. With a measurement range for pulse and frequency signals from very low frequencies up to 100 kHz, the module supports reliable acquisition of repetitive and pulse-based signals. In addition to frequency and RPM measurement, integration and pulse counting functions allow evaluation of accumulated events such as total rotations or pulses from flow meters, supporting detailed system analysis. The module also supports encoder signal measurement, allowing evaluation of rotational speed and position from incremental encoder outputs. A dedicated power frequency measurement mode enables precise monitoring of 50 Hz, 60 Hz and 400 Hz power systems. Isolation up to 300 V AC/DC to ground allows safe operation in electrically demanding environments. Flexible trigger settings ensure stable and reproducible measurements.Typical applications include high-accuracy voltage measurement, analysis of low-level signals, evaluation of power supply stability, ripple and noise analysis, and detailed waveform analysis in research and development environments.Technical Specifications2-channel isolated frequency and pulse input Input connector: insulated BNC Input impedance: 1 MΩ / 30 pFFrequency mode range: DC to 100 kHz (minimum pulse width 2 µs) Frequency accuracy: ±0.1 % f.s. Measurement functions: frequency, RPM, pulse width, duty ratio, integration, pulse counting Maximum rated voltage to earth: 300 V AC/DCCompatible memory recordersMR6000MR6000-01MR8848MR8847AMR8827MR8740MR8741MR8740T

8973

HIOKI 8973 - Logic Unit

The 8973 Logic Unit is a logic signal measurement module for the memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848. It enables acquisition and analysis of digital logic signals using HIOKI logic probes. The module provides four probe inputs. With HIOKI logic probes providing four measurement channels per probe, up to 16 logic channels can be realized per module.Multiple logic units can be installed simultaneously to expand the number of digital channels in the measurement system. The module uses mini-DIN connectors for HIOKI logic probes (sold separately), allowing simultaneous monitoring of multiple digital signals. The number of 8973 modules that can be connected depends on the memory recorder model: MR8827 supports up to 2 units, MR8848 up to 3 units, MR6000 up to 8 units, and MR8740T up to 3 units.Typical applications include digital timing analysis, monitoring of control logic, relay status tracking, and validation of embedded and industrial control systems.Technical Specifications Probe inputs: 4 (mini-DIN)Logic channels: 16 (4 probe inputs × 4 channels per logic probe) Compatible probes: HIOKI logic probes 9320-01, 9320-02 and 9320-03 (sold separately)Compatible memory recordersMR6000MR6000-01MR8740TMR8740MR8741MR8827MR8847AMR8848

The MR6000 also supports three output modules, including pulse and waveform generation for signal testing and simulation. The Arbitrary Waveform Generator Module U8793 allows users to program and generate custom waveforms, ideal for reproducing and simulating anomalies. The free SF8000 software simplifies waveform creation by enabling direct data input or formula-based design and supports noise simulation or multiplying waveforms for advanced scenarios.

Module

U8793
Arbitrary Waveform Generator Module

MR8790
Generator Module

MR8791
Pulse Generator Module

Channels

Functions

DC, Sine wave, Square wave,
Pulse wave, Triangular wave,
Ramp wave
(0 Hz to 100 kHz)

DC, Sine wave
(0 Hz to 20 kHz)

Pattern, Pulse,
Logic; Open collector output

U8793

U8793 - Arbitrary Waveform Generator Unit

The U8793 Arbitrary Waveform Generator Unit is a 2-channel signal generation module for the memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741 and MR8740T. It supports both function generator and arbitrary waveform generator operation for outputting defined and user-defined waveforms. The unit generates DC, sine, square, pulse, triangular and ramp waveforms in a frequency range from 10 mHz to 100 kHz. In arbitrary mode, waveforms are output from measured data or external sources. Supported formats include CSV, TXT, WFG and TFG files, as well as data from Hioki instruments and the SF8000 Waveform Maker software. Signal output uses a 16-bit D/A converter with a refresh rate of 2 MHz. The output voltage ranges from −10 V to +15 V with an amplitude setting from 0 to 20 Vp-p and a resolution of 1 mV. The maximum output current is 10 mA with a minimum load of 1.5 kΩ. Sweep functions for frequency, amplitude, offset and duty (pulse only) are supported. A program function with up to 128 steps and loop function is available. The unit also provides a self-test function and external input/output control. Typical applications Typical applications include reproduction of recorded waveforms and their output for testing purposes. This includes playback of signal patterns such as voltage dips, interruptions and fluctuations based on real measurement data. Technical specifications Number of channels: 2; Output terminal: SMB (≤ 1 Ω) Output voltage: −10 V to +15 V; Amplitude: 0 to 20 Vp-p; Resolution: 1 mV Max. output current: 10 mA (Load ≥ 1.5 kΩ); Max. rated voltage to ground: 30 V AC / 60 V DC Waveforms: DC, sine, square, pulse, triangular, ramp; Frequency range: 10 mHz to 100 kHz Arbitrary mode: CSV, TXT, WFG, TFG, measured data, SF8000 D/A converter: 16 bit; Refresh rate: 2 MHz Sweep: frequency, amplitude, offset, duty (pulse); Program: max. 128 steps, loop (∞) Additional functions: self-test; external input/output control Compatible memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741, MR8740T

MR8790

MR8790 - Waveform Generator Unit

The MR8790 Waveform Generator Unit is a 4-channel signal generation module for the memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848. It generates DC and sine wave signals that can be used as stimulus signals in measurement and test systems. The module supports synchronized signal output alongside multi-channel acquisition, allowing correlation of generated signals with measured voltage, current or logic signals. Adjustable amplitude and frequency parameters enable flexible signal generation for development, validation and functional testing tasks.Typical applications include component testing, validation of analog input stages and evaluation of dynamic system behavior.Technical Specifications Number of channels: 4 (SMB output terminals) Output impedance: ≤1 Ω Max. rated voltage to ground: 30 V rms AC or 60 V DC Output voltage range: −10 V to +10 V (0 to 20 Vp-p, resolution 1 mV) Max. output current: 5 mA Output function: DC, sine wave (1 Hz to 20 kHz) Accuracy: amplitude ±0.25 % of setting ±2 mV p-p (1 Hz to 10 kHz); offset ±3 mV; DC output ±0.6 mV Compatible memory recordersMR6000 MR6000-01MR8740TMR8740MR8741MR8827MR8847AMR8848

MR8791

MR8791 - Pulse Generator Unit

The MR8791 Pulse Generator Unit is an 8-channel pulse signal generation module for the memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848. It generates configurable pulse signals for testing digital control systems and switching applications. The unit enables adjustable pulse widths, repetition rates and output voltage levels for evaluating trigger circuits, timing behavior and switching responses. Synchronized operation with recorder acquisition channels allows detailed analysis of system reactions to defined pulse stimuli.Typical applications include trigger verification, PWM simulation, digital interface testing and timing analysis in embedded and power electronic systems.Technical Specifications Number of channels: 8 (D-sub half-pitch 50-pin connector) Maximum rated voltage to ground: 30 V rms AC / 60 V DCOutput modes: pattern output, pulse output, logic output, open collector output Pattern output: read frequency 10 Hz to 120 kHz, up to 2048 logic patternsPulse output: frequency 0.1 Hz to 20 kHz, duty cycle 0.1 % to 99.9 %Logic output level: 0 V to 5 V (H ≥ 3.8 V, L ≤ 0.8 V) Open collector output: max. collector-emitter voltage 50 V, overcurrent protection 100 mACompatible memory recorders MR6000MR6000-01MR8740TMR8740MR8741MR8827MR8847A MR8848

Current Measurement:

The MR6000 offers additional versatility by allowing the direct connection of HIOKI's high-accuracy current sensors. Wideband current probes like the CT6711 can be paired with analog modules such as the U8978. The dedicated current modules U8977 and 8971 support precise measurement across a wide range of currents, working seamlessly with high-precision clamps and sensors like the CT6841A or CT6904A.

With these designated current modules, the MR6000 automatically recognizes, and powers connected HIOKI sensors and clamps, ensuring an easy and efficient setup. HIOKI wideband current probes with BNC and 2-pin LEMO connectors can also be powered via the Z5021 Probe Power Unit, which is available as a factory-installed option.

In addition to powering current probes and clamps, the Z5021 Probe Power Unit can supply power to up to eight differential probes. This significantly expands the MR6000’s capabilities for high-voltage measurements, supporting voltages up to 2000 VDC and 1000 VAC.

Module

U8977 3-Ch Current Module*1

U8976
High-speed Voltage Module

8966
Analog Module

U8975
4-ch Analog Module

U8978 4-ch Analog Module

8968
High-resolution Module

Channels

Compatible current sensors

Current clamps:
CT6841A, CT6843A, CT6844A, CT6845A, CT6846A, CT6833, CT6834

Current transducers:
CT6862, CT6863, CT6872, CT6873, CT6875A, CT6876A, CT6877A, CT6904A

Wideband current sensors*²:
3273-50, 3274, 3275, 3276, CT6700, CT6701, CT6710, CT6711

Current clamps*³:
CT6841A, CT6843A, CT6844A, CT6845A, CT6846A, CT6833, CT6834

Current transducers*³:
CT6862, CT6863, CT6872, CT6873, CT6875A, CT6876A, CT6877A, CT6904A

^{*1 max. 3 modules; power supply from module

*2 Z5021 Power Supply Unit required

*3 CT9555 or CT9557 Current Sensor Interface required}

Data Handling:

Equipped with advanced internal processing, the MR6000 enables fast data saving and efficient handling, reducing downtime and enhancing productivity. For long-term recording, the high-capacity 1 TB SSD Unit U8335 option allows continuous data capture at high sampling rates. The MR6000-01 model enables real-time data saving at speeds of up to 20 MS/s

User Interface:

The MR6000 features a large 12.1-inch touchscreen with a user-friendly interface. Its intuitive design makes it easy for users to view and analyze their data effortlessly.

Software Tools:

The MR6000 offers comprehensive software analysis tools, including the free MR6000 Viewer for data analysis, 9335 Wave Processor for waveform management, GENNECT One for centralized control of up to 30 HIOKI instruments via LAN. In addition, drivers for custom applications like LabVIEW and MATLAB are available.
