HIOKI CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz

€2,288.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€2,288.00

HIOKI CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz
Product number: CT6833
Available stock: 2
GTIN/EAN: 4536036015511
Description

Product information HIOKI CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz


Key Specifications

  • AC/DC currents up to 200 A
  • Frequency Bandwidth DC to 50 kHz
  • Basic accuracy: ±0.07% rdg.
  • Operating temperature range: -40°C to +85°C
  • Output voltage ratio 10 mV/A

Unique Advantages

  • Clamp design with near pass-through accuracy

Typical Applications

  • High-precision current measurement in tight spaces
  • WLTP testing (Worldwide harmonized Light vehicles Test Procedure)

Model Rated current Bandwidth Basic accuracy Max. conductor diameter
CT6847A ±2000 A DC – 70 kHz ±0.15% rdg Ø 50 mm
CT6846A ±1000 A DC – 100 kHz ±0.2% rdg Ø 50 mm
CT6845A ±500 A DC – 200 kHz ±0.2% rdg Ø 50 mm
CT6844A ±500 A DC – 500 kHz ±0.2% rdg Ø 20 mm
CT6843A ±200 A DC – 700 kHz ±0.2% rdg Ø 20 mm
CT6841A ±20 A DC – 2 MHz ±0.2% rdg Ø 20 mm
CT6834 ±500 A DC – 50 kHz ±0.07% rdg Ø 20 mm
CT6833 ±200 A DC – 50 kHz ±0.07% rdg Ø 20 mm
CT6831 ±20 A DC – 100 kHz ±0.3% rdg Ø 5 mm
CT6830 ±2 A DC – 100 kHz ±0.3% rdg Ø 5 mm


Detailed Product Overview

The CT6833 AC/DC Current Clamp delivers unparalleled measurement accuracy, achieving a basic accuracy of ±0.07% rdg. – a level typically found only in pass-through current sensors. Based on advanced fluxgate technology, it ensures exceptional precision and stability while enabling accurate AC/DC current measurement up to 200 A. Its ultra-slim "Dolphin Clamp" design is optimized for tight spaces with dense wiring, such as inside vehicles, and allows for easy installation, even in confined areas like auxiliary battery current measurement. The clamp can accommodate conductors with a maximum diameter of 20 mm, making it versatile for a wide range of applications.

Unlike many current sensors on the market, where the position of the conductor within the clamp can impact measurement accuracy, the CT6833 is designed for high reproducibility, regardless of conductor placement. Thanks to HIOKI’s precision engineering, measurement results remain stable and reliable, no matter where the conductor is positioned within the sensor.

A major challenge in long-term current measurements is temperature-induced signal drift. While HIOKI fluxgate sensors already exhibit exceptionally low drift, this series pushes performance even further – reducing drift to a nearly unmeasurable level. Even in extreme conditions, such as under the bonnet of a vehicle, where temperatures can rise dramatically during testing, the CT6833 maintains stable accuracy within 0.01%, ensuring highly precise data acquisition for environmental testing and evaluation.

To enhance usability and reliability in tight installations, the CT6833 also features an innovative locking mechanism that prevents accidental opening during measurement. In confined spaces, sensors are often pressed against surrounding components or squeezed between cables, which can put unintended pressure on the clamp. With its secure locking design, the CT6833 remains firmly closed, ensuring uninterrupted measurement reliability even in demanding conditions.

With a wide frequency bandwidth of 50 kHz, the CT6833 can accurately capture dynamic current waveforms. This, combined with its exceptional accuracy, allows it to meet strict testing standards such as WLTP, ensuring highly reliable measurements in automotive and other precision testing applications.

The CT6833 works directly with HIOKI Power Analyzers and Memory Recorders, which supply power to the sensor via the ME15W connector. When combined with a HIOKI sensor unit (CT9555, CT9556, or CT9557), it can also be used with oscilloscopes or other DAQ systems, providing a voltage output ratio of 4 mV/A.

The total cable length of the CT6833 is 5 meters, ensuring flexibility in sensor placement. This includes 4 meters of cable between the sensor and its control box, plus an additional 1 meter from the control box to the connector, allowing for convenient integration into various test setups.


More than specs – find more details here:
Zero-flux Current Clamps: Accuracy without effort from mA to kA
Measure Power with Precision – Across All Applications

What's in the Box
  • CT6833 AC/DC Current Clamp
  • Instruction Manual
  • Carrying Case
  • Color labels (for channel identification)
  • Current Sensor Operating Precautions

Dimensions & Packaging

Length 149 mm
Width 17 mm
Height 46 mm
Weight 0.5 kg
Skip product gallery

Related Products

HIOKI CT6833-01 AC DC current clamp 0.07 percent accuracy 10 m cable HIOKI CT6833-01 AC DC current clamp 20 mm conductor 10 m cable
CT6833-01
HIOKI CT6833-01 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz, 10 m cable
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 200 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 10 m

€2,608.00
View product
HIOKI CT6834 super slim AC DC high accuracy current clamp maximum conductor diameter 20 mm HIOKI CT6834 super slim AC DC high accuracy current clamp wide temperature range of 40 C to +8 -C
CT6834

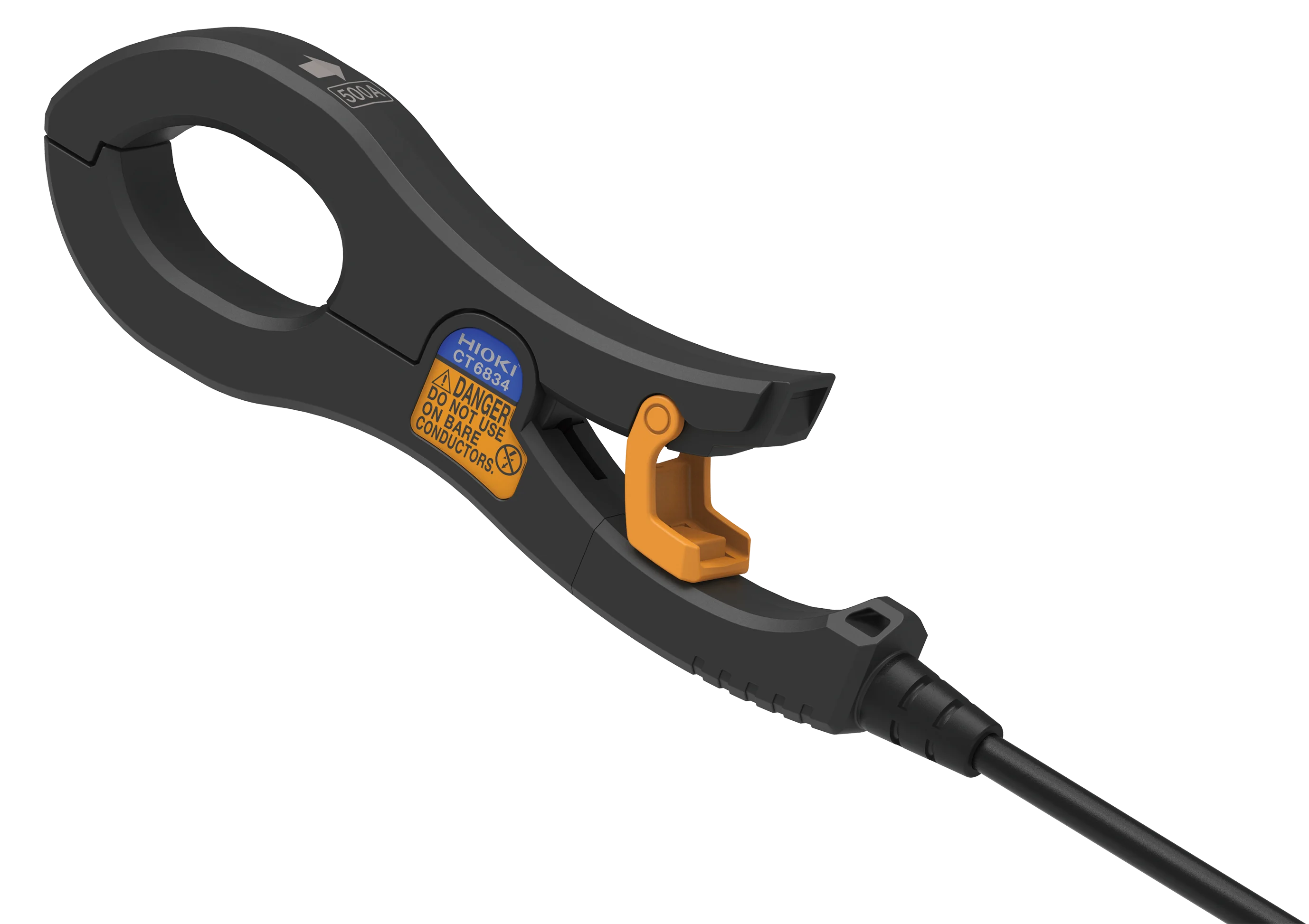

HIOKI CT6834 - Super-slim AC/DC high-accuracy Current Clamp, 500 A / 50 kHz
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 500 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 5 m

€2,368.00
View product
HIOKI CT6834-01 super slim AC DC high accuracy current clamp maximum conductor diameter 20 mm HIOKI CT6834-01 super slim ac dc high accuracy current clamp 500a 50khz derating graph2
CT6834-01

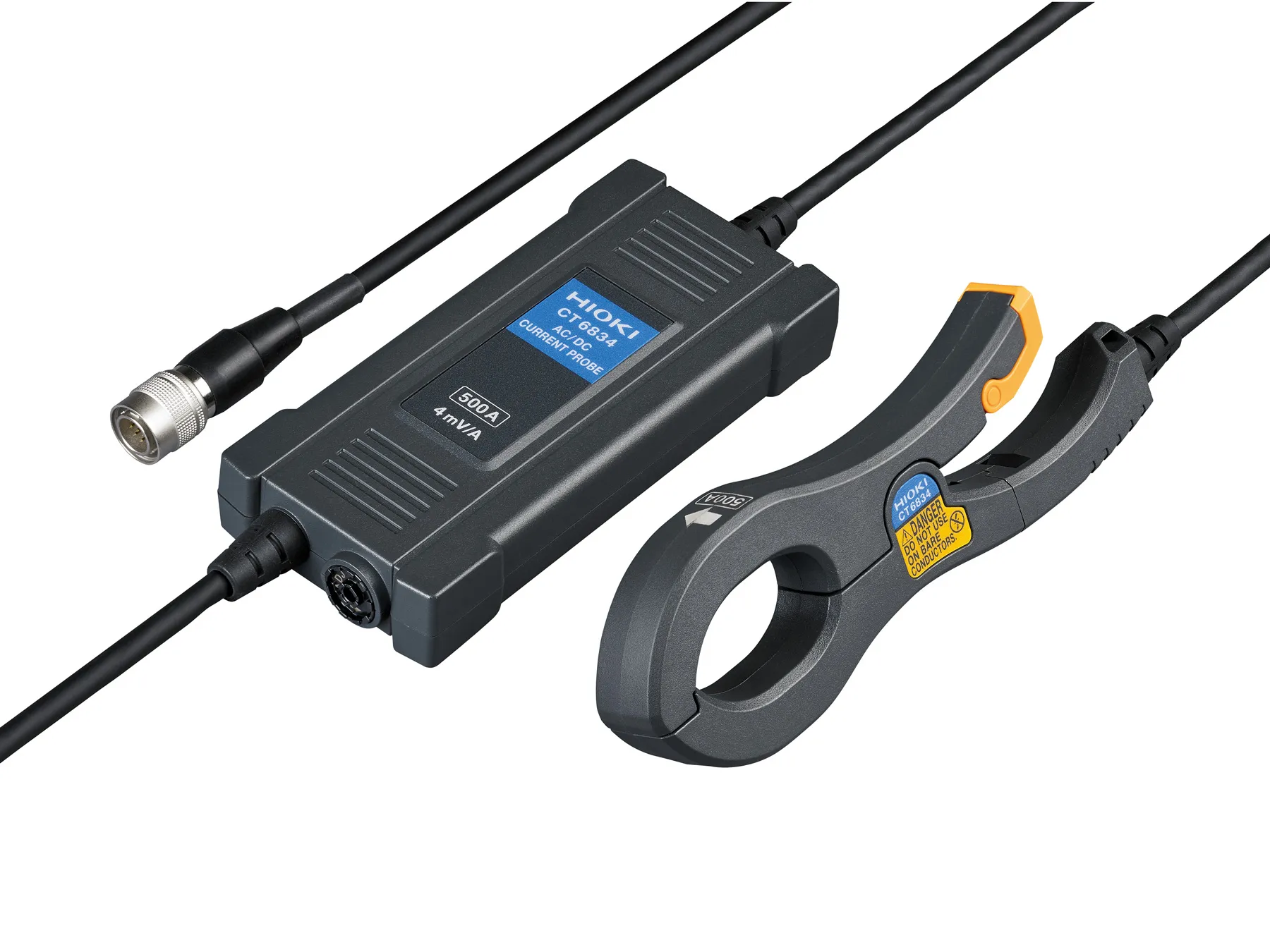

HIOKI CT6834-01 - Super-slim AC/DC high-accuracy Current Clamp, 500 A / 50 kHz, 10 m cable
