HIOKI Power Supplies for Measurement Instruments

Reliable power for your measurement tasks

HIOKI AC/DC power supplies and battery packs provide stable power for compatible measurement instruments and current sensors in stationary and mobile applications. Dedicated power supply units are available for Hall sensor-based zero-flux current probes, including multi-sensor operation.

Select the appropriate power solution for data loggers, memory recorders, power quality analyzers and power loggers used for long-term recording, field measurements and power analysis.

19 Products

3269

HIOKI 3269 - Power Supply for Current Probes, 2500 mA

4-channel power supply unit for HIOKI Hall-sensor based zero-flux current probes, 12 VDC output voltage, 2500 mA total maximum output current

€1,078.00

View product

3272

HIOKI 3272 - Power Supply for Current Probes, 600 mA

2-channel power supply unit for HIOKI Hall-sensor based zero-flux current probes, 12 VDC output voltage, 600 mA total maximum output current.

€718.00

View product

9418-15

HIOKI 9418-15 - Power supply unit with SchuKo power cable

9418-15 is an accessory AC Adapter for a wide range of Hioki Products. Technical Details: AC Inlet:IEC-60320-C14 Input range: 100VAC to 240VAC Output: 12VDC, 2.5A, Pmax 30W Ripple & Noise: 120mVpp DC plug: angled hollow plug O.D. 5.5mm, I.D. 2.1mm Possible Products: 3197, 3334-10, 3351, 8420, 8421, 8422, 8423, 8714, 8715, 8807, 8808, 8910, 9322, 9643, 3455, IR3455, IR3455-30, LR8400, LR8401, LR8402, PR8111, PR8112, TM6101

€168.00

View product

9445-02

HIOKI 9445-02 - AC-Adapter

The HIOKI 9445-02 is an accessory AC adapter compatible with a wide range of Hioki products. It includes interchangeable plug heads, allowing it to adapt easily to international power outlets. Technical details: Type: Wall Mount AC plug head types: UL, CEE, BS, SAA, CCCInput range: 100VAC to 240VAC Output: 9VDC, 1.2A, Pmax 10.8WRipple & noise: 100mVpp DC connector: angled EIAJ-3 plug O.D. 4.75mm, I.D. 1.7mmPossible products: 283, 3284, 3285, 3290, 3290-10, 3540, 3664, FT3470-51, FT3470-52, SS7012

€108.00

View product

9447

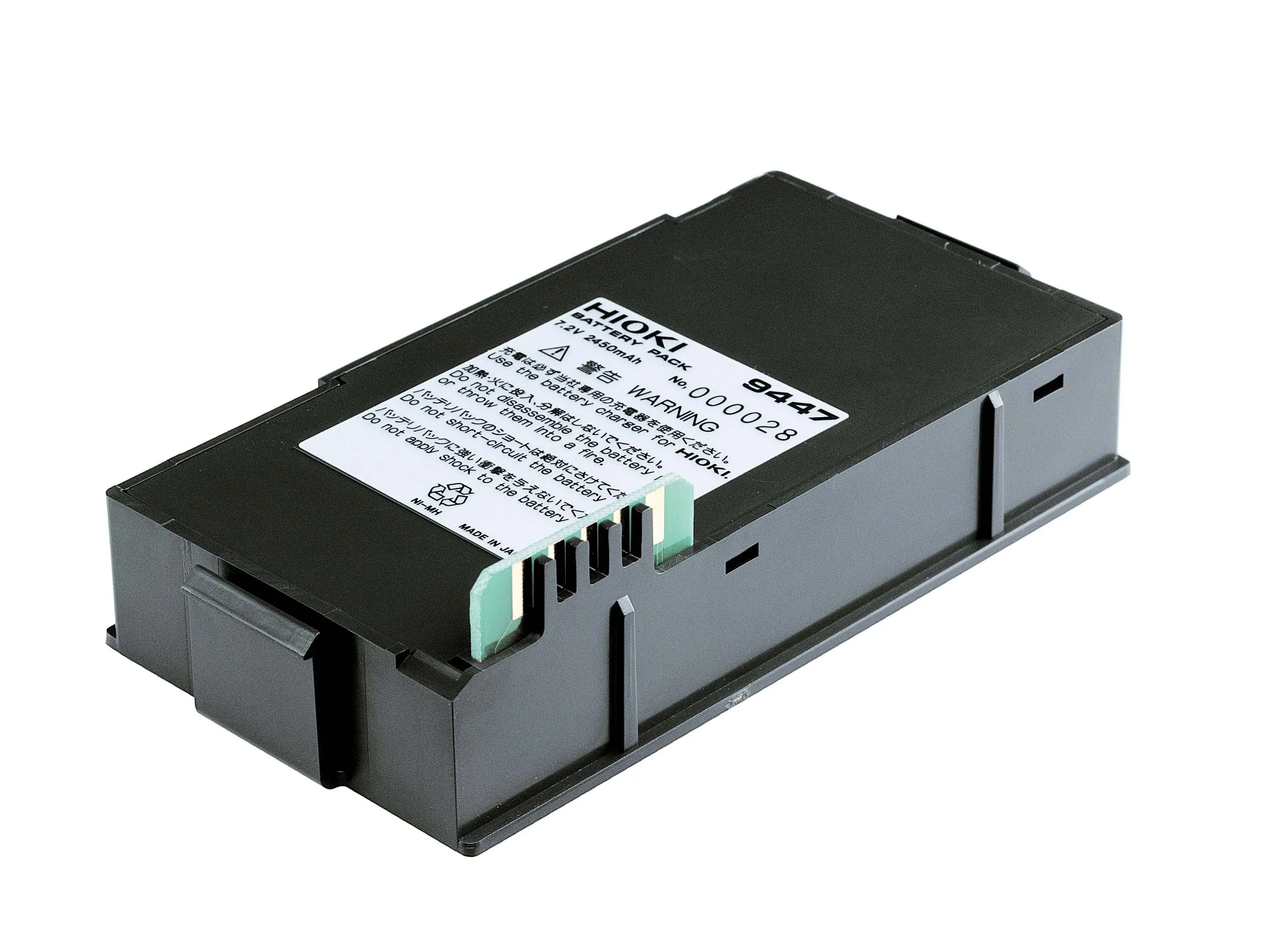

HIOKI 9447 - Battery Pack

The 9447 is a rechargeable 7.2 V Ni-MH battery with a capacity of 2450 mAh for supplying power to compatible Hioki Data Loggers and Memory Recorders 8807, 8808, 8420, 8421 and 8422. Key Specifications Battery type: Ni-MHNominal voltage: 7.2 VCapacity: 2450 mAh

€148.00

View product

9459

HIOKI 9459 - Replacement Battery Pack for PW3360 and PW3365

Replacement battery pack with a voltage of 7.2 V and a capacity of 2700 mAh, for use with PW3360-20, PW3360-21 and PW3365 Power Loggers

€138.00

View product

9780

HIOKI 9780 - Battery Pack for MR8870, LR8431 and LR8432

Battery Pack for MR8870, LR8431 and LR8432, NiMH type, 3.6 V, 1500 mAh

€138.00

View product

9784

HIOKI 9784 - DC Power Unit for MR8848, factory-installed option

DC Power Unit for MR8848, 10 to 28 V DC input range, factory-installed option, not retrofittable

PW9002

HIOKI PW9002 - Battery Kit for PW3360 and PW3365 Power Loggers

Optional battery kit consisting of a battery case with protector and the 9459 battery pack, including mounting materials. Around 6 hours of operating time with PW3360-20 and PW3360-21, and around 3 hours with PW3365

€178.00

View product

Z1000

HIOKI Z1000 - Battery pack for MR8880 and LR8400 series

The Z1000 Battery pack is a NiMH type recharchable battery for the MR8880, LR8400 series products. It charges when installed in the main unit. Product details: Rating: 7.2V, 4500mAh Weight: 0.37 kg

€308.00

View product

Z1002

HIOKI Z1002 - Power supply unit for MR8880, MR8875, PQ3198

The Z1002 is a universal power supply unit for mains voltages from 100 V to 240 V AC, 50/60 Hz, which provides 12 V DC, 5.25 A max (63 W). It is suitable for the Hioki products CT9557, MR8875, MR8880, PW3198, PQ3100 and PQ3198.Technical details: Input range: 100 V AC to 240 V AC Output: 12VDC, 5.25A, Pmax 63W Residual ripple & noise: 100mVpp DC connector: angled 5.5mm barrel plug (inner diameter 2.5mm)

€168.00

View product

Z1003

HIOKI Z1003 - Battery pack for MR8875, PQ3198

The Z1003 is a 7.2 V DC, 4500mAh Nickel-Metal Hydride (Ni-MH) rechargeable battery pack designed for use with Hioki devices such as the MR8875, PQ3198/PW3198, and PQ3100. It provides reliable power, ensuring extended operation in the field and in demanding environments. Technical Details: Battery Type: Ni-MH Voltage: 7.2 V DC Capacity: 4500mAh Compatible Devices: MR8875, PQ3198/PW3198, PQ3100

€178.00

View product
