Data Acquisition Solutions for Maintenance, Monitoring & Diagnostics

01_HIOKI-MR8848_memory-recorder-daq-substation_2-1_800x400

HIOKI Data Loggers and Recorders provide reliable, precise measurements and recording of voltage, current, temperature, resistance, and related signals during system setup and ongoing operation. This data allows to do efficient maintenance, troubleshooting, and long-term monitoring of electrical and physical parameters based on dependable data.

Select the DAQ instrument for your application:

Data Loggers for continuous, long-term monitoring and
High-speed Memory Recorders - oscilloscope-like DAQ devices - for time-synchronous analysis of fast and transient signals.

Data Logger or Memory Recorder?

17 Products

LR8450-01

HIOKI LR8450-01 - Wireless modular multi-channel Data Logger

WLAN-enabled multi-channel data logger with up to 4 plug-in and 7 WLAN modules (maximum 330 channels), 1 ms sampling interval, 100 VDC, 8 inputs for pulse/logic/rotational speed, 7″ TFT display, Gigabit LAN, USB/SD, optional battery operation.

€2,268.00

View product

LR8450

HIOKI LR8450 - Modular multi-channel Data Logger

Multi-channel data logger, connect up to 4 plug-in modules with up to 120 analog channels, max. 1 ms update interval, max. 100 VDC, 8 inputs for pulse/logic/rotational speed, 7“ TFT-Display, GigabitLAN und USB / SD card, optional battery operation.

€1,908.00

View product

MR8848

HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design

Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply

LR8432

HIOKI LR8432 - Handheld 10-channel Data Logger with native support for heat flow sensors

10-channel handheld data logger for voltage / temperature plus 4 channels for pulse / rotation, direct input of heat flow sensors, isolated inputs, up to 60 VDC, max. update interval 10 ms, up to 16 GB USB storage capacity, LCD display, signal input via M3 screw terminals, optional battery pack

€1,748.00

View product

LR8431

HIOKI LR8431 - Handheld 10-channel Data Logger for voltage, temperature and pulse logging

10-channel handheld data logger for voltage / temperature plus 4 channels for pulse / rotation, isolated inputs, up to 60 VDC, max. sampling speed 10 ms, up to 16 GB USB storage capacity, LCD display, signal input via M3 screw terminals, optional battery pack

€1,428.00

View product

MR8870

HIOKI MR8870 - Handheld 2-channel memory recorder with RMS data logging, 1 MS/s

Compact memory recorder, 2 isolated analog channels with BNC inputs, 1 MS/s waveform recording and RMS data logging with up to 1000 values per second, max. 300 VAC/DC CAT II, powered by AC, DC or battery

€1,318.00

View product

MR8880

MR8880 - Portable Memory Recorder, 4 Channels

The MR8880 is a 4 channel portable data acquisition system (DAQ) with a maximum sampling rate of 1Msamples/s on all analog channels simultaneously. It has 4 analog direct input channels for voltages up to 600V and 8 logic channels.Technical Details: Complies CAT III 600V isolation for direct measure of 480V power line 4 complete isolated channels Operating temperature range of -10°C to 50°C Built to withstand mechanical shocks and vibrations PRESET function A memory capacity of 14bit × 1 M words/ch (1 word = 2 bytes)

€3,278.00

View product

MR8875

MR8875 - Portable, modular memory recorder, 500 kS/s, 16 isolated ch., 1000 V direct input, touchscreen

The Hioki MR8875 Memory Recorder is a high-speed, multi-channel logger designed for long-term data recording and real-time waveform monitoring. It supports various input modules for mixed signal measurement, including voltage, temperature, strain, and CAN signals, with a sampling period as short as 2 µs. Its robust design is suitable for harsh environments, making it ideal for applications such as battery evaluation, motor testing, and power equipment analysis. Technical Details: Channels: Up to 60 channels with input modulesSampling Rate: 500 kS/sMemory Capacity: 32 MW (64 MB) Display: 8.4-inch TFT color LCD Storage: SD card, USB memory stick Dimensions: 298 mm × 224 mm × 84 mmWeight: 2.4 kg (excluding modules)

€4,998.00

View product

LR8512

HIOKI LR8512 - Wireless Pulse Logger

Key SpecificationsNumber of channels: 2 (common GND) Measurement items: Integrating (cumulative/instant), revolution, logic Supported input: Non-voltage “a” contact, open collector, voltage input (DC 0 to 50 V) Measurement range: Totalization 0 to 1000 M pulse; revolution 0 to 5000/n r/s Resolution: 1 pulse; 1/n r/s Recording capacity: 500,000 data items per channel Recording interval: 0.1 to 30 s, 1 to 60 min (16 selections)The LR8512 is a compact wireless pulse data logger for precise pulse counting and recording in industrial and energy monitoring applications. It captures pulse signals from energy meters, flow meters, rotary encoders, and logic outputs, supporting instantaneous pulse counting, totalization (accumulated measurement), and rotation measurement based on pulse frequency. Via Bluetooth®, measurement data can be monitored and collected in real time using a Windows PC or an Android device. With 500,000 data points per channel, extended recording periods are possible. Depending on the selected recording interval (0.1 s to 60 min), maximum recording time ranges from 13 h 53 min up to over 365 days. Selectable recording modes allow either one-time recording (stop when memory is full) or endless recording (automatic overwrite of oldest data). The logger is battery-operated and well suited for mobile or hard-to-access installations. For continuous operation, the optional Z2003 AC Adapter (power cord attached) can be ordered separately. Time-controlled activation of Bluetooth® helps extend battery life. The included Logger Application Disc (DVD) contains the Instruction Manual (PDF), Logger Utility software, Wireless Logger Collector, and the Logger Utility User Manual. Typical applications include energy monitoring, consumption analysis, flow rate monitoring via pulse output (daily fluctuations), machine runtime tracking, speed measurement, and industrial signal logging. Optional accessories: Z2003 AC Adapter (power cord attached) Z5004 Magnetic Strap Z5020 Magnetic Strap (extra strength) L1010 Connection Cable (approx. 1.5 m)"

€418.00

View product

LR8513

HIOKI LR8513 - 2-channel Bluetooth logger for current sensors

Compact 2-channel data logger, AC current logging with BNC current sensors, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€488.00

View product

20

LR5011

LR5011 - TEMPERATURE LOGGER

The LR5011 is a pocket-sized temperature logger that offers single-channel temperature logging with wide range capabilities, ideal for various environments, IP54-rated for durability. Technical Details: Temperature range: -40 °C to 180 °C Accuracy: +/- 0.5°C Memory: 60,000 data points, 1ch memory Recording intervals: Starting from 1s IP rating: IP54

€150.40 €188.00

View product

LR8515

HIOKI LR8515 - Bluetooth Voltage/Temperature Logger

Compact 2-channel data logger, voltage, temperature (thermocouples K, T) logging, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€548.00

View product

[ { "item_id": "LR8450-01", "item_variant": "6c8978716674490fb932d4fa08cdc62f", "item_name" : "HIOKI LR8450-01 - Wireless modular multi-channel Data Logger", "index" : 0, "item_brand" : "", "price" : 2268, "quantity" : 1 }, { "item_id": "LR8450", "item_variant": "95d03f4c720f49a3b4d01888dde20fe1", "item_name" : "HIOKI LR8450 - Modular multi-channel Data Logger", "index" : 1, "item_brand" : "", "price" : 1908, "quantity" : 1 }, { "item_id": "MR8848", "item_variant": "f39a881929394ea09e0f5f8884996360", "item_name" : "HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design", "index" : 2, "item_brand" : "", "price" : 7928, "quantity" : 1 }, { "item_id": "LR8432", "item_variant": "2e482248dd3d4d36bd00c2606f0f3352", "item_name" : "HIOKI LR8432 - Handheld 10-channel Data Logger with native support for heat flow sensors", "index" : 3, "item_brand" : "", "price" : 1748, "quantity" : 1 }, { "item_id": "LR8431", "item_variant": "e76095bef6dc46f288ce46cbefc59409", "item_name" : "HIOKI LR8431 - Handheld 10-channel Data Logger for voltage, temperature and pulse logging", "index" : 4, "item_brand" : "", "price" : 1428, "quantity" : 1 }, { "item_id": "MR8870", "item_variant": "da58788669764f009c76cad9f7eaec12", "item_name" : "HIOKI MR8870 - Handheld 2-channel memory recorder with RMS data logging, 1 MS/s", "index" : 5, "item_brand" : "", "price" : 1318, "quantity" : 1 }, { "item_id": "MR8880", "item_variant": "febeaeeffa734ec4bad086644c929ebd", "item_name" : "MR8880 - Portable Memory Recorder, 4 Channels", "index" : 6, "item_brand" : "", "price" : 3278, "quantity" : 1 }, { "item_id": "MR8875", "item_variant": "43e4319cf15b475c9f644aeee6ebc769", "item_name" : "MR8875 - Portable, modular memory recorder, 500 kS/s, 16 isolated ch., 1000 V direct input, touchscreen", "index" : 7, "item_brand" : "", "price" : 4998, "quantity" : 1 }, { "item_id": "LR8512", "item_variant": "5e9e1dbde2f74b89b4237683adbc5ace", "item_name" : "HIOKI LR8512 - Wireless Pulse Logger", "index" : 8, "item_brand" : "", "price" : 418, "quantity" : 1 }, { "item_id": "LR8513", "item_variant": "29110472bfdf4e3ea72f2592755644e1", "item_name" : "HIOKI LR8513 - 2-channel Bluetooth logger for current sensors", "index" : 9, "item_brand" : "", "price" : 488, "quantity" : 1 }, { "item_id": "LR5011", "item_variant": "8a39049da57d4f4bbae271ba461e7da7", "item_name" : "LR5011 - TEMPERATURE LOGGER ", "index" : 10, "item_brand" : "", "price" : 150.4, "quantity" : 1 }, { "item_id": "LR8515", "item_variant": "2e3333ba00534ca3834504f9d23331d4", "item_name" : "HIOKI LR8515 - Bluetooth Voltage/Temperature Logger", "index" : 11, "item_brand" : "", "price" : 548, "quantity" : 1 } ]

Understanding Your DAQ Tasks: Data Loggers or Recorders?

Choosing the right instrument begins with understanding the nature of your measurement challenge. Hioki offers two complementary families of DAQ instruments, each engineered for a distinct set of maintenance scenarios.

	Data Loggers	Memory Recorders
Best for	long-term logging, slow-changing signals	high-speed, synchronous measurement
Max. sampling rate	1 ms	200 MS/s
Max. channels	2 to 3000	2 to 108
Recording duration	Long-term (days, months)	Short to mid-term (minutes, hours)
Isolation	100 VDC, Multiplexed*	1000 VDC, 700 VAC Fully isolated

^{* Except M7103 Power Module for LR810x Data Logger Series}

Both HIOKI Data Loggers and Memory Recorders are available as fixed-configuration systems or modular systems. Check the right solution for your measurement task:

When to use a fixed configuration?

Fixed configurations are a simple and efficient solution for standard applications with predefined inputs and channel counts.

✓ Cost-effective solution – lower initial investment

✓ Ready to use – quick deployment, no configuration needed

✓ Simple operation – easy setup and handling

✓ Compact and portable – optimized design for field use

✓ Reliable for dedicated tasks – perfect for applications with stable, defined measurement requirements

When to use modular systems?

Modular systems provide maximum flexibility, allowing you to tailor and adjust the DAQ system exactly to your application requirements.

✓ Customizable configuration – select the channels and signal types you need

✓ Scalable system design – easily expand channel count or parameters

✓ Flexible signal combination – mix different input modules for multi-parameter measurements

✓ Future-proof investment – adapt your system to new tasks without replacing the device

✓ Versatile for complex applications – ideal for diverse testing scenarios with changing requirements

Data Loggers for Reliable Long-Term Monitoring

HIOKI Data Loggers are designed for precise, continuous measurement of electrical and physical parameters in maintenance, service, and testing applications. Whether you need to monitor slow-changing signals over hours or months or capture multiple measurement points simultaneously, these devices provide dependable data acquisition with high accuracy and stability.

Record for days, months or years
Up to 3000 channels
Compact & portable
Quick & easy setup
Up to 1 ms update interval
Flexible power supply

MODULAR DATA LOGGERS Fixed Configuration DATA LOGGERS MODULAR DATA LOGGERS MEMORY RECORDERS

Simple, Reliable, Ready to Deploy

Fixed configuration loggers offer a reliable, all-in-one form factor that is ready to deploy straight out of the box. Ideal for standard monitoring tasks where channel count and input types are well defined.

	LR8431	LR8432	LR8512	LR8513	LR8514	LR8515
Measurement items	Voltage, temperature, 4-20 mA, pulse	Voltage, temperature, 4-20 mA, heat flow, pulse	Pulse / rotation	Current	Temperature, humidity	Voltage & temperature (thermocouples)
Channels	10		2	2	2 (temp+RH)	2
Update interval	10 ms		0.1 s	0.5 s	0.5 s	0.1 s
Max voltage input	30 Vrms or 60 VDC		50 VDC	-	-	50 VDC
Power supply	AC adapter, DC cable, battery pack		AC, AA batteries
Memory storage	3.5 Mwords (internal), CF card, USB, PC*		500,000 data items for each channel (non-volatile)
Interface	USB		Bluetooth

LR8432

HIOKI LR8432 - Handheld 10-channel Data Logger with native support for heat flow sensors

10-channel handheld data logger for voltage / temperature plus 4 channels for pulse / rotation, direct input of heat flow sensors, isolated inputs, up to 60 VDC, max. update interval 10 ms, up to 16 GB USB storage capacity, LCD display, signal input via M3 screw terminals, optional battery pack

€1,748.00

View product

LR8431

HIOKI LR8431 - Handheld 10-channel Data Logger for voltage, temperature and pulse logging

10-channel handheld data logger for voltage / temperature plus 4 channels for pulse / rotation, isolated inputs, up to 60 VDC, max. sampling speed 10 ms, up to 16 GB USB storage capacity, LCD display, signal input via M3 screw terminals, optional battery pack

€1,428.00

View product

LR8513

HIOKI LR8513 - 2-channel Bluetooth logger for current sensors

Compact 2-channel data logger, AC current logging with BNC current sensors, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€488.00

View product

LR8512

HIOKI LR8512 - Wireless Pulse Logger

Key SpecificationsNumber of channels: 2 (common GND) Measurement items: Integrating (cumulative/instant), revolution, logic Supported input: Non-voltage “a” contact, open collector, voltage input (DC 0 to 50 V) Measurement range: Totalization 0 to 1000 M pulse; revolution 0 to 5000/n r/s Resolution: 1 pulse; 1/n r/s Recording capacity: 500,000 data items per channel Recording interval: 0.1 to 30 s, 1 to 60 min (16 selections)The LR8512 is a compact wireless pulse data logger for precise pulse counting and recording in industrial and energy monitoring applications. It captures pulse signals from energy meters, flow meters, rotary encoders, and logic outputs, supporting instantaneous pulse counting, totalization (accumulated measurement), and rotation measurement based on pulse frequency. Via Bluetooth®, measurement data can be monitored and collected in real time using a Windows PC or an Android device. With 500,000 data points per channel, extended recording periods are possible. Depending on the selected recording interval (0.1 s to 60 min), maximum recording time ranges from 13 h 53 min up to over 365 days. Selectable recording modes allow either one-time recording (stop when memory is full) or endless recording (automatic overwrite of oldest data). The logger is battery-operated and well suited for mobile or hard-to-access installations. For continuous operation, the optional Z2003 AC Adapter (power cord attached) can be ordered separately. Time-controlled activation of Bluetooth® helps extend battery life. The included Logger Application Disc (DVD) contains the Instruction Manual (PDF), Logger Utility software, Wireless Logger Collector, and the Logger Utility User Manual. Typical applications include energy monitoring, consumption analysis, flow rate monitoring via pulse output (daily fluctuations), machine runtime tracking, speed measurement, and industrial signal logging. Optional accessories: Z2003 AC Adapter (power cord attached) Z5004 Magnetic Strap Z5020 Magnetic Strap (extra strength) L1010 Connection Cable (approx. 1.5 m)"

€418.00

View product

LR8515

HIOKI LR8515 - Bluetooth Voltage/Temperature Logger

Compact 2-channel data logger, voltage, temperature (thermocouples K, T) logging, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€548.00

View product

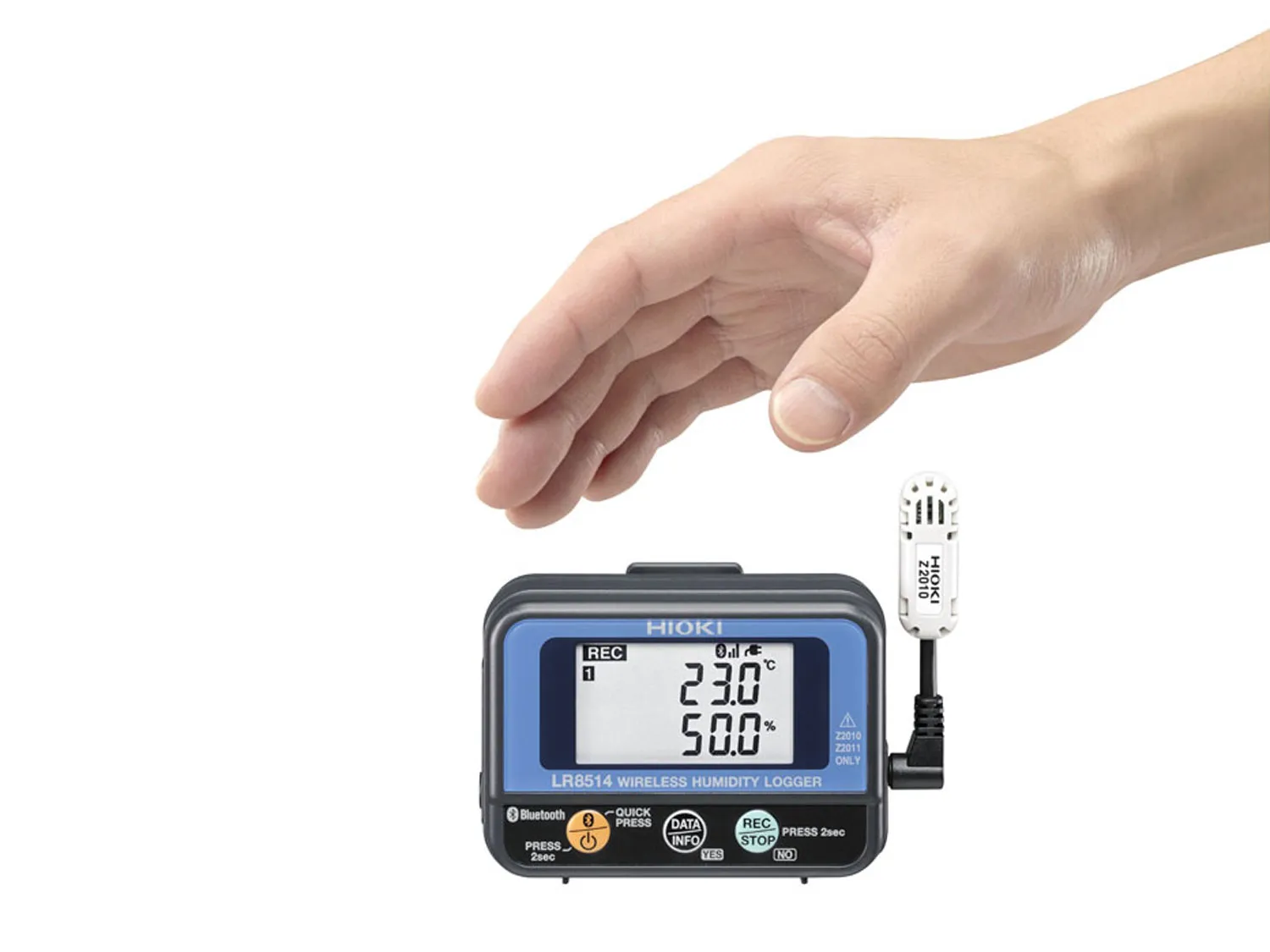

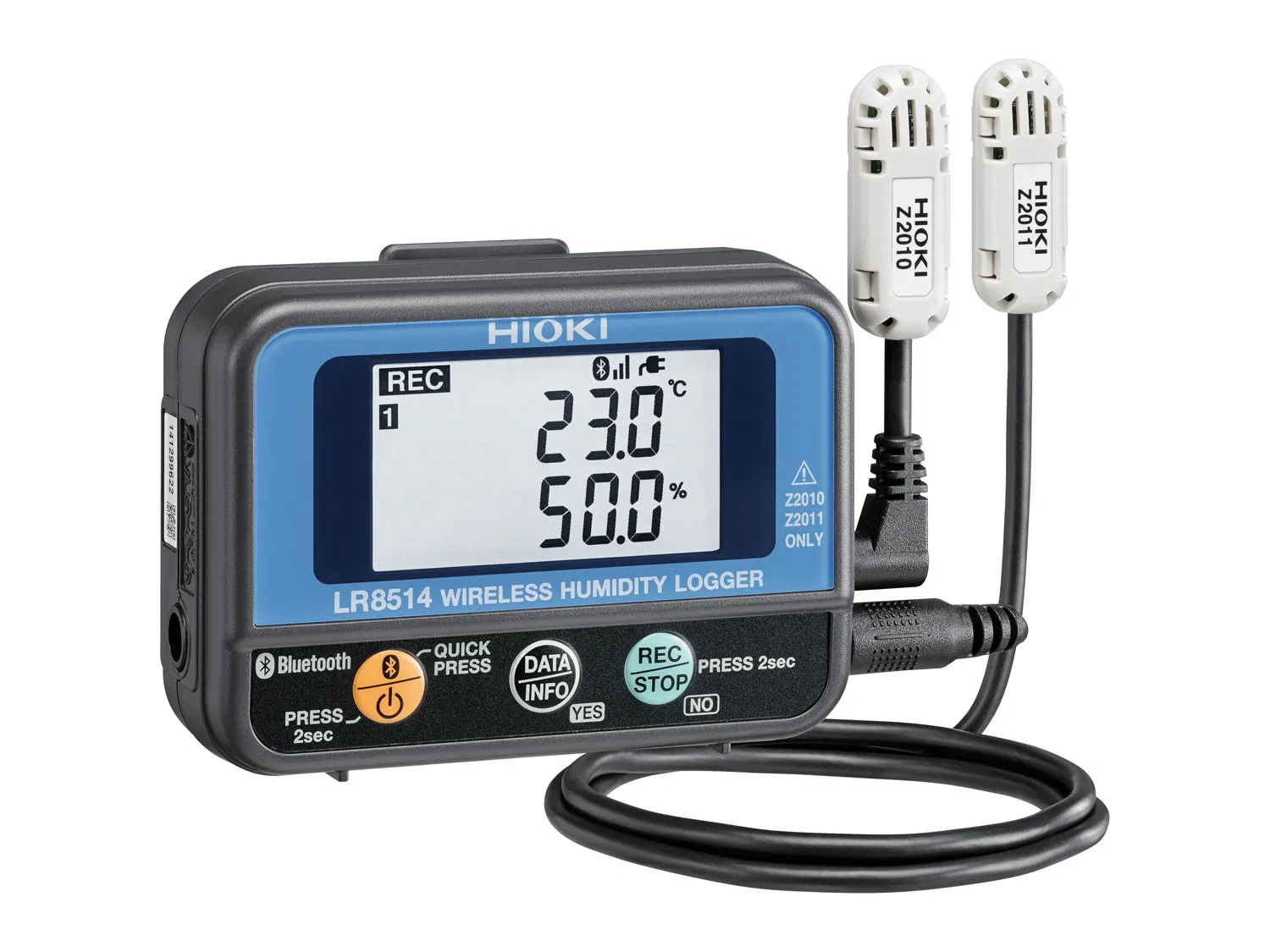

LR8514

HIOKI LR8514 - Wireless Temperature and Humidity Data Logger with 500,000 Data Points per Channel

Key SpecificationsNumber of channels: 2 ch (temperature) + 2 ch (humidity) Measurement items: Temperature, humidity Measurement range: Temperature −40 °C to 80 °C; humidity 0 to 100 %RHResolution: Temperature 0.1 °C; humidity 0.1 %RH Measurement accuracy (with Z2010/Z2011): Temperature ±0.5 °C (10 to 60 °C); humidity ±3 %RH (20 to 30 °C, 20 to 90 %RH) Recording capacity: 500,000 data items per channel • Recording interval: 0.5 to 30 s, 1 to 60 min (14 selections) The LR8514 is a compact wireless temperature and humidity data logger designed for precise environmental monitoring in industrial, laboratory, and facility management applications. Used with the Z2010 or Z2011 humidity sensor, it enables accurate measurement of relative humidity and temperature at up to two sensor positions for comparison purposes. With 500,000 data points per channel, long-term environmental recording is ensured. Depending on the selected recording interval (0.5 s to 60 min), maximum recording time ranges from 13 h 53 min up to over 365 days. Selectable recording modes allow one-time recording (stop when memory is full) or endless recording (overwrite oldest data automatically).The logger is battery-operated and suitable for flexible installation without permanent wiring. For continuous operation, the optional Z2003 AC Adapter (power cord attached) can be ordered separately. Time-controlled Bluetooth® activation supports extended battery life. The included Logger Application Disc (DVD) contains the Instruction Manual (PDF), Logger Utility software, Wireless Logger Collector, and the Logger Utility User Manual. Humidity sensor (Z2010/Z2011) is not included and must be ordered separately. Typical applications: climate monitoring, warehouse monitoring, production environment control, test chambers, and laboratory monitoring. Optional accessories: Z2010 Humidity Sensor (approx. 50 mm) Z2011 Humidity Sensor (cable length approx. 1.5 m) Z2003 AC Adapter (power cord attached) Z5004 Magnetic Strap Z5020 Magnetic Strap (extra strength)"

€358.00

View product

Data Loggers Fixed Configuration DATA LOGGERS MODULAR DATA LOGGERS MEMORY RECORDERS

Tailored Data Acquisition for Complex Tasks

Two modular data logger options are available in the LR8450 series - choose between the flexible plug-in LR8450 Data Logger or the advanced wireless solution with LR8450-01 for maximum scalability. Both allow combining a large number of different measurement parameters.

	LR8450 Data Logger	LR8450-01 Wireless Data Logger
Max. number of modules	4 (plug-in)	11 (4 plug-in and 7 wireless)
Pulse inputs, alarm outputs	8 pulse & 8 alarm
Max. voltage input	100 VDC
Interface	USB, LAN	USB, LAN, wireless LAN
Battery	max. 2 battery packs (main unit)

8 Module Types for Flexible Measurement Configurations

Whether you want to measure voltage, temperature, humidity, resistance, heat flow, pulse, or CAN signals, there is always a suitable module available for your application. The LR8450 series offers 8 different module types, each available as both plug-in and wireless versions giving you full flexibility. Discover the LR8450 modules

LR8450

HIOKI LR8450 - Modular multi-channel Data Logger

Multi-channel data logger, connect up to 4 plug-in modules with up to 120 analog channels, max. 1 ms update interval, max. 100 VDC, 8 inputs for pulse/logic/rotational speed, 7“ TFT-Display, GigabitLAN und USB / SD card, optional battery operation.

€1,908.00

View product

LR8450-01

HIOKI LR8450-01 - Wireless modular multi-channel Data Logger

WLAN-enabled multi-channel data logger with up to 4 plug-in and 7 WLAN modules (maximum 330 channels), 1 ms sampling interval, 100 VDC, 8 inputs for pulse/logic/rotational speed, 7″ TFT display, Gigabit LAN, USB/SD, optional battery operation.

€2,268.00

View product

MEMORY RECORDERS Fixed Configuration MEMORY RECORDERS MODULAR MEMORY RECORDERS DATA LOGGERS

Memory Recorders for Dynamic Signal Analysis

HIOKI Memory Recorders are oscilloscope-like DAQ devices designed for capturing fast-changing and transient signals in maintenance, and testing applications. They combine high sampling rates with multi-channel capability, enabling precise time-synchronous analysis of electrical and physical phenomena. Whether analyzing inrush currents or dynamic system responses, these instruments deliver reliable, high-resolution data.

Update interval up to 200 MS/s
Up to 1000 VDC
Time-synchronous measurement
Bandwidth up to 30 MHz
Signal generation
Up to 24-bit resolution

06_HIOKI-Memory-Recorder-MR8848_img1_2-1_1920x960

Memory Recorders Fixed Configuration MEMORY RECORDERS MODULAR MEMORY RECORDERS DATA LOGGERS

Fast, Reliable Signal Capture for Monitoring and Analysis

Two fixed-configuration memory recorders are available, offering a choice between a compact solution for basic measurements and a more advanced device for extended channel count and functionality.

	MR8870 Memory Recorder	MR8880 Memory Recorder
Max. channels	2 analog + 4 logic	4 analog + 8 logic
Max. sampling speed	1 MS/s
Max. frequency bandwidth	DC to 50 kHz	DC to 100 kHz
Resolution	12 bits	14 bits
Voltage measurement	100 mV to 500 V, 12 ranges	100 mV to 1000 V, 13 ranges
Memory storage	2 MW/ch. (internal) CF card	1 MW/ch. (internal) CF card, USB
Logging functions	RMS data logging with up to 1000 values per second	Real-time saving on external storage

MR8870

HIOKI MR8870 - Handheld 2-channel memory recorder with RMS data logging, 1 MS/s

Compact memory recorder, 2 isolated analog channels with BNC inputs, 1 MS/s waveform recording and RMS data logging with up to 1000 values per second, max. 300 VAC/DC CAT II, powered by AC, DC or battery

€1,318.00

View product

MR8880

MR8880 - Portable Memory Recorder, 4 Channels

The MR8880 is a 4 channel portable data acquisition system (DAQ) with a maximum sampling rate of 1Msamples/s on all analog channels simultaneously. It has 4 analog direct input channels for voltages up to 600V and 8 logic channels.Technical Details: Complies CAT III 600V isolation for direct measure of 480V power line 4 complete isolated channels Operating temperature range of -10°C to 50°C Built to withstand mechanical shocks and vibrations PRESET function A memory capacity of 14bit × 1 M words/ch (1 word = 2 bytes)

€3,278.00

View product

Memory Recorders Fixed Configuration MEMORY RECORDERS MODULAR MEMORY RECORDERS DATA LOGGERS

Flexible High-Speed Analysis for Demanding Applications

Two modular memory recorders are available, offering a choice between a portable solution with flexible input options and a high-channel, high-performance system for more demanding applications.

	MR8875 Memory Recorder	MR8848 Memory Recorder
Device type	Handheld, modular, touchscreen	Rugged, modular, printer option
Measurement items	DC/AC voltage, current, temperature, strain, CAN signals	DC/AC voltage, current, strain, vibration, load, pressure, acceleration, torque, displacement, rotation speed, power frequency, count, pulse duty ratio, pulse width, logic, temperature
Measurement output	-	DC, sine wave, square wave, pulse wave, triangular wave, ramp wave, pattern, pulse, logic, open collector
Max channels	16	32
Max. sampling speed Bandwidth	500 kS/s DC to 100 kHz	20 MS/s DC to 5 MHz
Max. resolution	16 bits	24 bits
Max. voltage input	1000 VDC, 700 VAC	1000 VDC / 700 VAC
Memory storage	32 MW (internal) SD card, USB, PC	512 MW (internal) SSD, SD card, USB, PC
Power supply	AC adapter, DC cable, battery pack	AC adapter, DC power supply unit
Modules	MR8875 modules	MR8848 Modules

MR8875

MR8875 - Portable, modular memory recorder, 500 kS/s, 16 isolated ch., 1000 V direct input, touchscreen

The Hioki MR8875 Memory Recorder is a high-speed, multi-channel logger designed for long-term data recording and real-time waveform monitoring. It supports various input modules for mixed signal measurement, including voltage, temperature, strain, and CAN signals, with a sampling period as short as 2 µs. Its robust design is suitable for harsh environments, making it ideal for applications such as battery evaluation, motor testing, and power equipment analysis. Technical Details: Channels: Up to 60 channels with input modulesSampling Rate: 500 kS/sMemory Capacity: 32 MW (64 MB) Display: 8.4-inch TFT color LCD Storage: SD card, USB memory stick Dimensions: 298 mm × 224 mm × 84 mmWeight: 2.4 kg (excluding modules)

€4,998.00

View product

MR8848

HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design

Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply

Wireless logging: The DAQ game-changer

From distributed data collection to real-time remote monitoring: discover the advantages of wireless data acquisition with the HIOKI LR8450-01, helping engineers measure smarter, faster, and without unnecessary cables. After all, you connect wirelessly almost everywhere else too.

Empower Your Maintenance Strategy with Precision Data Acquisition

Whether you need weeks of unattended monitoring or sub-millisecond transient capture, Hioki has a DAQ solution engineered for the challenge. Select the right tool, capture the right data, and move from reactive to predictive maintenance with confidence.
