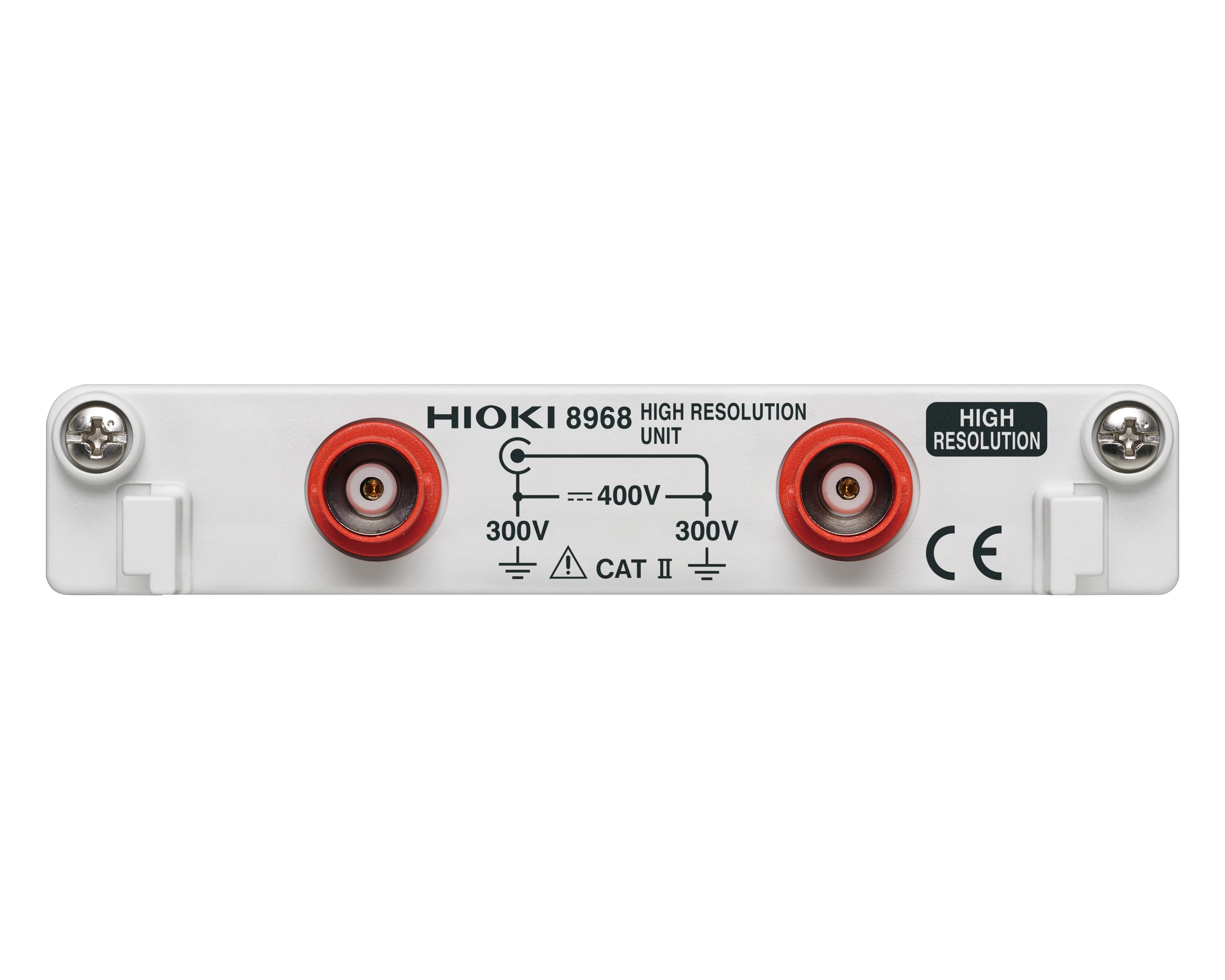

HIOKI 8968 - High Resolution Unit
Description
Product information HIOKI 8968 - High Resolution Unit
The 8968 High Resolution Unit is a 2-channel high-resolution voltage input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827 and MR8740T. It expands the recorder with two electrically isolated voltage input channels optimized for precise and stable signal acquisition.
The module features 16-bit A/D conversion and supports simultaneous sampling on both channels at up to 1 MS/s. The higher amplitude resolution, combined with the sampling rate, enables more detailed analysis of signal changes in both amplitude and time domains compared to standard analog input modules.
With a frequency bandwidth of DC to 100 kHz (–3 dB), the unit is designed for detailed waveform analysis where high resolution is more critical than maximum speed. Twelve measurement ranges from 5 mV/div to 20 V/div allow accurate measurement of low-level signals as well as higher voltage inputs.
The maximum allowable input voltage is 400 V DC between input terminals, with isolation up to 300 V AC/DC to ground.
Typical applications include high-accuracy voltage measurement, analysis of low-level signals, evaluation of power supply stability, ripple and noise analysis, and detailed waveform analysis in research and development environments.
Technical Specifications
- 2-channel isolated voltage input
- Input connector: insulated BNC
- Input impedance: 1 MΩ / 30 pF
- A/D resolution: 16-bit
- Maximum sampling rate: 1 MS/s (simultaneous sampling)
- Frequency bandwidth: DC to 100 kHz (–3 dB)
- Measurement accuracy: ±0.3% of full scale
- Measurement range: 5 mV/div to 20 V/div (12 ranges)
- Maximum allowable input voltage: 400 V DC
- Isolation to ground: 300 V AC/DC
Compatible memory recorders
- MR6000
- MR6000-01
- MR8848
- MR8847A
- MR8827
- MR8740
- MR8741
- MR8740T
What's in the Box
- 8968 High Resolution Unit
-
Product Brochure with Data Sheet, Memory Recorder MR6000 (English)11,517 KB pdf
-
Product brochure with data sheet, Modular Memory Recorder MR8848 (English)5,154 KB pdf
-
Instruction Manual, Modules for Memory Recorders (Japanese, English)2,514 KB pdf
-
Product brochure with datasheet, Memory Recorder MR8740T (English)7,728 KB pdf
