HIOKI U8969 Module for Strain, Load, Pressure, Torque

Skip image gallery

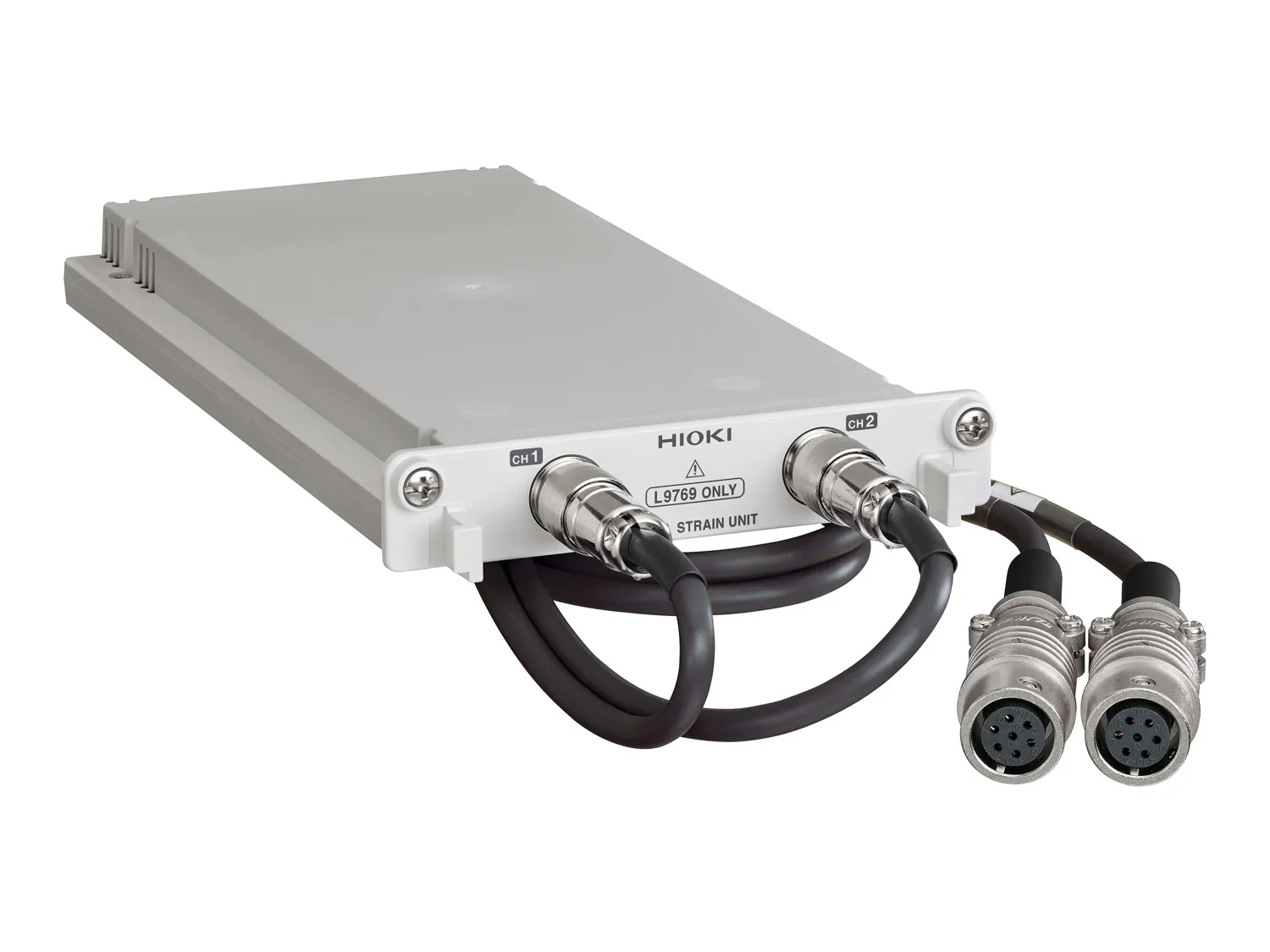

HIOKI U8969 module for strain load pressure torque 2 channels
HIOKI U8969 module for strain load pressure torque 10000 micro strain
HIOKI U8969 module for strain load pressure torque 16 bit with conversion cable L9769
HIOKI U8969 module for strain load pressure torque 2 channels
HIOKI U8969 module for strain load pressure torque 10000 micro strain
HIOKI U8969 module for strain load pressure torque 16 bit with conversion cable L9769
Content: 1 Box
Request a quote
Any questions?
  • Reply within 1 business day
  • European support
Product number: U8969
GTIN/EAN: 4536036011254
Description

Product information HIOKI U8969 Module for Strain, Load, Pressure, Torque

The U8969 Strain Unit is a 2-channel module for strain measurement for the memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741 and MR8740T. It enables measurement of strain signals using strain gauge bridge circuits with electronic auto-balancing. The module supports strain gauge transducers with bridge impedances from 120 Ω to 1 kΩ and a bridge voltage of 2 V. The measurement range covers ±10,000 µε with 16-bit resolution. Simultaneous sampling of both channels is performed at up to 200 kS/s. Integrated low-pass filters (5 Hz, 10 Hz, 100 Hz, 1 kHz) and a frequency characteristic from DC to 20 kHz enable measurement of static and dynamic strain signals.

Typical applications include structural load testing, fatigue analysis, material testing, and analysis of mechanical deformation in multi-channel measurement systems.

Technical specifications

  • Number of channels: 2 (strain measurement, electronic auto-balancing)
  • Measurement range: ±10,000 µε, 20 µε to 1000 µε/div, 6 ranges
  • Sampling rate: 200 kS/s (simultaneous)
  • Resolution: 16 bit (1/1250 of measurement range)
  • Accuracy: ±0.5% f.s. ±4 µε (5 Hz filter)
  • Frequency characteristic: DC to 20 kHz (+1/−3 dB)
  • Low-pass filter: 5 / 10 / 100 Hz, 1 kHz
  • Bridge parameters: 120 Ω to 1 kΩ, 2 V ±0.05 V

Compatible memory recorders MR6000, MR6000-01, MR8848, MR8827, MR8740, MR8741, MR8740T

What's in the Box

  • U8969 Strain Unit
  • 2x Conversion cable L9769

Dimensions & Packaging

Length 196.5 mm
Width 106 mm
Height 19.8 mm
Weight 0.25 kg
Skip product gallery

Related Products

HIOKI L9769 conversion cable MR6000 compatible HIOKI L9769 conversion cable 9 pin male
L9769
HIOKI L9769 - Conversion cable
The L9769 is a conversion cable for the U8969 Strain Unit. It is equipped with a 9-pin m connector and a 7-pin f connector from the Tajimi PRC connector series. The U8969 strain unit can be used with compatible memory recorders including the MR6000, MR6000-01, MR8740, MR8741, MR8827, MR8847A and MR8848. Technical specifications Type: Conversion cable Cable length: 600 mm ±50 mm Connectors: 9-pin m / 7-pin f (Tajimi PRC series) For U8969 strain unit only Related products U8969 Strain Unit MR6000 Memory RecorderMR6000-01 Memory Recorder MR8740 Memory Recorder MR8741 Memory Recorder MR8827 Memory Recorder MR8847A Memory RecorderMR8848 Memory Recorder

€118.00
View product
HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen
MR6000
HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen
Modular memory recorder, up to 32 channels, max. sampling rate 200 MS/s, max 1000 VDC isolated direct voltage input, up to 1 TB storage with SSD option, intuitive user interface, touchscreen, real-time waveform calculation and real-time saving

Request a quote
HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design
MR8848
HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design
Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply

Request a quote

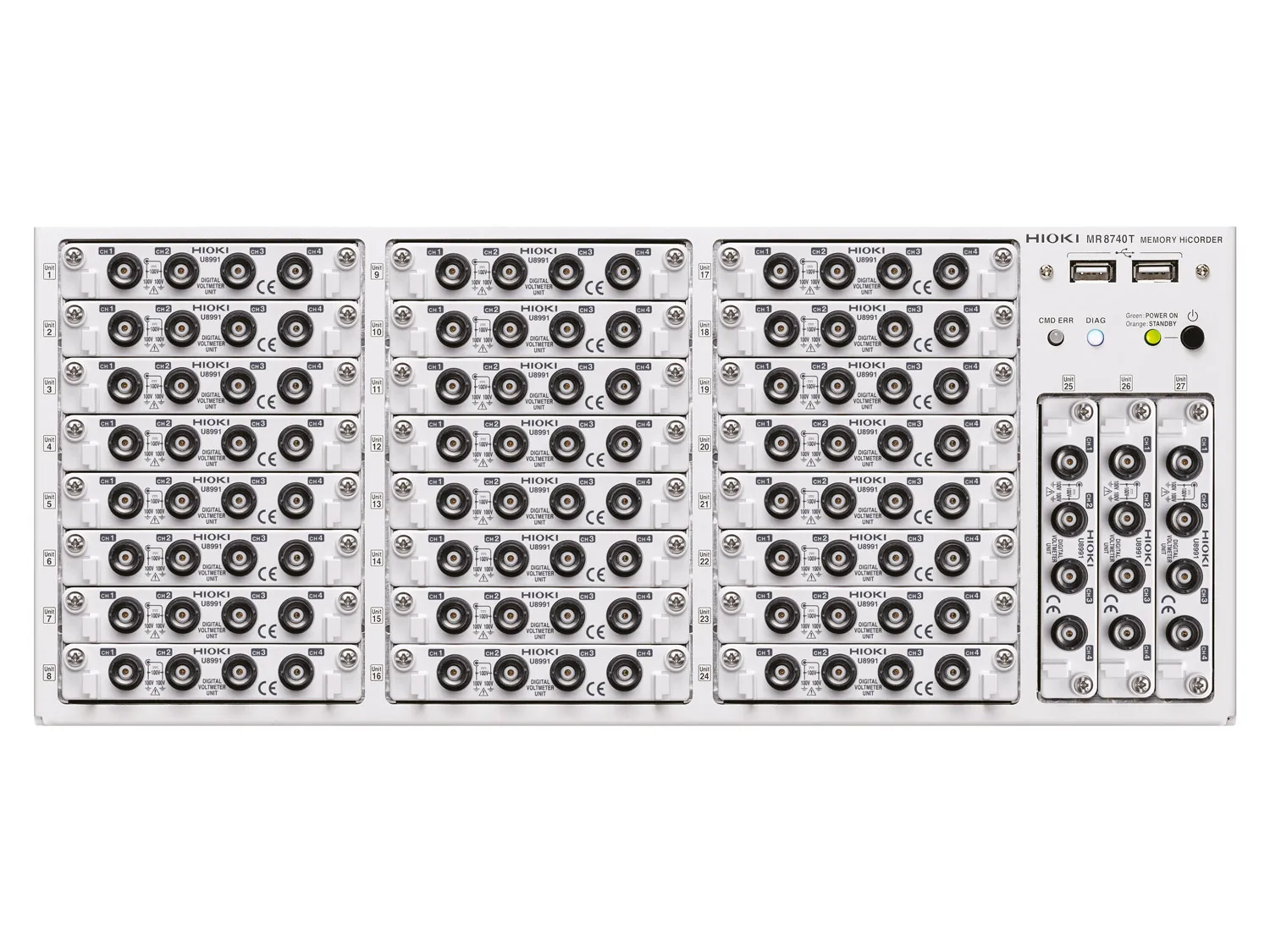

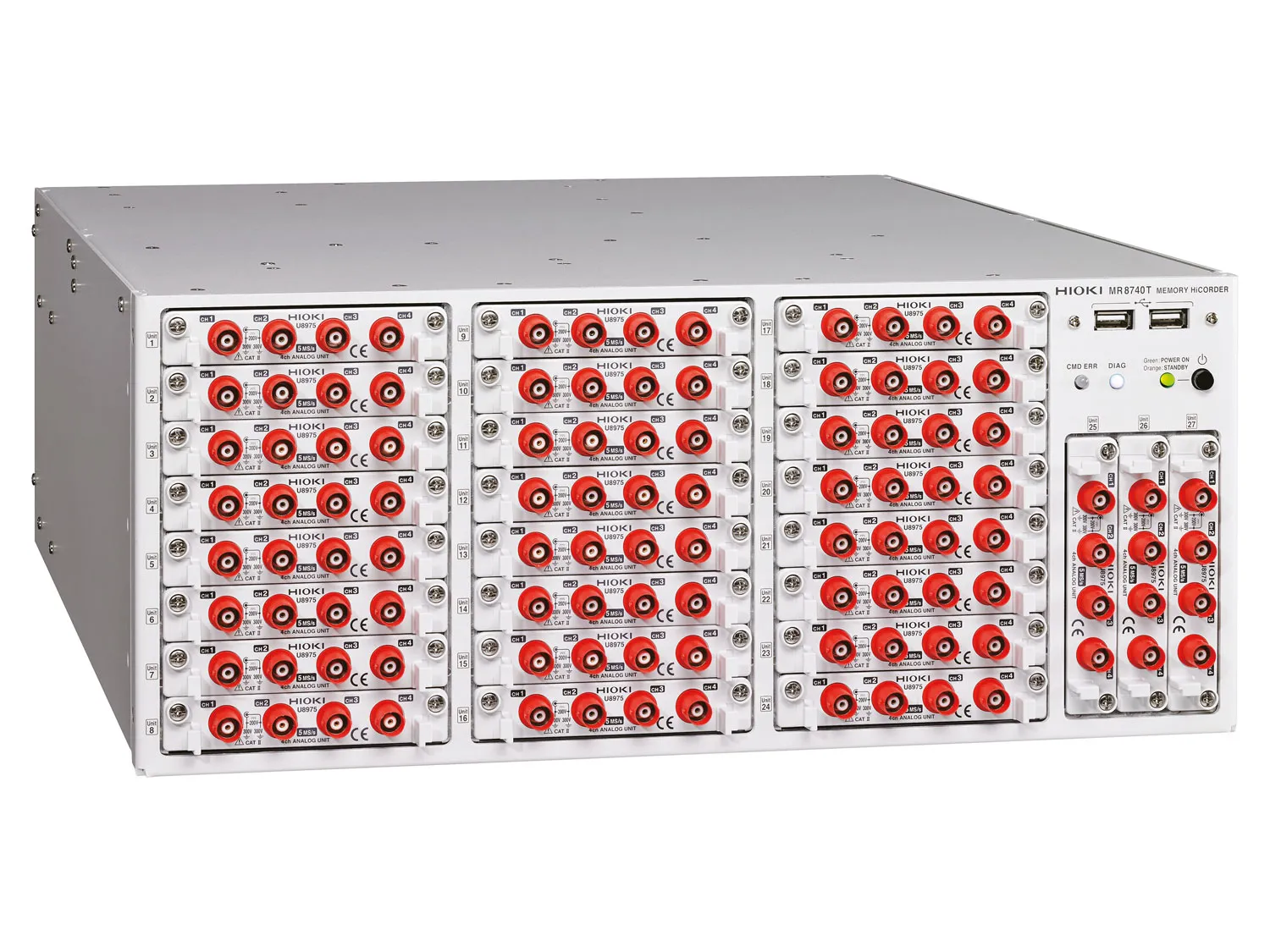

HIOKI MR8740T 108 channel memory recorder 20 MS/s HIOKI MR8740T 108 channel memory recorder compatible with digital voltmeter unit U8991
