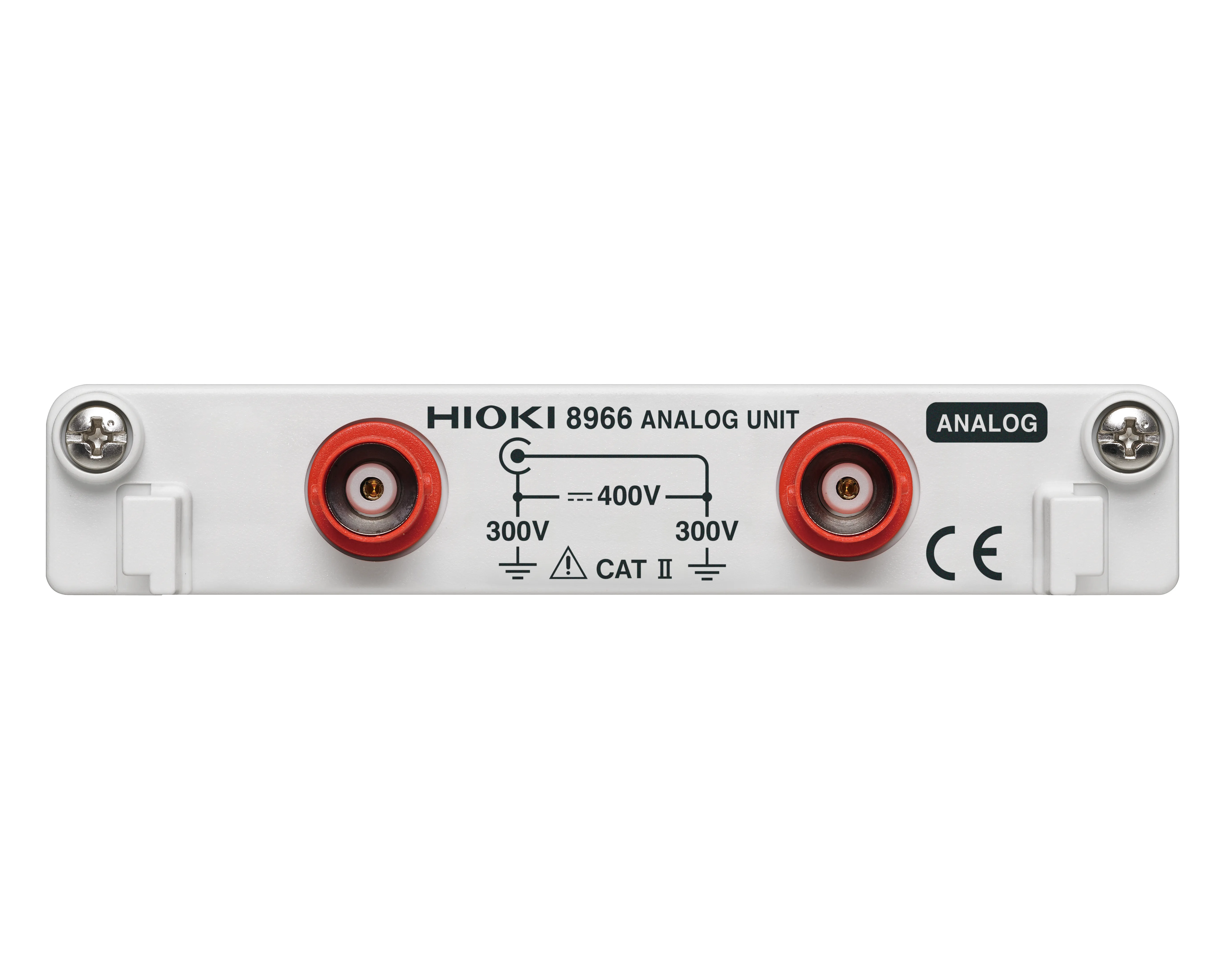

HIOKI 8966 - Analog Unit
Description
Product information HIOKI 8966 - Analog Unit
The 8966 Analog Unit is a 2-channel voltage input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It expands these instruments with two electrically isolated voltage input channels and is designed for high-speed, multi-channel measurements in development, testing and analysis applications.
With a maximum sampling rate of up to 20 MS/s and a frequency bandwidth of DC to 5 MHz (–3 dB), the module is suited for capturing fast signal transitions and transient events in power electronics, control systems and general waveform analysis.
Multiple measurement ranges up to 400 V DC enable flexible integration into various measurement environments. Channel-to-channel isolation allows safe parallel measurements at different potentials.
Typical applications include high-speed voltage measurement, transient waveform capture, signal integrity analysis and validation of analog and control circuits.
Technical Specifications
- 2-channel isolated voltage input
- Input connector: insulated BNC
- A/D resolution: 12-bit
- Maximum sampling rate: 20 MS/s
- Frequency bandwidth: DC to 5 MHz (–3 dB)
- Measurement accuracy: ±0.5% of full scale
- Measurement range: 5 mV to 20 V/div (12 ranges)
- Maximum allowable input: 400 V DC
Compatible memory recorders:
- MR6000
- MR6000-01
- MR8848
- MR8847A
- MR8827
- MR8740
- MR8741
- MR8740T
What's in the Box
- 8966 Analog Unit
