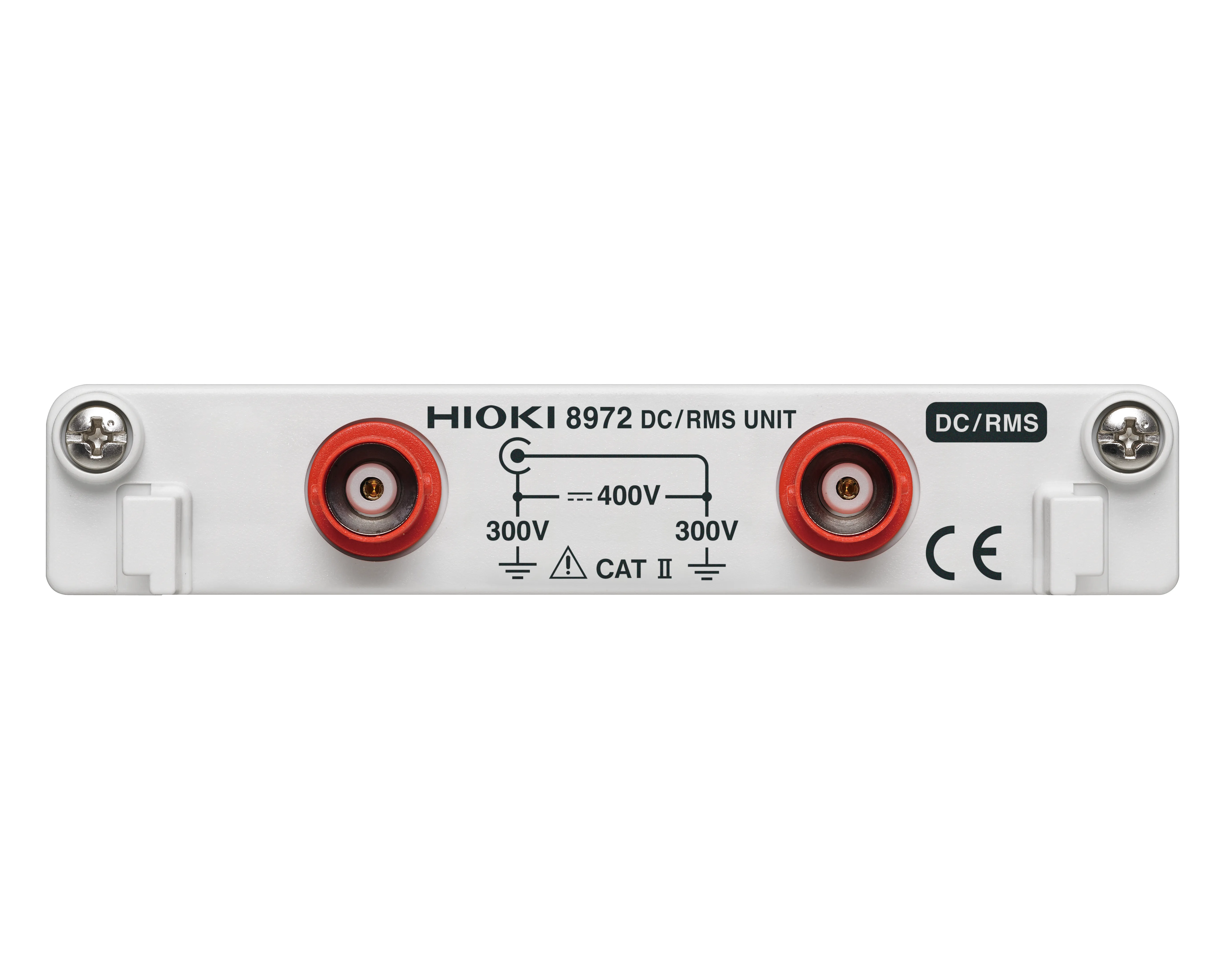

HIOKI 8972 - DC/RMS Unit
.jpg "HIOKI 8972 - DC/RMS Unit")
Content:
1 Each
Product number:
8972
Length:
207.5 mm
Width:
106 mm
Height:
19.8 mm
Description
Product information HIOKI 8972 - DC/RMS Unit
The 8972 DC/RMS Unit is a 2-channel DC and RMS voltage measurement module for the memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848. It enables both instantaneous waveform measurement and RMS evaluation via two electrically isolated input channels.
The module features a wide-bandwidth RMS measurement circuit that supports DC and AC signals from around 30 Hz up to 100 kHz without requiring external signal conditioning. With a measurement range from 5 mV to 20 V/div and 12 selectable ranges, it can capture everything from small signal details to higher voltages. Simultaneous sampling at up to 1 MS/s on both channels allows detailed waveform and RMS analysis.
The high isolation rating of up to 300 V AC/DC to ground and maximum allowable input voltage of 400 V DC between input terminals ensures safe operation even in demanding electrical environments. RMS amplitude accuracy supports precise evaluation of both DC and AC components.
Typical applications include comprehensive DC and AC voltage monitoring, RMS waveform analysis, verification of PWM and switching signals, and performance evaluation in power electronics and test bench environments.
Technical Specifications
- RMS measurement bandwidth: DC, 30 Hz to 100 kHz
- Measurement range: 5 mV/div to 20 V/div (12 ranges)
- Maximum sampling rate: up to 1 MS/s
- RMS amplitude accuracy: ±1 % f.s.
- Input connectors: Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF)
- Low-pass filter: 5 Hz, 50 Hz, 500 Hz, 5 kHz, 100 kHz
- Maximum rated voltage to ground: 300 V AC/DC (CAT II)
- Maximum allowable input voltage between terminals: 400 V DC
Compatible memory recorders
- MR6000
- MR6000-01
- MR8740T
- MR8740
- MR8741
- MR8827
- MR8847A
- MR8848
What's in the Box
- 8972 DC/RMS Unit
