HIOKI 3276 - AC/DC Current Probe, 30 A / 100 MHz
Product information HIOKI 3276 - AC/DC Current Probe, 30 A / 100 MHz
Key Specifications
- DC to 100 MHz bandwidth
- 10 mA to 30 A measurable current
- Standard BNC output for all kind of oscilloscopes
Typical Applications
- Power supplies (switching and linear)
- Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
- Power inverters/converters
- Industrial/consumer electronics
- Mobile communications (phone, satellite, relay stations)
- Motor drives - Mobility systems (EVs, electric trains, avionics)
| Model | Rated current / ranges | Bandwidth | Rise time | Max. conductor diameter | Sensing method | Suitable power supplies |
|---|---|---|---|---|---|---|
| CT6711 | 0.5 / 5 / 30 A | DC – 120 MHz | ≤ 2.9 ns | Ø 5 mm | Hall element | 3269 |
| CT6710 | 0.5 / 5 / 30 A | DC – 50 MHz | ≤ 7.0 ns | Ø 5 mm | Hall element | 3269 |
| CT6701 | 5 A | DC – 120 MHz | ≤ 2.9 ns | Ø 5 mm | Hall element | 3269, 3272 |

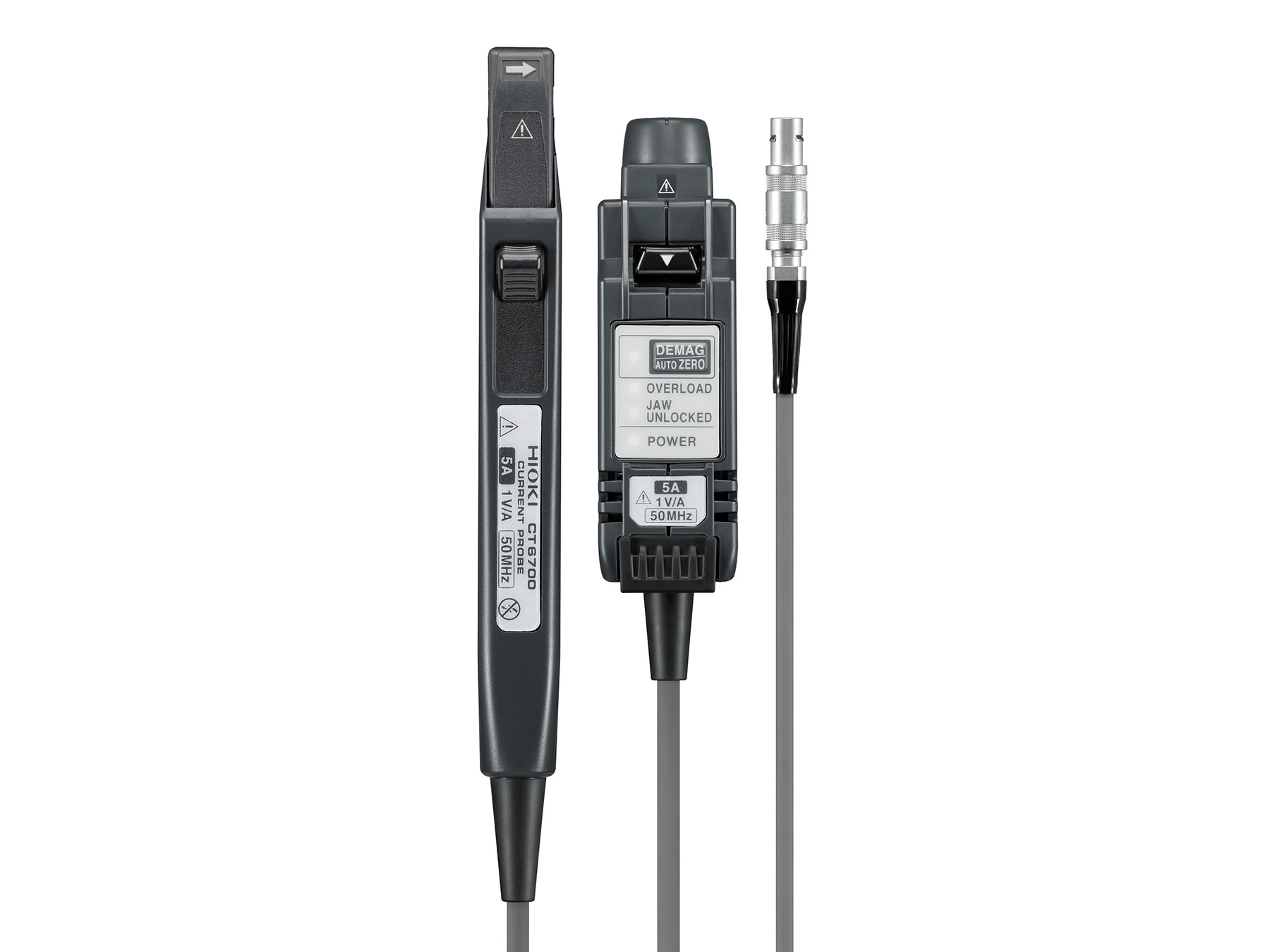

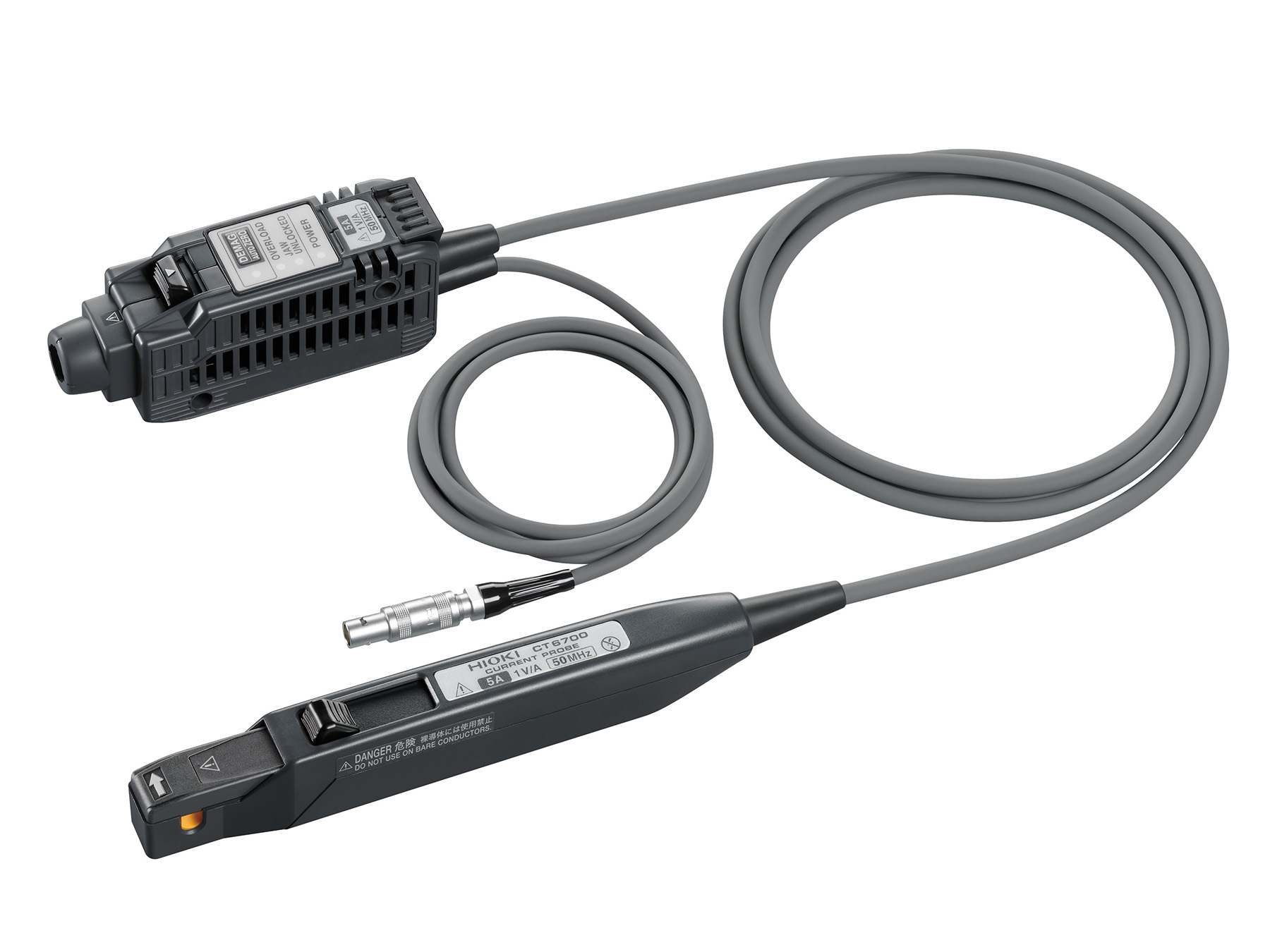

| CT6700 | 5 A | DC – 50 MHz | ≤ 7.0 ns | Ø 5 mm | Hall element | 3269, 3272 |
| 3276 | 30 A | DC – 100 MHz | ≤ 3.5 ns | Ø 5 mm | Hall element | 3269, 3272 |
| 3273-50 | 30 A | DC – 50 MHz | ≤ 7.0 ns | Ø 5 mm | Hall element | 3269, 3272 |
| CT6704 | 200 A | DC – 30 MHz | ≤ 11.6 ns | Ø 20 mm | Fluxgate | 3269 |
| CT6705 | 500 A | DC – 15 MHz | ≤ 23.3 ns | Ø 20 mm | Fluxgate | 3269 |
Detailed Product Overview
Zero-flux Current Clamps: Accuracy without effort from mA to kA
Measuring currents from 200 µA to 500 A with up to 120 MHz bandwidth
- 3276 with hard shell case
- Instruction manual
Dimensions & Packaging
| Length | 175 mm |
|---|---|
| Width | 18 mm |
| Height | 40 mm |
| Weight | 0.24 kg |
