Top Seller
3269
3269 - Power Supply for Current Probes, 2500 mA
Banner Specs: Linear regulated power supply 2500 mA total maximum output current 12 VDC output voltageIn detail:The HIOKI 3269 Power Supply Unit is a linear-regulated power source, engineered to
provide stable power for HIOKI Hall-sensor-based zero-flux current probes. With an output of
12 VDC and a total maximum current of 2500 mA, it delivers the consistent power necessary
for precision measurements. Designed with four channels that share this total output, the
3269 supports efficient multi-sensor setups. Each channel includes a 2-pin LEMO connector,
customized for secure and reliable connections with HIOKI sensors. Ideal for demanding
applications, this unit enhances sensor performance, ensuring high accuracy in controlled
environments. The HIOKI 3269 Power Supply Unit supports powering multiple HIOKI sensors, though the
number of probes it can support simultaneously varies depending on the individual sensor's
power consumption. When using a single type of probe per power supply, the following
configuration limits apply: • CT6710 and CT6711: Up to 2 probes (each with approx. 650 mA consumption) • CT6700 and CT6701: Up to 4 probes (each with approx. 250 mA consumption)• 3273-50 and 3274: Up to 4 probes (each with approx. 450 mA consumption) • 3275: Up to 4 probes (each with approx. 600 mA consumption) • 3276: Up to 4 probes (each with approx. 450 mA consumption) Caution: HIOKI introduced the 2-pin LEMO connector for supplying power to Hall-sensorbased zero-flux current probes in the late 1990s. Today, many current sensors carrying other
brand names use the same connector type, often with the same supply voltage and polarity
as HIOKI. However, some sensors from third parties may have different specifications.
Always verify compatibility to prevent damage or malfunction.
LR8431-20
LR8431 - Handheld 10-channel Data Logger for voltage, temperature and pulse logging
Banner Specs 10 isolated analog & 4 pulse channels 10 ms update interval 5 voltage ranges, 100 mV to 60 VDC (direct input) Smallest voltage resolution: 5 µV
- 16-bit resolution Applications Long-term autonomous logging of voltages Temperature monitoring with thermocouples Smallest voltage rangeDirect input for
heatflow sensorsLR8431100 mV-LR843210 mVjaIn detail:The HIOKI LR8431 Data Logger is a compact, high-performance data logger designed for
precise and efficient multi-channel data collection. It features 10 isolated analog and 4 pulse
channels, allowing for comprehensive monitoring across various parameters. The device
supports real-time data recording at an impressive 10 ms update interval, making it ideal for
capturing fast-changing signals. With a smallest voltage resolution of 5 µV and the capability
to handle direct voltage inputs in 5 ranges from 100 mV to 60 VDC, it offers versatility for a
wide range of industrial applications. The logger can be powered in multiple ways, offering flexibility and convenience for users in
different settings. It comes with an included AC adapter that supports voltages from 100 to 240
V AC. Additionally, the logger can be powered by an optional battery pack for portable use,
providing up to 2.5 hours of continuous operation. For longer use in field applications or in
vehicles, the LR8431 also accepts a wide range DC power input from 10 to 16 V DC, ensuring
reliable operation in various scenarios. Analog voltage signals as well as various types of thermocouples are connected to the logger's
input via M3 screw terminals. Equipped with a 16-bit delta-sigma A/D converter and proprietary
digital filtering technology, the LR8431 effectively reduces noise, including inverter switching noise and line-frequency hum. This ensures that measurements remain accurate and reliable,
even in electrically noisy environments. The LR8431 offers multiple storage options up to 16 GB of capacity, ensuring that users can
log large amounts of data without interruption. Additionally, the integrated software facilitates
seamless data analysis, enhancing the overall user experience. Its portability and robust
features make the Data Logger LR8431 a valuable tool for professionals in fields like
automotive testing, electronics, and HVAC system evaluation.
9465-10
9465-10 - Straight Test Lead with Pogo Pins
The 9465-10 test lead with straight pogo-pin tips is designed for use with the portable
BT3554 battery testers and RM3548 resistance meters. Rated for a maximum voltage of 60
VDC, it has a total length of approximately 1900 mm, providing ample flexibility to connect
the instrument to the test object, even in hard-to-reach areas.The gold-plated pogo-pin tips, with a coaxial structure featuring a SENSE terminal at the
center and a SOURCE terminal on the outer edge, have a diameter of just 2.9 mm. This
design makes them ideal for measurements on battery contacts with very limited accessible
surface and allows measurements through an inspection hole made in a battery connector
cover without requiring the removal of the cover. The probe tips of the cable are replaceable (replacement tip 9465-90), ensuring a long
service life. Technical Details: Type: Straight test lead with pogo pins, total length 1900 mm Maximum rated voltage: 60 VDC Split-to-probe length: Approx. 100 mm (red), 550 mm at maximum (black)Plug-to-split length: Approx. 1660 mm Contact pressure (approx.): Initial 190 g, total 250 g, stroke 1 mm Pin tips: pogo pins (one on each tip), diameter 2.9 mm, length 13.5 mm For use with: BT3554-50, BT3554-51, BT3554-52, BT3554-91, BT3554-92, RM3548,
RM3548-50 Also compatible with: BT3554, BT3554-01, BT3554-10, BT3554-11, 3554

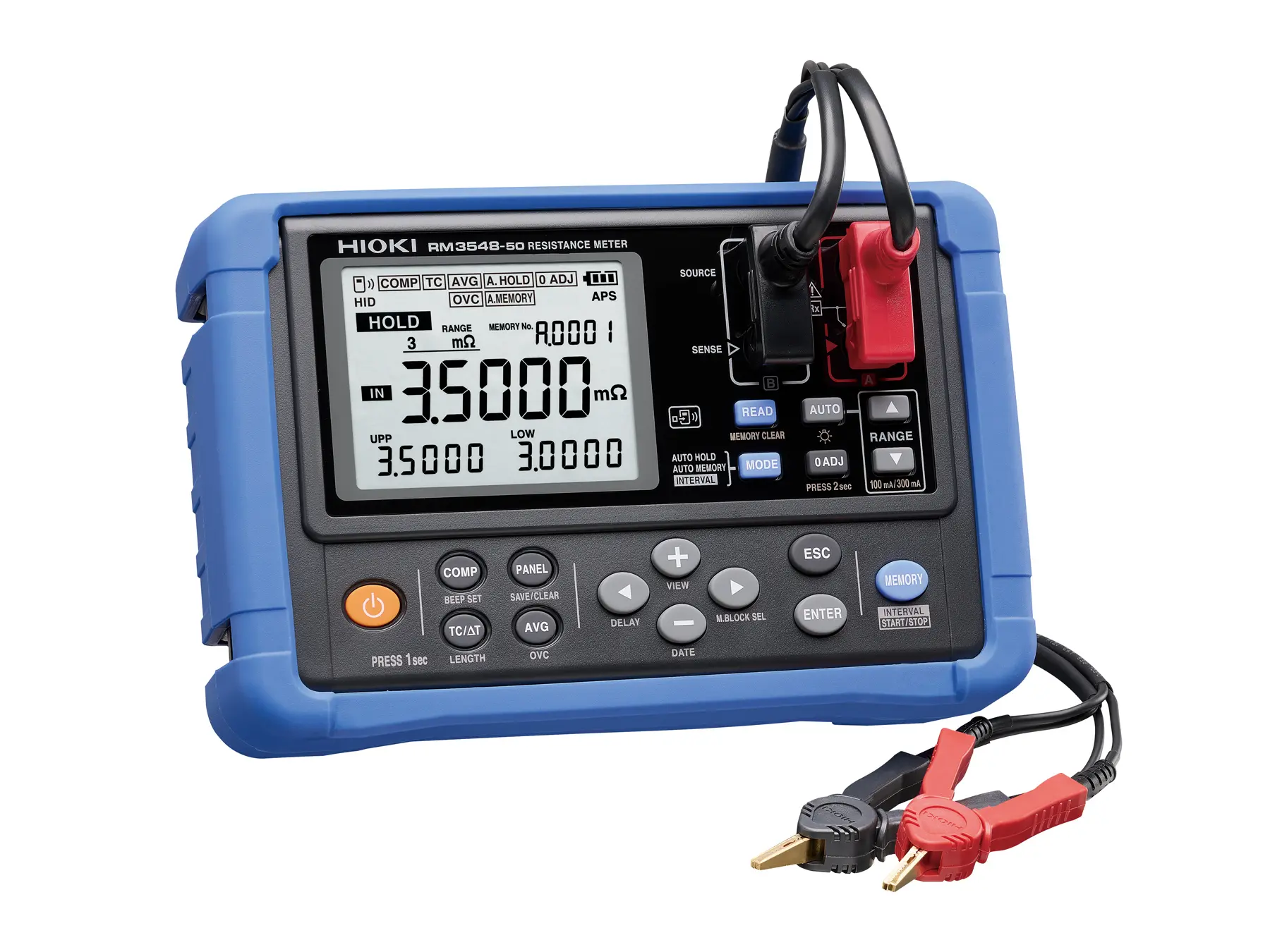

RM3548
RM3548 - Portable Resistance Meter
Handheld four-wire DC milliohm meter, test current range 500 nA to 1 A, ten resistance
ranges from 3 mOhm to 3 MOhm Banner Specs (= Attributes) 0.02% basic accuracy test current range 500 nA to 1 A 10 resistance ranges from 3 mOhm to 3 MOhm 0.1 µOhm maximum resolution USPs Only portable meter for low resistances with high accuracies Withstand DC voltages of up to 70 V Applications High voltage connection tests in EVs Motor Winding tests Cable length testing Mechanical connection tests In detail:The HIOKI RM3548 Resistance Meter is a portable, highly sensitive milliohm meter designed
for precise small resistance measurements. It delivers a basic accuracy of 0.02% and a
resolution of 0.1 μΩ, covering a range from 3 mΩ to 3 MΩ. This makes it ideal for monitoring
even slight changes in contact resistance, such as in electric vehicles (EVs), motor and
generator windings, or for high-precision cable length measurements.The RM3548 is compact and lightweight. Weighing less than one kilogram, this resistance
meter allows for easy use in hard-to-reach places. Its rugged design and portability make it a
convenient tool for fieldwork and maintenance tasks. With a high current capability of up to 1
A, it can measure low resistance values reliably, making it suitable for checking continuity in
automotive ground lines and inspecting welds in aircraft fuselages.The Resistance Meter RM3548 features temperature correction, ensuring accurate
measurements by adjusting for ambient conditions. It also includes advanced functions like
interval measurement, making it suitable for temperature-rise testing. The device requires no
warm-up or zero adjustments, allowing for immediate operation. With a memory capacity for 1000 data points and easy USB data transfer, the RM3548 is
highly functional for on-site testing. The resistance meter's overvoltage protection up to 70 V
DC and intuitive user interface further enhance its reliability and usability for professionals
working in maintenance and testing applications. This four-wire resistance meter combines
precision, portability, and ease of use, making it a versatile choice for a wide range of
industrial applications.
BT3562A
BT3562A - Battery Tester, 100 V, 3 mOhm
The Hioki BT3562A Battery Tester is an advanced measurement instrument designed for fully automated testing of battery packs, particularly in electric vehicles (xEVs). It simultaneously measures internal resistance and open-circuit voltage (OCV), covering resistance ranges from 3 mΩ to 3 kΩ and voltage ranges of 6 V, 60 V, and 100 V DC. With a fast measurement speed of approximately 10 ms and a sampling rate of up to 4 ms in ""Extra-FAST"" mode, the BT3562A offers superior performance compared to many competing products. Its LAN interface facilitates easy integration into network systems, and its high tolerance to line resistance ensures robustness in complex testing setups. Additionally, the device's electrostatic-resistant design protects against damage caused by static discharges, making it highly reliable in production environments. Technical Details: Resistance measuring range: 3 mΩ to 3 kΩVoltage measuring range: 6 V, 60 V, 100 V DC Measurement speed: 10 ms Sampling rate: 4 ms in ""Extra-FAST"" mode Interfaces: LAN Features: Electrostatic-resistant design, high tolerance to line resistance
IR4056-20
IR4056 - Digital Insulation Tester
The IR4056 is a digital insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.Technical Details: 5-test ranges: 50 V/100 MΩ to 1000 V/4000 MΩ Digital bar graph PASS/FAIL judgment luminous LCD Continuity check Built-in AC/DC voltage meter (up to 600V)

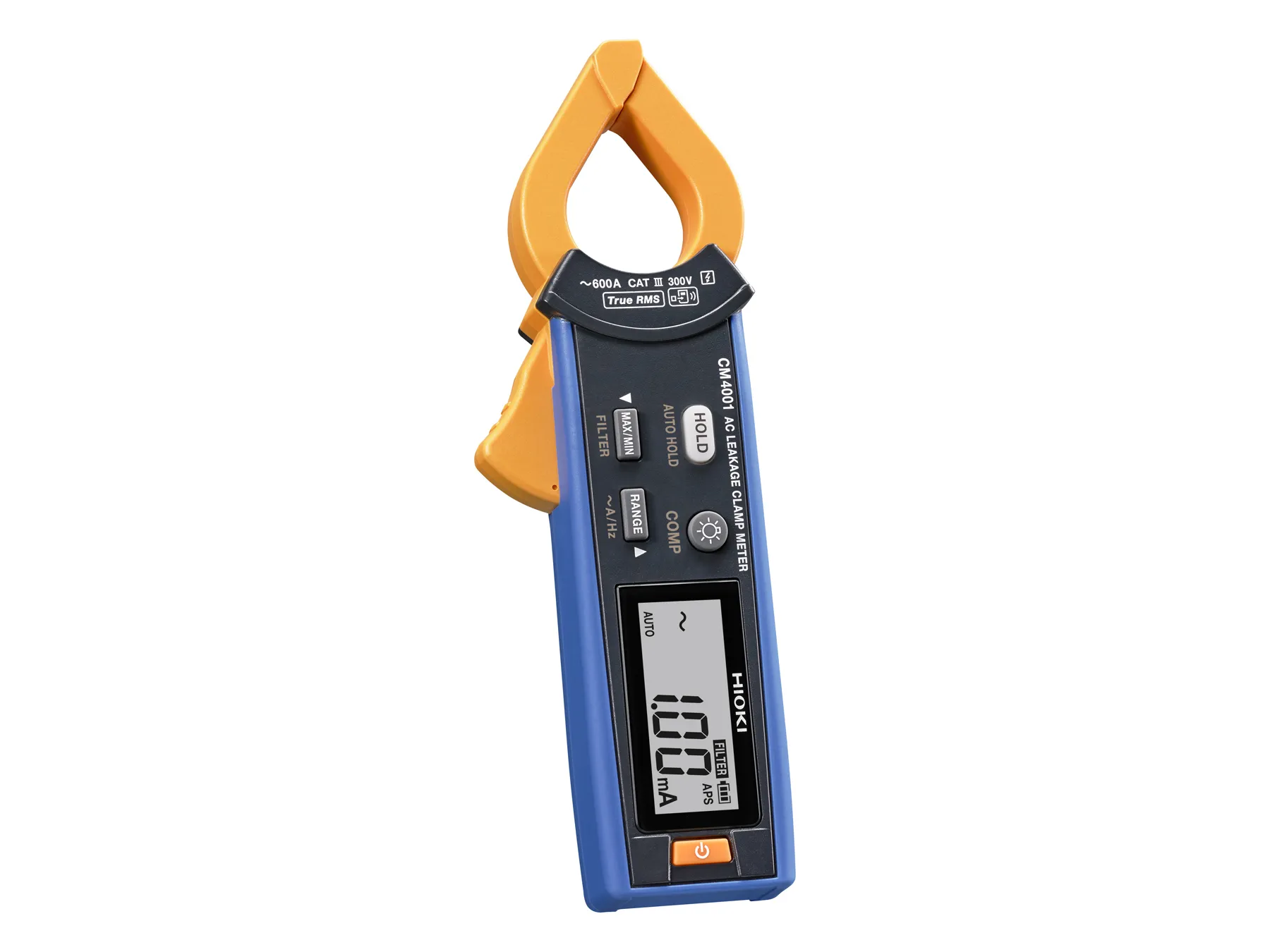

CM4001

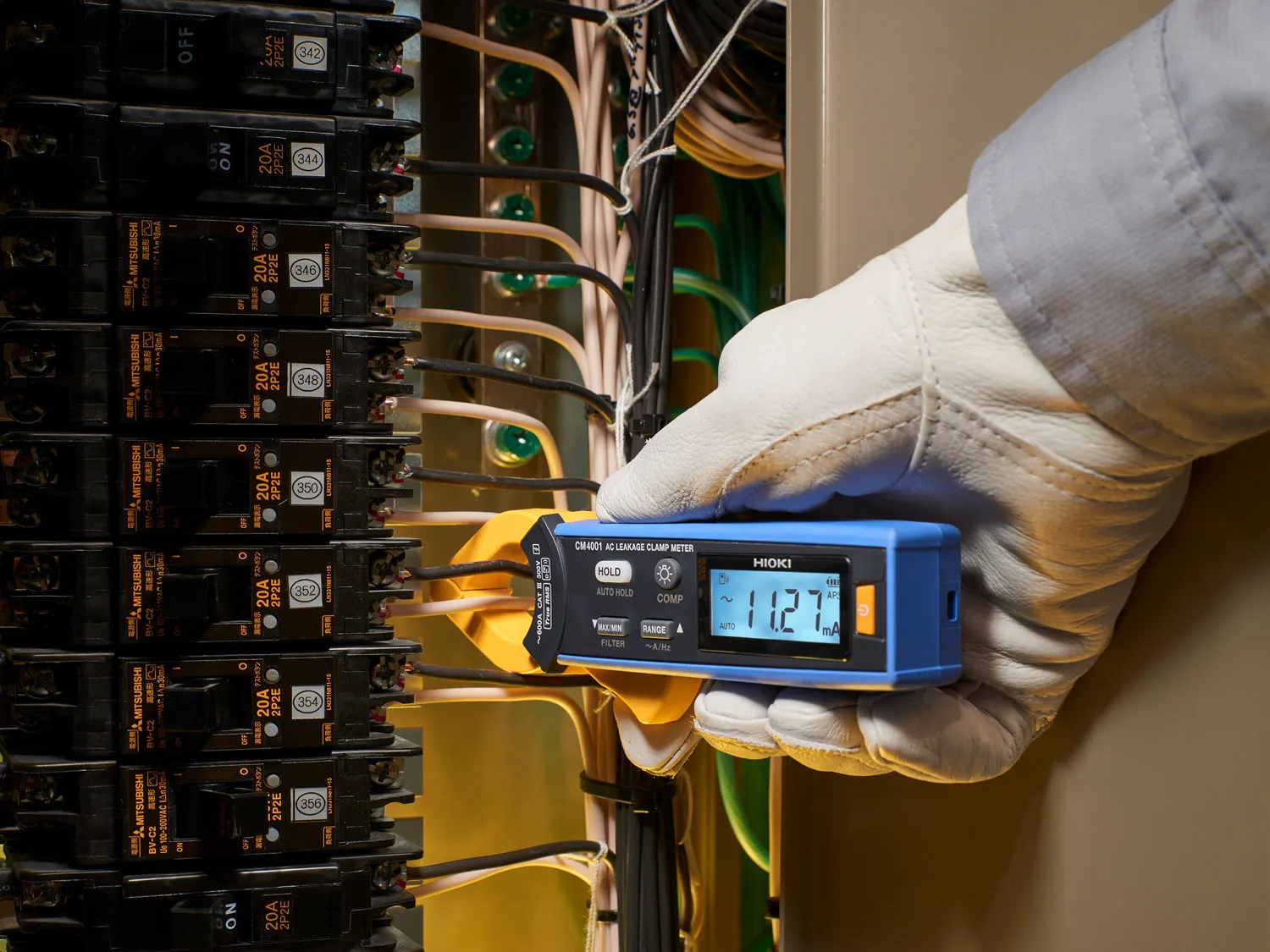

CM4001 - AC Leakage Clamp Meter
The CM4001 is a compact AC leakage clamp meter equipped with slim measuring clamps, allowing easy clamping into tightly packed cables with diameters up to 24 mm. This design enhances safety and reduces working time. The meter offers precise accuracy for current measurements ranging from 0.60 mA to 600.0 A, and operates within a frequency range of 40-1000 Hz. The CM4001 provides a complete solution for various applications, including harmonic measurements. An integrated comparator function enables quicker problem detection. Additionally, the device is Bluetooth-ready for wireless data transmission. Technical Details: Measuring range: 0.60 mA to 600.0 A Frequency range: 40-1000 Hz Cable diameter: Up to 24 mm Key functions: Harmonic measurement, comparator function Wireless data transmission: Prepared for Bluetooth Features: Slim measuring clamps for easy clamping in tight spaces
"
Z3210

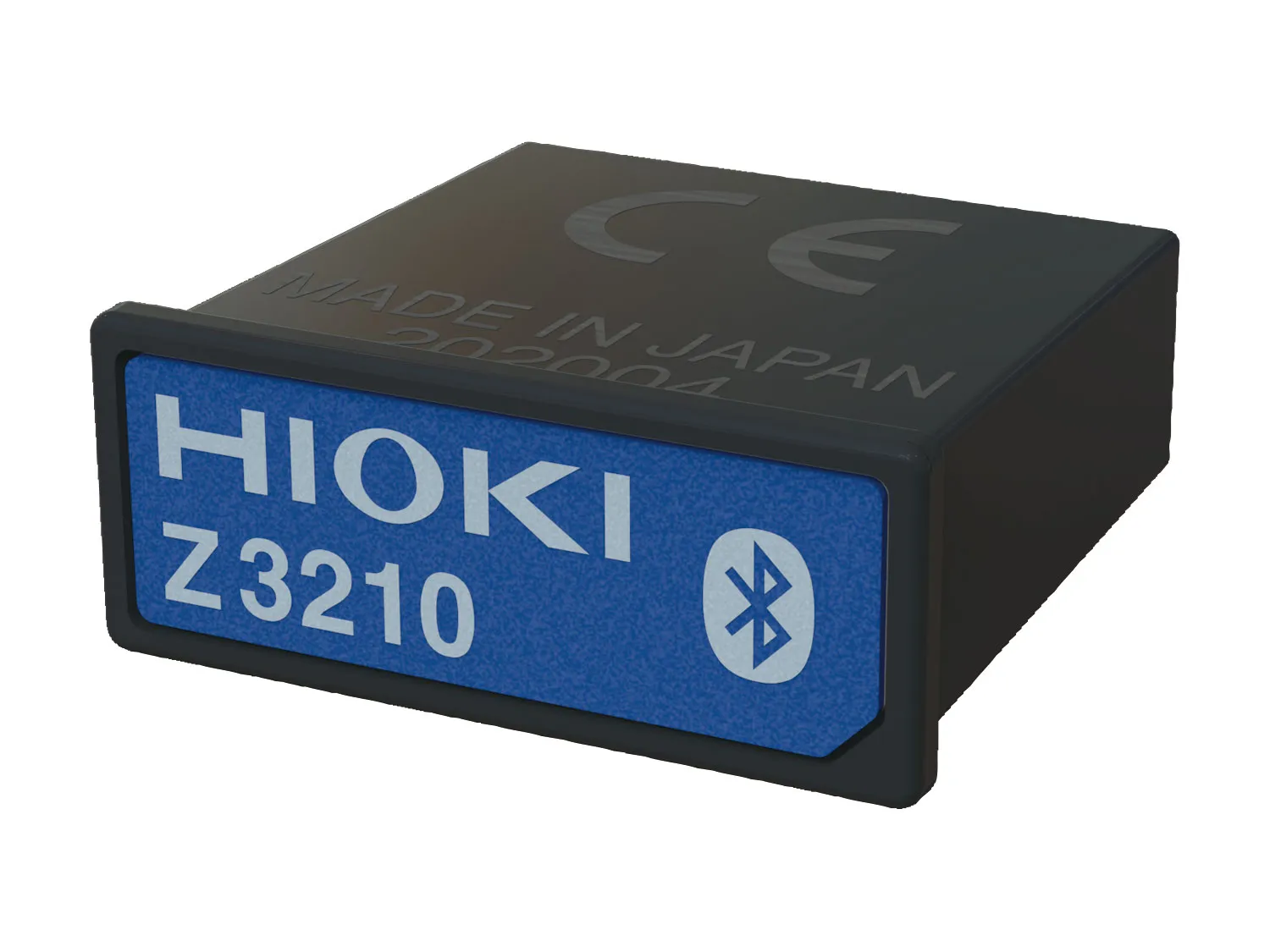

Z3210 - Bluetooth Adapter

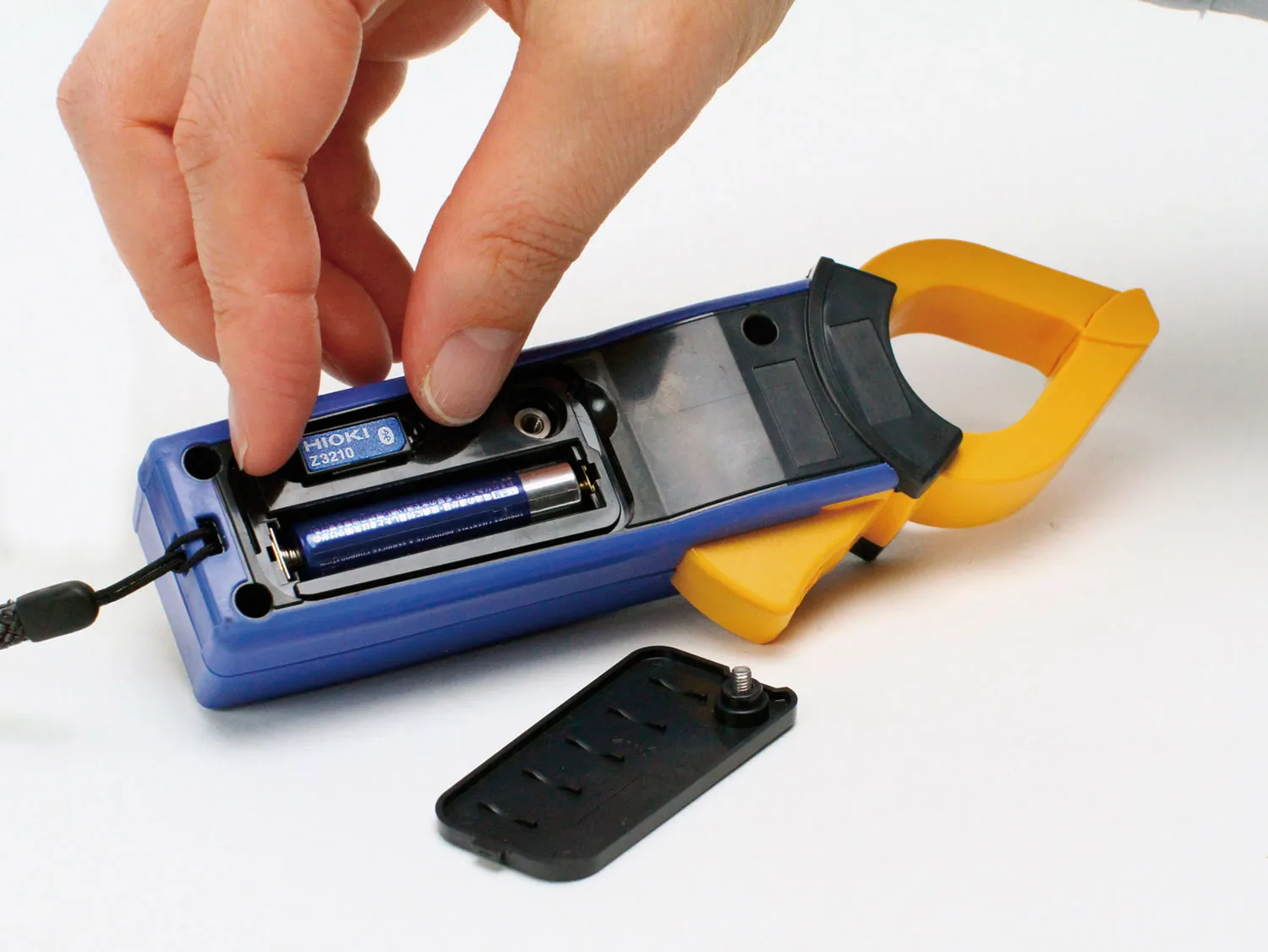

The Z3210 Bluetooth Adapter allows wireless communication between compatible HIOKI products, enabling easy data transfer and remote operation. List of compatible Hioki products: Battery Tester BT3554-50 AC Clamp Power Meter CM3286-50 AC Leakage Clamp Meter CM4001, CM4002, CM4003 AC Clamp Meter CM4141-50 AC/DC Clamp Meters CM4371-50, CM4373-50, CM4375-50 Digital Multimeter DT4261 Clamp On Earth Tester FT6380-50 Earth Tester FT6031-50 Insulation Tester IR4057-50

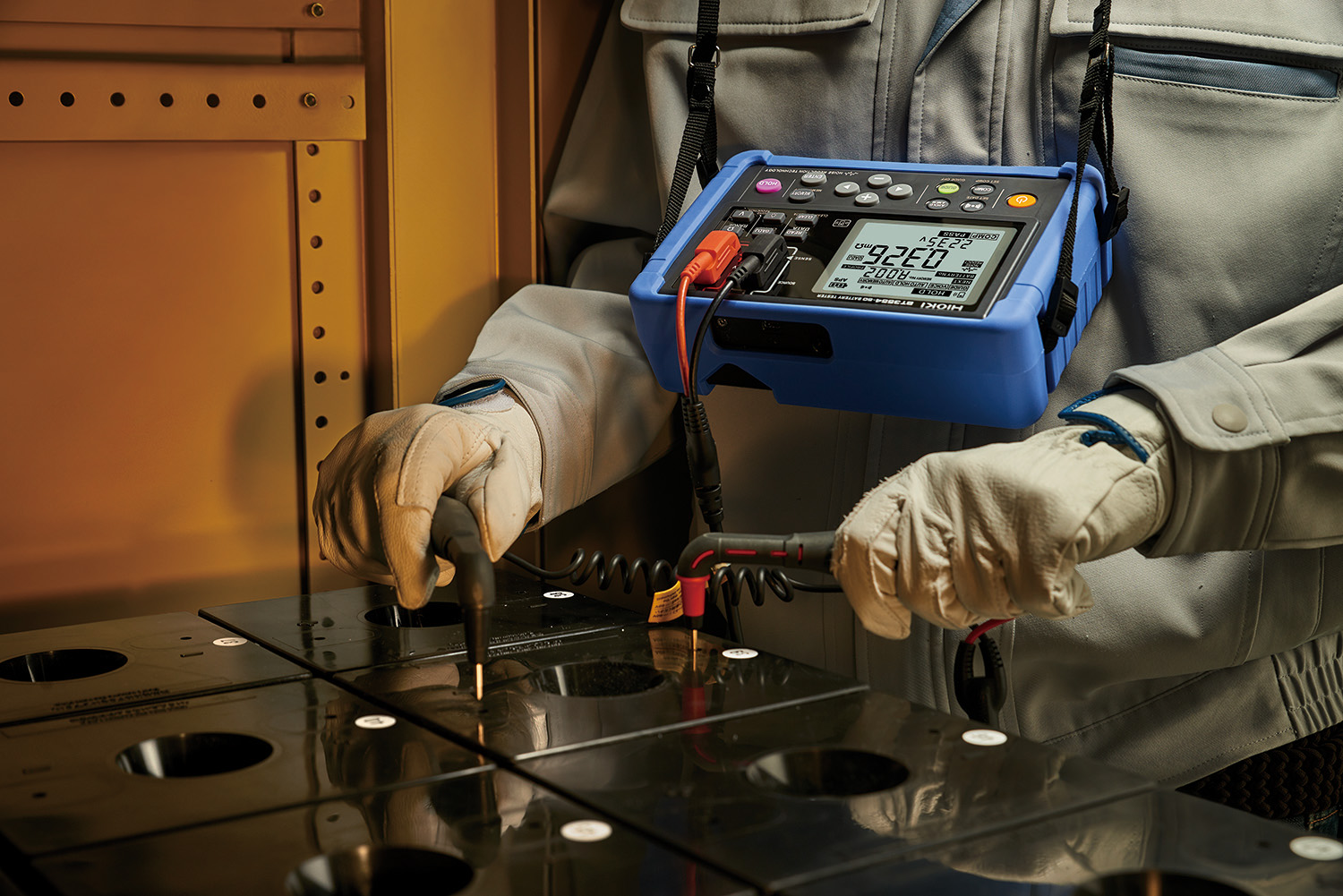

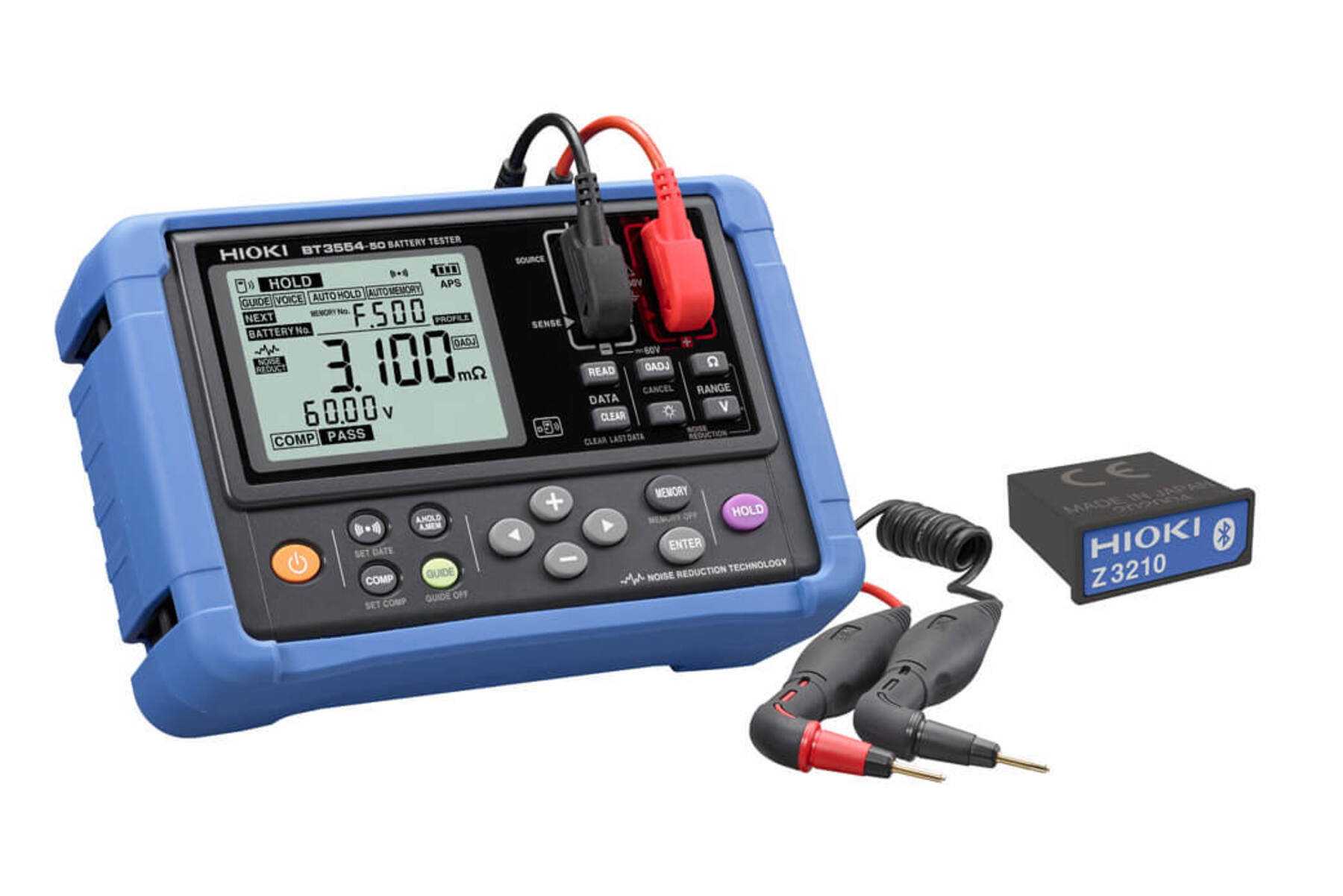

BT3554-51
BT3554-51 - Portable Battery Tester, 9465-10 Straight Pin Type Lead
Banner Specs: Measures internal battery resistance at 1 kHz (AC-IR) Four resistance ranges: 3 mΩ to 3 Ω Two voltage ranges: 6 V and 60 V Measurement speed: < 2 seconds Optional Bluetooth communication with Z3210 adapter Applications: Maintenance and inspection of lead-acid batteries Diagnostics of UPS and backup power systems Designed for VRLA batteries of all sizes and capacitiesModelMeasuring cableBluetoothBT3554-50without test cableZ3210 requiredBT3554-519465-10 (straight)Z3210 requiredBT3554-52L2020 (angled)Z3210 requiredBT3554-919465-10 (straight)
IncludedBT3554-92L2020 (angled)
IncludedIn detail:
The portable battery tester BT3554-51 is a set consisting of the BT3554-50 instrument and
the 9465-10 Straight Pin Type Lead. It is the latest addition to HIOKI's portfolio of portable
battery testers, drawing on expertise since HIOKI's first battery tester was introduced in
1986. This versatile tester supports two voltage ranges (6 V and 60 V) and four resistance
ranges (3 mΩ to 3 Ω), ensuring compatibility with a wide variety of battery sizes and
capacities. Batteries do not need to be disconnected from the system for measurement,
which significantly simplifies the testing process and also saves time.With a measurement speed of less than two seconds, this portable battery tester is ideal for
use in tight or hard-to-reach areas. Additionally, HIOKI's noise reduction technology ensures
accurate measurements even in noisy environments. The integrated comparator function
(PASS, WARNING, FAIL) provides instant assessment of the battery status based on userdefined thresholds.The BT3554-51 simplifies work with its practical data management features. Up to 6000
measurement records can be stored in its internal memory, and when paired with the optional
Z3210 Bluetooth adapter, measurement data can be wirelessly transferred to a smartphone
or tablet. The free GENNECT Cross app enables real-time data analysis, report generation,
and transfer of pass/fail profiles to the tester, enhancing efficiency for maintenance teams. A USB interface allows the battery tester to connect to a PC for convenient management of
measurement data. The free GENNECT One Windows software lets users control the device
as well as transfer and process measurement values. Alternatively, measurement values can
be sent directly to an Excel sheet by setting the battery tester as a Human Interface Device
(HID) on the PC. The wide range of measurement accessories includes various test leads for different battery
contacts or test contacts as well as for diverse installation scenarios. The BT3554-51 is
designed for field use and features convenient auto-hold and auto-memory functions that
automatically detect new measurements and save results without requiring any input from
the technician.
Highlights
20
%
Z4001
Z4001 - SD Memory Card 2GB
The Z4001 SD Memory Card offers 2 GB of industrial-grade storage, ideal for use with the HIOKI PW3360 Power Logger and similar products. Technical Details:Capacity: 2 GB Compatibility: HIOKI PW3360
20
%

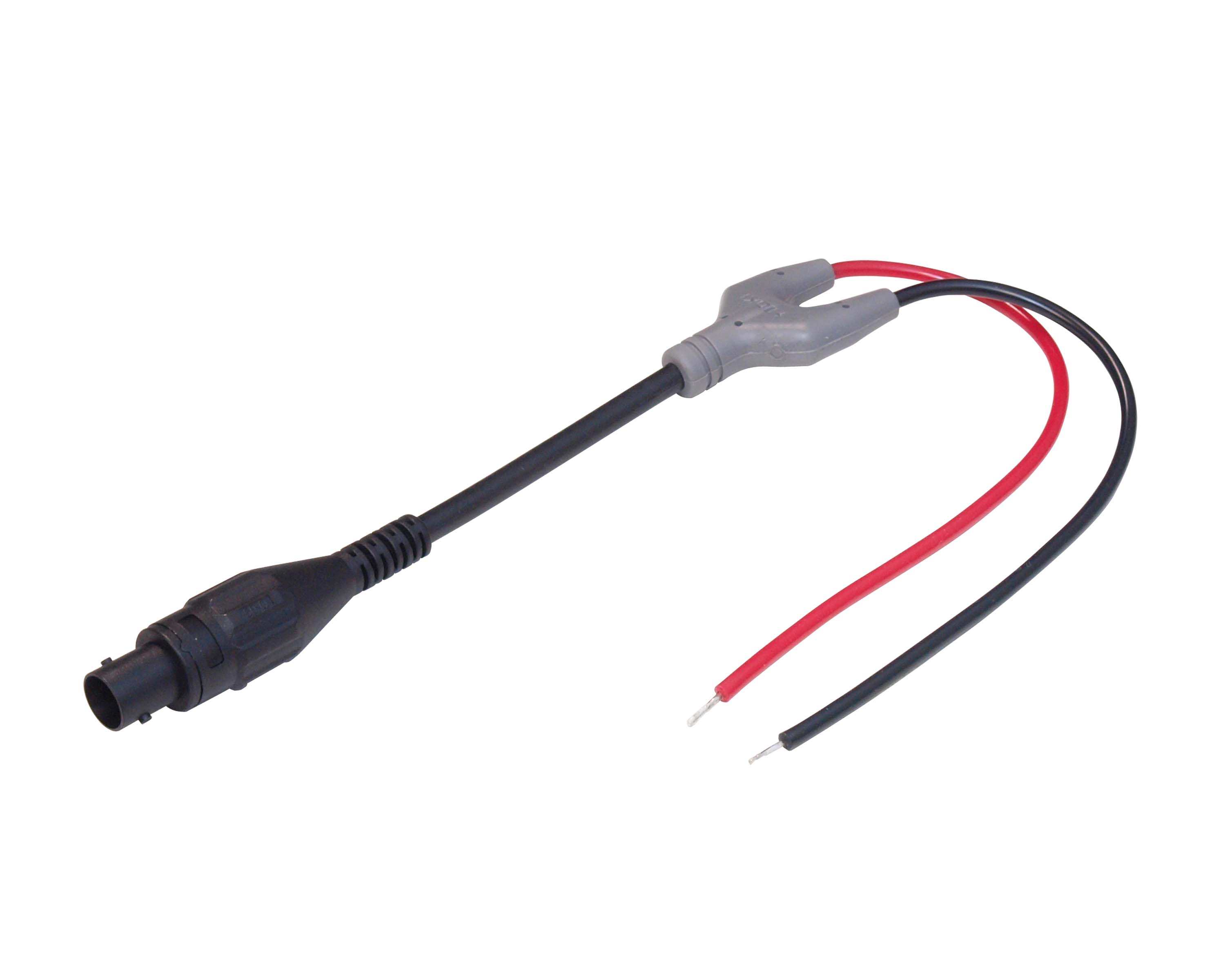

L1011-10
L1011-10 - CONVERSION CABLE
The L1011-10 is a 2.4 m conversion cable for converting BNC to wire, designed for use with the HIOKI P9000 Differential Probe and similar products or connection with screw terminals . Technical Details: Connector: BNC(f) plastic version Purpose: Converts BNC-male connector to open wire Length: 2.4 meters Wire type: Two open-end wires (black/red)
20
%
CT7116
CT7116 - AC LEAKAGE CURRENT SENSOR
The CT7116 is designed for precise leakage current measurements with high accuracy. It supports BNC conversion for versatile applications. Technical Details: Rated current: 6 A AC Frequency range: 40 Hz to 5 kHz Amplitude accuracy: ±1.0% rdg, ±0.05% f.s. Diameter of conductors: 40 mm (1.57 in.) Cable length: 2.5 m (8.20 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) Output terminal: PL14
20
%
CT7046
CT7046 - AC FLEXIBLE CURRENT SENSOR
CT7046 - AC Flexible Current Sensor
The CT7046 AC Flexible Current Sensor is designed for high-current measurements with a larger diameter to accommodate broader conductors. It provides reliable performance over a wide frequency range. Technical Details: Rated current: 6000 A AC Frequency range: 10 Hz to 50 kHz Amplitude accuracy: ±1.5% rdg, ±0.25% f.s. Diameter of conductors: 254 mm (10.00 in.) Cable length: 2.3 m, 0.2 m³ (7.55 ft., 0.66 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) CAT: IV 600 V, III 1000 V Output terminal: PL14
20
%
9460
9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR
The 9460 Clip Type Test Lead with an integrated temperature sensor is designed for use with the HIOKI BT3554 Battery Tester and similar products. With a length of 226 cm, it provides both convenient reach and precise measurements, ensuring reliable testing of batteries under various conditions. The built-in temperature sensor allows for simultaneous monitoring of battery temperature during testing, adding a layer of diagnostic accuracy Technical Details: Type: Clip Type Test Lead with temperature sensor Length: 226 cm Large Kelvin Clamps Compatibility: HIOKI BT3554 Battery Tester and similar products Function: Battery testing and temperature monitoring
20
%
LR8520
LR8520 - Bluetooth Data Logger with Fungal Analysis
The LR8520 Wireless Fungal Logger offers precise one-channel temperature and humidity measurement with advanced features such as fungal index recording and growth prediction. With Bluetooth® connectivity for easy data download and a compact design, it is ideal for monitoring environments where fungal growth is a concern. Technical Details: Measurement range: -40 °C to 80 °C, 0 to 100 %rh Accuracy: +/- 0.5°C, +/- 3%rh Memory: 500,000 data points per channel Recording intervals: Starting from 0.5s Connectivity: Bluetooth® Features: Fungal index, growth prediction, alarm output
