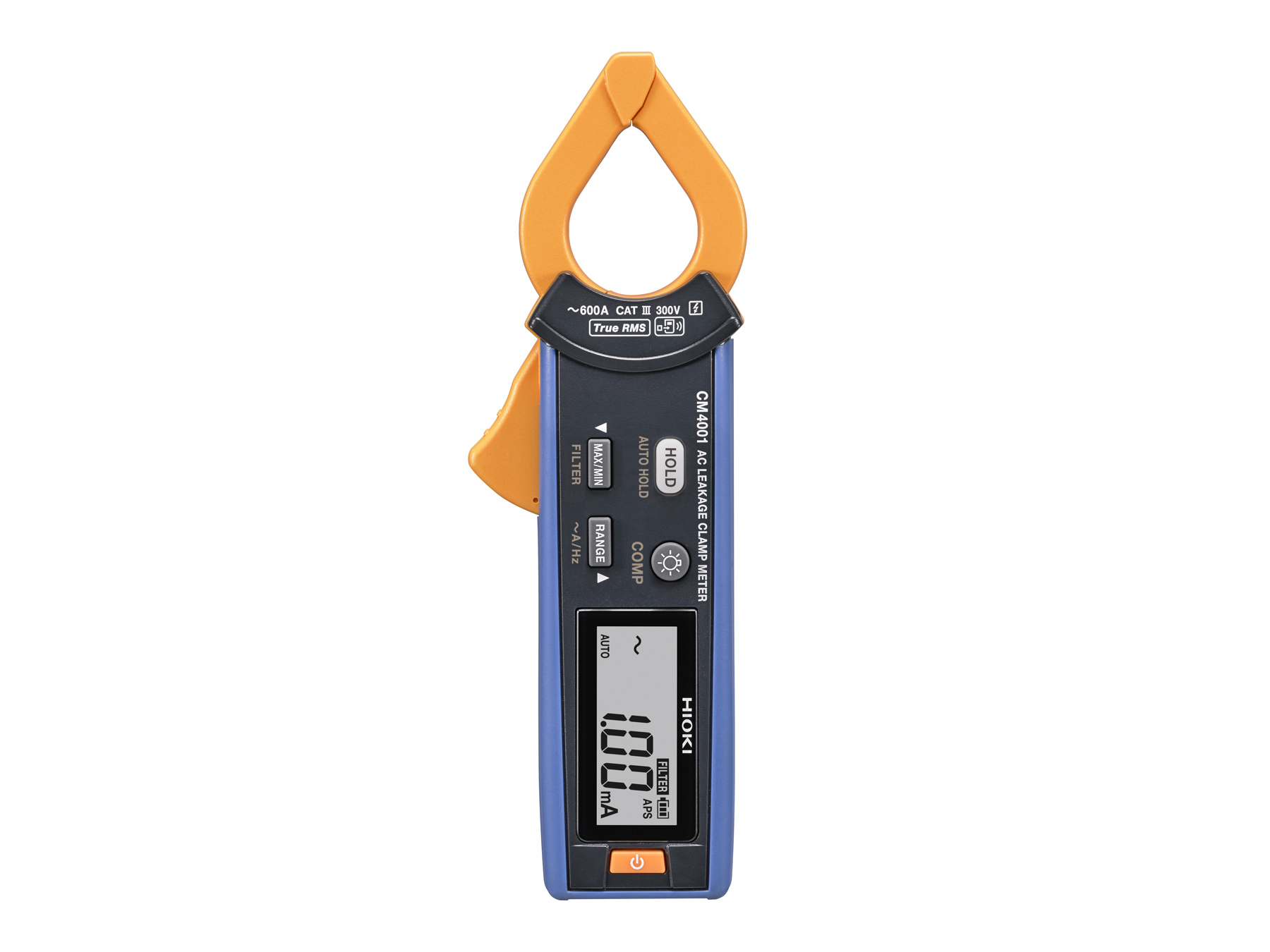

HIOKI CM4001 - AC Leakage Clamp Meter for Leakage and Load Current, 600 A

AC leakage clamp meter for leakage and load current measurements from 600 µA to 600 A, max. conductor diameter 24 mm, True RMS, 50/60 Hz filter, threshold alarm, CAT III 300 V, optional Bluetooth via Z3210
Skip image gallery
HIOKI CM4001 ac leakage clamp meter frequency measurement
HIOKI CM4001 ac leakage clamp meter threshold alarm
HIOKI CM4001 ac leakage clamp meter 600 a
HIOKI CM4001 ac leakage clamp meter for leakage and load a true rms
HIOKI CM4001 ac leakage clamp meter max conductor diameter 24 mm

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI CM4001 ac leakage clamp meter for leakage and load current 600 a max conductor diameter 24 mm
HIOKI CM4001 ac leakage clamp meter for leakage and load current 600 a 4
HIOKI CM4001 ac leakage clamp meter for leakage a 50 60 hz filter
HIOKI CM4001 ac leakage clamp meter frequency measurement
HIOKI CM4001 ac leakage clamp meter threshold alarm
HIOKI CM4001 ac leakage clamp meter 600 a
HIOKI CM4001 ac leakage clamp meter for leakage and load a true rms
HIOKI CM4001 ac leakage clamp meter max conductor diameter 24 mm
HIOKI CM4001 - AC Leakage Clamp Meter for Leakage and Load Current, 600 A
HIOKI CM4001 - AC Leakage Clamp Meter for Leakage and Load Current, 600 A
HIOKI CM4001 ac leakage clamp meter for leakage and load current 600 a max conductor diameter 24 mm
HIOKI CM4001 ac leakage clamp meter for leakage and load current 600 a 4
HIOKI CM4001 ac leakage clamp meter for leakage a 50 60 hz filter

€458.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€458.00

HIOKI CM4001 - AC Leakage Clamp Meter for Leakage and Load Current, 600 A
Product number: CM4001
Available stock: 3
GTIN/EAN: 4536036012602
Description

Product information HIOKI CM4001 - AC Leakage Clamp Meter for Leakage and Load Current, 600 A


Key Specifications

  • Leakage current measurement from 600 µA to 600 A
  • Slim jaws, max. conductor diameter 24 mm
  • 50/60 Hz filter for stable leakage current measurement
  • Threshold alarm for quick leakage detection
  • Optional Bluetooth via Z3210

Typical Applications

  • Checking operation of Residual Current Devices (RCDs) and Ground Fault Circuit Interrupters (GFCIs)
  • Locating insulation faults and earth leakage paths
  • Inspecting distribution panels and switchboards with limited space
  • Measuring load current and verifying circuit load balance
  • Comparing leakage current across multiple circuits during maintenance

Feature CM4001
 CM4001-90 		CM4002
CM4002-90 		CM4003
CM4003-90
Designed for Confined panels, leak and load currents µA leakage diagnosis,
RCD/GFCI faults 		Long term monitoring,
intermittent faults
Lowest measurable current 600 µA 60 µA
AC Current ranges 5 ranges:
60 mA to 600 A 		6 ranges:
6 mA to 200 A
Max. conductor diameter 24 mm 40 mm
Measurement output - RMS and waveform
Safety Rating CAT III 300 V CAT IV 300 V
CAT III 600 V 		CAT III 300 V


Detailed Product Overview

Leakage currents in electrical installations can cause nuisance RCD trips, insulation faults, or unexpected shutdowns that are difficult to trace. The HIOKI CM4001 AC leakage clamp meter measures currents from 600 µA to 600 A, including very small leakage currents in electrical installations. Its slim jaws with a 24 mm opening fit between closely spaced conductors and allow measurements in confined installation environments such as control cabinets and distribution panels.

Versatile for Leak and Load Currents

The CM4001 measures leakage, differential, and load currents using True RMS detection. When clamped around all active conductors of a circuit, the instrument measures differential current (residual current) to verify the operation of Residual Current Devices (RCDs) and Ground Fault Circuit Interrupters (GFCIs). Clamping a single conductor allows load current measurement for checking circuit load conditions and identifying abnormal current draw in connected equipment.

Five AC current ranges from 60.00 mA to 600.0 A cover a wide measurement span. The clamp meter detects leakage currents starting at 600 µA while also handling load currents up to 600.0 A. Its measurement bandwidth extends from 40 Hz to 1 kHz. A selectable low-pass filter removes high-frequency components so that the 50/60 Hz leakage current relevant to RCD testing can be evaluated even in circuits that include inverters or switching power supplies.

Functions for service and installation work

The comparator function provides immediate pass/fail indication with a red backlight and buzzer when the preset threshold is exceeded. Additional functions include frequency measurement, Auto Hold, Max/Min/Avg memory, Inrush current measurement (up to 150 ms), and Peak value recording, improving efficiency during inspection and troubleshooting.

Rated CAT III 300 V, the CM4001 is suitable for measurements in fixed installations, distribution panels, and electrical switchboards in residential, commercial, and industrial environments. Its compact size and measurement versatility make it an essential tool in every technician’s toolkit.

With the optional Z3210 Wireless Adapter, measurement data can be transferred via Bluetooth to the GENNECT Cross app for logging, labeling, and on-site PDF reporting. The wireless connection also allows the meter’s readings to be viewed directly on a smartphone or tablet, which is particularly useful when the instrument is positioned where the display cannot be easily seen.

Designed and manufactured in Japan.

HIOKI clamp meters are developed and built at the company’s own facilities in Nagano, Japan, ensuring consistent measurement accuracy, mechanical precision, and long-term reliability

Learn more in our blog
What’s special about HIOKI’s AC Leakage Current Clamps?
What's in the Box
  • CM4001 AC Leakage Clamp Meter
  • Carrying case
  • Strap
  • Instruction manual
  • Operating precautions
  • 1 × LR03 (AAA) alkaline battery

Dimensions & Packaging

Length 160 mm
Width 37 mm
Height 27 mm
Weight 0.115 kg
