HIOKI CM4375-50 - AC/DC Clamp Multimeter for confined spaces, 1000 A

True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter, DC power, resistance, capacitance, continuity, inrush, Bluetooth optional
Skip image gallery
HIOKI CM4375-50 clamp multimeter true rms
HIOKI CM4375-90 ac dc clamp multimeter 1000A bluetooth
HIOKI CM4375-50 clamp multimeter slim jaws tight spaces

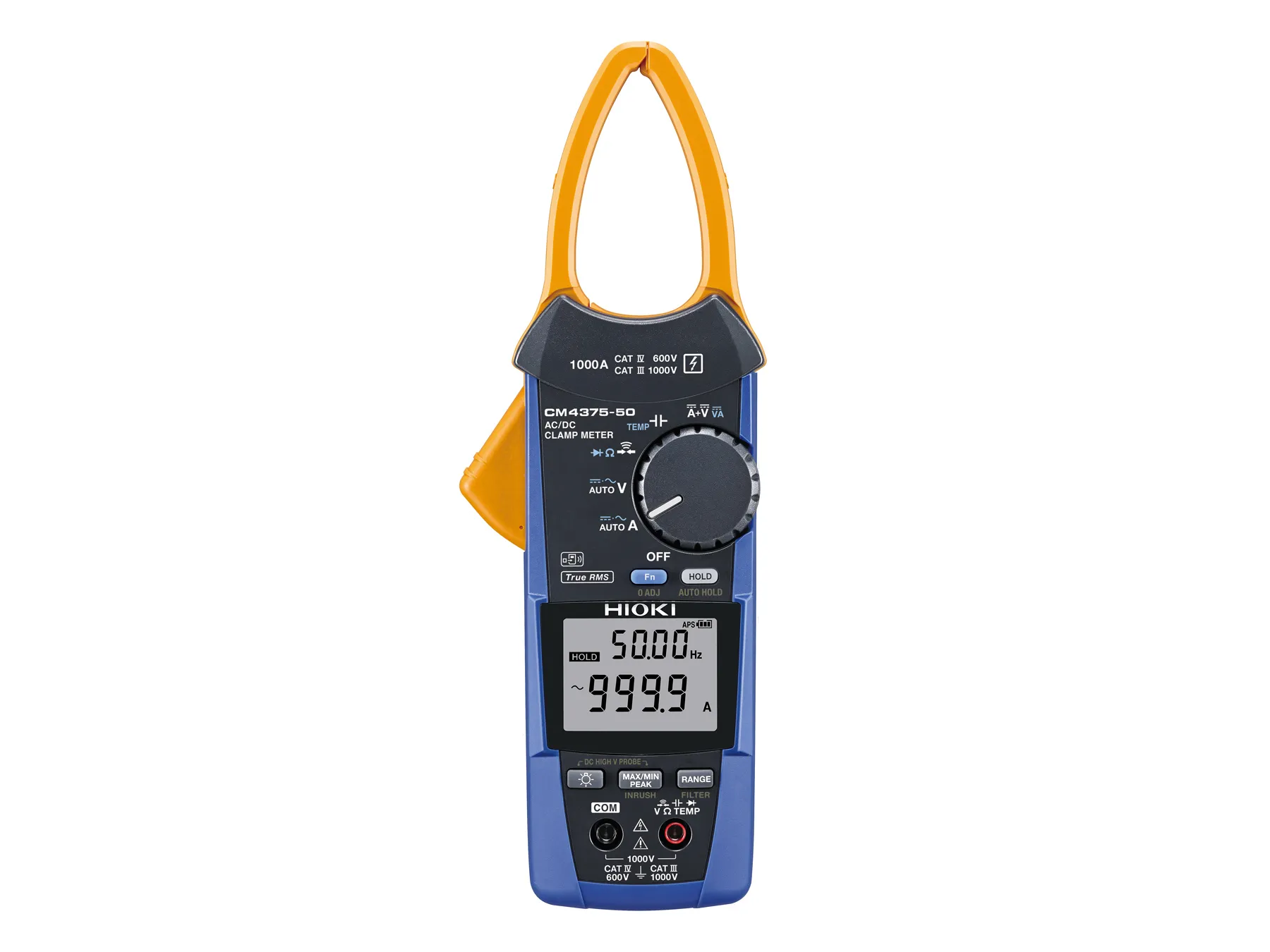

HIOKI CM4375-50 clamp multimeter 1000V ac dc

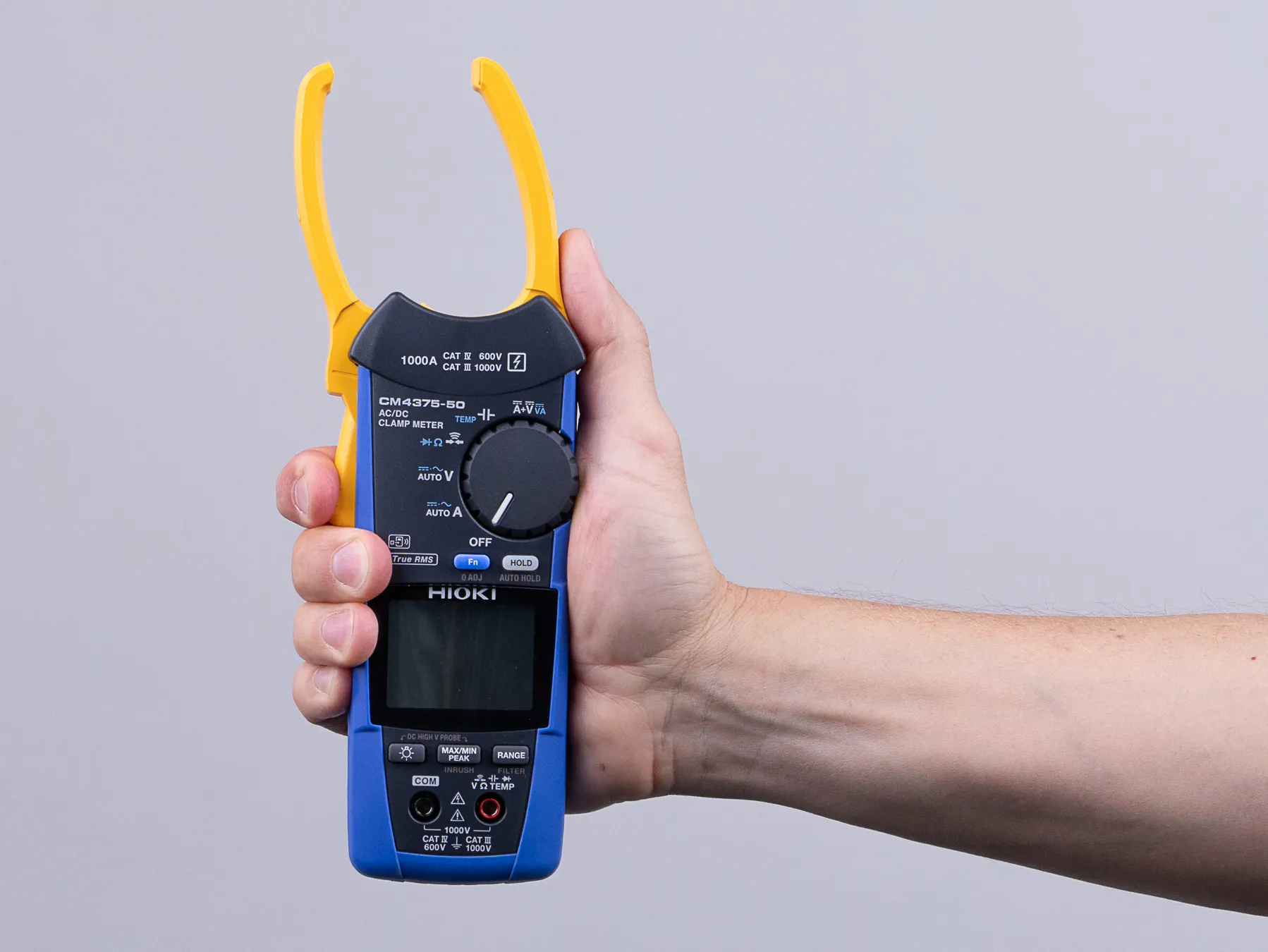

HIOKI CM4375-50 ac dc clamp multimeter 1000A

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

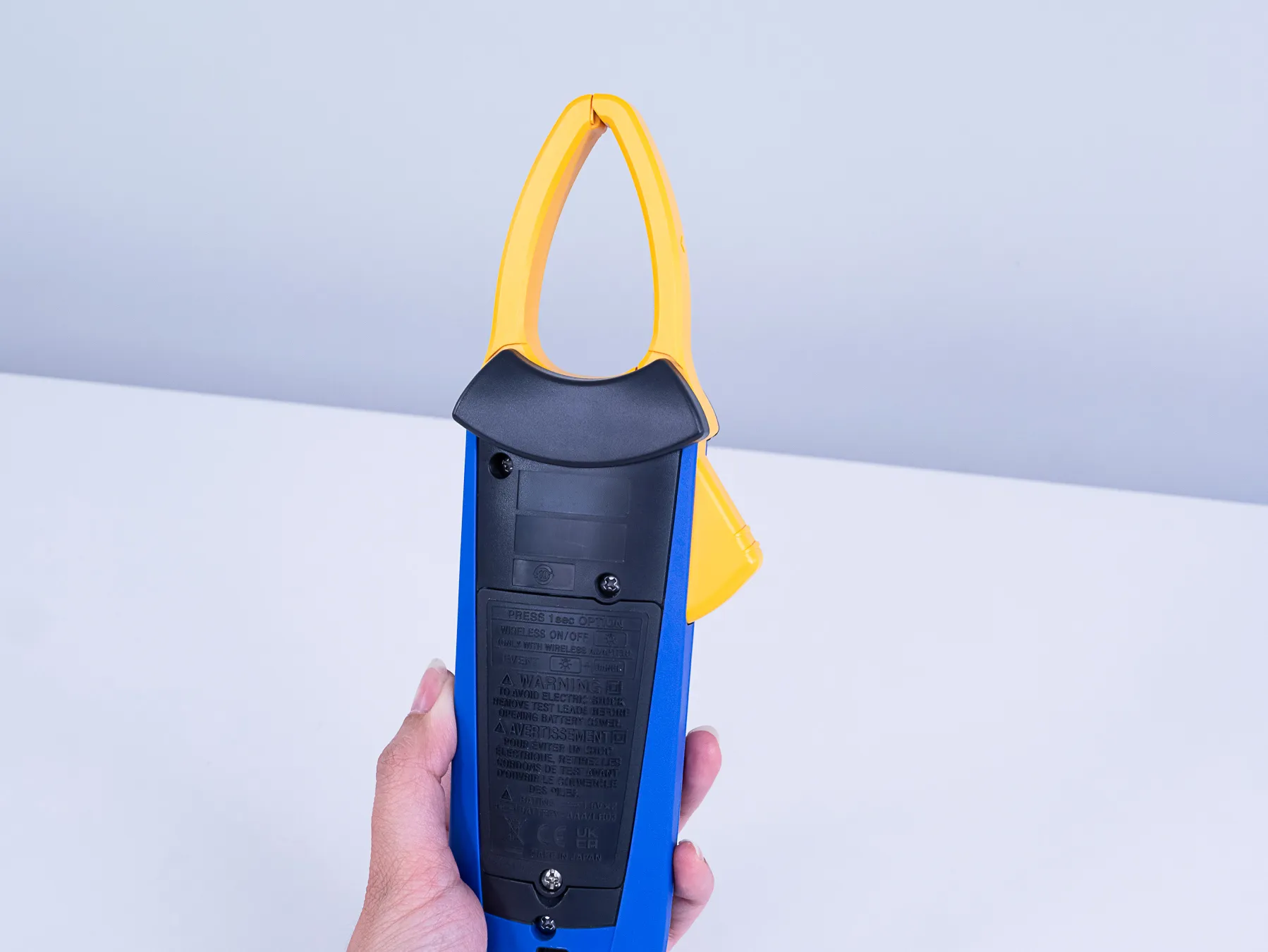

HIOKI CM4375-50 clamp multimeter 2000V dc optional P2010 backside

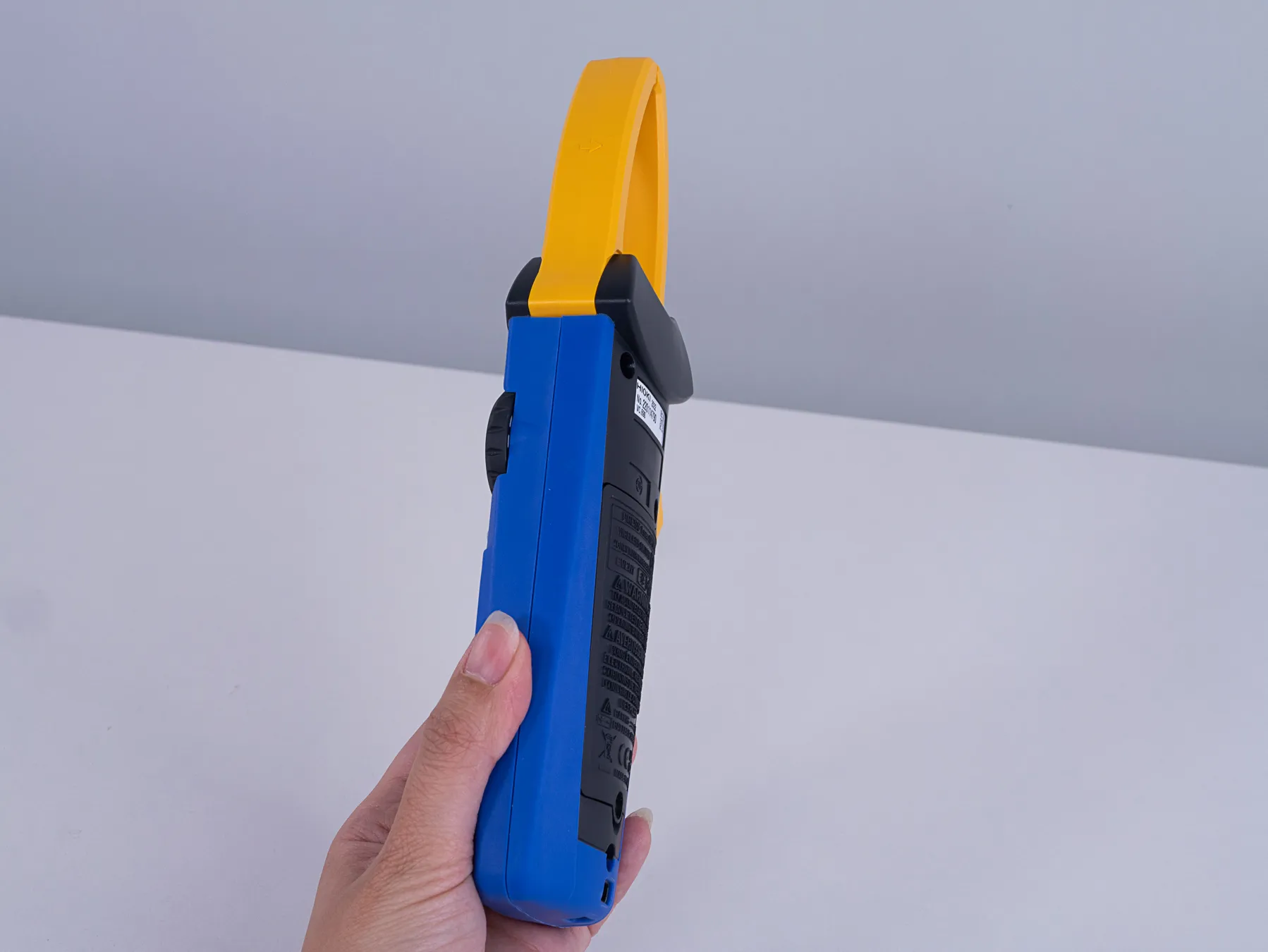

HIOKI CM4375-50 clamp multimeter cat iv 600V

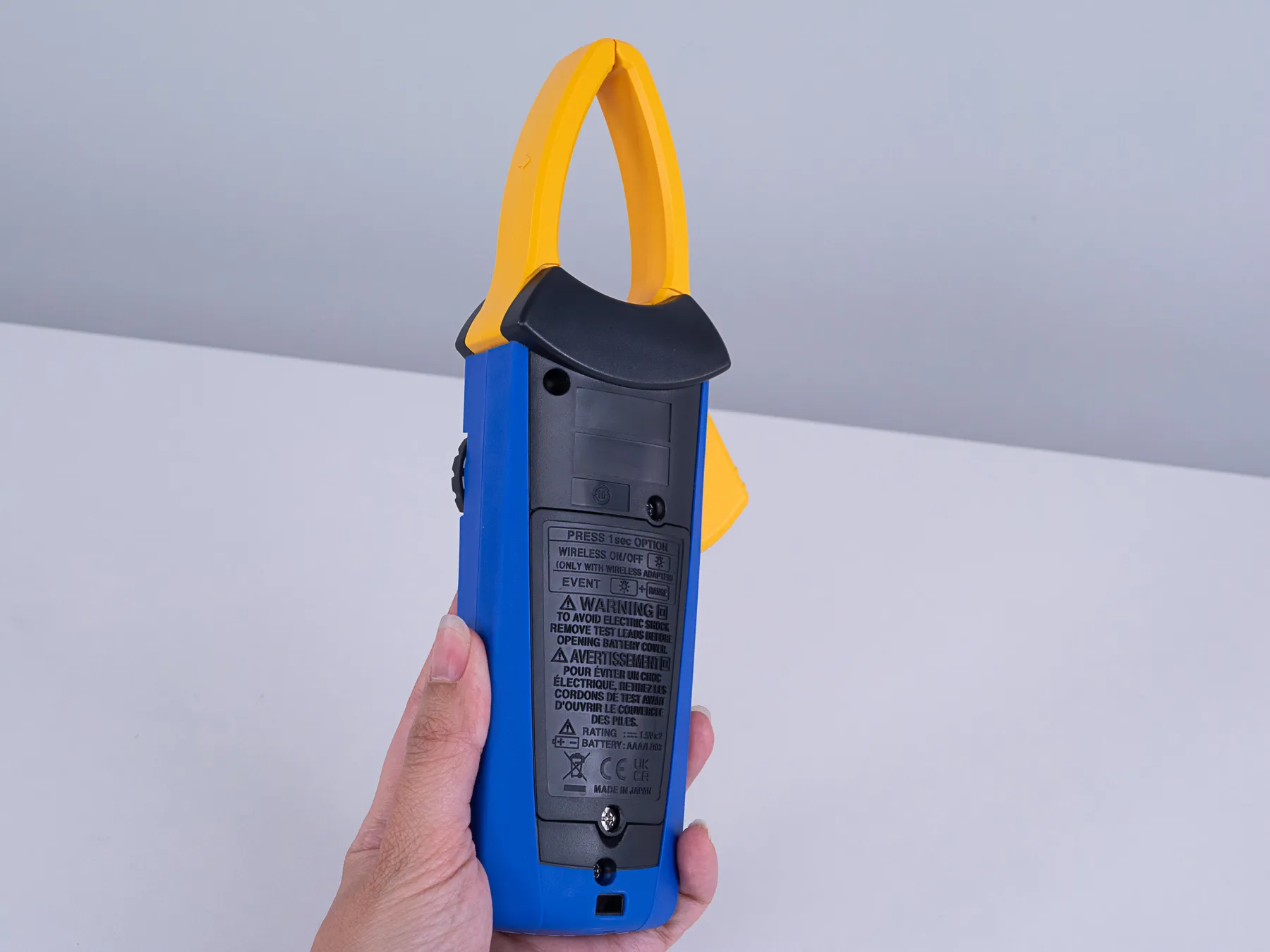

HIOKI CM4375-50 clamp multimeter dc power
HIOKI CM4375-50 clamp multimeter true rms
HIOKI CM4375-90 ac dc clamp multimeter 1000A bluetooth
HIOKI CM4375-50 clamp multimeter slim jaws tight spaces
HIOKI CM4375-50 clamp multimeter 1000V ac dc
HIOKI CM4375-50 ac dc clamp multimeter 1000A
HIOKI CM4375-50 - AC/DC Clamp Multimeter for confined spaces, 1000 A
HIOKI CM4375-50 clamp multimeter 2000V dc optional P2010 backside
HIOKI CM4375-50 clamp multimeter cat iv 600V
HIOKI CM4375-50 clamp multimeter dc power

€558.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€558.00

HIOKI CM4375-50 - AC/DC Clamp Multimeter for confined spaces, 1000 A
Product number: CM4375-50
Available stock: 4
GTIN/EAN: 4536036013562
Description

Product information HIOKI CM4375-50 - AC/DC Clamp Multimeter for confined spaces, 1000 A

Key Specifications

  • Current measurement up to 1000 A AC/DC
  • Super slim 34 mm jaw design for tight spaces
  • Voltage measurement up to 1000 V AC/DC (2000 V DC with optional P2010)
  • Safety rated CAT IV 600 V / CAT III 1000 V and CAT III 2000 V with P2010
  • Optional Bluetooth communication with Z3210 adapter

Typical Applications

  • Current and voltage measurements in distribution boards, wiring, and industrial equipment

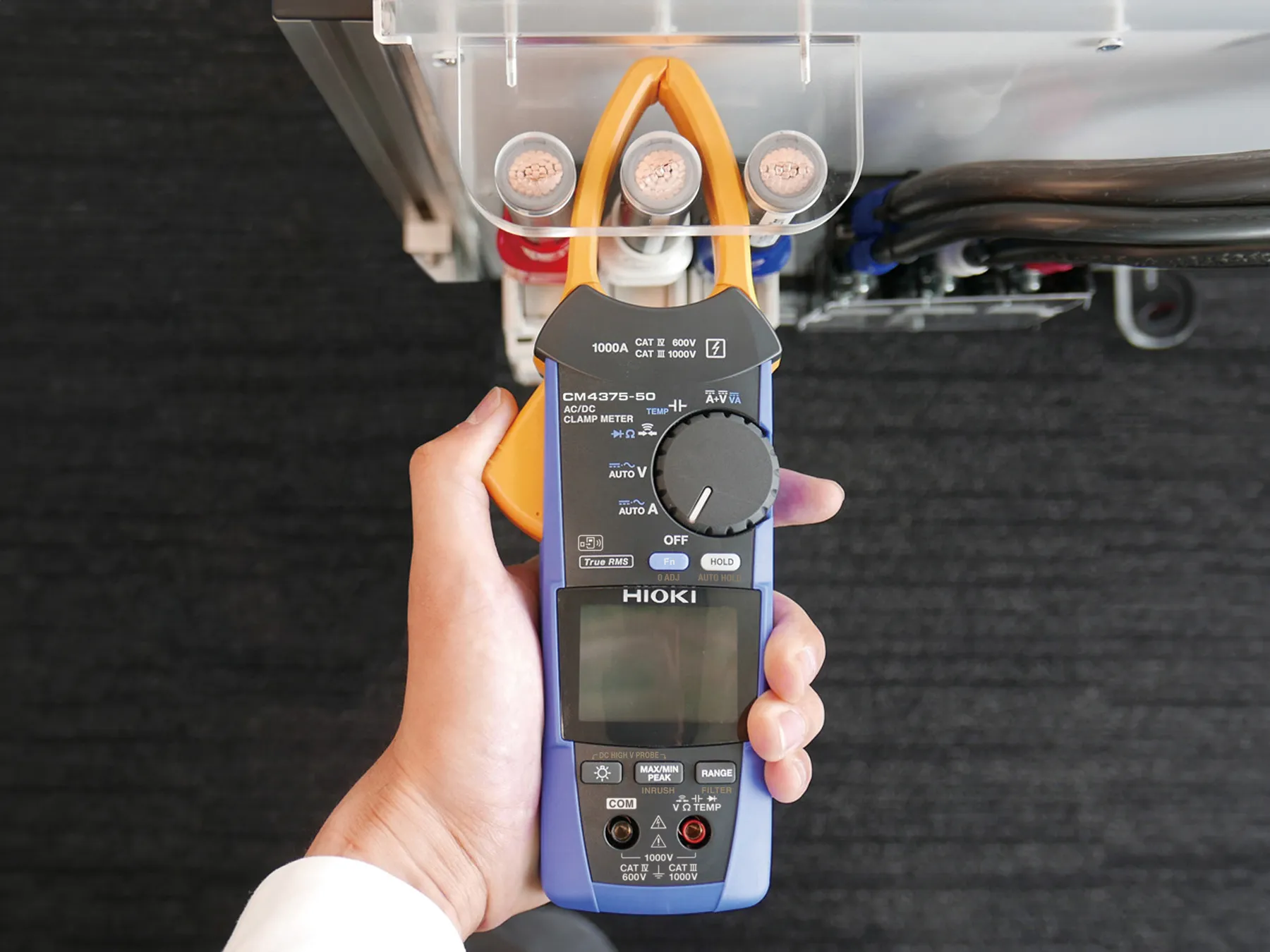

  • Measurements in confined spaces thanks to super slim 34 mm jaw design
  • Maintenance and troubleshooting of solar power systems and EV chargers
  • Inrush current testing for motors and load changes

Feature CM4371-50
CM4371-90		 CM4373-50
CM4373-90
CM4373-93		 CM4375-50
CM4375-90
CM4375-93		 3287 3288-20 3288
Current
(AC / DC)		 20 A /
600 A		 600 A /
2000 A		 1000 A 10 A /
100 A		 100 A /
1000 A		 100 A /
1000 A
True RMS Yes -
Voltage
(AC / DC)		 1000 V 600 V
AC+DC
voltage and current		 yes -
Safety Rating CAT IV 600 V
CAT III 1000 V 		CAT III 300 V (voltage)
CAT III 600 V (current)
Bluetooth available or included -


Detailed Product Overview

The HIOKI CM4375-50 Clamp Multimeter is designed for professionals who often work in confined installation spaces and need precise AC/DC current measurement. With a wide 1000 A range and True RMS accuracy, it is ideal for industrial power distribution, machinery, and EV charging systems. Its narrow jaws accommodate conductors up to 34 mm in diameter, while the compact front end with a jaw cross-sectional minimum dimension of 9.5 mm helps when access between adjacent conductors is limited.

Voltage measurement up to 1000 V AC/DC covers most applications. When paired with the optional P2010 High Voltage Probe, the instrument can measure up to 2000 V DC in CAT III environments, enabling safe testing of photovoltaic strings and high voltage batteries. True RMS technology ensures accurate results even with distorted waveforms.

Versatile multimeter functions

Beyond current and voltage, the HIOKI CM4375-50 also functions as a versatile multimeter: it measures resistance, capacitance, continuity, diode polarity check, and DC power. This makes it suitable for work on photovoltaic systems, batteries, and other DC installations where current, voltage, and power need to be checked together. For additional temperature measurements, the instrument can be combined with a K thermocouple such as the optional DT4910 Thermocouple (K). The measurement range lies between -40 °C and 400 °C. Automatic AC/DC detection and advanced display options such as Max/Min/Avg, PEAK values, filter function, manual/auto hold, and pass/fail judgement simplify daily tasks and save time.

The included L9300 test leads are designed with the user in mind. Their slide type mechanism allows the metal tips to be extended or retracted, making removable caps and the risk of losing them a thing of the past. This simplifies handling and enables a safe switch between short tips for higher CAT ratings and fully extended tips for tight measurement points. The display backlight makes readings easier in poorly lit distribution boards, control cabinets, and service environments. The operating temperature range from -25 °C to 65 °C also supports work in exposed outdoor locations and in installations with increased ambient temperatures.

Bluetooth and safety ratings

With the optional Z3210 Bluetooth Adapter, measured values can be transferred directly to a smartphone or tablet. In combination with the free GENNECT Cross app for Android and iOS, values can be stored, assigned to measurement points, and used for later documentation. In addition, the Z3210 supports direct entry of measured values into Excel, spreadsheet software, or other input based applications.

The CM4375-50 complies with CAT IV 600 V / CAT III 1000 V, and with the P2010 it also supports CAT III 2000 V. Its rugged housing is rated IP54 for dust and splash resistance, ensuring safe operation on construction sites and in harsh outdoor conditions.

Development and manufacturing in Japan

HIOKI’s decades of experience with clamp meters, clamp multimeters, current sensors and current clamps form the basis for the CM4375-50. Manufactured at HIOKI’s own factories in Nagano Prefecture, Japan, it combines precise measurements with a slim, cleanly finished clamp for confined installation spaces.
What's in the Box
  • CM4375-50 Clamp Multimeter
  • L9300 Test leads
  • C0203 Carrying Case
  • 2 × AAA (LR03) batteries
  • Instruction manual
  • Safety instructions

Dimensions & Packaging

Length 242 mm
Width 65 mm
Height 35 mm
Weight 0.35 kg
Skip product gallery

Related Products

HIOKI Z3210 Bluetooth adapter HID mode HIOKI Z3210 Bluetooth adapter for compatible HIOKI instruments
Z3210
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Bluetooth adapter for data transfer from compatible HIOKI instruments to Windows, iOS or Android devices using GENNECT Cross or HID keyboard profile

€118.00
View product
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
P2010
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
High voltage divider for safe DC measurement up to CAT III 2000 V or CAT IV 1000 V, division ratio 1/10. Designed to look and feel like compact test leads with standard 4 mm output connectors

€188.00
View product
HIOKI DT4910 THERMOCOUPLES(K)
DT4910
HIOKI DT4910 THERMOCOUPLES(K)
Thermocouples, K type, tip exposed, 0.3 mm diameter, 80 cm length, -40 to 260 °C (-40 to 500 °F), 4mm connectors, for the HIOKI DT4281, DT4281 and DT4253 Digital Multimeter and similar products

€48.00
View product
HIOKI L4933 contact pin set fully insulated for multimeters HIOKI L4933 contact pin set fully insulated except tip
L4933
HIOKI L4933 - Contact Pin Set for Test Leads
Contact pin set for attachment to HIOKI test leads DT4911, L9207-10, L9208 and L9300, partially insulated, extra thin pins, gold plated tip, 60 V DC, 30 V AC, maximum 3 A

€28.00
View product
HIOKI L4934 small alligator clip set 2mm tip for multimeters and clamp meters HIOKI L4934 small alligator clip set 2mm tip
L4934
HIOKI L4934 - Small Alligator Clip Set for Test Leads
Small alligator clip set for attachment to HIOKI test leads DT4911, L9207-10, L9208 and L9300, also compatible with L4932, connection diameter 2 mm to 4 mm, maximum 3 A, CAT II 600 V, CAT III 300 V

€28.00
View product
HIOKI C0207 instrument carrying case with adjustable compartments for multimeters HIOKI C0207 instrument carrying case with adjustable compartments
C0207
HIOKI C0207 - Instrument Carrying Case with Adjustable Compartments
Carrying case with adjustable main compartment for multiple instruments and accessories, external dimensions 37 × 19 × 28 cm, internal main compartment 33.5 to 34.5 × 12 to 13 × 22 to 26 cm

€188.00
View product
HIOKI L4930 - Connection Cable Set HIOKI L4930 connection cable set 1 2m for dt4250 dt4280
L4930
HIOKI L4930 - Connection Cable Set
The cable set contains two cables (red and black) usable for the DT4280/DT4250 multimeter series to connect with L493x series test pins and clips. Technical Details: 1.2 m length CATIV 600V, CATIII 1000V Contact protection Contact diameter 4 mm (Banana plug) Protective caps

€28.00
View product
HIOKI L4935 - Alligator Clip Set HIOKI L4935 - Alligator Clip Set
L4935
HIOKI L4935 - Alligator Clip Set
The Hioki L4935 Alligator Clip Set is arranged for use with Hioki L4930 or L4940 test leads and it is an optional accessory for many Hioki Multimeters and Clamp Meters. With a 4 mm banana plug connection, these clips provide a secure and reliable attachment for general measurement tasks. Their robust construction ensures accurate measurements even in demanding environments, while the universal design allows for compatibility with various banana plug based test leads. Technical Information: Category: CAT IV 600 V, CAT III 1000 V Conductor Diameter: Max. 25 mmMax Current: 10 A Connector Type: 4 mm Banana Plug Compatible Multimeters: DM7275, DM7276, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282 Compatible Clamp Meters: CM3286, CM4141, CM4371, CM4373, CM4375

€28.00
View product
HIOKI L4936 - Terminals for busbars HIOKI L4936 terminals for busbars compatible with L4930 L4940
L4936
HIOKI L4936 - Terminals for busbars
The L4936 set is a versatile accessory for all Hioki products that are suitable for measurements on busbars and where the available large crocodile clips are not able to make safe contact with the current-carrying cable or busbar, or where there is a risk of touching current conductors that carry a high voltage. Technical data: Length: 153 mm Maximum cable size: 30 mm Voltage safety category: CAT III 600V Imax: 5 A Compatible cables: L4930, L4940, banana cables corresponding to the CAT level and Imax level of L4936 Compatible products: P9000, DM7275, DM7276, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282, CM3286, CM4141, CM4371, CM4373, CM4375

€98.00
View product
HIOKI 9804 - Magnetic Clip Set for Test Leads, red/black, 4 mm connector HIOKI 9804 - Magnetic Clip Set for Test Leads, red/black, 4 mm connector
9804
HIOKI 9804 - Magnetic Clip Set for Test Leads, red/black, 4 mm connector
Set of red and black magnetic clips for test leads with 4 mm connectors, 11 mm concave contact surface for ferromagnetic contact points, CAT IV 1000 V, 2 A

€88.00
View product
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
CM4371-50
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth (Z3210)

€488.00
View product
HIOKI CM4371-90 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
CM4371-90
HIOKI CM4371-90 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter, DC power, resistance, capacitance, continuity, inrush measurement, Bluetooth included

€548.00
View product

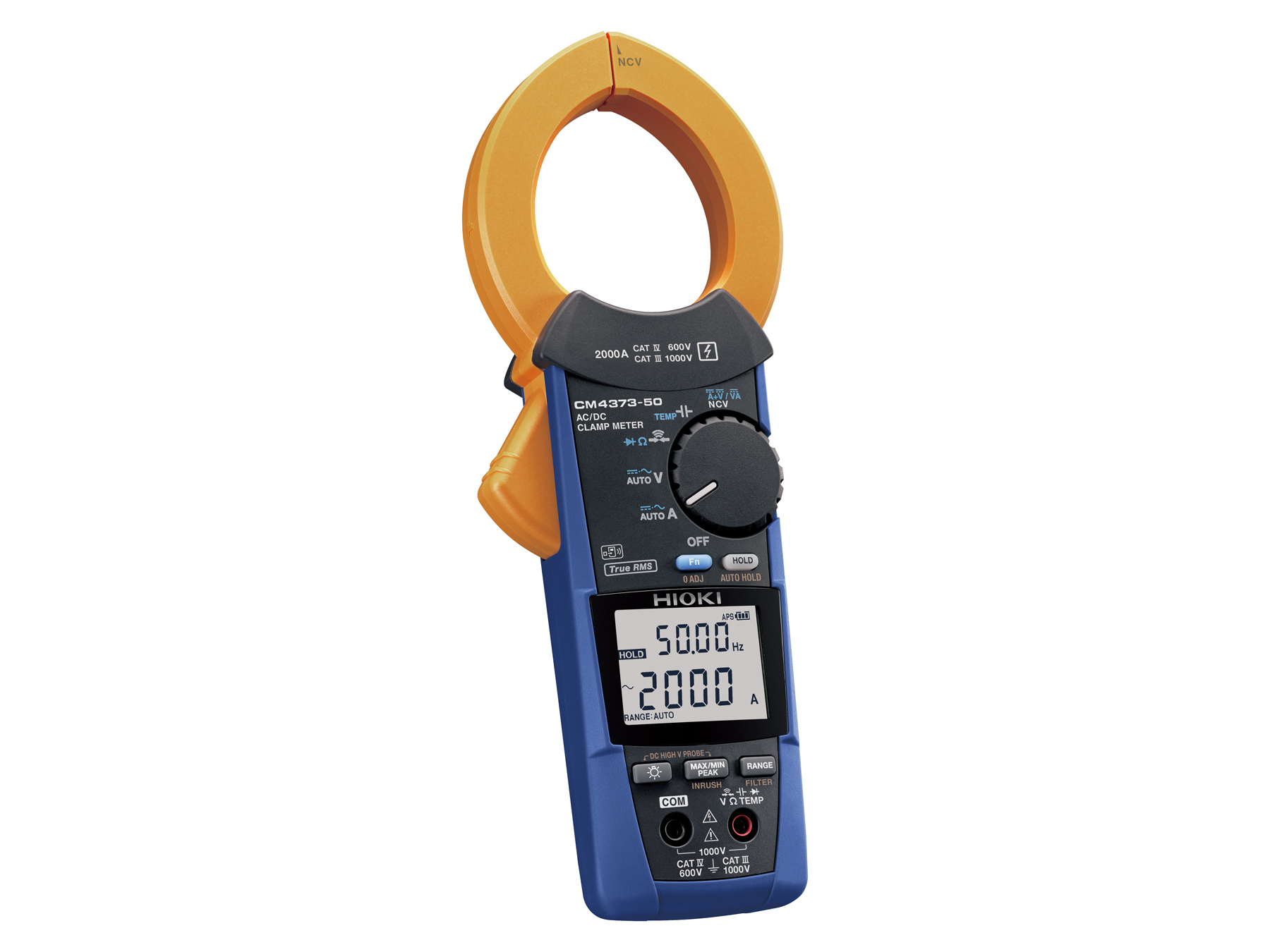

HIOKI CM4373-50 ac dc clamp multimeter optional Bluetooth via Z3210 HIOKI CM4373-50 ac dc clamp multimeter 55 mm jaw diameter
CM4373-50
HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth with Z3210

€508.00
View product

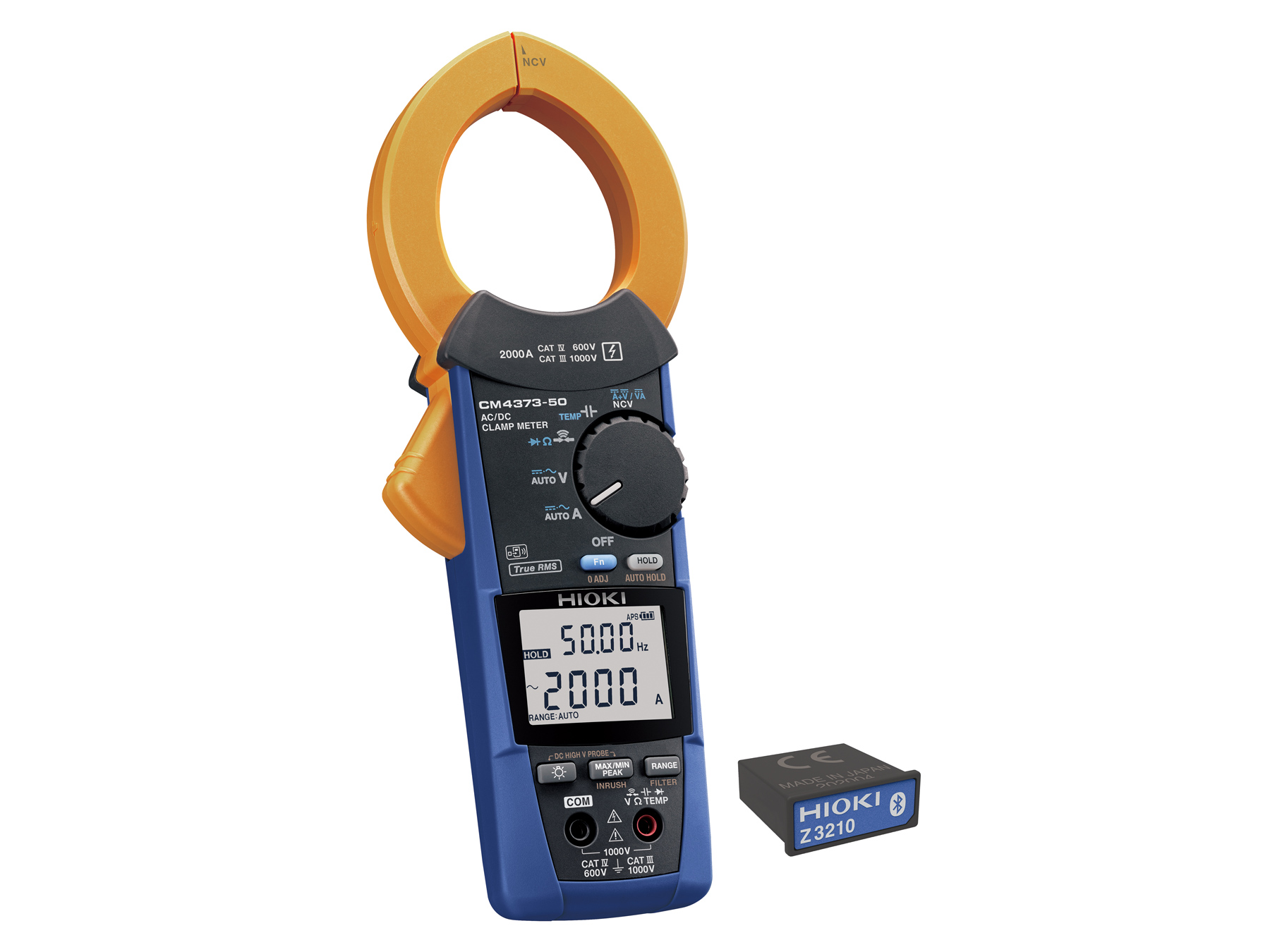

HIOKI CM4373-90 ac dc true rms clamp multimeter bluetooth HIOKI CM4373-90 ac dc clamp multimeter 55 mm jaw diameter
CM4373-90
HIOKI CM4373-90 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter, DC power, resistance, capacitance, continuity, inrush, Bluetooth included (Z3210)

€568.00
View product

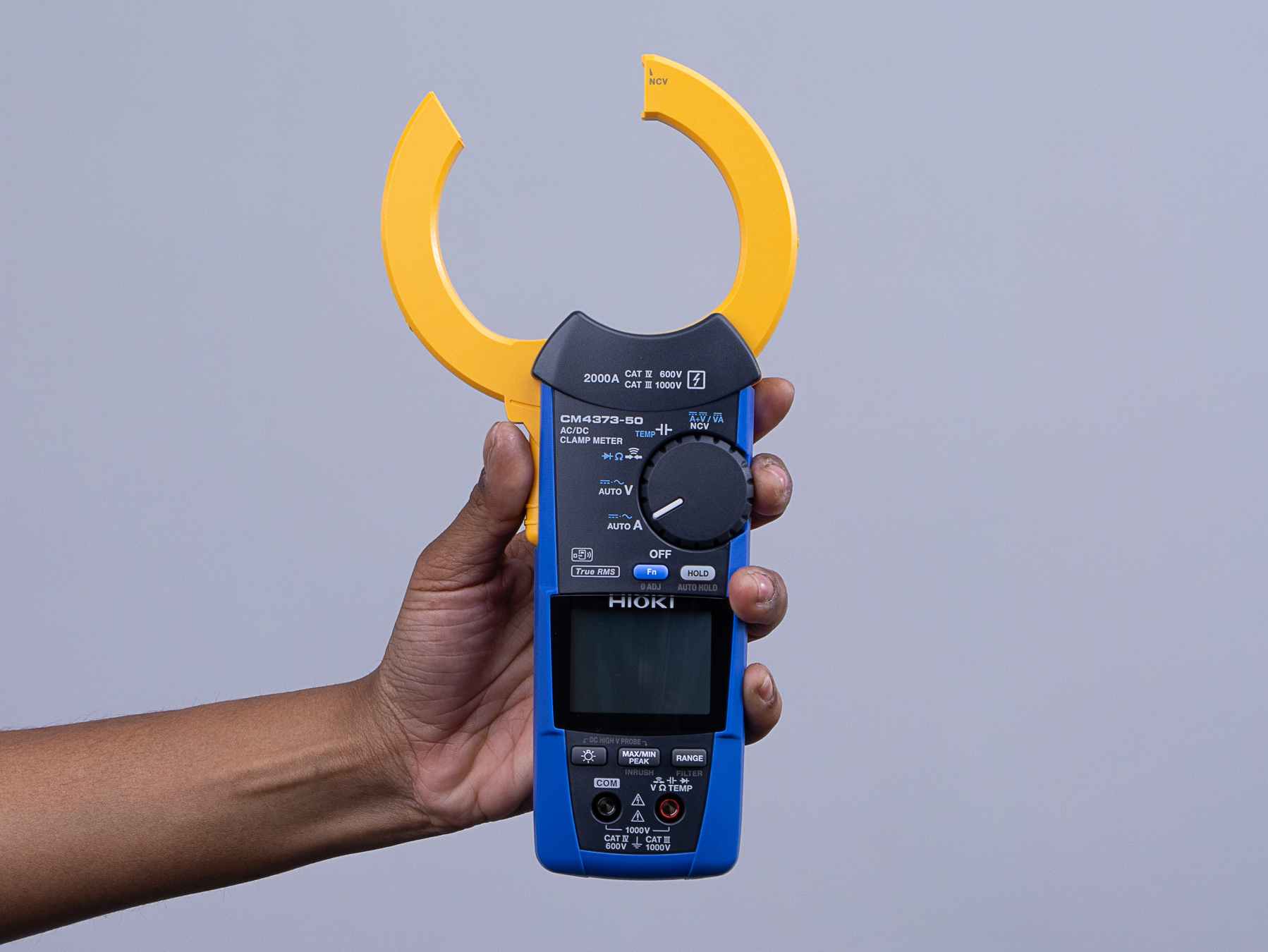

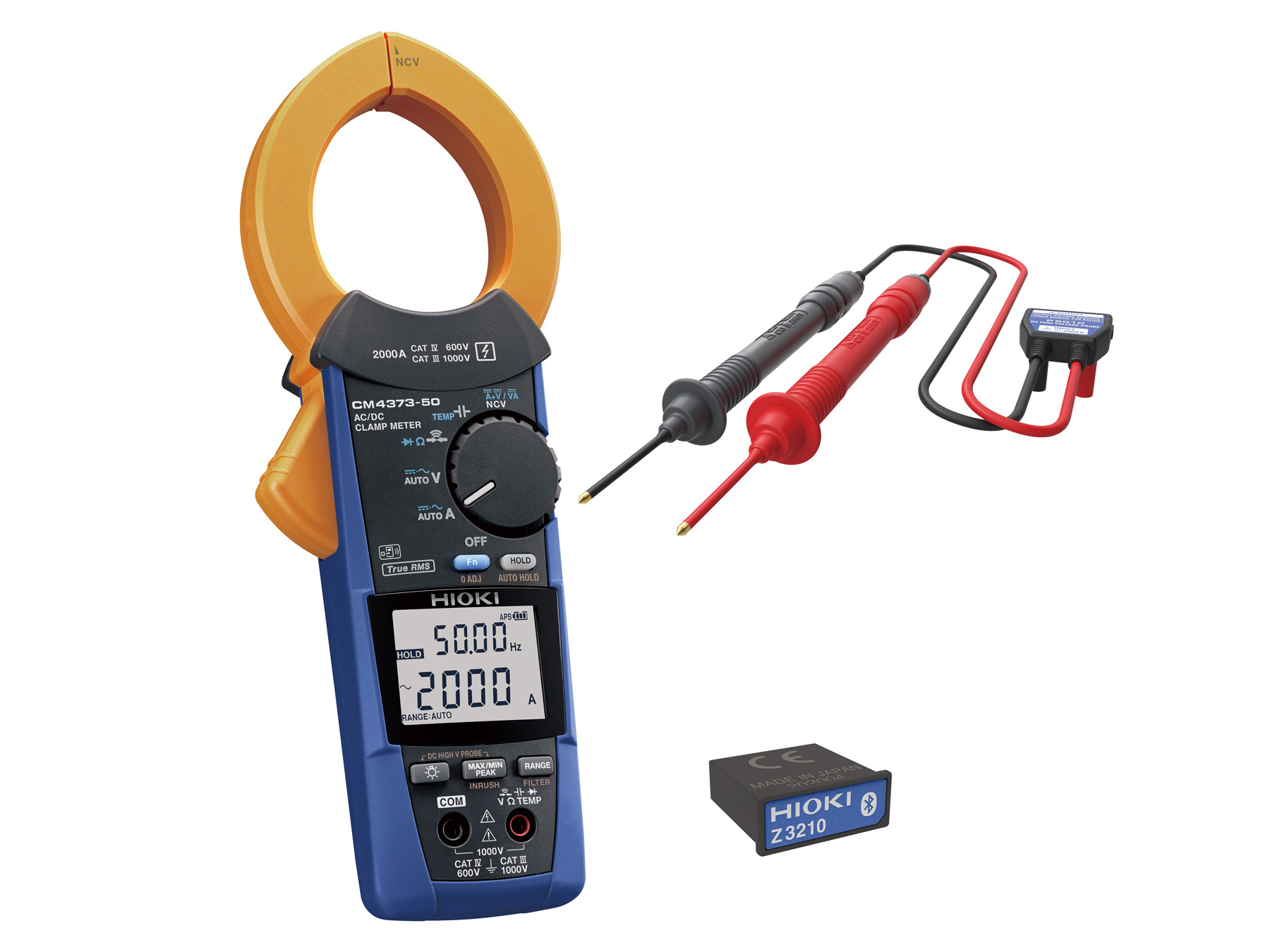

HIOKI CM4373-93 clamp multimeter kit 2000a ac dc 2000v dc bluetooth HIOKI CM4373-93 clamp multimeter kit 2000a ac dc 2000v dc bluetooth 55 mm jaw diameter
