HIOKI PW4001 - 4-channel Power Analyzer
Portable 4-channel power analyzer with ±0.04% basic accuracy, DC to 600 kHz frequency bandwidth, CAT II 1500 V DC, 1 ms data update rate, waveform & D/A output, motor analysis, external DC power input
Description
Product information HIOKI PW4001 - 4-channel Power Analyzer
Key Specifications
- Basic accuracy: ±0.04%
- Frequency bandwidth: DC, 0.1 Hz to 600 kHz
- CAN / CAN FD output and input
- Safety rating: CAT II 1500 V DC
- Operating temperature range: -20 °C to 50 °C
Unique Advantages
- Power calculation using CAN values
Typical Applications
- WLTP (Worldwide harmonized Light vehicles Test Procedure) testing
- DC-DC converter efficiency measurements
- Inverter efficiency measurements
- Motor efficiency measurements
Detailed Product Overview
The HIOKI PW4001 is a portable 4-channel power analyzer that combines compact design with laboratory-grade precision. With a basic accuracy of ±0.04% across a frequency range from DC to 600 kHz, and benchmark accuracy of ±0.03% rdg. ±0.01% f.s. at DC and 50/60 Hz, it provides the precision required for applications like WLTP (Worldwide harmonized Light vehicles Test Procedure) testing, DC-DC converter efficiency evaluation, and other demanding measurement tasks in R&D, production, and field environments.The power analyzer supports direct voltage input up to 1500 V DC (CAT II) and 1000 V DC (CAT III), enabling measurements in high-voltage environments such as photovoltaic inverters and other modern power conversion systems. Furthermore, its CAN input function allows the PW4001 to obtain battery voltage values via CAN communication, so that power can be calculated without direct voltage probing. This is particularly important in environments where safety considerations make direct access to terminals difficult, for example when testing fully assembled electric vehicles.
The combination of a fixed four-channel design, high accuracy, and wide frequency bandwidth makes the PW4001 ideally suited for efficiency testing of single-stage converters. Typical applications include energy storage system (ESS) converters and the inverter stages used in heat pumps, compressor drives, and basic industrial motor drives, where DC input and AC output can be measured simultaneously.
Sensor Communication and Phase Correction
For current measurement, HIOKI provides a wide range of dedicated sensors, from compact clamps for low currents to high bandwidth probes capable of several kiloamps. As both the analyzer and the sensors come from a single source, they communicate directly, automatically exchanging calibration and correction data. The HIOKI PW4001 Power Analyzer applies phase shift corrections with 0.001° resolution, minimizing error and ensuring that each sensor performs to its full potential. HIOKI’s high-precision current clamps are particularly valued for their ability to capture currents quickly and safely on complete systems without the need for direct wiring.
DC operation and long-term recording
With the optional DC power input, the analyzer can operate directly from a DC supply such as a car or truck battery or a portable battery pack within a voltage range of 10.5 to 28 VDC. This makes it ideal for field tests where AC power is not available. Its 16 GB internal memory enables long-term recording without external USB devices, reducing the risk of interrupted measurements. Designed for harsh conditions, the PW4001 operates from −20 °C to +50 °C and is specified for vibration resistance up to 4.6 G. It also meets the requirements of WLTP and SAE J1634 testing at −7 °C, ensuring stable performance in certified cold chamber evaluations as well as in real driving tests.
System Integration and Automation

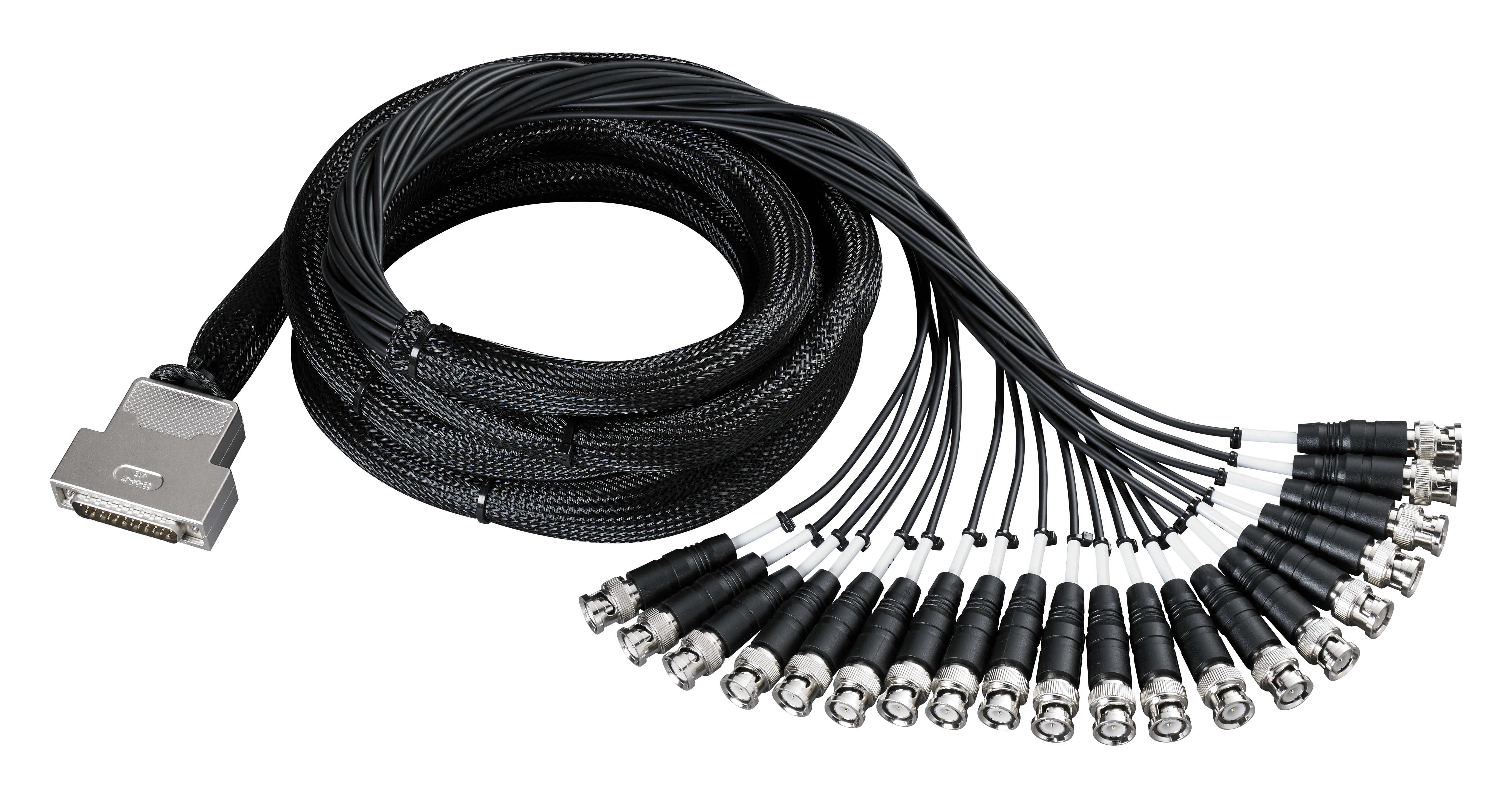

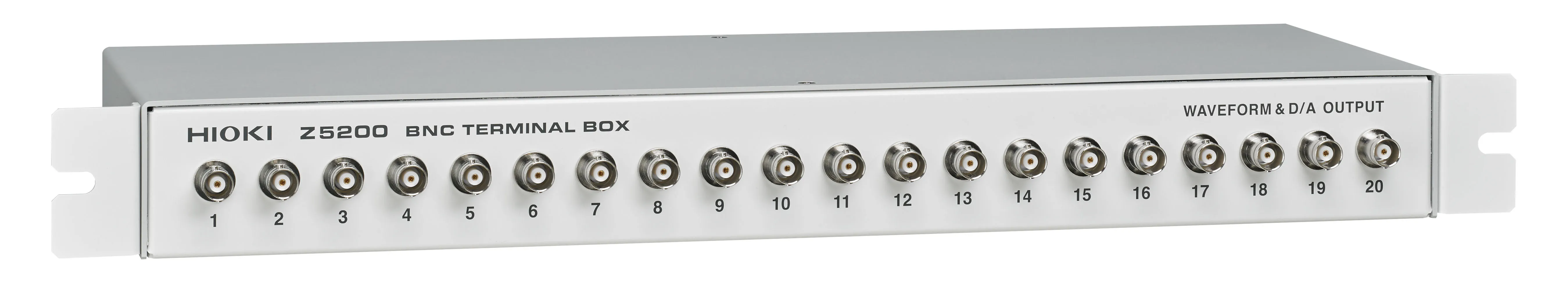

The PW4001 Power Analyzer is ideally suited for integration into test benches and automated test environments. With LAN interfaces supporting SCPI, Modbus/TCP, and XCPon-Ethernet, it can be controlled directly from existing systems. An integrated HTTP server allows browser-based operation without additional software, while FTP client and server functions make internal storage accessible like a remote file drive. For extended monitoring, an optional 16-channel analog output function is also available, allowing waveforms and key parameters to be output in real time.
Advanced Analysis and Test Functions of the PW4001 Power Analyzer Beyond delivering numerical results, the PW4001 provides oscilloscope-like visibility. With four voltage and four current channels, engineers can view eight signals at once and capture them at high sampling rates. Zoom, trigger, and cursor functions make it possible to analyze switching events and transients in detail, while integrated memory supports long-term recording of measurement parameters.
For more advanced evaluation, the optional motor analysis package supports up to two motors, calculating motor power from torque and RPM while also providing vector displays and harmonic analysis up to the 500th order. Up to 20 custom formulas can be defined, allowing engineers to adapt the analyzer to specific test requirements.
Automatic Mode Detection for ESS and Regeneration
In applications such as energy storage systems (ESS) or drive systems with regenerative braking, the efficiency calculation depends on the operating mode. During charging or generator operation, the relationship between input and output power is reversed compared to discharging or motoring. The PW4001 automatically detects these modes and adjusts the efficiency calculation accordingly. This prevents incorrect results such as apparent efficiencies greater than 100% during regenerative operation.
When larger systems must be evaluated, up to eight PW4001 units can be synchronized via BNC, enabling time-aligned measurement across 32 channels and supporting complete system-level analysis of PV or EV powertrains.
From xEV energy consumption testing to converter, inverter, motor, and PV efficiency measurements, the PW4001 provides the versatility and reliability required for modern power analysis.
Overview of PW4001 Models
| Model | D/A Output | Motor Analysis | DC power supply |
|---|---|---|---|
| PW4001-01 | ☐ | ☐ | ☐ |
| PW4001-02 | ☑ | ☐ | ☐ |
| PW4001-03 | ☐ | ☑ | ☐ |
| PW4001-04 | ☐ | ☐ | ☑ |
| PW4001-05 | ☑ | ☑ | ☑ |
What's in the Box
- PW4001 Power Analyzer
- Startup Guide ×1
- Power Cord ×1
- USB Cable ×1
- D-sub 25-pin Connector ×1 (PW4001-02, PW4001-05)
- DC Power Connector ×1 (PW4001-04, PW4001-05)
-
Product catalog with data sheet, current sensors & current probes series (English)16,413 KB pdf
-
Motor Measurement Applications (English)6,783 KB pdf
-
Product catalog, POWER ANALYZER Series (English)2,717 KB pdf
-
Product brochure with datasheet, AC/DC high-voltage divider VT1005 (English)1,744 KB pdf
-
Product brochure with datasheet, 4-channel Power Analyzer PW4001 (English)8,921 KB pdf
-
Datasheet, 4-channel Power Analyzer PW4001 (English)3,481 KB pdf
-
Instruction Manual, 4-channel Power Analyzer PW4001 (English)16,504 KB pdf
Skip product gallery
Regular price:
€2,368.00
Regular price:
€2,288.00
Regular price:
€1,628.00
Regular price:
€1,628.00
Regular price:
€1,948.00
Regular price:
€2,018.00
Sale price:
€1,702.40
Regular price:
€2,128.00
Regular price:
€2,128.00
Regular price:
€2,498.00
Regular price:
€2,388.00
Regular price:
€1,788.00
Regular price:
€1,788.00
Regular price:
€1,788.00
Regular price:
€828.00
Regular price:
€2,808.00
Regular price:
€68.00
Regular price:
€178.00
Regular price:
€108.00
Related products
CT6834
HIOKI CT6834 - Super-slim AC/DC high-accuracy Current Clamp, 500 A / 50 kHz
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 500 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 5 m
CT6833
HIOKI CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 200 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 5 m
CT6831
HIOKI CT6831 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
Ultra small zero flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3% rdg., wide temperature range -40 to 85 °C, measurable current up to 20 A, ME15W connector
CT6830
HIOKI CT6830 - Ultra-compact AC/DC Current Probe, 2 A / 100 kHz
Ultra-small, zero-flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3% rdg., wide temperature range -40 to 85 °C, measurable current up to 2 A, ME15W connector
CT6841A
HIOKI CT6841A - AC/DC High-accuracy Current Clamp, 20 A / 2 MHz
AC/DC current clamp using advanced fluxgate technology, 20A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, wide bandwidth from DC to 2 MHz, maximum conductor diameter 20 mm, cable length 3 m
CT6843A
HIOKI CT6843A - AC/DC High-accuracy Current Clamp, 200 A / 700 kHz
AC/DC current clamp using advanced fluxgate technology, 200A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, wide bandwidth from DC to 700 kHz, maximum conductor diameter 20 mm, cable length 3 m
20
CT6844A
HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz
AC/DC current clamp using advanced fluxgate technology, 500A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, wide bandwidth from DC to 500 kHz, maximum conductor diameter 20 mm, cable length 3 m
CT6845A
HIOKI CT6845A - AC/DC Current Clamp, Fluxgate, 500 A / 200 kHz
AC/DC current clamp using advanced fluxgate technology, 500A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, bandwidth from DC to 200 kHz, maximum conductor diameter 50 mm, cable length 3 m
CT6846A
HIOKI CT6846A - AC/DC High-accuracy Current Clamp, 1000 A / 100 kHz
AC/DC current clamp using advanced fluxgate technology, 1000A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, bandwidth from DC to 100 kHz, maximum conductor diameter 50 mm, cable length 3 m
CT6877A
HIOKI CT6877A - AC/DC-Current sensor, 2000 A / 1 MHz
Hioki's pass-through AC/DC current sensors are premium devices for use with power meters, memory HiCorders and high performance oscilloscopes.
CT6876A
HIOKI CT6876A - AC/DC Current sensor, 1000A / 1.5 MHz
Product Description for CT6876 AC/DC Current Sensor The CT6876 AC/DC Current Sensor is designed for accurate current measurements with a broad frequency range from DC to 1.5 MHz. With a rated current of 1000 A, it is ideal for demanding applications in industries such as inverter motors, electric vehicles, and power electronics.The sensor offers excellent noise resistance and high precision, making it a top choice for high-current, high-speed measurements. When combined with Hioki's Power Analyzers, it ensures accurate power conversion efficiency measurements, especially in high-frequency environments.Technical Details:Model: CT6876 Rated Current: 1000 A Frequency Bandwidth: DC to 1.5 MHzBasic Accuracy: Amplitude: ±0.04% rdg. ±0.008% f.s. Phase: ±0.1° Maximum Conductor Diameter: 36 mm Maximum Rated Voltage to Ground: 1000 V CAT III Operating Temperature: -40°C to 85°CInput Impedance Requirement: 1 MΩ or higher Output Terminal: ME15W
Model
Rated current
Bandwidth
Basic accuracy
Max. Conductor diameter
CT6877A
2000 A
DC – 1 MHz
0,04 % rdg
Ø 80 mm
CT6876A
1000 A
DC – 1.5 MHz
0,04 % rdg
Ø 36 mm
CT6875A
500 A
DC – 2 MHz
0,04 % rdg
Ø 36 mm
CT6904A
500 A
DC – 4 MHz
±0,025 % rdg
Ø 32 mm
CT6873
200 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6872
50 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6863-05
200 A
DC – 500 kHz
±0,05 % rdg
Ø 24 mm
CT6862-05
50 A
DC – 1 MHz
±0,05 % rdg
Ø 24 mm
CT6875A
HIOKI CT6875A - AC/DC Current sensor, 500 A / 2 MHz
The HIOKI CT6875 AC/DC Current Sensor is designed for accurate current measurements across a broad frequency range, from DC to 2 MHz (Model CT6875-01: DC to 1.5 MHz). With a rated current of 500 A, it is ideal for R&D, quality evaluation, manufacturing, and maintenance in industries such as wireless charging systems, inverter motors, PV power conditioners, and EV quick charging facilities. In combination with the Power Analyzer PW8001, the sensor allows for precise high-frequency and low power factor measurements. Technical Details: Rated Current: 500 A Frequency Bandwidth: CT6875: DC to 2 MHzBasic Accuracy: Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.08° Maximum Conductor Diameter: 36 mm Maximum Rated Voltage to Ground: 1000 V CAT III Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher Output Terminal: ME15W Cable length: 3mMore than specs – find more details here: Measure Power with Precision – Across All Applications
Model
Rated current
Bandwidth
Basic accuracy
Max. Conductor diameter
CT6877A
2000 A
DC – 1 MHz
0,04 % rdg
Ø 80 mm
CT6876A
1000 A
DC – 1.5 MHz
0,04 % rdg
Ø 36 mm
CT6875A
500 A
DC – 2 MHz
0,04 % rdg
Ø 36 mm
CT6904A
500 A
DC – 4 MHz
±0,025 % rdg
Ø 32 mm
CT6873
200 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6872
50 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6863-05
200 A
DC – 500 kHz
±0,05 % rdg
Ø 24 mm
CT6862-05
50 A
DC – 1 MHz
±0,05 % rdg
Ø 24 mm
CT6873
HIOKI CT6873 - AC/DC Current Sensor, 200 A / 10 MHz
The CT6873A is an advanced current sensor that provides high-precision AC/DC current measurements for power analysis applications. Its wide frequency range and excellent phase accuracy make it suitable for complex waveform and harmonic studies. It supports automatic phase shift correction (APSC).Technical Details Current Rating: 200 A AC/DC Frequency Range: DC to 10 MHz Accuracy: ±0.03% rdg, ±0.002% f.s. Maximum Conductor Diameter: 24 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher
Model
Rated current
Bandwidth
Basic accuracy
Max. Conductor diameter
CT6877A
2000 A
DC – 1 MHz
0,04 % rdg
Ø 80 mm
CT6876A
1000 A
DC – 1.5 MHz
0,04 % rdg
Ø 36 mm
CT6875A
500 A
DC – 2 MHz
0,04 % rdg
Ø 36 mm
CT6904A
500 A
DC – 4 MHz
±0,025 % rdg
Ø 32 mm
CT6873
200 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6872
50 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6863-05
200 A
DC – 500 kHz
±0,05 % rdg
Ø 24 mm
CT6862-05
50 A
DC – 1 MHz
±0,05 % rdg
Ø 24 mm

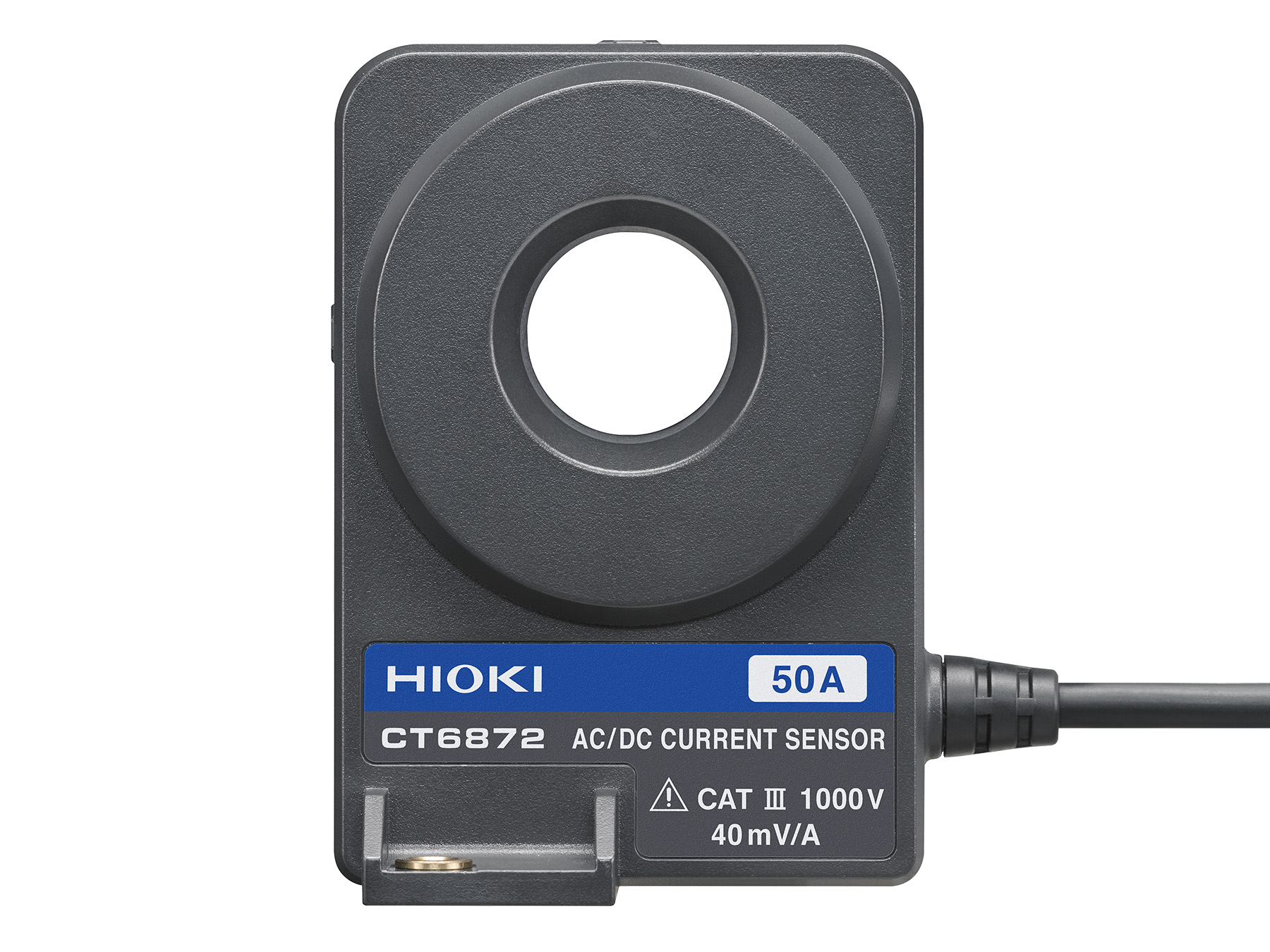

CT6872
HIOKI CT6872 - AC/DC Current Sensor, 50 A / 10 MHz
The CT6872 is a high-precision AC/DC current sensor designed for detailed waveform observation and harmonic analysis. With a frequency range of up to 10 MHz, it is ideal for high-frequency power electronics testing. It supports automatic phase shift correction (APSC). Technical Details:Current Rating: 50 A AC/DC Frequency Range: DC to 10 MHz Accuracy: ±0.03% rdg, ±0.002% f.s. Maximum Conductor Diameter: 24 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higherMore than specs – find more details here: Measure Power with Precision – Across All Applications
Model
Rated current
Bandwidth
Basic accuracy
Max. Conductor diameter
CT6877A
2000 A
DC – 1 MHz
0,04 % rdg
Ø 80 mm
CT6876A
1000 A
DC – 1.5 MHz
0,04 % rdg
Ø 36 mm
CT6875A
500 A
DC – 2 MHz
0,04 % rdg
Ø 36 mm
CT6904A
500 A
DC – 4 MHz
±0,025 % rdg
Ø 32 mm
CT6873
200 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6872
50 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6863-05
200 A
DC – 500 kHz
±0,05 % rdg
Ø 24 mm
CT6862-05
50 A
DC – 1 MHz
±0,05 % rdg
Ø 24 mm
CT6862-05
HIOKI CT6862-05 - AC/DC Current Sensor, Fluxgate, 50 A / 1 MHz
The CT6862-05 is a pass-through AC/DC current sensor designed for precision power measurement in industrial environments. It features a wide frequency range and low phase shift, making it highly suitable for accurate waveform observation and harmonic analysis. Technical Details:Current Rating: 50 A AC/DC Frequency Range: DC to 1 MHz Accuracy: ±0.05% rdg, ±0.01% f.s. Maximum Conductor Diameter: 24 mm Operating Temperature: -30°C to 85°C Input Impedance Requirement: 1 MΩ or higherMore than specs – find more details here: Find out more about precise power measurement
Model
Rated current
Bandwidth
Basic accuracy
Max. Conductor diameter
CT6877A
2000 A
DC – 1 MHz
0,04 % rdg
Ø 80 mm
CT6876A
1000 A
DC – 1.5 MHz
0,04 % rdg
Ø 36 mm
CT6875A
500 A
DC – 2 MHz
0,04 % rdg
Ø 36 mm
CT6904A
500 A
DC – 4 MHz
±0,025 % rdg
Ø 32 mm
CT6873
200 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6872
50 A
DC – 10 MHz
±0,03 % rdg
Ø 24 mm
CT6863-05
200 A
DC – 500 kHz
±0,05 % rdg
Ø 24 mm
CT6862-05
50 A
DC – 1 MHz
±0,05 % rdg
Ø 24 mm
VT1005
HIOKI VT1005 - High-Precision 5000 V AC/DC Voltage Divider for Advanced Power Analysis
AC/DC high-voltage divider up to 5 kVrms, bandwidth DC to 4 MHz (–3 dB), 1000:1 division ratio, ±0.08% DC accuracy, ±0.04% accuracy at 50/60 Hz, amplitude flatness ±0.1% to 200 kHz, phase flatness ±0.1° to 500 kHz, CMRR 80 dB at 100 kHz, BNC output
SP7001-90
HIOKI SP7001-90 - Non-contact CAN/CAN FD Sensor Set, screw type probes, up to 2 CAN buses
Non-contact CAN/CAN FD sensor set, screw type probes, for 1 CAN bus (expandable to 2),
125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output, DC powered, includes SP7001
sensor, SP9200 probes, and SP7100 interface
L1025
L1025 - Voltage Cord Set
The L1025 Voltage Cord Set is a high-quality accessory designed for accurate and safe voltage measurements in industrial and electrical applications. It is intended for professional use and serves as an accessory for the PW8001 and PW4001 Power Analyzers. The set consists of one red and one black safety voltage cord, each with a length of 3 m. Both cords are equipped with 4 mm safety banana plugs with finger protection on both ends (banana–banana), ensuring a high level of operator safety. Alligator clips are included, allowing flexible and secure connections to measurement pointsKey Specifications
Measurement categories: CAT II 1500 V DC, CAT III 1000 V, 1000 V AC / 1 ACable length: 3 m per cord, set includes red and blackConnection: 4 mm safety banana plugs with finger protection
CT9904
HIOKI CT9904 - Connection Cable for CT9557 and HIOKI Power Analyzers
Connection cable for CT9557 and HIOKI power analyzers with ME15W sensor input,
ME15W plug to ME15W socket, 1 m cable length

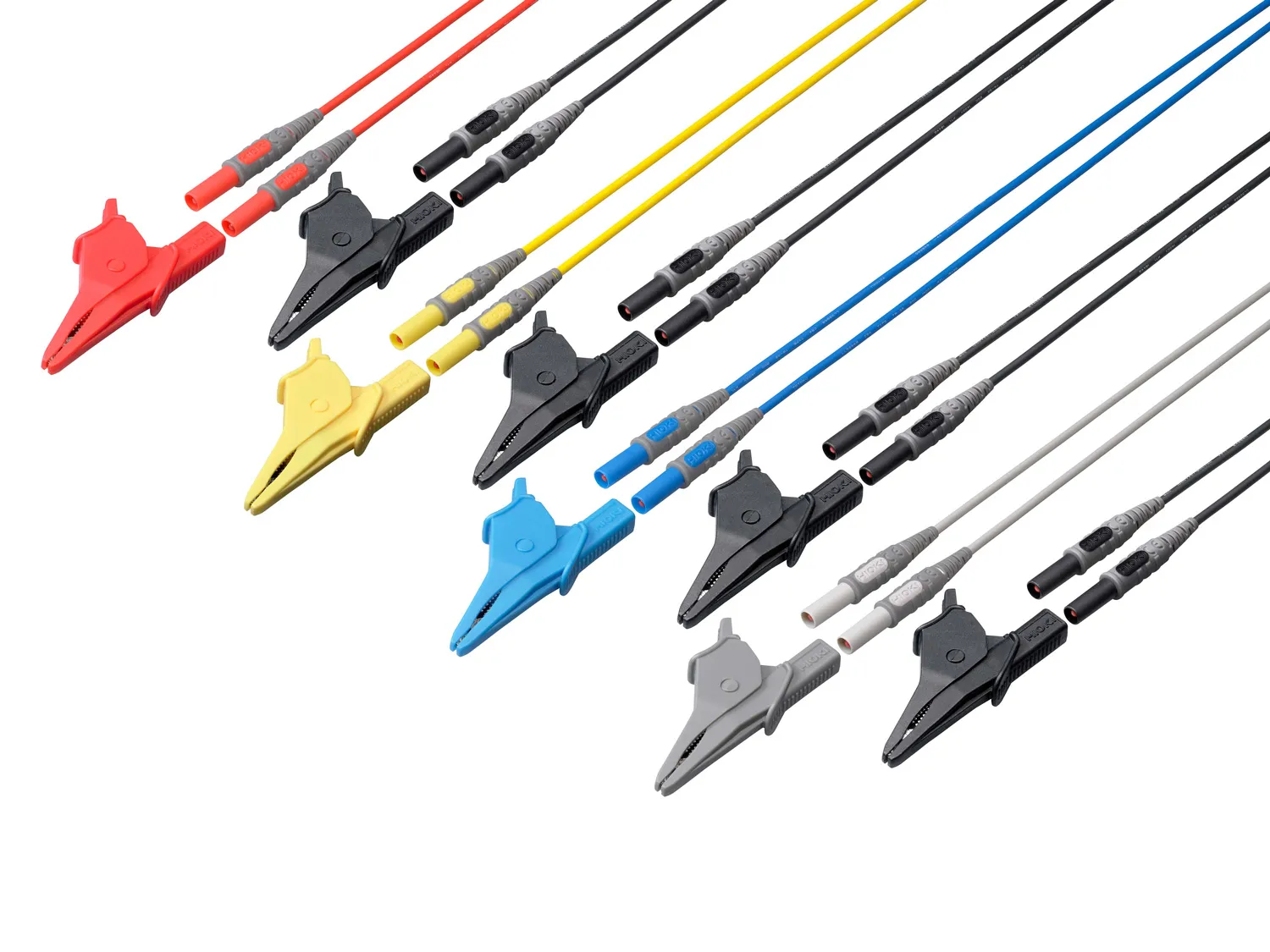

L1000
HIOKI L1000 - Voltage Cord Set
The Voltage Cord Set L1000 is a voltage measurement accessory set consisting of leads and crocodile clips, adapted to the requirements of HIOKI power quality analysers and power analysers. It enables safe connection to measurement points and supports phase identification by colour coding. The set includes 3 m leads, one red, one yellow, one blue and one grey, as well as four black. These are equipped with 4 mm safety banana plugs and are used together with the colour-matched crocodile clips included in the set. With a maximum opening width of 33 mm, the crocodile clips are suitable for electrical conductors up to 25 mm in diameter. Typical applicationsVoltage measurement in power quality analysis Voltage measurement in multiphase systems Technical specifications Set contents: one red, one yellow, one blue, one grey and 4 black leads, each with matching crocodile clipLead: length 3 m (3000 mm), 4 mm safety banana plug Crocodile clip: colour coded, opening width 33 mm, for conductors up to Ø25 mm Measurement category: CAT III 600 V, CAT II 1000 VCompatible devicesPQ3198 PW3390 PW4001 PW8001 M7103

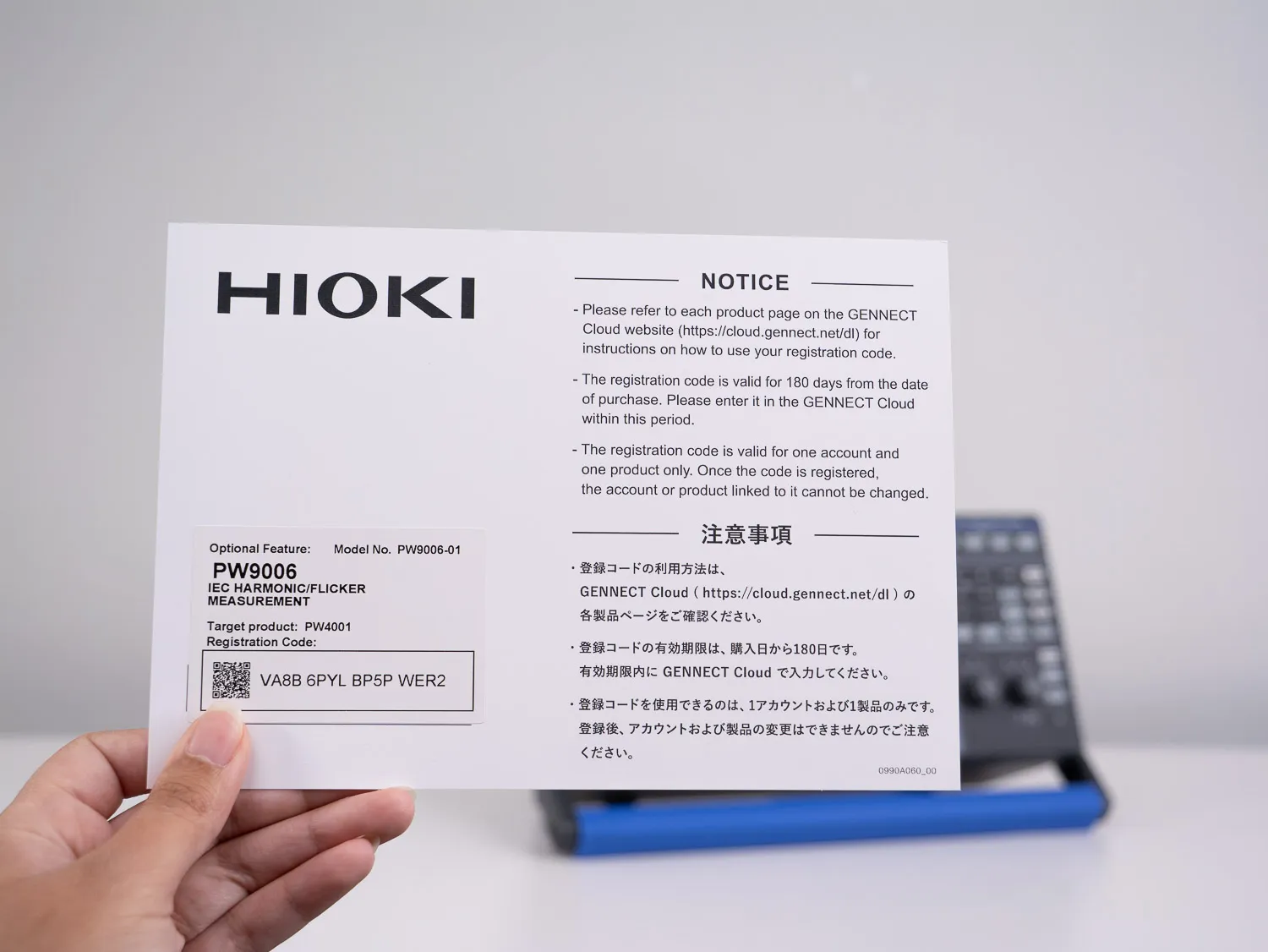

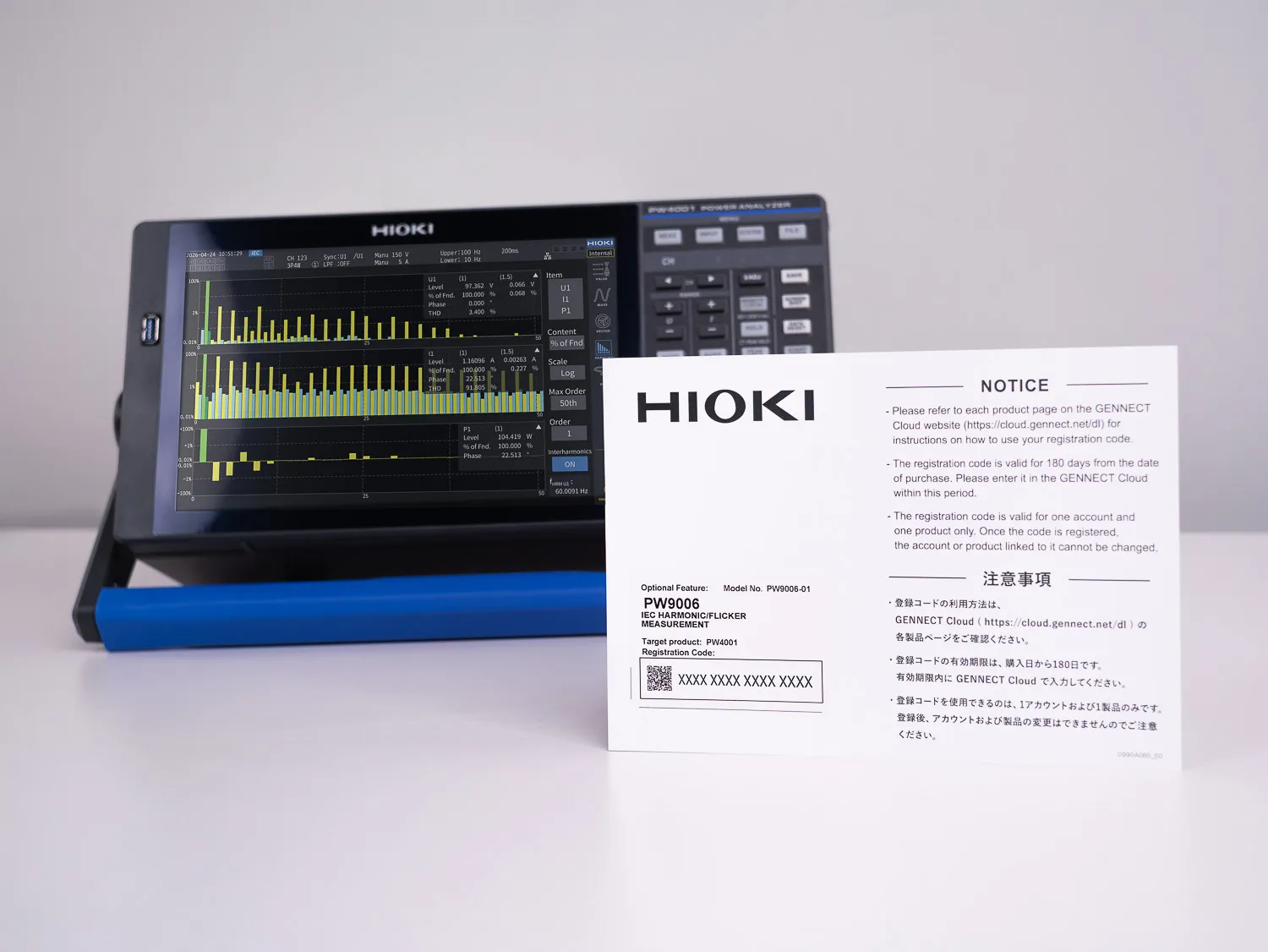

PW9006-01
