HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance
Industrial digital multimeter with True RMS, 10 A AC/DC direct input and clamp sensor support, AC and DC voltage with LoZ mode, 2000 V DC CAT III with optional P2010, resistance, capacitance, 6000 count, Bluetooth optional with Z3210
€288.00*
Content:
1 Each
In stock in Germany
€288.00*
HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance
Available stock:
3
Product number:
DT4261
EAN:
4536036013517
Length:
185 mm
Width:
87 mm
Height:
47 mm
Weight:
0.48 kg
Product information HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance
Key Specifications
- 10 A AC/DC direct input
- Clamp sensor support
- LoZ voltage mode
- CAT III 1000 V, CAT IV 600 V, 2000 V DC CAT III with optional P2010
- Bluetooth optional with Z3210
Typical Applications
- Troubleshooting in control cabinets and power distribution systems
- Verification of supply voltages in industrial installations
- Measurement on inverter driven systems and motor drives
- DC voltage measurement in PV strings with optional P2010
- AC and DC current measurement with direct input or clamp sensors
Detailed Product Overview
The DT4261 is an industrial digital multimeter for service, maintenance and commissioning in electrical installations and industrial systems. It combines direct current measurement up to 10 A with clamp sensor support. DC voltage measurement up to CAT III 2000 V is available when used with the P2010 high voltage divider. Bluetooth communication is available via the Z3210 wireless adapter.The instrument performs AC, DC and combined AC+DC voltage measurements with True RMS evaluation up to 1000 V. Measurement functions include resistance, capacitance, frequency, diode test and continuity. Additional functions such as MIN/MAX/AVG recording, peak measurement, relative mode and data hold support troubleshooting tasks. It features a 6000 count display and safety ratings up to CAT III 1000 V and CAT IV 600 V.
LoZ Voltage Mode
The DT4261 provides a dedicated LoZ voltage mode with reduced input impedance compared to the standard voltage measurement. In the standard voltage mode, the high input impedance places almost no load on the measurement point. Under certain installation conditions, such as parallel cable routing or long unterminated conductors, small capacitively coupled voltages can remain visible on a high-impedance instrument.In LoZ mode, the reduced input impedance applies a defined load to the measurement point. Very weak or capacitively coupled voltages are more likely to collapse under this condition, while voltages with sufficient source capability remain stable. This supports clearer evaluation of the actual voltage condition in electrical installations.
Current Measurement
For direct current measurement, the DT4261 provides a 10 A AC/DC input. A fuse check function is automatically performed when switching from clamp measurement to direct current measurement, verifying fuse continuity before measurement.When used with one of the three compatible HIOKI multi-range current clamps, the DT4261 supports AC current measurements from 10 A up to 1000 A. The 9010-50 covers measurement ranges from 10 A up to 500 A with a frequency bandwidth up to 1 kHz. The 9132-50 extends the measurement range from 20 A up to 1000 A with a frequency bandwidth up to 1 kHz. The 9018-50 covers ranges from 10 A up to 500 A and provides an extended frequency bandwidth up to 3 kHz with higher amplitude and phase accuracy compared to the 9010-50.
All three current clamps provide a voltage output proportional to the measured current and are connected via the 9704 BNC adapter. When using one of these multi-range clamps, the corresponding measurement range is selected manually on the instrument to match the clamp setting.
Wireless and PC Communication
With the optional Z3210 wireless adapter installed, the DT4261 enables Bluetooth communication with the free GENNECT Cross app for Android and iOS. Measured values can be transferred to a smartphone or tablet for documentation, evaluation and harmonic analysis of voltage signals, for example in power supply systems or photovoltaic inverters.Using the HID function of the Z3210, measured values can also be transferred directly into Excel templates or other applications. In HID mode, the adapter is recognized by the operating system as a Bluetooth keyboard.
For PC-based applications, the DT4261 supports communication via the optional DT4900-01 USB Communication Pack. The optically isolated adapter enables USB connection to a Windows PC for data transfer and remote control of the instrument. Bluetooth communication via Z3210 and PC communication via DT4900-01 cannot be used simultaneously.
Operational Safety and Robust Design
To prevent incorrectly inserted test leads, the DT4261 incorporates terminal shutters linked to the rotary switch. Depending on the selected measurement function, unused input terminals are mechanically blocked. Excessive input conditions are indicated by a red backlight.The instrument operates within an ambient temperature range of -25 °C to 65 °C and withstands drops onto concrete from a height of 1 m under specified test conditions. Automatic AC/DC voltage detection and visual HOLD indication support measurement tasks in industrial environments.
The DT4261 is supplied with the L9300 test leads, rated for current measurements up to 10 A. The L9300 test leads feature integrated safety caps. The measurement category is adjusted by sliding the cap to change the exposed contact length. The permanent connection between cap and probe tip prevents removal or loss.
The instrument is powered by three LR6 AA alkaline batteries and provides an operating time of up to 130 hours. When used with the Z3210 wireless adapter, operating time is typically up to 70 hours. Developed and manufactured in Japan, the DT4261 reflects HIOKI’s long-standing commitment to precision, reliability and controlled production quality.
- DT4261 Industrial Digital Multimeter
- Instrument Protector
- L9300 Test Lead Set
- Instruction Manual
- Operating Precautions
- 3 × LR6 AA alkaline batteries
-
Product brochure with data sheet, Digital Multimeter DT4200 Series (English)10,796 KB pdf
-
Product Catalog with data sheet, Field Measuring Instruments (English)39,121 KB pdf
-
Product brochure with datasheet, Bluetooth adapter Z3210 (English)2,136 KB pdf
-
A Guide on Electrical Safety for EV Maintenance and Service (English)13,192 KB pdf
-
Instruction Manual, Digital Multimeter DT4261 (English)5,644 KB pdf
-
Instruction Manual, Digital Multimeter DT4261 (German)5,665 KB pdf
-
Instruction Manual, Digital Multimeter DT4261 (French)5,783 KB pdf
-
Instruction Manual, Digital Multimeter DT4261 (Spanish)5,678 KB pdf
-
Instruction Manual, Digital Multimeter DT4261 (Italian)5,760 KB pdf
-
Product brochure with Data sheet, DC HIGH VOLTAGE PROBE P2000 (English)1,120 KB pdf
Related Products
P2010
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
High voltage divider for safe DC measurement up to CAT III 2000 V or CAT IV 1000 V, division ratio 1/10. Designed to look and feel like compact test leads with standard 4 mm output connectors
Z3210
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Wireless Bluetooth adapter for compatible HIOKI instruments enabling remote data transfer and mobile measurement documentation. HIOKI Z3210 available now.
DT4900-01
DT4900-01 - COMMUNICATION PACKAGE (USB)
The Hioki DT4900-01 Communication Package enables seamless data transfer between compatible Hioki digital multimeters and a PC. It includes the essential communication cable for USB connection and allows users to remotely control measurement settings, view data in real-time, and export results to CSV or Excel. This tool is essential for professionals needing efficient data analysis and control. Technical Details: USB communication cable Real-time data viewing and control CSV/Excel export functionality Compatible with DT4250, DT4280, DT4261 series multimeters
9704
9704 - Adapter BNC socket
The 9704 is a versatile banana to BNC conversion adapter accessory wherever this is required. It is suitable for example for Hioki digital multimeters where current probes can be connected, or where a banana to BNC test lead conversion is required for measurement applications.Dimensions: 63W×33H×13D mmConnector configuration: 2x Banana male, 1x BNC female Distance between banana plugs: 19 mmVoltage protection category: CAT III 600VCompatible AC clamp and flexible probes: 9010-50, 9018-50, 9132-50, CT9667-01, CT9667-02, CT9667-03 Compatible Digital Multimeters: DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282 Others: Connection Cable L9097
9010-50
9010-50 - AC Current Probe
Economical Clamp Sensor for waveform recording, 40 to 1kHz, 10 to 500 A AC, +/-2%rdg. +/-1%f.s., 6 ranges, 46 mm core diameter, BNC output terminal
9018-50
9018-50 - AC Current Probe
Überlegener Zangensensor für die Aufzeichnung von Wellenformen und die Analyse von Oberschwingungen, 40 Hz bis 3 kHz, 10 bis 500A AC, +/-1,5%rdg. +/-0,1%f.s., 46 mm Durchmesser, BNC-Ausgangsklemme
9132-50
9132-50 - AC Current Probe
The 9132-50 Clamp-on Probe is a versatile current sensor designed for accurate AC current measurements up to 1000 A. This clamp-on probe allows for non-intrusive measurements on live wires without needing to cut the conductor, making it ideal for industrial applications, power distribution analysis, and electrical diagnostics.The 9132-50 features a wide conductor diameter capacity and a BNC connector for easy integration with recorders or testers, ensuring high precision and ease of use.Technical Details: Measuring Range: 20/50/100/200/500/1000 A AC Output Voltage: 0.2 V full scale Maximum Rated Current: 1000 A rms Maximum Rated Voltage to Earth: 600 V AC (CAT III) Conductor Diameter: Less than 55 mm, or 80 mm × 20 mm busbar Basic Accuracy (45 Hz to 66 Hz): ±3% rdg. ±0.2% f.s.Frequency Characteristics: 40 Hz to 1 kHz, adds ±1% to basic accuracy Output Resistance: 160 Ω ±10% (20 A range) Dimensions: 100 mm (W) × 224 mm (H) × 35 mm (D) Weight: Approx. 600 g Cable Length: Approx. 3 m Output Connector: BNC Operating Temperature: -10°C to 50°C Storage Temperature: -10°C to 60°C
C0202
HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters
HIOKI C0202 carrying case for digital multimeters and luxmeters – durable protection and easy portability for test instruments on the go. Order now from HIOKI Europe.

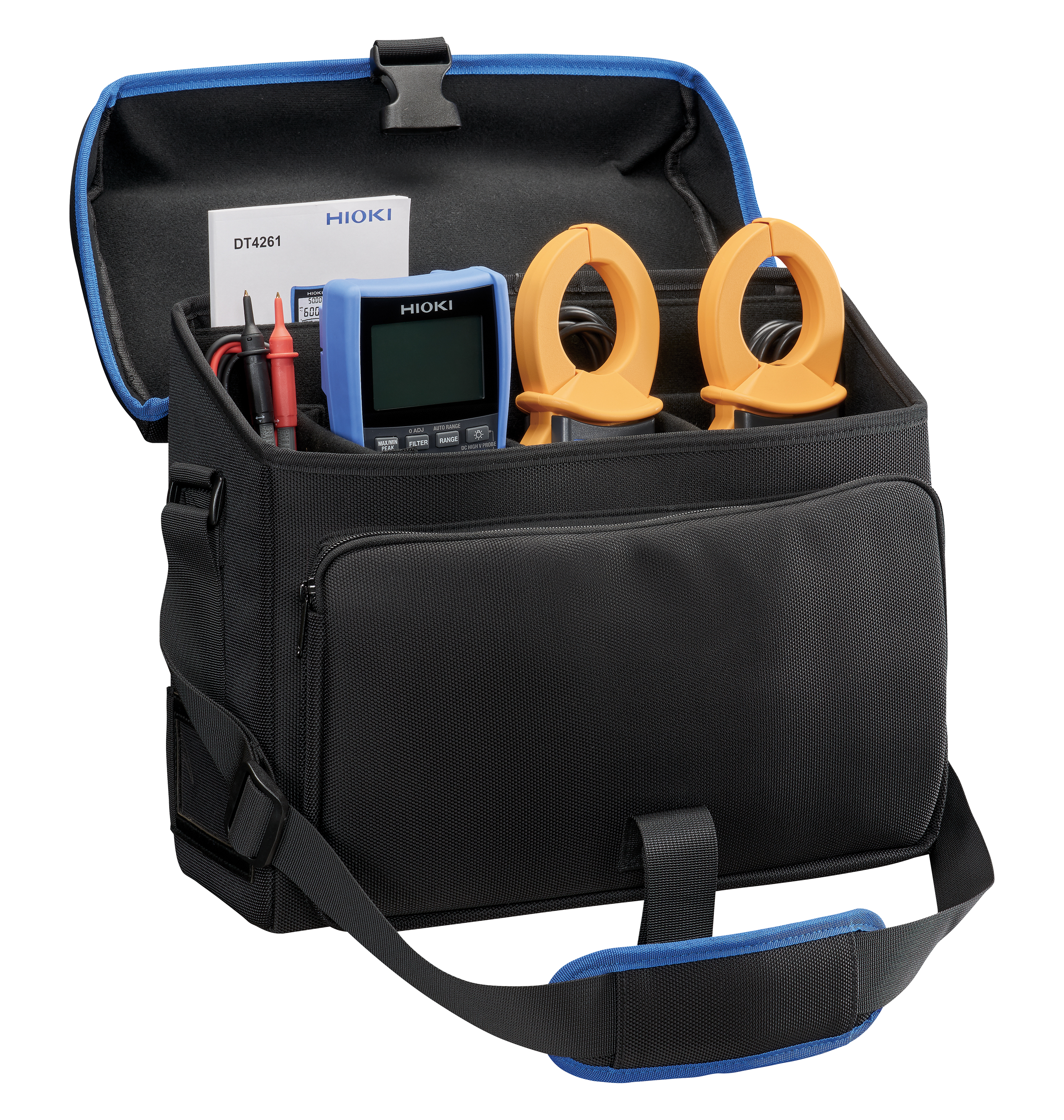

C0207
C0207 - Instrument Carrying Case with Adjustable Compartments
The C0207 is a carrying case for storing multiple instruments and accessories. The top access main compartment can be divided into up to four sections using three removable padded dividers. This allows separate storage of multiple instruments and accessories.An additional internal compartment is provided for documents or a tablet. When using instruments with Bluetooth communication, a tablet can be carried for wireless data transfer and documentation of measurement data. A separate front accessory pocket with zipper is integrated and includes two internal compartments for organized storage. The case features a continuous upper flap covering both the main compartment and the front accessory pocket. It is closed with a quick release buckle. The case features a permanently attached, adjustable shoulder strap with adjustable shoulder pad.External dimensions: 37 cm (L) × 19 cm (W) × 28 cm (H). Internal main compartment: 33.5 to 34.5 cm (L) × 12 to 13 cm (W) × 22 to 26 cm (H).
L4930
HIOKI L4930 - CONNECTION CABLE SET
High-quality 1.2 m red/black cable set for HIOKI DT4280/DT4250 multimeters – ideal for professional testing. Order now from HIOKI Europe.
Z5020
Z5020 - Extra Strong Magnetic Strap
The HIOKI Z5020 is a holding strap with an extra-strong magnet that can be used with data loggers in the HIOKI LR85xx / HIOKI LR5000 series, the HIOKI PD3259 phase detector and similar products, as well as digital multimeters in the HIOKI DT42xx series.
DT4281 (ENG)
DT4281 - Digital-Multimeter
Hioki DT4281 Digital Multimeter offers a versatile and reliable solution for precision electrical measurements. Equipped with a 5-digit display and advanced features, this multimeter is ideal for professionals handling a variety of applications.
DT4282
DT4282 - DIGITAL MULTIMETER
The DT4282 Digital Multimeter offers a versatile and reliable solution for precision electrical measurements. Equipped with a 5-digit display and advanced features, this multimeter is ideal for professionals handling a variety of applications, from basic voltage and current measurements to more complex functions such as capacitance, frequency, and data logging. Its robust safety ratings ensure secure usage in demanding environments.Technical Details: Display: 5-digit, 60,000 counts Measurement functions: AC/DC voltage, AC/DC current, resistance, conductance, capacitance, temperature, frequency, diode test, continuity test Additional functions: dB (voltage), % (current), data memory, auto range, true RMS Safety range: CAT III 1000V, CAT IV 600V Basic accuracy: ±0.025 % (DC voltage)
DT4256-20
HIOKI DT4256-20 DIGITAL MULTIMETER
HIOKI DT4256-20 Digital Multimeter with True RMS AC V/A, CAT III 1000 V/CAT IV 600 V safety and fast response for maintenance work. Order now.
DT4255 (ENG)
DT4255 - True RMS Digital Multimeter for Reliable and Safe Operation in Industrial Environments
Rugged digital multimeter with accurate True RMS measurement, voltage detection, and integrated protection features. Optimized for field diagnostics, maintenance, and training environments.

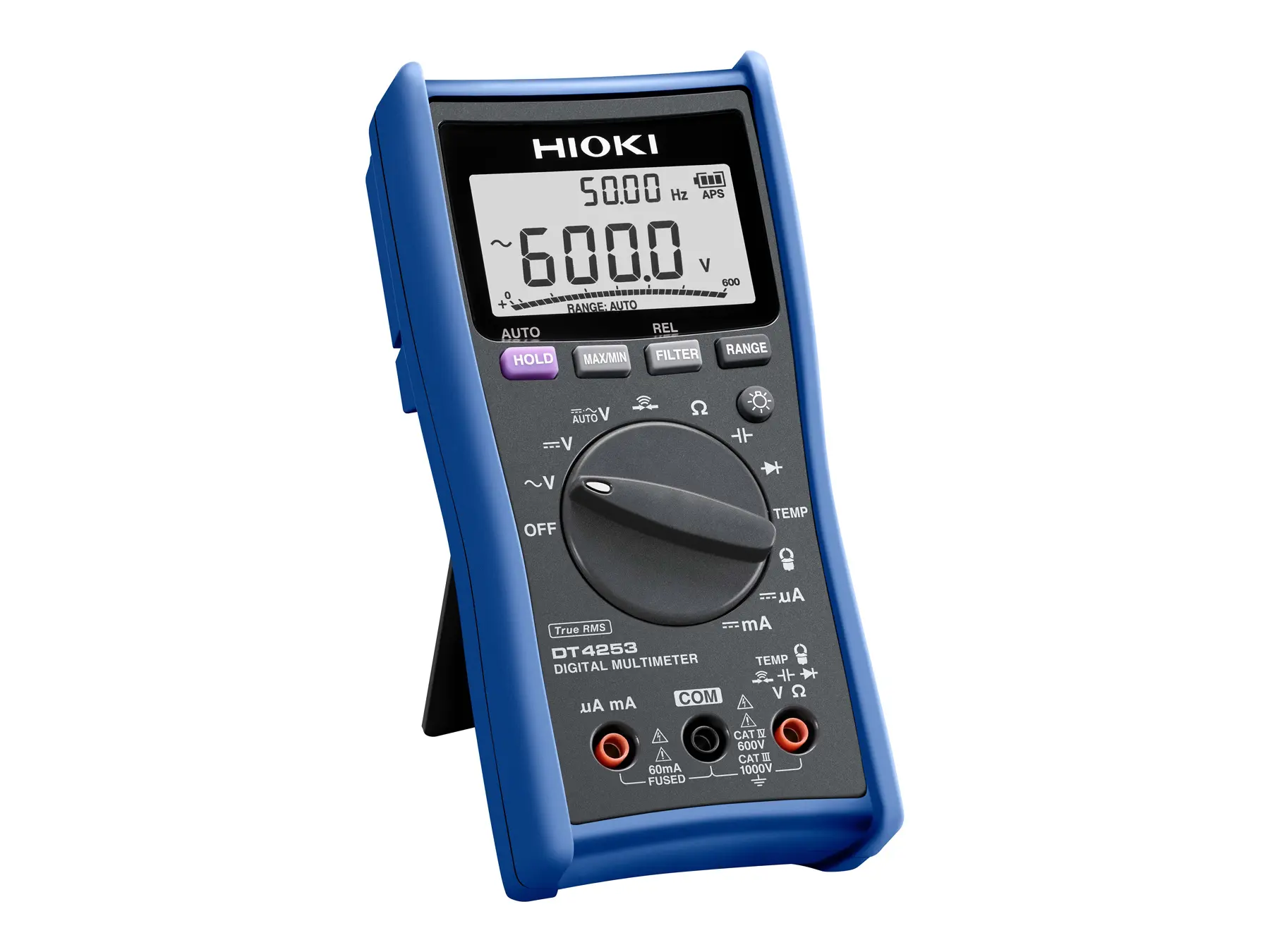

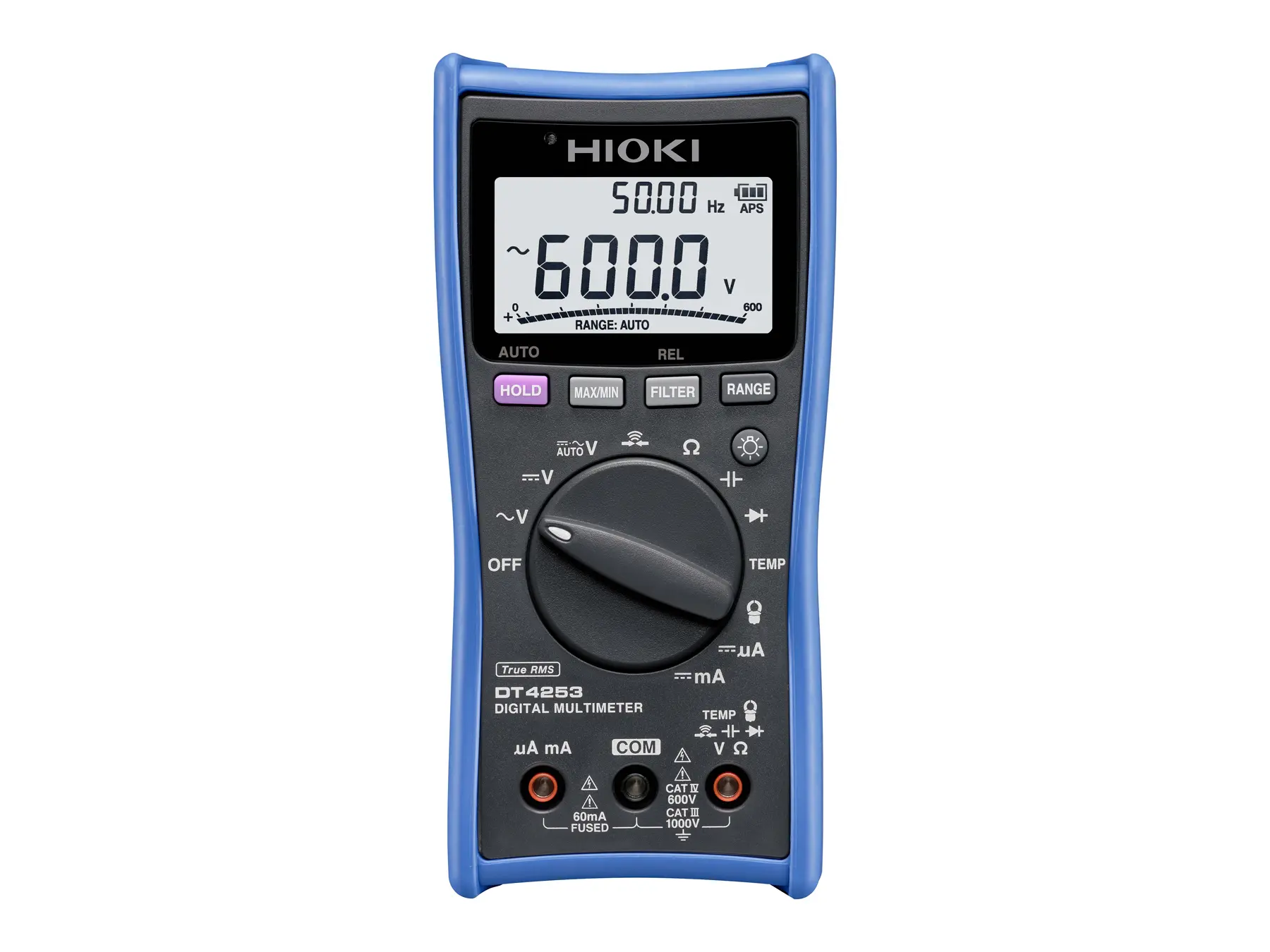

DT4253
