HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments

Bluetooth adapter for data transfer from compatible HIOKI instruments to Windows, iOS or Android devices using GENNECT Cross or HID keyboard profile
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments

€118.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

€118.00*

HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Available stock: 14
Product number: Z3210
EAN: 4536036012596
Length: 15.6 mm
Width: 16.4 mm
Height: 6.7 mm
Weight: 0.002 kg

Product information HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments


Key Specifications

  • Two operating modes: GENNECT Cross or HID
  • GENNECT Cross for iOS 13 or later and Android 9 or later
  • HID keyboard profile for Windows, iOS and Android
  • Direct data entry into spreadsheet or text applications via HID

Typical Applications

  • Transfer of measurement data to smartphone or tablet
  • Direct entry of measured values into Excel or text applications
  • Documentation during maintenance and service work
  • Report creation using GENNECT Cross

Detailed Product Overview

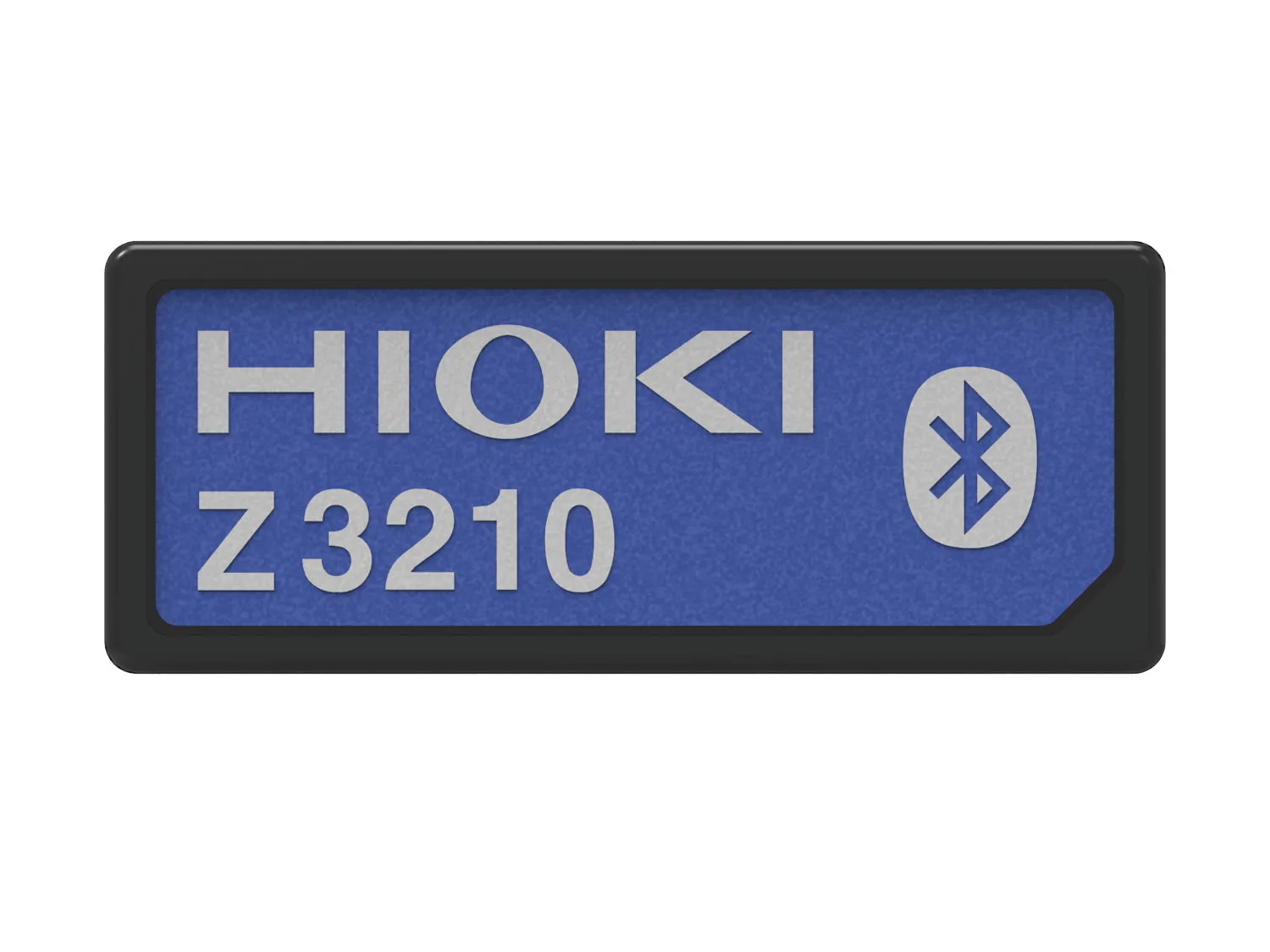

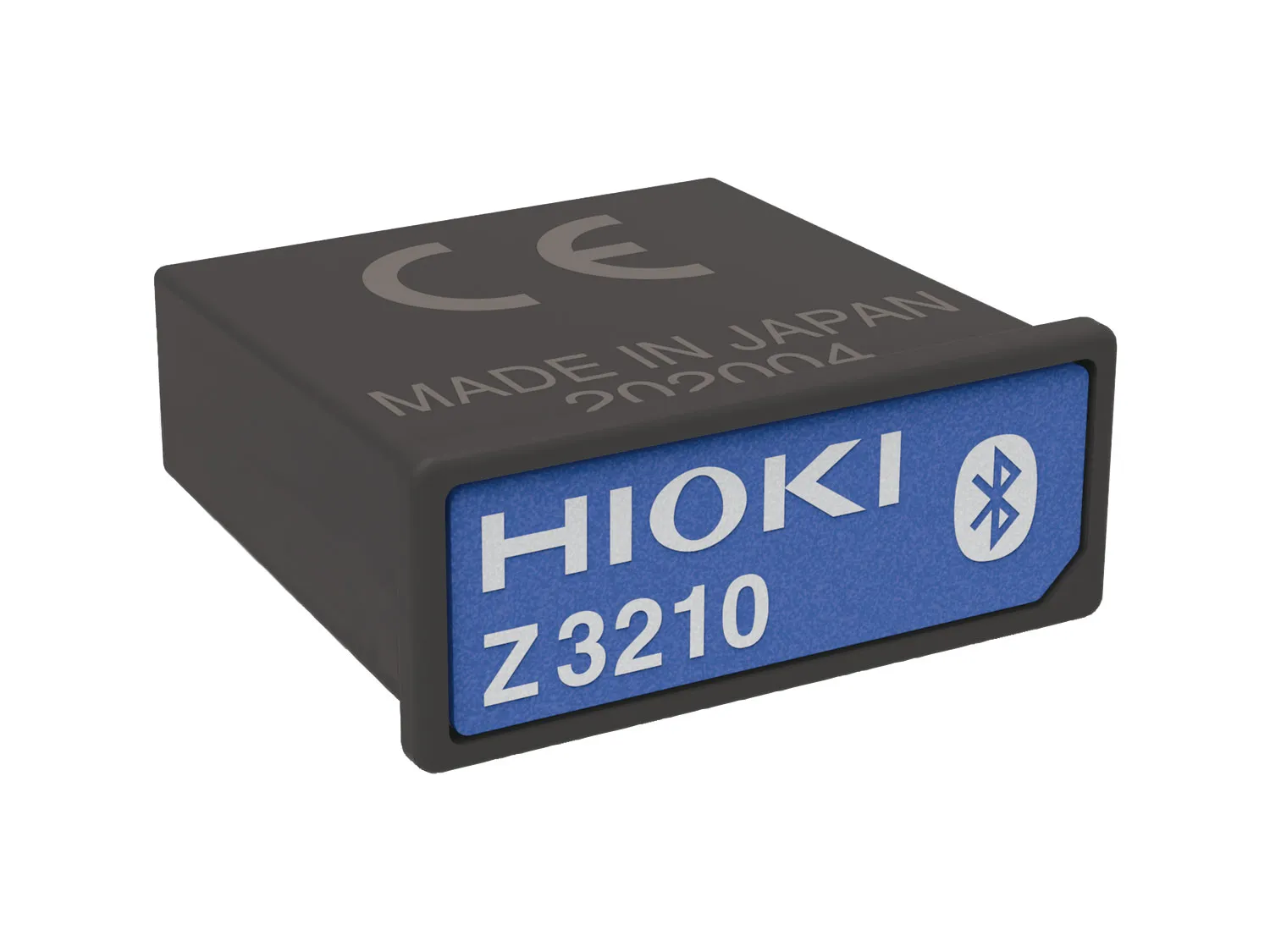

The Z3210 Bluetooth Adapter adds a Bluetooth interface to compatible HIOKI instruments for data transfer to external devices. It is a Bluetooth Low Energy device that enables wireless communication with a maximum line of sight distance of approximately 10 m, depending on the environment and surrounding conditions.

Two operating modes are available: GENNECT Cross mode and HID mode. The operating mode is selected on the connected instrument and is described in the respective instrument manual. GENNECT Cross mode and HID mode cannot be used simultaneously. The selected operating mode is stored in the Z3210.

GENNECT Cross Mode

GENNECT Cross mode is intended for communication with the GENNECT Cross app.

In this mode, measured values are transmitted to a smartphone or tablet for display and storage. Data stored in the instrument memory can be read out via GENNECT Cross. Depending on the connected instrument, settings such as comparator thresholds or profile information can also be transferred from the app to the instrument.

Measurement data can be documented within the app and exported as reports, including PDF format. Data can also be transferred to other applications depending on the mobile operating system. GENNECT Cross does not require a subscription. The GENNECT Cross app is available free of charge for iOS 13 or later and Android 9 or later.

HID Mode

In HID mode, the adapter operates according to the Human Interface Device profile.

This profile is the same profile used by wireless keyboards or barcode scanners. The connected instrument behaves like an input device to the host system. Measured values are transmitted as keyboard input to the active application.

This allows direct entry of measurement values into spreadsheet, text or other input based applications without dedicated software.

HID mode is supported on Windows, iOS and Android devices.

List of compatible HIOKI products:

  • Battery Testers BT3554-50, BT3554-51, BT3554-52
  • Clamp Power Meter CM3286-50

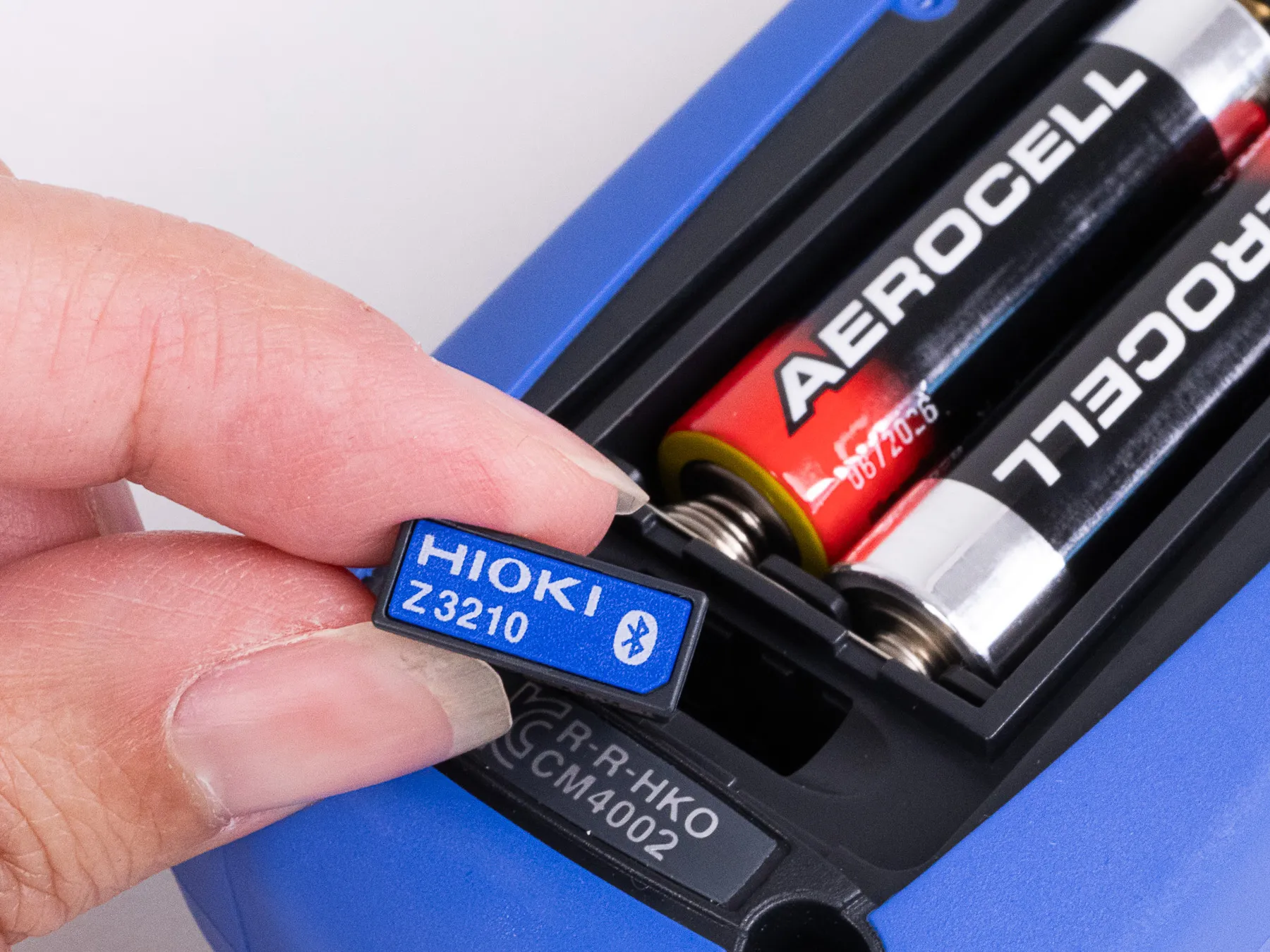

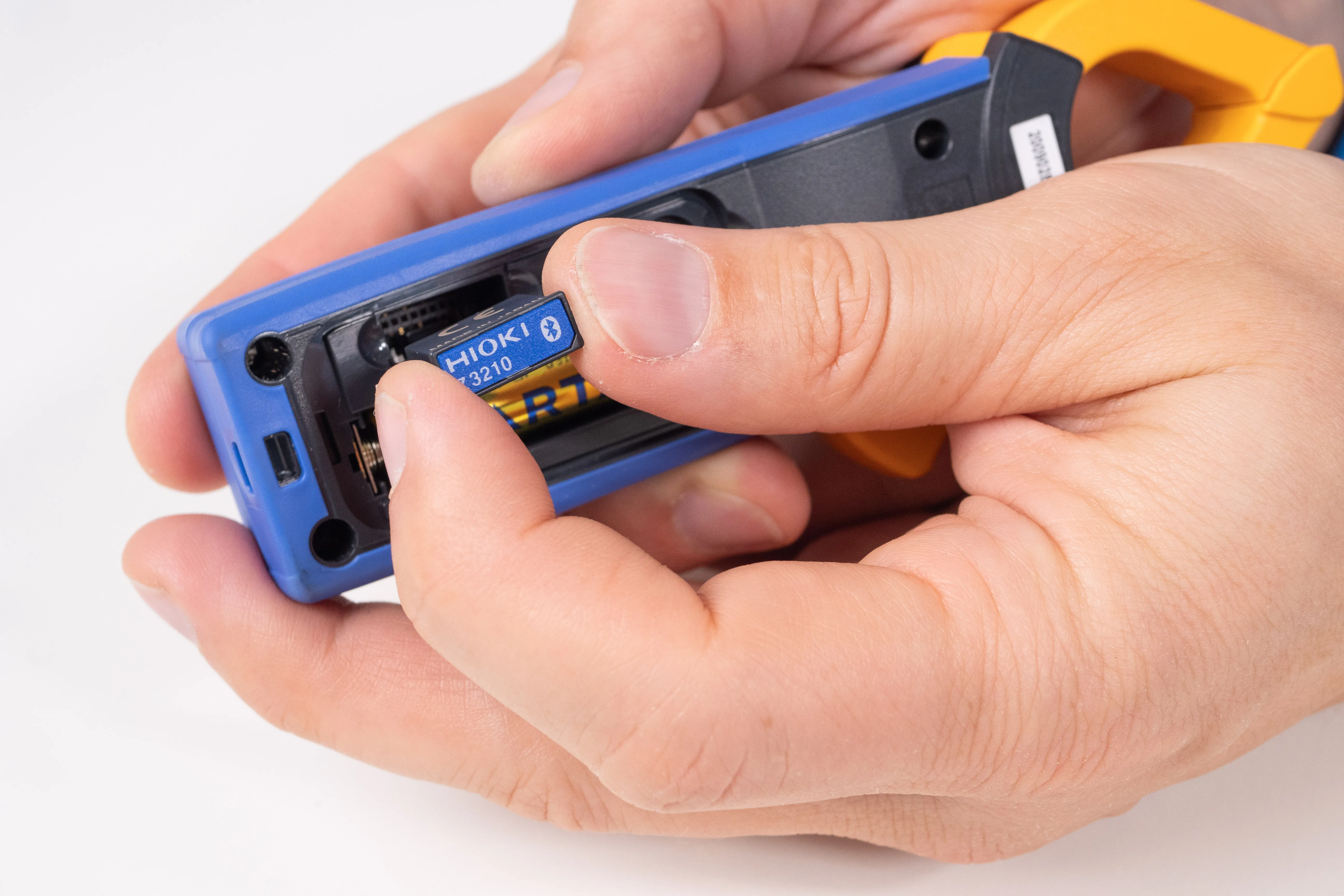

  • Leakage Clamp Meters CM4001, CM4002, CM4003
  • Clamp Multimeters CM4141-50, CM4371-50, CM4373-50, CM4375-50
  • Digital Multimeter DT4261
  • Clamp-On Earth Tester FT6380-50
  • Earth Testers FT6031-50, FT6041
  • Insulation Testers IR4057-50, IR4059
  • Resistance Meter RM3548-50
  • Z3210 Bluetooth Adapter

Related Products

HIOKI BT3554-50 - Portable Battery Tester, DC voltage, AC resistance HIOKI BT3554-50 - Portable Battery Tester, DC voltage, AC resistance
BT3554-50
HIOKI BT3554-50 - Portable Battery Tester, DC voltage, AC resistance
Portable battery tester kit with L2020 test leads and Z3210 wireless adapter for on-site battery testing and maintenance. HIOKI BT3554-92 available now from HIOKI Europe.

€2,128.00*
View product
BT3554-51 - Portable Battery Tester, 9465-10 Straight Pin Type Lead BT3554-51 - Portable Battery Tester, 9465-10 Straight Pin Type Lead
BT3554-51
BT3554-51 - Portable Battery Tester, 9465-10 Straight Pin Type Lead
Portable battery tester for DC voltage, AC resistance at 1 kHz and temperature. Two voltage ranges (6V and 60V), four resistance ranges (3 mΩ to 3 Ω). Straight pin type lead, optional Bluetooth communication

€2,288.00*
View product
BT3554-52 - Portable Battery Tester, L2020 Angled Pin Type Lead BT3554-52 - Portable Battery Tester, L2020 Angled Pin Type Lead
BT3554-52
BT3554-52 - Portable Battery Tester, L2020 Angled Pin Type Lead
Portable battery tester for DC voltage, AC resistance at 1 kHz and temperature. Two voltage ranges (6V and 60V), four resistance ranges (3 mΩ to 3 Ω). Angled pin type lead, optional Bluetooth communication

€2,358.00*
View product
CM3286-50 - AC power clamp CM3286-50 - AC power clamp
CM3286-50
CM3286-50 - AC power clamp
The CM3286-50 AC Clamp Power Meter is designed to measure AC current, voltage, and power with a broad range, from 5 W to 360 kW, and currents from 60 mA to 600 A. It offers quick and accurate readings with true RMS measurement and can measure simple integral power consumption and phase sequence. The device features a large jaw diameter of 46 mm, allowing it to measure large-diameter cables, and its backlit display ensures easy reading even in dimly lit environments.With Bluetooth® communication (available via the optional Z3210 wireless adapter), data can be easily transferred for analysis. This versatile tool is ideal for applications ranging from manufacturing plants to household measurements. Technical Details: Model: CM3286-50 Current Measurement Range: 60 mA to 600 A AC Voltage Measurement Range: 80 V to 600 V AC Power Measurement Range: o Single-phase: 5 W to 360 kW o Balanced three-phase 3-wire: 20 W to 623.5 kW o Balanced three-phase 4-wire: 40 W to 1080 kW Frequency Range: 45 Hz to 999.9 Hz Maximum Rated Voltage to Ground: 600 V CAT IV, 1000 V CAT III Operating Temperature: -25°C to 65°C Jaw Diameter: 46 mm Dimensions: 65 mm (W) × 241 mm (H) × 35 mm (D) Weight: 450 g Power Supply: 2 × LR03 Alkaline batteries (25 hours continuous use) Optional Wireless Adapter: Z3210 for Bluetooth® connectivity

€678.00*
View product
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
CM4371-50
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
AC/DC True RMS clamp multimeter with 20 A and 600 A ranges for precise current measurement in electrical maintenance and testing. HIOKI CM4371-50 available now.

€488.00*
View product
HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
CM4373-50
HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS AC/DC clamp multimeter for current measurement up to 2000 A in electrical maintenance and power systems testing. HIOKI CM4373-50 available now.

€508.00*
View product
HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
CM4375-50
HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth optional

€558.00*
View product
HIOKI CM4141-50 true rms clamp multimeter 2000a ac compact design HIOKI CM4141-50 true rms clamp multimeter 2000a ac low current
CM4141-50
HIOKI CM4141-50 - True RMS Clamp Multimeter, 2000 A AC with 3 Current Ranges
True RMS AC clamp multimeter with 2000 A range and three current ranges for electrical maintenance and load measurement. HIOKI CM4141-50 available now.

€398.00*
View product
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
CM4001
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
Compact AC leakage clamp meter with True RMS measurement up to 600 A for precise leakage and load current testing. HIOKI CM4001 available now from HIOKI Europe.

€458.00*
View product
CM4002 AC Leakage Clamp Meter Bluetooth HIOKI CM4002 ac leakage clamp meter Bluetooth measuring range of 6mA to 200A
CM4002
HIOKI CM4002 - AC Leakage Clamp Meter
True RMS AC leakage clamp meter with 6 mA–200 A range and 15 Hz–2 kHz frequency band, fits conductors up to Ø 40 mm – ideal for industrial and service use. Order online now.

€618.00*
View product
HIOKI CM4003 - AC Leakage Clamp Meter HIOKI CM4003 ac leakage clamp meter bluetooth
CM4003
HIOKI CM4003 - AC Leakage Clamp Meter
True RMS AC leakage clamp meter for conductors up to Ø 40 mm, featuring waveform/RMS output and Bluetooth®-ready interface. Order online now at HIOKI Europe.

€718.00*
View product
HIOKI DT4261 DIGITAL MULTIMETER HIOKI DT4261 digital multimeter catalog ac dc current voltage
DT4261
HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 Digital Multimeter with True RMS AC V/A, 10 A direct input and CAT III 1000 V/CAT IV 600 V safety. Optional Bluetooth®. Order now.

€288.00*
View product

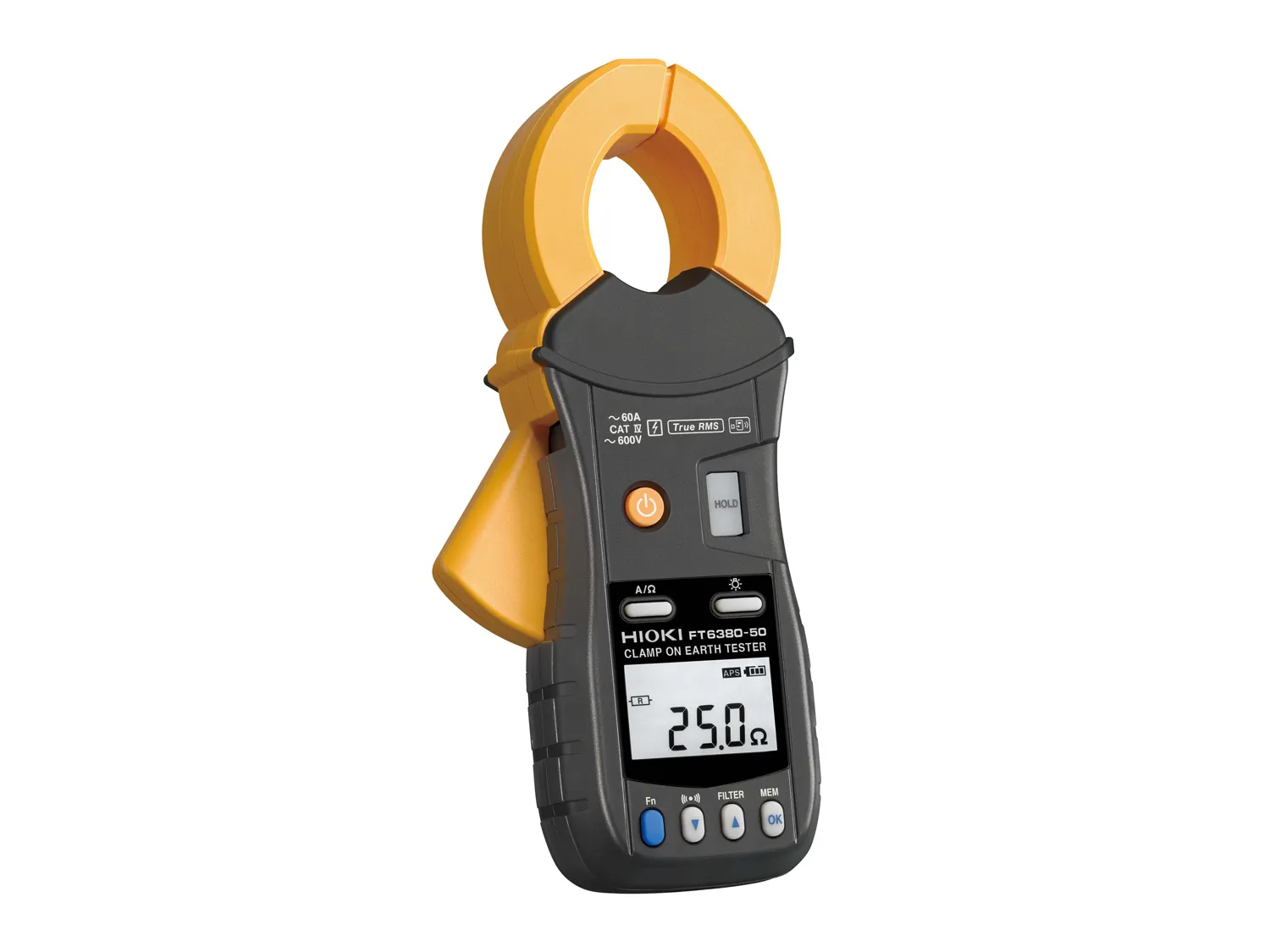

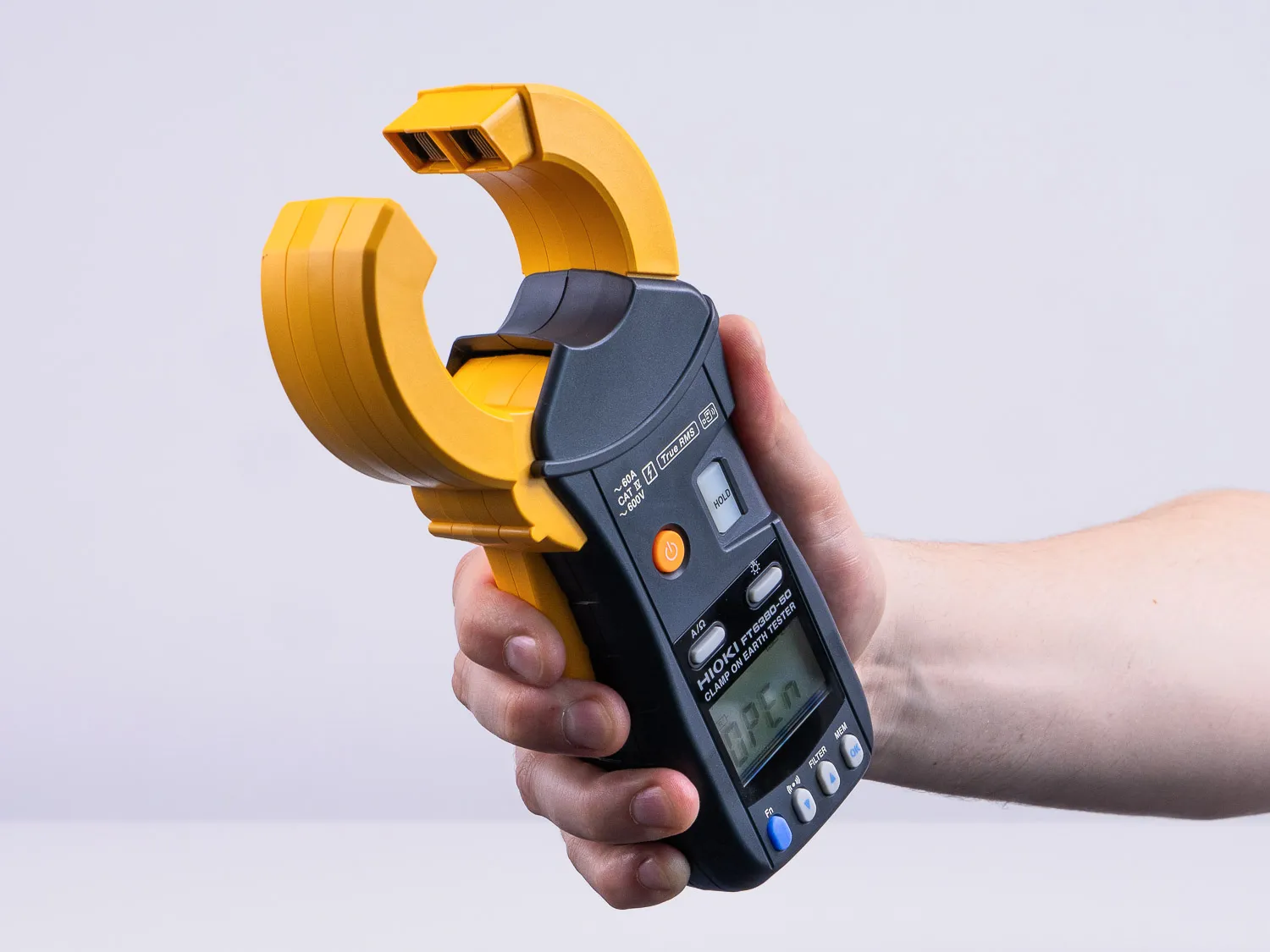

FT6380-50 - CLAMP ON EARTH TESTER FT6380-50 - CLAMP ON EARTH TESTER
