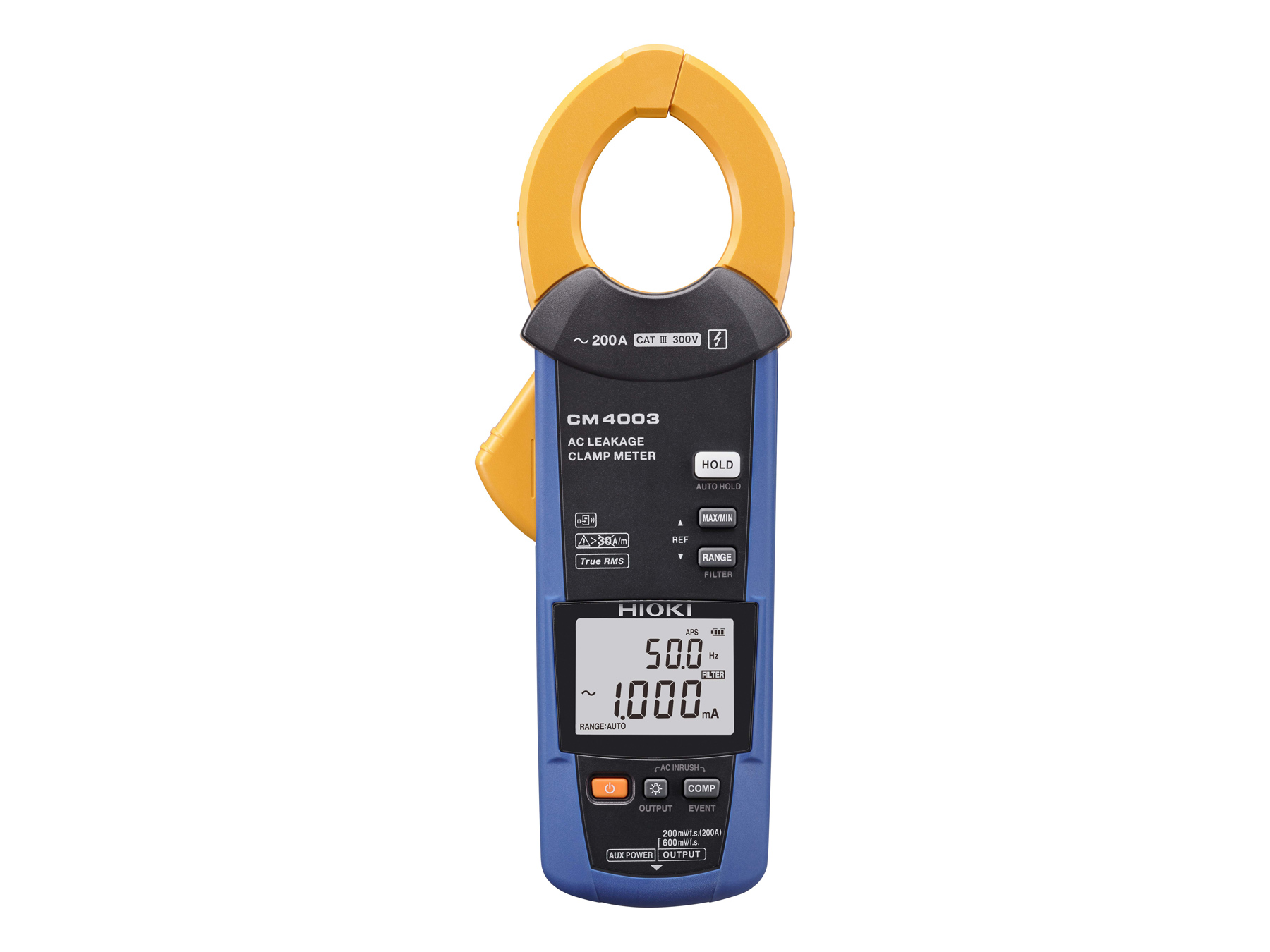

HIOKI CM4003 - AC Leakage Clamp Meter for Leakage Monitoring, 200 A
AC leakage clamp meter for leakage current monitoring with RMS and waveform output from
60 µA to 200 A, max. conductor diameter 40 mm, True RMS, 50/60 Hz filter, threshold alarm,
CAT III 300 V, optional Bluetooth via Z3210
€718.00*
Content:
1 Each
In stock in Germany
€718.00*
HIOKI CM4003 - AC Leakage Clamp Meter for Leakage Monitoring, 200 A
Available stock:
2
Product number:
CM4003
EAN:
4536036013272
Length:
233 mm
Width:
64 mm
Height:
37 mm
Weight:
0.4 kg
Product information HIOKI CM4003 - AC Leakage Clamp Meter for Leakage Monitoring, 200 A
Key Specifications
- Leakage current monitoring from 60 µA to 200 A
- Max. conductor diameter 40 mm
- RMS and waveform output for recorder connection
- 50/60 Hz filter for stable leakage current measurement
- Optional Bluetooth communication via Z3210
Typical Applications

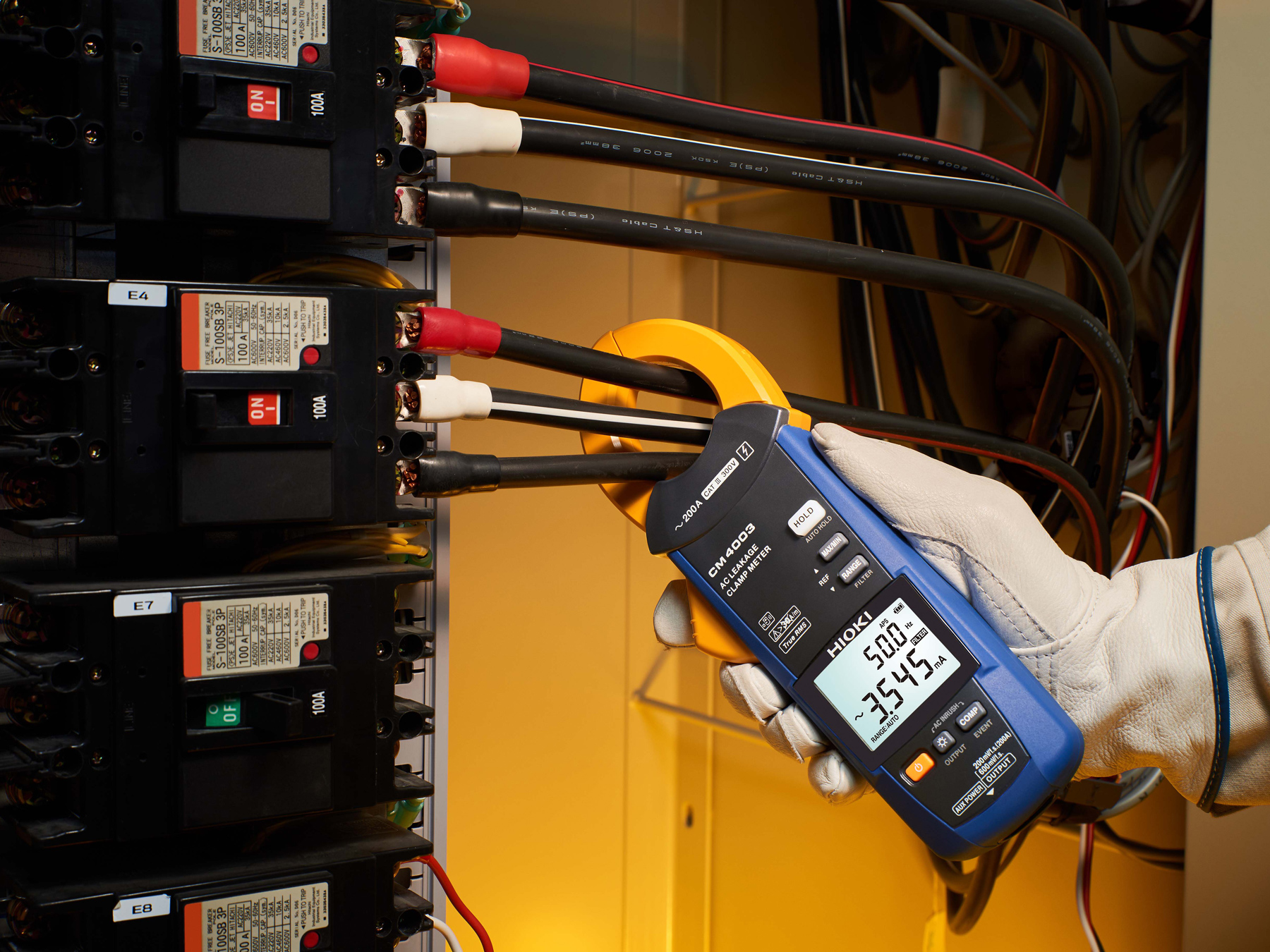

- Long-term monitoring of leakage currents in electrical installations
- Recording leakage currents using data loggers or memory recorders
- Monitoring cumulative leakage currents in circuits with multiple loads
- Detection of intermittent leakage currents causing sporadic RCD tripping
- Leakage current analysis in installations with inverters and switching power supplies
| Feature | CM4001 CM4001-90 |
CM4002 CM4002-90 |
CM4003 CM4003-90 |
|---|---|---|---|
| Designed for | Confined panels, leak and load currents |
µA leakage diagnosis, RCD/GFCI faults |
Long term monitoring, intermittent faults |
| Lowest measurable current | 600 µA | 60 µA | |
| AC Current ranges |
5 ranges: 60 mA to 600 A |
6 ranges: 6 mA to 200 A |
|
| Max. conductor diameter | 24 mm | 40 mm | |
| Measurement output | - | RMS and waveform | |
| Safety Rating | CAT III 300 V |
CAT IV 300 V CAT III 600 V |
CAT III 300 V |
Detailed Product Overview
Leakage current problems in electrical installations are not always present at the moment of inspection. RCD or GFCI trips can occur only under certain operating conditions, at specific times, or when multiple loads switch simultaneously, making the cause difficult to identify with a handheld clamp meter during a short measurement.The HIOKI CM4003 AC leakage clamp meter is designed for these situations. It provides the
same high sensitivity leakage current measurement as the CM4002, covering AC currents
from 60 µA to 200 A, and adds RMS and waveform output for connection to a recorder. This
allows very small leakage currents, cumulative leakage, and load current changes to be
monitored and documented over time when the cause of a trip cannot be captured during a
spot check.

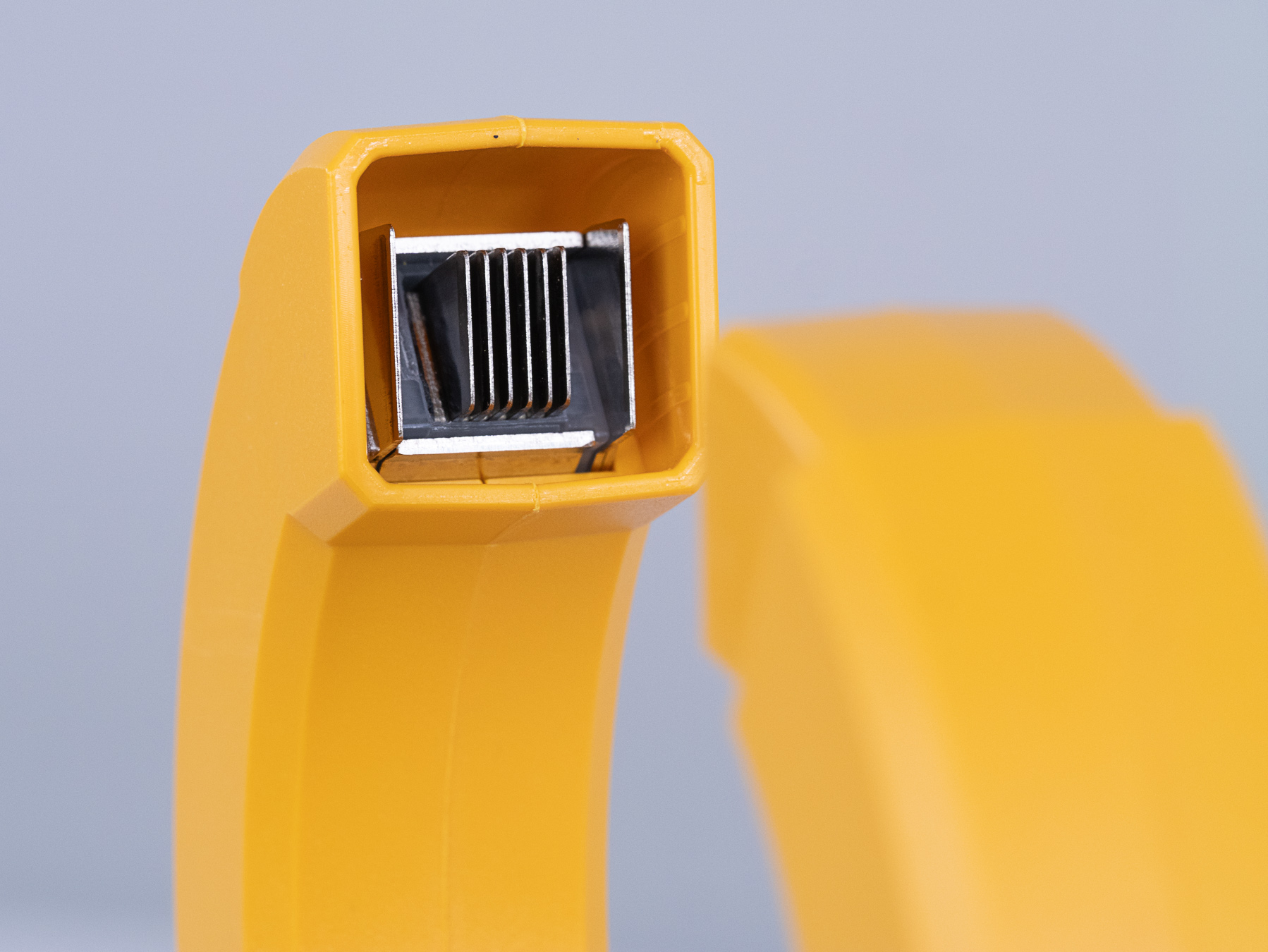

Leakage current, differential current and load current

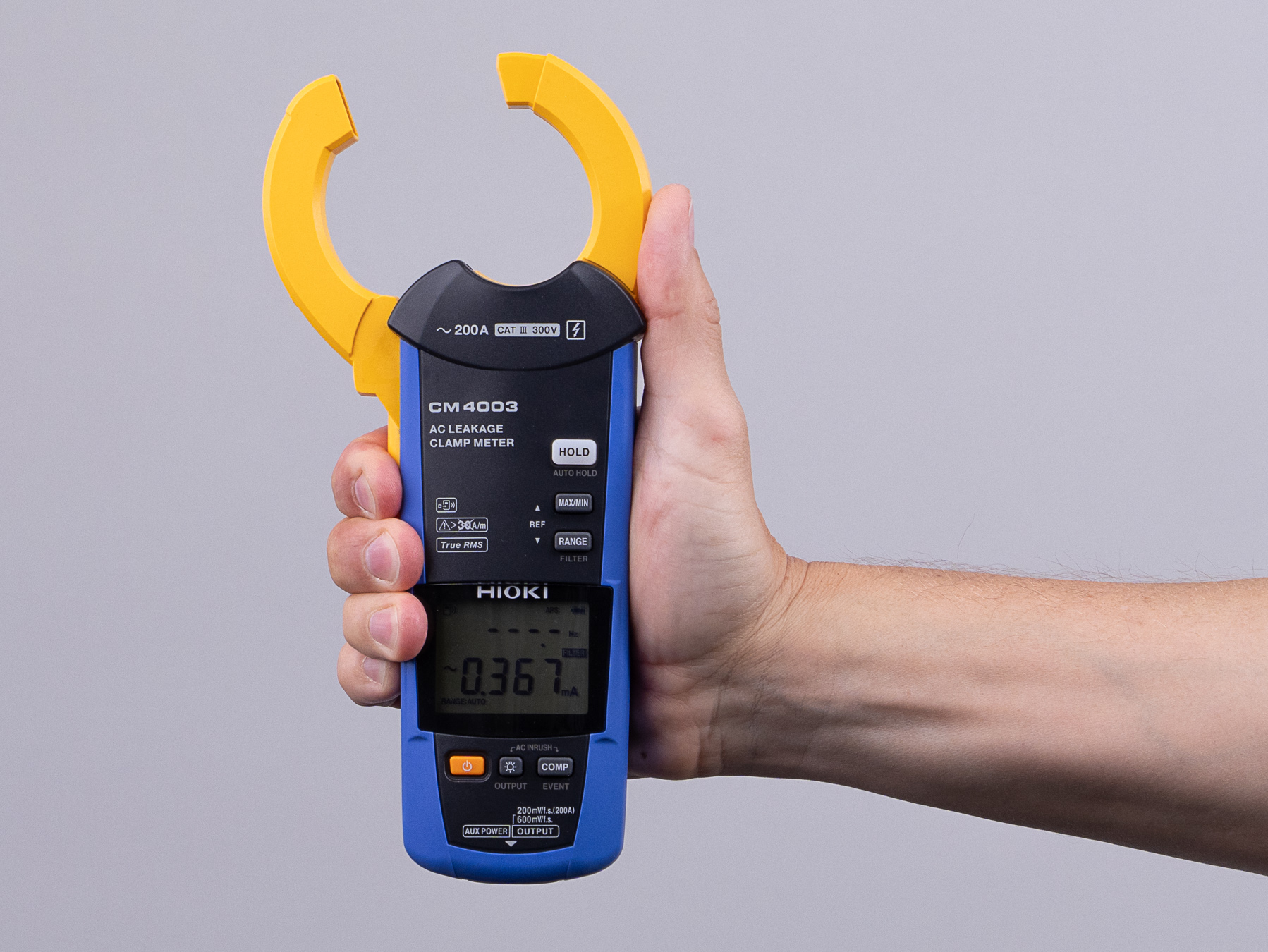

The CM4003 provides six measurement ranges from 6 mA to 200 A AC and measures leakage currents down to 60 µA, covering leakage current, differential current, and load current measurement in a single clamp meter. With a maximum conductor diameter of 40 mm, the clamp accommodates larger conductors and multi-core cables in distribution systems where currents from multiple circuits need to be measured over time.The instrument covers a frequency range from 15 Hz to 2 kHz, including higher-frequency
leakage currents such as those generated by inverters and switching power supplies. A
selectable 50/60 Hz filter suppresses these components and isolates the leakage current
relevant to RCD tripping. A threshold alarm indicates when a defined leakage current level is
exceeded by means of a buzzer and red warning backlight and provides a pass or fail
indication relative to a user-defined limit. Current and frequency can be viewed
simultaneously on the display, which is backlit for measurements in low-light environments.
Additional functions include Auto Hold, Max/Min/Avg recording, inrush current measurement,
and peak value recording for capturing transient current peaks.

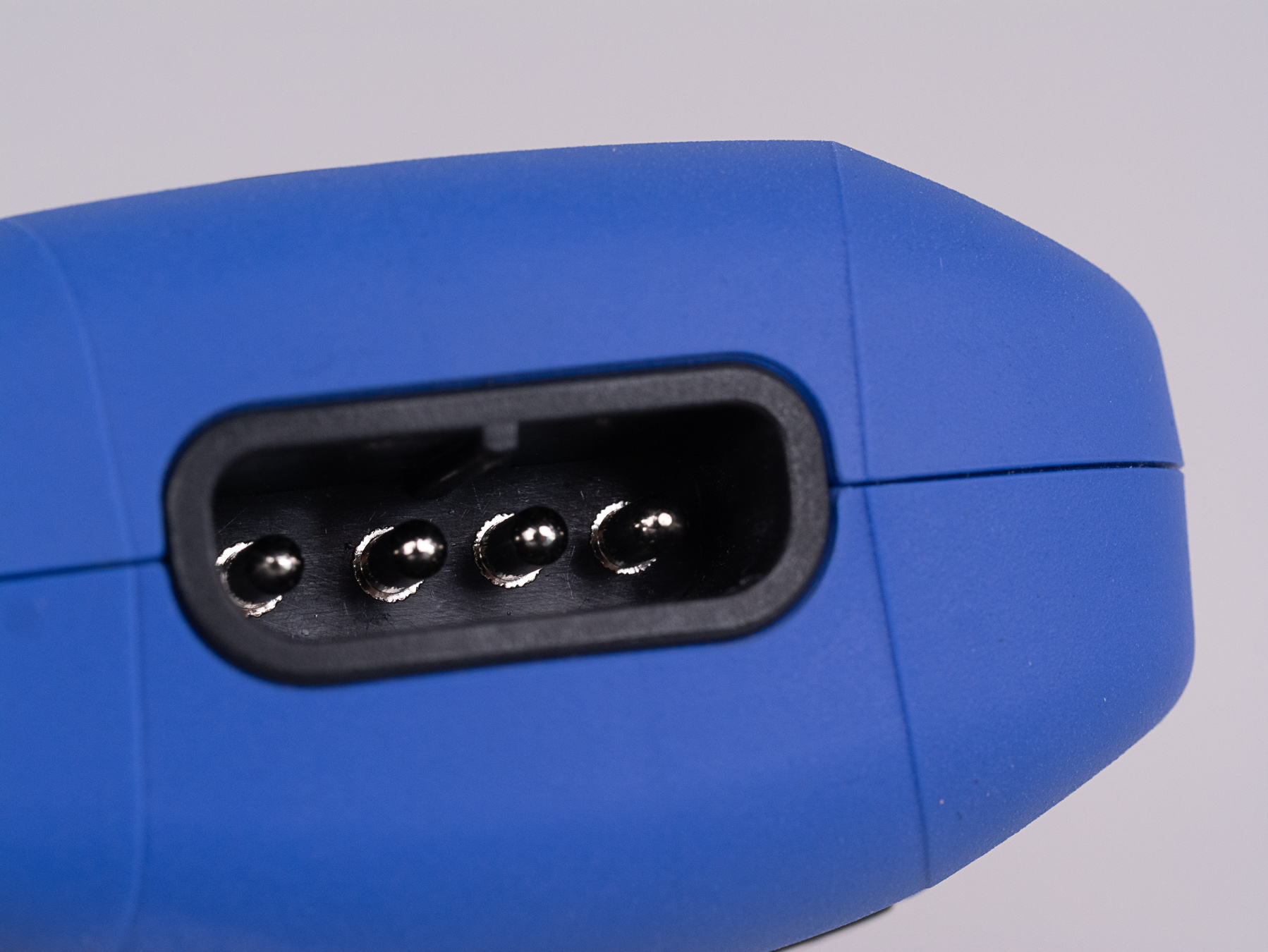

Output and external power supply for long term monitoring

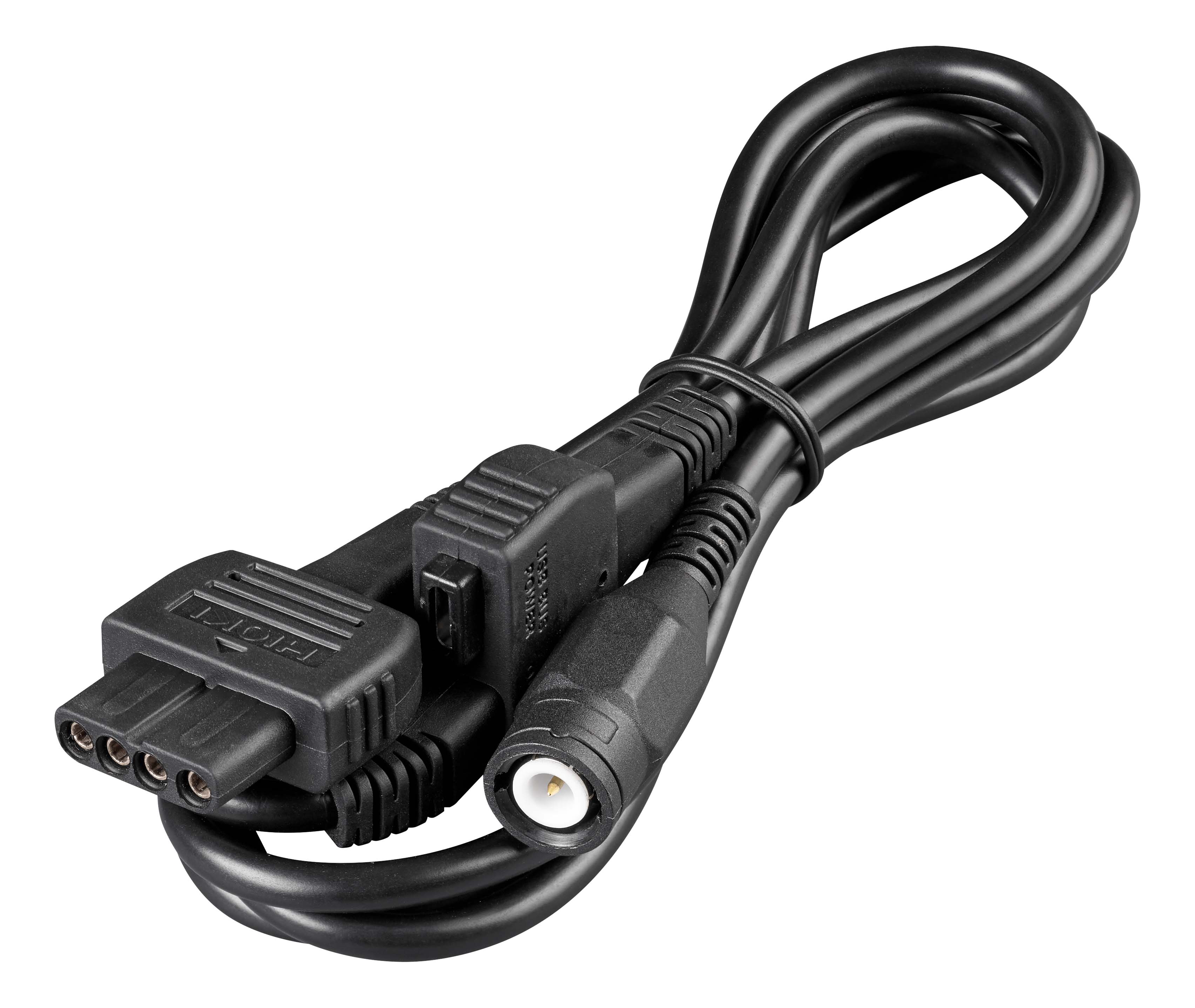

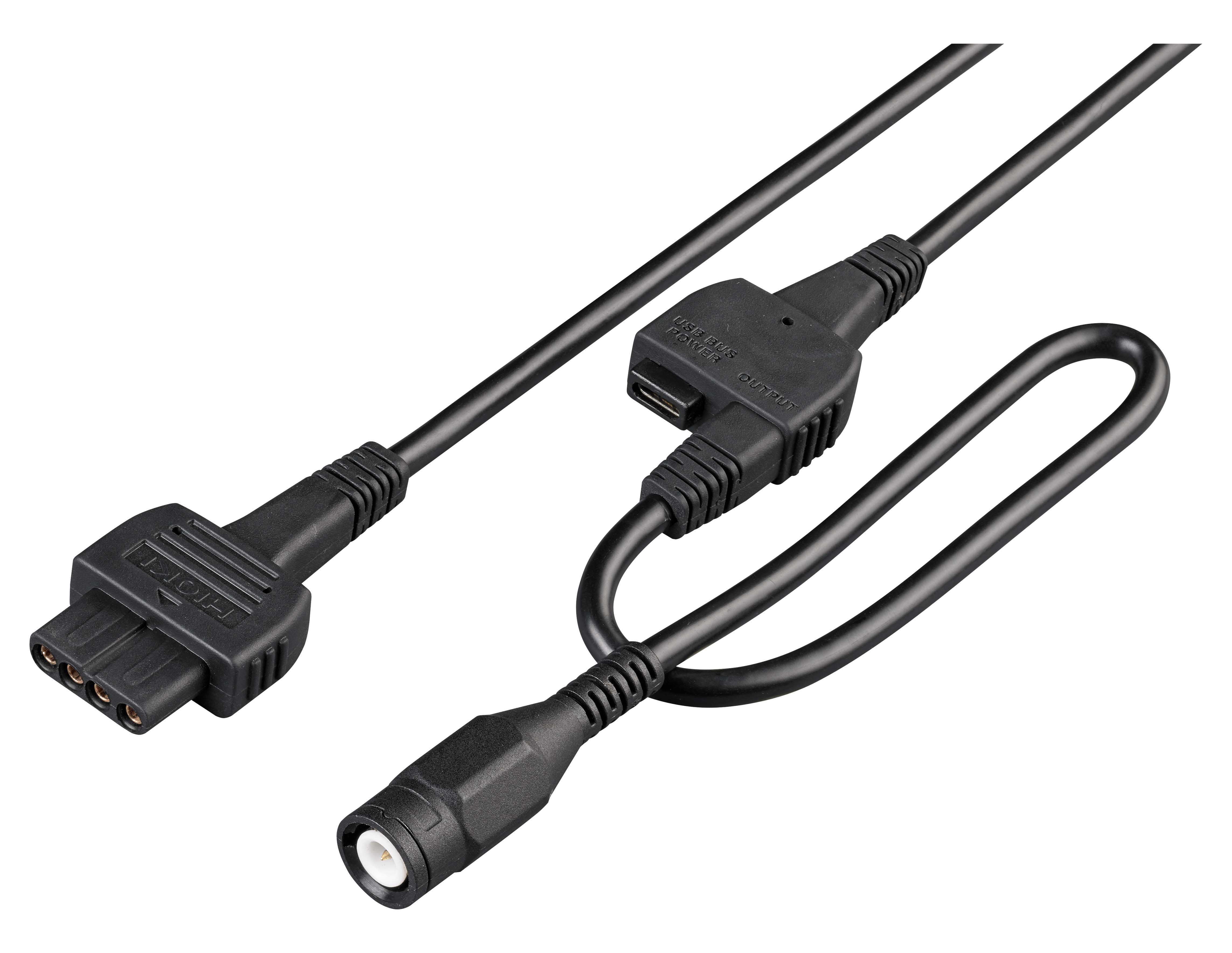

Unlike the CM4002, the CM4003 provides switchable RMS and waveform output for connection to a recorder or other data acquisition system. The supplied 1.5 m L9097 Connection Cable connects the instrument to the external device and provides a BNC male output for direct connection to recorder inputs. The same cable also includes a USB C power input for external supply of the CM4003 during long term measurements, and a 1.0 m L9510 USB A to USB C cable is included for power connection.The output can be switched between RMS value and waveform output. The RMS output is
refreshed five times per second and is suitable for recording measured current values over
time with a logger, recorder, or other data acquisition system with a voltage input. The
waveform output is intended for recorder based monitoring of current waveforms, for
example with a memory recorder such as the MR8870 or MR8880.
For stationary monitoring, the optional Z1013 AC Adapter can be used as a USB power

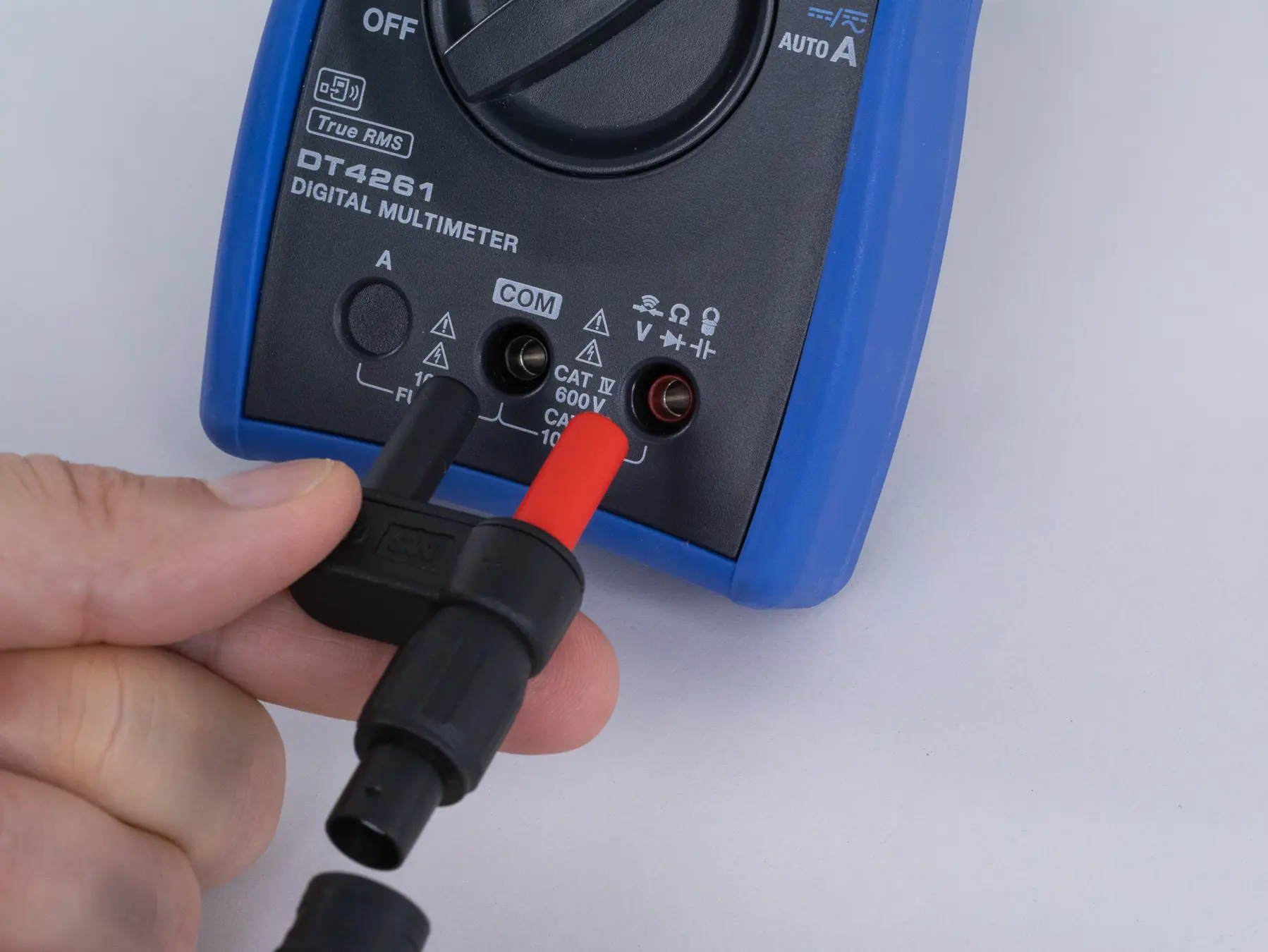

source. For data acquisition systems with 4 mm inputs, the optional 9704 Conversion
Adapter provides a BNC female to banana plug interface. This output and external power
supply design extends the CM4003 from a leakage clamp meter for spot checks to a
measurement system for long term recording of leakage current, differential current, and load
current. As a result of this design, the CM4003 is rated CAT III 300 V.
Bluetooth communication
Bluetooth communication can be added to the CM4003 with the optional Z3210 Bluetooth Adapter. Measurement values can be transferred to a smartphone or tablet for documentation, annotation, and report generation. Live display on a mobile device is also possible when the instrument is mounted in a position where the screen cannot be viewed directly.The Z3210 also enables HID operation. In this mode, measured values are sent directly to
Excel or other applications as keyboard input, allowing straightforward transfer to the active
field on the connected device.
Designed and manufactured in Japan
For decades, HIOKI has developed current measurement technology for demanding applications in electrical systems. Its clamp meters and clamp multimeters are designed and built at the company’s own production site in Nagano Prefecture, Japan. The close connection between development and manufacturing, together with control over sensor technology, mechanics, and electronics, becomes evident in daily use.Learn more in our blog
What’s special about HIOKI’s AC Leakage Current Clamps?
What’s special about HIOKI’s AC Leakage Current Clamps?
- CM4003 AC Leakage Clamp Meter
- C0203 Carrying case
- L9097 Connection Cable
- L9510 USB Cable
- Instruction manual
- Operating precautions
- 2x LR6 (AA) alkaline batteries
-
Product catalog with data sheet, Clamp Meter Series (English)9,893 KB pdf
-
Product brochure with datasheet, AC Leakage clamp meter CM4002, CM4003 (English)2,776 KB pdf
-
Product Flyer for CM400x (German)2,936 KB pdf
-
Product Flyer for CM400x (English)2,936 KB pdf
-
Instruction Manual, AC LEAKAGE CLAMP METER CM4002, CM4003 (English)3,479 KB pdf
-
Instruction Manual, AC LEAKAGE CLAMP METER CM4002, CM4003 (German)3,549 KB pdf
-
Instruction Manual, AC LEAKAGE CLAMP METER CM4002, CM4003 (French)3,617 KB pdf
-
Instruction Manual, AC LEAKAGE CLAMP METER CM4002, CM4003 (Spanish)3,592 KB pdf
-
Instruction Manual, AC LEAKAGE CLAMP METER CM4002, CM4003 (Italian)3,628 KB pdf
Related Products
Z3210
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Bluetooth adapter for data transfer from compatible HIOKI instruments to Windows, iOS or Android devices using GENNECT Cross or HID keyboard profile
9704
9704 - BNC Adapter, BNC Female to 2 × 4 mm Banana Plug, CAT III 600 V
BNC adapter, BNC female to 2 × 4 mm banana plugs, 19 mm plug spacing, CAT III 600 V
Z1013
Z1013 - Power supply unit for Hioki SP3000 and SP7150
Z1013 is an accessory AC Adapter for CM4003, SP3000, SP7001-95, SP7150. Technical Details: AC Inlet:IEC-60320-C14Input range: 100VAC to 240VAC Output: 5VDC, 2.6A, Pmax 13W Ripple & Noise: 100mVpp DC plug: USB A TYPE
