HIOKI L9097 - Connection Cable for CM4003, BNC and USB-C
Product information HIOKI L9097 - Connection Cable for CM4003, BNC and USB-C

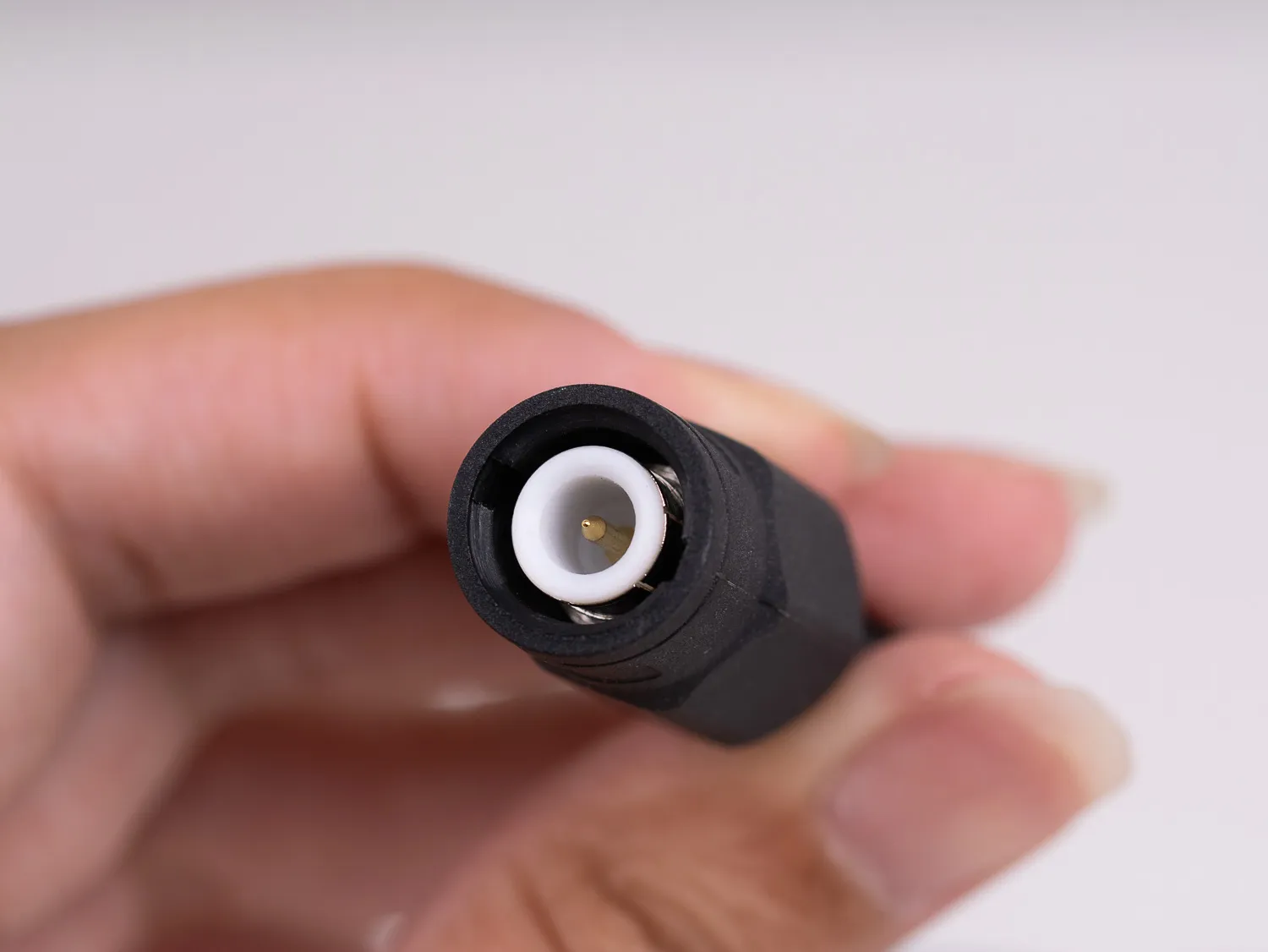

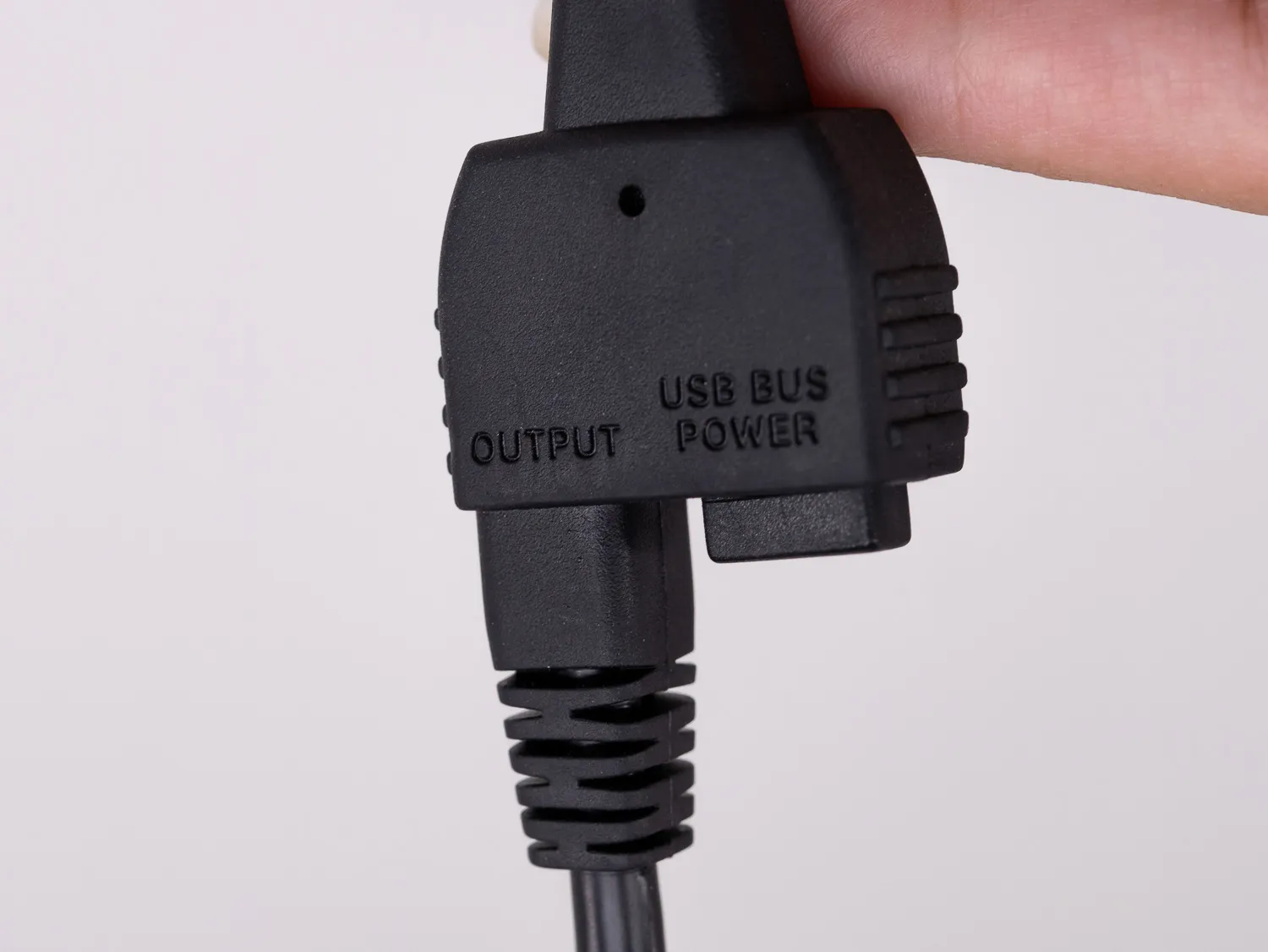

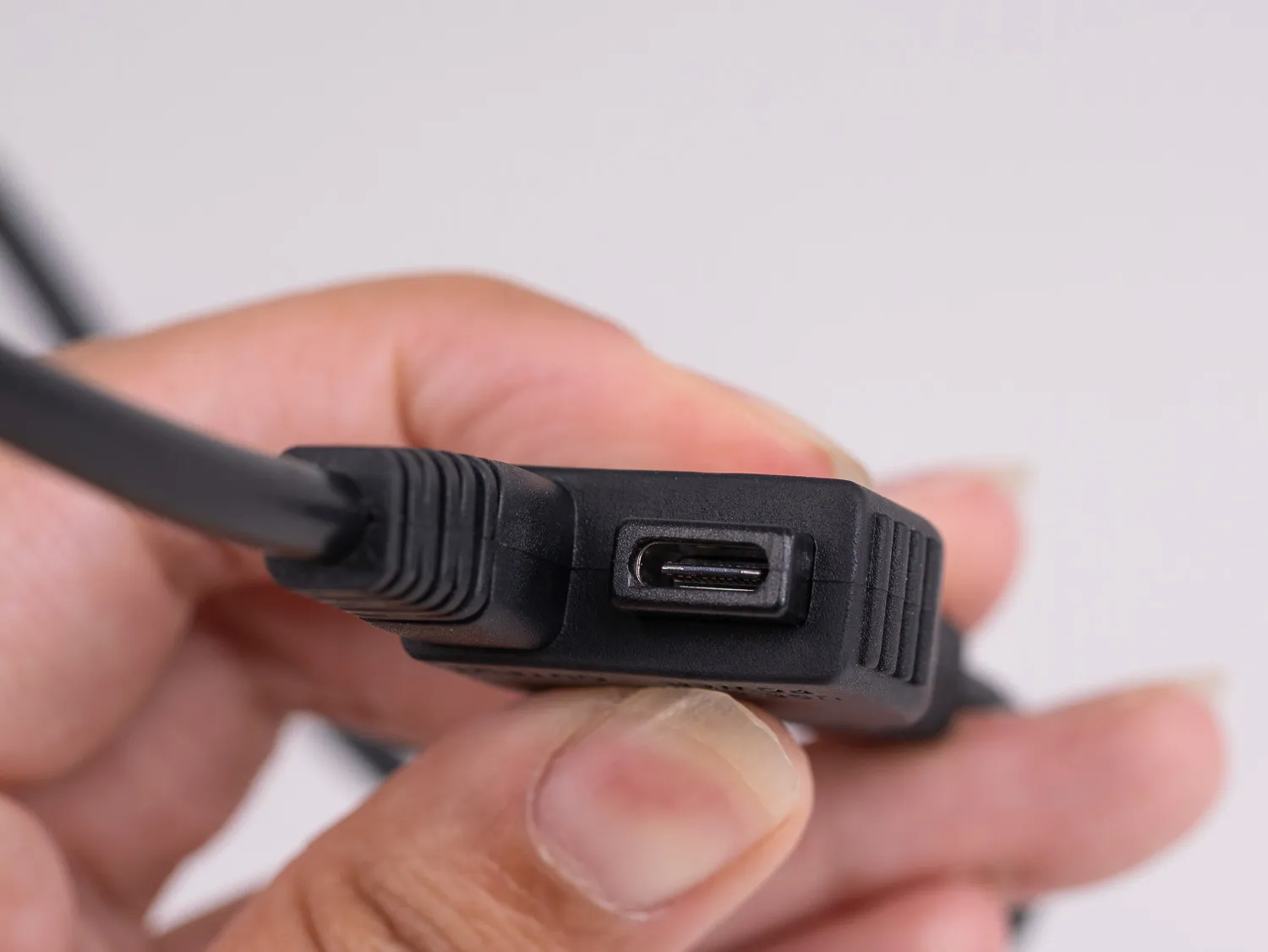

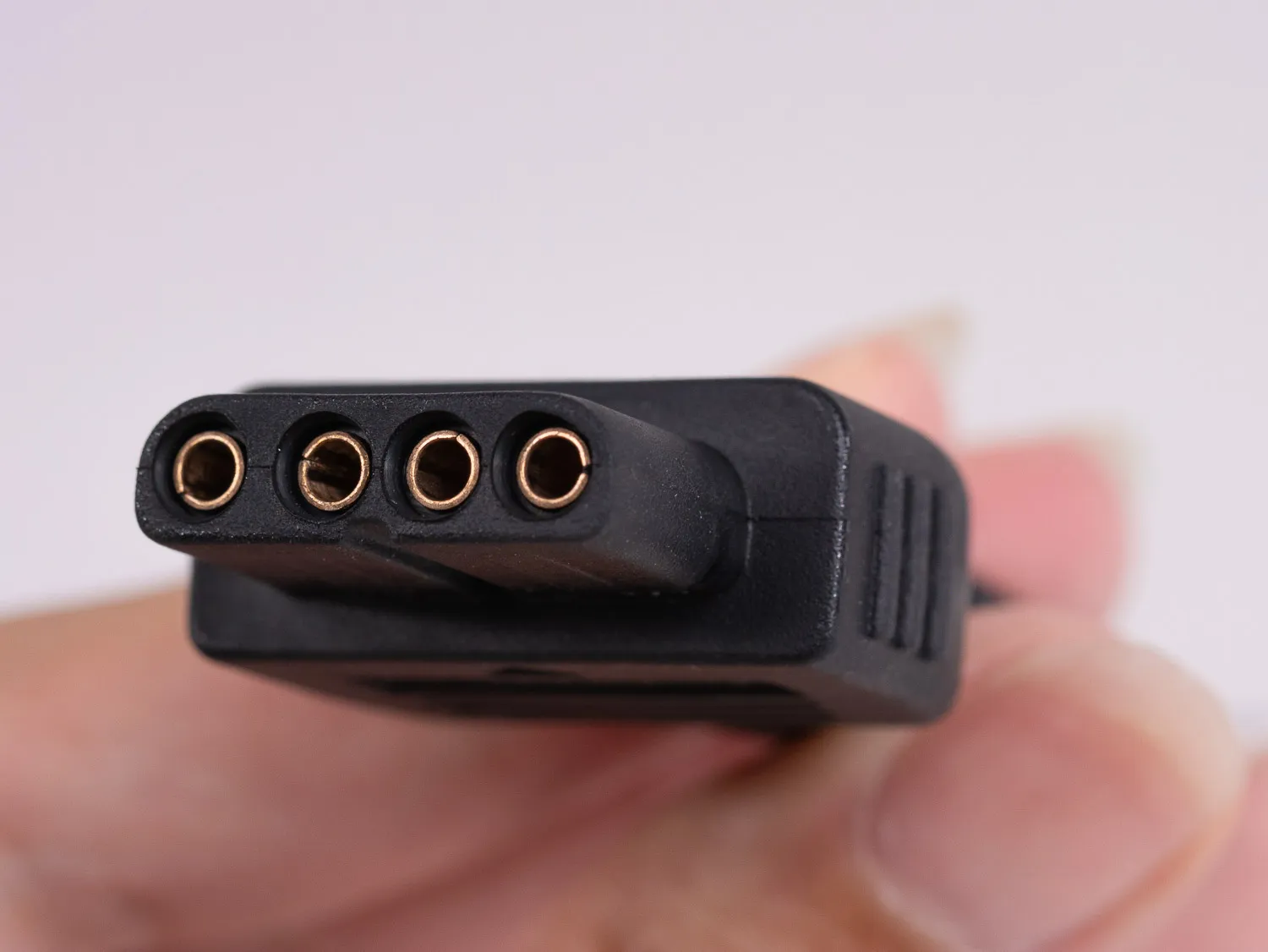

The L9097 is a dedicated connection cable for the CM4003 AC leakage clamp meter. It is 1.5 m long and combines signal output and external power supply in one accessory. The cable provides a BNC male output for direct connection to recorder inputs and a USB-C power input for external supply of the CM4003 during long-term measurements.

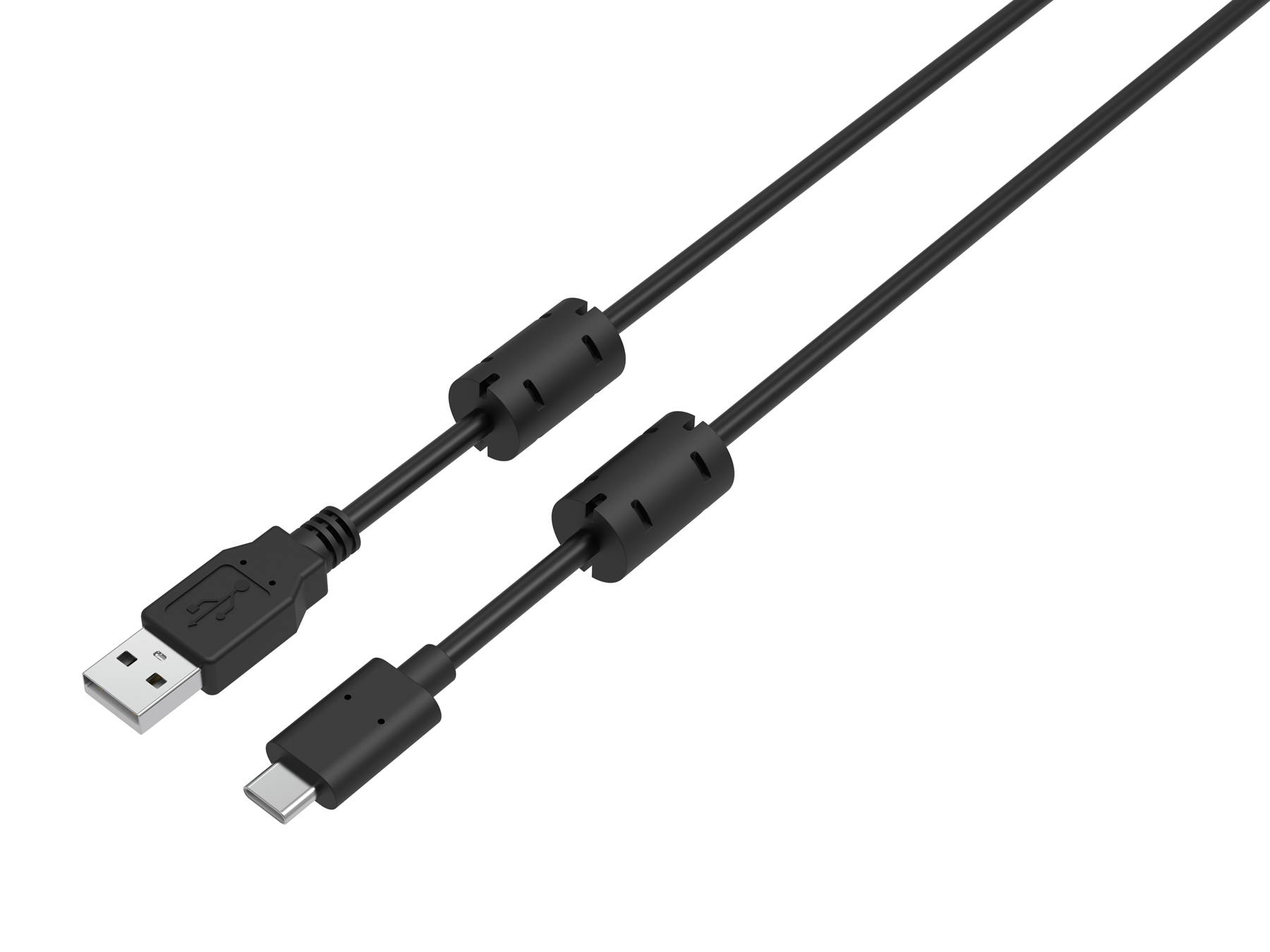

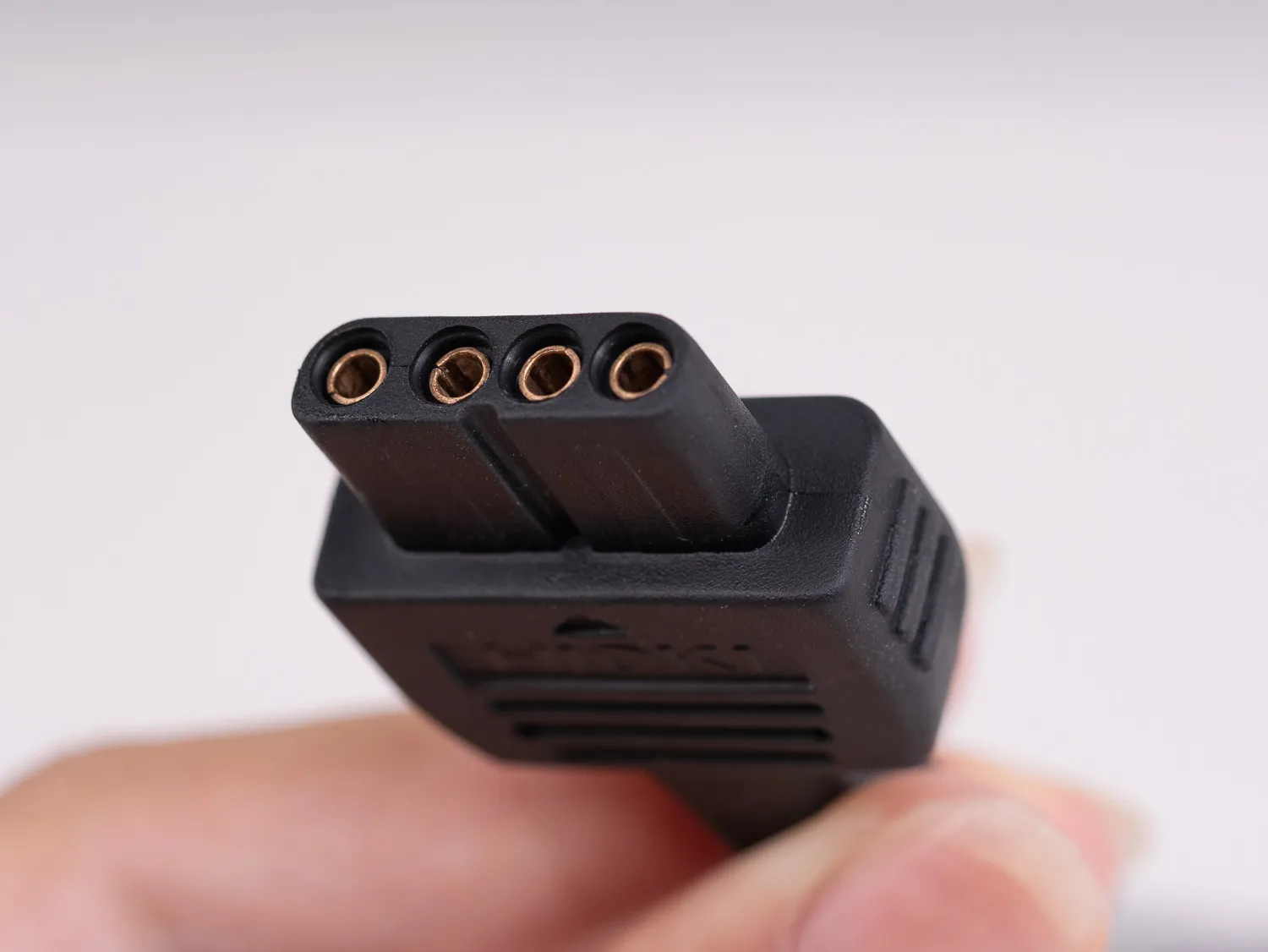

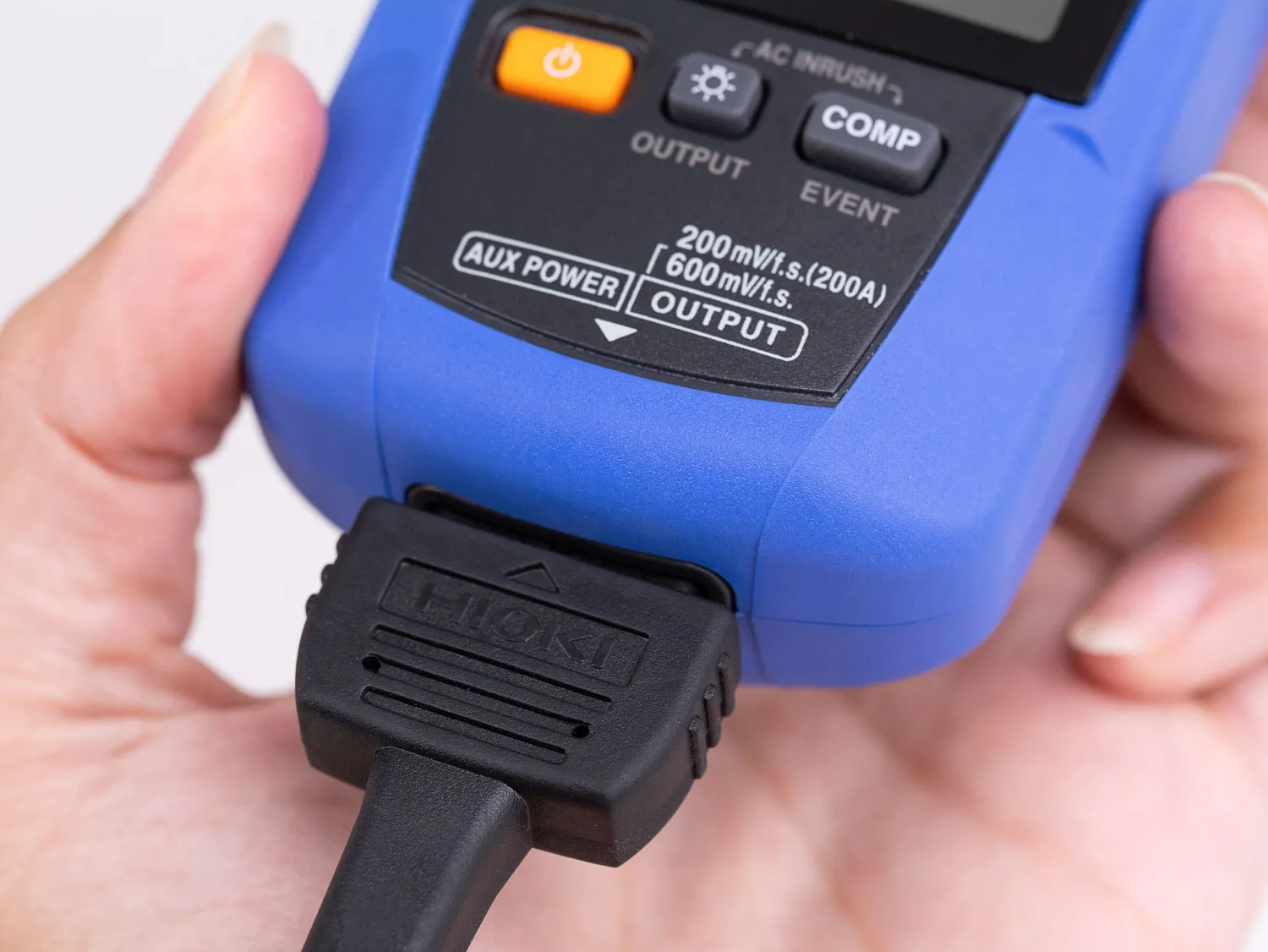

The cable is intended for use with the RMS and waveform output functions of the CM4003. It allows measured values or current waveforms to be transferred to a recorder or other data acquisition system while the instrument is powered from an external USB source. A separate L9510 USB-A to USB-C cable is available to supply power to the USB-C input. For stationary measurements, the optional Z1013 AC Adapter can be used as a USB power source. For acquisition systems with 4 mm inputs, the optional 9704 Conversion Adapter provides a BNC female to banana plug interface.

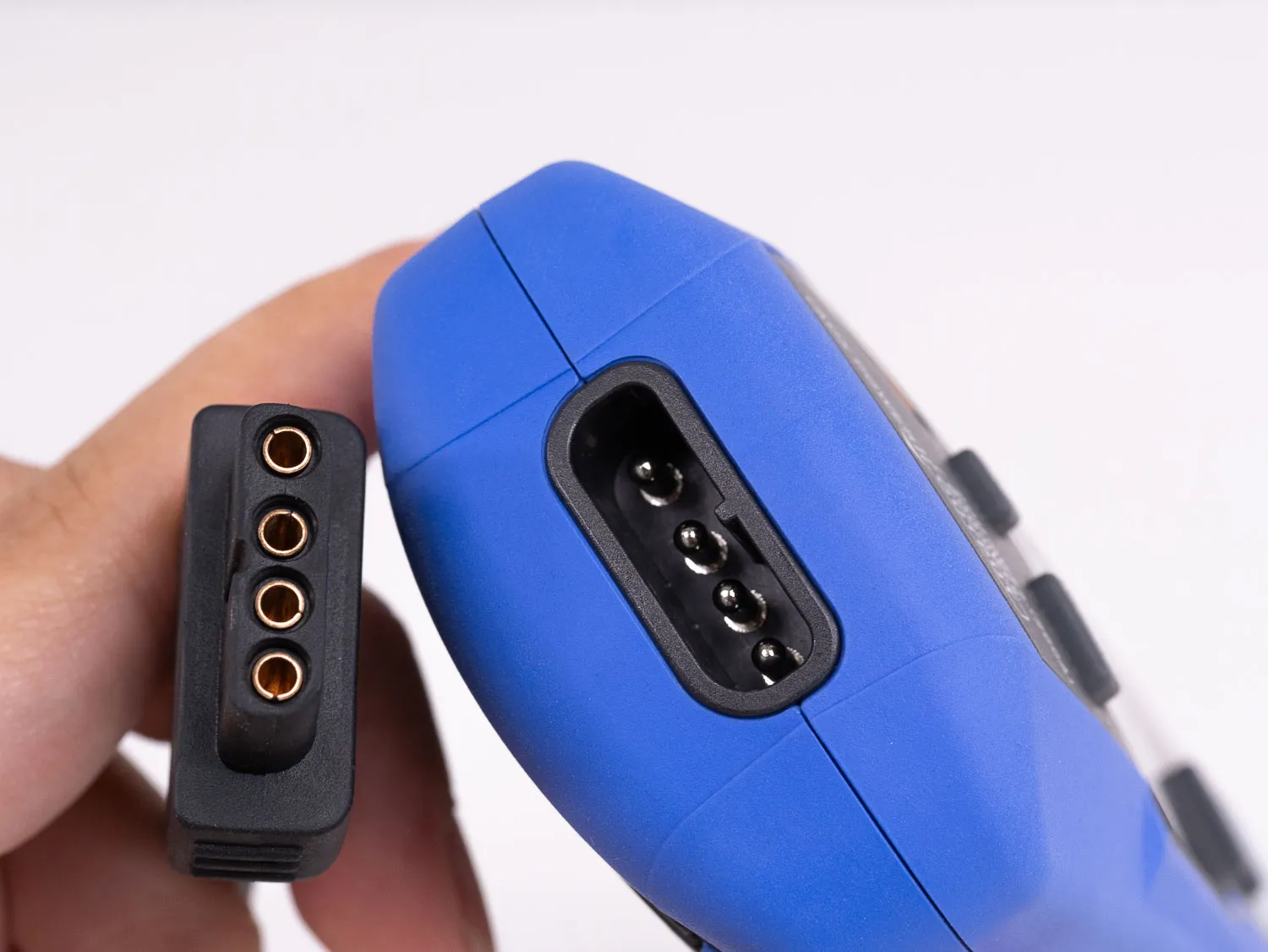

The L9097 is offered as a replacement part. The cable is already included with the CM4003 and CM4003-90 and can only be used with this instrument. It is not a general-purpose BNC cable and is not intended for use with CM4002, CM4002-90, or other clamp meters.
- L9097 Connection Cable
