HIOKI CT9556 - Current Sensor Interface, 1-Channel, with RMS Output

1 channel current sensor interface for current sensors, clamps and probes with ME15W connectors, sensor power supply, BNC waveform output, BNC RMS output
Skip image gallery
HIOKI CT9556 - Current Sensor Interface, 1-Channel, with RMS Output
HIOKI CT9556 - Current Sensor Interface, 1-Channel, with RMS Output
HIOKI CT9556 - Current Sensor Interface, 1-Channel, with RMS Output
HIOKI CT9556 sensor unit for single channel current sensors
HIOKI CT9556 sensor unit for single channel current sensors

€668.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€668.00

HIOKI CT9556 - Current Sensor Interface, 1-Channel, with RMS Output
Product number: CT9556
Available stock: 1
GTIN/EAN: 4536036010851
Description

Product information HIOKI CT9556 - Current Sensor Interface, 1-Channel, with RMS Output


Key Specifications

  • Sensor power supply for 1 current sensor via ME15W connector
  • Waveform output: 2 V full scale (BNC)
  • RMS output: 2 V DC full scale (BNC)
  • RMS accuracy: ±0.2% rdg. ±0.1% f.s. (DC, 50/60 Hz)

Typical Applications

  • Motor current waveform observation
  • AC current measurement with data loggers using RMS output
  • Current monitoring in battery charge and discharge systems
  • Evaluation of inverter input and output currents

Detailed Product Overview

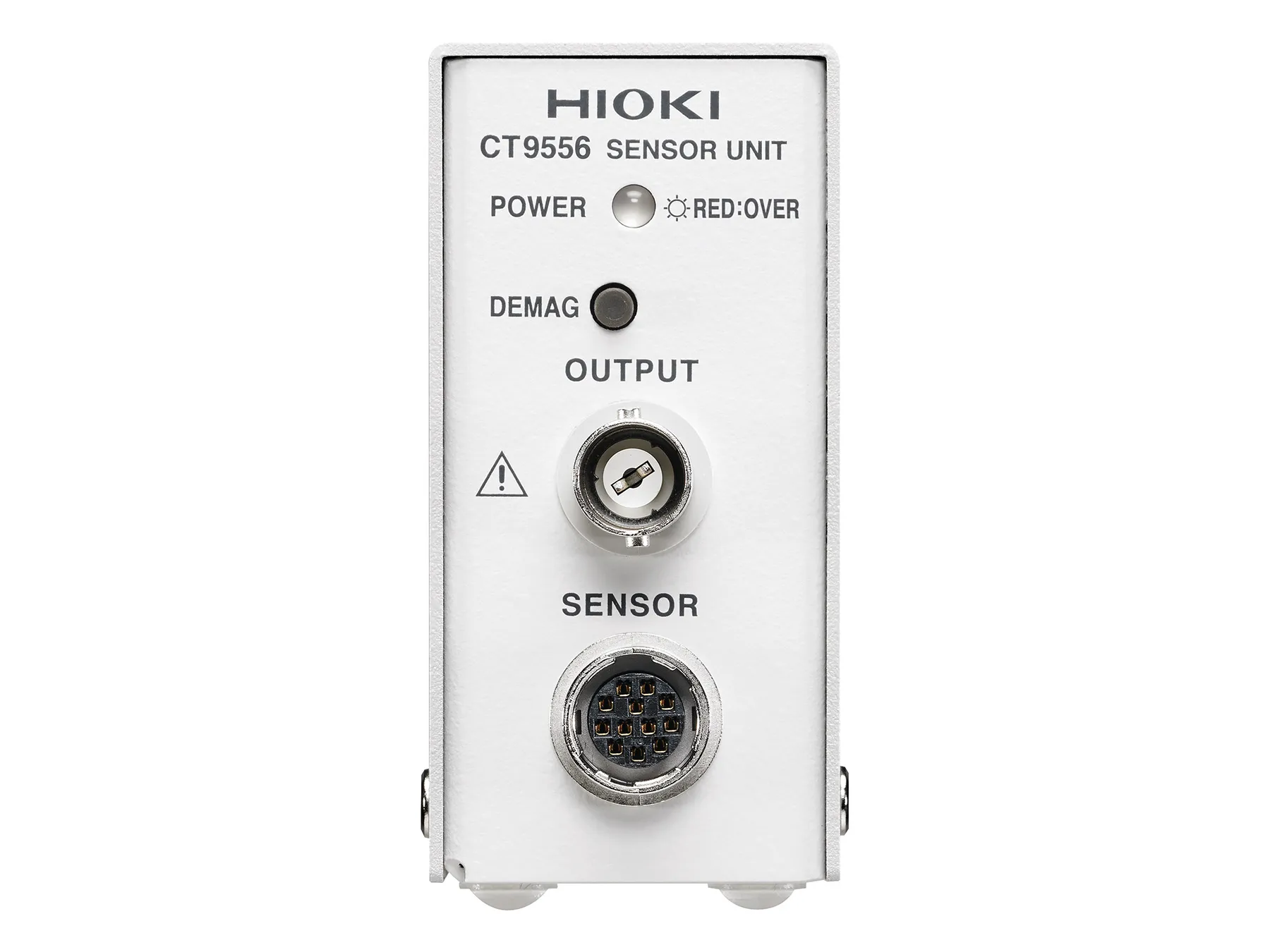

The CT9556 is a 1-channel current sensor interface designed for use with HIOKI highprecision fluxgate current sensors and current clamps with ME15W connectors. The unit supplies power to the connected sensor and provides the sensor signal as a waveform output on a BNC connector, enabling the connected current sensor to be used with oscilloscopes and other data acquisition systems.

HIOKI current sensors with ME15W connectors provide a standardized output signal of 2 V full scale. The CT9556 outputs this sensor signal directly via the BNC waveform output without modification. As a result, the waveform output accuracy corresponds to the accuracy of the connected current sensor.

In addition to the waveform output, the CT9556 provides an RMS output on a BNC connector with a full-scale level of 2 V DC. The RMS output converts the sensor signal to a DC voltage proportional to the RMS current value, allowing AC current measurement with instruments without RMS conversion, such as data loggers or bench multimeters with data acquisition. The accuracy of the RMS output is ±0.2% of reading ±0.1% of full scale (DC, 50/60 Hz). This value is added to the accuracy specification of the connected current sensor.
What's in the Box
  • CT9556 Current Sensor Interface
  • Z1008 AC Adapter
  • Power cord
  • Instruction manual

Dimensions & Packaging

Length 132 mm
Width 33 mm
Height 67 mm
Weight 0.8 kg
