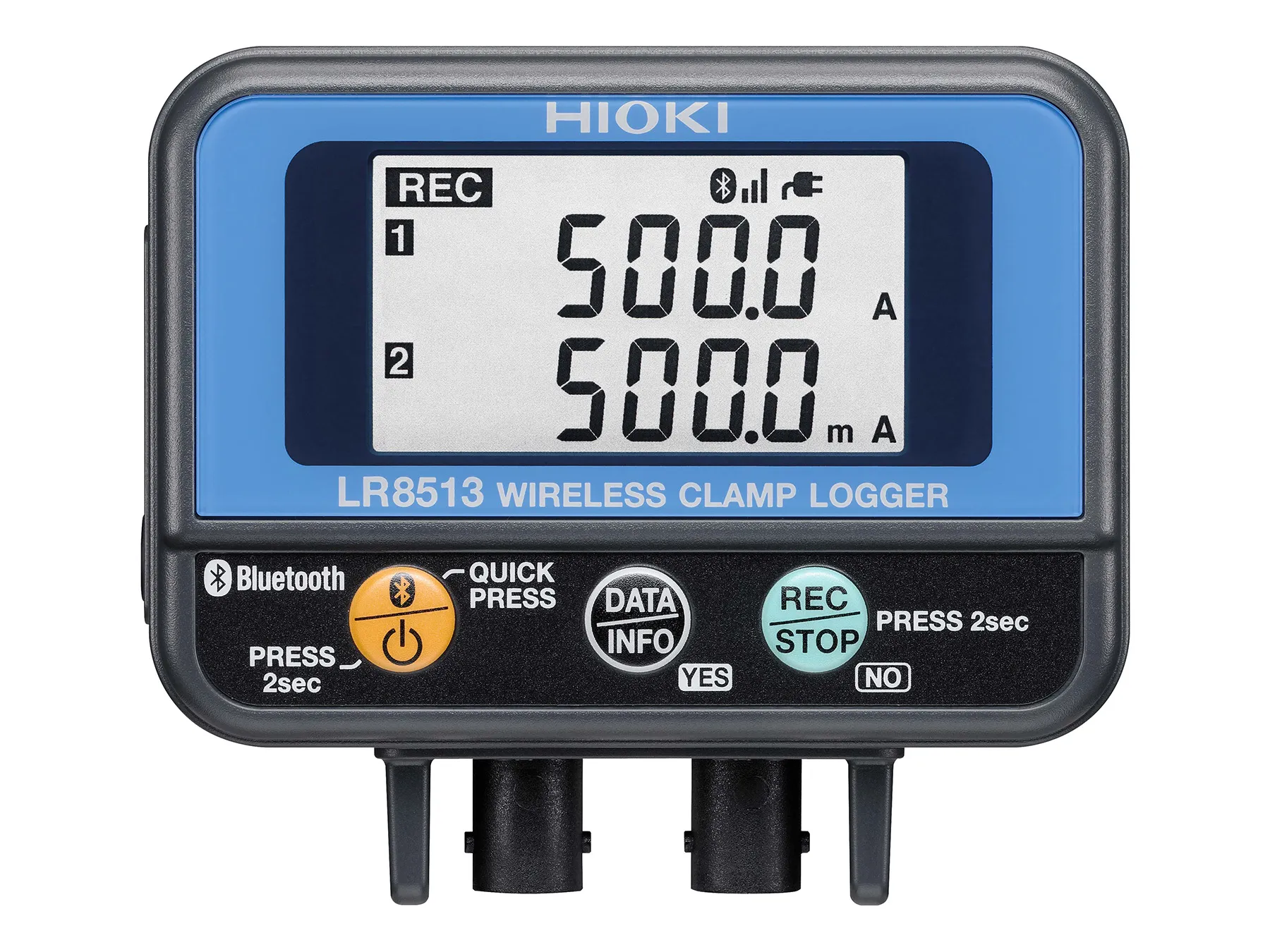

HIOKI LR8513 - 2-channel Bluetooth logger for current sensors

Compact 2-channel data logger, AC current logging with BNC current sensors, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€488.00

Content: 1 Each

In stock in Germany

Product number: LR8513

Available stock: 2

GTIN/EAN: 4536036002511

Width: 380 mm

Height: 750 mm

Weight: 0.36 kg

Product information HIOKI LR8513 - 2-channel Bluetooth logger for current sensors

Key Specifications

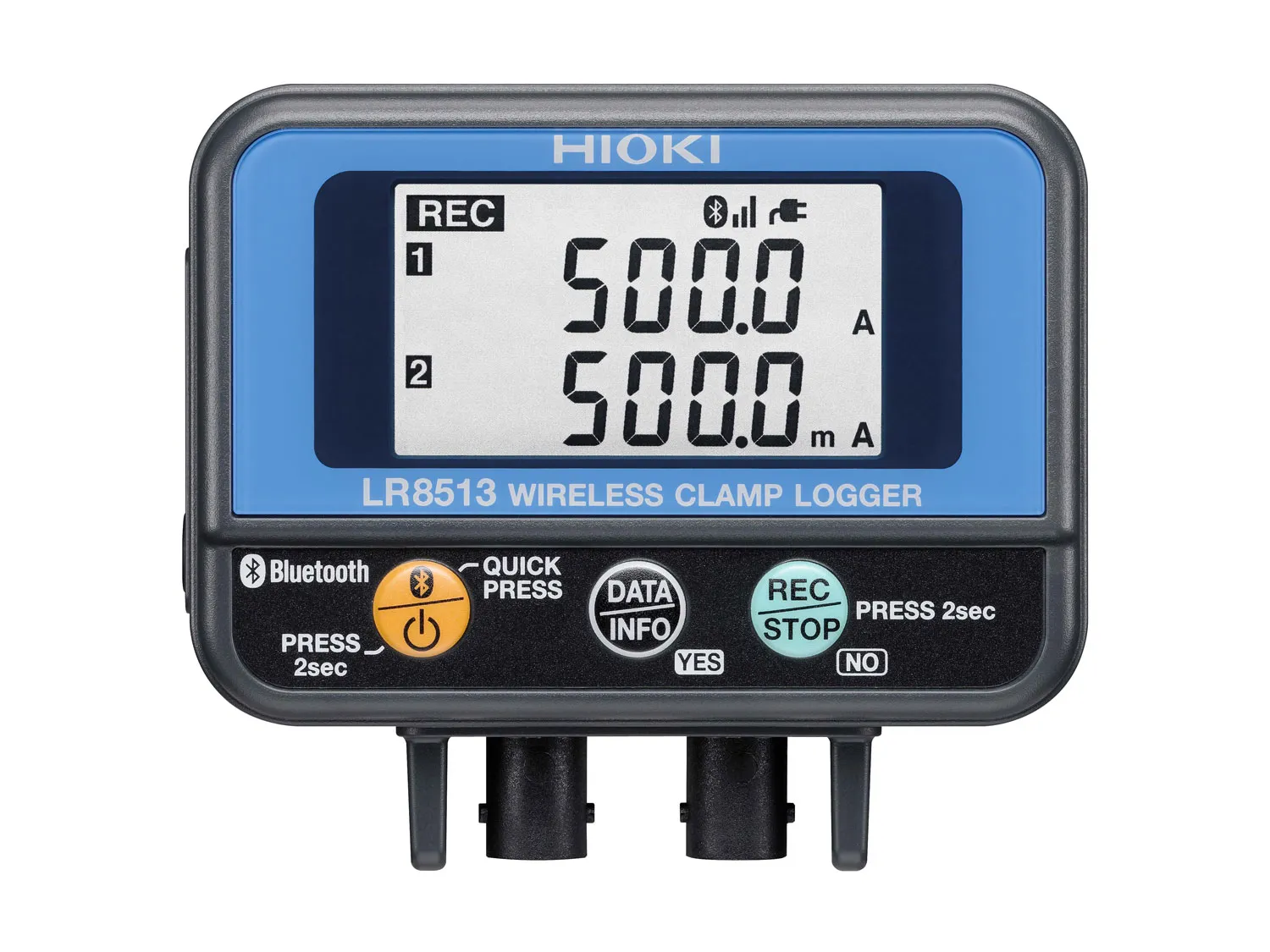

2 channels for BNC current sensors
500 mA - 2000 A AC
Bluetooth data transfer
Internal memory: Up to 500 000 data points per channel
Power supply with AA alkaline batteries, AC adapter, external DC power supply

Unique Advantages

Precise current measurement with HIOKI current sensors

Typical Applications

High-accuracy long-term current logging in confined spaces where wireless data acquisition and transfer is required Product

Detailed Product Overview

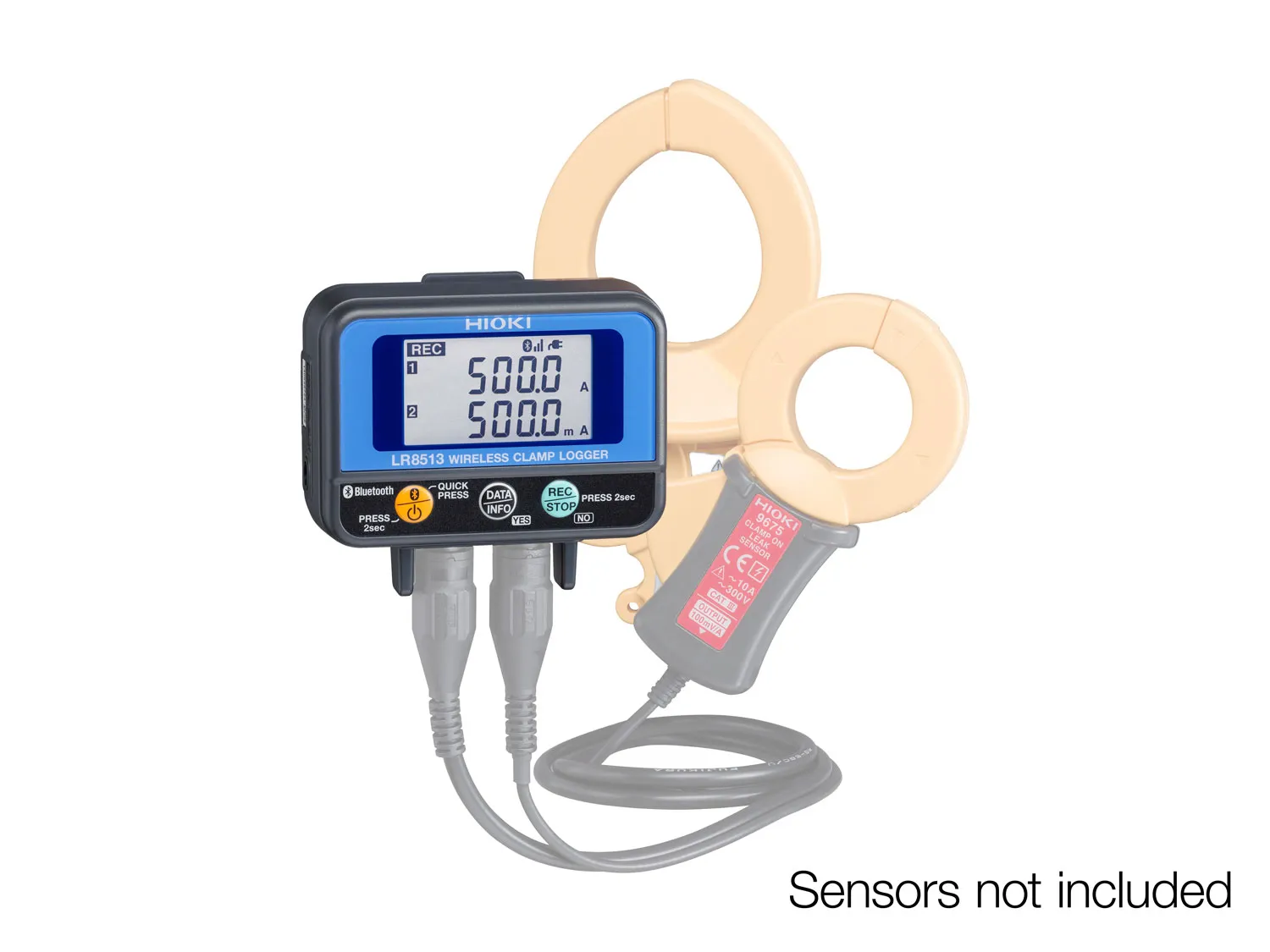

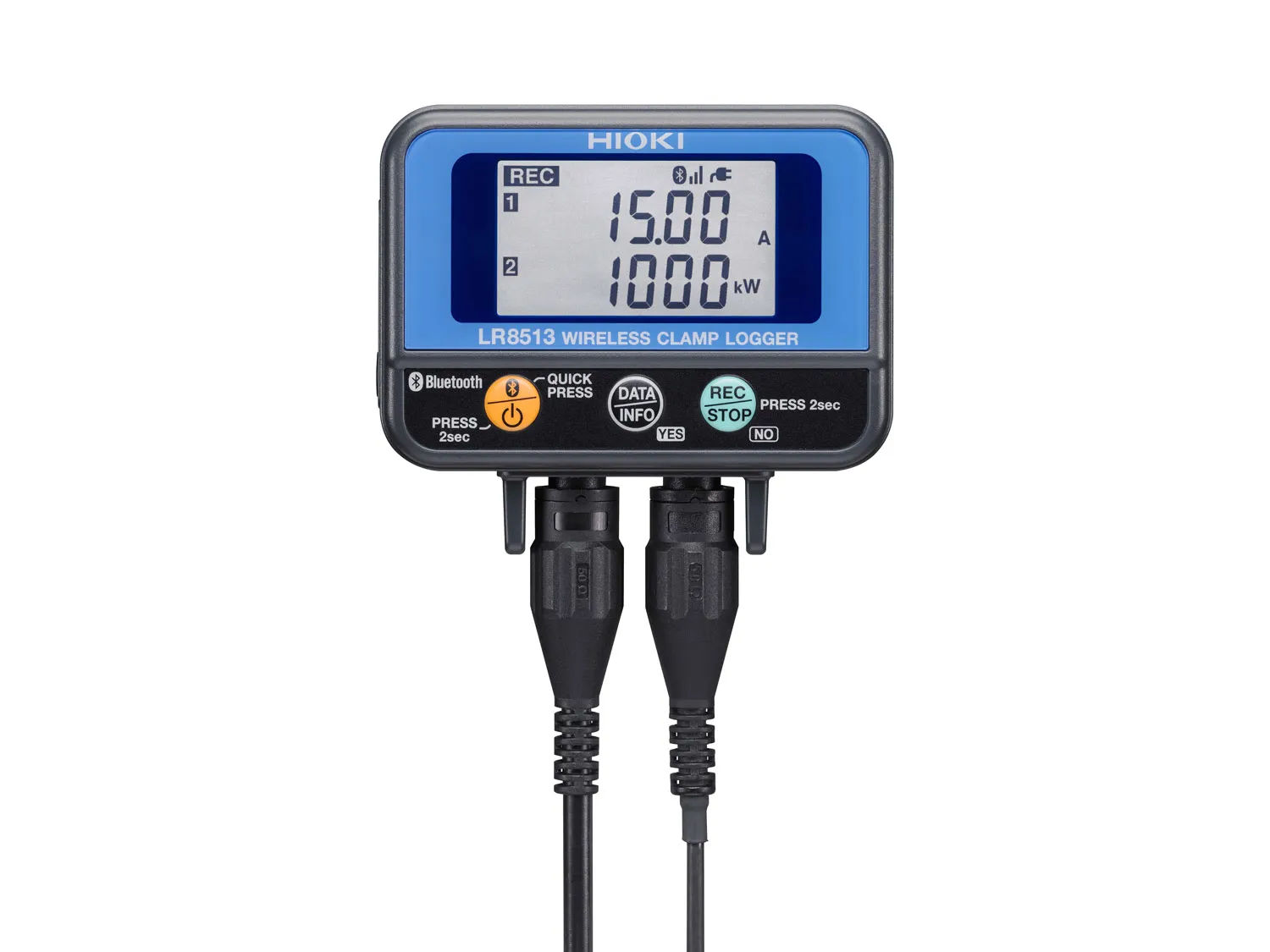

The compact LR8513 Wireless Clamp Logger is a 2-channel data logger to record AC load and leak currents. A wide variety of current sensors can be connected to the logger’s BNC inputs, allowing current measurements from 500 mA to 2000 A AC. The logger fits neatly inside distribution panels, enabling seamless external monitoring. Power measurements can be easily conducted by setting the voltage and power factor.

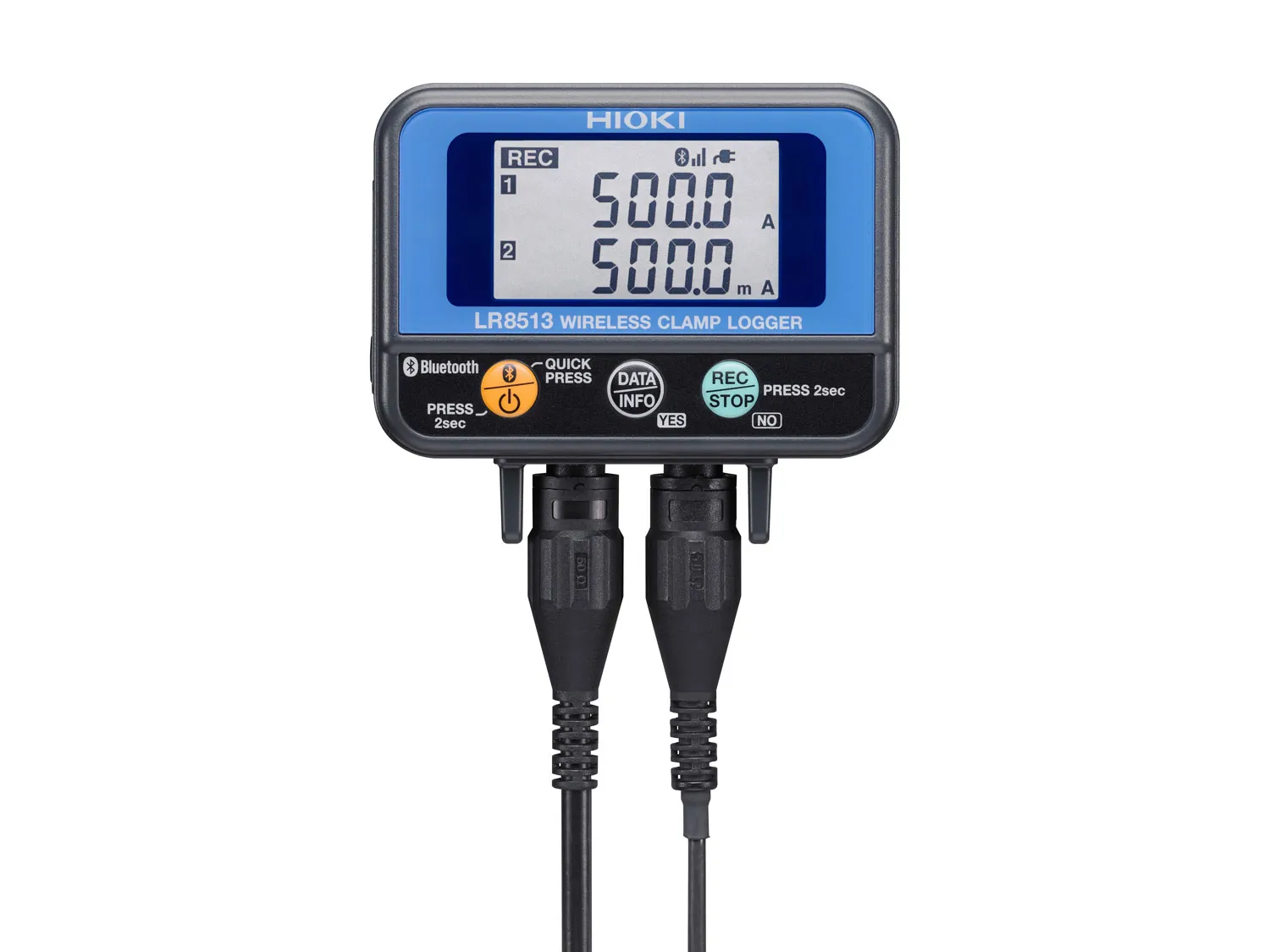

Thanks to the Bluetooth® connectivity data can be easily downloaded to tablets or computers. Up to 500,000 data points per channel can be stored in the internal memory, making it ideal for long-term monitoring and analysis.

The LR8513 can be powered with an optional AC adapter, AA alkaline batteries or with an external DC power supply.

LR8513
CD-R (contains: Instruction Manual, Logger Utility, Wireless Logger Collector)
Measurement Guide
Caution for Using Radio Waves
2x AA alkaline batteries (LR6)

Related products

Z2003

Z2003 - AC Adapter

This power supply is designed for use with the HIOKI Wireless Logger LR85xx series. It supports a wide input voltage range of 100 V to 240 V AC, making it versatile and compatible with power standards worldwide.

€118.00

View product

CT7044

HIOKI CT7044 - AC FLEXIBLE CURRENT SENSOR

The CT7044 AC Flexible Current Sensor is ideal for measuring high currents over a wide frequency range. It features a flexible design with a 100 mm diameter, making it suitable for large conductors in tight spaces. Technical Details: Rated current: 6000 A AC Frequency range: 10 Hz to 50 kHz Amplitude accuracy: ±1.5% rdg, ±0.25% f.s. Diameter of conductors: 100 mm (3.94 in.) Cable length: 2.3 m, 0.2 m³ (7.55 ft., 0.66 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) CAT: IV 600 V, III 1000 V Output terminal: PL14

€286.40 €358.00

View product

CT7045

CT7045 - AC flexible current sensor

AC flexible Current Sensor, 10 Hz to 50 kHz (+/-3dB), 6000A AC, 180 mm diameter, PL14 terminal

€408.00

View product

CT7731

CT7731 - AC/DC Current Probe

The Hioki CT7731 is a versatile AC/DC current sensor designed for accurate measurements up to 100 A. With a wide frequency range from DC to 5 kHz, it is perfect for waveform analysis and real-time monitoring in various applications. The CT7731’s compact design and 33 mm conductor diameter allow for easy installation in confined spaces. It features high precision with an accuracy of ±1.0% for DC measurements and ensures reliable performance in fluctuating temperature conditions. The sensor is compatible with Hioki's Memory Memory recorder and data loggers for efficient data collection and analysis. Technical Information: Measurement range: 100 A AC/DC Frequency range: DC to 5 kHz Maximum conductor diameter: 33 mm Accuracy: ±1.0% for DC (45 Hz to 66 Hz) Operating temperature: −25°C to 65°C Safety category: CAT III 1000 V / CAT IV 600 V Output connector: HIOKI PL14

€528.00

View product

CT7736

CT7736 - AC/DC current clamp

The Hioki CT7736 is a high-performance AC/DC current sensor capable of measuring currents up to 600 A. With a frequency range from DC to 5 kHz, it is ideal for waveform analysis and high-current applications. The sensor features a compact design with a 33 mm conductor diameter, making it easy to install in various environments.Offering high accuracy of ±2.0% for DC measurements, the CT7736 is built for stable performance in fluctuating temperatures. It is compatible with Hioki's Memory Recorders and data loggers for precise and efficient data collection. Technical Information: Measurement range: 600 A AC/DCFrequency range: DC to 5 kHz Maximum conductor diameter: 33 mm Accuracy: ±2.0% for DC (45 Hz to 66 Hz) Operating temperature: −25°C to 65°CSafety category: CAT III 1000 V / CAT IV 600 V Output connector: HIOKI PL14

€608.00

View product

CT7742

CT7742 - AC/DC AUTO-ZERO CURRENT SENSOR

The CT7742 is an advanced AC/DC current sensor with auto-zero functionality, providing stable and precise measurements over time by compensating for offset drift. Technical Details: Rated current: 2000 A AC/DC Frequency range: DC to 5 kHz Amplitude accuracy: ±1.5% rdg, ±0.5% f.s. Diameter of conductors: 55 mm (2.17 in.) Cable length: 2.5 m (8.2 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) CAT: IV 600 V, CAT III 1000 V Output terminal: PL14

€608.00

View product

L9095

L9095 - Output cable for CM7290

The L9095 is a versatile output cable for connecting Hioki products with 3.5mm phone jacks to Hioki products with BNC terminal. Technical Data: Length: 1.5 m Connectors: two pole phone jack (3.5 mm), BNC male Compatible Hioki products: Loggers with BNC terminals, Devices with 3.5 mm phone connector output (CM7290, CM7291, FT3424, FT3425)

€68.00

View product

Z5020

Z5020 - Extra Strong Magnetic Strap

The HIOKI Z5020 is a holding strap with an extra-strong magnet that can be used with data loggers in the HIOKI LR85xx / HIOKI LR5000 series, the HIOKI PD3259 phase detector and similar products, as well as digital multimeters in the HIOKI DT42xx series.

€68.00

View product

CT9667-01

CT9667-01 - AC FLEXIBLE CURRENT SENSOR

The CT9667-01 is a flexible AC current sensor that allows easy measurement of large conductors and cables. Its flexibility makes it ideal for confined spaces or irregular shapes.Technical Details: Rated current: 500 A, 5000 A AC Frequency range: 10 Hz to 20 kHz Amplitude accuracy: ±2% rdg, ±0.3% f.s. Diameter of conductors: 100 mm (3.94 in.) Cable length: 2 m, 1 m² (6.56 ft., 3.28 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) CAT: 600 V CAT IV, 1000 V CAT III Output terminal: BNC

€568.00

View product

CT9667-02

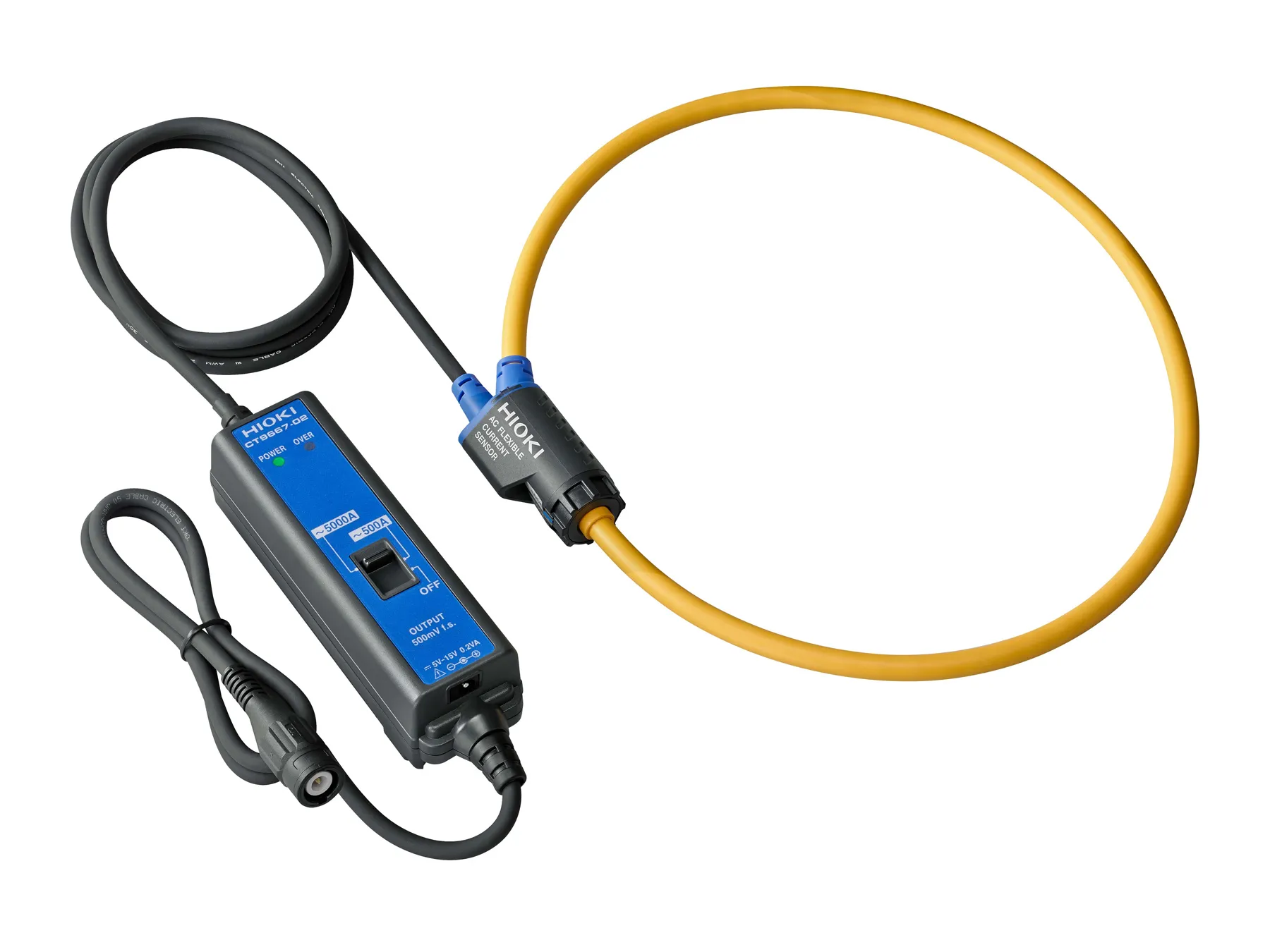

CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz

Flexible Rogowski type AC Current Sensor, rated current (2 ranges) 500 A / 5000 A, continuous current (45 to 66 Hz) 10.000 A max., basic accuracy ±2.0% rdg., bandwidth 10 to 20 kHz, maximum conductor diameter 180mm, easy to route through complex wiring.

€578.00

View product

CT9667-03

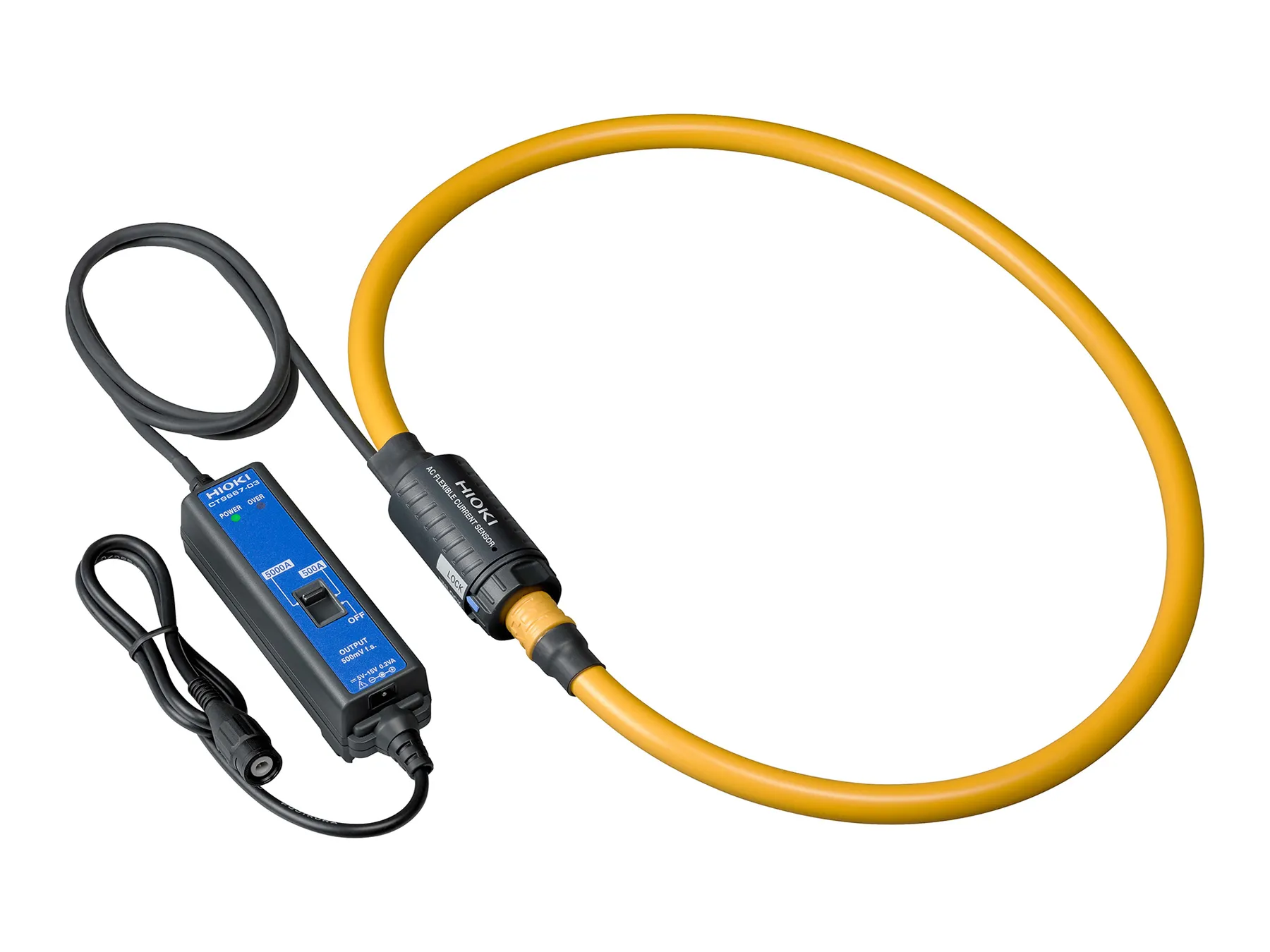

CT9667-03 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
