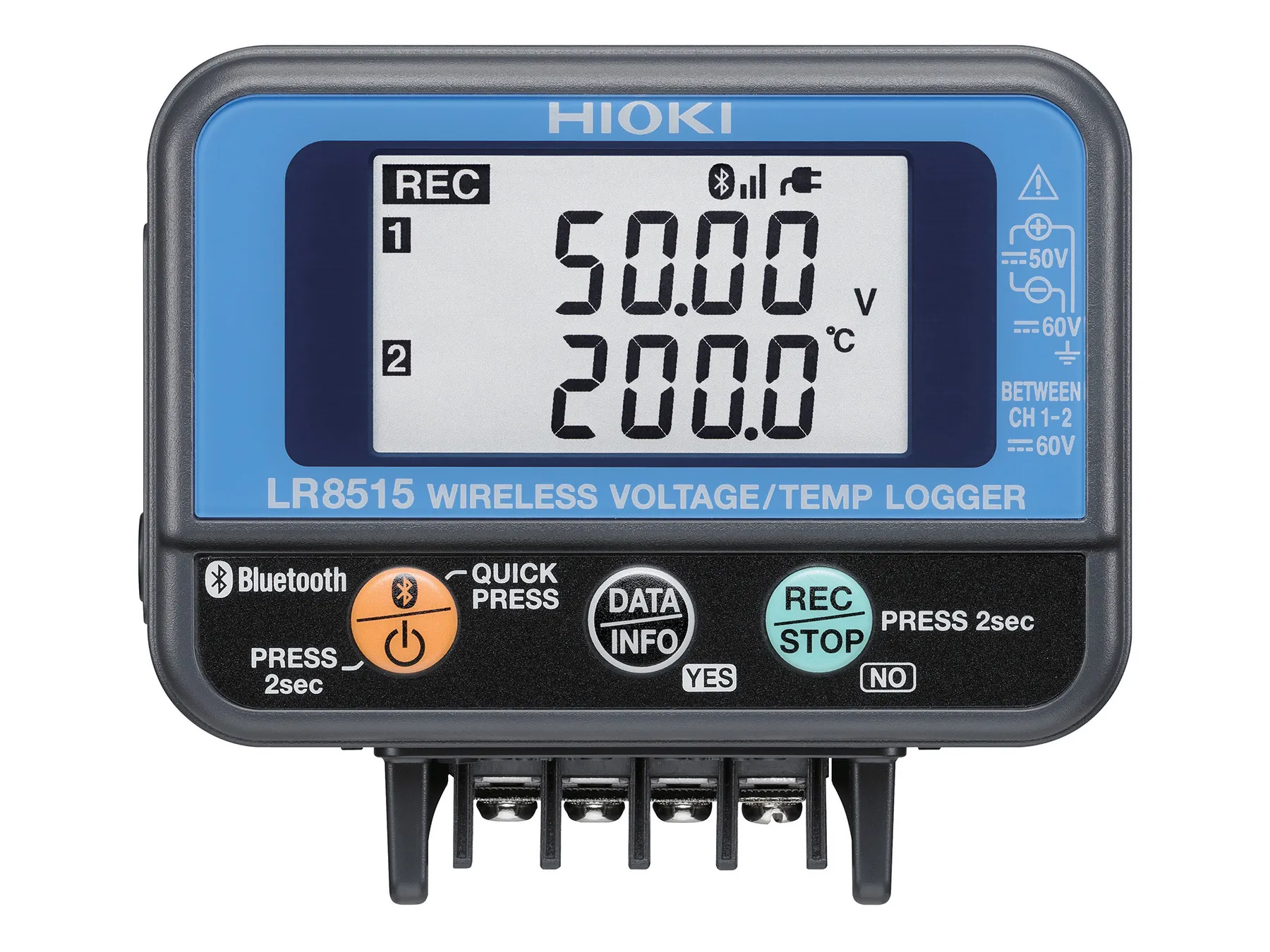

HIOKI LR8515 - Bluetooth Voltage/Temperature Logger
Compact 2-channel data logger, voltage, temperature (thermocouples K, T) logging, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation
Description
Product information HIOKI LR8515 - Bluetooth Voltage/Temperature Logger
Key Specifications
- 2 channels (M3 screw type terminal block)
- Voltage: max. 60 VDC, temperature: thermocouples K, T
- Bluetooth data transfer
- Internal memory: Up to 500 000 data points per channel
- Power supply with AA alkaline batteries, AC adapter, external DC power supply
Typical Applications
- Long-term logging of voltage and/or temperature in confined spaces where wireless data acquisition and transfer is required
Detailed Product Overview
The LR8515 is a compact 2-channel data logger designed to accurately log voltages up to 50 VDC as well as temperatures with thermocouples (types K and T). Due to its compact size it fits easily in hard to reach spaces, enabling seamless external monitoring.Thanks to the Bluetooth® connectivity data can be easily downloaded to tablets or computers. Up to 500,000 data points per channel can be stored in the internal memory, making it ideal for long-term monitoring and analysis.
The LR8515 can be powered with an optional AC adapter, AA alkaline batteries or with an external DC power supply.
What's in the Box
- LR8515 Wireless Voltage/Temperature Logger
- CD-R (instruction manual, Logger Utility, Wireless Logger Collector)
- Measurement Guide
- Caution for Using Radio Waves
- AA alkaline batteries (LR6)
Dimensions & Packaging
| Length | 38 mm |
|---|---|
| Width | 85 mm |
| Height | 75 mm |
| Weight | 0.126 kg |
