PW3337-01 - 3-channel AC/DC power meter up to 65 A and 1000 V, GPIB
Product information PW3337-01 - 3-channel AC/DC power meter up to 65 A and 1000 V, GPIB
Key Specifications
- 3-channel measurement for DC and single- to three-phase 4-wire systems
- Voltage: 60 mV to 1000 V
- Current: 2 mA to 65 A direct / up to 5000 A with external sensors
- Basic accuracy: 0.15% (AC) / 0.2% (DC)
- Frequency range: DC to 100 kHz
Typical Applications
- Power consumption testing for type approval of home appliances like induction cookers or refrigerators
- Power consumption testing for type approval air conditioners and heat-pumps
- Production line testing of air conditioners, heat-pumps and home appliances
- Production line testing of industrial motor drives
- General purpose power meter in power electronics laboratories
| Model | Channels | GP-IB-Interface | D/A-Output | Description |
|---|---|---|---|---|
| PW3337 | 3 | − | − | Standard model with core measurement functions |
| PW3337-01 | 3 | ✓ | − | Same as PW3337, with additional GP-IB interface |
| PW3337-02 | 3 | − | ✓ | Same as PW3337, with additional D/A output |
| PW3337-03 | 3 | ✓ | ✓ | Fully equipped model with GP-IB interface and D/A output |
Detailed Product Overview

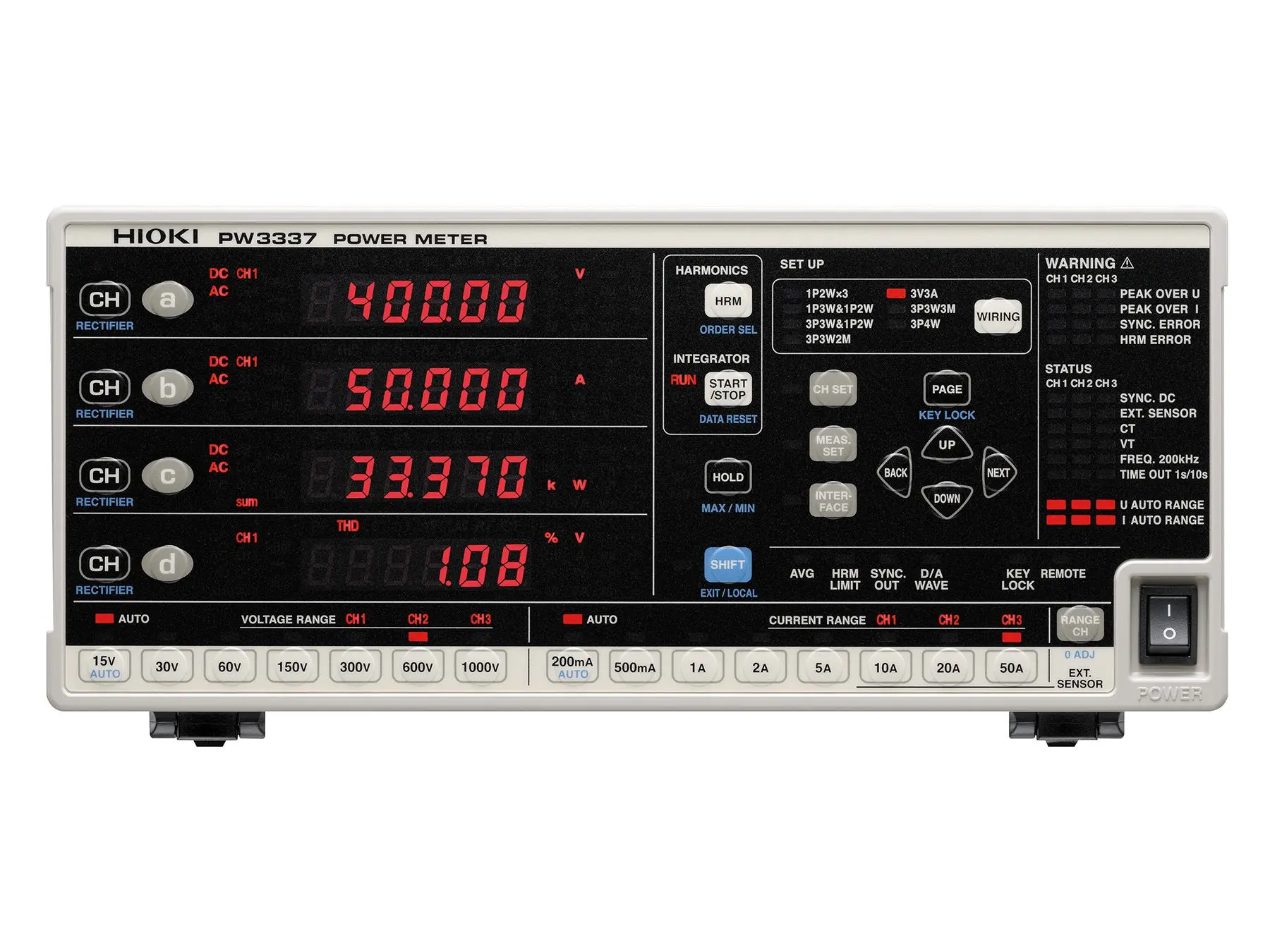

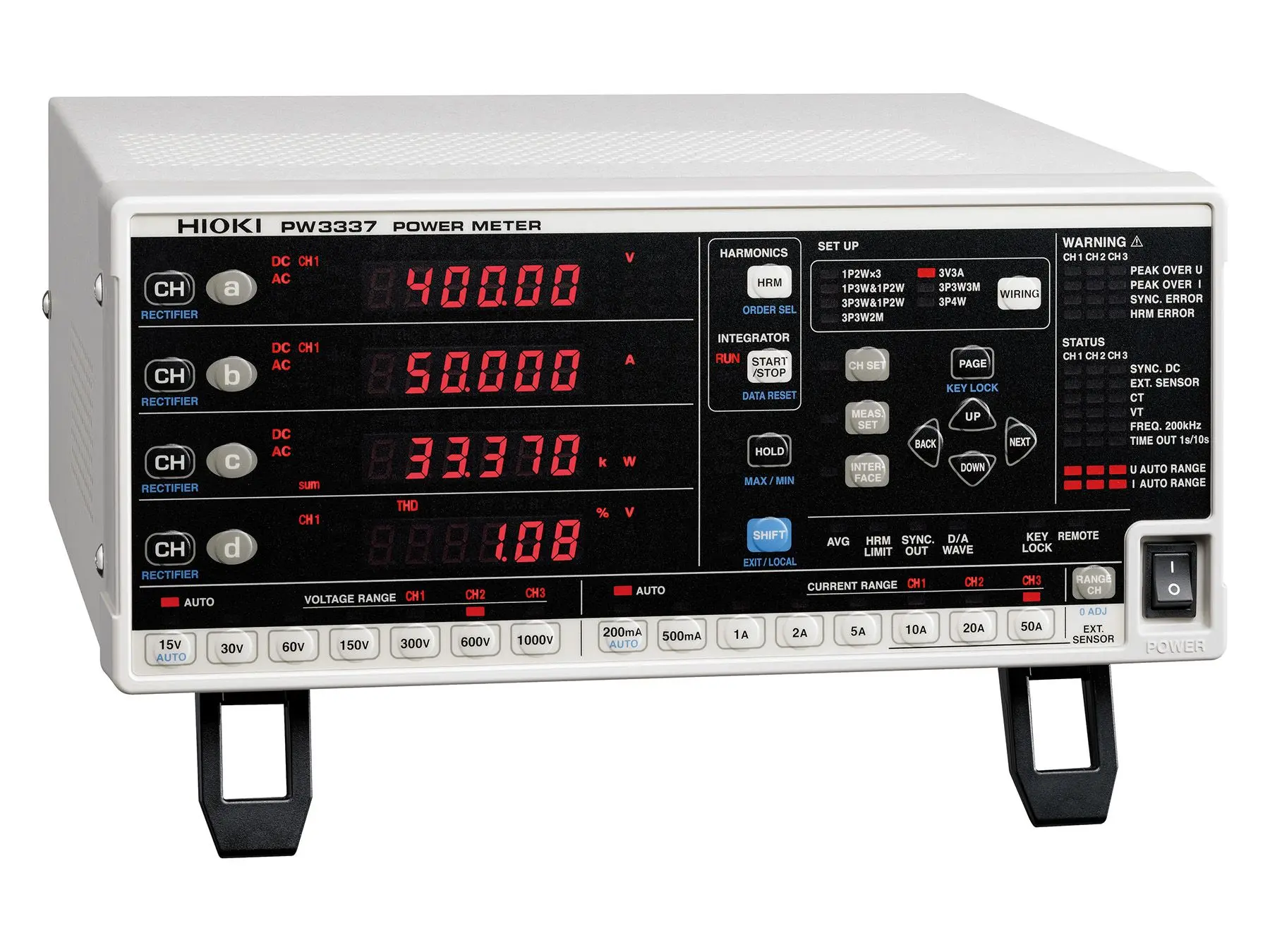

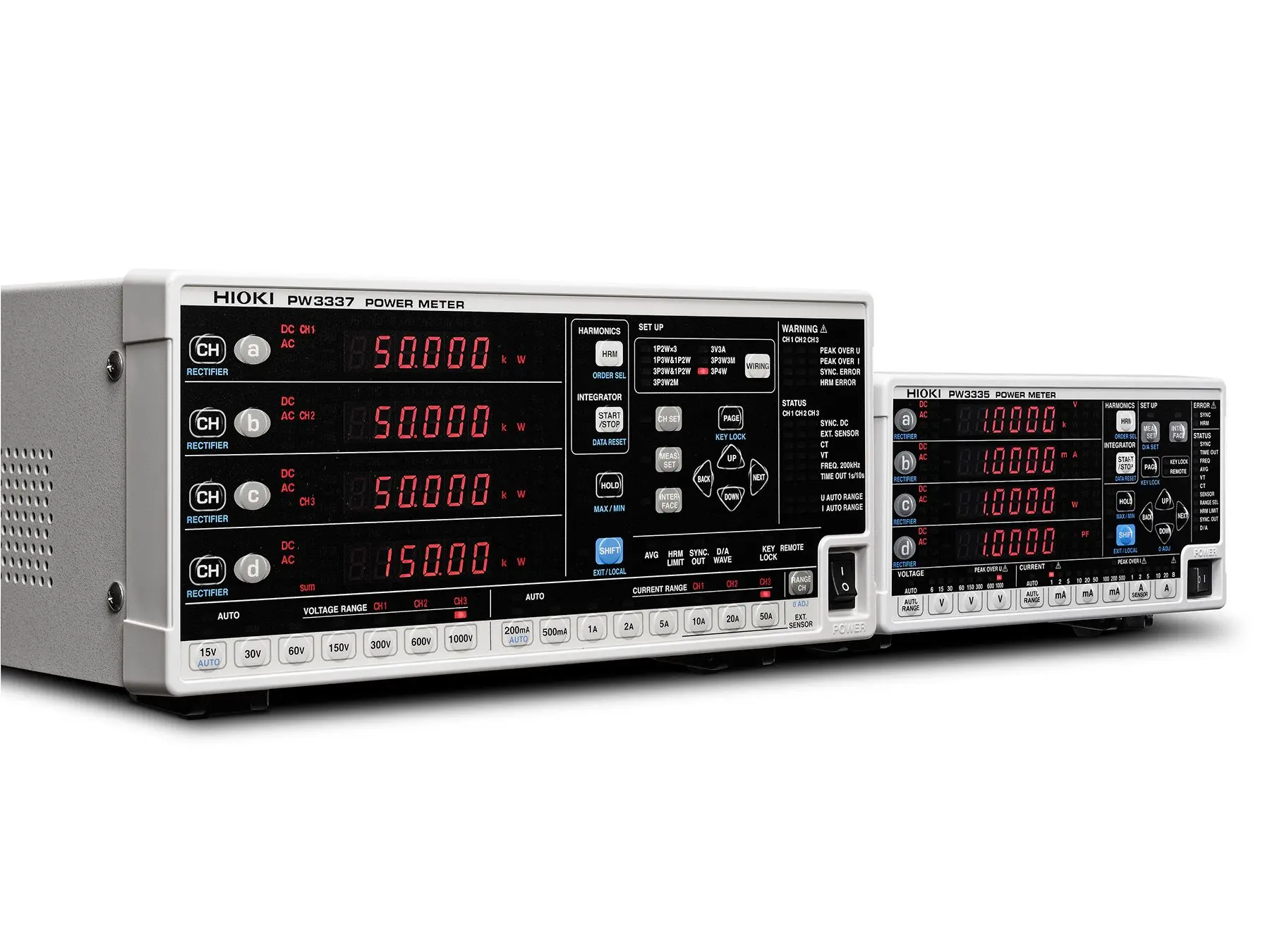

The HIOKI PW3337-01 is a versatile benchtop power meter offering long-term stability and high measurement accuracy for single- to three-phase power systems. With three independent AC/DC measurement channels, it measures voltages up to 1000 V and currents up to 65 A directly, or up to 5000 A when used with external current sensors.Precision Without Shunts
Conventional power meters rely on shunt resistors, which generate heat, drift during operation, and lose precision as they age – especially in rack-mounted or long-term use. The PW3337-01 takes a different approach: it uses a zero-flux current transducer (DCCT), drawing on HIOKI’s decades of expertise in precision current sensing. This design avoids the inherent limitations of shunts and delivers stable, low-drift accuracy for both AC and DC currents. The result is basic power accuracy of ±0.1% of reading plus ±0.1% of full scale for DC, and ±0.15% for AC, across a wide frequency range from DC and 0.1 Hz up to 100 kHz.Sensor Connectivity for High Currents

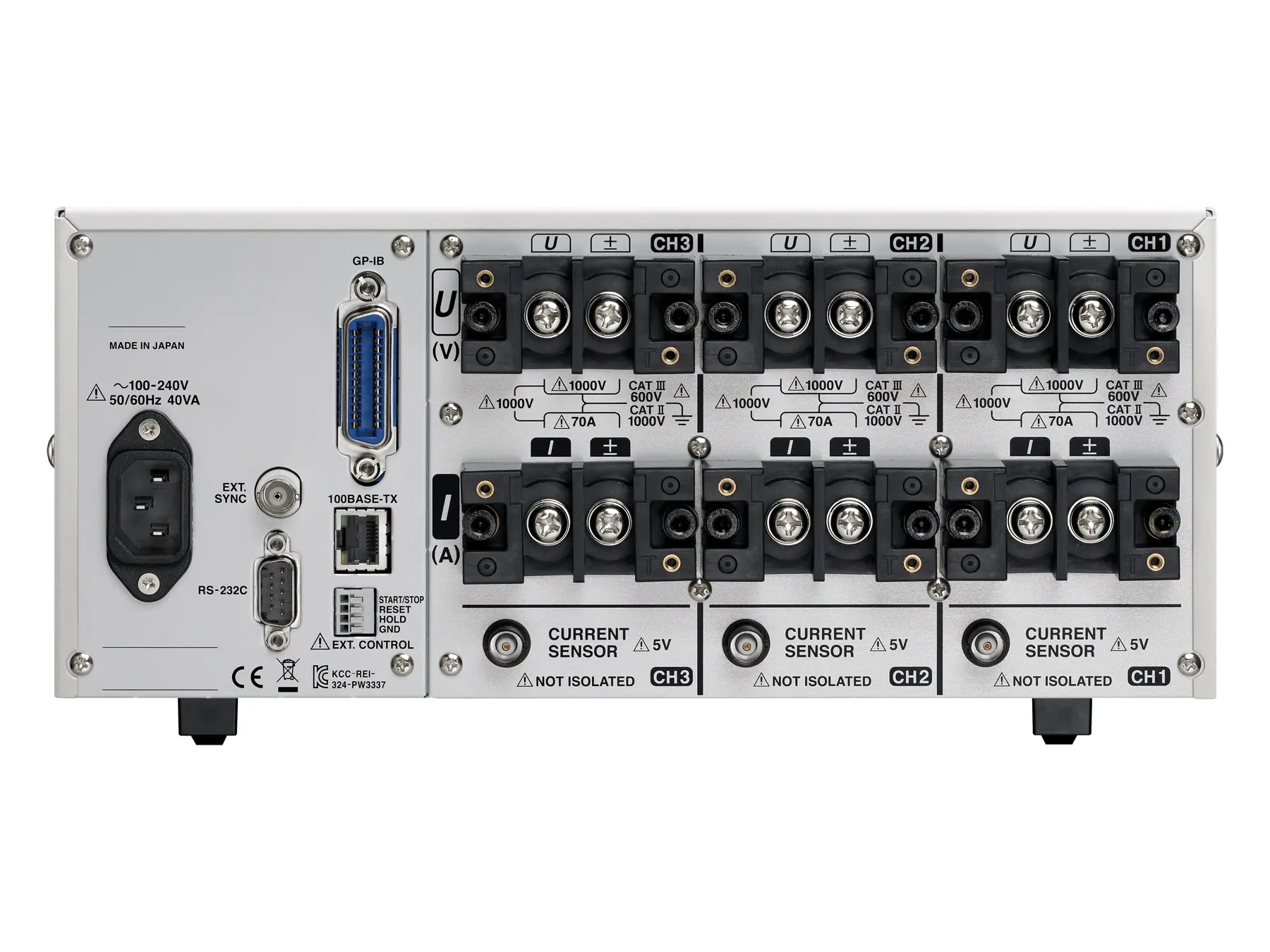

For higher currents, each channel offers BNC inputs for external sensors, allowing measurements up to 5000 A. AC-only sensors with BNC outputs can be directly connected, while HIOKI AC/DC current sensors with ME15W connectors can be used via dedicated sensor units (CT9995, CT9556, or CT9557). Third-party voltage-output sensors are also supported through flexible CT ratio settings.Four Models for Different Interface Needs
The PW3337 series consists of four models, each offering three measurement channels. The standard PW3337 includes all measurement and analysis functions and comes equipped with LAN and RS-232C interfaces. The PW3337-01 adds a built-in GP-IB interface, while the PW3337-02 features an integrated D/A output. The PW3337-03 includes both GP-IB and D/A output, making it the most versatile model in the series when maximum flexibility is required.- PW3337-01
- Instruction manual
- Measurement guide
- Voltage and current input terminal safety cover ×6
- Safety cover installation screws (M3 × 6 mm) ×12
- Power cord
