CT6875A - AC/DC Current sensor, 500 A / 2 MHz

€1,788.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

€1,788.00*

CT6875A - AC/DC Current sensor, 500 A / 2 MHz

Available stock: 1

Product details

Product number: CT6875A

EAN: 4536036013913

Width: 500 mm

Height: 1120 mm

Weight: 1.06 kg

Product information CT6875A - AC/DC Current sensor, 500 A / 2 MHz

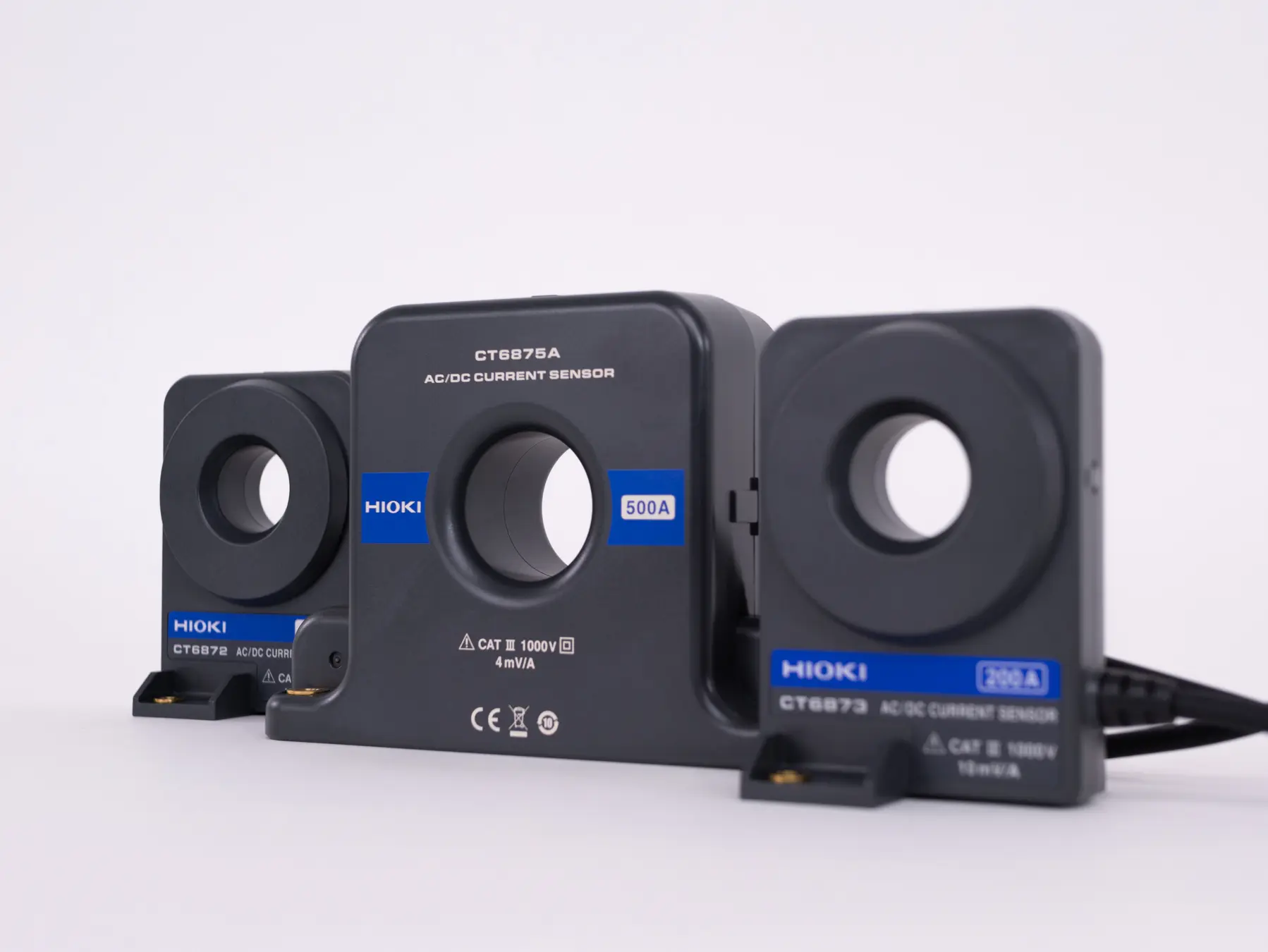

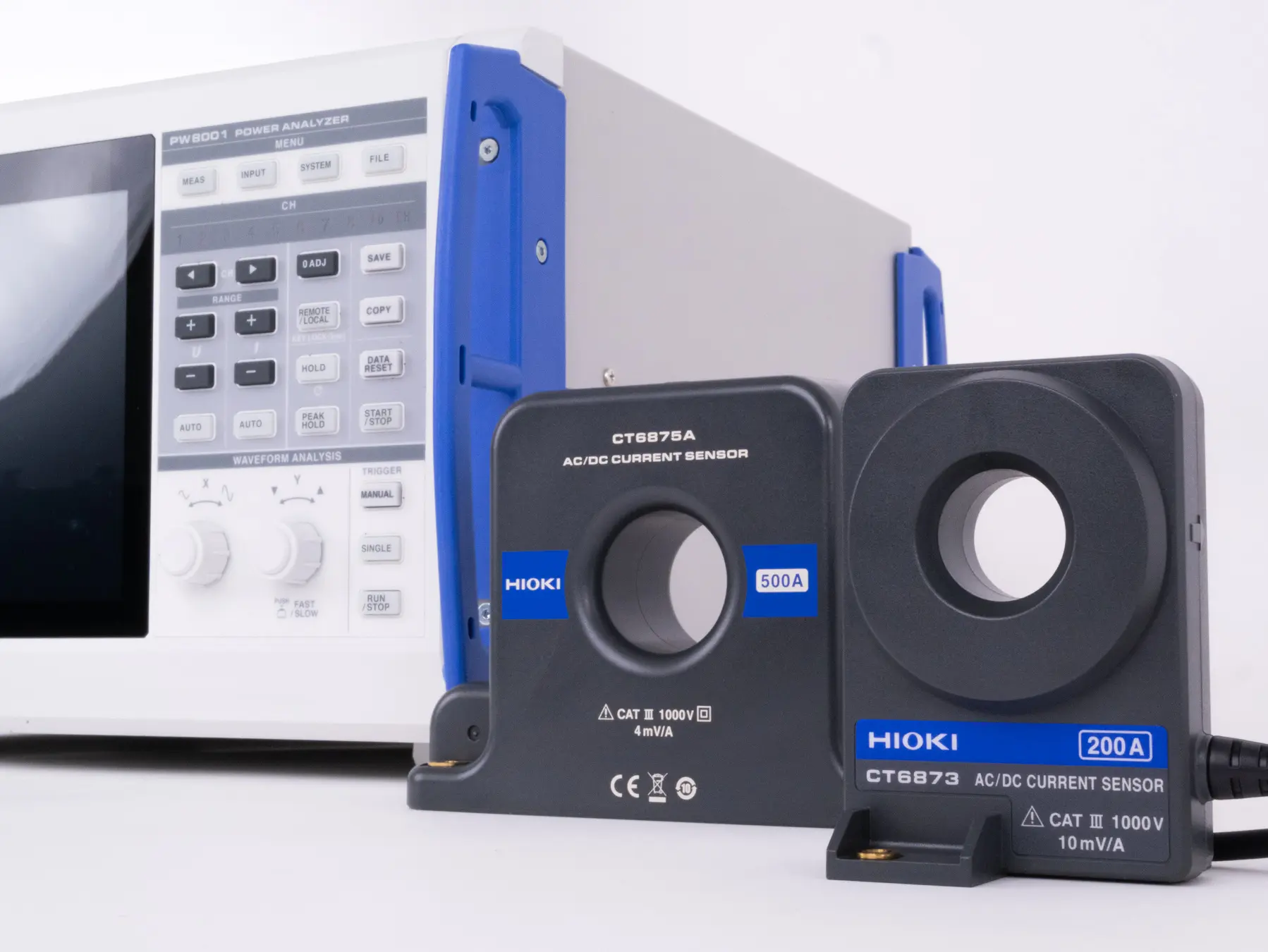

The CT6875 AC/DC Current Sensor is designed for accurate current measurements across a broad frequency range, from DC to 2 MHz (Model CT6875-01: DC to 1.5 MHz). With a rated current of 500 A, it is ideal for R&D, quality evaluation, manufacturing, and maintenance in industries such as wireless charging systems, inverter motors, PV power conditioners, and EV quick charging facilities. In combination with the Power Analyzer PW8001, the sensor allows for precise high-frequency and low power factor measurements.

Technical Details:

Rated Current: 500 A

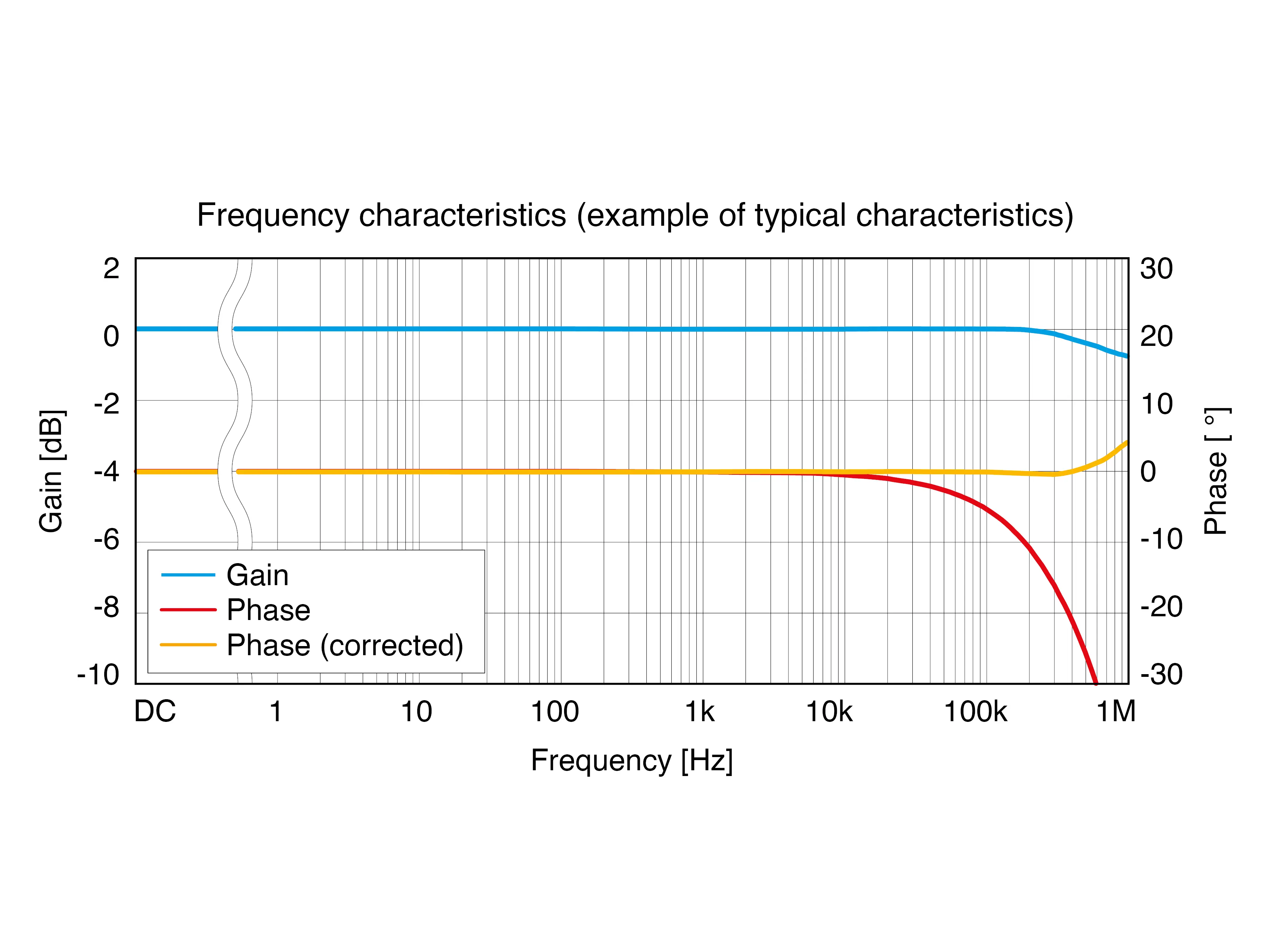

Frequency Bandwidth: CT6875: DC to 2 MHz
Basic Accuracy: Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.08°
Maximum Conductor Diameter: 36 mm
Maximum Rated Voltage to Ground: 1000 V CAT III
Operating Temperature: -40°C to 85°C
Input Impedance Requirement: 1 MΩ or higher
Output Terminal: ME15W
Cable length: 3m

More than specs – find more details here:
Measure Power with Precision – Across All Applications
