CT9556 - Current Sensor Interface, 1-Channel, with RMS Output

1 channel current sensor interface for current sensors, clamps and probes with ME15W connectors, sensor power supply, BNC waveform output, BNC RMS output

€668.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

Available in 21 days

€668.00*

CT9556 - Current Sensor Interface, 1-Channel, with RMS Output

Product number: CT9556

EAN: 4536036010851

Length: 132 mm

Width: 33 mm

Height: 67 mm

Weight: 0.8 kg

Product information CT9556 - Current Sensor Interface, 1-Channel, with RMS Output

Key Specifications

Sensor power supply for 1 current sensor via ME15W connector
Waveform output: 2 V full scale (BNC)
RMS output: 2 V DC full scale (BNC)
RMS accuracy: ±0.2% rdg. ±0.1% f.s. (DC, 50/60 Hz)

Typical Applications

Motor current waveform observation
AC current measurement with data loggers using RMS output
Current monitoring in battery charge and discharge systems
Evaluation of inverter input and output currents

Detailed Product Overview

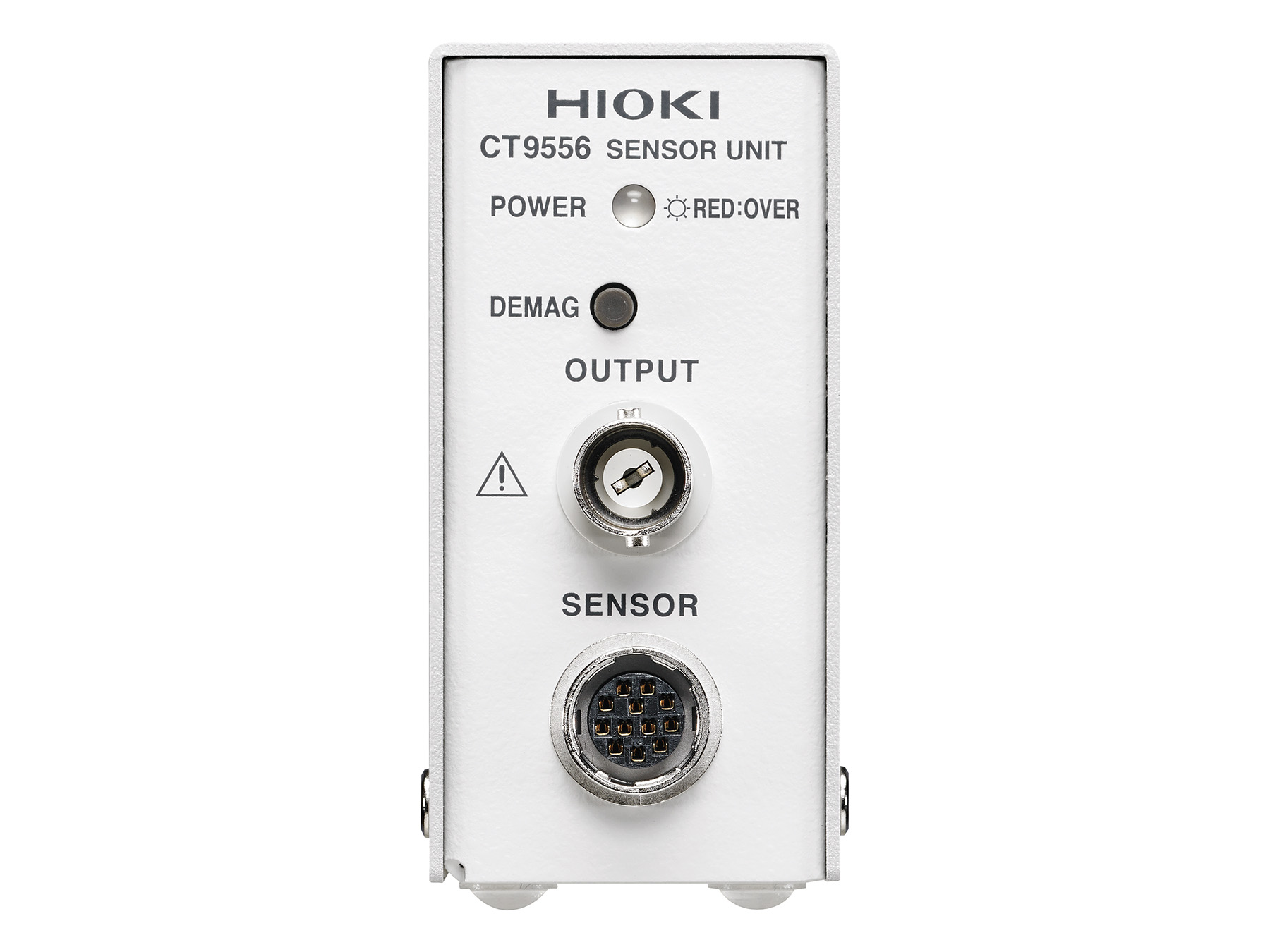

The CT9556 is a 1-channel current sensor interface designed for use with HIOKI highprecision fluxgate current sensors and current clamps with ME15W connectors. The unit supplies power to the connected sensor and provides the sensor signal as a waveform output on a BNC connector, enabling the connected current sensor to be used with oscilloscopes and other data acquisition systems.

HIOKI current sensors with ME15W connectors provide a standardized output signal of 2 V full scale. The CT9556 outputs this sensor signal directly via the BNC waveform output without modification. As a result, the waveform output accuracy corresponds to the accuracy of the connected current sensor.

In addition to the waveform output, the CT9556 provides an RMS output on a BNC connector with a full-scale level of 2 V DC. The RMS output converts the sensor signal to a DC voltage proportional to the RMS current value, allowing AC current measurement with instruments without RMS conversion, such as data loggers or bench multimeters with data acquisition. The accuracy of the RMS output is ±0.2% of reading ±0.1% of full scale (DC, 50/60 Hz). This value is added to the accuracy specification of the connected current sensor.

CT9556 Current Sensor Interface
Z1008 AC Adapter
Power cord
Instruction manual
