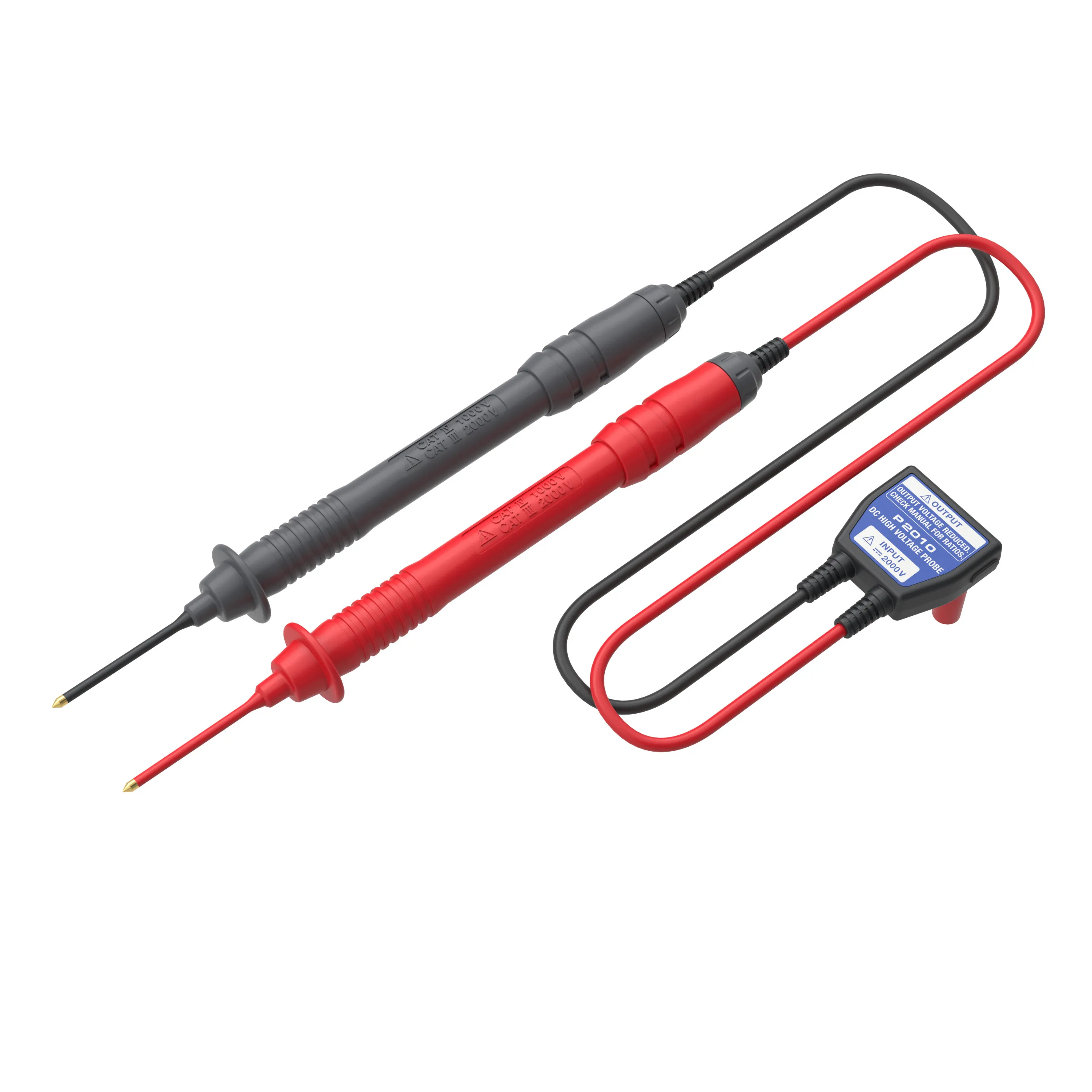

HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V

High voltage divider for safe DC measurement up to CAT III 2000 V or CAT IV 1000 V, division ratio 1/10. Designed to look and feel like compact test leads with standard 4 mm output connectors
Skip image gallery
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V

€188.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€188.00

HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
Product number: P2010
Available stock: 4
GTIN/EAN: 4536036015658
Description

Product information HIOKI P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V

Key Specifications

  • DC measurements up to CAT III 2000 V
  • DC measurements up to CAT IV 1000 V
  • Division ratio 1/10

Typical Applications

  • Measurement of today’s 1500 V PV strings
  • Testing of high-voltage EV batteries and DC bus circuits
  • Maintenance and troubleshooting in industrial high-voltage environments

Detailed Product Overview

The P2010 High Voltage Divider enables DC measurements up to CAT III 2000 V and CAT IV 1000 V and is designed for use with compatible HIOKI clamp multimeters and digital multimeters. It enables safe testing in applications such as 1500 V photovoltaic strings or high-voltage battery environments, where higher voltages are increasingly common.

Designed to look and feel like compact test leads, it features standard 4 mm banana connectors at the output. This familiar interface ensures simple connection to compatible HIOKI instruments while maintaining full safety compliance. The long and slim probe tip allows reliable contact even in confined or recessed measurement points.

Designed for HIOKI multimeters
The P2010 is compatible with HIOKI CM4371-50, CM4371-90, CM4373-50, CM4373-90, CM4375-50, CM4375-90 clamp multimeters, and the DT4261 digital multimeter. With a division ratio of 1/10, it provides accurate scaling for high voltage signals in demanding applications.

As is typical for HIOKI instruments, this high voltage divider was also designed and is manufactured in Japan at HIOKI’s own factories in Nagano Prefecture, ensuring precise performance, safety, and long-term reliability
What's in the Box
  • P2010 High Voltage Divider
  • Instruction Manual
  • Safety Instructions

Dimensions & Packaging

Length 1,700 mm
Weight 0.15 kg
