HIOKI CM4375-93 - Clamp Multimeter PV Kit, 1000 A AC/DC, 2000 V DC and Bluetooth
€688.00
Shipping costs : €9.90 (Standard)
In stock in Germany
- Fast delivery across Europe
- EU business invoices
€688.00
Product information HIOKI CM4375-93 - Clamp Multimeter PV Kit, 1000 A AC/DC, 2000 V DC and Bluetooth
Key Specifications
- Current measurement up to 1000 A AC/DC

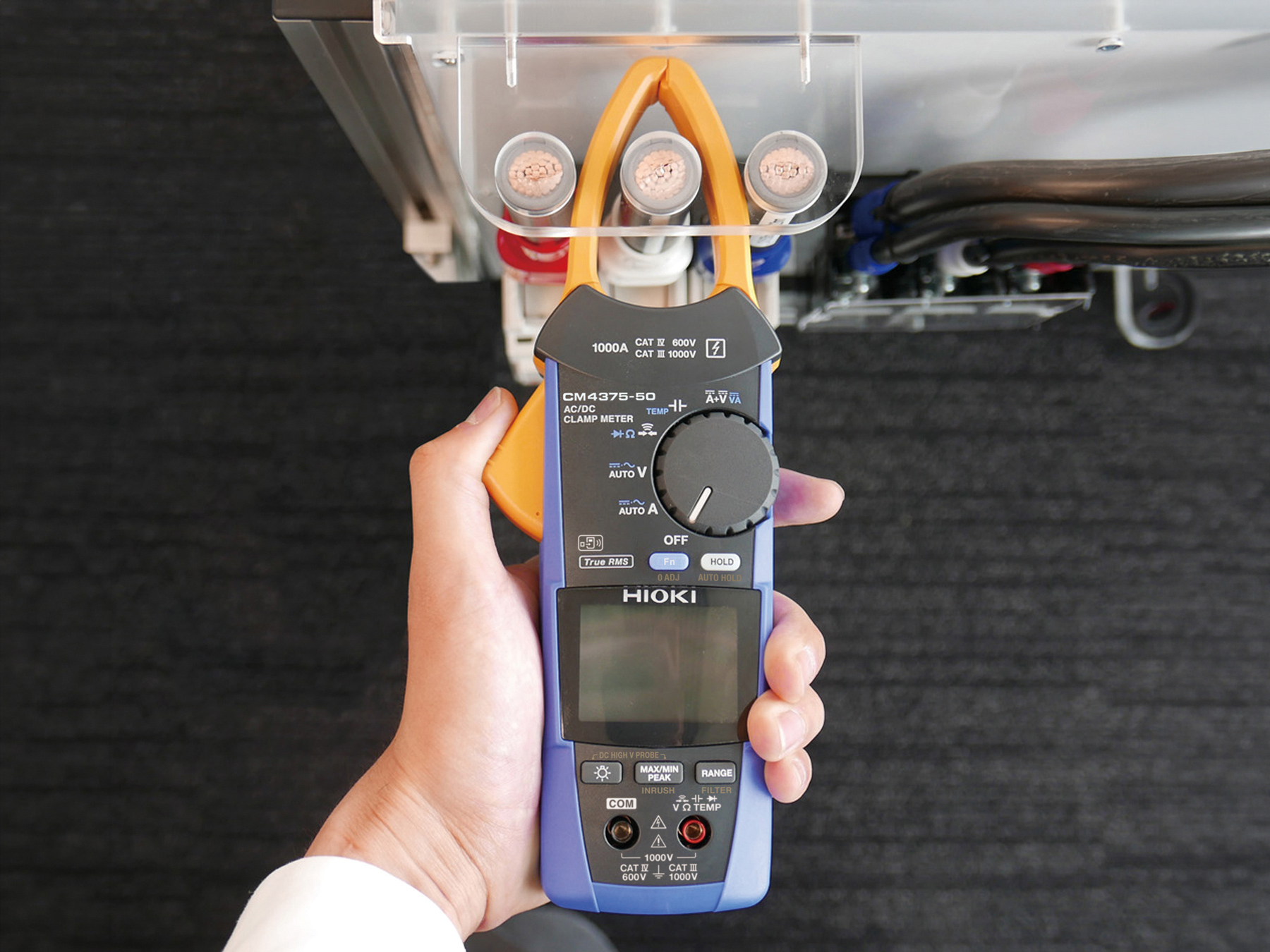

- Super slim 34 mm jaw design for tight spaces
- Voltage measurement up to 1000 V AC/DC, up to 2000 V DC with P2010

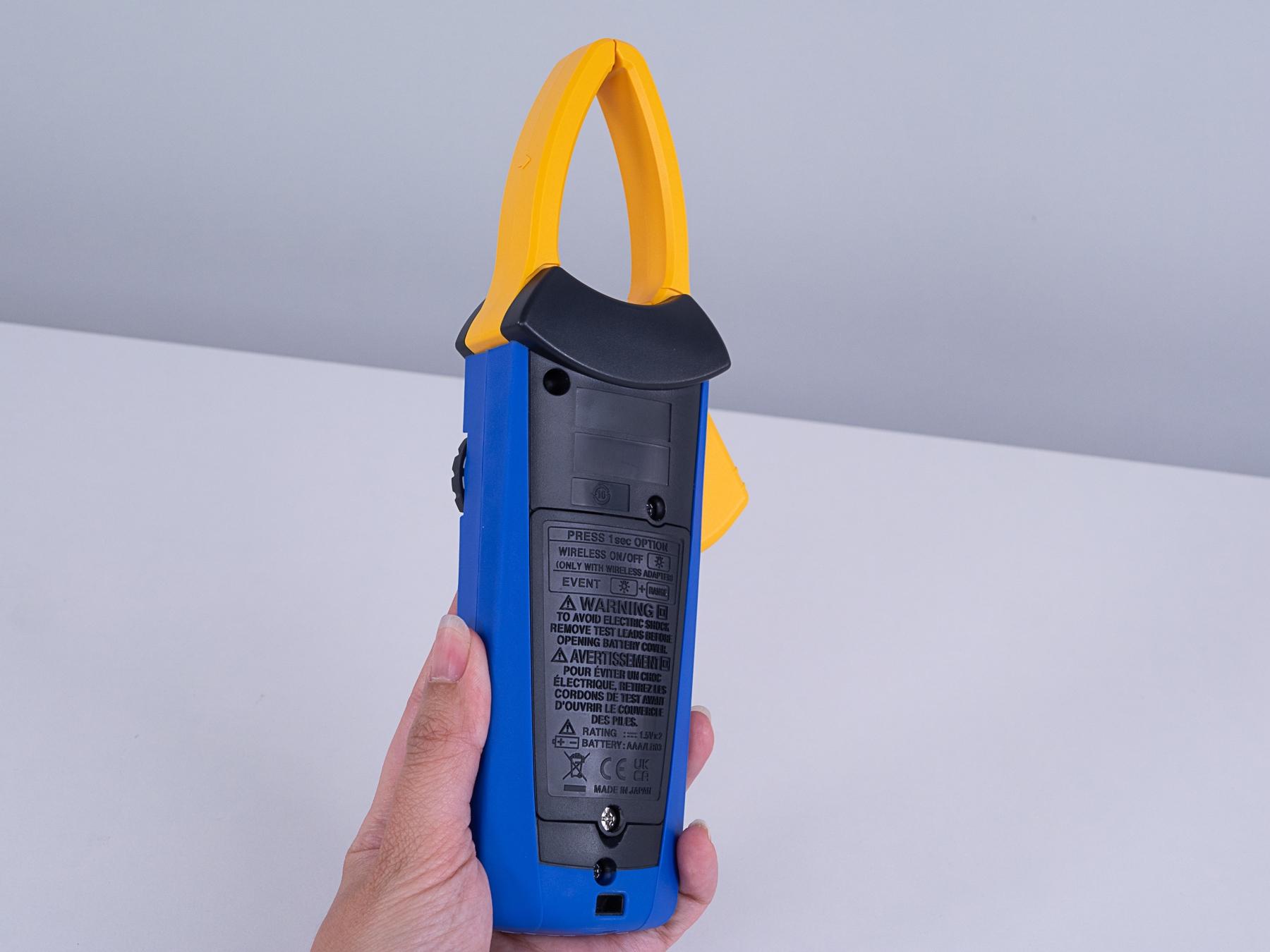

- Safety rated CAT IV 600 V / CAT III 1000 V and CAT III 2000 V with P2010

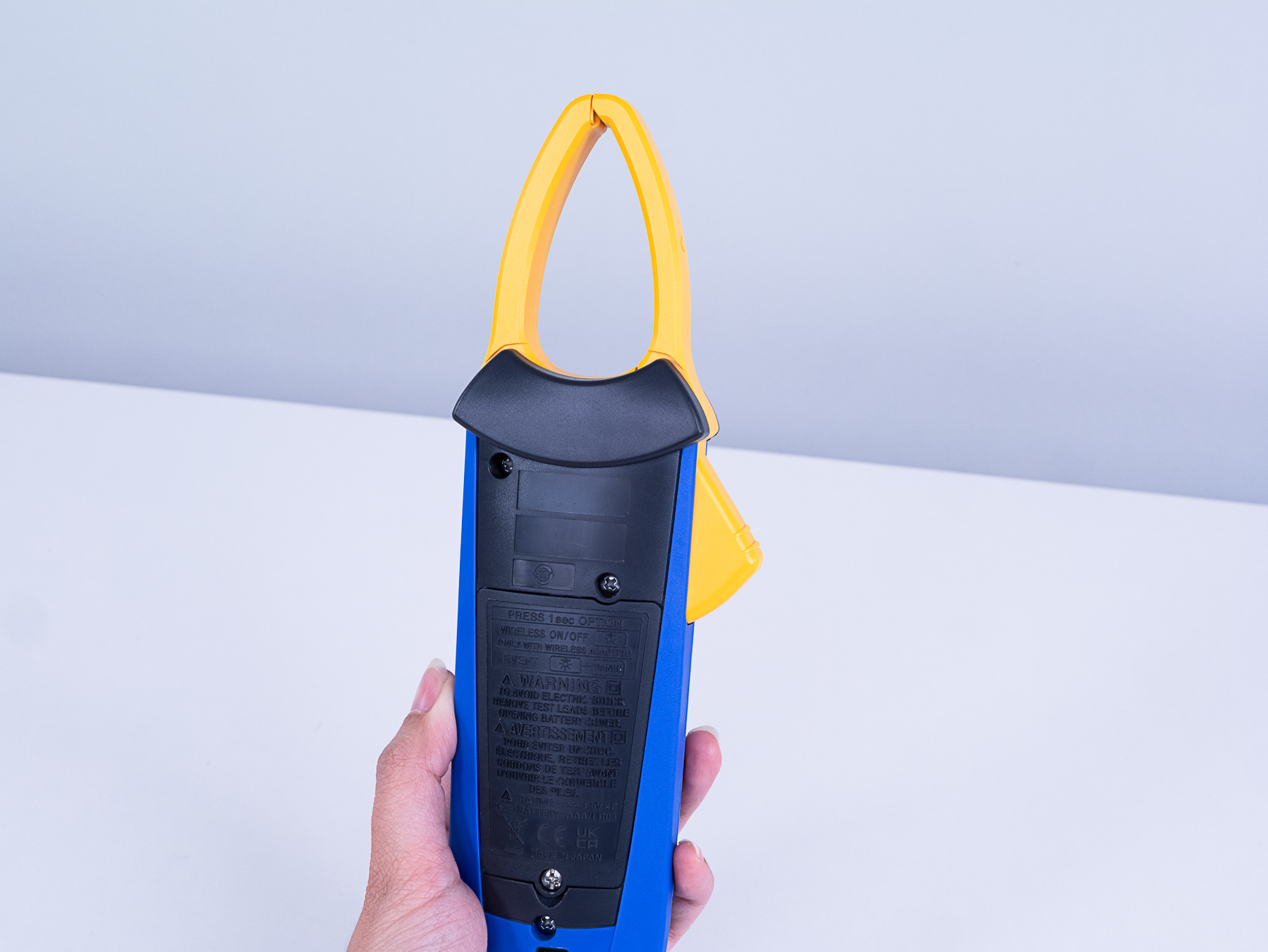

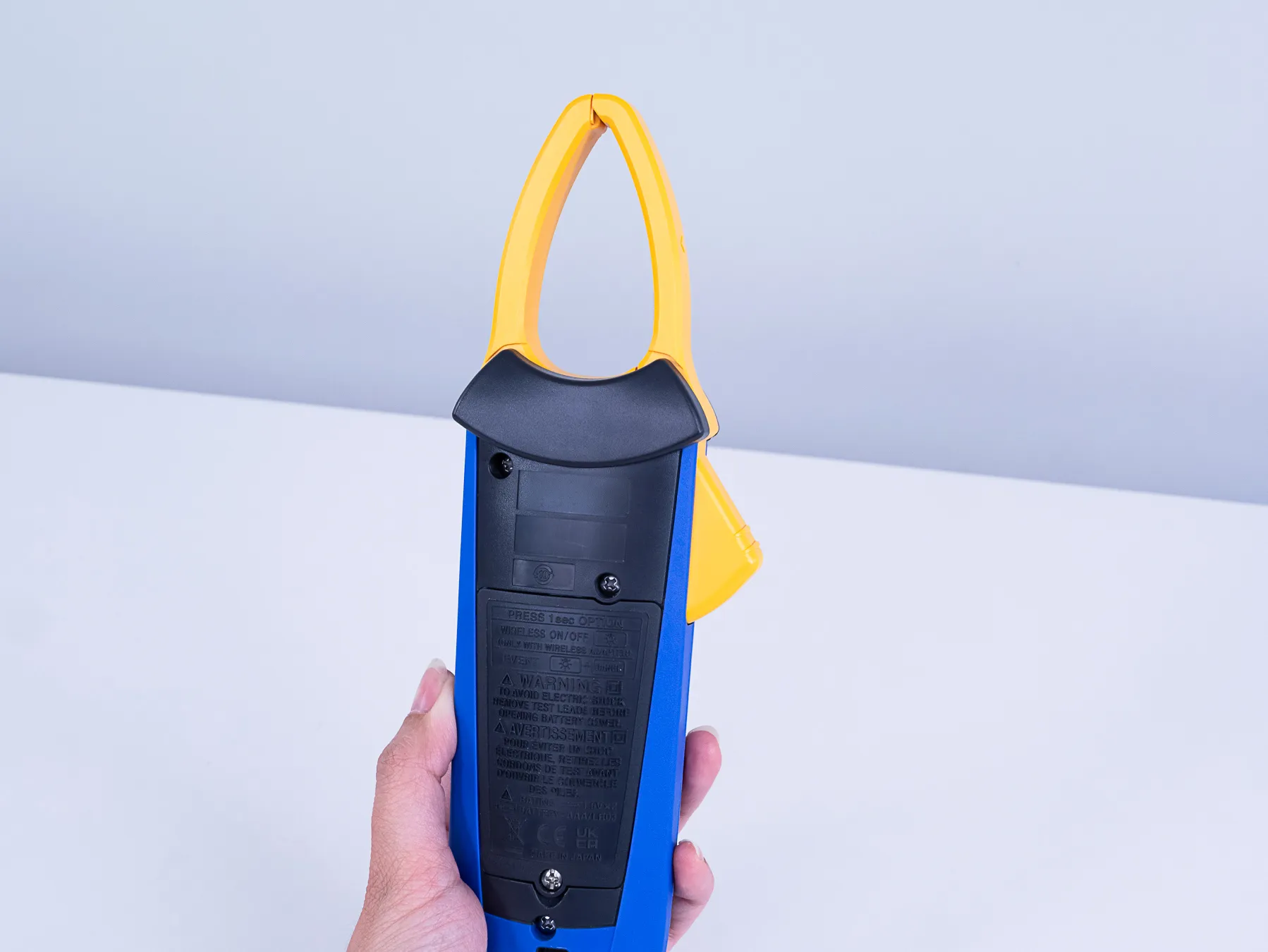

- Bluetooth communication with included Z3210 adapter
Typical Applications
- Photovoltaic string measurement up to 2000 V DC (CAT III)

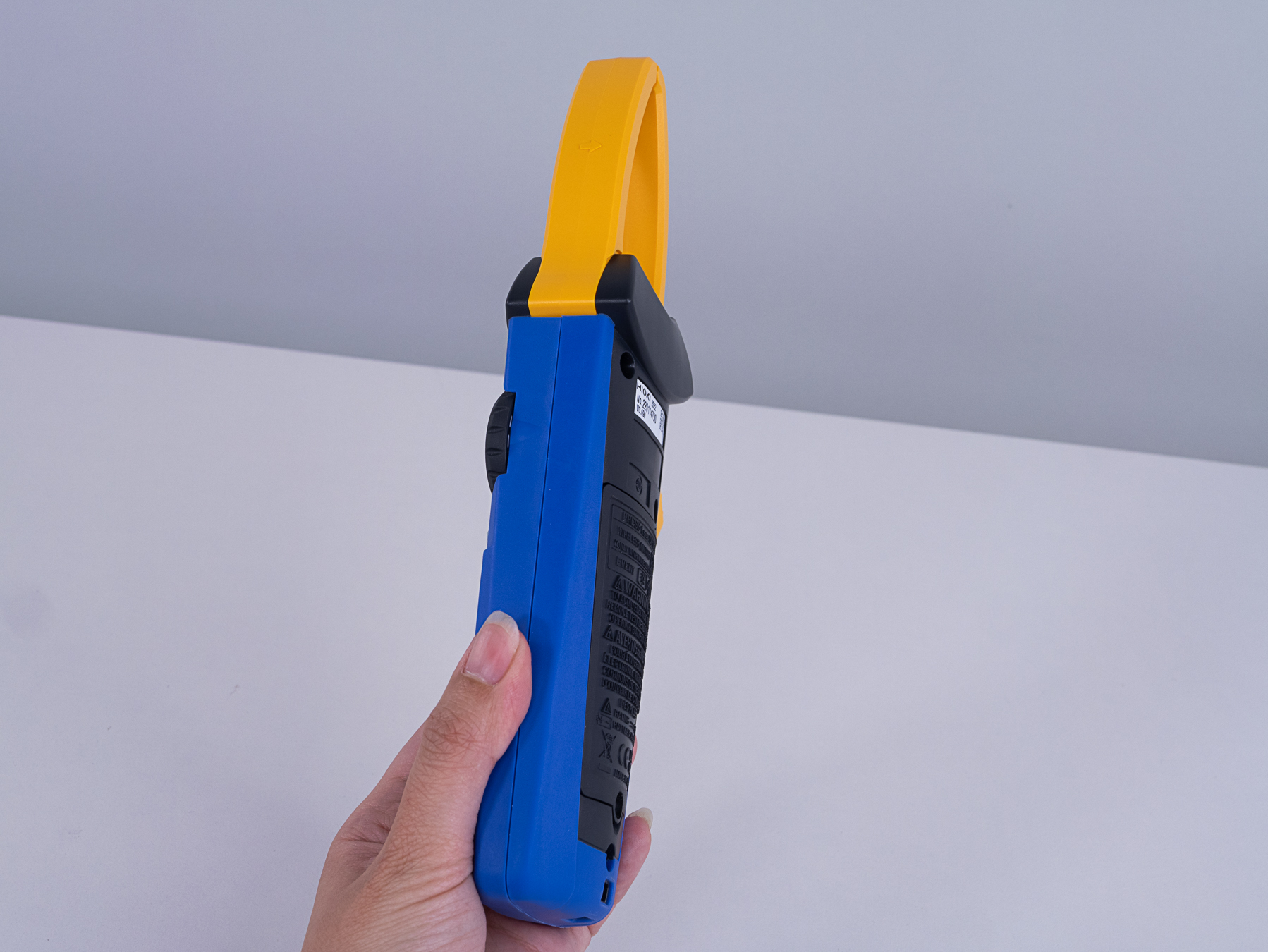

- High-voltage battery testing with DC up to 2000 V
- Current and voltage measurement in industrial power distribution

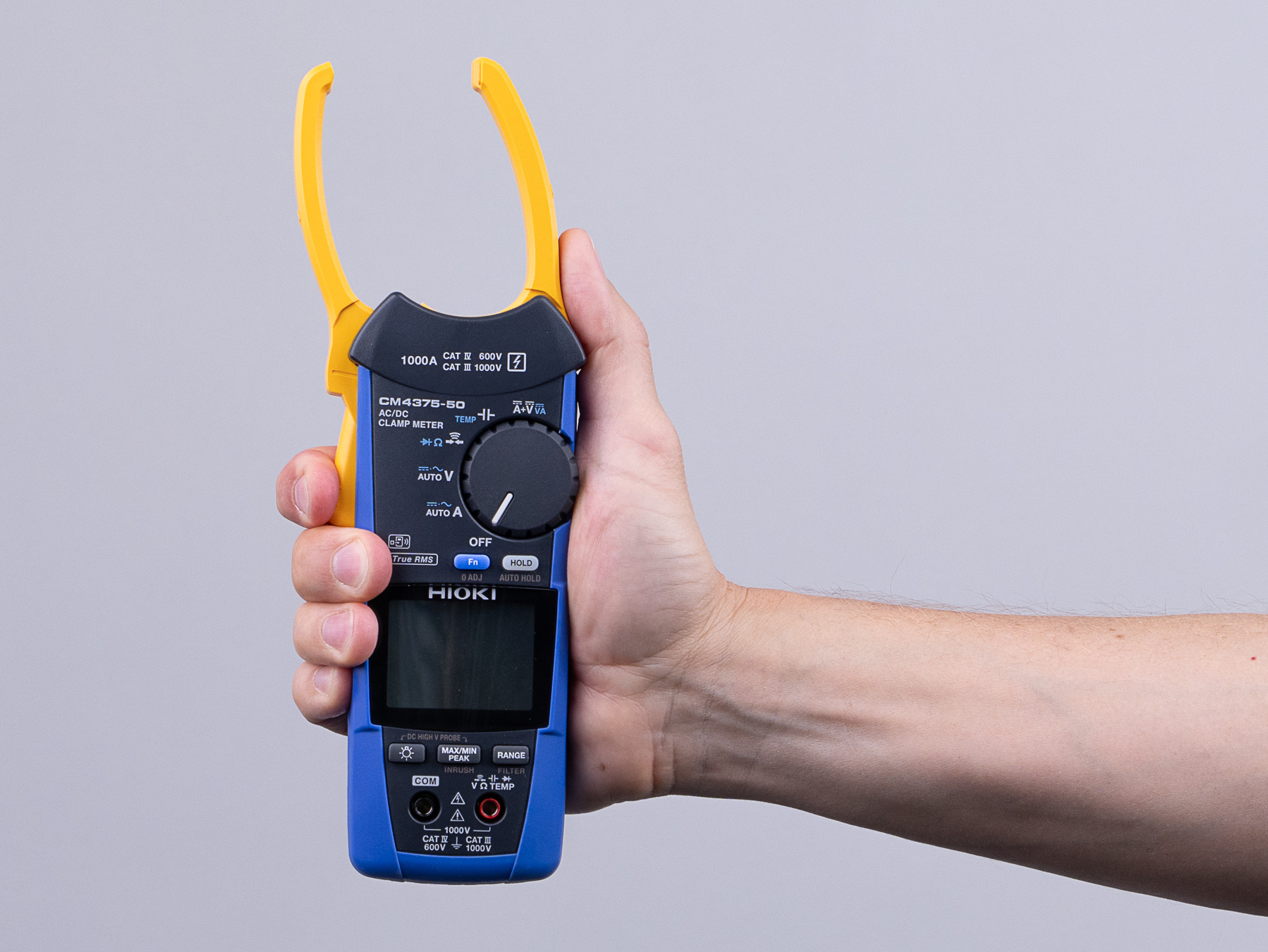

- Inrush current testing for motors and large equipment
| Feature | CM4371-50 CM4371-90 |
CM4373-50 CM4373-90 CM4373-93 |
CM4375-50 CM4375-90 CM4375-93 |
3287 | 3288-20 | 3288 |
|---|---|---|---|---|---|---|
| Current (AC / DC) |
20 A / 600 A |
600 A / 2000 A |
1000 A | 10 A / 100 A |
100 A / 1000 A |
100 A / 1000 A |
| True RMS | Yes | - | ||||
| Voltage (AC / DC) |
1000 V | 600 V | ||||
| AC+DC voltage and current |
yes | - | ||||
| Safety Rating |
CAT IV 600 V CAT III 1000 V |
CAT III 300 V (voltage) CAT III 600 V (current) |
||||
| Bluetooth | available or included | - | ||||
Detailed Product Overview
The HIOKI CM4375-93 Clamp Multimeter PV Kit is designed for professionals who need precise AC/DC current measurement and high DC voltage capability in one package. Combining the HIOKI CM4375-50 with the included Z3210 Bluetooth Adapter and P2010 High Voltage Probe, it is well suited for photovoltaic installations, high voltage batteries, industrial equipment, and EV charging systems. Its narrow jaws accommodate conductors up to 34 mm in diameter, while the compact front end with a jaw cross-sectional minimum dimension of 9.5 mm helps when measurement points are located between closely spaced conductors.Versatile multimeter functions
Beyond current and voltage, the HIOKI CM4375-93 also functions as a versatile multimeter: it measures resistance, capacitance, continuity, diode polarity check, and DC power. In photovoltaic applications, battery systems, and other demanding DC environments, this allows electrical values and power conditions to be checked with one instrument. A K thermocouple such as the optional DT4910 Thermocouple (K) can also be used for temperature measurement. Automatic AC/DC detection and advanced display options such as Max/Min/Avg, PEAK values, filter function, manual/auto hold, and pass/fail judgement simplify daily tasks and save time.Bluetooth and safety ratings

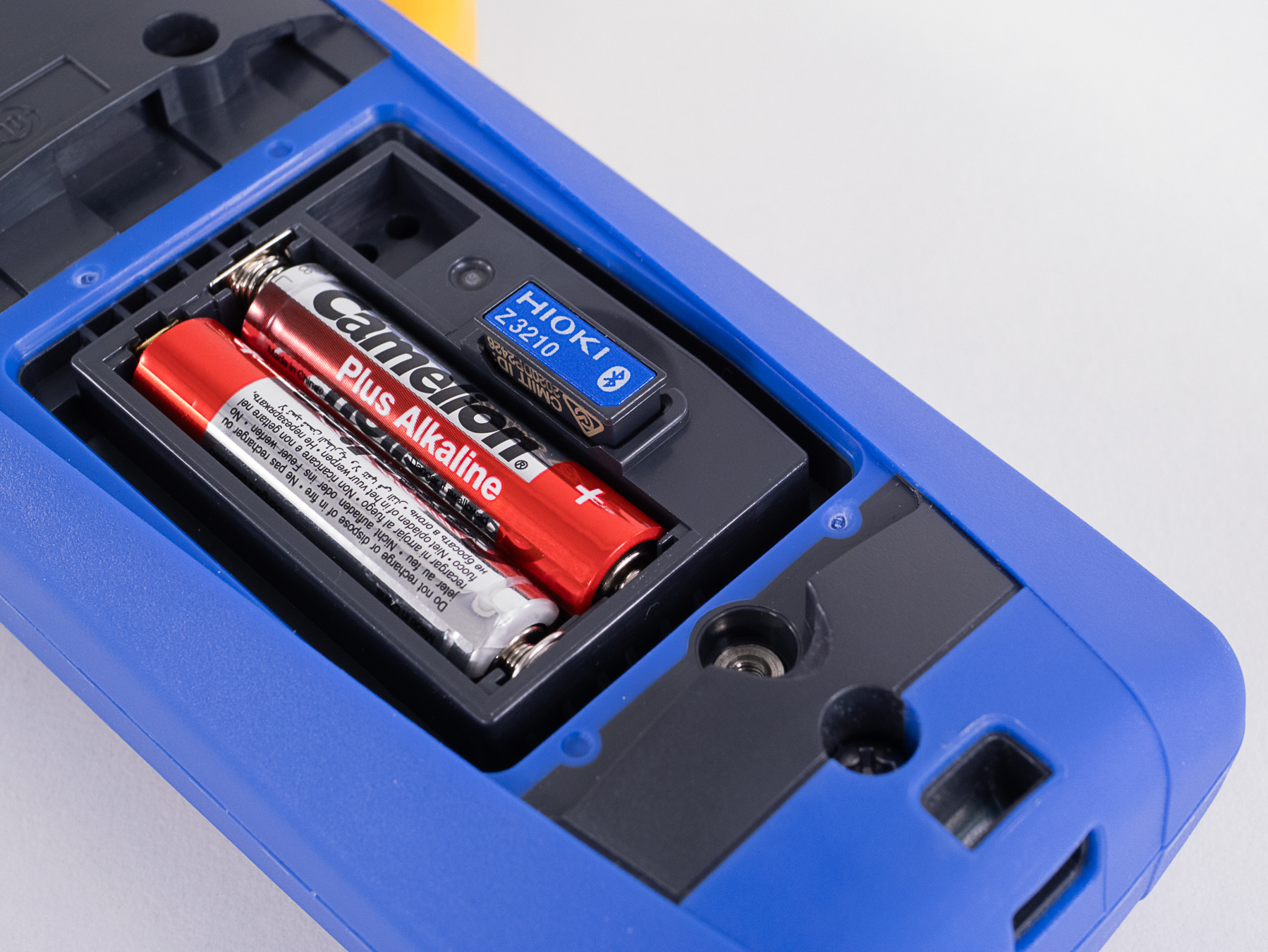

The included Z3210 Bluetooth Adapter supports wireless transfer of measured values to a smartphone or tablet. With the free GENNECT Cross app for Android and iOS, measured values can be stored, documented, and prepared directly on site for service reports or later processing. During measurements in photovoltaic or high voltage environments, live values can be viewed on the mobile device even when the instrument display is difficult to read at the measurement point. The app also supports current waveform display as well as harmonic analysis for troubleshooting. In addition, measured values can be transferred directly into Excel or other applications using HID functionality.Precision from Japan
The experience HIOKI has gained from decades of developing and manufacturing clamp meters, clamp multimeters, current sensors and current clamps flows directly into the CM4375-93. Manufactured at HIOKI’s own factories in Nagano Prefecture, Japan, it stands for precise measurements, robust construction and a level of quality that is visible and tangible in photovoltaic and high voltage work.- CM4375-50 Clamp Multimeter
- Z3210 Bluetooth Adapter
- P2010 High Voltage Divider
- L9300 Test leads
- C0203 Carrying Case
- 2 × AAA (LR03) batteries
- Instruction manual
- Safety instructions
Dimensions & Packaging
| Length | 242 mm |
|---|---|
| Width | 65 mm |
| Height | 35 mm |
| Weight | 0.35 kg |
-
Product catalog with data sheet, Clamp Meter Series (English)9,893 KB pdf
-
Product brochure with data sheet, DC HIGH VOLTAGE PROBE P2010 (English)1,666 KB pdf
-
Product brochure with data sheet, DC HIGH VOLTAGE PROBE P2010 (Spanish)1,679 KB pdf
-
Instruction Manual, AC/DC CLAMP METER CM4371-50, CM4373-50, CM4375-50 (English)8,207 KB pdf
-
Instruction Manual, AC/DC CLAMP METER CM4371-50, CM4373-50, CM4375-50 (German)8,097 KB pdf
-
Instruction Manual, AC/DC CLAMP METER CM4371-50, CM4373-50, CM4375-50 (French)8,202 KB pdf
-
Instruction Manual, AC/DC CLAMP METER CM4371-50, CM4373-50, CM4375-50 (Spanish)8,294 KB pdf
-
Instruction Manual, AC/DC CLAMP METER CM4371-50, CM4373-50, CM4375-50 (Italian)8,183 KB pdf
