HIOKI 9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output

AC multi-range current clamp, 6 selectable ranges from 10 A to 500 A AC, BNC output with 0.2 V AC f.s., frequency bandwidth 3 kHz, CAT III 600 V
Skip image gallery
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output no external power supply
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output 6 selectable ranges from 10a to 500a ac
HIOKI 9018-50 ac multi range current clamp 50 a 3 kHz BNC output 6 selectable ranges
HIOKI 9018-50 ac multi range current clamp 500a 3khz connactable to DT42xx series

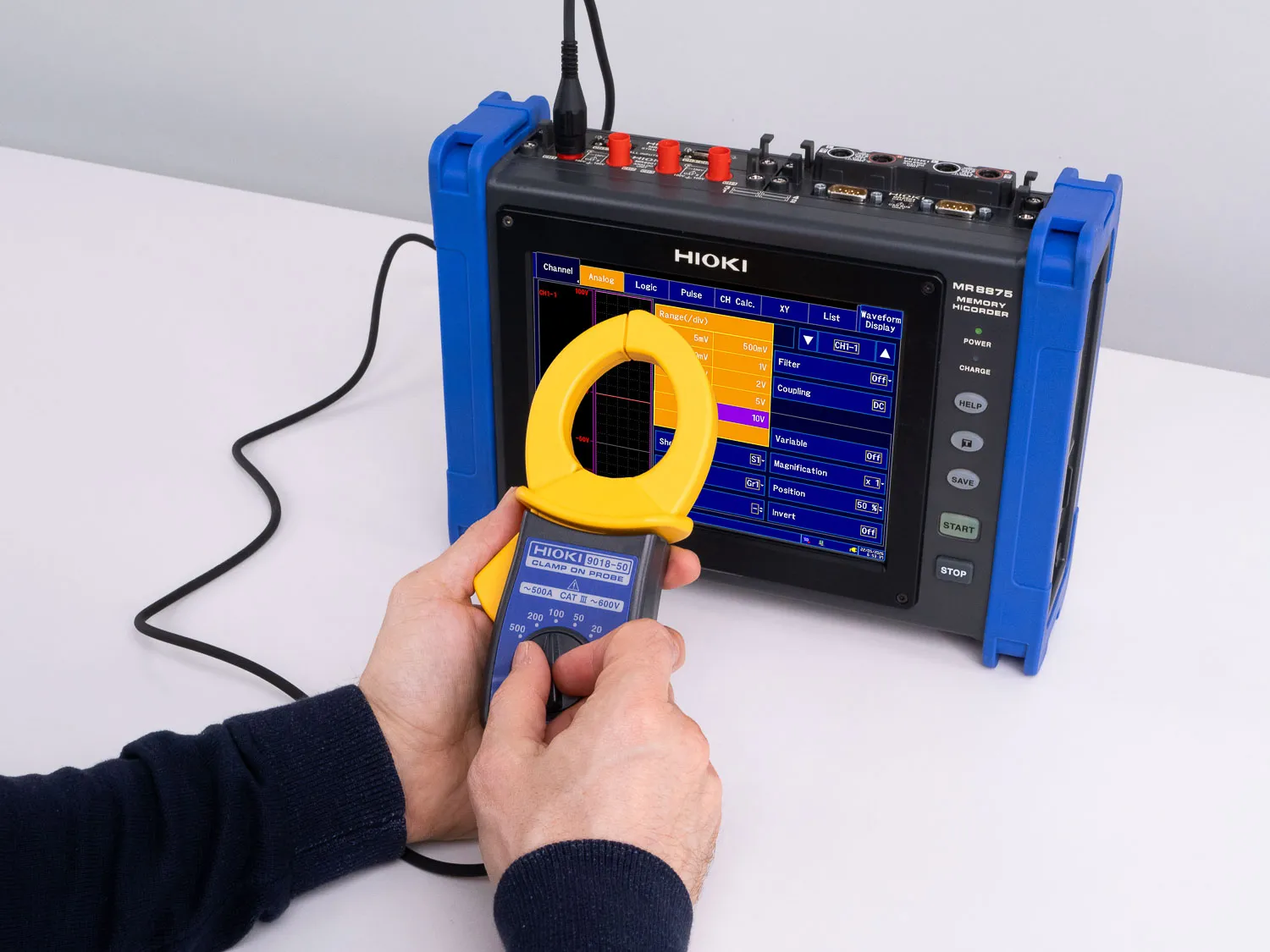

HIOKI 9018-50 ac multi range current clamp comtabible wit memory recorder MR8875
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output cat iii 600v
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output cat iii 600v clamp close up
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output 0 2v ac full scale backview

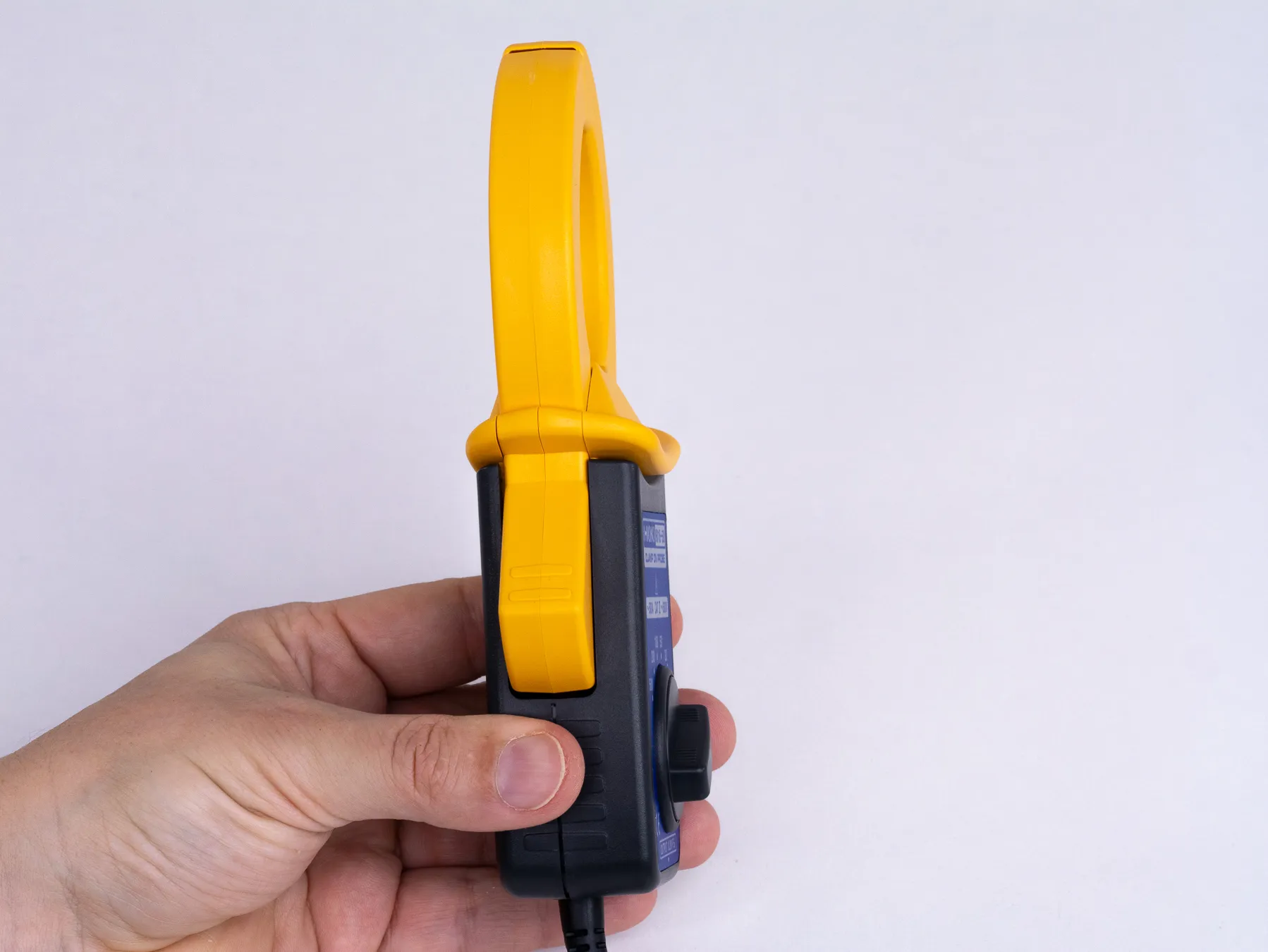

HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output 2
HIOKI 9018-50 ac multi range current clamp 500 a 3 kHz BNC output 10 a to 500 a ac
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output no external power supply
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output 6 selectable ranges from 10a to 500a ac
HIOKI 9018-50 ac multi range current clamp 50 a 3 kHz BNC output 6 selectable ranges
HIOKI 9018-50 ac multi range current clamp 500a 3khz connactable to DT42xx series
HIOKI 9018-50 ac multi range current clamp comtabible wit memory recorder MR8875
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output cat iii 600v
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output cat iii 600v clamp close up
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output 0 2v ac full scale backview
HIOKI 9018-50 ac multi range current clamp 500a 3khz bnc output 2
HIOKI 9018-50 ac multi range current clamp 500 a 3 kHz BNC output 10 a to 500 a ac

€338.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€338.00

HIOKI 9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output
Product number: 9018-50
Available stock: 2
GTIN/EAN: 4536036008544
Description

Product information HIOKI 9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output

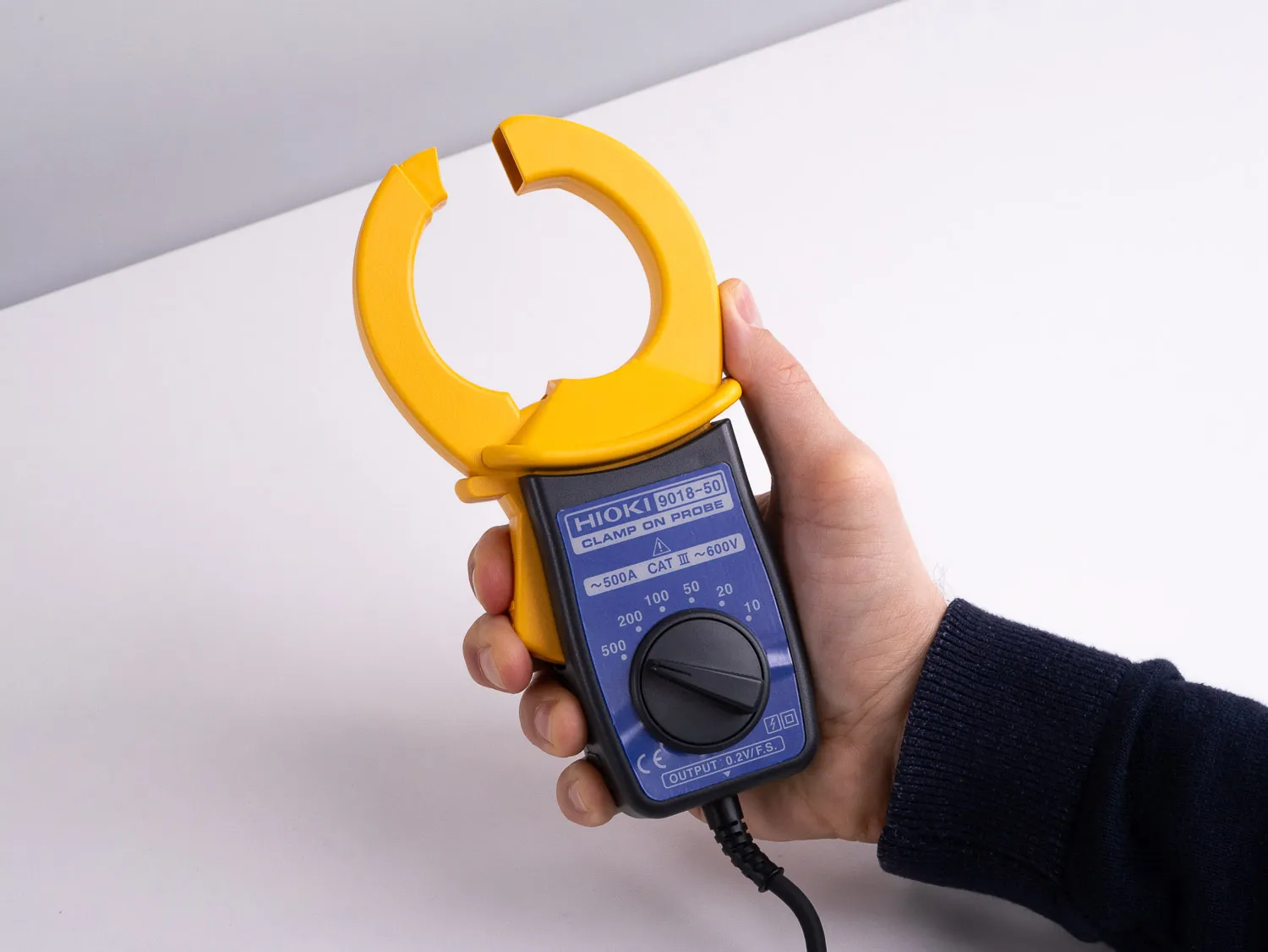

The 9018-50 is an AC multi-range current clamp with a voltage output of 0.2 V AC full scale across 6 selectable ranges from 10 A to 500 A AC. Sensitivity changes according to the selected range. The clamp operates without an external power supply and is rated for CAT III 600 V environments.

Compared to the 9010-50, the 9018-50 features an extended frequency bandwidth of 3 kHz. It offers improved amplitude accuracy and reduced frequency-dependent deviation across its operating range. Enhanced phase characteristics support more accurate measurement of non-sinusoidal and distorted current waveforms within this bandwidth. The clamp is rated for measurement environments up to CAT III 600 V.

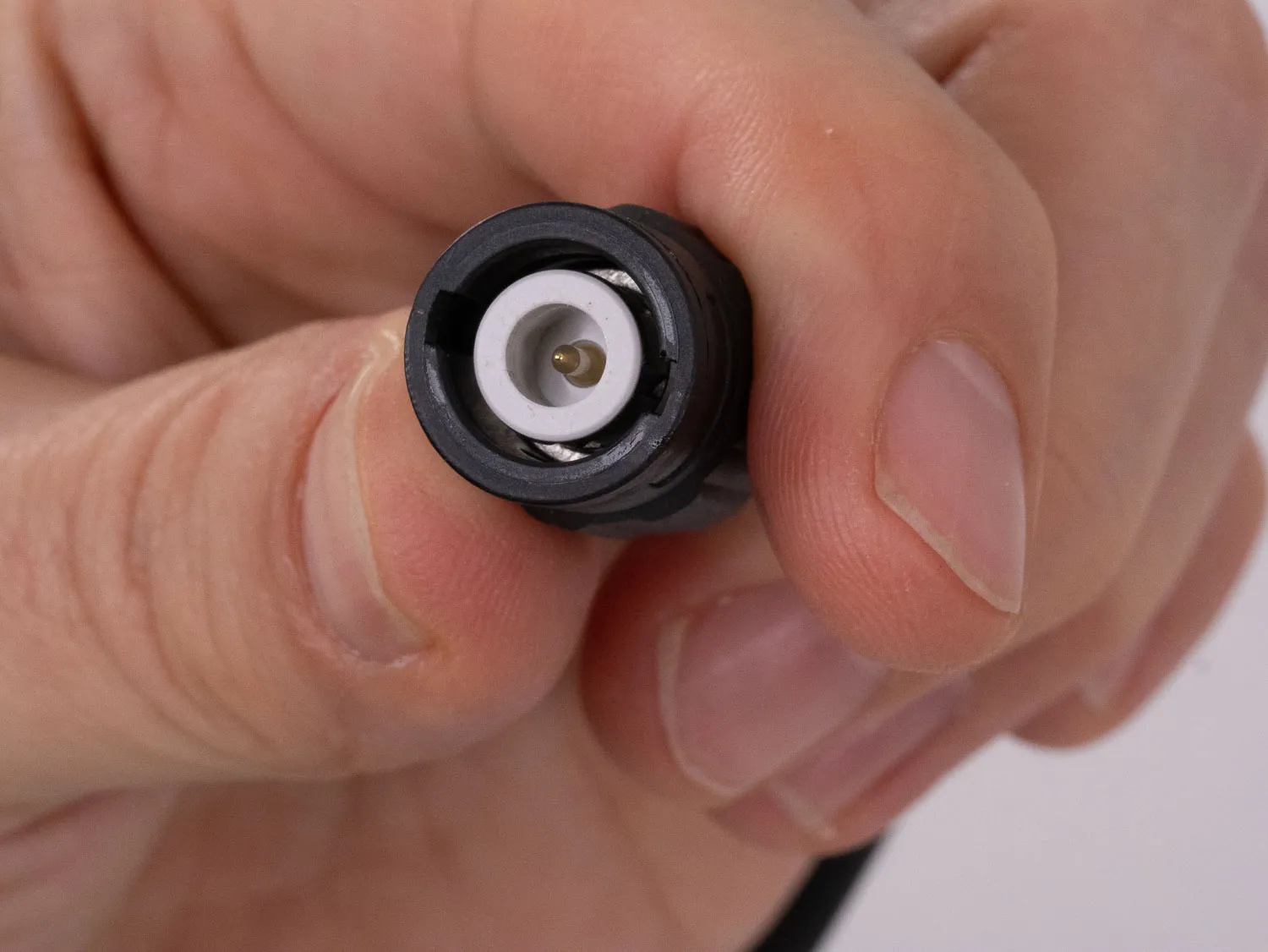

A fixed 3 m cable with BNC connector provides the output signal. The clamp can be integrated into digital multimeters, data acquisition systems or recording instruments with suitable AC voltage inputs.

For HIOKI multimeters featuring clamp input functionality, the optional 9704 BNC adapter enables direct connection. The corresponding clamp range can be selected in the instrument setup, allowing current values to be indicated directly in amperes. When connected to other equipment, the selected voltage range should match the 0.2 V AC full scale output and the input impedance should remain sufficiently high to preserve measurement characteristics.

Feature 9010-50 9018-50 9132-50
Current Range 10 A to 500 A AC 20 A to 1000 A AC
Frequency Bandwidth 1 kHz 3 kHz 1 kHz
Accuracy 45 Hz to 66 Hz ±2 % rdg. ±1 % f.s. ±1.5 % rdg. ±0.1 % f.s. ±2 % rdg. ±1 % f.s.
Conductor Diameter Ø 46 mm Ø 55 mm
Busbar Capacity – 80 × 20 mm
What's in the Box
  • 9018-50 Multi-Range Current Clamp

Dimensions & Packaging

Length 190 mm
Width 78 mm
Height 35 mm
Weight 0.42 kg
