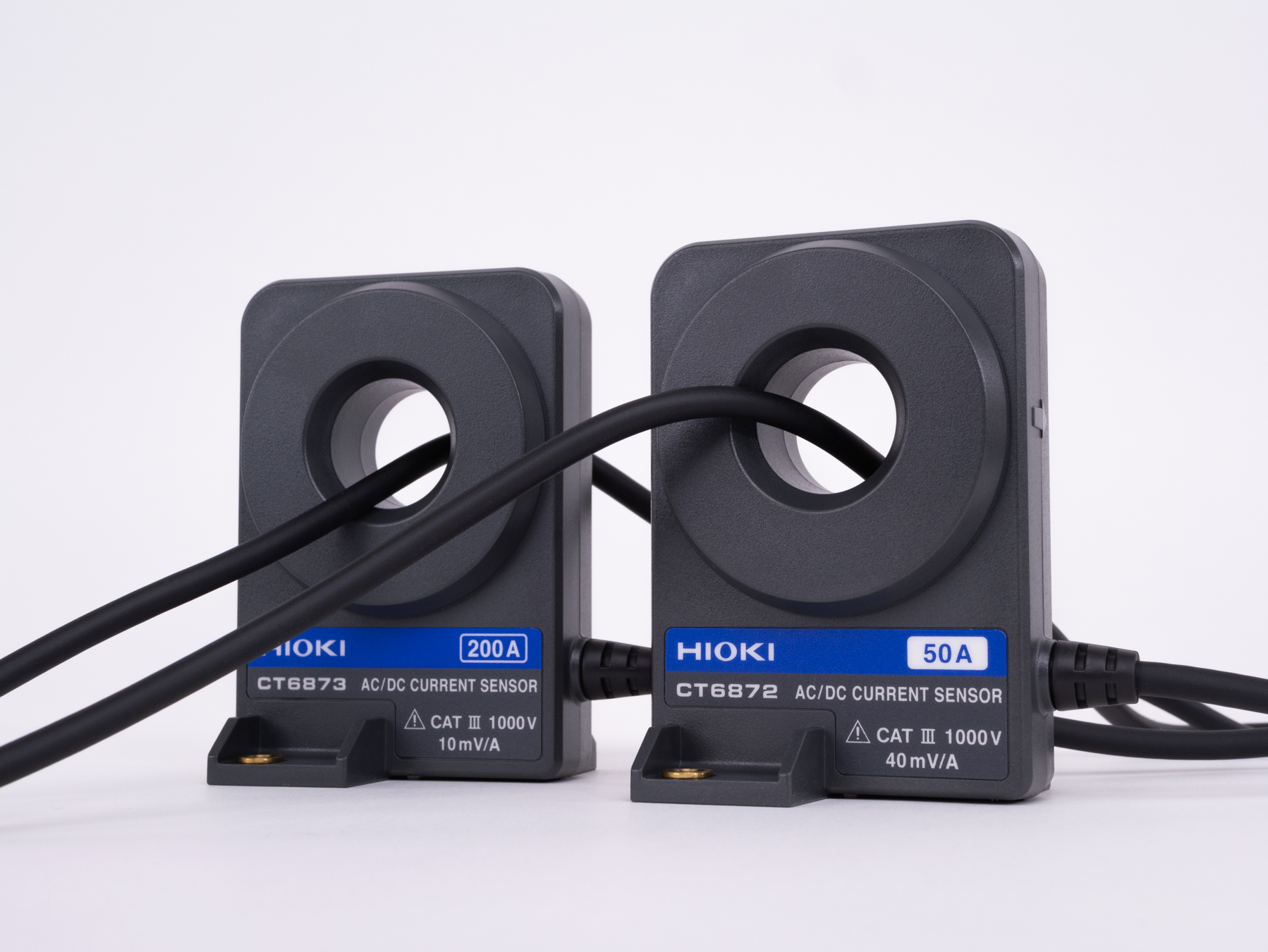

HIOKI CT6873 - AC/DC Current Sensor, 200 A / 10 MHz

€1,788.00

Content: 1 Each

In stock in Germany

€1,788.00

HIOKI CT6873 - AC/DC Current Sensor, 200 A / 10 MHz

Product number: CT6873

Available stock: 2

GTIN/EAN: 4536036013821

Width: 530 mm

Height: 1100 mm

Weight: 0.62 kg

Product information HIOKI CT6873 - AC/DC Current Sensor, 200 A / 10 MHz

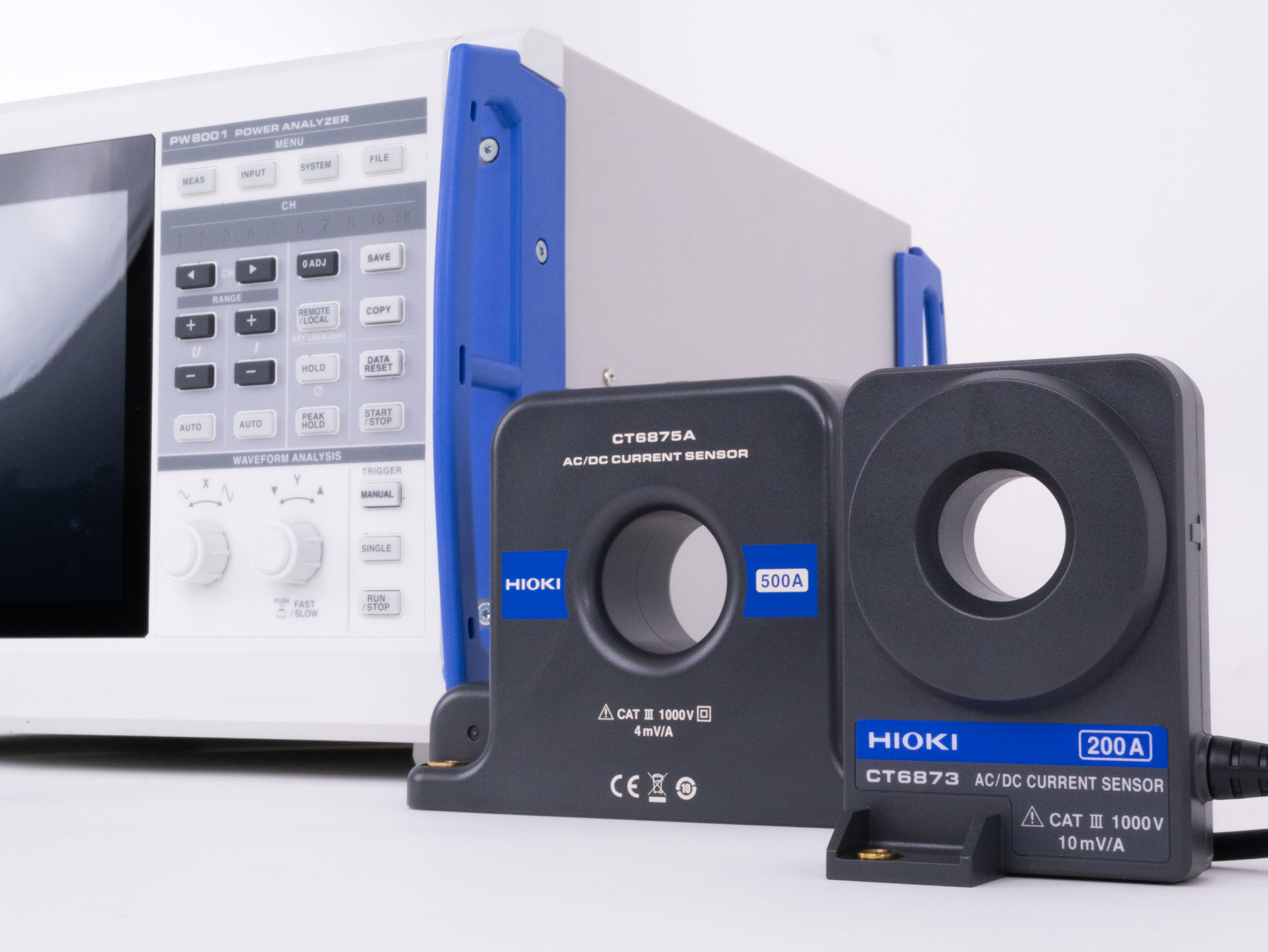

The CT6873A is an advanced current sensor that provides high-precision AC/DC current measurements for power analysis applications. Its wide frequency range and excellent phase accuracy make it suitable for complex waveform and harmonic studies. It supports automatic phase shift correction (APSC).

Technical Details

Current Rating: 200 A AC/DC
Frequency Range: DC to 10 MHz
Accuracy: ±0.03% rdg, ±0.002% f.s.
Maximum Conductor Diameter: 24 mm
Operating Temperature: -40°C to 85°C
Input Impedance Requirement: 1 MΩ or higher

Model	Rated current	Bandwidth	Basic accuracy	Max. Conductor diameter
CT6877A	2000 A	DC – 1 MHz	0,04 % rdg	Ø 80 mm
CT6876A	1000 A	DC – 1.5 MHz	0,04 % rdg	Ø 36 mm
CT6875A	500 A	DC – 2 MHz	0,04 % rdg	Ø 36 mm
CT6904A	500 A	DC – 4 MHz	±0,025 % rdg	Ø 32 mm
CT6873	200 A	DC – 10 MHz	±0,03 % rdg	Ø 24 mm
CT6872	50 A	DC – 10 MHz	±0,03 % rdg	Ø 24 mm
CT6863-05	200 A	DC – 500 kHz	±0,05 % rdg	Ø 24 mm
CT6862-05	50 A	DC – 1 MHz	±0,05 % rdg	Ø 24 mm
