More Accessories for HIOKI Measurement Instruments

HIOKI offers a wide range of dedicated accessories for extending specific measurement instruments and systems. These include LAN, GPIB and RS-232C interfaces, multiplexer units, printer and memory options, logic probes, probe heads and other instrument-specific extensions.

Find the compatible accessory to add communication, measurement or system functions to your HIOKI test equipment.

54 Products

9637

9637 - RS232 Crossover-Kabel

The 9637 is a RS-232c cross type cable for two-way communication between PC or other controlling device and a Hioki Product equipped with RS232c interface as feature or option. Technical Details: Connectors: 9pin female (both ends) Cable Type: Cross Length: 1.8m

€48.00

View product

9666

9666 - 100:1 Probe

The HIOKI 9665 is a 100:1 probe for voltage measurement with the Memory Recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848, as well as the compatible input units 8966, U8975, 8968, U8978, U8976 and 8972. The HIOKI 9666 is designed for measuring instruments with 1 MΩ input resistance and supports measurements up to 5 kV peak. The maximum rated voltage to earth is 1000 V CAT II and depends on the input unit used. Technical Specifications Division ratio: 100:1, for measuring instruments with 1 MΩ input resistance Accuracy: ±3% at 100 V DC; +3%, -7% at 1000 V DC Maximum input voltage: 5 kV peak up to 1 MHz Maximum rated voltage to earth: 1000 V CAT II, depending on the input unit used Input impedance/capacitance: 100 MΩ / max. 7 pF Frequency characteristics: DC to 200 MHz Compensation capacitance range: 15 pF to 45 pF Cable length: 1.5 m Related ProductsMR6000, MR6000-0MR8740TMR8740MR8741MR8827MR8847AMR88488966 U89758968U8978U89768972

€308.00

View product

9050

HIOKI 9050 - Earth nets for measurements on concrete and hard surfaces

Set of two earth nets made of woven copper wire, 30 × 30 cm, for earth measurements on concrete and hard surfaces, for FT6031-50 and FT6041

€138.00

View product

9199

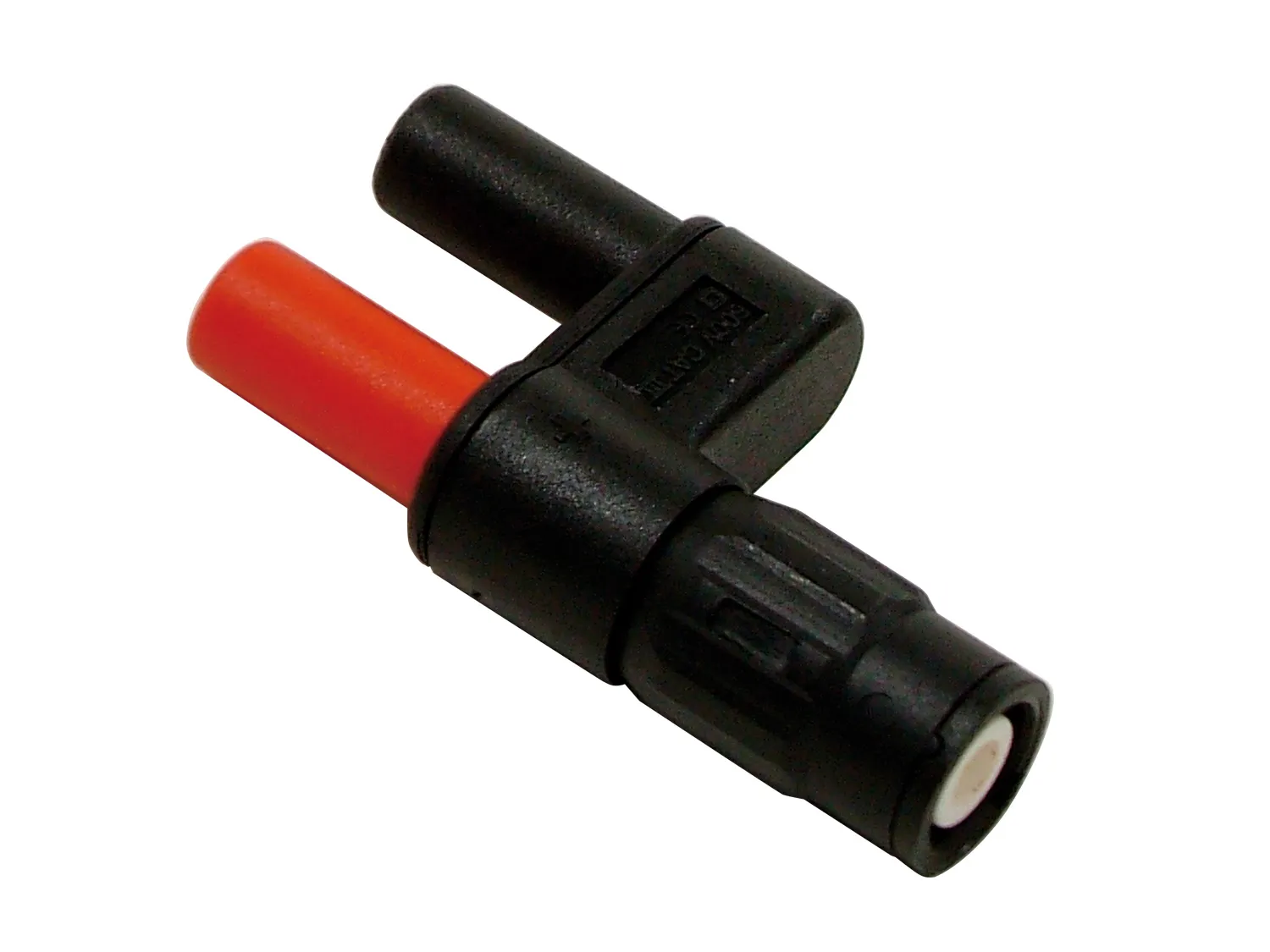

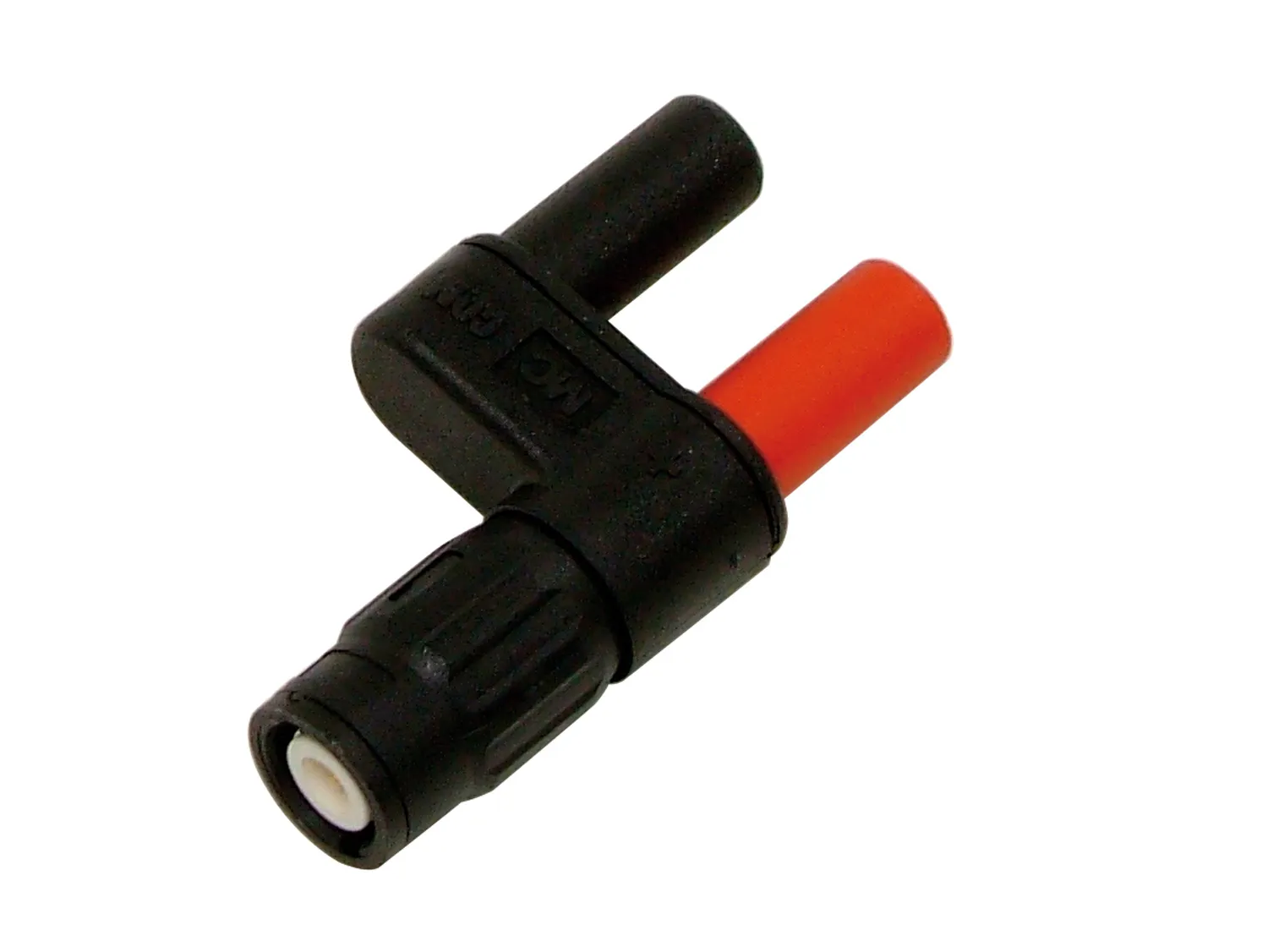

HIOKI 9199 - BNC to 4mm Adapter

The 9199 is a conversion adapter from BNC male to banana female. It is rated for 600 V CAT III and is intended for measurements in electrical distribution systems and fixed installations. The adapter features color-coded black and red terminals for clear identification. Its compact dimensions and durable construction ensure reliable connections in test and measurement applications. Technical specifications Connector type: BNC male to banana female Voltage rating: 600 V CAT IIIColor coding: black and red terminals Dimensions: Length 60 mm, Height 19 mm

€58.00

View product

9209

HIOKI 9209 - Test Lead Holder for HIOKI Clamp Meters

Test lead holder for HIOKI clamp meters CM3281, 3280-10F, CM3289, CM3291, 3287, 3288 and 3288-20

€28.00

View product

9221

HIOKI 9221 - Recording Paper

The 9221 Recording Paper is designed for use with selected Hioki memory recorders, print recorders, and analysis instruments with an integrated thermal printing function. It supports the memory recorders 8801, 8810, 8830, 8835, 8851, 8852, and 8853, the 8710 Print Recorder, as well as the 3195 Power Analyzer and the 3620 Data Analyzer. The paper enables direct printing of waveforms, measurement values, and analysis results at the measurement site, providing clear hard-copy records for documentation. The paper is supplied in rolls with a width of 110 mm and a length of 30 meters per roll. Each set contains 10 rolls, providing sufficient capacity for extended measurement and recording sessions. The recording paper is matched to the printing mechanism of the supported devices and delivers clear, high-contrast printouts for straightforward data review and documentation. Additional rolls can be ordered separately to ensure continuous operation of existing equipment.

€178.00

View product

9231

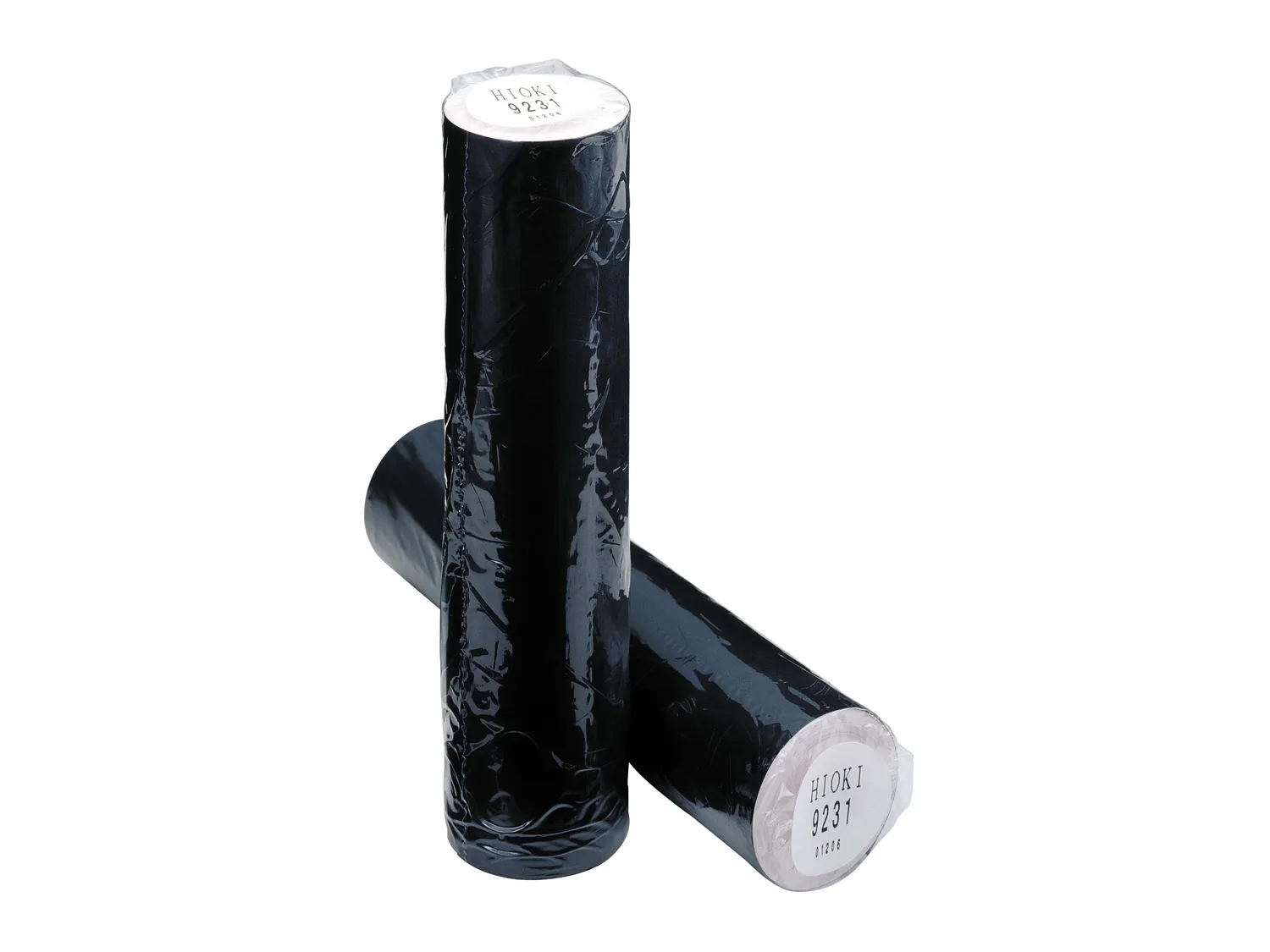

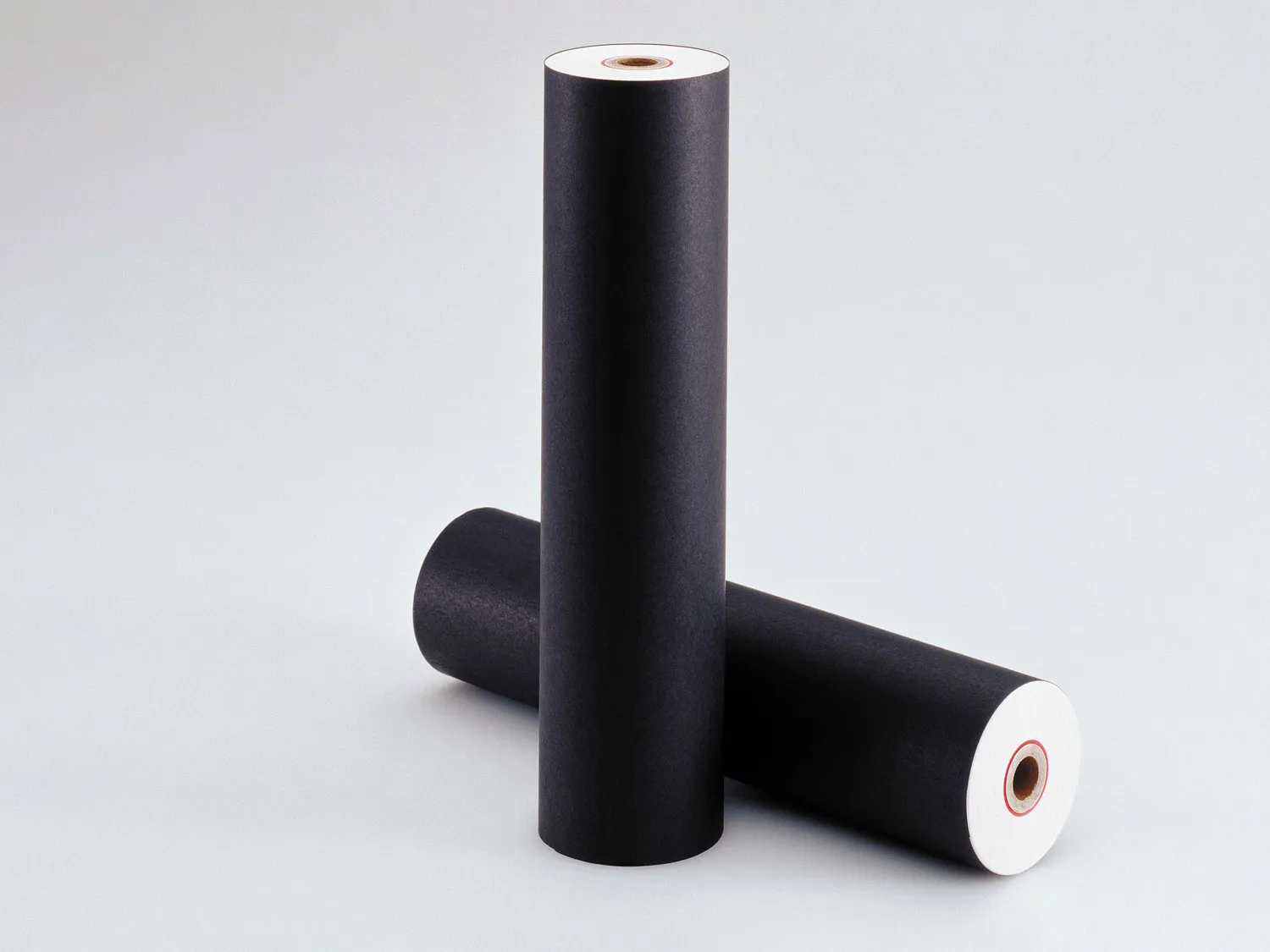

HIOKI 9231 - Recording Paper for U8350 and U8351 Printer Units

Recording Paper for U8350 and U8351 Printer Unit, A4 width, 30 m, 6 rolls/set

€178.00

View product

9234

HIOKI 9234 - Printer paper for MR8880-20, 8807/08, 8420 series

The 9234 is a printerpaper for MR8880 (PRINTER UNIT MR9000 required) and 8860, 8861, 8420, 8421, 8422, 8807, 8808, 8714, 8715 memory recorders. Technical Details:Roll type A6 width 112 mm × 18 m 10 rolls/set

€118.00

View product

9235

HIOKI 9235 - Printer paper for 8205-10, 8206-10

Recording paper, 74 mm 15 m, set of 10 rolls, for the 8205-10, 8206-10

€108.00

View product

9320-01

HIOKI 9320-01 Logic Probe

The Hioki 9320-01 Logic Probe is a versatile accessory designed for Memory recorder. It features 4 input channels, enabling both digital and contact signal detection. The probe allows for switching between input types per channel, making it suitable for a wide range of applications such as relay timing measurements and circuit analysis. Technical Details: Channels: 4 (common ground with the main unit)Input Types: Digital/contact, selectable per channel Input Resistance: 1 MΩ (0-5V), 500 kΩ (5-50V) Threshold: 1.4V, 2.5V, 4.0VDetectable Pulse Width: 500 ns or longer Max Allowable Input: 50 V DC Dimensions: 62 mm (W) × 94 mm (H) × 20 mm (D) Weight: 150 g

€438.00

View product

9327

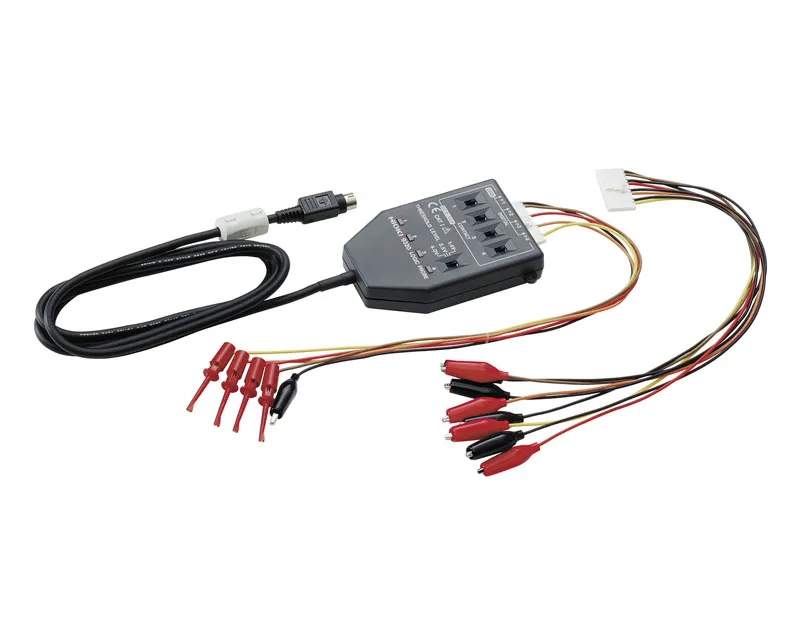

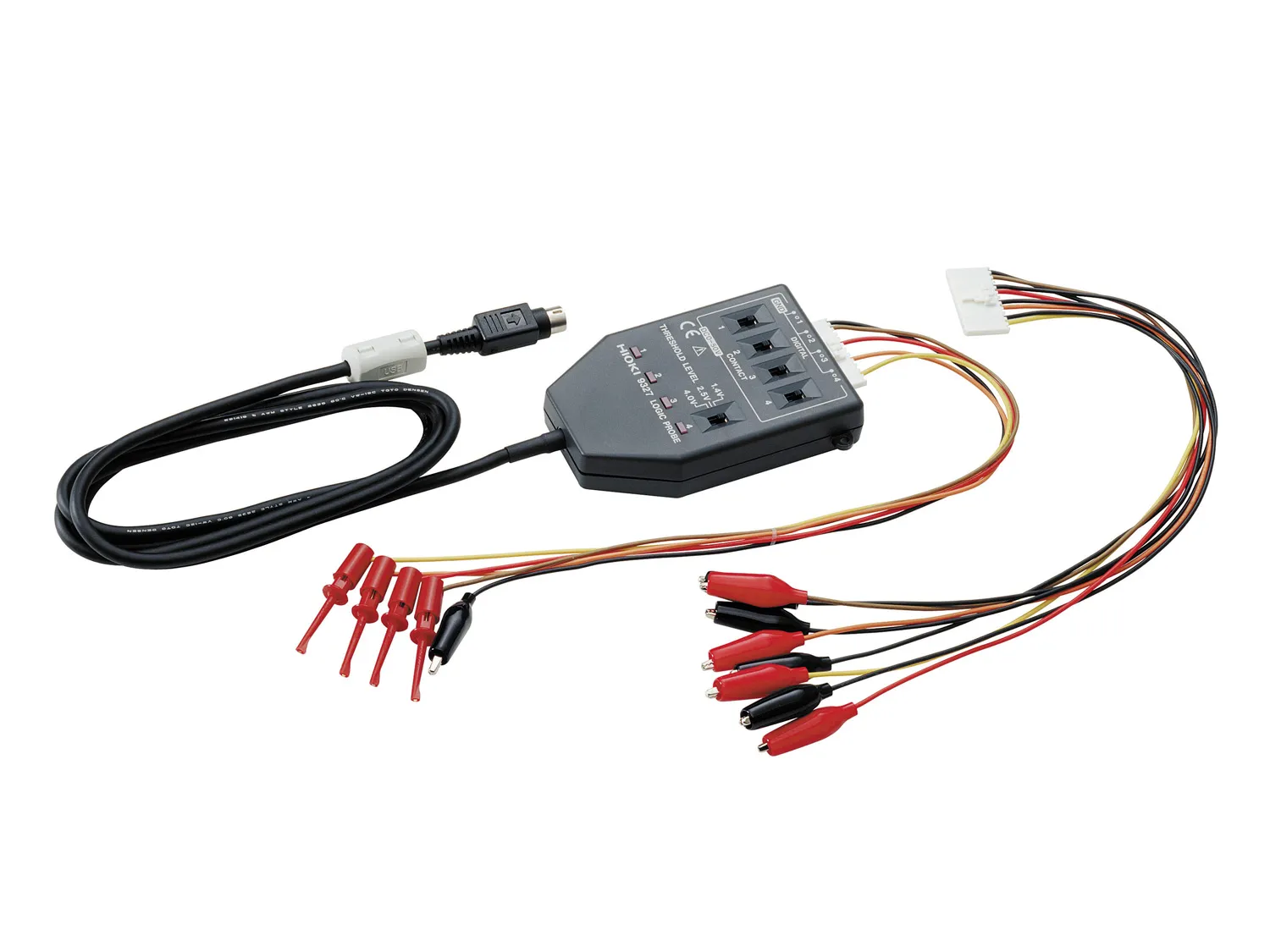

HIOKI 9327 – Logic Probe

The HIOKI 9327 Logic Probe is used to detect voltage and relay contact signals for High/Low state recording with compatible HIOKI Memory Recorders. It can be used for digital signal states, relay contact states and open-collector signals, such as those used on HIOKI EXT I/O interfaces. The input type can be switched between digital input and contact input for each channel. Technical Specifications Input: 4 channels, digital/contact input switchable for each channel, common ground between unit and channels Digital input: Input resistance 1 MΩ at 0 to +5 V, ≥500 kΩ at +5 to +50 V, threshold levels 1.4 V / 2.5 V / 4.0 VContact input/Open collector: 2 kΩ pull-up resistance, internally pulled up to +5 VLimits: 0 to +50 V DC, max. 100 mA, detectable pulse width ≥100 ns Connection: Main cable 1.5 m, IC clip leads or alligator clip leads 300 mm Related Products 8973 Logic Unit MR6000 MR6000-01 MR8740TMR8740MR8741MR8827MR8847AMR8848

€488.00

View product

9333-01

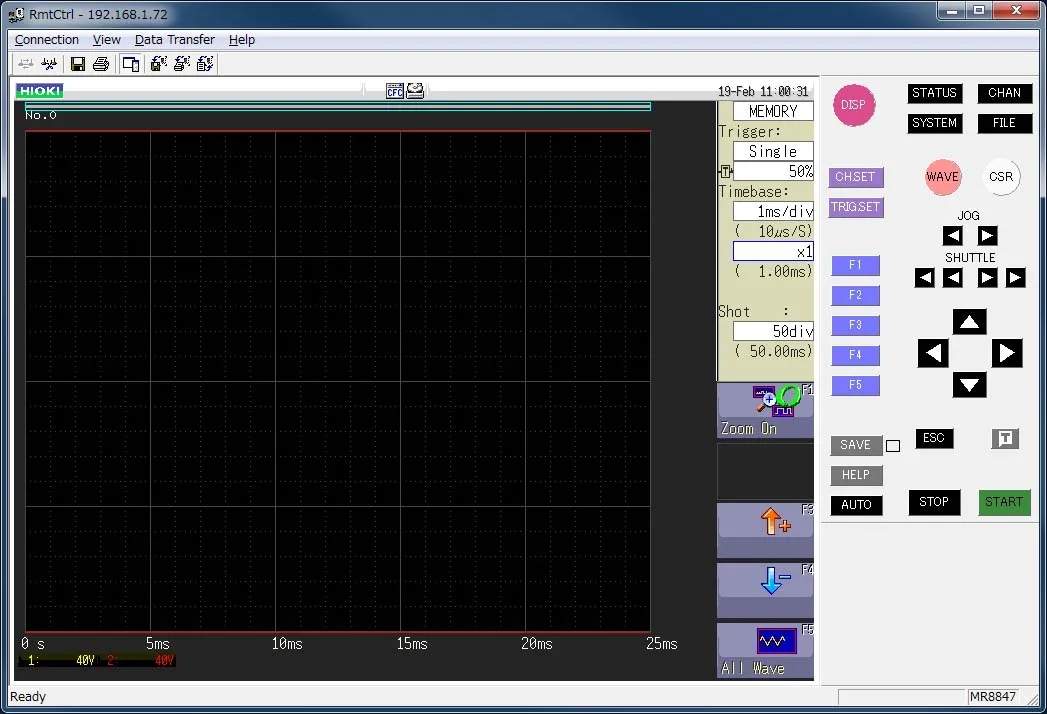

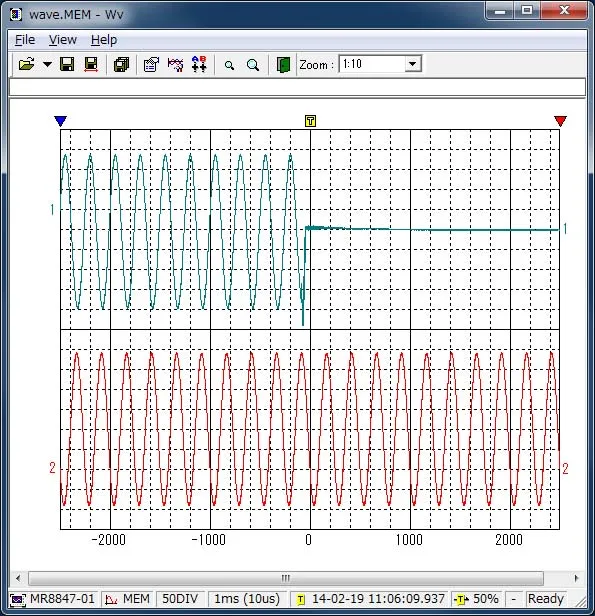

HIOKI 9333-01 – LAN Communicator

The LAN Communicator 9333 is used for remote control, data collection and waveform data processing of compatible memory recorders via LAN networks. The software enables remote operation of the recorder from a PC, reception and storage of waveform data, display of waveform files and conversion of waveform data into CSV format. In addition, the software supports report printing and screen image printing via a PC. Communication is performed via Ethernet with TCP/IP. The LAN Communicator 9333 is purchased through a license and is provided as a CD version or download version. Technical Specifications Type: license card Applications: Remote Control (RmtCtrl), Data Collection (Accumulator), Waveform Viewer (Wv) Remote Control: Remote operation by sending key codes and receiving screen images, report printing, screen image printing, waveform data reception Data Collection: Reception of auto-save files, automatic printing via PC, printout via recorder PRINT key Waveform Viewer: Display of waveform files, conversion to CSV format Waveform file formats: MEM, REC, RMS, POW Data format: Binary waveform data, text format selectable for specific recorder models Communication: Ethernet, TCP/IP Operating system: Windows 11, Windows 10 (32-bit/64-bit)System requirements: Processor with 2 GHz or higher, 2 GB RAM or more, minimum 3.0 GB free storage space, display resolution 1024 × 768 or higher Related Products MR8827 MR8848 MR8847AMR8847MR8740T MR8740-50 MR8741

€668.00

View product
