Handheld four-wire DC milliohm meter, test current range 500 nA to 1 A, ten resistance ranges from 3 mOhm to 3 MOhm, backlight display, optional Bluetooth communication
L2100 - Pin Type Lead
The L2100 is a pin type lead designed for high voltage battery measurements with robust insulation and long reach for precise readings. Technical Details: Dimensions: A: 300 mm, B: 172 mm, L: 1400 mm Max voltage: 1000 V DC Compatibility: BT3562, BT3563, BT3564
Key SpecificationsType: Four-terminal test leads with straight pogo-pin tips Measurement type: DC resistance Tip type: Gold-plated spring-loaded pogo pins (Ø 2.9 mm, length 13.5 mm) Contact pressure: Approx. 190 g to 250 g (at 1 mm stroke) Lead length: Black 3.9 m, red approx. 2.0 m (joined for 1.75 m from instrument side)Construction: Four-terminal configuration with coaxial pogo-pin tips

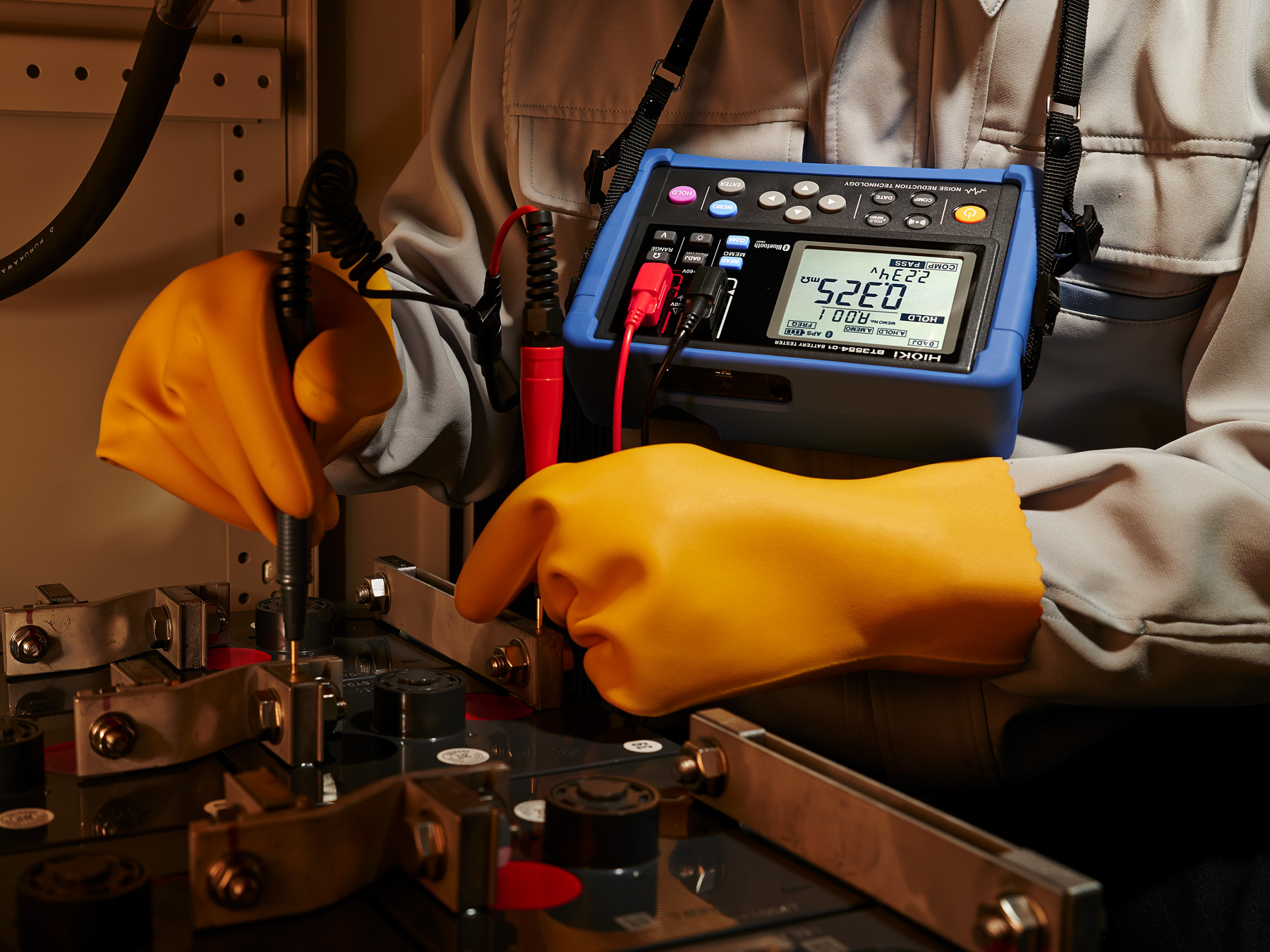

Detailed Product OverviewThe 9465-11 test leads are designed for precise DC four-terminal resistance measurements
with the HIOKI RM3548 and RM3548-50 resistance meters. With a total cable length of 3.9
m for the black lead and approximately 2.0 m for the red lead, the 9465-11 provides
convenient access to measurement points positioned farther apart. From the instrument connector, the red and black leads are joined over approximately 1.75 m
before branching. The red lead extends about 5 cm beyond the split and terminates in an 18
cm handgrip with a straight pogo-pin tip. The black lead continues for about 2.0 m to an
identical handgrip with a straight pogo-pin tip. This asymmetrical configuration allows
measurements between test points spaced farther apart, while maintaining the mechanical
stability of a partially joined cable section. Unlike the L2140 lead set, which combines a pogo-pin tip on the red lead with a crocodile clip
on the black lead, both leads of the 9465-11 feature straight pogo-pin tips for precise contact
on defined metallic surfaces. Each pogo-pin tip (Ø 2.9 mm) has a coaxial design, with the
inner conductor acting as the SENSE line and the outer conductor as the SOURCE line. This
minimizes contact resistance and noise, ensuring stable and repeatable low-resistance
readings. The spring-loaded mechanism provides a defined contact pressure of
approximately 190 g to 250 g at 1 mm stroke, enabling reliable connection on small pads or
metallic terminals.
The Hioki 9772 Pin-Type Lead is designed for use in narrow spaces where making contact with the subject of measurement is difficult, such as when maintaining emergency batteries. The lead features two parallel, spring contact tips with a diameter of 1.8 mm, allowing for stable connection with the measurement object. Its four-terminal structure ensures precise measurements in confined spaces. Technical Details: Parallel tips, spacing: 2.5 mm Diameter singe tip: 1.8mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 1900 mm Weight: approx. 180 g Accessories: Instruction manual Spare parts: 9772-90 tip pin
The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded
