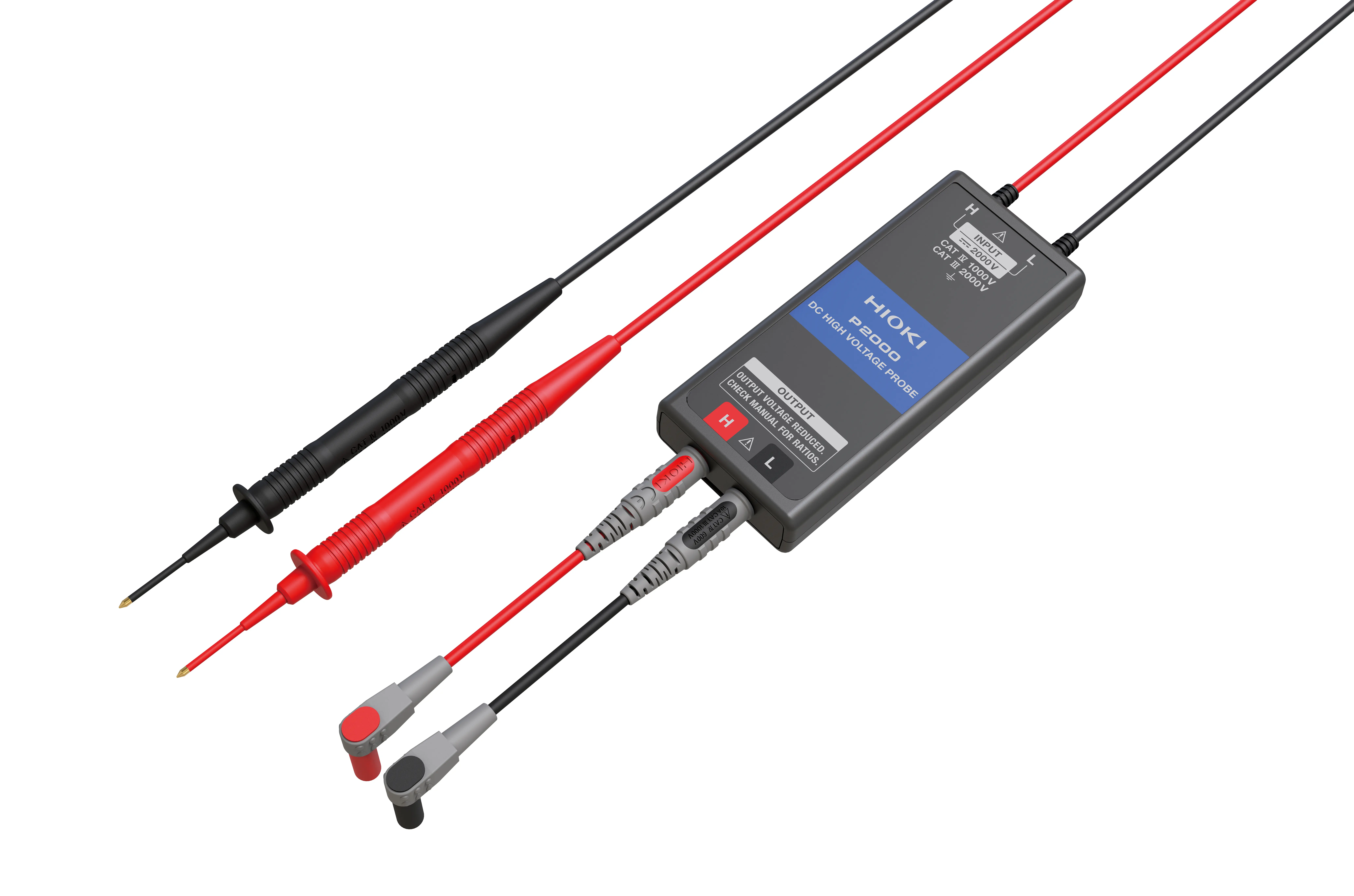

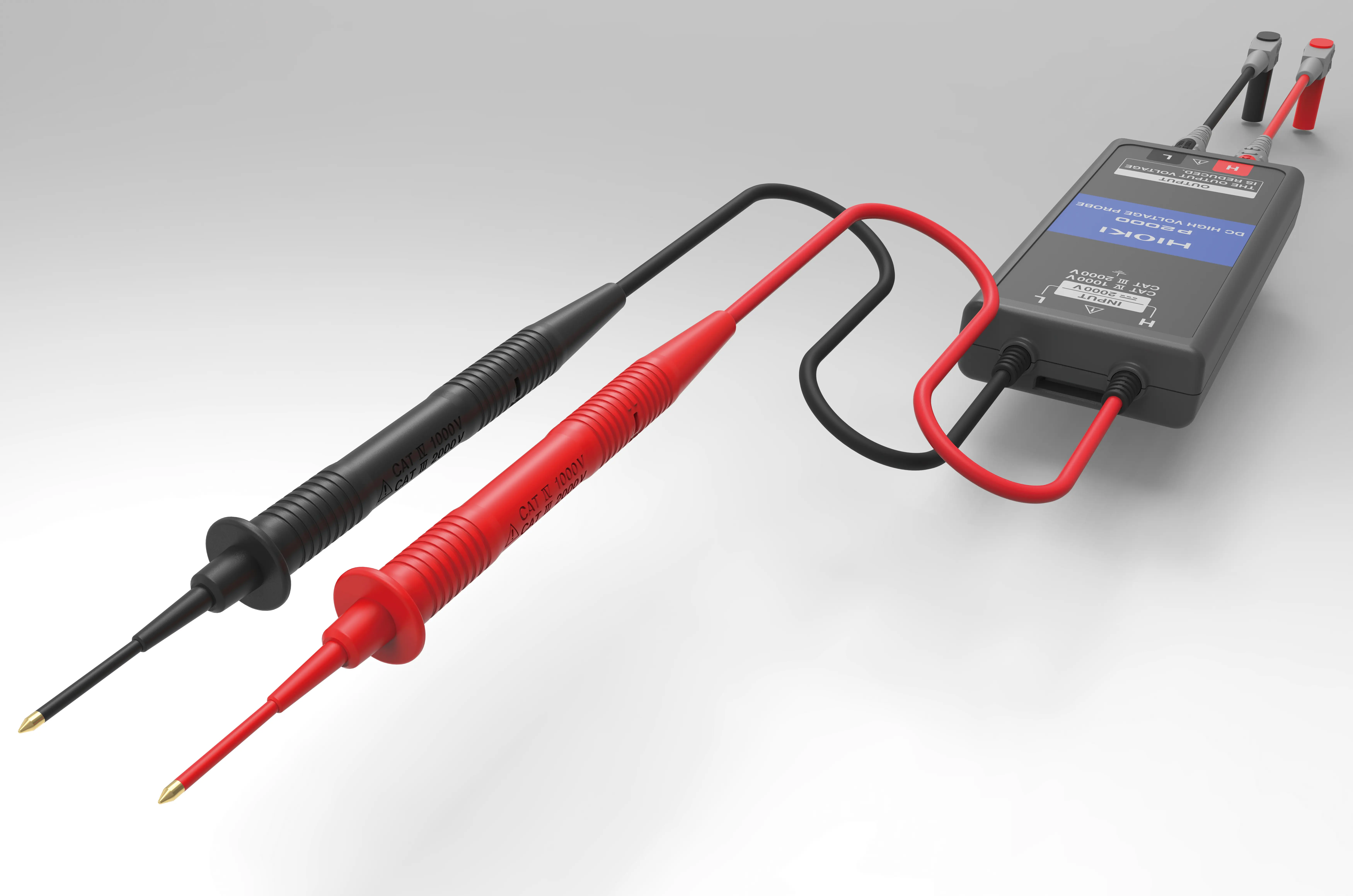

P2000 - DC high voltage probe, 2000 V
Available stock:
2
Product details
Product number:
P2000
EAN:
4536036014255
Weight:
0.33 kg
Product information "P2000 - DC high voltage probe, 2000 V"

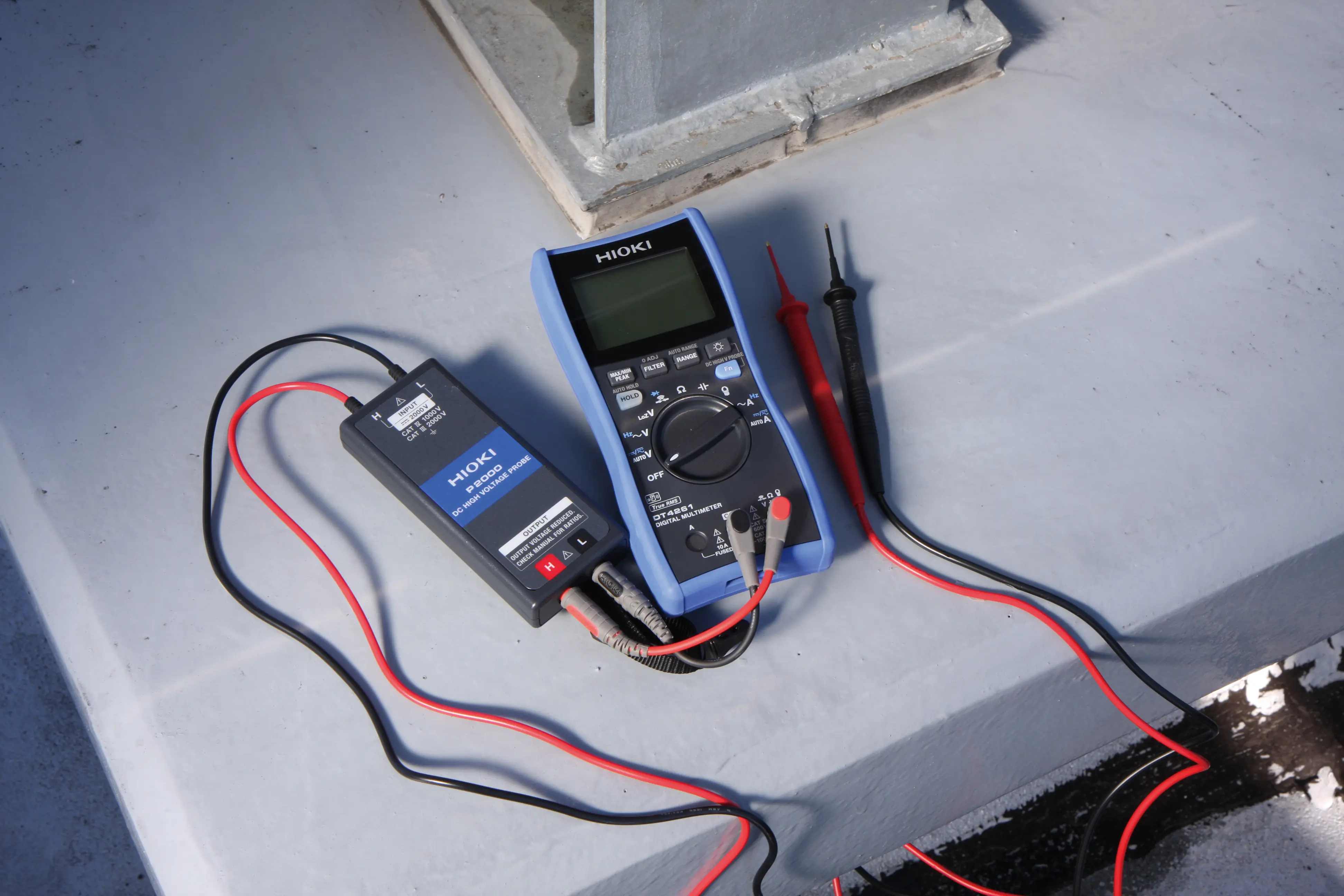

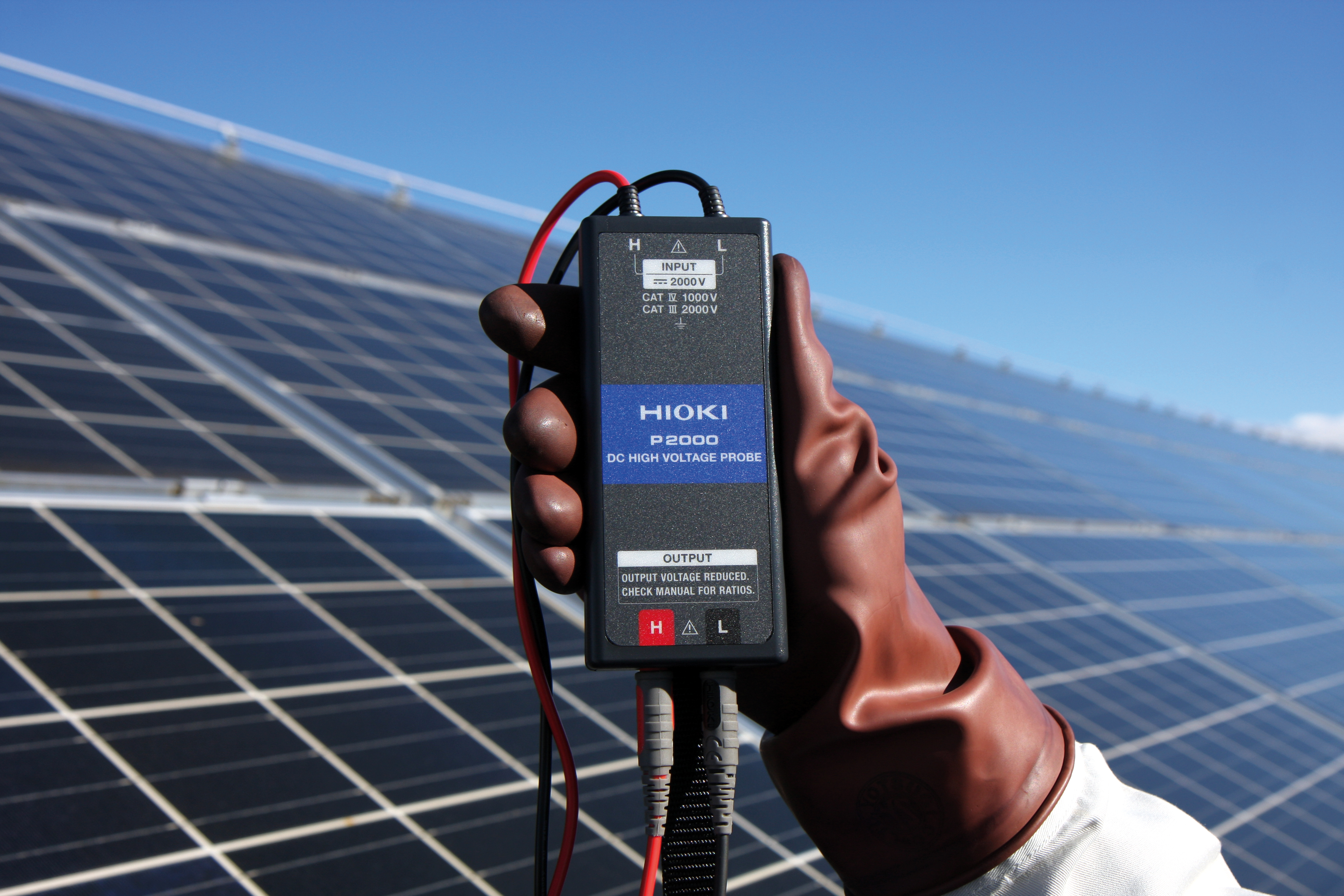

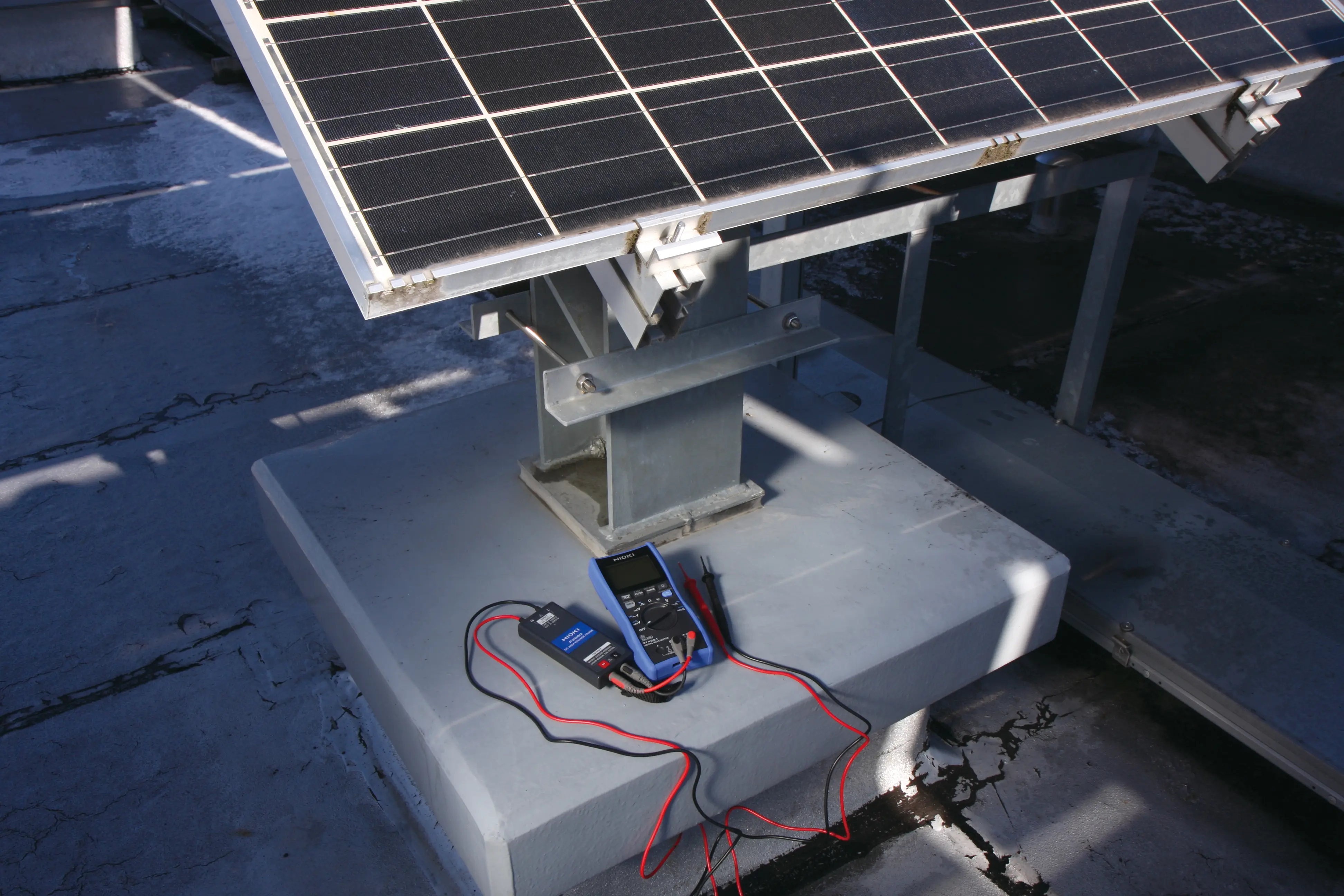

The P2000 enables safe high-voltage measurements up to CAT III 2000 V, making it ideal for the maintenance of photovoltaic installations. By connecting to a compatible Hioki clamp meter or digital multimeter (DMM), high DC voltages can be reliably measured – without interrupting the grid, even in large solar installations.
Technical Information:
- Maximum input voltage: 2000 V DC
Maximum rated line-to-ground voltage:
- 1000 V (Measurement Category IV), anticipated transient overvoltage 12,000 V
- 2000 V (Measurement Category III), anticipated transient overvoltage 15,000 V
- Input resistance: 20 MΩ ±5.0 %
Overload protection:
- 2200 V DC / 2200 V AC (1 min) (between INPUT H and INPUT L)
- 600 V DC / 600 V AC (1 min) (between OUTPUT H and OUTPUT L)
- Output terminal: 4 mm banana terminal
- Operating temperature range: -25°C to 65°C
- Humidity: up to 80 % RH (non-condensing)
- Storage temperature: -30°C to 70°C
- Standards: EN 61010
- P2000
- Connection Cable Set L4943
- Strap with buckle
- Strap
- Carrying Case C0205
- Instruction Manual
- Operating Precautions
