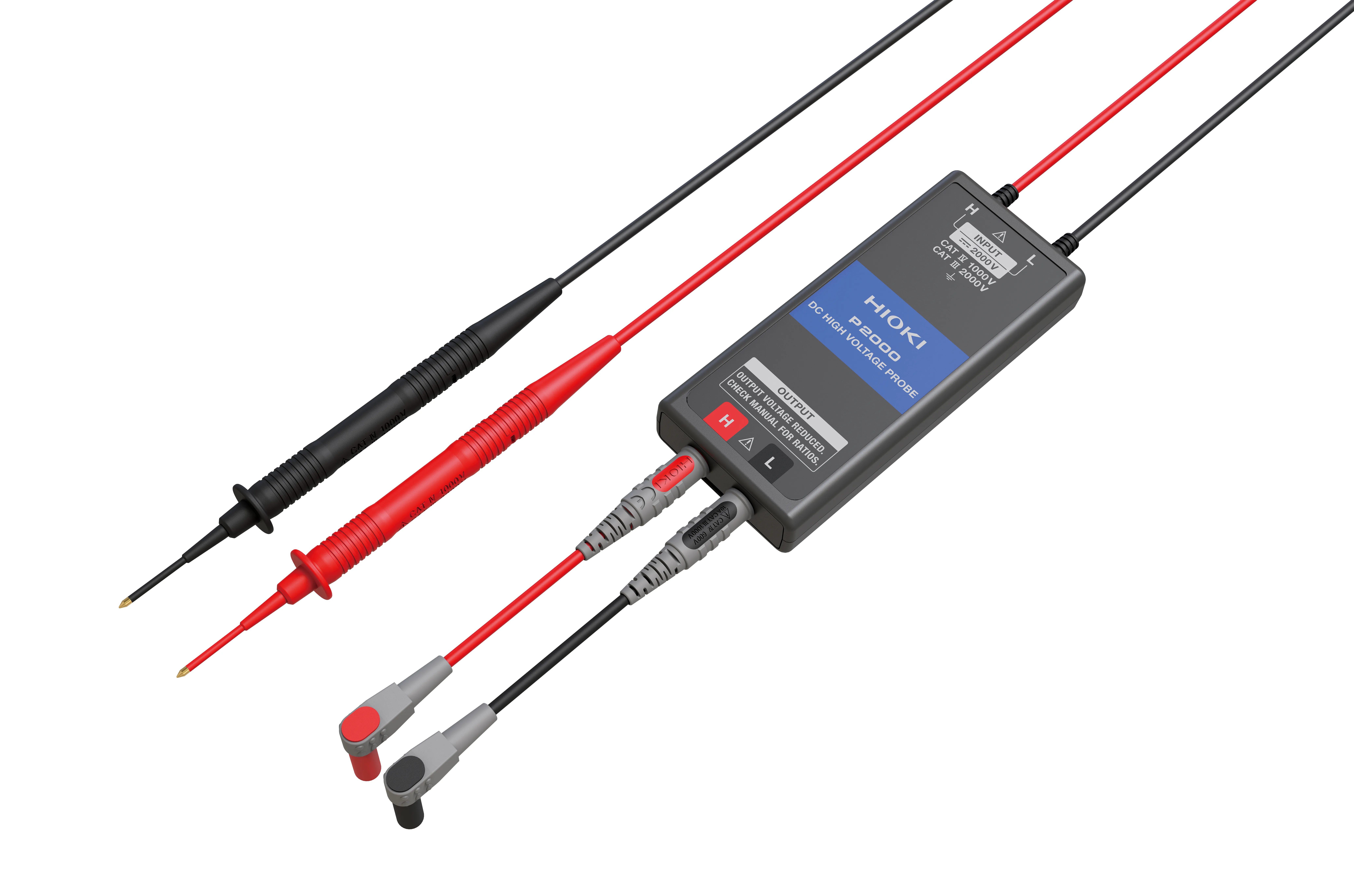

P2000 - DC high voltage probe, 2000 V

This product is no longer available.

Specifications may be dated. Please see the successor model.

Product information P2000 - DC high voltage probe, 2000 V

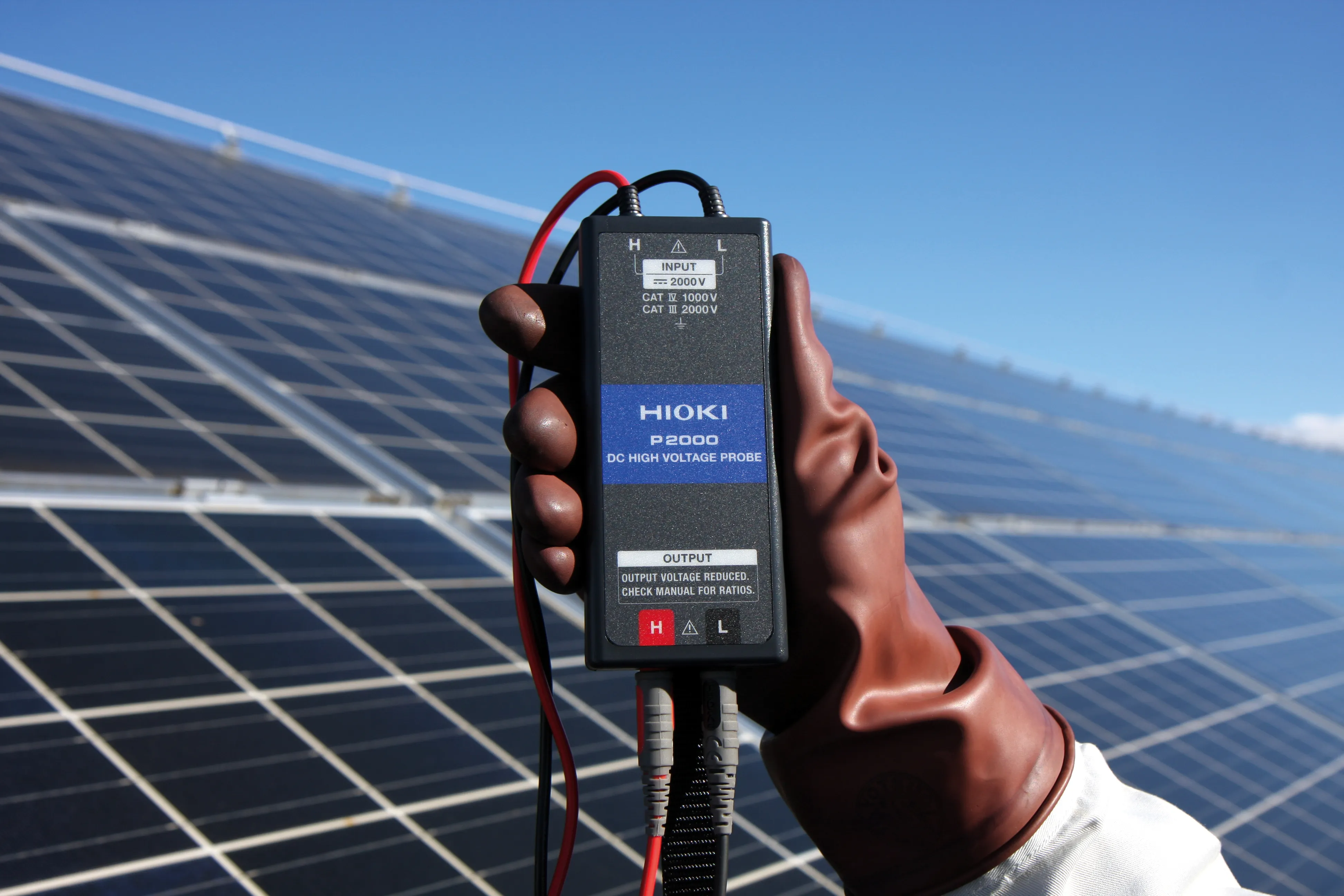

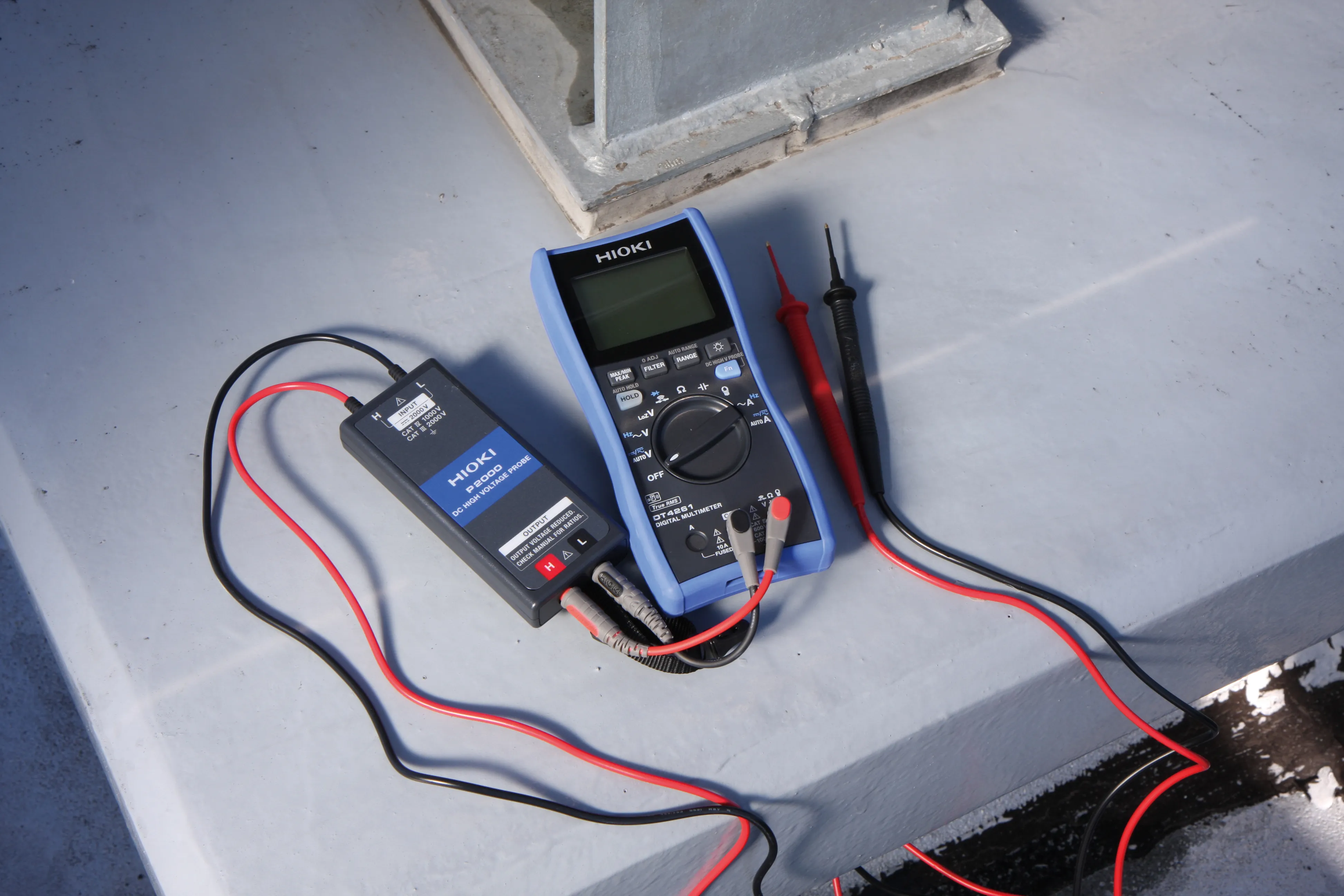

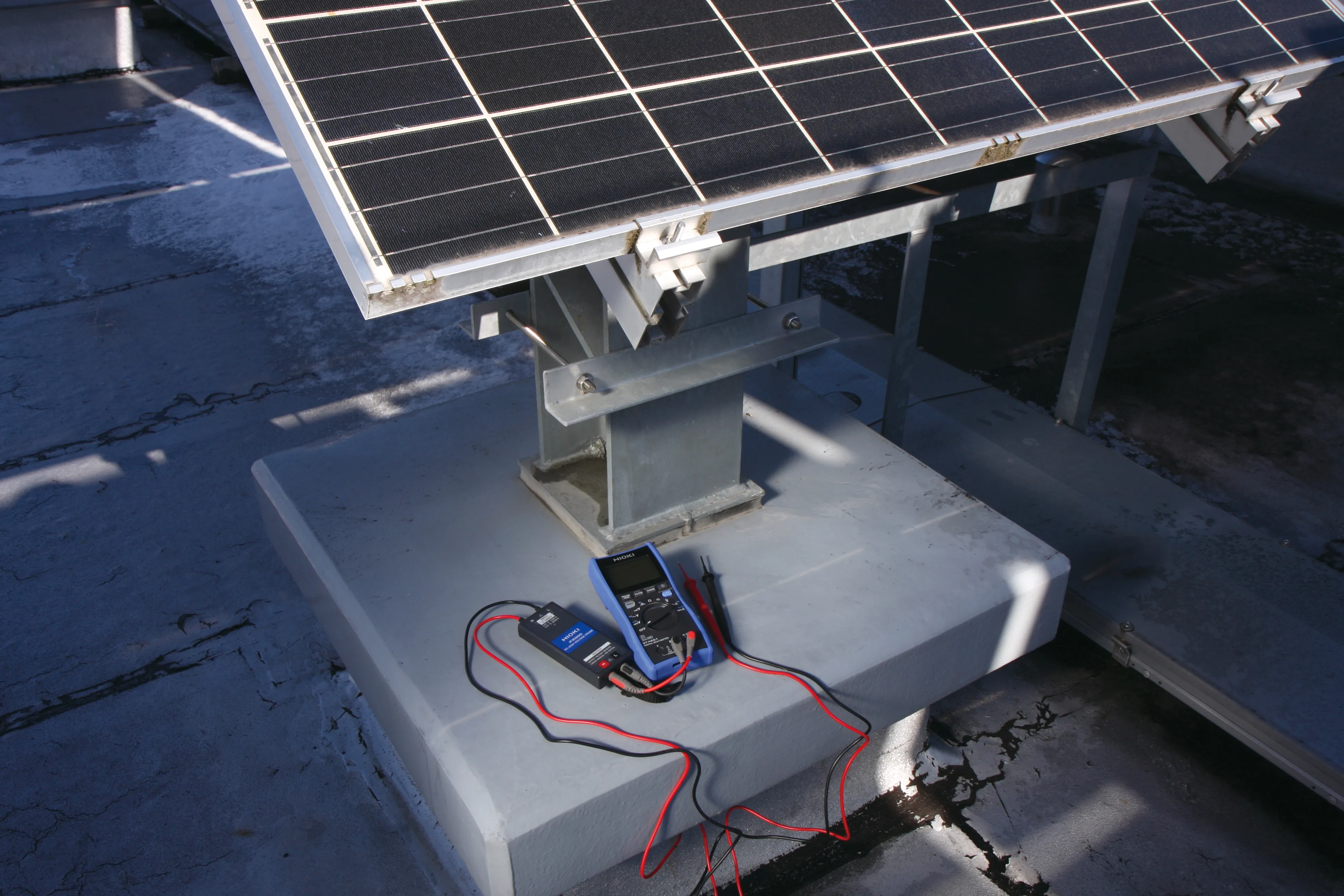

The P2000 enables safe high-voltage measurements up to CAT III 2000 V, making it ideal for the maintenance of photovoltaic installations. By connecting to a compatible Hioki clamp meter or digital multimeter (DMM), high DC voltages can be reliably measured – without interrupting the grid, even in large solar installations.

Technical Information:

Maximum input voltage: 2000 V DC

Maximum rated line-to-ground voltage:

1000 V (Measurement Category IV), anticipated transient overvoltage 12,000 V
2000 V (Measurement Category III), anticipated transient overvoltage 15,000 V
Input resistance: 20 MΩ ±5.0 %

Overload protection:

2200 V DC / 2200 V AC (1 min) (between INPUT H and INPUT L)
600 V DC / 600 V AC (1 min) (between OUTPUT H and OUTPUT L)
Output terminal: 4 mm banana terminal
Operating temperature range: -25°C to 65°C
Humidity: up to 80 % RH (non-condensing)
Storage temperature: -30°C to 70°C
Standards: EN 61010
