HIOKI CT9667-01 - AC Flexible Current Sensor, 5000 A, 10 Hz to 20 kHz

Skip image gallery
HIOKI CT9667-01 AC flexible current sensor 5000 A
HIOKI CT9667-01 AC flexible current sensor plus minus 2 percent accuracy

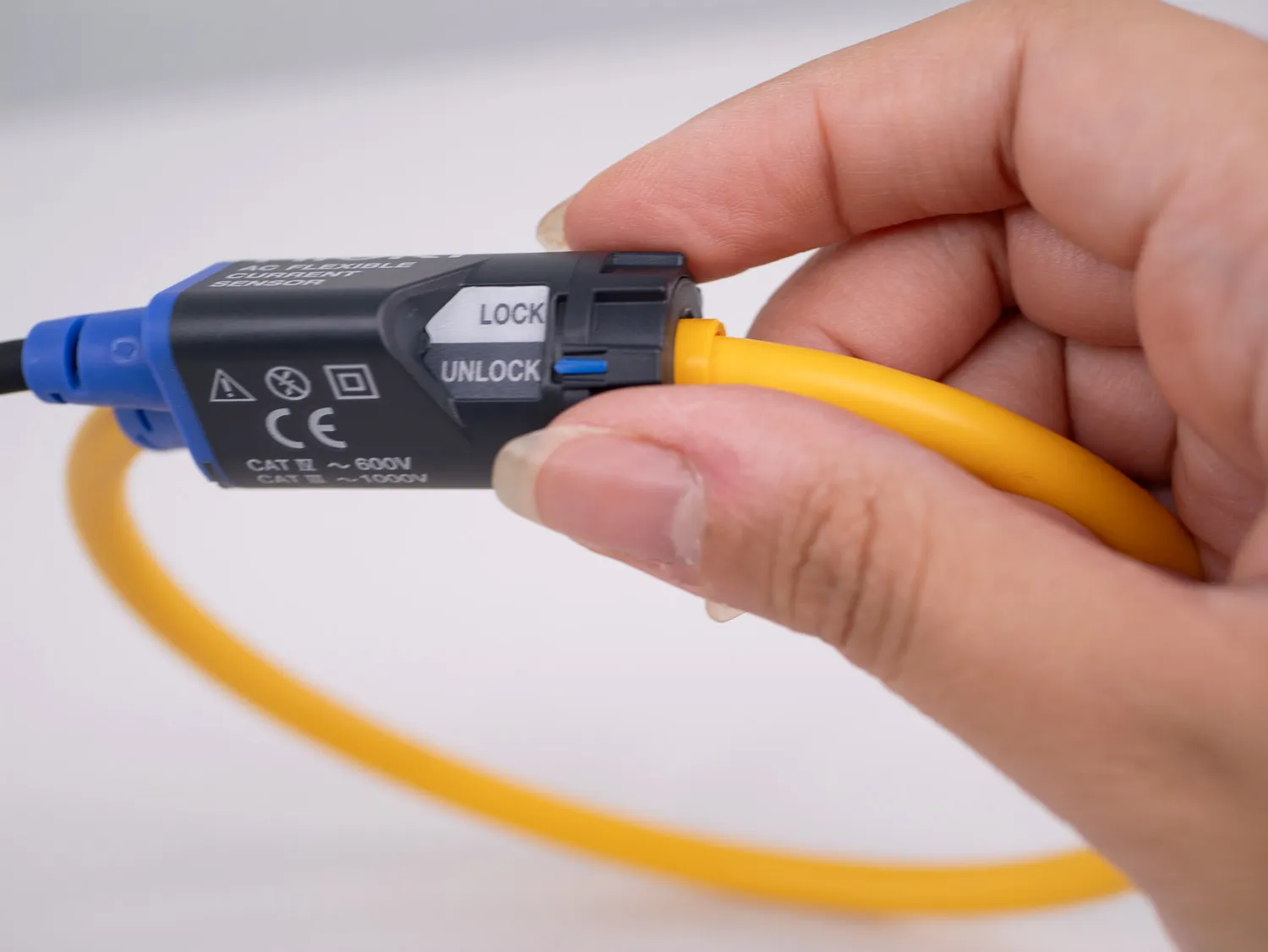

HIOKI CT9667-01 AC flexible current sensor 2 m cable

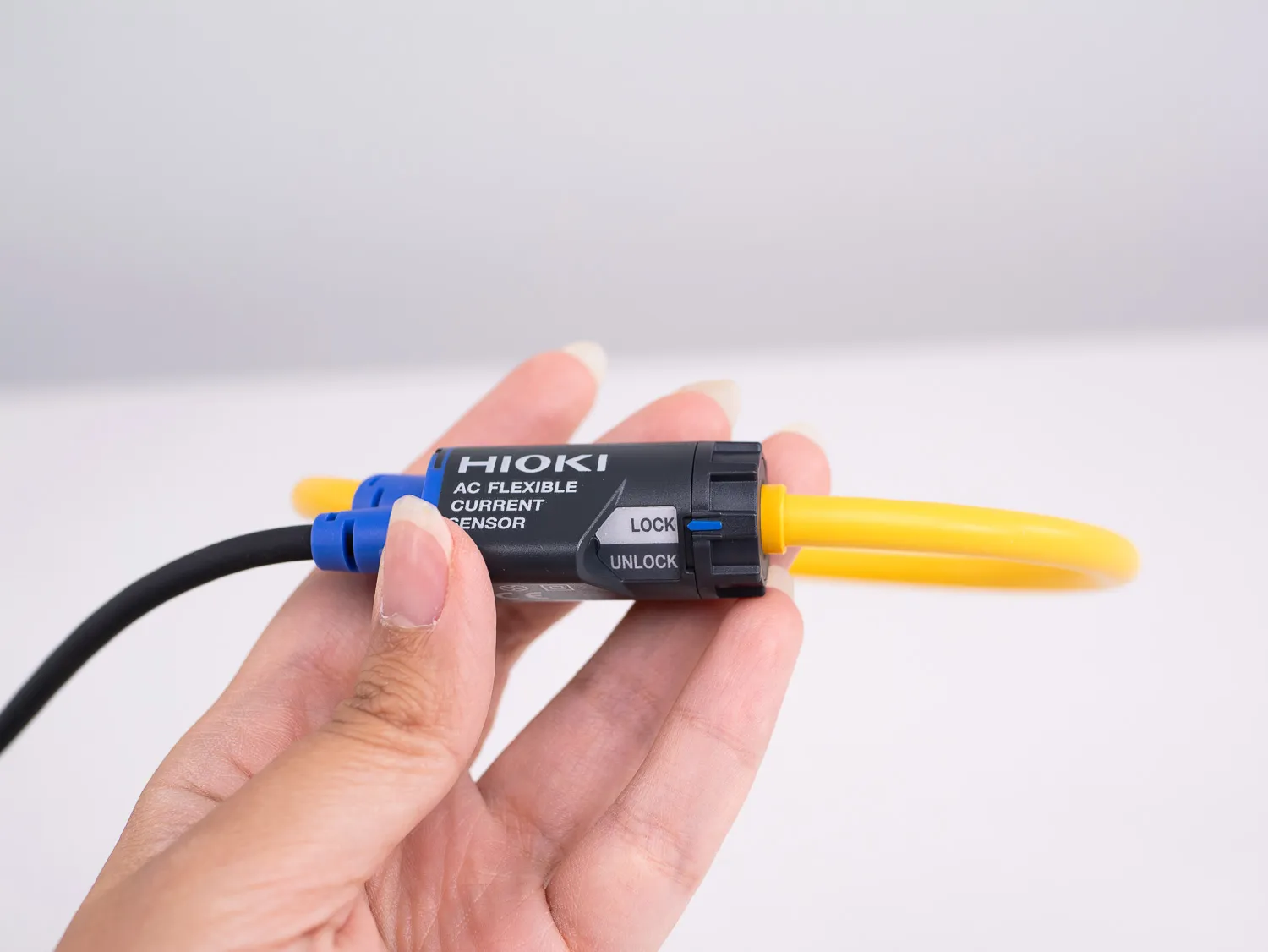

HIOKI CT9667-01 AC flexible current sensor 10 Hz to 20 kHz

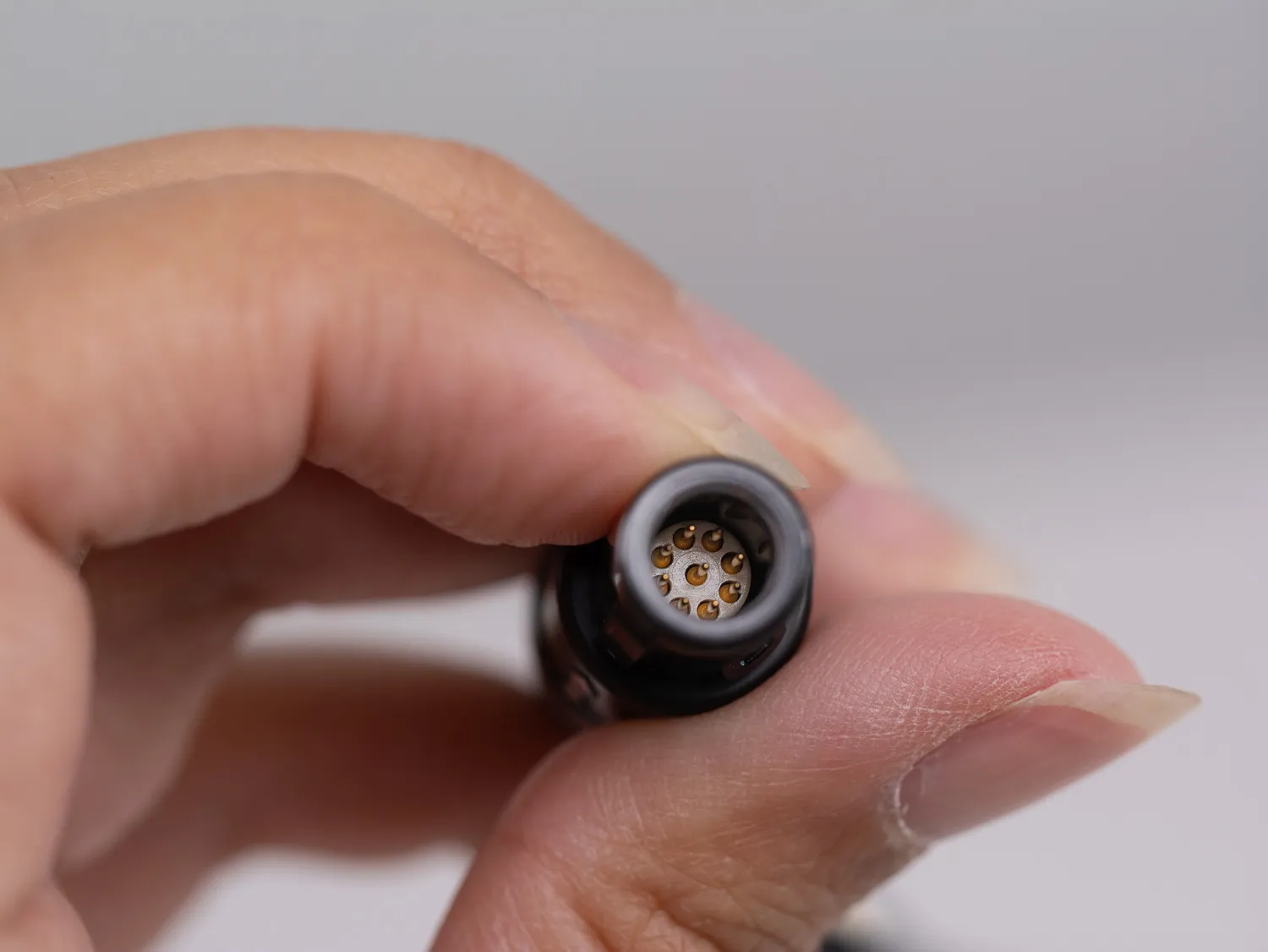

HIOKI CT9667-01 AC flexible current sensor 45 to 66 Hz continuous current

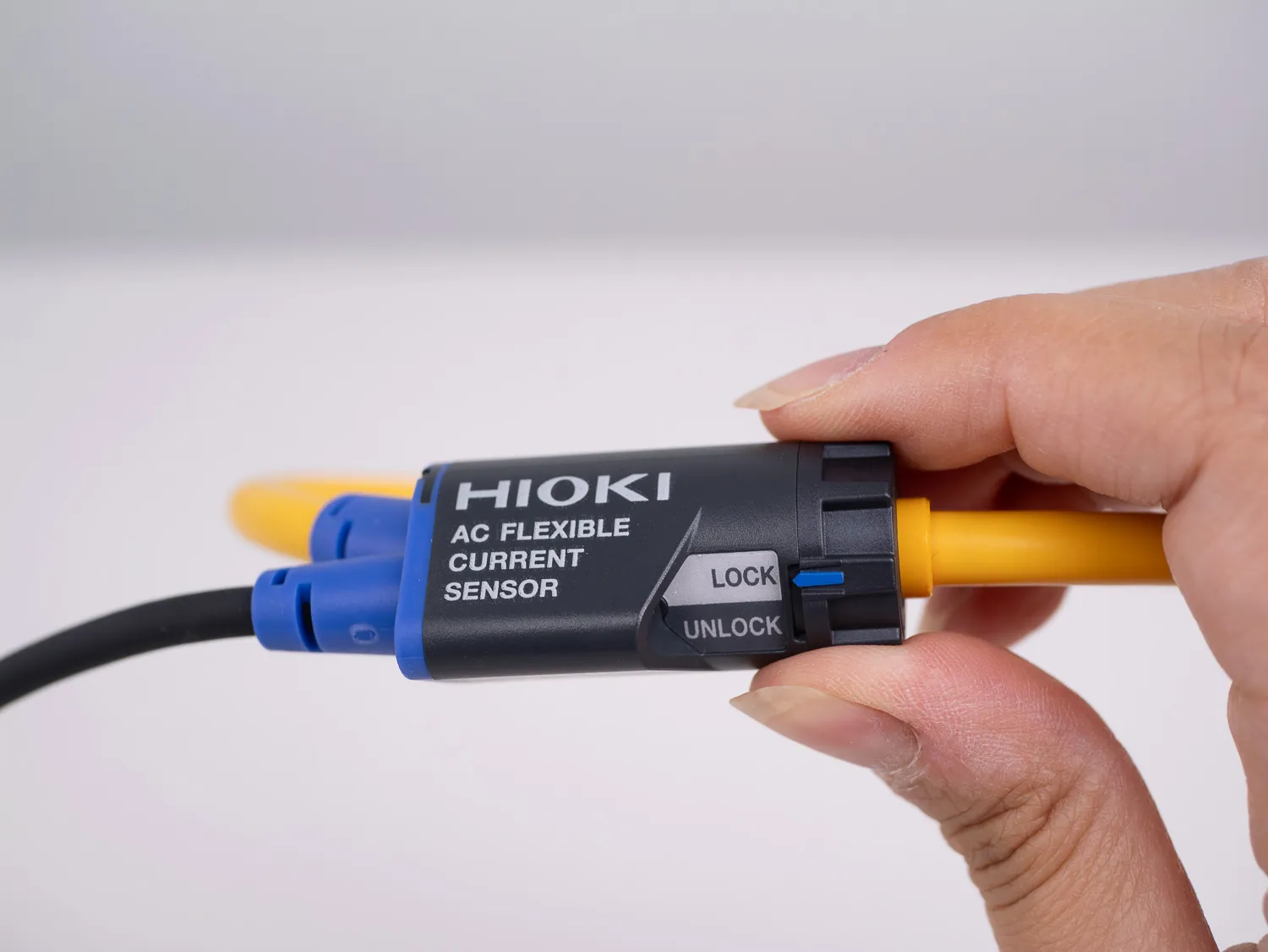

HIOKI CT9667-01 AC flexible current sensor 100 mm conductor diameter

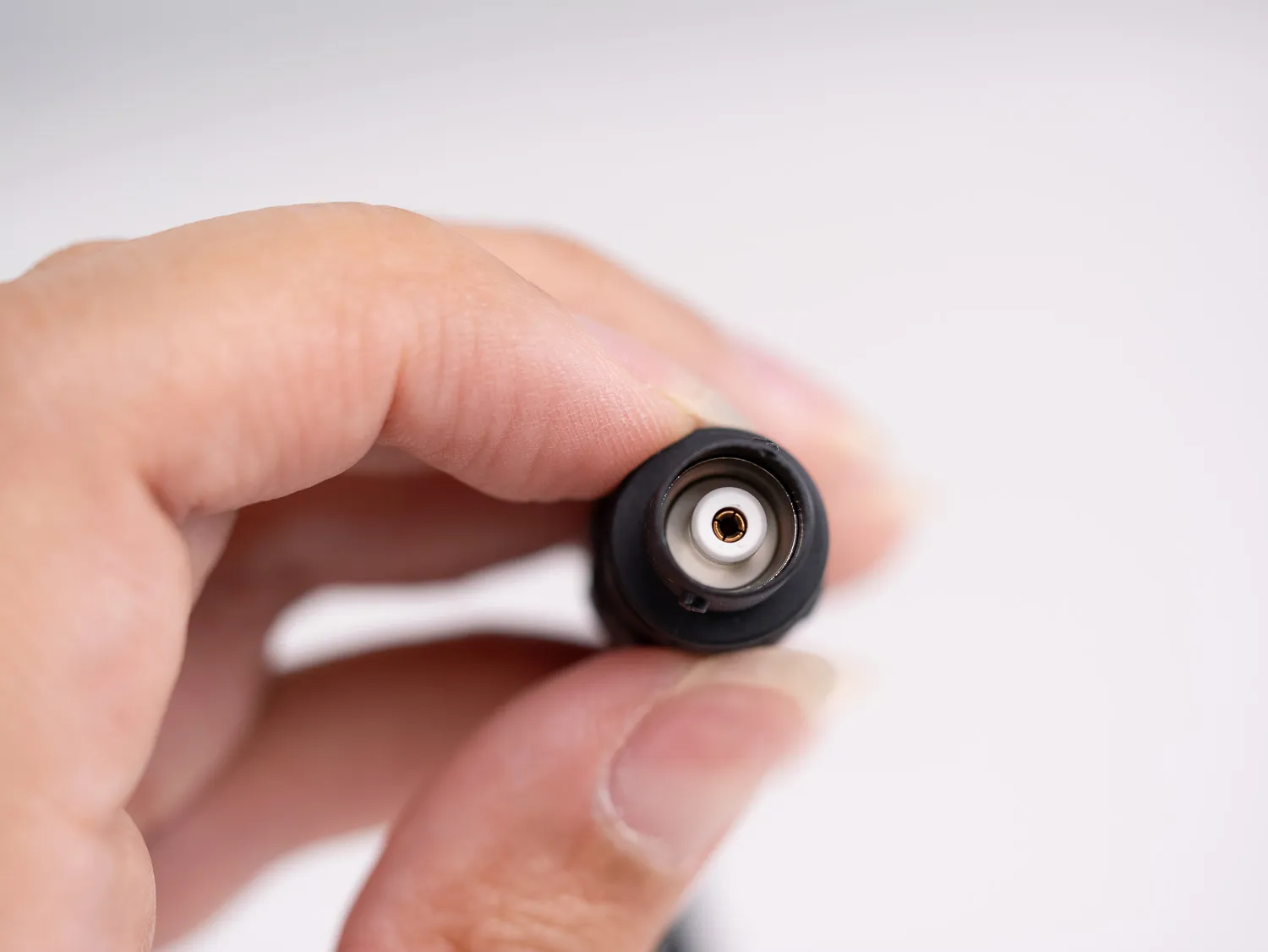

HIOKI CT9667-01 AC flexible current sensor BNC output
HIOKI CT9667-01 - AC Flexible Current Sensor, 5000 A, 10 Hz to 20 kHz
HIOKI CT9667-01 AC flexible current sensor 5000 A
HIOKI CT9667-01 AC flexible current sensor plus minus 2 percent accuracy
HIOKI CT9667-01 AC flexible current sensor 2 m cable
HIOKI CT9667-01 AC flexible current sensor 10 Hz to 20 kHz
HIOKI CT9667-01 AC flexible current sensor 45 to 66 Hz continuous current
HIOKI CT9667-01 AC flexible current sensor 100 mm conductor diameter
HIOKI CT9667-01 AC flexible current sensor BNC output

€568.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€568.00

HIOKI CT9667-01 - AC Flexible Current Sensor, 5000 A, 10 Hz to 20 kHz
Product number: CT9667-01
Available stock: 1
GTIN/EAN: 4536036004270
Description

Product information HIOKI CT9667-01 - AC Flexible Current Sensor, 5000 A, 10 Hz to 20 kHz

The CT9667-01 is a flexible AC current sensor that allows easy measurement of large conductors and cables. Its flexibility makes it ideal for confined spaces or irregular shapes.

Technical Details:
  • Rated current: 500 A, 5000 A AC
  • Frequency range: 10 Hz to 20 kHz
  • Amplitude accuracy: ±2% rdg, ±0.3% f.s.
  • Max. diameter of conductors: 100 mm (3.94 in.)
  • Cable length: 2 m, 1 m² (6.56 ft., 3.28 ft.)
  • Operating temperature: -25°C to 65°C (-13°F to 149°F)
  • CAT: 600 V CAT IV, 1000 V CAT III
  • Output terminal: BNC

Dimensions & Packaging

Weight 0.28 kg
