FT6041 Kit - Earth Resistance Tester Set

€3,298.00

Content: 1 Each

Available in 21 days

€3,298.00

FT6041 Kit - Earth Resistance Tester Set

Product number: FT6041-91

Length: 48 mm

Width: 194 mm

Height: 148 mm

Weight: 0.765 kg

Product information FT6041 Kit - Earth Resistance Tester Set

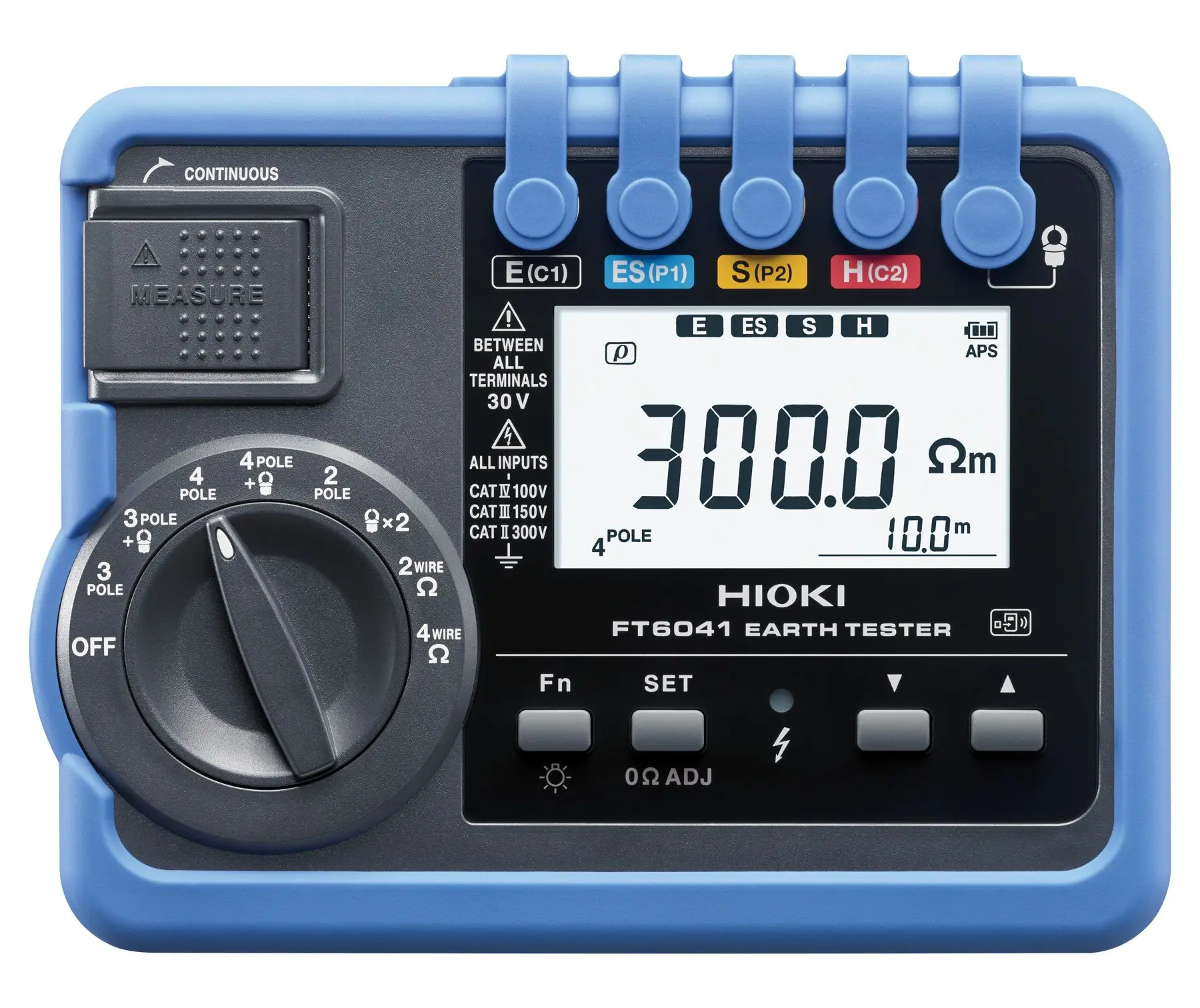

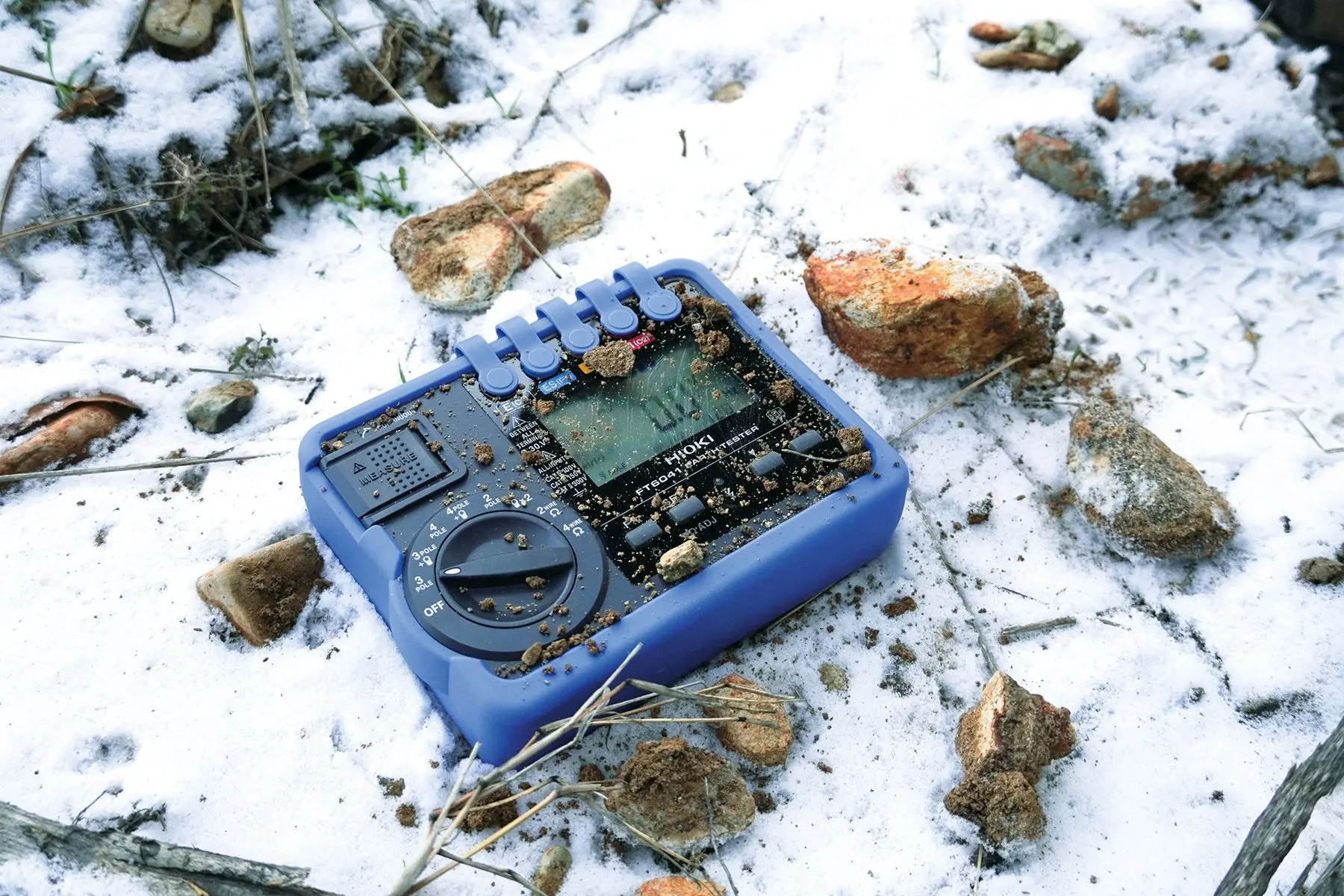

The Hioki FT6041 Earth Tester is a versatile instrument designed for measuring earth resistance in complex ground systems using both the two-electrode and three-electrode methods. It offers IP67-rated dustproof and waterproof protection, making it highly durable for tough outdoor conditions.

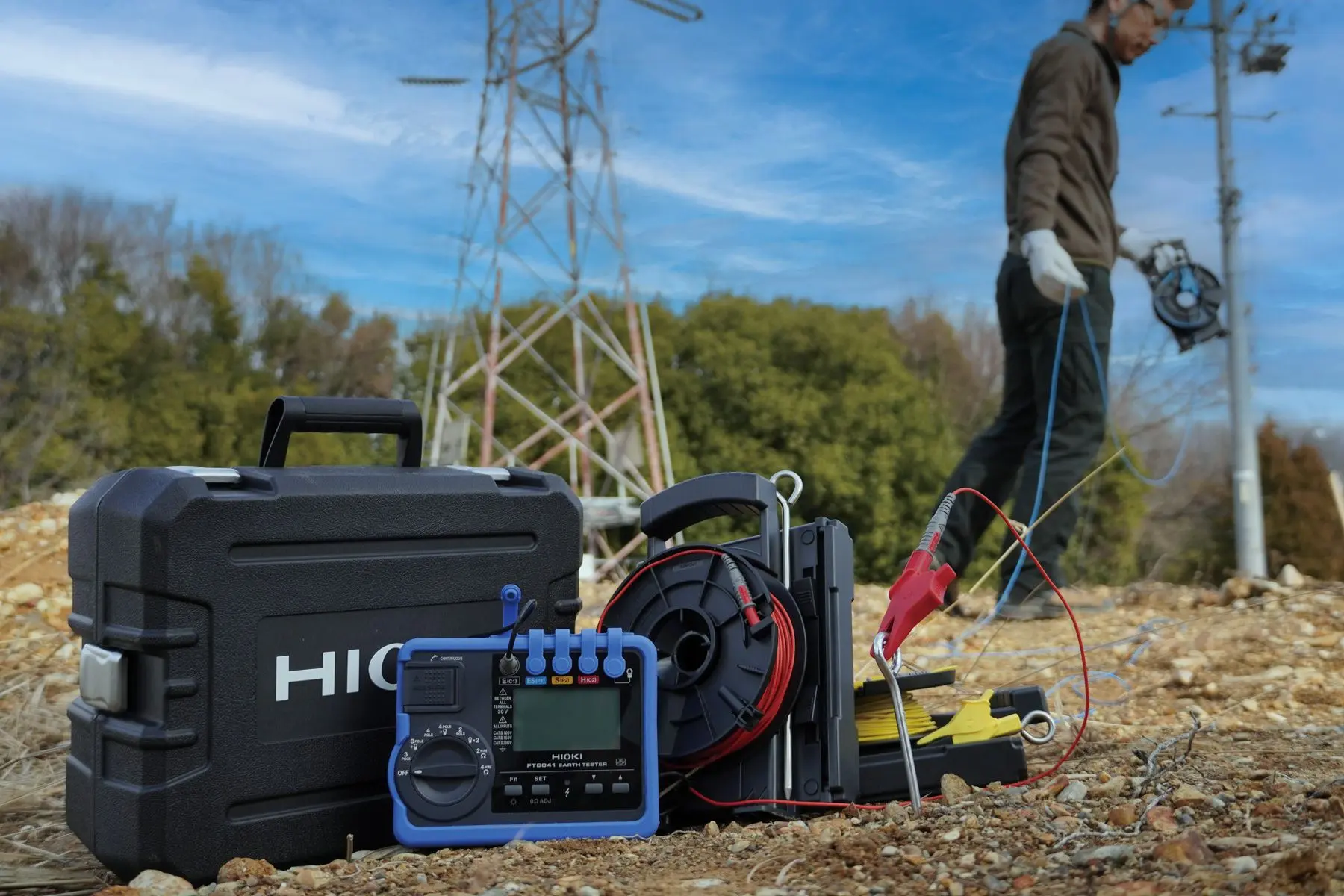

The FT6041 also features wireless communication support via the optional Z3210 adapter for seamless data transfer to mobile devices, enabling efficient report generation. With automatic checks for disturbance voltage and auxiliary earthing resistance, it ensures accurate measurements. Built for fieldwork, the device is drop-proof from a height of 1 meter onto concrete.

Technical Information:

Measurement system: Two-electrode / Three-electrode
Measurement range: 0 to 2000 Ω
Accuracy: ±1.5% rdg. ±4 dgt.
Operating temperature: −25°C to 65°C
Power supply: 4 AA (LR6) Alkaline batteries
Dustproof and waterproof rating: IP67
Drop-proof: 1 m onto concrete
Safety category: CAT IV 100 V / CAT III 150 V / CAT II 300 V

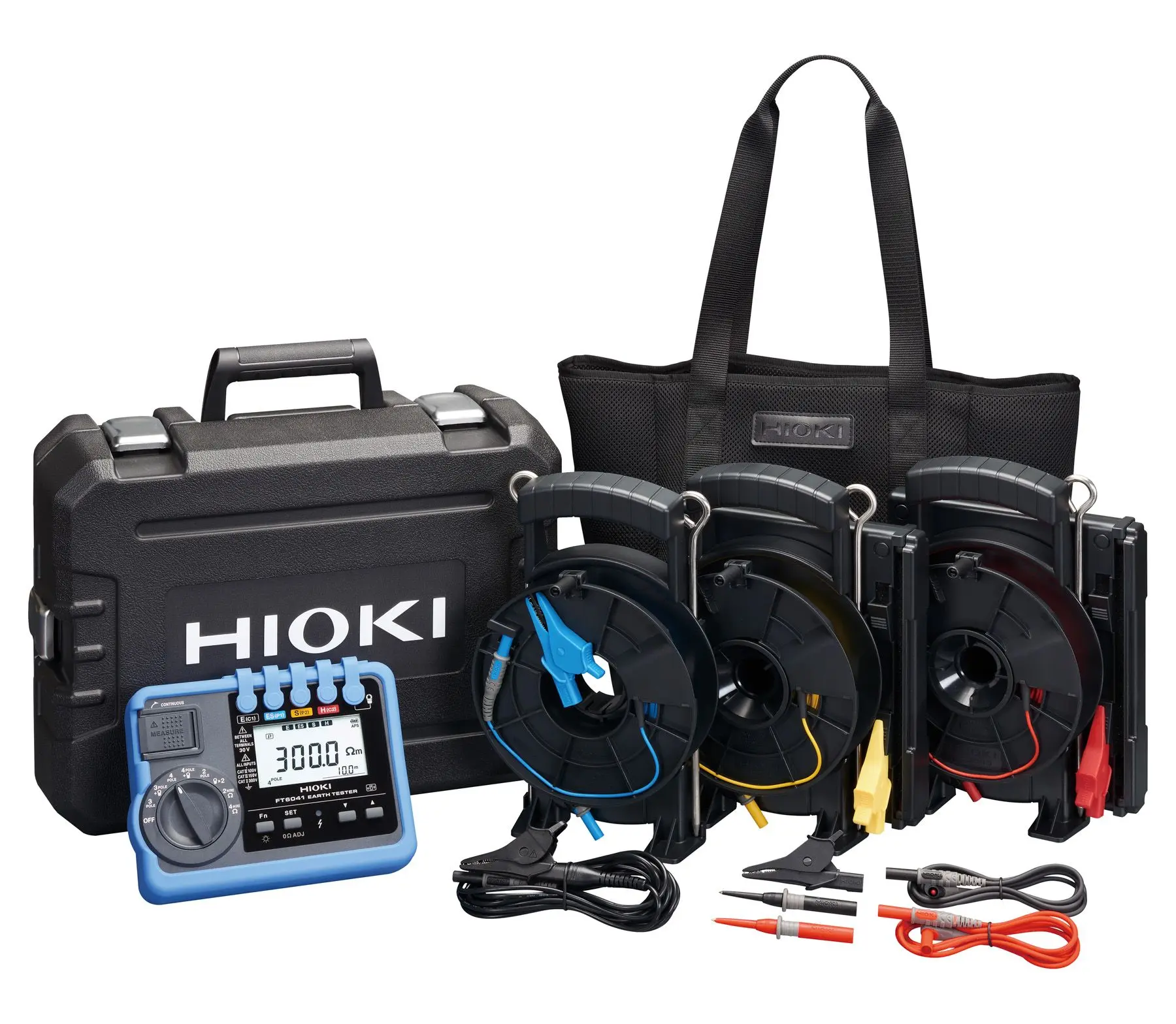

FT9847 - Signal induction clamp
CT9848 -CLAMP ON SENSOR
FT6041 Earth Test
2x Auxiliary Earthing Rod L9840 (2 piece set)
Measurement Cable L9845-31
Measurement Cable L9845-33
Measurement Cable L9845-52
Measurement Cable L9841
Test Lead L9787
2x Earth Nets Module L9846
Carrying Case C0208
Carrying Case C0209
Protector
4 x LR6 Alkaline Batteries
Instruction Manual
Operating Precautions
