L9844 - MEASUREMENT CABLE
Available stock:
7
Product details
Product number:
L9844
EAN:
4536036002443
Weight:
0.17 kg
Product information "L9844 - MEASUREMENT CABLE "

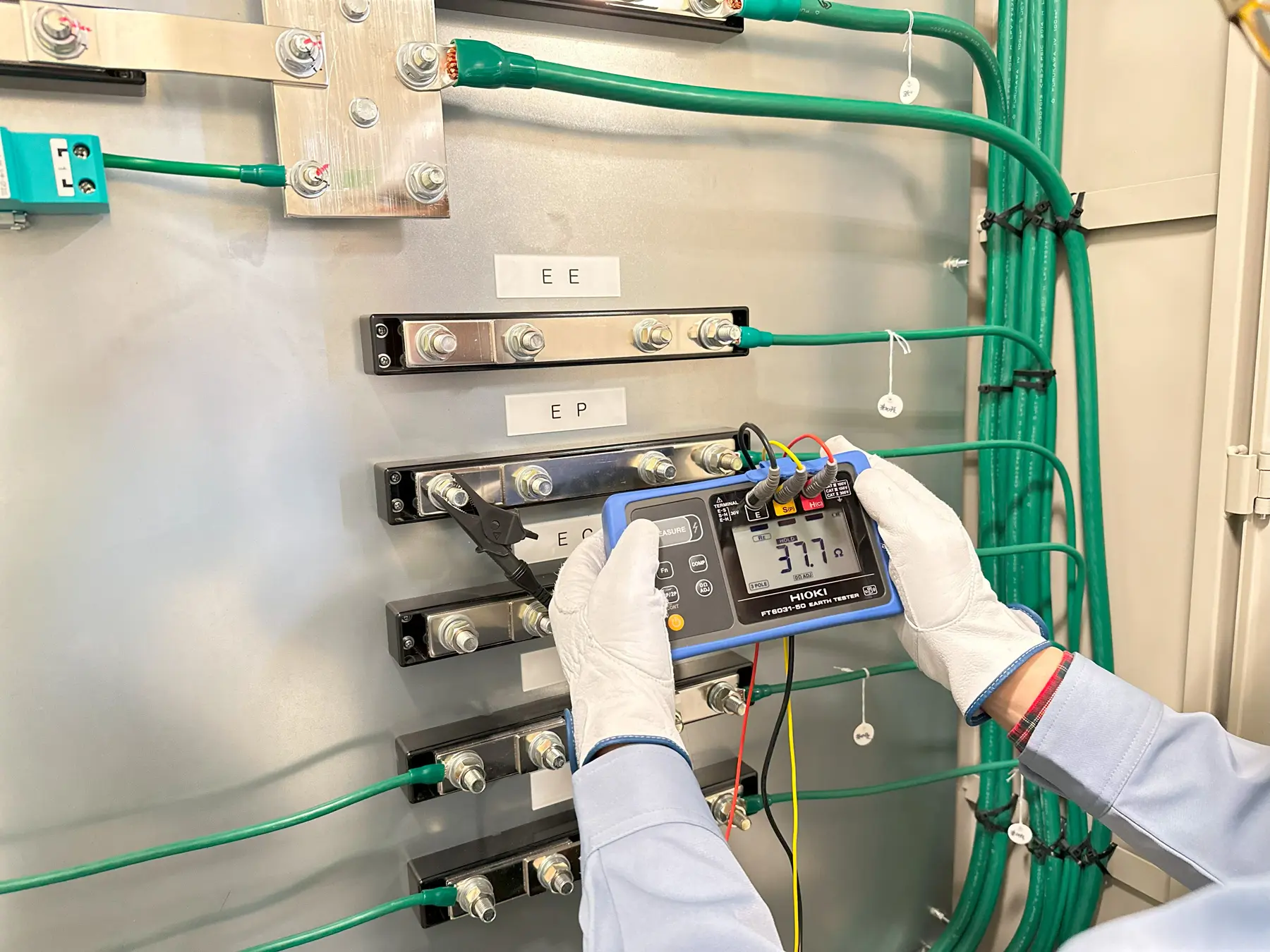

The L9844 is an option for Hioki Earth Testers to do measurements at ground terminal boards. It is a set of three cables and detachable alligator clips in corresponding colours.
Technical Information:
- Length: 1.2 m
- Colour: red/yellow/black
- Clip Type: Alligator, large version
- Clip connector: 4 mm, banana socket
- Compatible Earth Testers: FT3151, FT6031 and FT6041
- L9844
-
Product Catalog with data sheet, Field Measuring Instruments (English)40,026 KB pdf
-
Product brochure with data sheet, Analog earth tester FT3151 (English)2,194 KB pdf
-
Product Catalog with Data Sheet, Earth Tester Series (English)8,076 KB pdf
-
Product brochure with data sheet, 2- and 3-pole earth tester FT6031-50 (English)3,272 KB pdf
