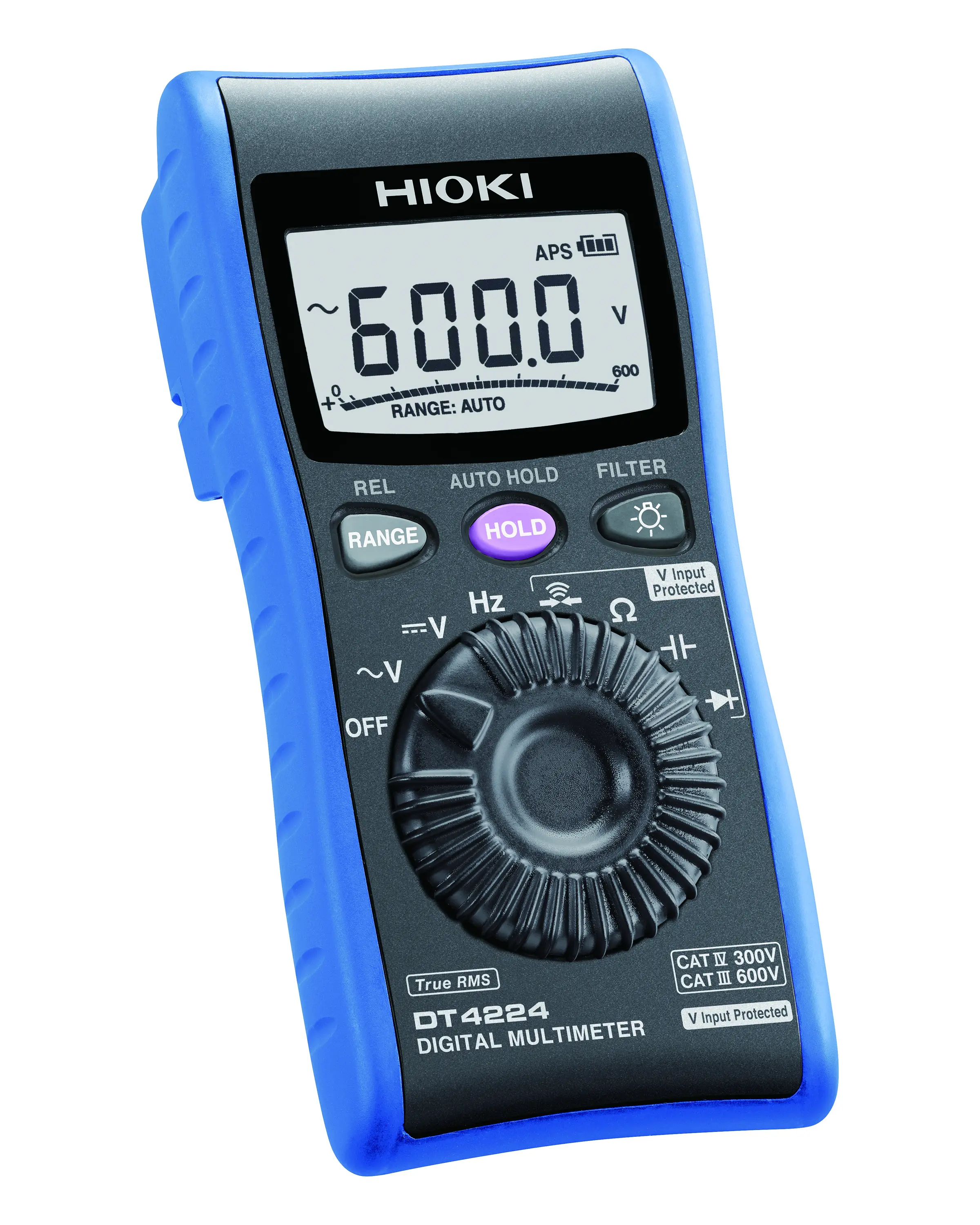

DT4224 - Universal Pocket Digital Multimeter

Pocket digital multimeter with True RMS, AC and DC voltage, resistance, capacitance, frequency, diode test, continuity, 6000 count display, CAT III 600 V, CAT IV 300 V

HIOKI DT4224 digital multimeter cat iv 300v cat iii 600v includes dt4911 testlead

HIOKI DT4224 digital multimeter cat iii 600v cat iv 300v portable

HIOKI DT4224 digital multimeter cat iv 300v cat iii 600v measures voltage

€168.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

Available in 21 days

Product number: DT4224

EAN: 4536036010523

Length: 72 mm

Width: 38 mm

Height: 149 mm

Weight: 0.19 kg

Product information DT4224 - Universal Pocket Digital Multimeter

Key Specifications

Voltage, resistance, capacitance and frequency
Diode test and continuity
DC and AC voltage ranges 600 mV, 6 V, 60 V, 600 V
True RMS measurement
CAT III 600 V, CAT IV 300 V

Typical Applications

Electrical installation and service work
Troubleshooting and verification of electrical circuits
Versatile measurement tasks in field and workshop environments

	DT4223	DT4224
Common specifications	True RMS AC and DC voltage measurement (ranges 600 mV, 6 V, 60 V and 600 V) Resistance, frequency and continuity measurement 6000 count display CAT III 600 V and CAT IV 300 V
DT4223 specific	Automatic AC/DC voltage detection Non-contact voltage detection (NCV)
DT4224 specific		Capacitance measurement Diode test

Detailed Product Overview

The HIOKI DT4224 is a universal pocket digital multimeter designed for a wide range of electrical measurement tasks. In addition to AC and DC voltage checks, it supports resistance, capacitance, frequency and diode testing, making it well suited as a first tool for troubleshooting and initial analysis in both field and workshop environments.

With its compact design, the DT4224 takes up very little space in a tool bag or pocket. With battery installed and test leads connected, it weighs approximately 210 g, making it easy to carry for everyday work. Powered by a single AAA battery and protected by a silicone cover, it is suitable for regular use in installation, service and workshop applications.

Measurement Ranges and Safety

The DT4224 is equipped with a clear 6000 count display and an intuitive operating concept that supports efficient troubleshooting and verification tasks. AC and DC voltage ranges from 600 mV to 600 V cover a wide range of measurement situations, from low level signals to mains voltage. With measurement categories up to CAT III 600 V and CAT IV 300 V, it is suitable for work on distribution boards and fixed installations.

For safe troubleshooting in active circuits and complex electrical installations, the instrument is equipped with an integrated protection function that prevents false tripping of circuit breakers in case of measurement errors. If measurements are accidentally performed in the resistance or continuity mode on an active circuit, or if the measurement function is changed with test leads connected, the input impedance remains high. The input is only switched to a low impedance state once the measurement condition is recognized as safe

Although extremely compact, the DT4224 is a high quality digital multimeter designed for professional installation, service and troubleshooting work. Like all HIOKI digital multimeters, the DT4224 is developed in Japan and manufactured at HIOKI’s own production facilities in Japan.

DT4223 / DT4224 Pocket Digital Multimeter
DT4911 Test Leads
Silicone protective cover
AAA (LR03) alkaline battery
Instruction manual
