C1013 - CARRYING CASE
Protective case for SP7001, SP7002, SP7100, SP9200 and accessories
Available stock:
1
Product details
Product number:
C1013
EAN:
4536036012428
Length:
115 mm
Width:
475 mm
Height:
361 mm
Weight:
1.77 kg
Product information "C1013 - CARRYING CASE "
The C1013 is a compact and robust carrying case designed for the safe transport of SP7001, SP7002, SP7100, and two SP9200. Its durable shell, measuring 465 W × 105 H × 345 D mm, features custom-cut foam inserts that provide secure and orderly storage for all components. It is ideal for protecting this sensitive equipment during mobile or stationary use.
Only the carrying case is included in the scope of delivery.
*Probes or instruments not included!
Unit Information:
- Dimensions: 465W×105H×345D mm
- C1013
Related products
SP7001-90

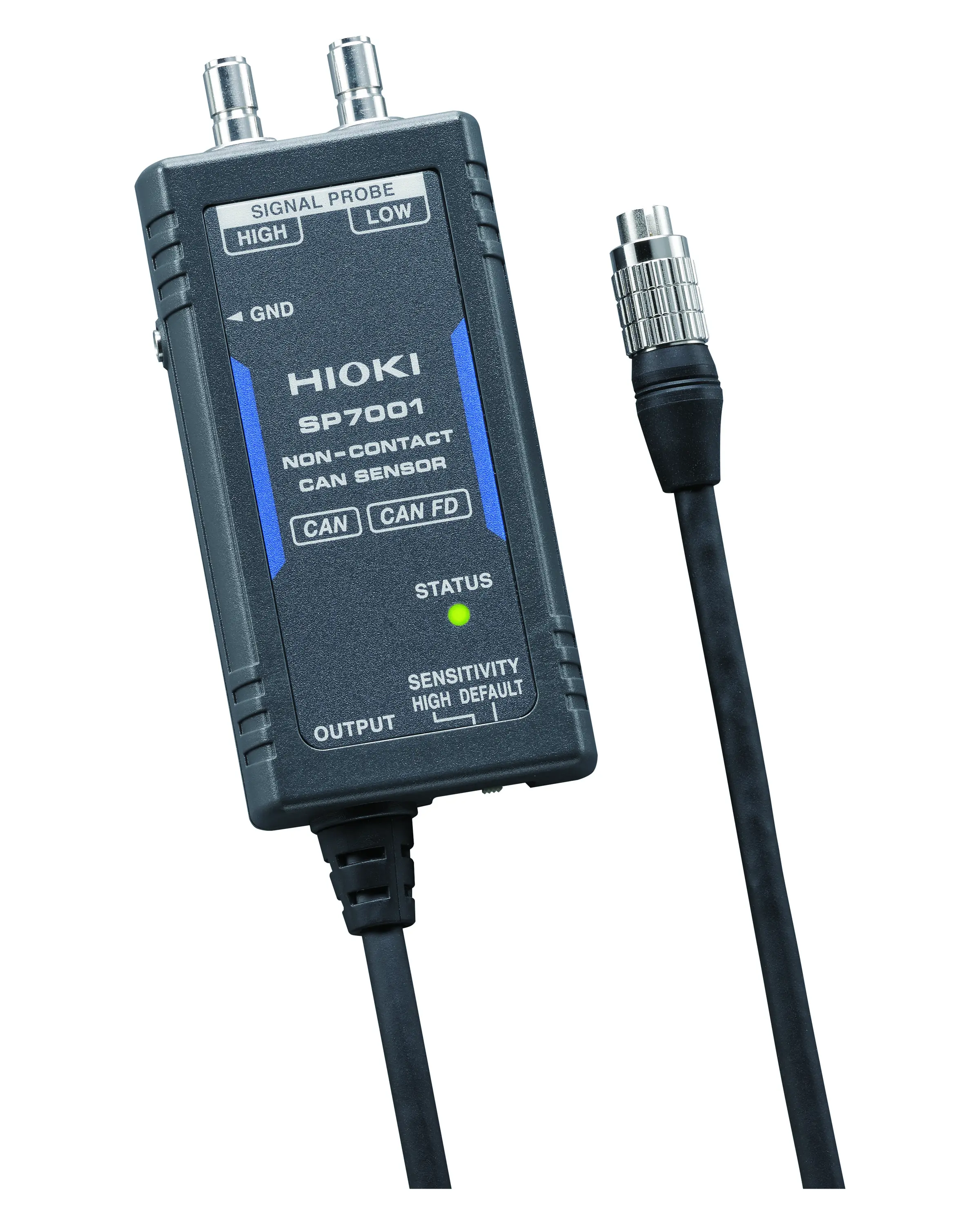

SP7001-90 - Non-contact CAN FD/CAN sensor
The SP7001-90 Non-Contact CAN Sensor allows for safe, efficient data acquisition from CAN and CAN FD networks without modifying or damaging the wiring. Designed for automotive development, the SP7001-90 simplifies capturing CAN signals, even in tight spaces, by clipping directly onto the CAN bus cables. This innovative sensor features a capacitive coupling method, ensuring that the CAN bus's electrical characteristics remain unaffected, which is crucial for secure testing and real-time monitoring of vehicle systems. It supports communication speeds up to 3 Mbit/s, making it ideal for advanced driver assistance systems (ADAS) and autonomous driving applications. Technical Details: Measurement Method: Non-contact, capacitive coupling Supported Protocols: CAN, CAN FD Communication Speed: 125 kbit/s to 3 Mbit/s (CAN FD)Operating Temperature Range: -40°C to 85°C Maximum Rated Voltage: 300 V AC/DC (terminal-to-ground) Power Supply: External power supply (10 V to 30 V DC) or Z1008 AC Adapter Dimensions: 44 mm (W) × 85 mm (H) × 20 mm (D) Weight: Approx. 180 g Output Connector: D-sub 9-pin female
SP7100
SP7100 - CAN INTERFACE
The SP7100 CAN Interface enables seamless integration with Hioki's non-contact CAN sensors, such as the SP7001-90 and SP7002-90, for reliable data acquisition. It supports dual-channel CAN signal outputs and ensures accurate signal transmission to CAN analysis systems. Designed to maintain the integrity of CAN bus data, the SP7100 is ideal for automotive diagnostics, vehicle testing, and real-time monitoring. Its rugged design and versatile power options make it suitable for use in both laboratory and field conditions.Technical Details Supported Sensors: SP7001-90, SP7002-90 Number of CAN Channels: 2 Output Connector: D-sub 9-pin female Power Supply: 10 V to 30 V DC or Z1008 AC Adapter Operating Temperature Range: -40°C to 85°C Maximum Rated Voltage: 300 V AC/DC (terminal-to-ground) Dimensions: 55 mm (W) × 120 mm (H) × 25 mm (D) Weight: Approx. 130 g
SP9900
SP9900 - Split cable for SP7100
The SP9900 is a special accessory cable for the SP7100. It is useful if the input interface of the device being used does not support 2-channel CAN signal transmission on one connector. It separates CAN channels 1 and 2 and makes them available on two output connectors. Technical data: Connector type: Sub-D9 Total length: Approx. 390 mm Cable length: Approx. 0.3 m Weight: Approx. 95 g
