SP7100 - 2-channel CAN/CAN FD Interface for Non-Contact Signal Acquisition
CAN/CAN FD interface to analyze 2 CAN buses, for SP7001 sensors and SP9200 screwtype or SP9250 clamp-type probes, 125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output,
DC 10 V to 30 V input
Available stock:
2
Product details
Product number:
SP7100
EAN:
4536036012381
Width:
250 mm
Height:
1200 mm
Weight:
0.36 kg
Product information SP7100 - 2-channel CAN/CAN FD Interface for Non-Contact Signal Acquisition
Detailed Product Overview

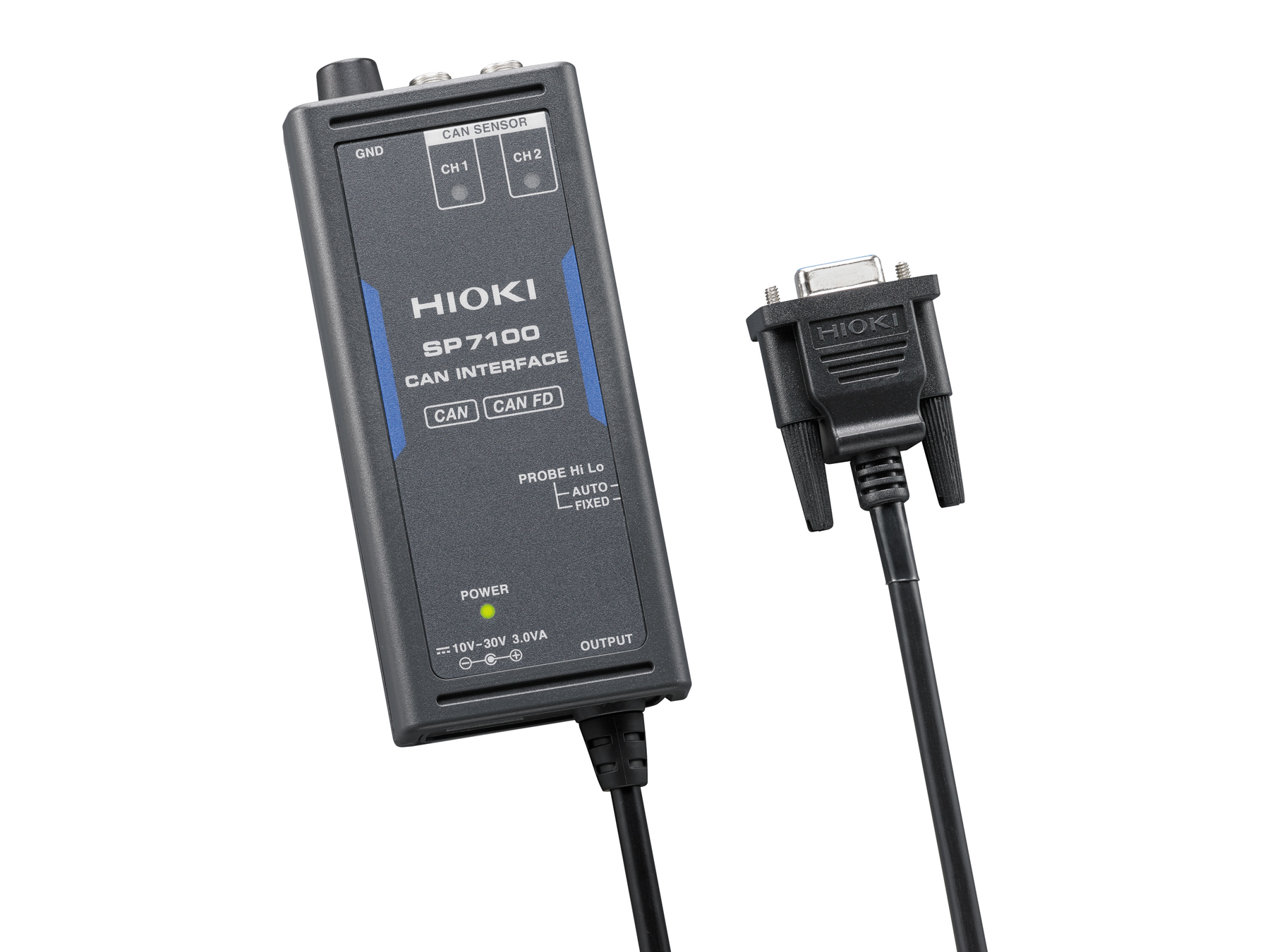

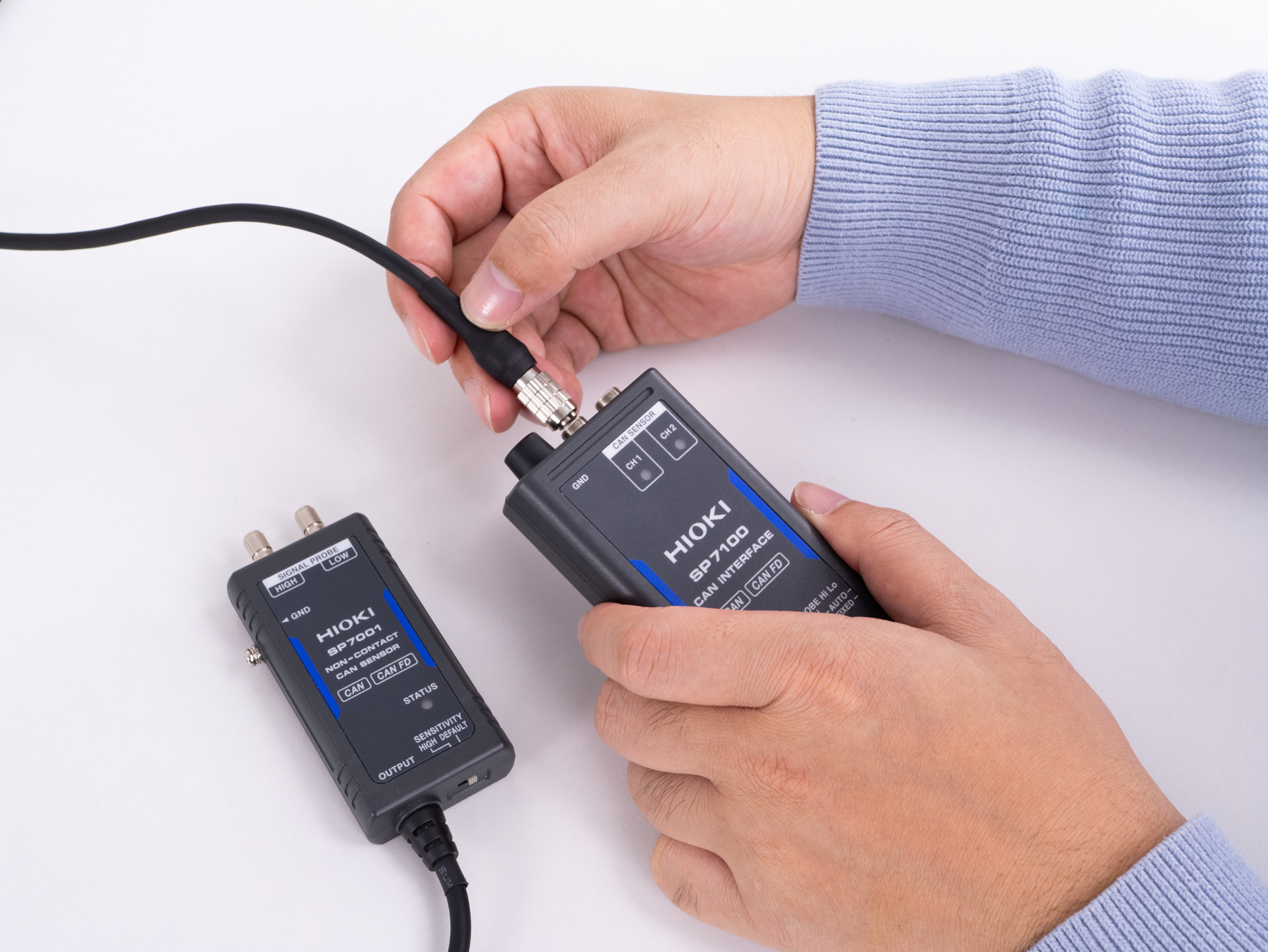

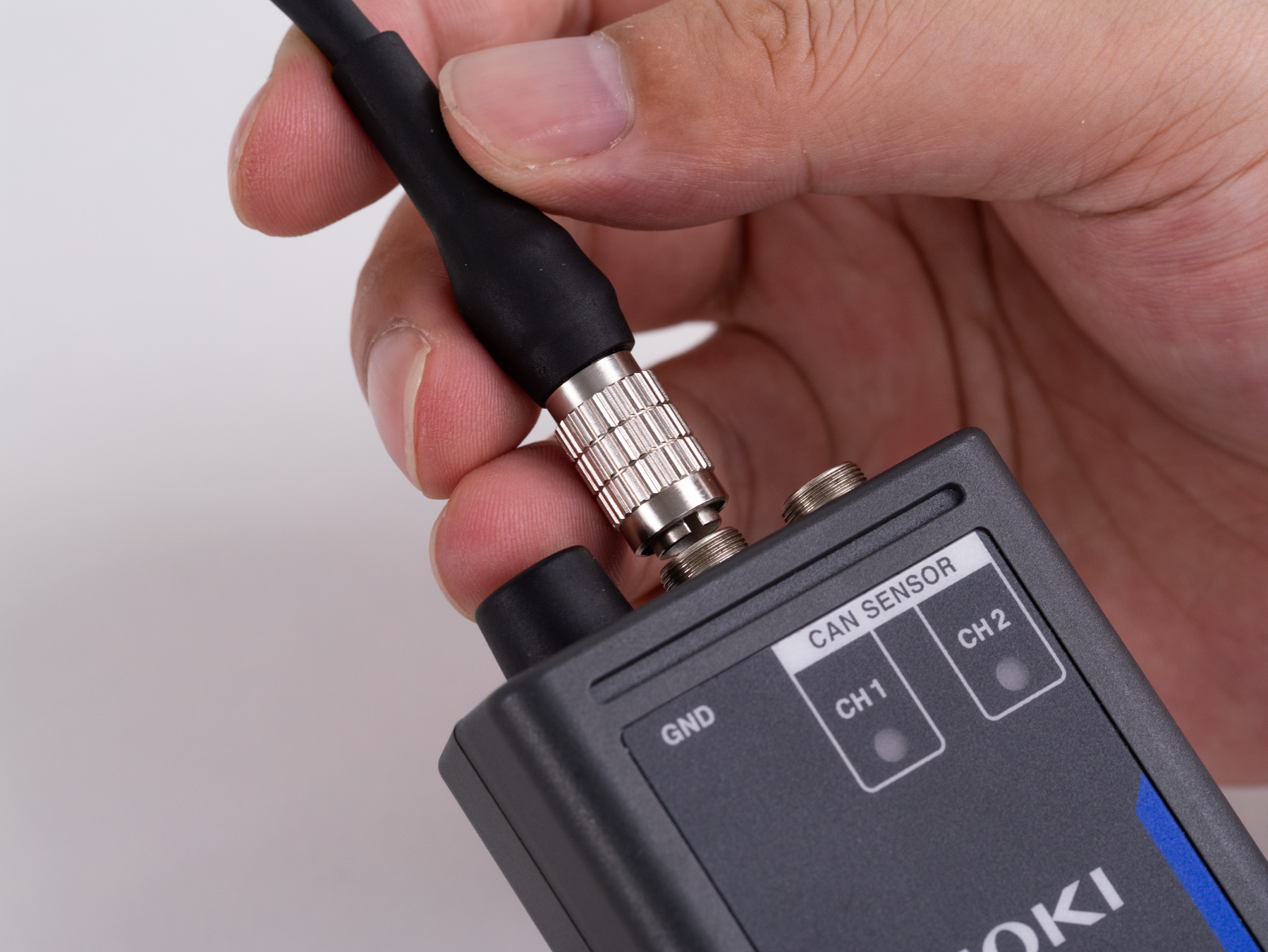

The HIOKI SP7100 CAN Interface is used together with the SP7001 non-contact CAN FD Sensor and the SP9200 screw-type or SP9250 clamp-type probe sets to reconstruct and output CAN or CAN FD signals detected through cable insulation. It provides two independent input channels, allowing simultaneous monitoring of up to two CAN buses.Each channel receives the differential signal captured by an SP7001 sensor and reproduces
a clean, protocol-accurate CAN signal for direct connection to Vector Informatik interfaces or
to HIOKI instruments such as the PW4001 Power Analyzer. Supporting communication
speeds from 125 kbit/s to 3 Mbit/s with a typical delay of 130 ns, the SP7100 ensures precise
timing and waveform fidelity even in high-speed CAN FD applications.

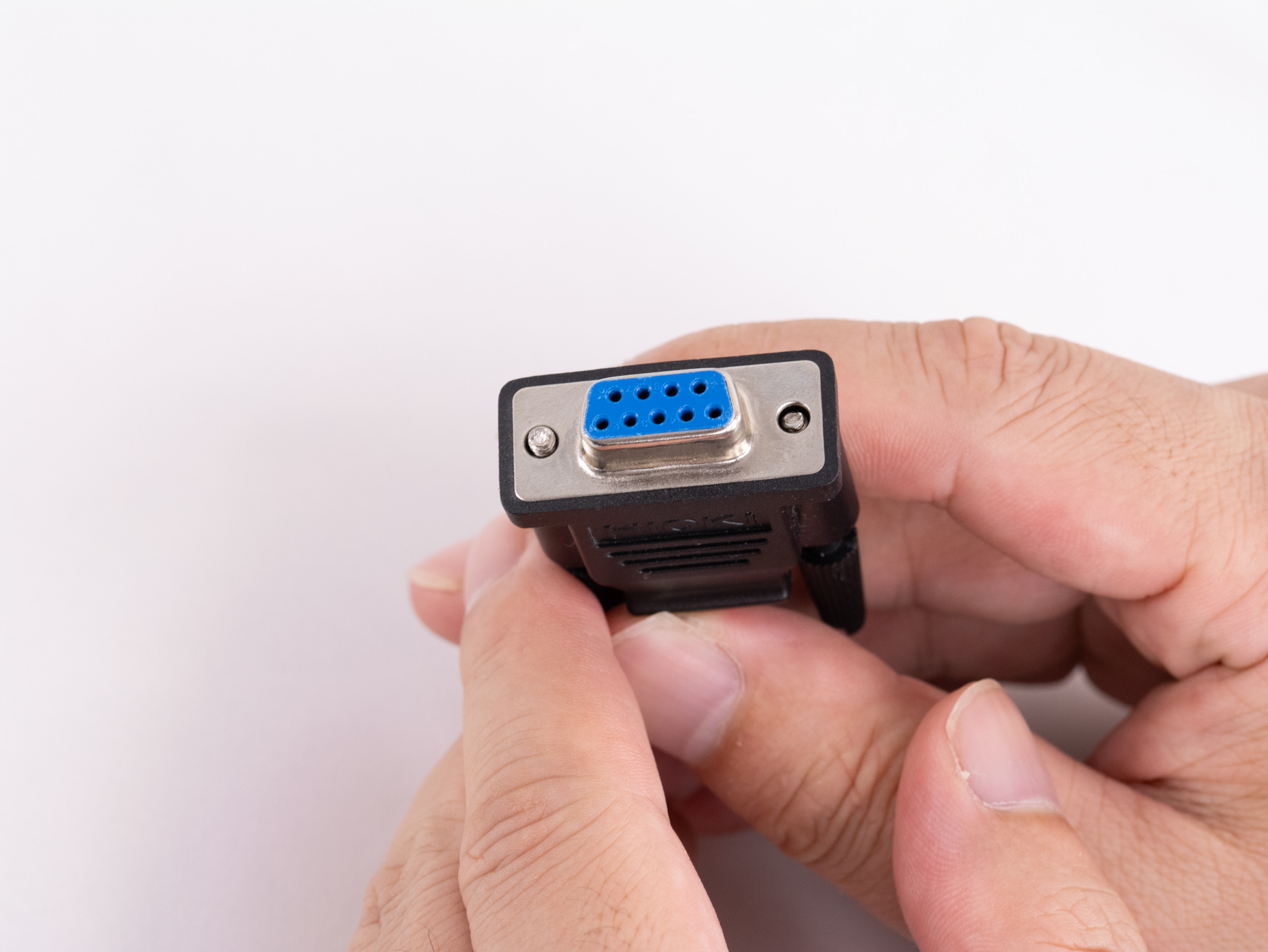

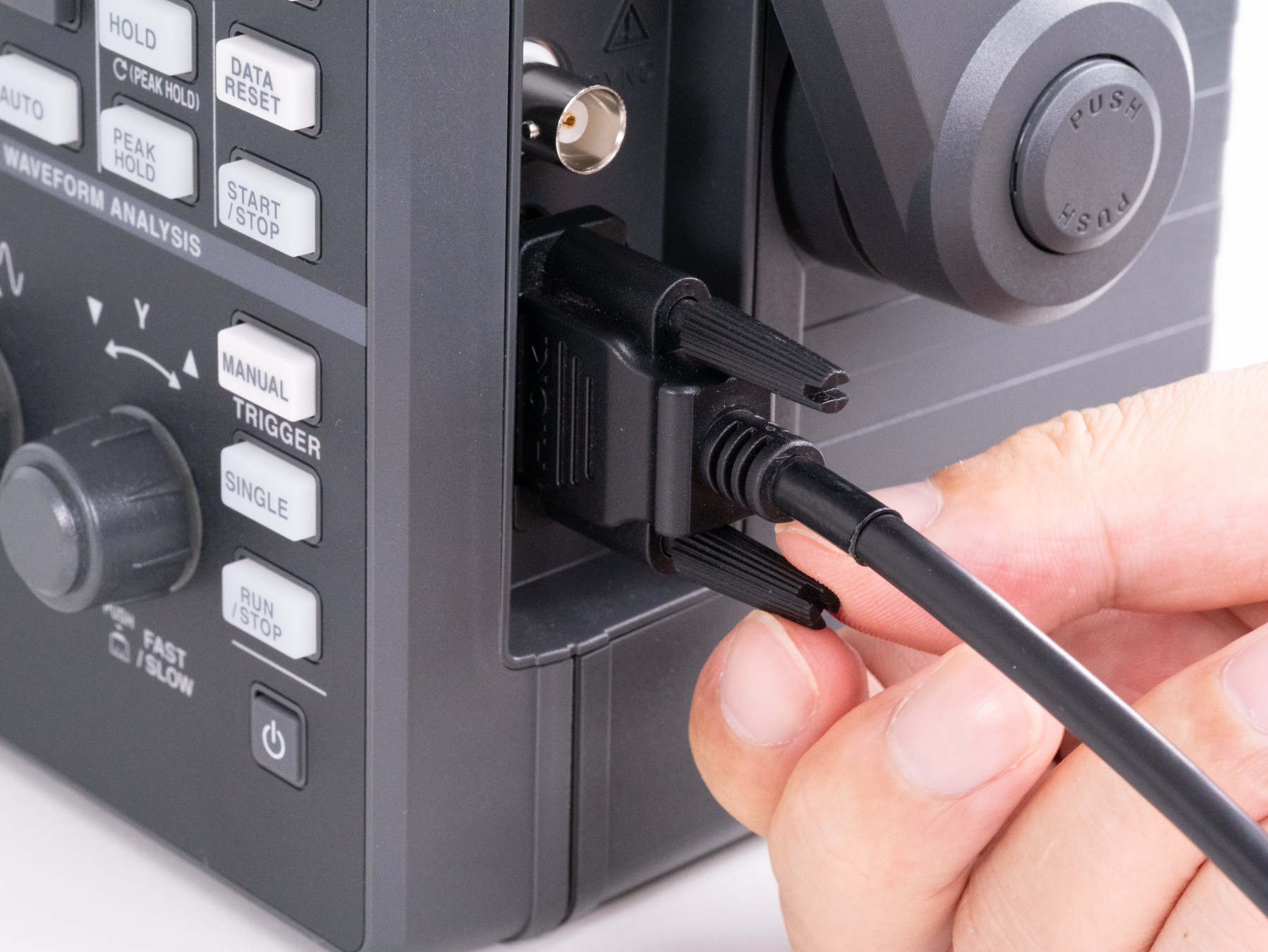

Powered by a 10 to 30 V DC input, the SP7100 is suitable for both in-vehicle and bench-top

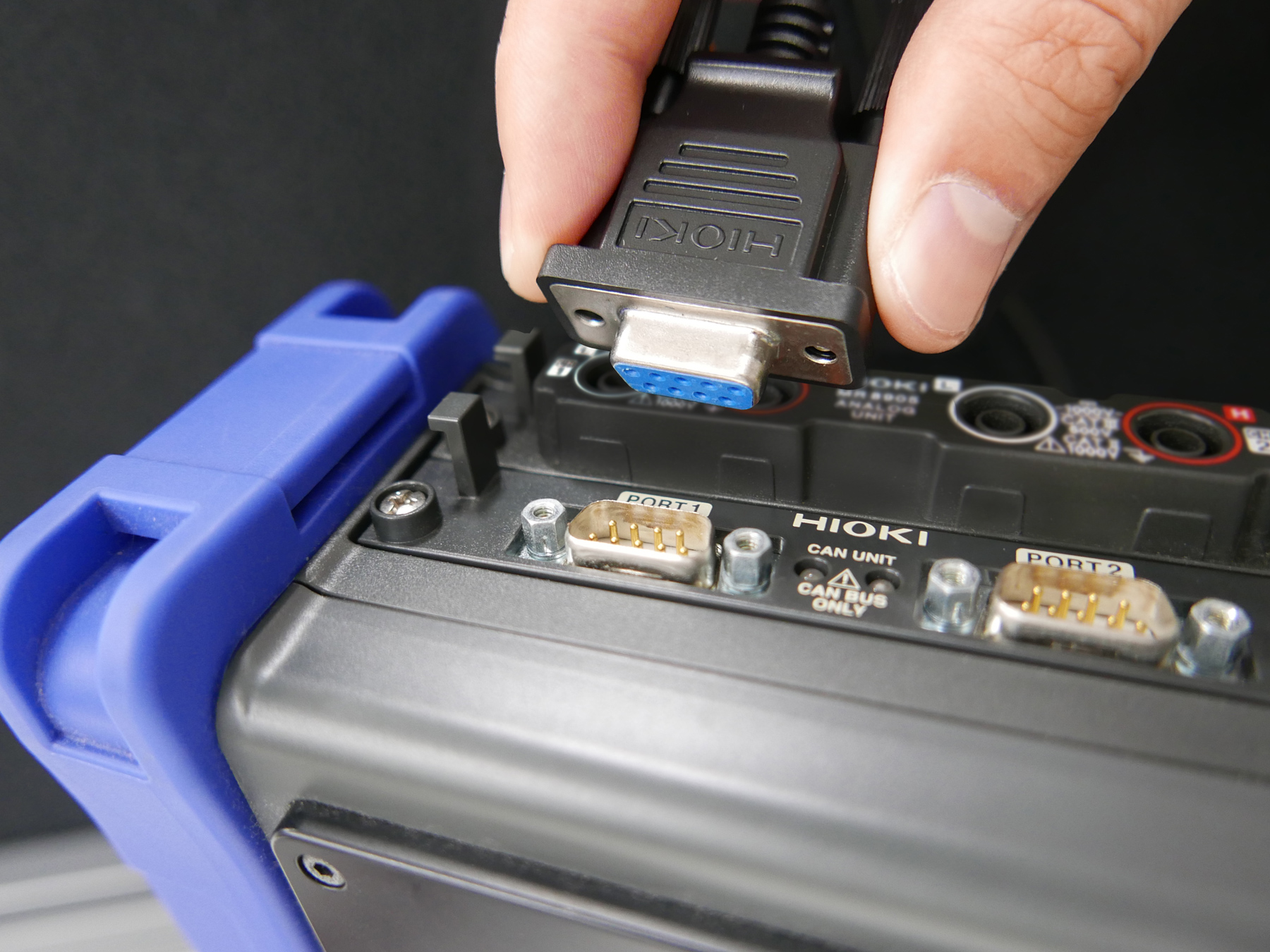

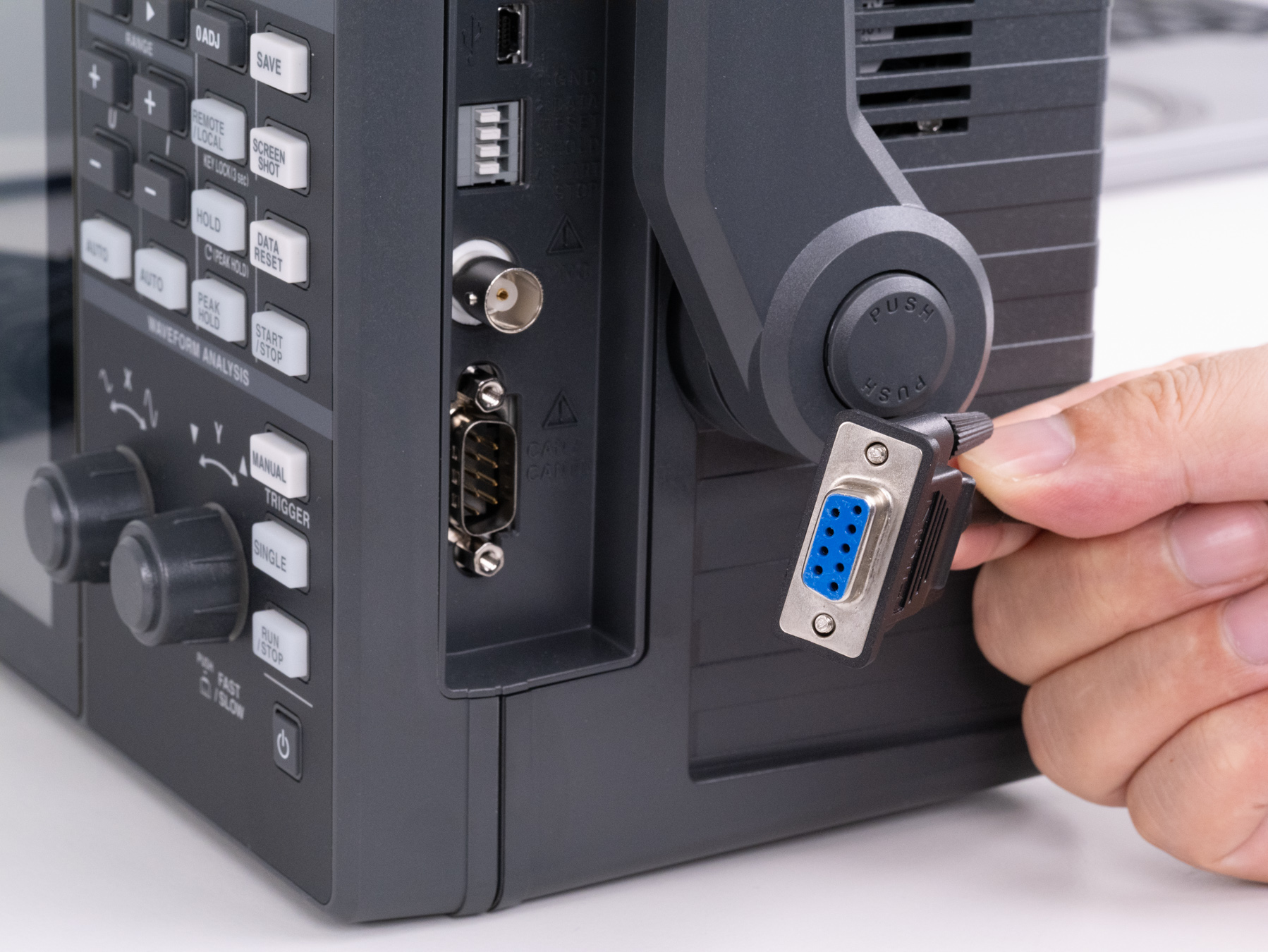

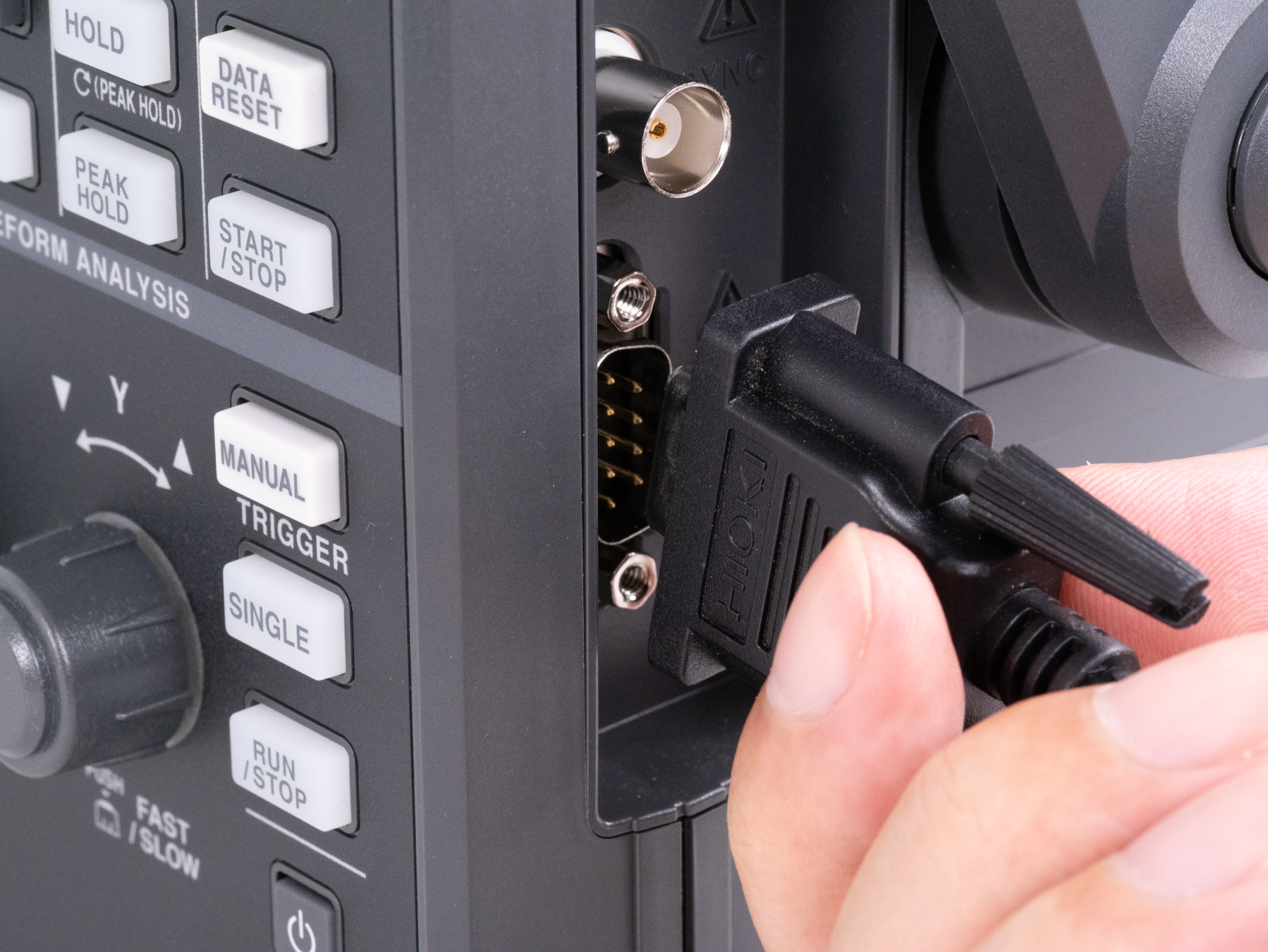

use. Its D-sub 9-pin female output connector follows the Vector-compatible pin assignment
and can be connected directly to CAN analysis tools or to the PW4001 without additional
adapters.
The SP7100 is also included in the SP7001-90 CAN Sensor Set and can be combined with
SP7001 sensors and SP9200 or SP9250 probes to build custom measurement
configurations. To interpret or decode CAN data, a DBC (Database Container) file is required
containing the identifiers and scaling parameters of the target signals.
- SP7100 CAN Interface 2CH
- L9500 Power Cable
- GND Connection Cable (1.5 m)
- Alligator clip, Quick Start Manual, Operating Precautions
Related products
SP7150

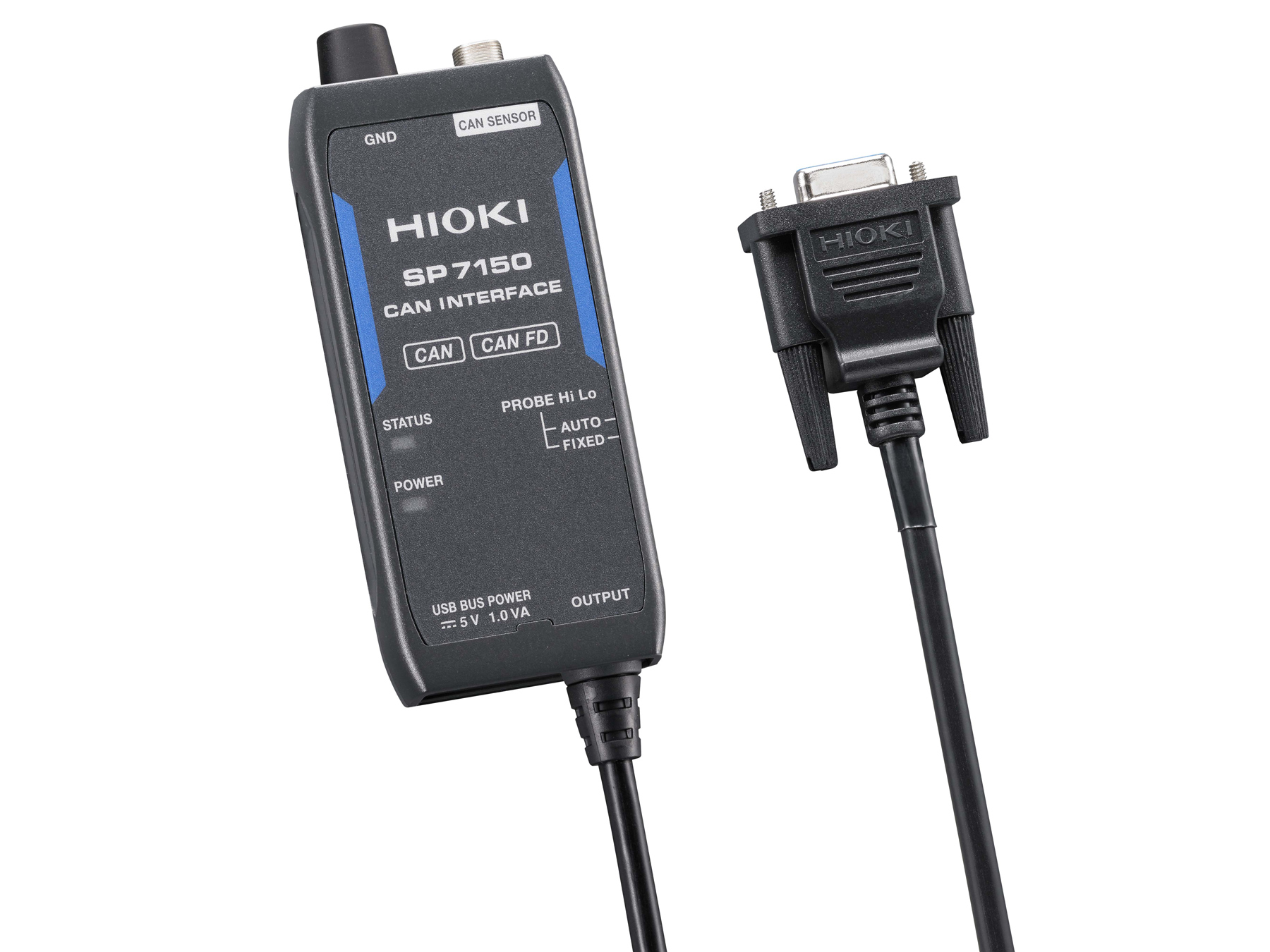

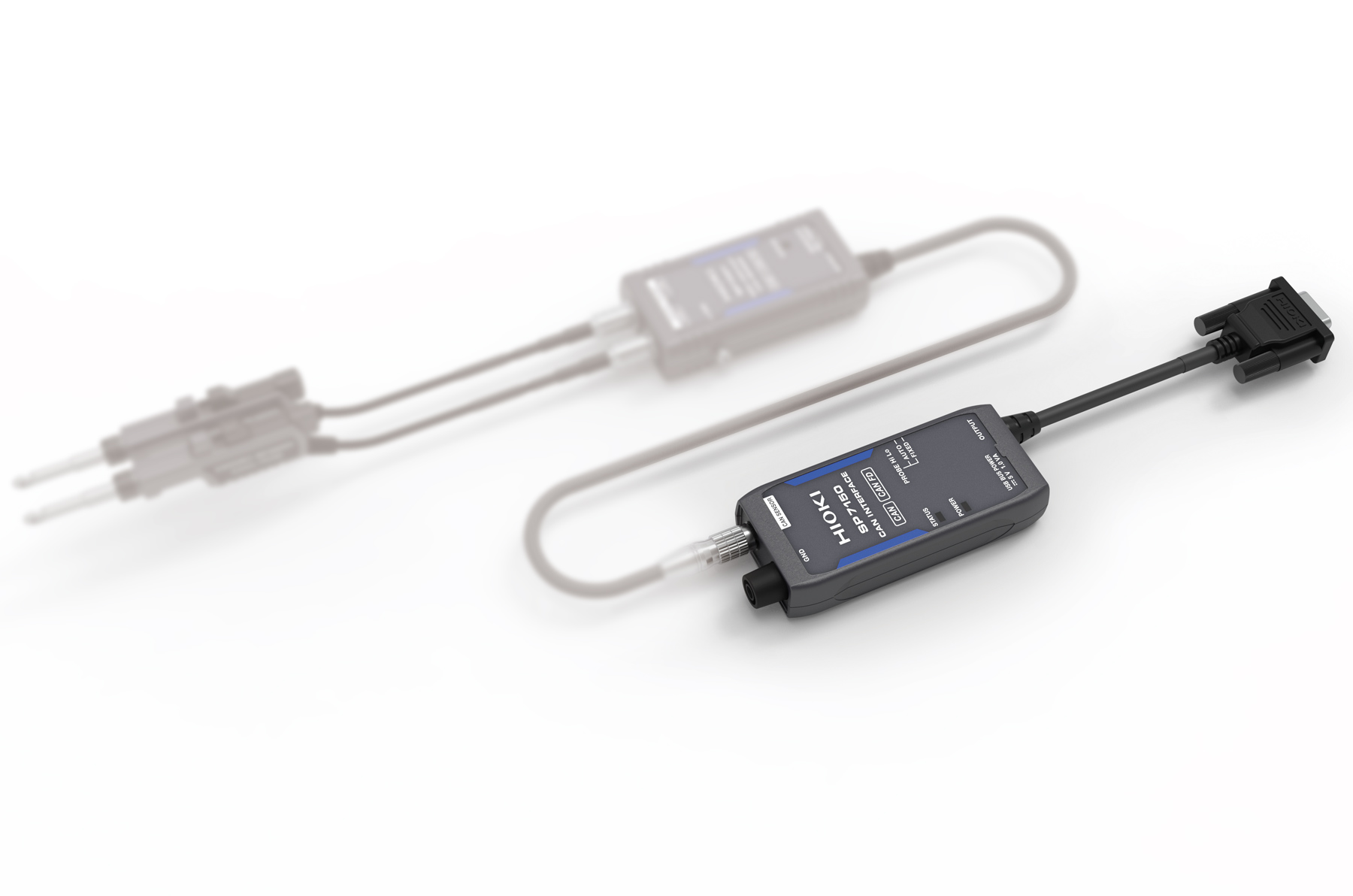

SP7150 - Single-channel CAN/CAN FD Interface for Non-Contact Signal Acquisition
