SP7001-90 - Non-contact CAN/CAN FD Sensor Set, screw type probes, up to 2 CAN buses
Non-contact CAN/CAN FD sensor set, screw type probes, for 1 CAN bus (expandable to 2),
125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output, DC powered, includes SP7001
sensor, SP9200 probes, and SP7100 interface
Available stock:
1
Product details
Product number:
SP7001-90
EAN:
4536036012664
Weight:
1 kg
Product information SP7001-90 - Non-contact CAN/CAN FD Sensor Set, screw type probes, up to 2 CAN buses
Key Specifications
- Signal detection: Capacitive, non-contact, screw type probes (no bare-wire connection)
- Number of CAN buses: 1 bus, expandable to 2
- Communication speed: 125 kbit/s to 3 Mbit/s (CAN / CAN FD)
- Output connector: D-sub 9-pin (female, Vector-compatible / direct connection to PW4001)
- Power supply: 10 to 30 V DC
Unique Advantages
- Enables CAN signal acquisition without stripping cable insulation
Typical Applications
- Non-contact signal capture on in-vehicle CAN and CAN FD buses without cable modification
- Testing of production vehicles and prototypes without altering wiring
- Monitoring of secured or safety-critical ECUs without triggering lockouts
- Power analysis with PW4001 Power Analyzer using CAN-based voltage data combined with current sensors
Detailed Product Overview

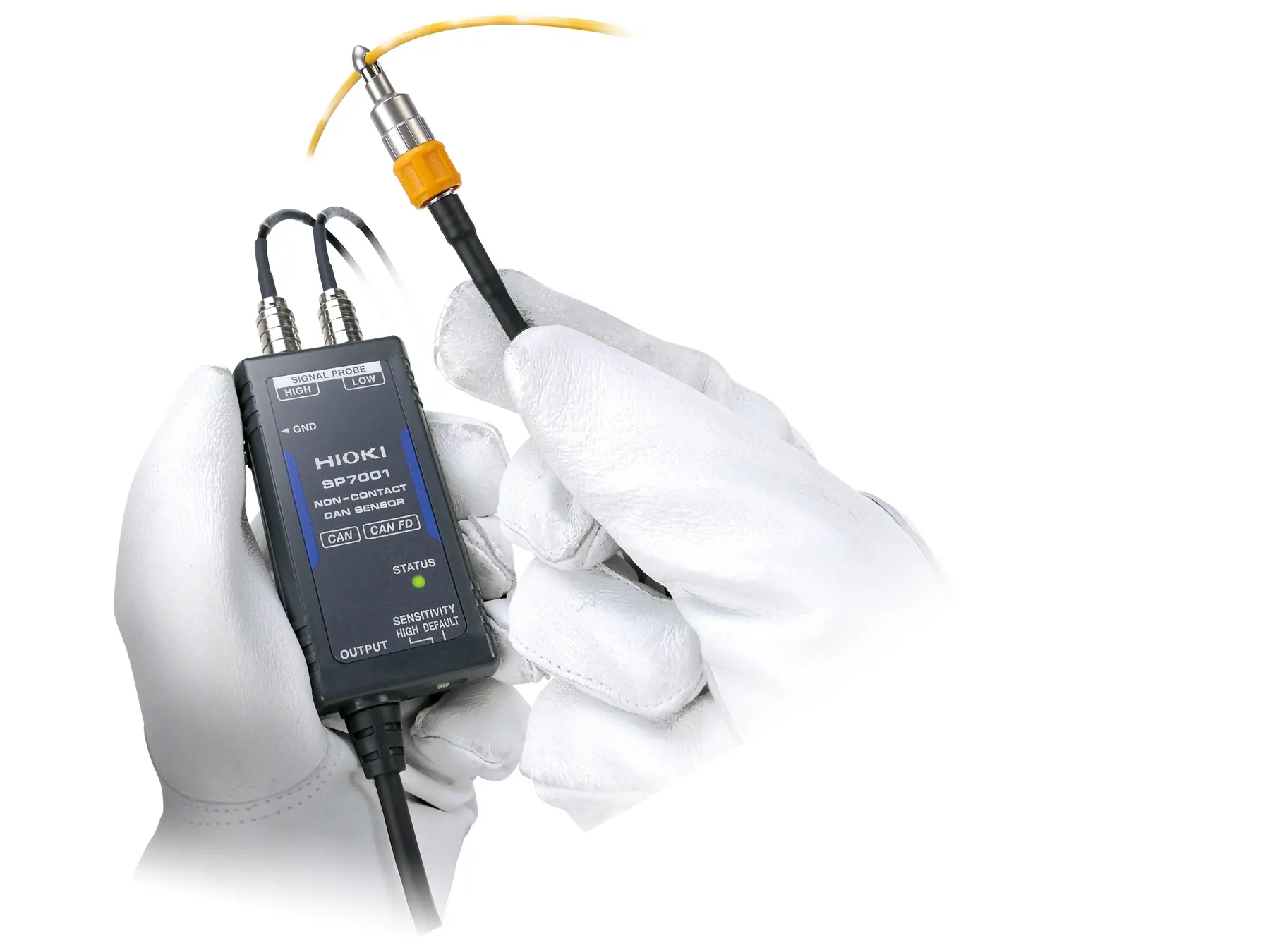

The HIOKI SP7001-90 CAN Sensor Set enables non-intrusive measurement of CAN and
CAN FD signals in long-term or in-vehicle testing environments. It combines the SP7001
non-contact CAN sensor, a pair of SP9200 screw-type signal probes, and the SP7100 CAN
interface to provide stable and vibration-resistant signal acquisition without modifying vehicle

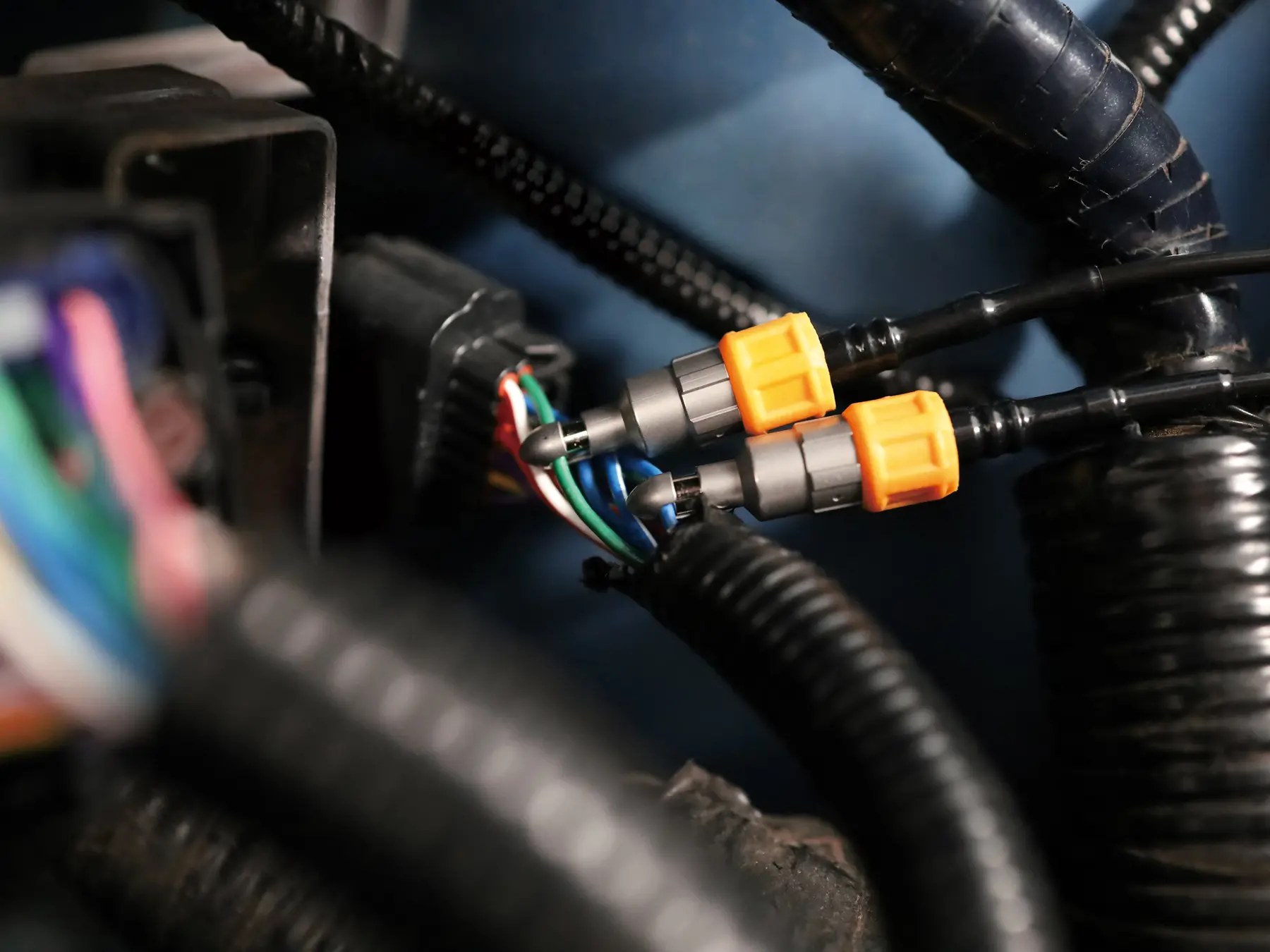

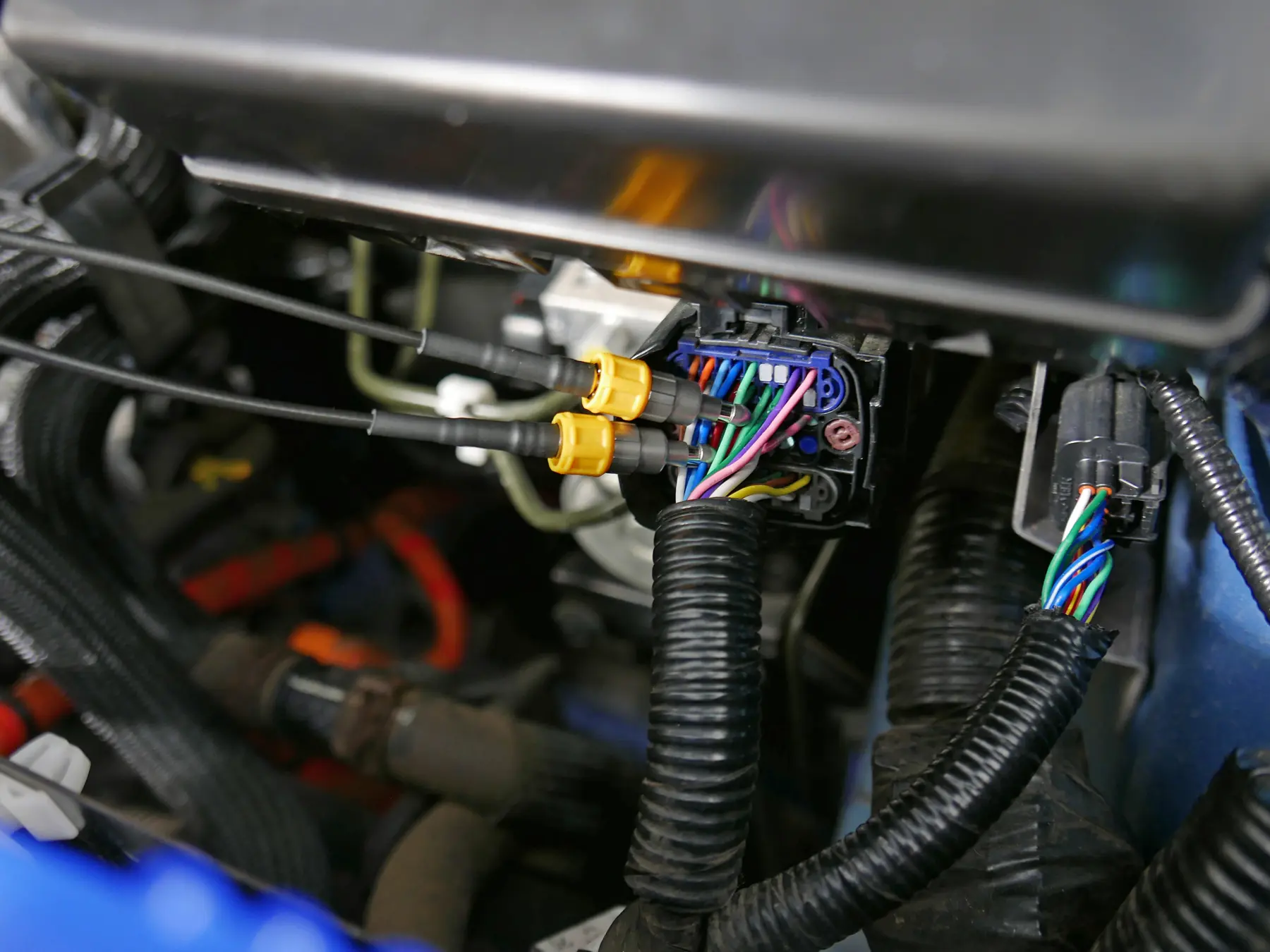

wiring. Using capacitive coupling, the two SP9200 probes are fixed onto the insulated CAN H
and CAN L lines to detect differential signals through the cable sheath. This method enables
accurate, real-time signal acquisition without galvanic contact or interference with the circuit, eliminating the need for wire stripping or connector access and minimizing the risk of short
circuits, connector wear, and induced noise. Because the sensor does not alter bus
characteristics, it avoids triggering ECU lockouts, allowing safe observation of
communication within fully assembled vehicles.
Screw type probes and Vector compatibility

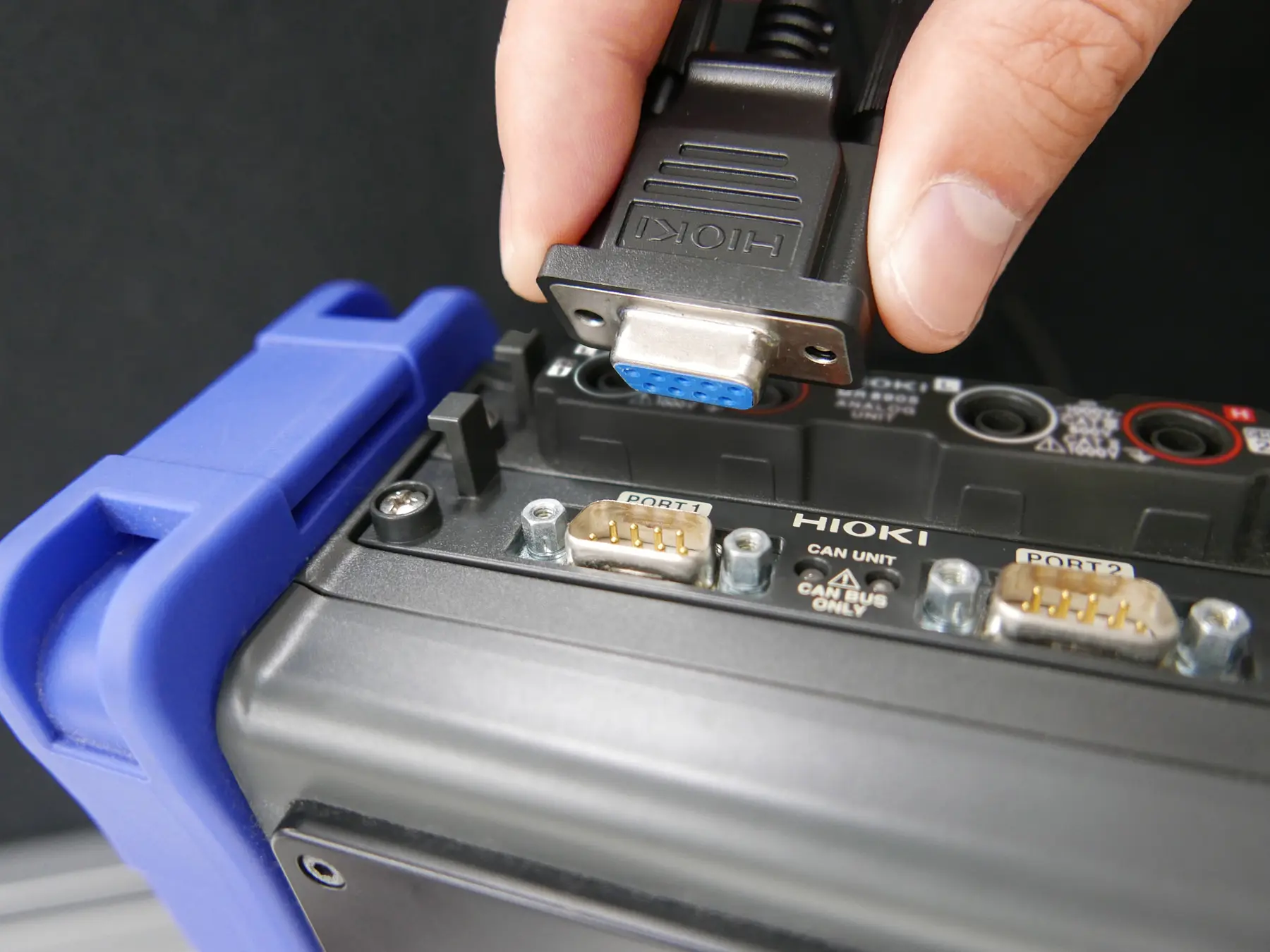

The screw-type design of the SP9200 ensures a secure and vibration-resistant connection, making the configuration particularly suitable for long-term or in-vehicle testing where reliable signal acquisition is required.The SP7100 CAN interface reconstructs the detected signal and outputs it through a 9-pin Dsub connector compatible with Vector Informatik interfaces and the HIOKI PW4001 Power

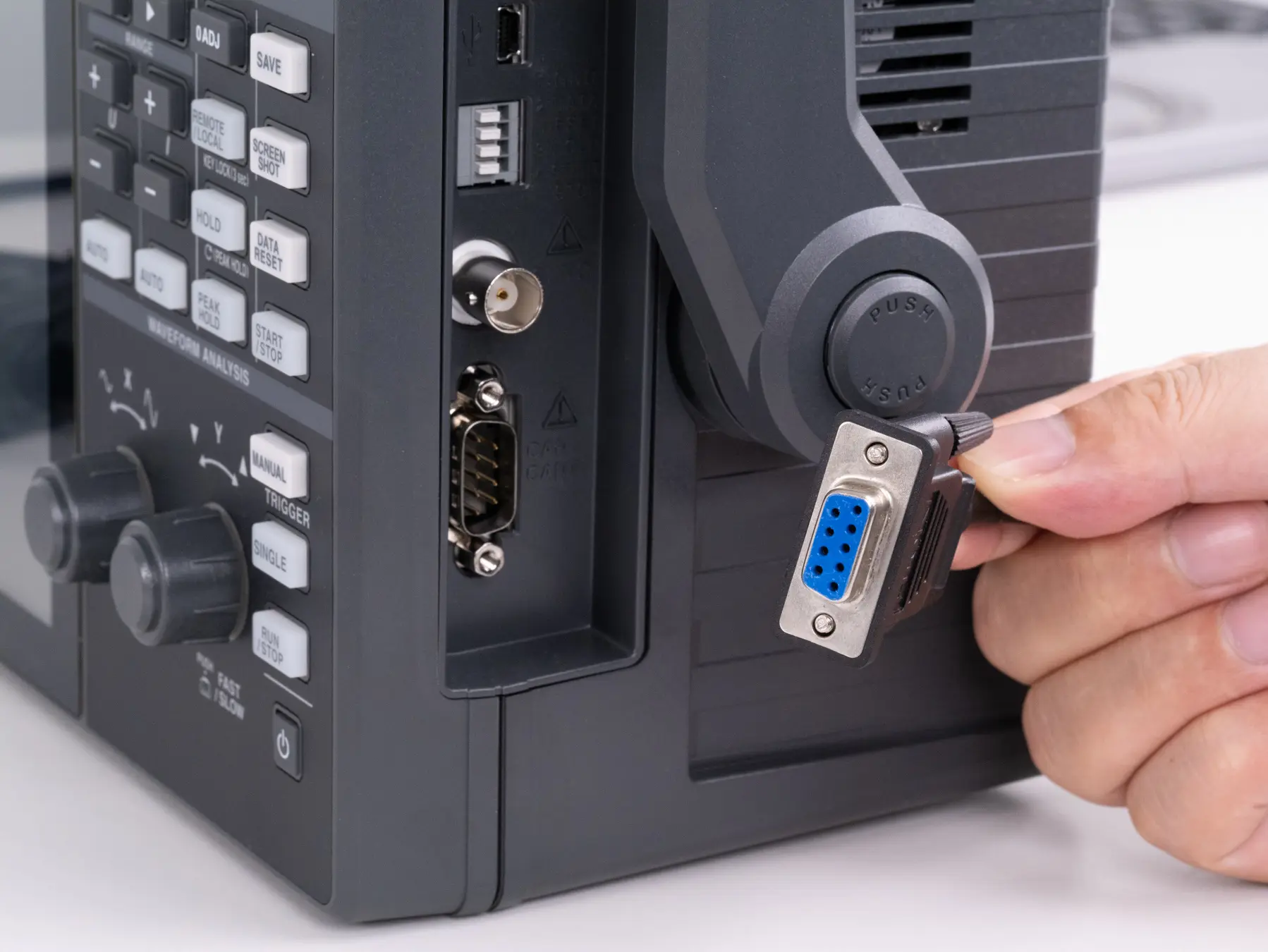

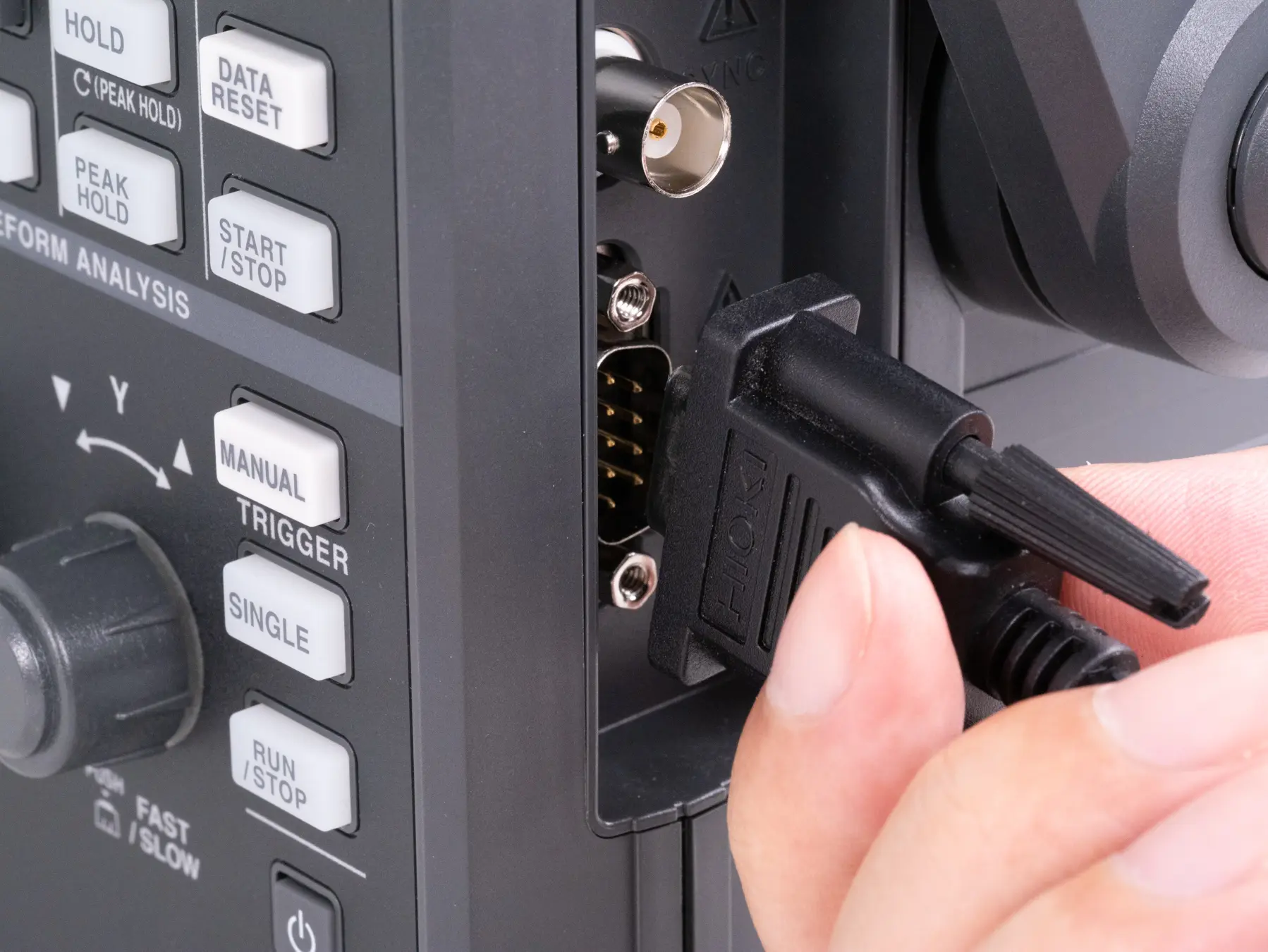

Analyzer. This allows direct connection to CAN analysis tools or to the PW4001 without
additional adapters. Powered via a 10 to 30 V DC supply, the SP7100 provides two input
channels, allowing simultaneous monitoring of up to two independent CAN buses.
Communication speeds from 125 kbit/s to 3 Mbit/s (CAN / CAN FD) are supported, with a
typical delay of 130 ns, maintaining precise timing and waveform integrity even for highspeed CAN FD.
In the SP7001-90 set, one SP7001 sensor and one pair of SP9200 probes are included,
allowing measurement of a single CAN bus. The second input can be used by adding an
additional SP7001 and either an SP9200 screw type or SP9250 clamp type probe set.
Power analysis with PW4001
When connected to the HIOKI PW4001 Power Analyzer, the SP7001-90 provides CANbased voltage data synchronized with current measurements from external current sensors. This configuration enables accurate power calculation on high-voltage systems without direct connection to battery terminals, improving operator safety and test efficiency. To interpret or decode CAN data, the user must provide a DBC (Database Container) file containing the identifiers and scaling parameters of the required signals. The PW4001 uses this information to extract the correct voltage value from the CAN data stream and combine it with the simultaneously measured current for precise power analysis.The SP7001-90 can be used independently with Vector-compatible systems or other CAN
analysis tools. In combination with the HIOKI PW4001 Power Analyzer, it forms a safe, fast,
and reliable solution for non-intrusive CAN signal acquisition and power analysis throughout
the automotive development process.
- SP7001 CAN FD Sensor
- SP9200 Screw Type Signal Probes (set of 2)
- SP7100 CAN Interface 2CH
- L9500 Power Cable

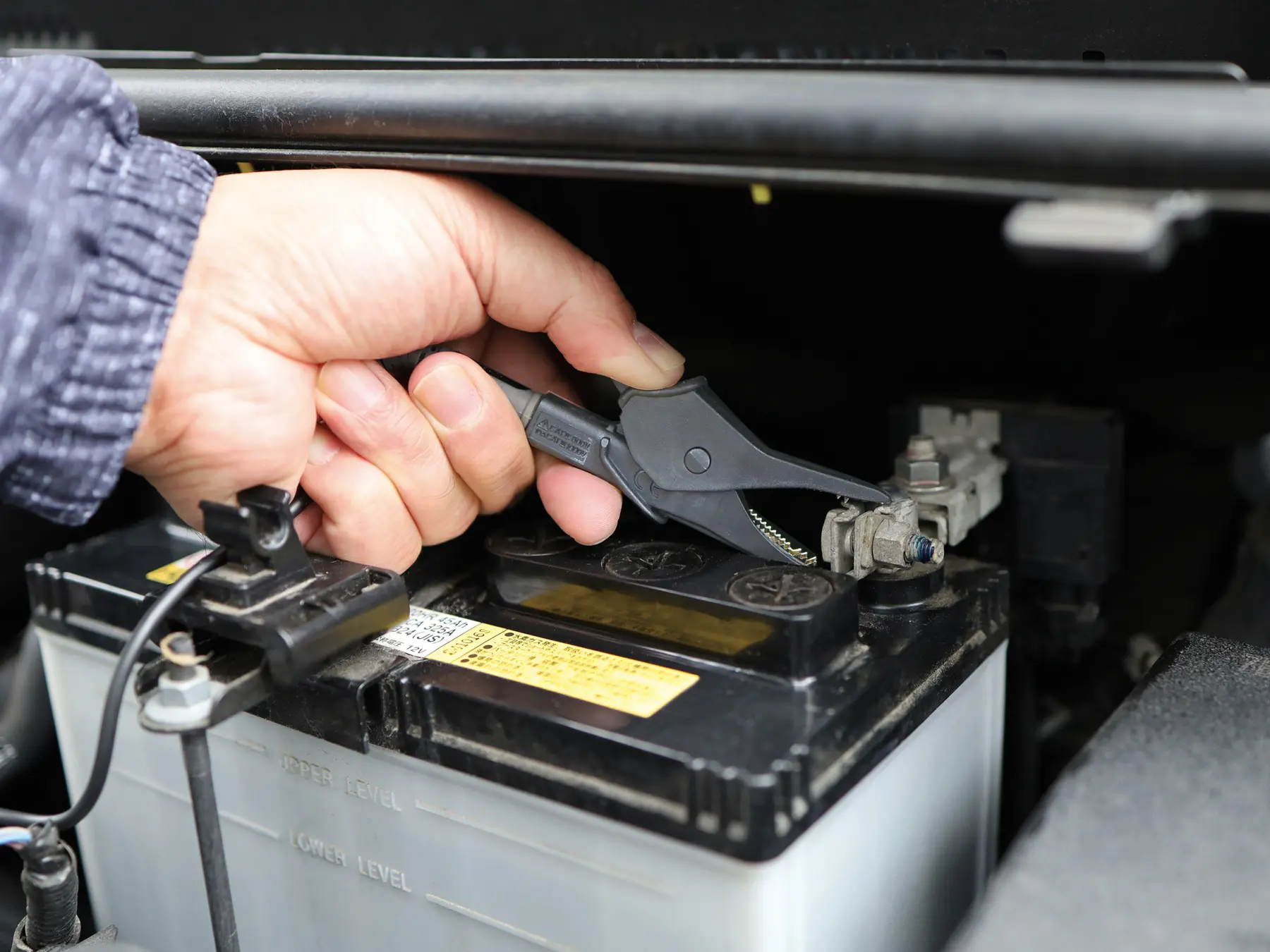

- GND Connection Cable (1.5 m)
- Alligator clip, Quick Start Manual, Operating Precautions
-
