HIOKI Connection Cables for Test and Measurement Instruments

Extend measurement setups and transfer signals

HIOKI connection, extension and conversion cables provide reliable signal connections between measurement instruments, current sensors, probes and accessories. The range includes solutions for power and power quality analysis, current and voltage measurement, and reliable signal transmission, including sensor extension cables, insulated BNC cables, test leads and connection adapters. Select the compatible cable to extend measurement paths, adapt interfaces and integrate instruments efficiently.

42 Products

L1010

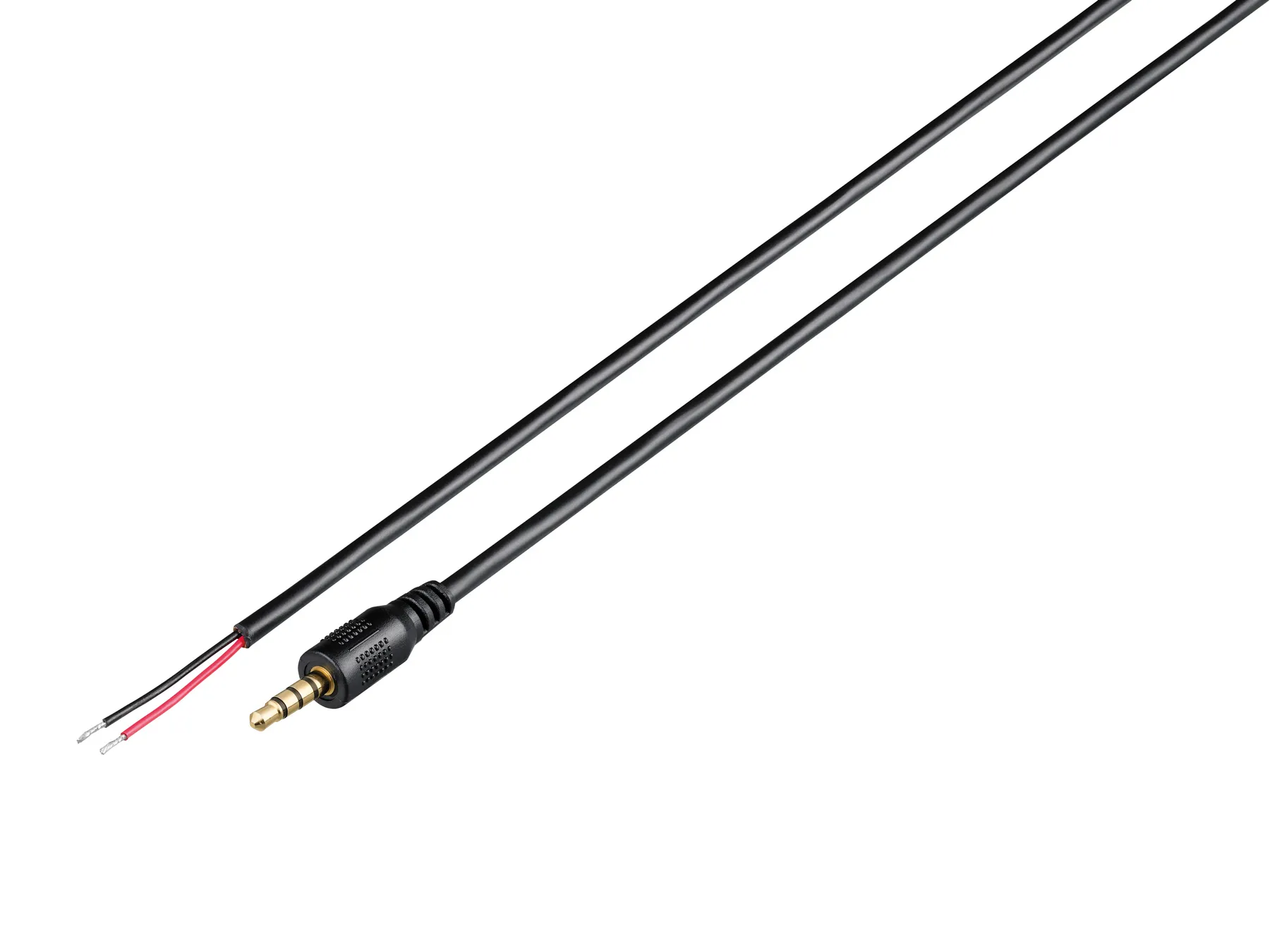

HIOKI L1010 - Connection Cable

The HIOKI L1010 is a connection cable for the Wireless Pulse Logger LR8512 for connecting external pulse, switching and voltage signals. The cable features a 4-pole mini jack on the instrument side and open wire ends on the signal side for direct wiring. It is used for voltage inputs, open collector signals and dry contact inputs. Technical Specifications Cable length: approx. 1.5 m Signal assignment: Tip (positive, red) and sleeve (negative, black), both rings unused Supported signals: DC, open collector, dry contact inputs Related Products LR8512

€28.00

View product

L1021-02

HIOKI L1021-02 - Black Patch Cord

The HIOKI L1021-02 is a black patch cord for connecting and branching voltage cords such as the L9438 and L1000. For use with HIOKI Power Analysers and Power Quality Analysers, the cord features a 4 mm banana plug on one side and a stackable dual banana connector on the other side. It is designed for measurement categories CAT IV 600 V and CAT III 1000 V. Technical Specifications Cable length: 500 mm ±50 mm Connectors: 4 mm banana plug to stackable dual banana connectorMeasurement category: CAT IV 600 V, CAT III 1000 VColour: black Protective caps: both endsRelated ProductsL9438L1000 PW8001PW6001PW4001PW3390PW3365PW3360PQ3198 PQ3100

€28.00

View product

L1021-01

L1021-01 - Red Patch Cord

The HIOKI L1021-01 is a red patch cord for connecting and branching voltage cords such as the L9438 and L1000. For use with HIOKI Power Analysers and Power Quality Analysers, the cord features a 4 mm banana plug on one side and a stackable dual banana connector on the other side. It is designed for measurement categories CAT IV 600 V and CAT III 1000 V.Technical Specifications Cable length: 500 mm ±50 mmConnectors: 4 mm banana plug to stackable dual banana connectorMeasurement category: CAT IV 600 V, CAT III 1000 V Colour: red Protective caps: both ends Related ProductsL9438 L1000PW8001 PW6001 PW4001PW3390PW3365PW3360PQ3198 PQ3100

€22.40 €28.00

View product

9713-01

9713-01 - CAN Cable for MR8904 oder LR8102

The 9713-01 is a CAN -bus adaptor cable from Sub-D9 female to 4-pole unprocessed (open end) wires suitable for MR8904 or LR8102. Technical data: Connector: Sub-D9 female Length: 1.8m Pin assignment: No. 2 > green (CAN_L) No. 3 > black (CAN_GND) No. 7 > red (CAN_H) No. 9 > white (CAN_V+) Cable diameter: Φ 5 mm Single wire diameter: Φ 1 mm Core wire diameter: AWG22 (0.34mm²)

€58.00

View product

9165

HIOKI 9165 - BNC Cable

The 9165 is a 1550 mm long BNC to BNC coaxial cable for reliable signal transmission in test and measurement applications. It features an RG-58A/U coaxial cable with 50 Ohm BNC connectors (BNCP-58A) at both ends and offers high signal integrity. Precision manufacturing makes it ideal for laboratory applications.Technical details: Cable type: RG-58A/U coaxialConnector type: BNC (BNCP-58A), 50 OhmLength: 1550 mm (+20 mm tolerance)Typical Applications Reliable signal transmission for testing and measurement

€48.00

View product

9166

HIOKI 9166 – Connection Cord for HIOKI Measuring Instruments

The Connection Cord 9166 is an accessory for the HIOKI memory recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848, or their measurement modules. It is equipped with a metal BNC connector and small crocodile clips. The small crocodile clips make the connection cord suitable for measurements in confined spaces. In combination with compatible memory recorders, signals can be captured and recorded for analysis. Typical applications: Voltage measurements on electronic circuit boards in inverters, switched-mode power supplies and other electronic circuits Signal and voltage measurements at test points, IC terminals, connectors and exposed wiring Measurements in confined spaces in development, service and laboratory environments Compatible devices (associated measurement module in parentheses): MR8870MR8880 MR8875: (MR8901) MR6000, MR6000-01: (8966, 8968, 8972, U8975, U8976, U8978)MR8827: (8966, 8968, 8972) MR8848: (8966, 8968, 8972, U8975, U8978) MR8740T: (8966, 8968, 8972, U8975, U8978, U8991) MR8740: (8966, 8968, 8972) MR8741: (8966, 8968, 8972)

€48.00

View product

9641

HIOKI 9641 – Connection Cable

Open end cable for 8420 series, 8430, LR8431, LR8432 Technical details Pin Number and Wire Color: 1= Red, 2= White, 3= Black, 4= Yellow, 5= Blue, 6= Green, 7= Brown, 8= Gray Cable Type: PVC, AWG #28 × 8 (UL2835) Connector: Mini-DIN 8P connector Cable Diameter: 4.8 mm PVC-jacketed cable Heat Shrink Tubing: Red, White, Black, Yellow, Blue (color-coded for pins) Insulation Resistance: DC 250V ≥ 500 MΩ Dielectric Strength: AC 250V for 1 minute Overall Length: 1000 mm

€48.00

View product

9642

HIOKI 9642 - LAN Cable

LAN cable, straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m length, for the Memory HiCorder, LR8400 series, and similar products

€58.00

View product

9704

HIOKI 9704 - BNC Adapter, BNC Female to 2 × 4 mm Banana Plug, CAT III 600 V

BNC adapter, BNC female to 2 × 4 mm banana plugs, 19 mm plug spacing, CAT III 600 V

€38.00

View product

CT9900

HIOKI CT9900 - Conversion Cable

The CT9900 conversion cable allows for easy connection between Hioki current sensors and compatible data acquisition devices, ensuring stable signal transmission. Technical Details: Length: 240 mm Connectors: PL23(w 10pin) / ME15W(m 12pin) Compatibility: Hioki current sensors

€138.00

View product

CT9902

HIOKI CT9902 - Extension Cable

The HIOKI CT9902 is a 5-meter extension cable designed for use with ME15W-equipped current transformers (CTs), providing additional length for versatile installations.

€248.00

View product

CT9904

HIOKI CT9904 - Connection Cable for CT9557 and HIOKI Power Analyzers

Connection cable for CT9557 and HIOKI power analyzers with ME15W sensor input, ME15W plug to ME15W socket, 1 m cable length

€178.00

View product
