BT3561A - Battery Tester, 60 V, 30 mOhm

The BT3561A Battery Tester is a high-precision tool designed for quality inspections, development, and maintenance of battery cells, modules, and packs.
BT3561A - Battery Tester, 60 V, 30 mOhm
BT3561A - Battery Tester, 60 V, 30 mOhm
BT3561A - Battery Tester, 60 V, 30 mOhm

When playing embedded videos (YouTube, Vimeo or other sources), data is transmitted to third-party providers. Click "Allow" to allow the loading of third-party content.

BT3561A - Battery Tester, 60 V, 30 mOhm
BT3561A - Battery Tester, 60 V, 30 mOhm
BT3561A - Battery Tester, 60 V, 30 mOhm
BT3561A - Battery Tester, 60 V, 30 mOhm

€2,268.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 2
Product details
Product number: BT3561A
EAN: 4536036013685
Width: 2950 mm
Height: 800 mm
Weight: 3.97 kg

Product information BT3561A - Battery Tester, 60 V, 30 mOhm

The BT3561A Battery Tester is a high-precision tool designed for quality inspections, development, and maintenance of battery cells, modules, and packs. It provides accurate measurement of internal resistance (AC-IR) and open-circuit voltage (OCV), making it ideal for assessing the performance and safety of lithium-ion batteries used in electric vehicles, energy storage systems, and other high-voltage applications. Its compact design, along with LAN interface integration, supports efficient use in automated testing environments, while its improved tolerance for line resistance ensures accurate measurements.

Technical Details:
  • Measurement Method: AC four-terminal method
  • Measurement Frequency: 1 kHz ±0.2 Hz
  • Resistance Measurement Range: 3 mΩ, 30 mΩ, 300 mΩ, 3 Ω
  • Voltage Measurement Ranges: 6 V, 60 V
  • Basic Accuracy: Resistance: ±0.5% rdg ±5 dgt ), Voltage: ±0.01% rdg ±3 dgt
  • Max. Input Voltage: ±60 V DC
  • Interface: LAN (TCP/IP, 10BASE-T/100BASE-TX), RS-232C
  • BT3561A
  • Instruction manual
  • connection cables

Related products

L2100 - PIN TYPE LEAD
L2100
L2100 - PIN TYPE LEAD
L2100 - Pin Type Lead The L2100 is a pin type lead designed for high voltage battery measurements with robust insulation and long reach for precise readings. Technical Details: Dimensions: A: 300 mm, B: 172 mm, L: 1400 mm Max voltage: 1000 V DC Compatibility: BT3562, BT3563, BT3564

€398.00*
View product
L2110 - CONTACT TIPS
L2110
L2110 - CONTACT TIPS
The Hioki L2110 Pin Type Lead is a high-voltage, four-terminal test lead designed for measuring high-voltage battery packs and cells with input-to-ground voltages up to 1000 V DC. It features two parallel 1.8 mm extendable spring-loaded pins that ensure stable connections, making it ideal for precise testing through battery terminal inspection holes. With a robust design and gold-plated pin tips, the L2110 provides reliable performance in high-voltage environments. Suitable for use in research, industrial testing, and quality control applications. Technical Information: Maximum Rated Voltage: 1000 V DC Rated Current: 2 A DC continuous Pin Tip Diameter: 1.8 mmTotal Length: 1880 mm Operating Temperature: 0°C to 40°C Weight: Approx. 210 g Accessories Included: Instruction manual Optional Replacement: 9772-90 Tip Pin

€568.00*
View product
9772-90 - Tip pin 9772-90 - Tip pin
9772-90
9772-90 - Tip pin
The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded

€38.00*
View product
9770 - PIN TYPE LEAD 9770 - PIN TYPE LEAD
9770
9770 - PIN TYPE LEAD
The Hioki 9770 Pin-Type Lead is designed for precise resistance measurements on small objects, such as battery terminals. Its coaxial pin with a diameter of 1.8 mm ensures easy and accurate contact during measurements. The 9770 model utilizes a 4-terminal structure to deliver precise and reliable results in industrial applications. Technical Details: Coaxial pin, diameter: 1.8 mm Continuous current: AC/DC 3 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 860 mm Weight: approx. 110 gSpare parts: 9770-90 tip pin

€338.00*
View product
9770-90 - TIP PIN 9770-90 - TIP PIN
9770-90
9770-90 - TIP PIN
The Hioki 9770-90 is the replacement measurement tip for the Hioki 9770. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded

€68.00*
View product
9771 PIN TYPE LEAD 9771 PIN TYPE LEAD
9771
9771 PIN TYPE LEAD
The Hioki 9771 Pin-Type Lead is developed for precise inspection of PCBs, through holes, and SMD components. It features parallel pins spaced 0.2 mm apart with a four-sided pyramid tip, making it ideal for measuring small objects on PCBs. This model also uses a 4-terminal structure to provide accurate and efficient measurements. Technical Details: Parallel pin, spacing: 0.2 mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 860 mm Weight: approx. 110 g Spare parts: 9771-90 tip pin Surface of contacs: gilded

€458.00*
View product
9771-90 - TIP PIN 9771-90 - TIP PIN
9771-90
9771-90 - TIP PIN
The Hioki 9771-90 is the replacement measurement tip for the Hioki 9771. Technical Detail: Parallel pin, spacing: 0.2 mm Contact surface: gilded"

€148.00*
View product
L2107 - Four-wire measuring cable with Kelvin clips for 3540/3561/RM3548
L2107
L2107 - Four-wire measuring cable with Kelvin clips for 3540/3561/RM3548
The L2107 clip type lead with Kelvin clamps is an accessory for 3226, 3227, 3239, 3541, 3540, 3561, BT3562, BT3563, RM3548. Technical Details: • Operating environment: Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) • Operating temperature and humidity: 0°C to 40°C (32°F to 104°F), 80% RH or less (no condensation) • Storage temperature and humidity: -10°C to 50°C (14°F to 122°F), 80% RH or less (no condensation) • Dimensions: Overall length approx. 1100 mm (43.31"") • Mass: Approx. 125 g (4.4 oz.) • Rated current: 3 AAC/DC continuous • Maximum rated voltage to earth: 30 V rms, 42.4 V peak, 60 V DC • Cable flex service life: 15,000 times until a break develops (under conditions specified by Hioki) • Spring service life: 15,000 open/close cycles (under conditions specified by Hioki)

€168.00*
View product
9453 - Four-wire measuring cable 9453 - Four-wire measuring cable
9453
9453 - Four-wire measuring cable
The 9453 is of 4-pole design. It can be used to perform the 4-pole resistance measurement method. The 9453 test lead has four separate tips in red and black. Two are small alligator clips and two are probes with tips. Technical details: Length: 1350mm Measuring devices (accuracy guaranteed): 3227, 3540, 3541, 3555, 3560, 3561, BT3562, BT3563 (operating voltage below 60V)

€118.00*
View product
9467 - Four-wire measuring cable with large terminals 9467 - Four-wire measuring cable with large terminals
9467
9467 - Four-wire measuring cable with large terminals
The 9467 four-pole design measurement lead features large alligator clips for clamping onto lead-acid battery terminals, supporting operating voltages up to 50V.Technical details: Compatibility: Hioki 3227, 3540, 3541, 3550, 3551, 3554, 3560, 3561, BT3554, BT3554-01, BT3562, BT3563 (for operating voltages below 50V), RM3548Mass: 165g Length: 1.3m

€248.00*
View product
Z5038 - Zero Adjustment Board
Z5038
Z5038 - Zero Adjustment Board
The HIOKI Z5038 Zero setting board is an accessory for Hioki battery testers to do a defined zero adjustment with HIOKI test leads.

€48.00*
View product
9637 - RS232 Crossover-Kabel 9637 - RS232 Crossover-Kabel
9637
9637 - RS232 Crossover-Kabel
The 9637 is a RS-232c cross type cable for two-way communication between PC or other controlling device and a Hioki Product equipped with RS232c interface as feature or option. Technical Details: Connectors: 9pin female (both ends) Cable Type: Cross Length: 1.8m

€38.00*
View product
20 %
9151-02 - GP-IB CONNECTOR CABLE
9151-02
9151-02 - GP-IB CONNECTOR CABLE
The GPIB connector cable is a 2-meter long cable designed for use with all Hioki products that are equipped with a GPIB interface. This cable ensures reliable connectivity and data transfer for your test and measurement equipment. Technical Details: Cable type: GPIB connector cable Length: 2 meters Compatible devices: All Hioki products with GPIB interface

€270.40* €338.00*
View product

Other products in this category

BT3561A - Battery Tester, 60 V, 30 mOhm BT3561A - Battery Tester, 60 V, 30 mOhm
BT3561A
BT3561A - Battery Tester, 60 V, 30 mOhm
The BT3561A Battery Tester is a high-precision tool designed for quality inspections, development, and maintenance of battery cells, modules, and packs.

€2,268.00*
View product

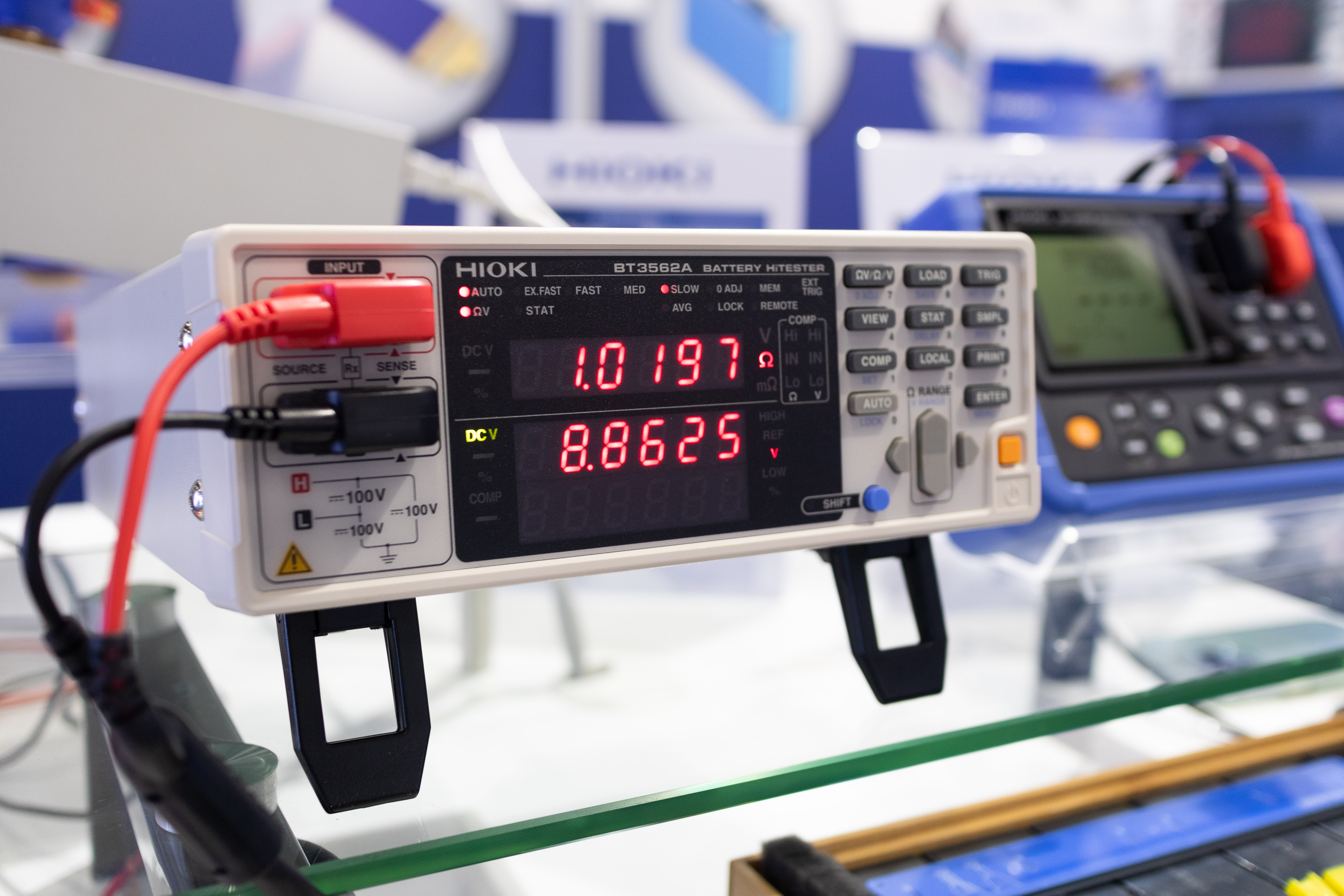

BT3562A - Battery Tester, 100 V, 3 mOhm BT3562A - Battery Tester, 100 V, 3 mOhm
BT3562A
BT3562A - Battery Tester, 100 V, 3 mOhm
The Hioki BT3562A Battery Tester is an advanced measurement instrument designed for fully automated testing of battery packs, particularly in electric vehicles (xEVs).

€2,948.00*
View product
BT3563A - Battery Tester, 300 V, 3 mOhm BT3563A - Battery Tester, 300 V, 3 mOhm
BT3563A
BT3563A - Battery Tester, 300 V, 3 mOhm
The Hioki BT3563A Battery HiTester is an advanced measurement instrument, ideal for fully automated testing of large battery packs, particularly in electric vehicles (xEVs).

€3,178.00*
View product
BT3564 - Battery Tester, 1000 V, 3 mOhm BT3564 - Battery Tester, 1000 V, 3 mOhm
BT3564
BT3564 - Battery Tester, 1000 V, 3 mOhm
The Hioki BT3564 Battery Tester is an advanced measurement instrument ideal for fully automated testing of large battery packs, particularly in electric vehicles (xEVs).

€4,868.00*
View product
BT4560-50 - Battery Impedance Meter, 0.01 Hz to 1050 Hz BT4560-50 - Battery Impedance Meter, 0.01 Hz to 1050 Hz
BT4560-50
BT4560-50 - Battery Impedance Meter, 0.01 Hz to 1050 Hz
Battery impedance meter, for Li-Ion battery testing, low-frequency AC-IR method without charge and discharge, R, X, Z and Phase angle measurement.

€5,148.00*
View product

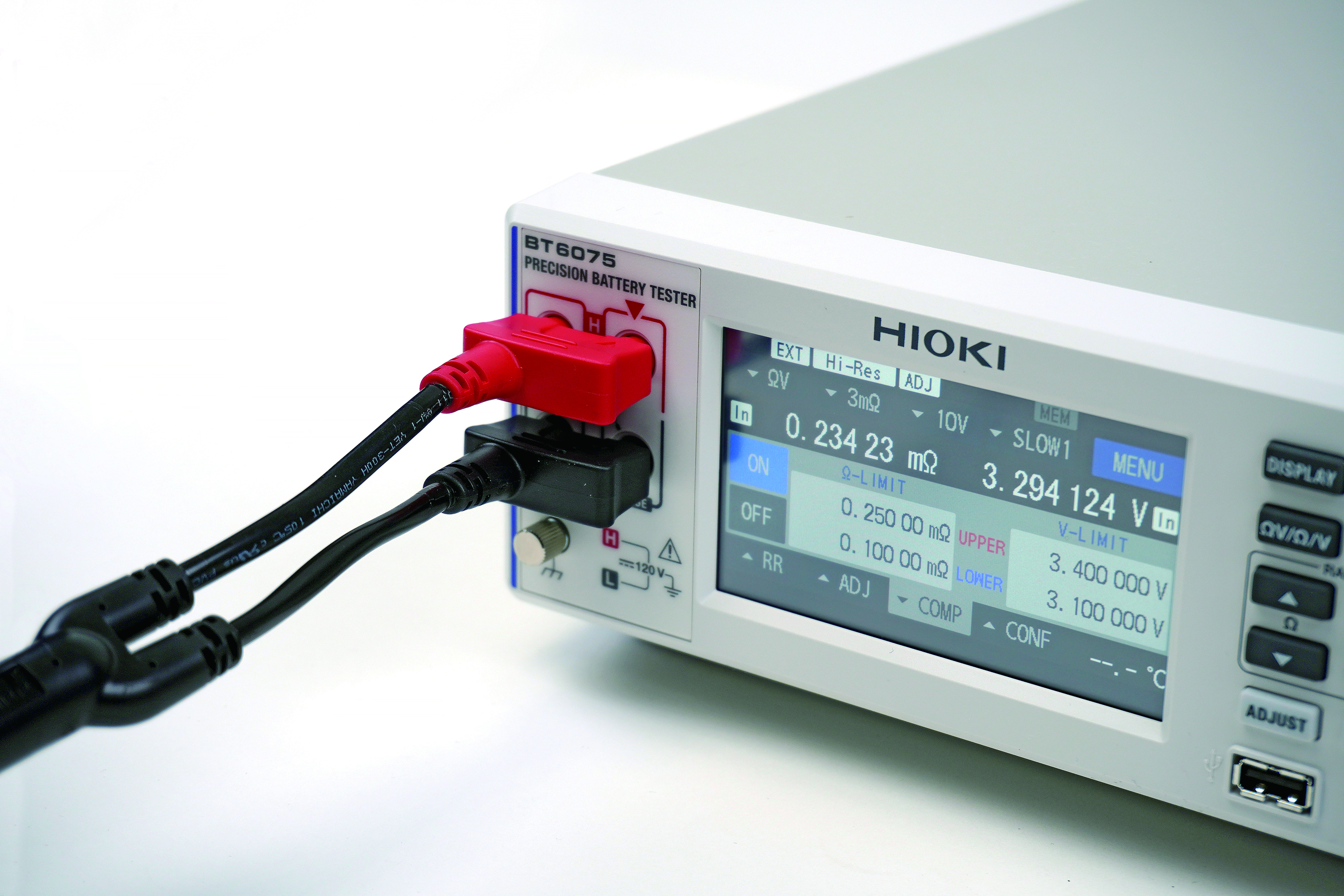

BT6075 - precision battery tester and 7.5 digit voltmeter BT6075 - precision battery tester and 7.5 digit voltmeter
