L2107 - Four-wire measuring cable with Kelvin clips for 3540/3561/RM3548

€168.00*

Content: 1 Each

Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 2

Product details

Product number: L2107

EAN: 4536036004249

Weight: 0.14 kg

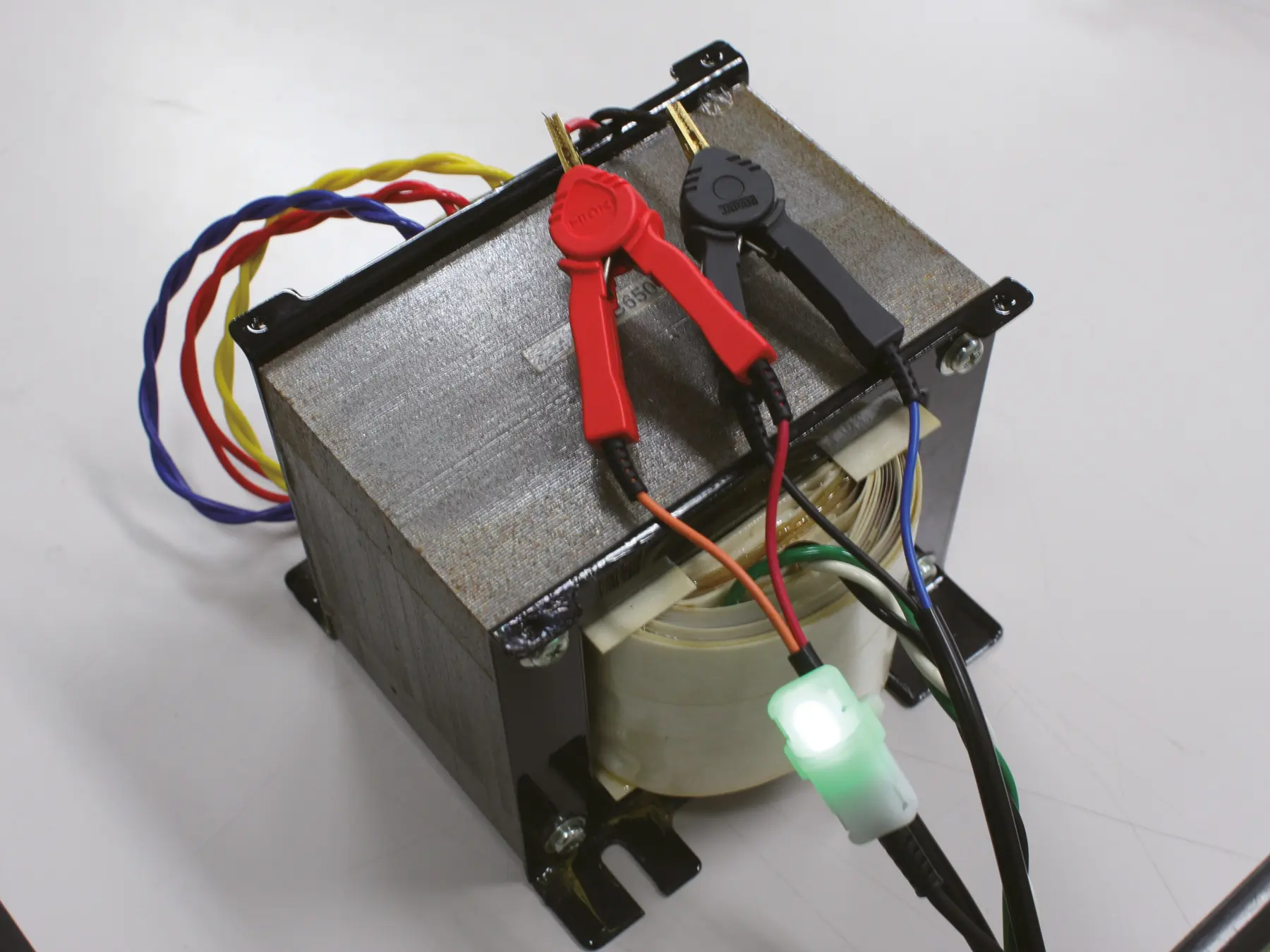

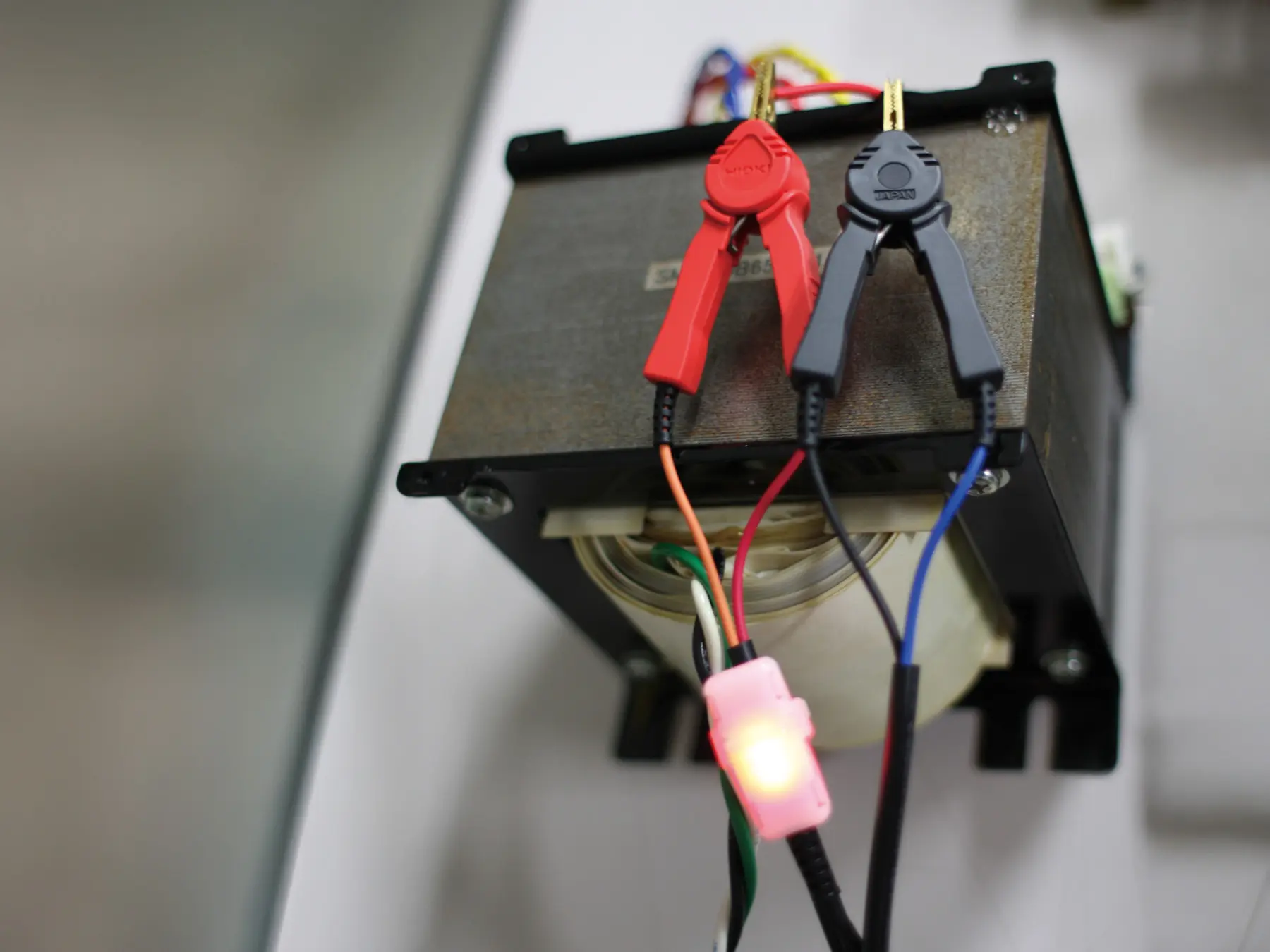

Product information "L2107 - Four-wire measuring cable with Kelvin clips for 3540/3561/RM3548"

The L2107 clip type lead with Kelvin clamps is an accessory for 3226, 3227, 3239, 3541, 3540, 3561, BT3562, BT3563, RM3548.

Technical Details:

• Operating environment: Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.)

• Operating temperature and humidity: 0°C to 40°C (32°F to 104°F), 80% RH or less (no condensation)

• Storage temperature and humidity: -10°C to 50°C (14°F to 122°F), 80% RH or less (no condensation)

• Dimensions: Overall length approx. 1100 mm (43.31"")

• Mass: Approx. 125 g (4.4 oz.)

• Rated current: 3 AAC/DC continuous

• Maximum rated voltage to earth: 30 V rms, 42.4 V peak, 60 V DC

• Cable flex service life: 15,000 times until a break develops (under conditions specified by Hioki) • Spring service life: 15,000 open/close cycles (under conditions specified by Hioki)

L2107
