HIOKI L2100 - PIN TYPE LEAD

€418.00

Content: 1 Each

In stock in Germany

€418.00

HIOKI L2100 - PIN TYPE LEAD

Product number: L2100

Available stock: 1

GTIN/EAN: 4536036008971

Length: 1500 mm

Weight: 0.18 kg

Product information HIOKI L2100 - PIN TYPE LEAD

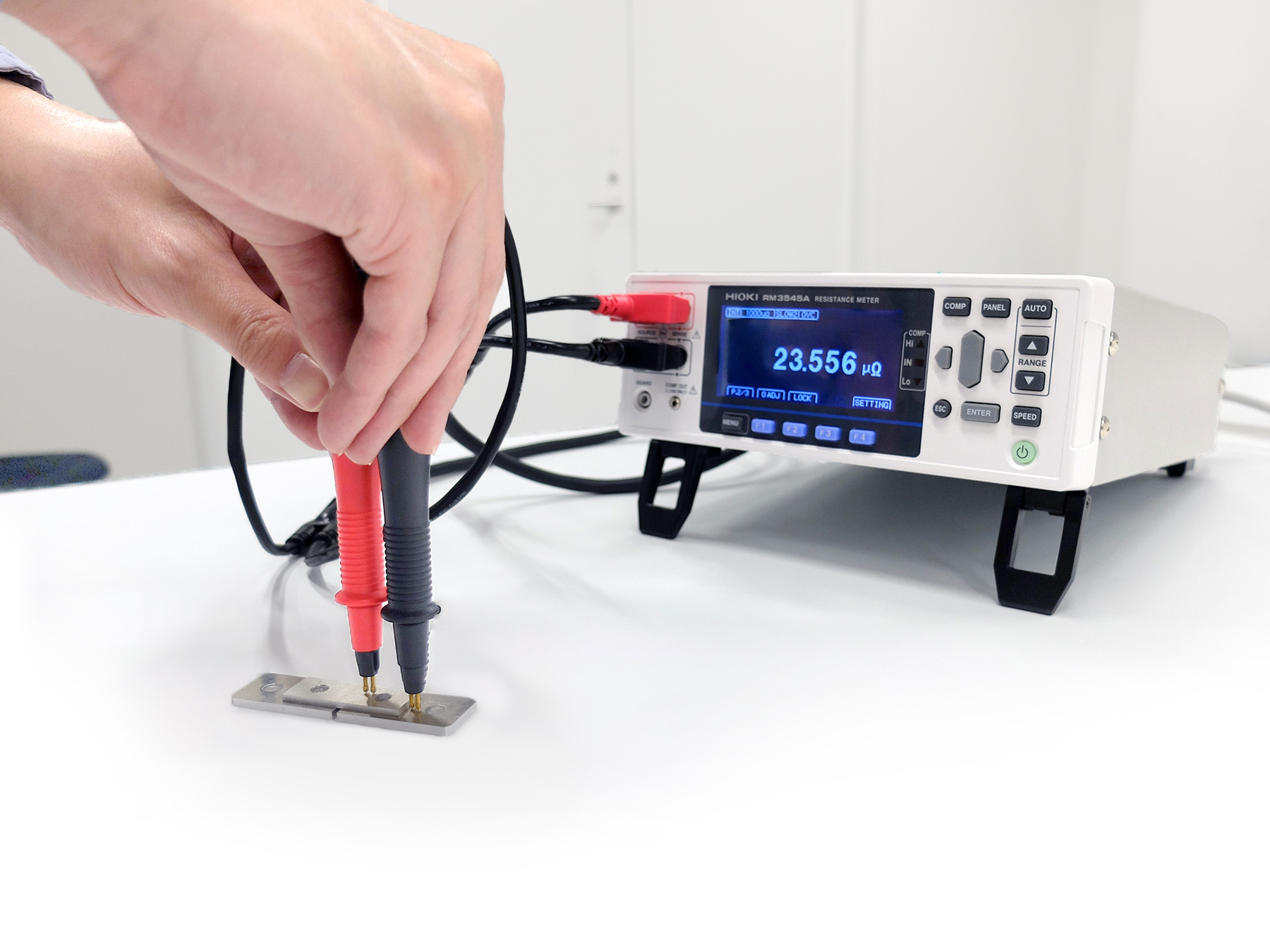

L2100 - Pin Type Lead The L2100 is a pin type lead designed for high voltage battery measurements with robust insulation and long reach for precise readings.

Technical Details:

Max voltage: 1000 V DC
Compatibility: BT3562, BT3563, BT3564
