L2110 - CONTACT TIPS

Product information "L2110 - CONTACT TIPS "

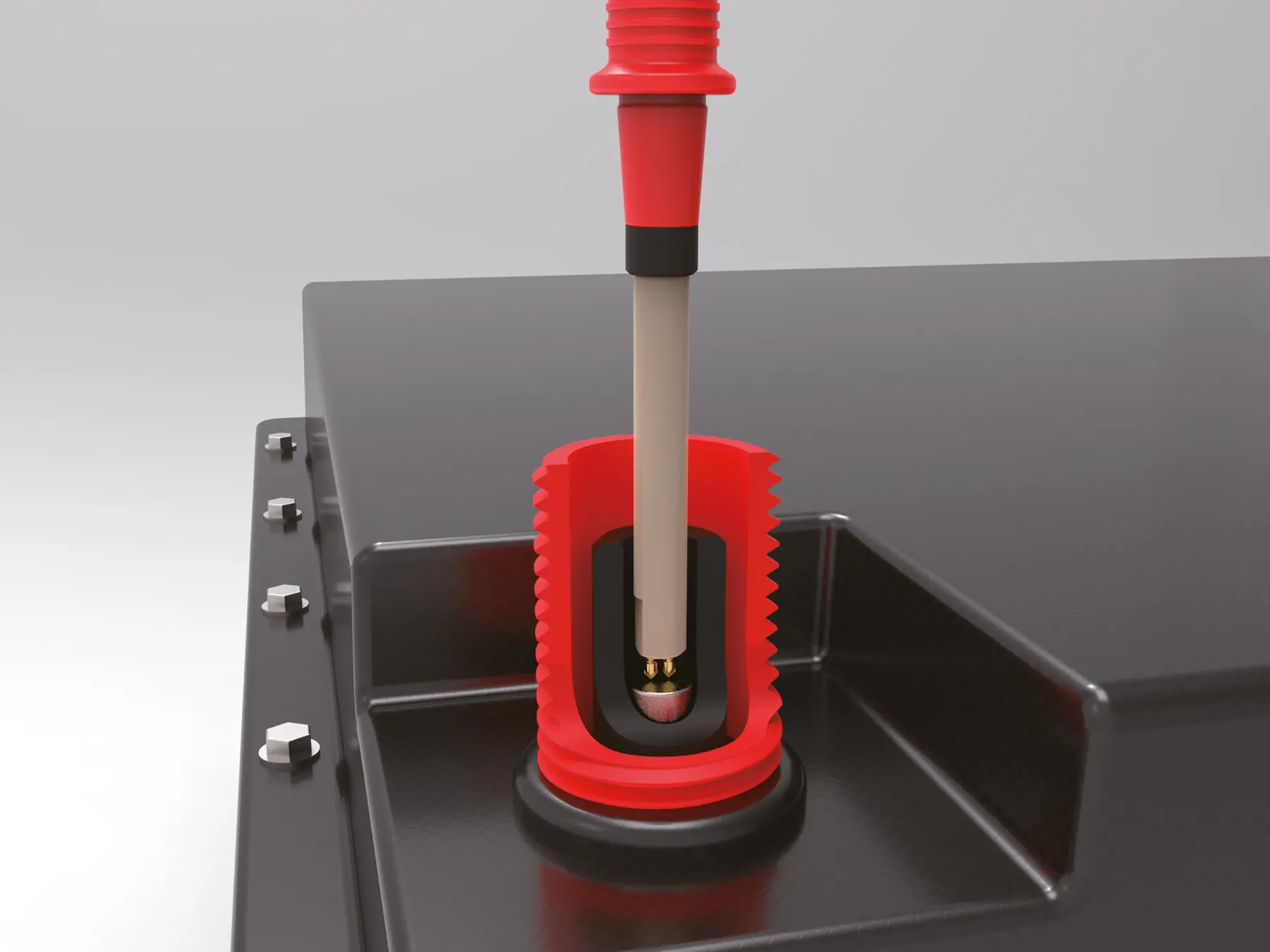

The Hioki L2110 Pin Type Lead is a high-voltage, four-terminal test lead designed for measuring high-voltage battery packs and cells with input-to-ground voltages up to 1000 V DC. It features two parallel 1.8 mm extendable spring-loaded pins that ensure stable connections, making it ideal for precise testing through battery terminal inspection holes.

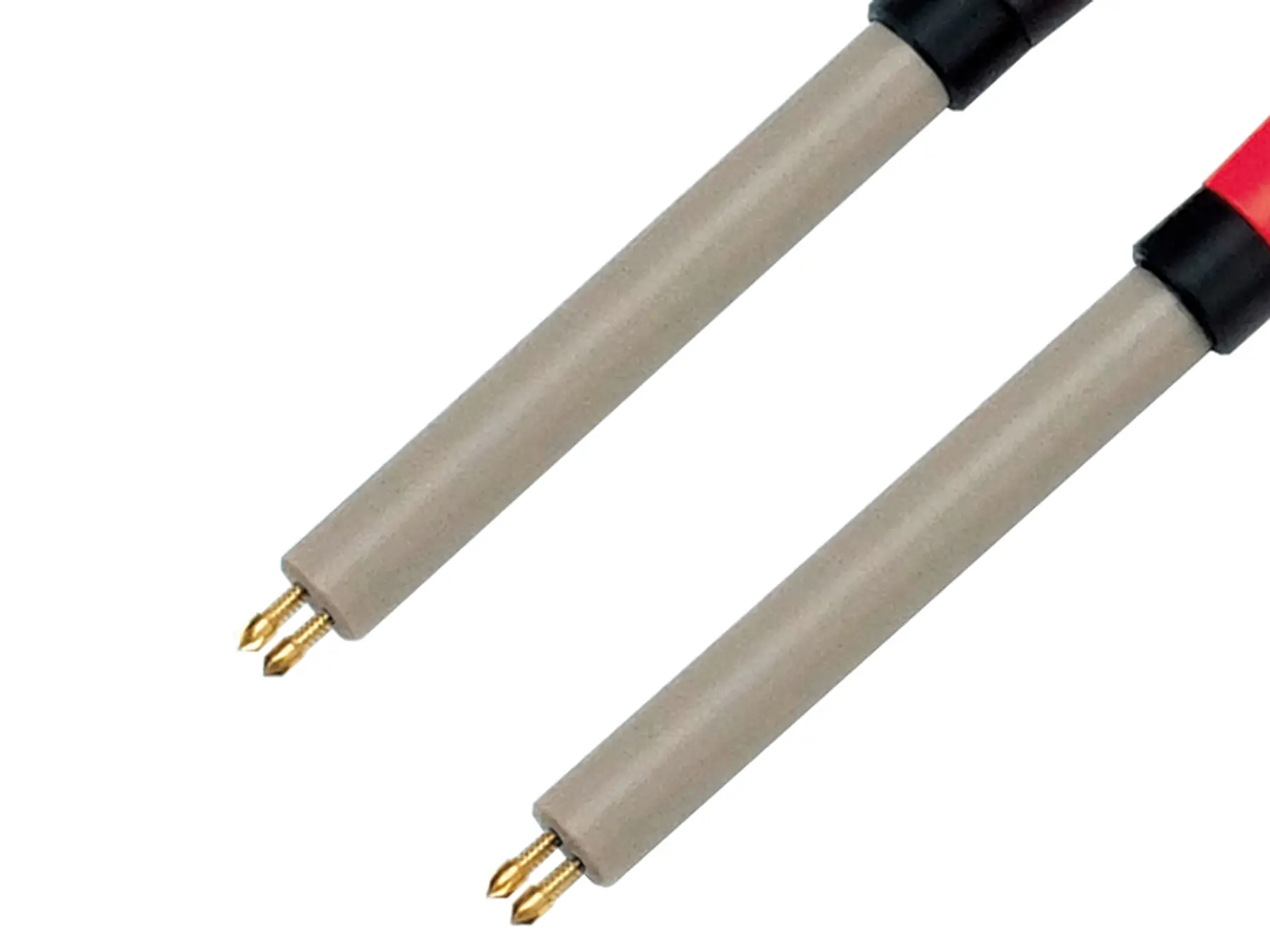

With a robust design and gold-plated pin tips, the L2110 provides reliable performance in high-voltage environments. Suitable for use in research, industrial testing, and quality control applications.

Technical Information:
  • Maximum Rated Voltage: 1000 V DC

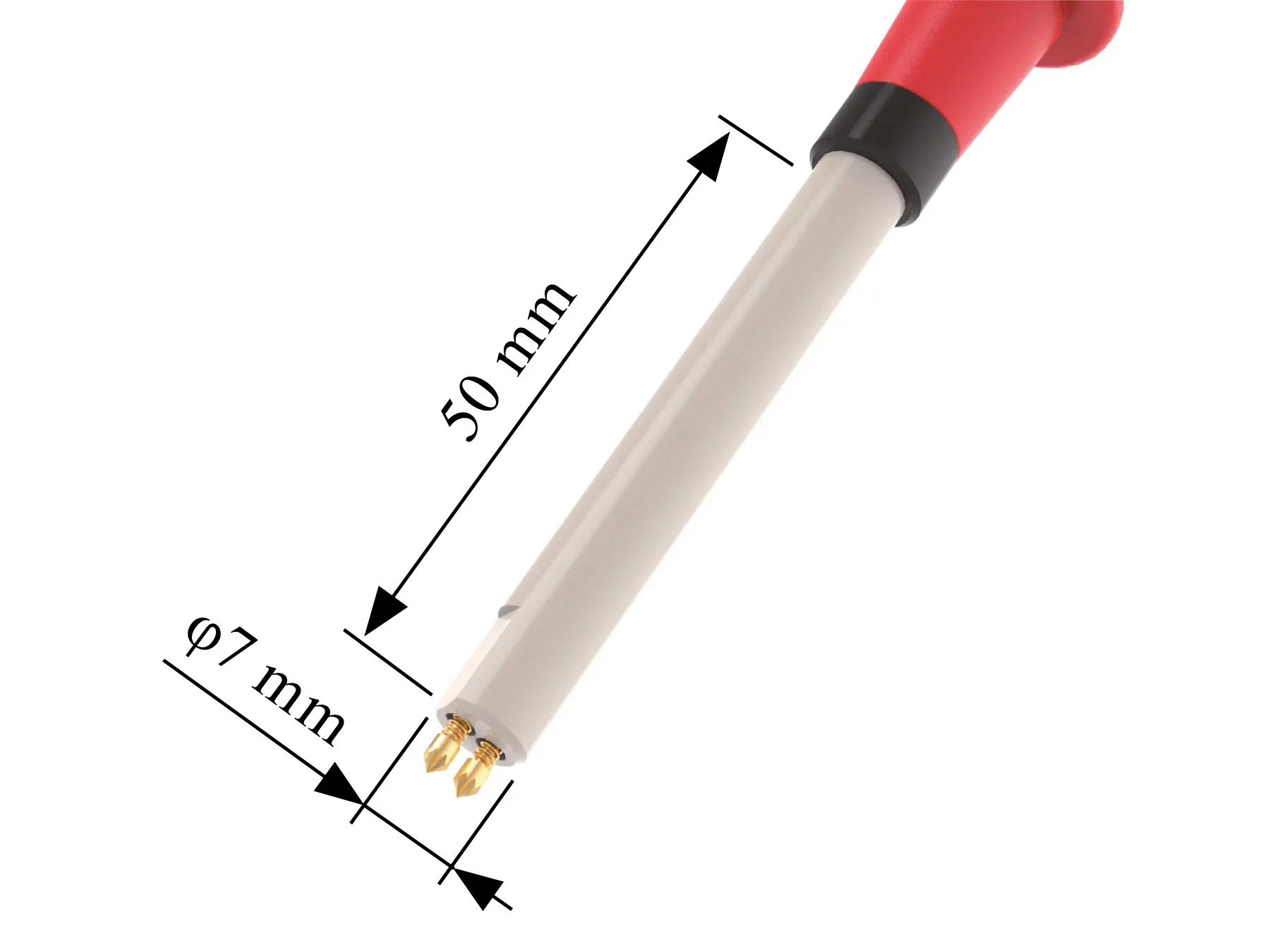

  • Rated Current: 2 A DC continuous
  • Pin Tip Diameter: 1.8 mm

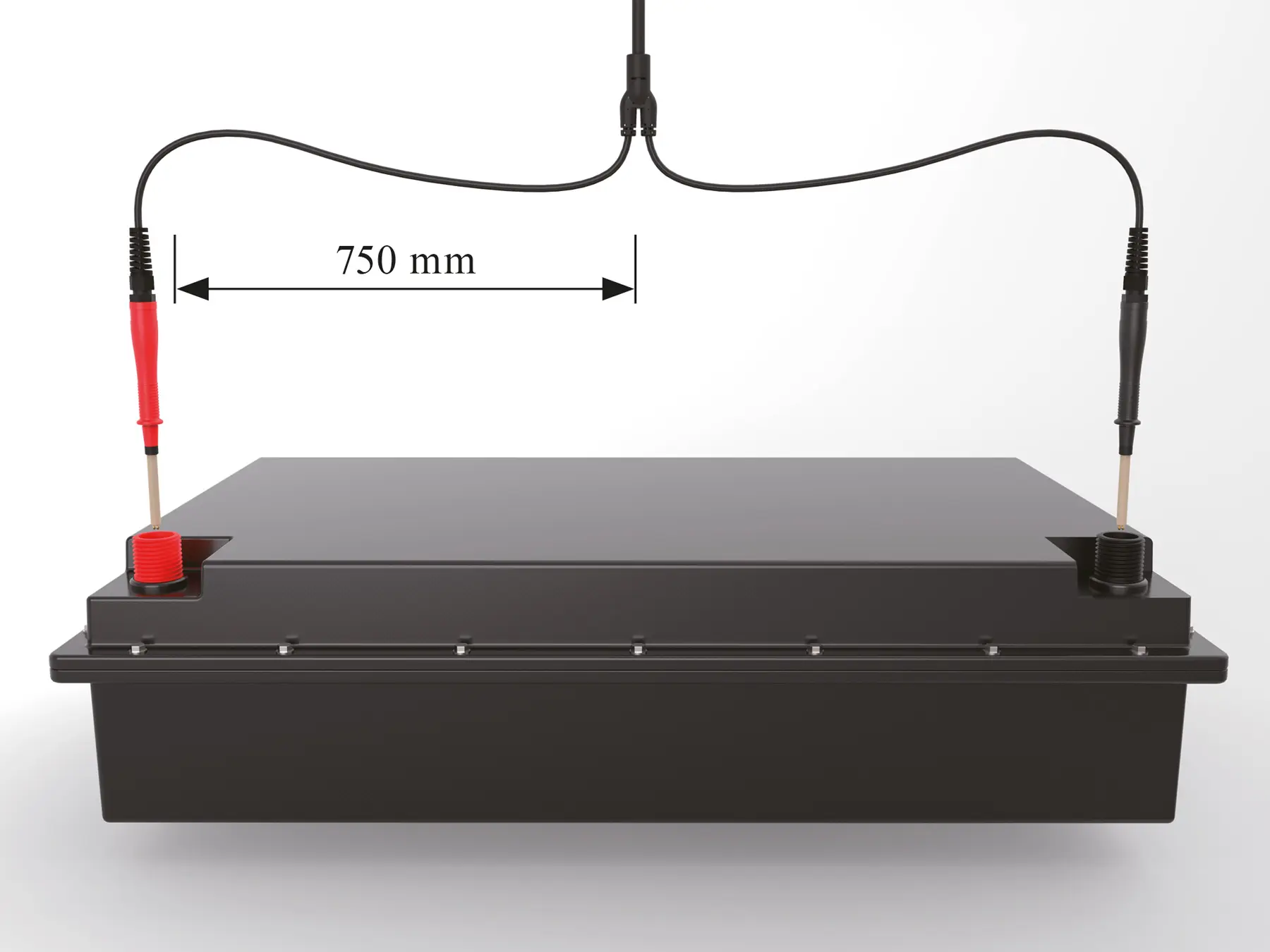

  • Total Length: 1880 mm
  • Operating Temperature: 0°C to 40°C
  • Weight: Approx. 210 g
  • Accessories Included: Instruction manual
  • Optional Replacement: 9772-90 Tip Pin
  • L2110
