9772-90 - Tip pin

Skip image gallery
9772-90 - Tip pin
9772-90 - Tip pin
9772-90 - Tip pin

€38.40

% €48.00 (20% saved)
Content: 1 Each

In stock in Germany

€38.40

% €48.00 (20% saved)
9772-90 - Tip pin
Product number: 9772-90
Available stock: 6
GTIN/EAN: 4536036008704
Weight: 0.01 kg
Product details
Description

Product information 9772-90 - Tip pin

The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead.

Technical Detail:

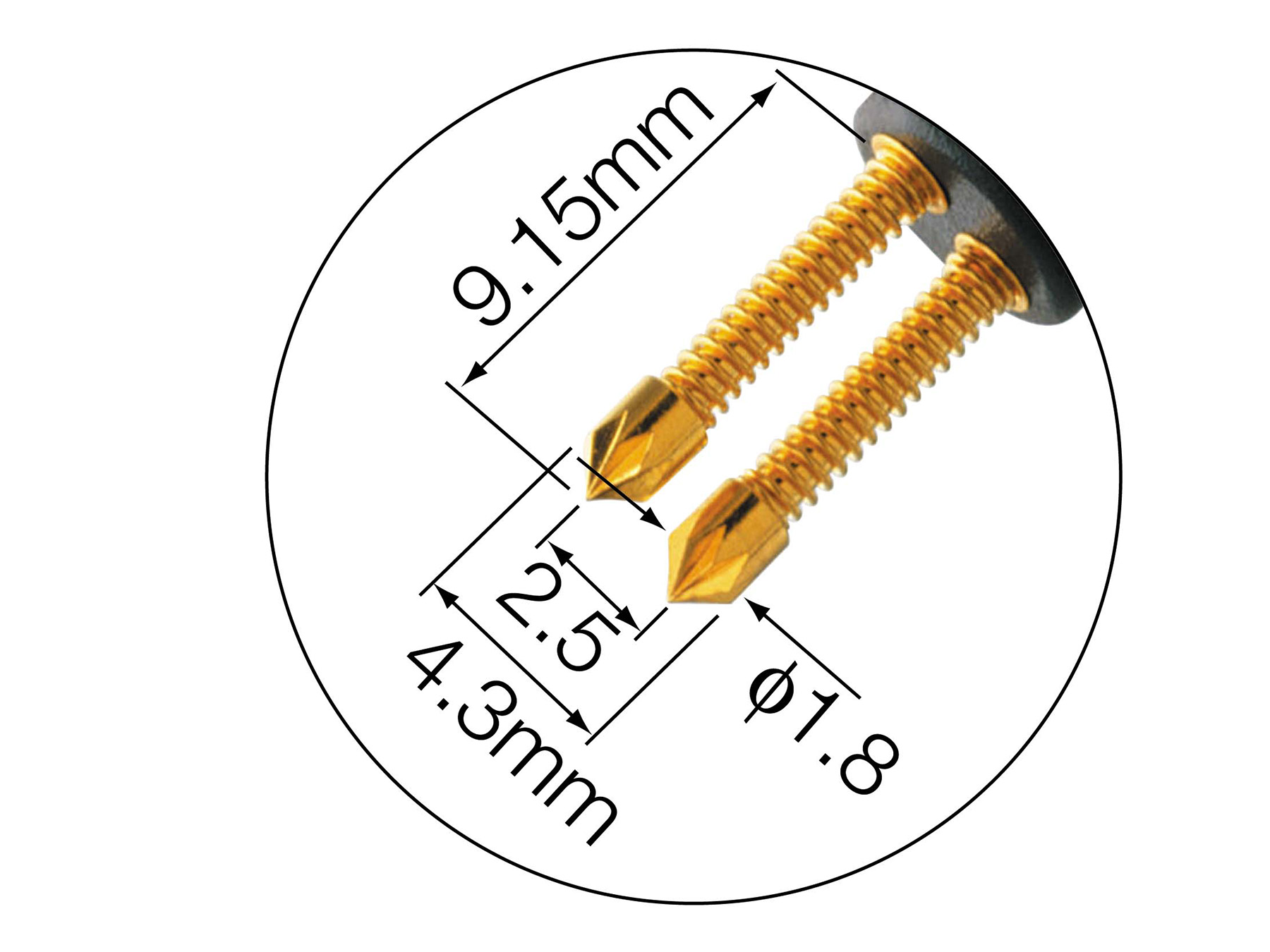

  • Coaxial pin, diameter: 1.8 mm
  • Contact surface: gilded
