9666 - 100:1 Probe
Description

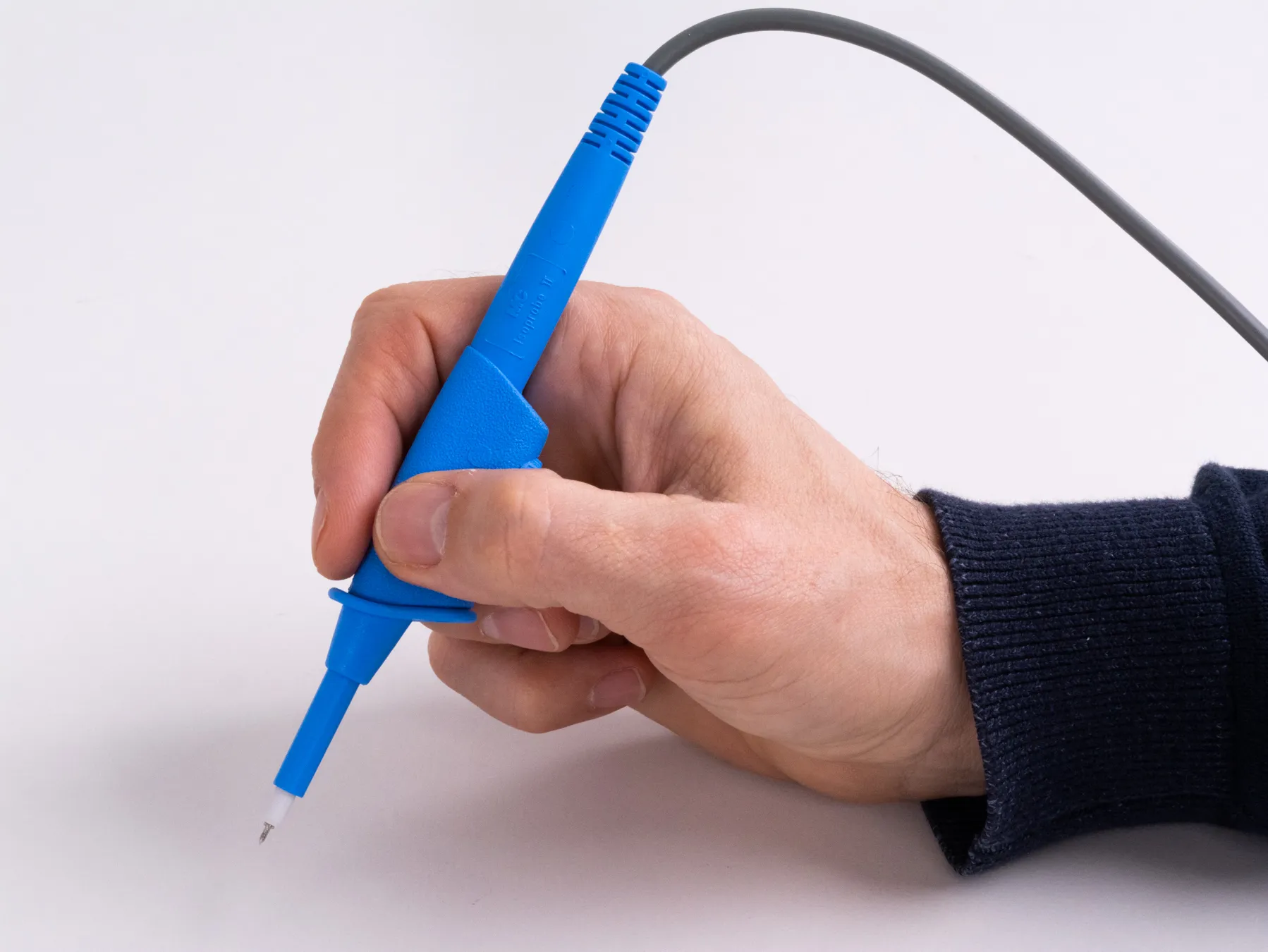

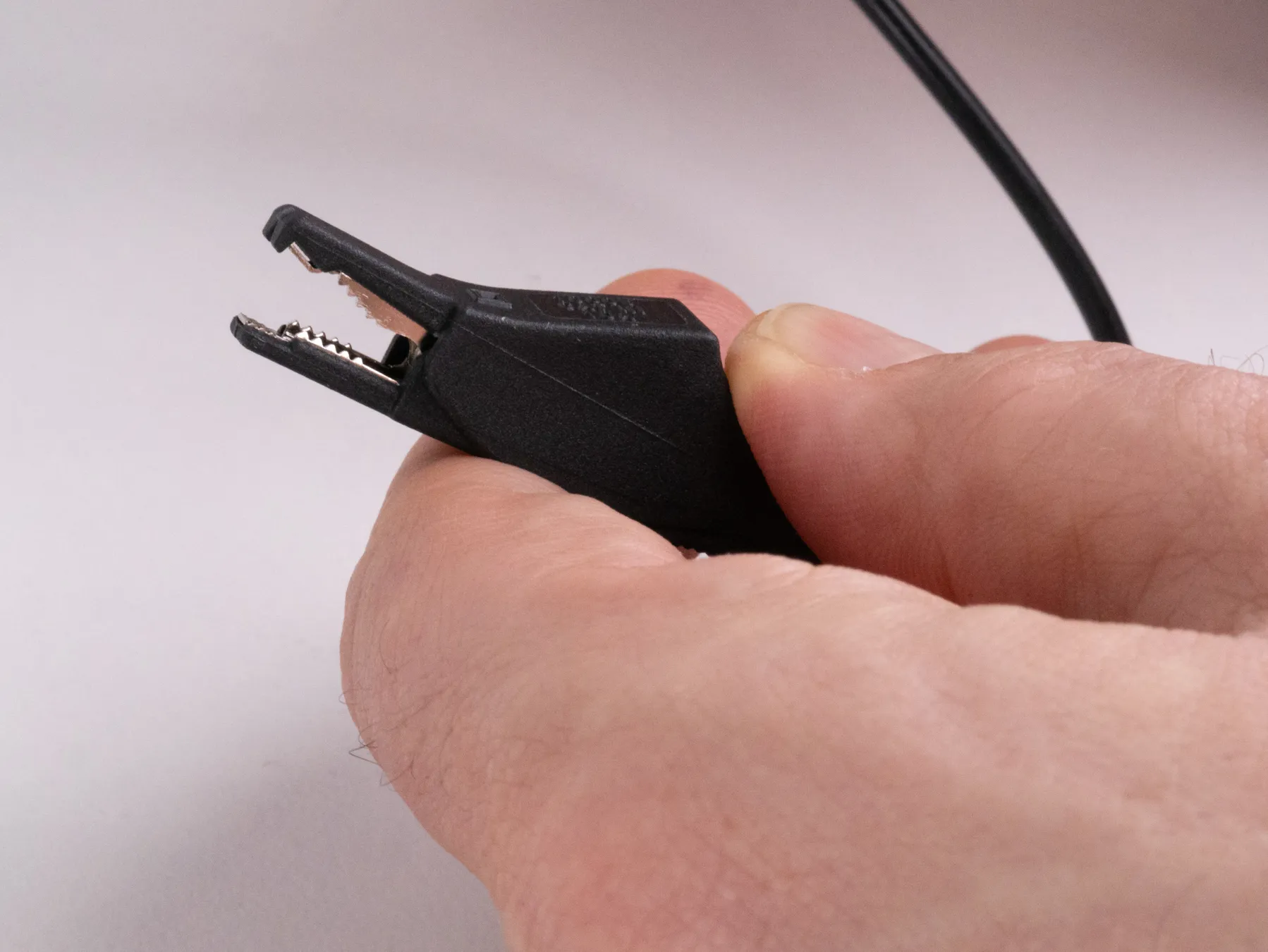

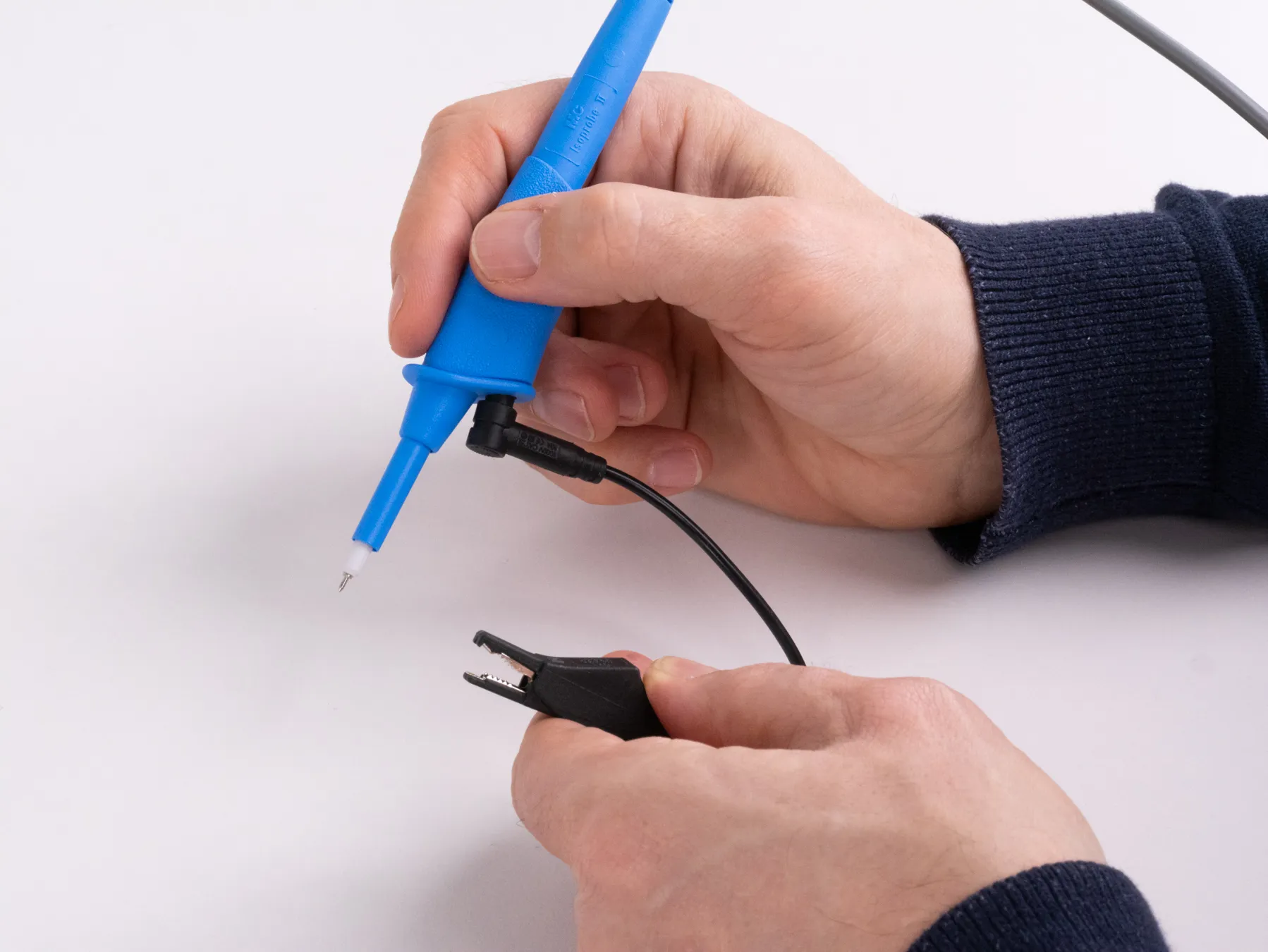

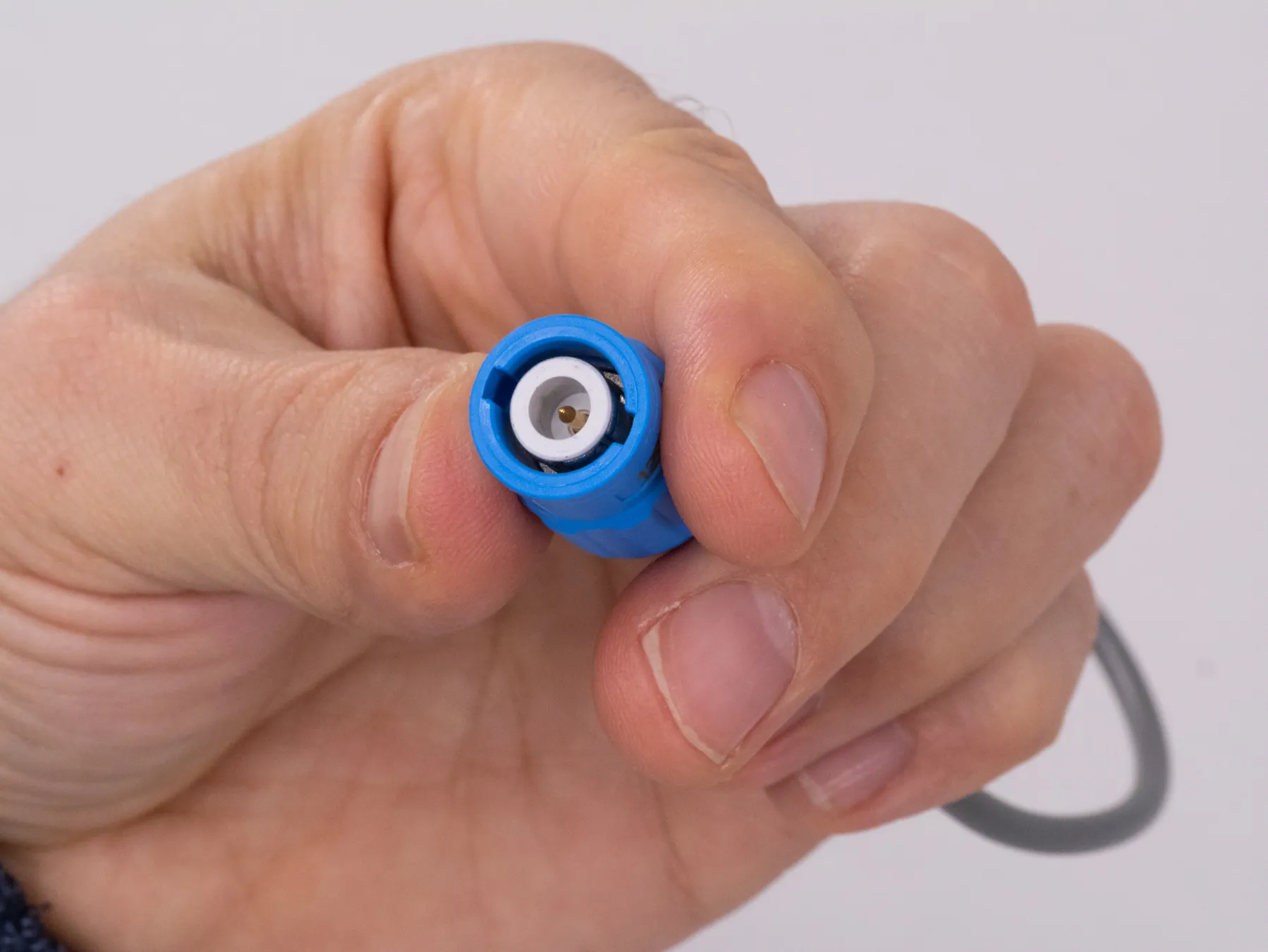

Product information 9666 - 100:1 Probe

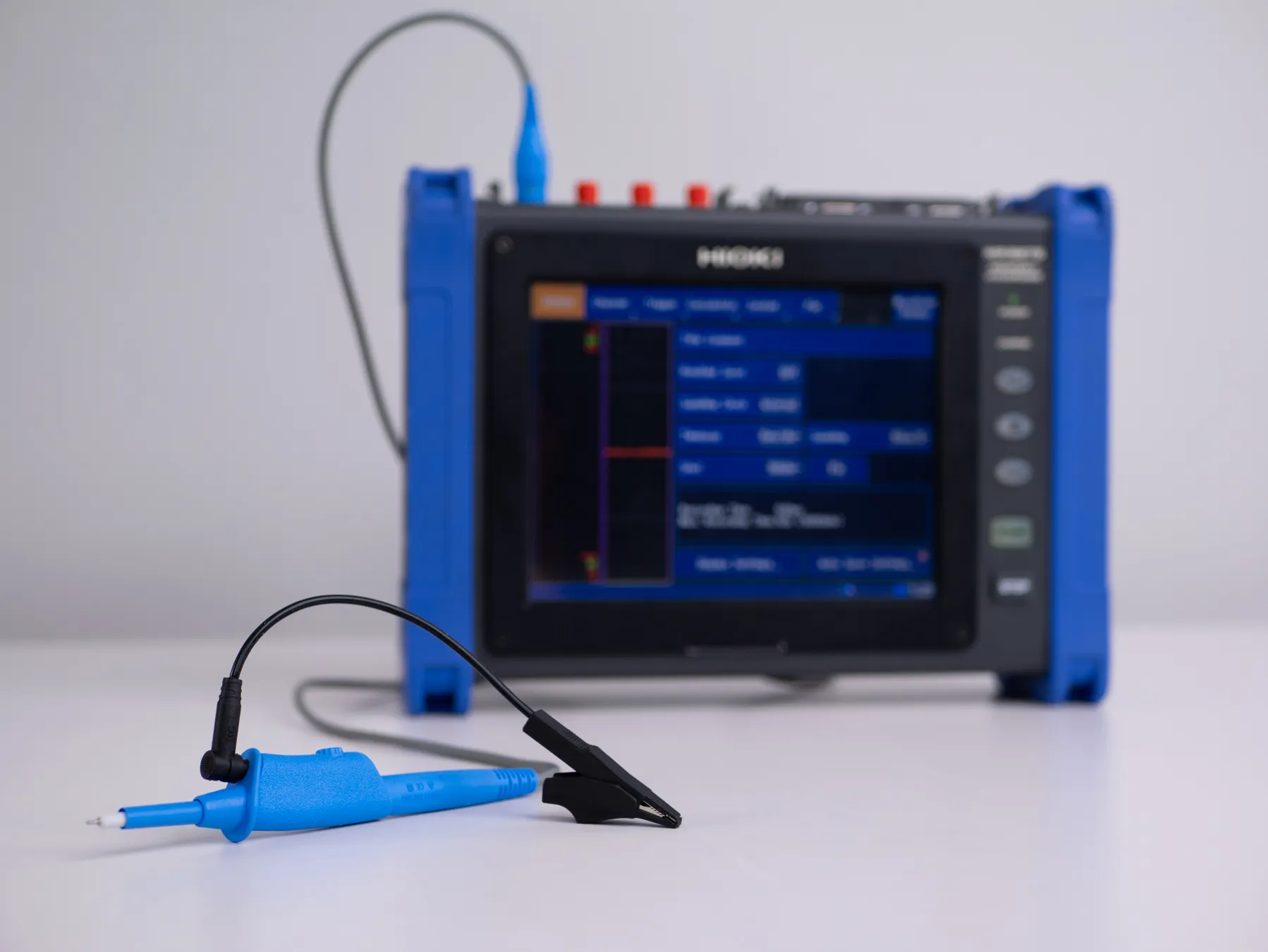

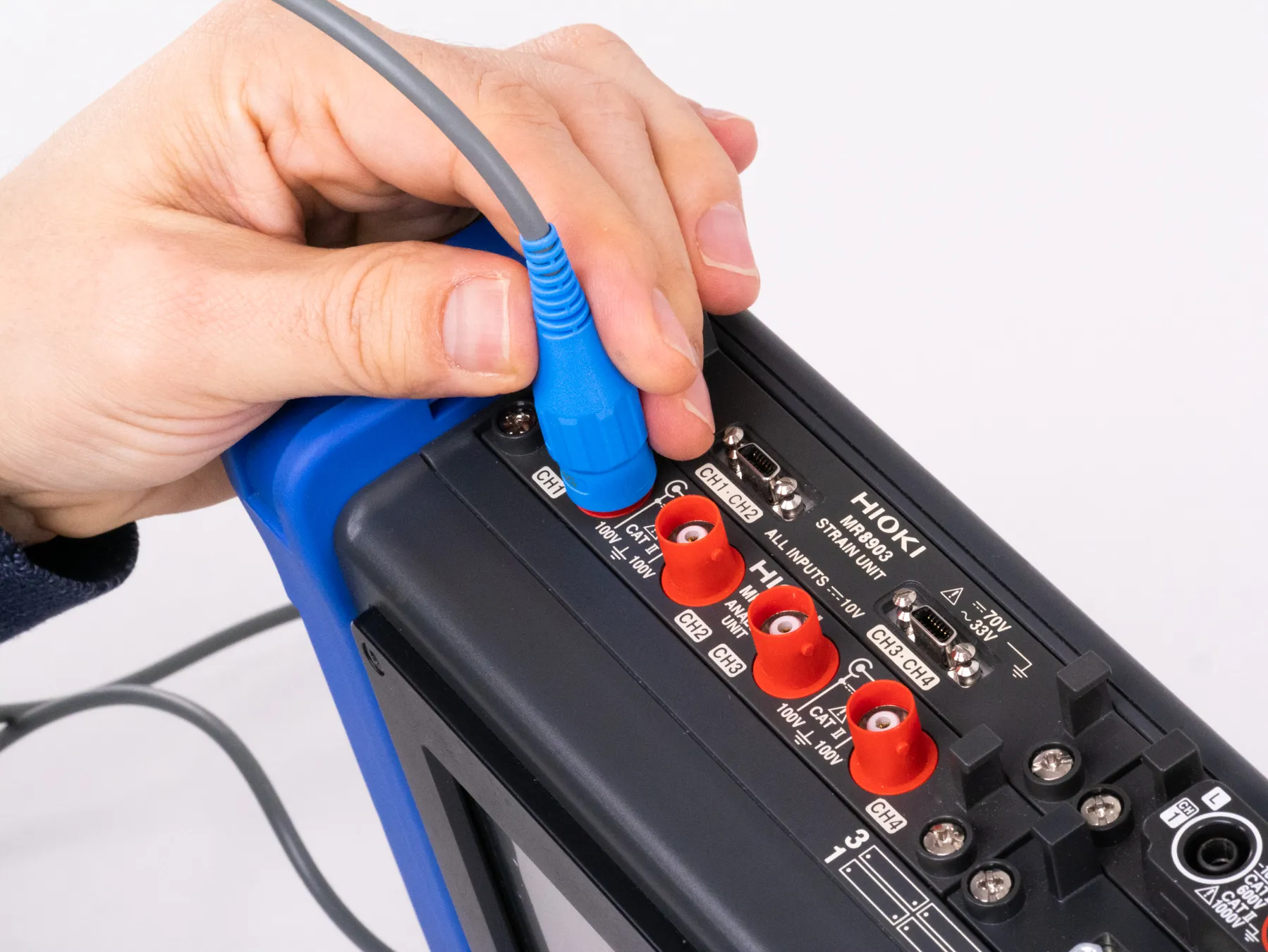

The HIOKI 9665 is a 100:1 probe for voltage measurement with the Memory Recorders MR6000, MR6000-01, MR8740T, MR8740, MR8741, MR8827, MR8847A and MR8848, as well as the compatible input units 8966, U8975, 8968, U8978, U8976 and 8972. The HIOKI 9666 is designed for measuring instruments with 1 MΩ input resistance and supports measurements up to 5 kV peak. The maximum rated voltage to earth is 1000 V CAT II and depends on the input unit used.
Technical Specifications
- Division ratio: 100:1, for measuring instruments with 1 MΩ input resistance
- Accuracy: ±3% at 100 V DC; +3%, -7% at 1000 V DC
- Maximum input voltage: 5 kV peak up to 1 MHz
- Maximum rated voltage to earth: 1000 V CAT II, depending on the input unit used
- Input impedance/capacitance: 100 MΩ / max. 7 pF
- Frequency characteristics: DC to 200 MHz
- Compensation capacitance range: 15 pF to 45 pF
- Cable length: 1.5 m
Related Products
- MR6000,
- MR6000-0
- MR8740T
- MR8740
- MR8741
- MR8827
- MR8847A
- MR8848
- 8966
- U8975
- 8968
- U8978
- U8976
- 8972
What's in the Box
- 9666 100:1 Probe
- Vinyl case
Skip product gallery
.jpg "HIOKI 8968 - High Resolution Unit")
.jpg "HIOKI 8972 - DC/RMS Unit")
Regular price:
€248.00
