RM3545 - Resistance meter

This product is no longer available.

Specifications may be dated. Please see the successor model.

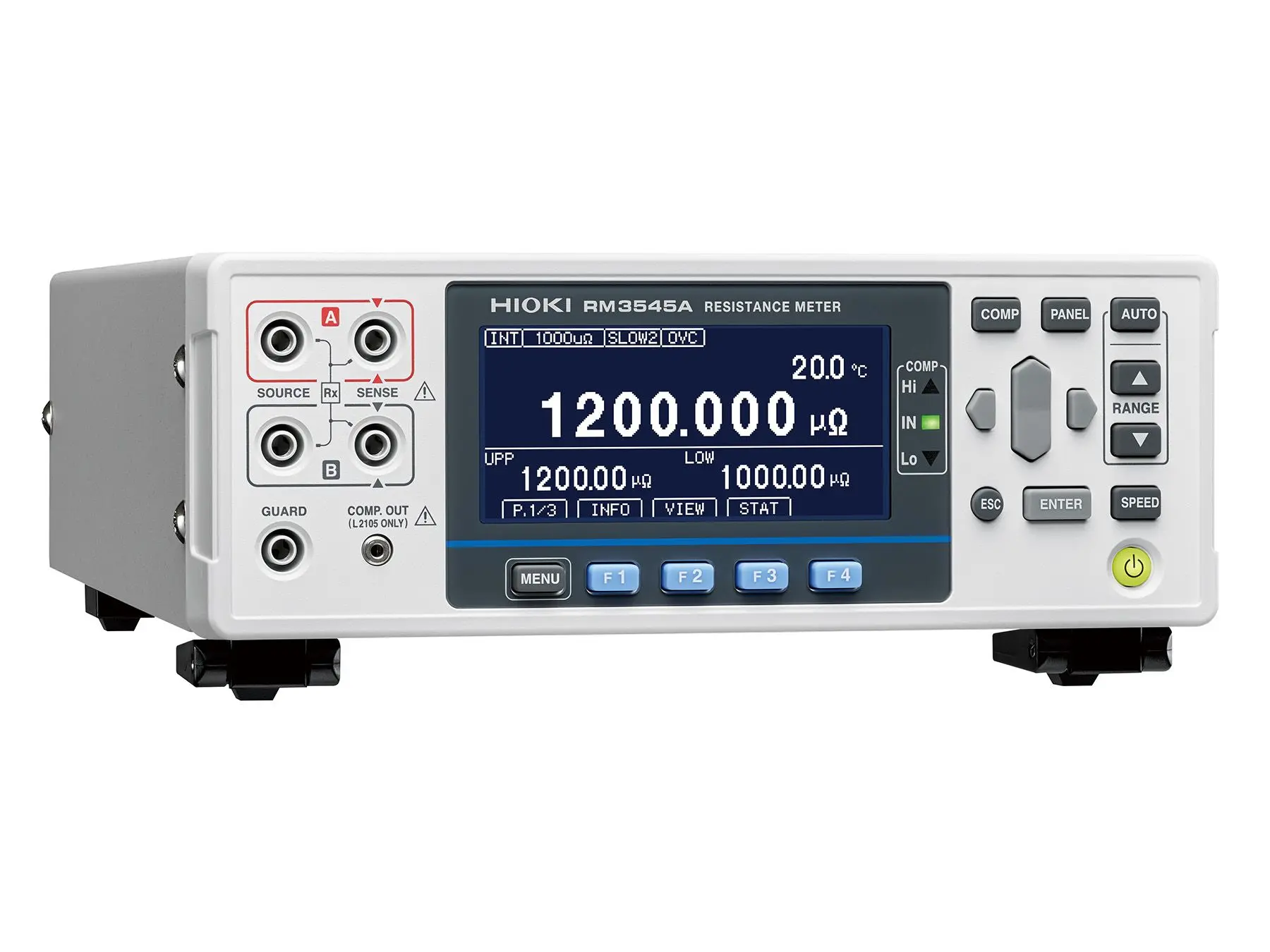

Product information RM3545 - Resistance meter

The RM3545 provides precise measurements for a wide range of applications in electronics manufacturing and testing. It uses the 4-terminal measurement method with a constant current source to perform accurate resistance measurements. It is suitable for measuring electrical components such as motors, transformers, relays, switches, and wire connections. Additionally, it supports temperature measurement using thermistors, which is particularly important for applications requiring temperature compensation. With its high resolution and precise measurement accuracy, it is equally effective on production lines and in research laboratories.

Technical details:

Extremely high measurement accuracy of 0.006%
Expanded measurement range from 0.00 μΩ to 1200 MΩ
Supports higher measurement currents up to 1 A

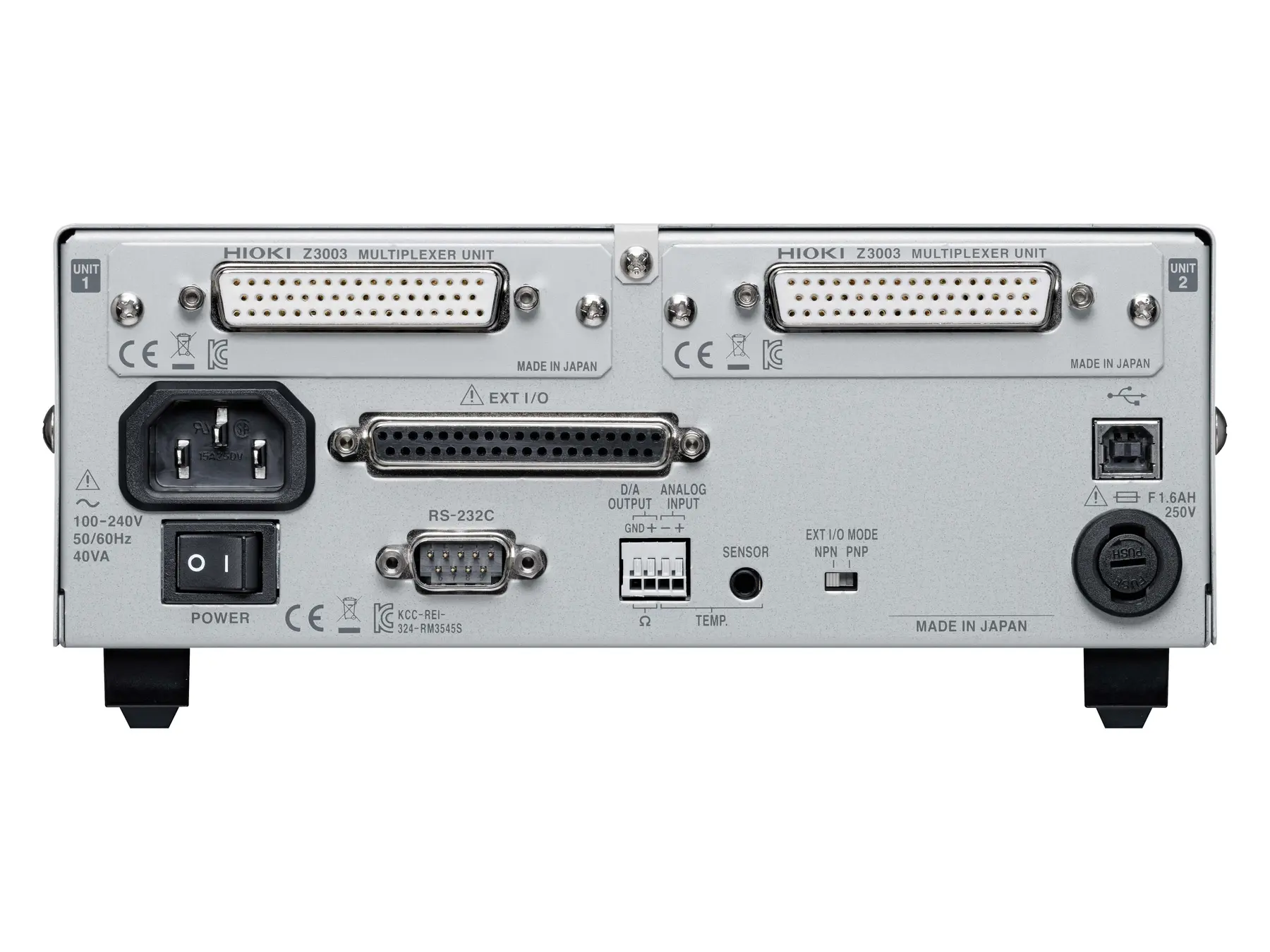

D/A output for converting resistance values into DC voltage

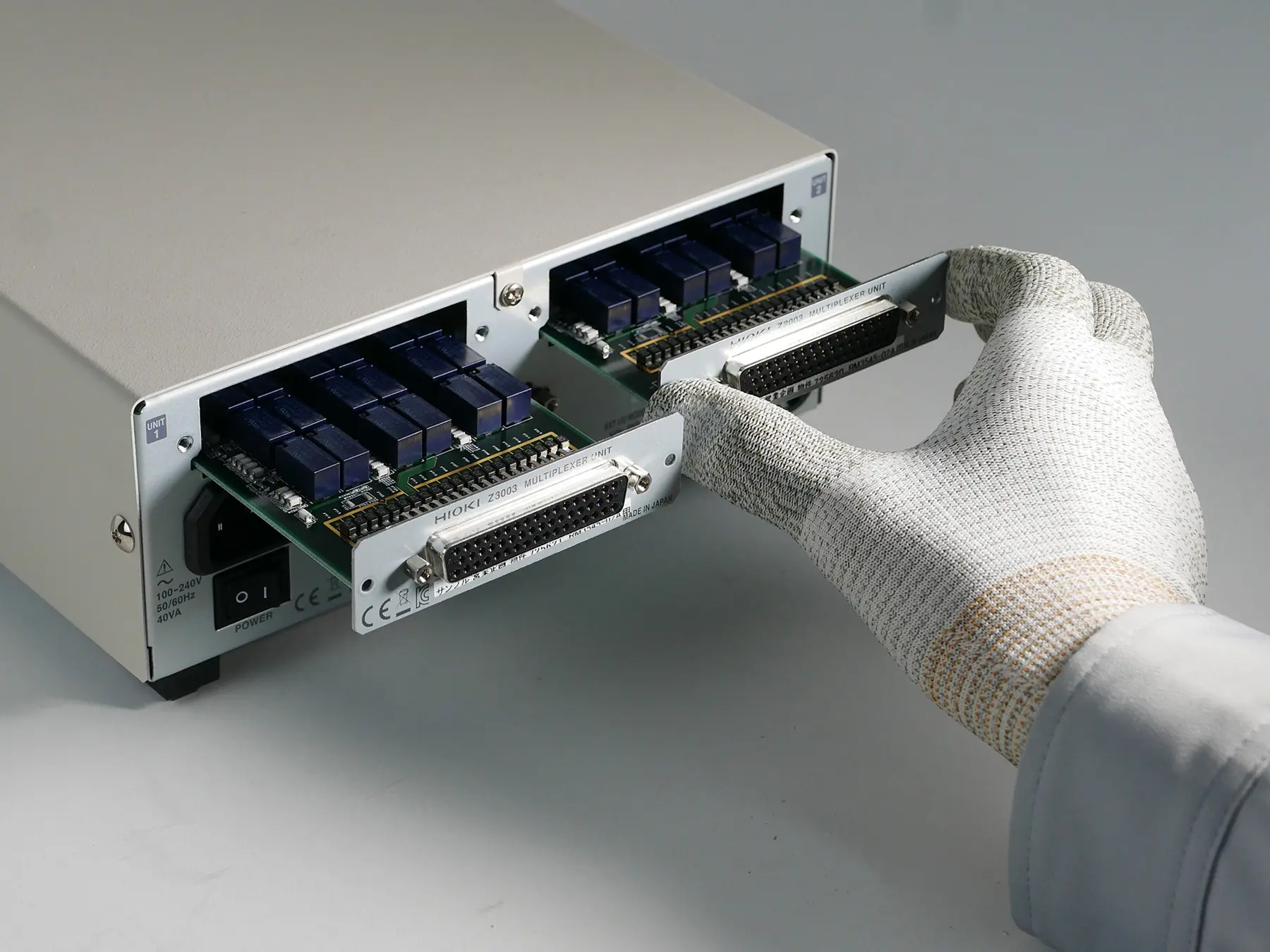

Support for multiplexer units (up to 42 channels with the Z3003 unit)
Automatic and step-by-step scanning for detailed test results
Ideal for demanding and precise measurements in research and advanced production
Comparator function for pass/fail assessments. Scaling function for converting resistance values into physical quantities
Temperature compensation function for precise measurements despite temperature fluctuations
