HIOKI L2100 - PIN TYPE LEAD

Skip image gallery
HIOKI L2100 - PIN TYPE LEAD

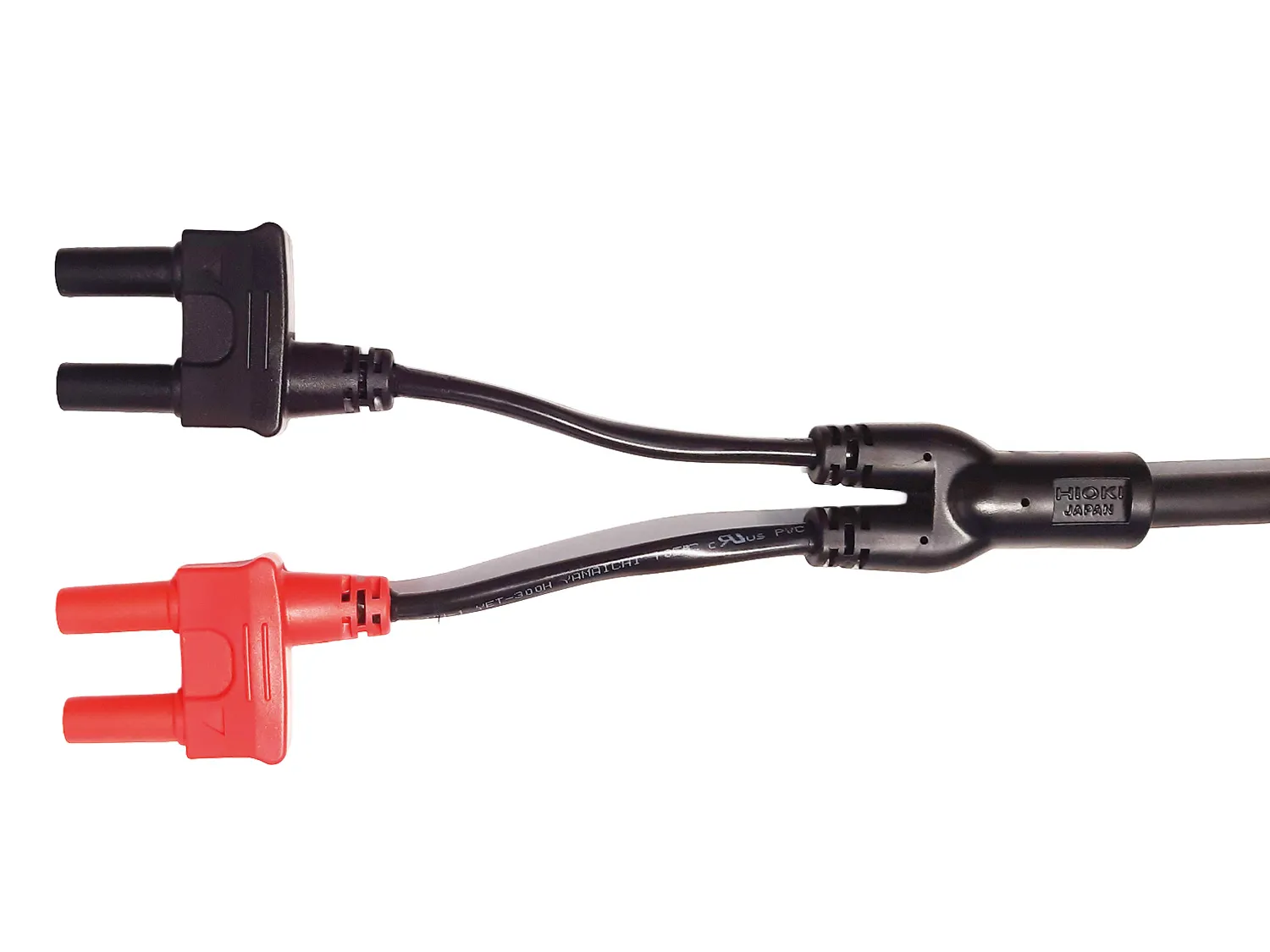

HIOKI L2100 pin type lead for high voltage robust insulation
HIOKI L2100 pin type lead for high voltage compact four terminal
HIOKI_L2100 pin type lead cable dimensions
HIOKI_L2100 pin type lead tip dimensions
HIOKI L2100 pin type lead for high voltage robust insulation
HIOKI L2100 pin type lead for high voltage compact four terminal
HIOKI_L2100 pin type lead cable dimensions
HIOKI_L2100 pin type lead tip dimensions

€418.00

Content: 1 Each

Available in 21 days

  • Fast delivery across Europe
  • EU business invoices

€418.00

HIOKI L2100 - PIN TYPE LEAD
Product number: L2100
GTIN/EAN: 4536036008971
Description

Product information HIOKI L2100 - PIN TYPE LEAD

L2100 - Pin Type Lead The L2100 is a pin type lead designed for high voltage battery measurements with robust insulation and long reach for precise readings.

Technical Details:
  • Max voltage: 1000 V DC
  • Compatibility: BT3562, BT3563, BT3564

Dimensions & Packaging

Length 1,500 mm
Weight 0.18 kg
