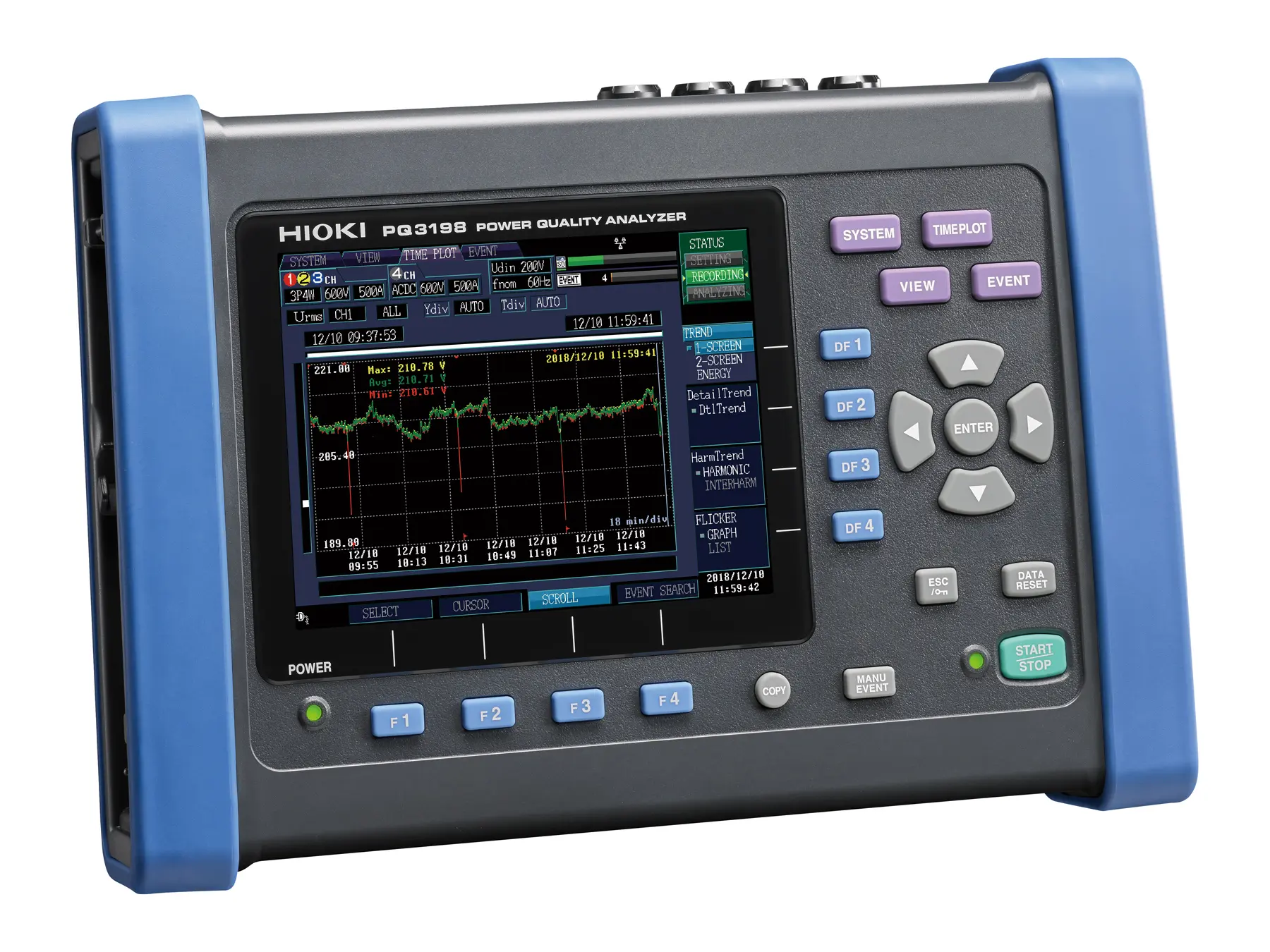

PQ3198-92 - Power Quality Analyzer Kit
Description
Product information PQ3198-92 - Power Quality Analyzer Kit
The PQ3198-92 Power Quality Analyzer Kit is a ready-to-use complete solution for Class A compliant power quality measurements and detailed analysis of electrical networks. The kit combines the high-performance PQ3198 Power Quality Analyzer with four 100 A AC current sensors (CT7136), making it ideal for energy audits, load studies, troubleshooting, and compliance testing according to EN 50160.

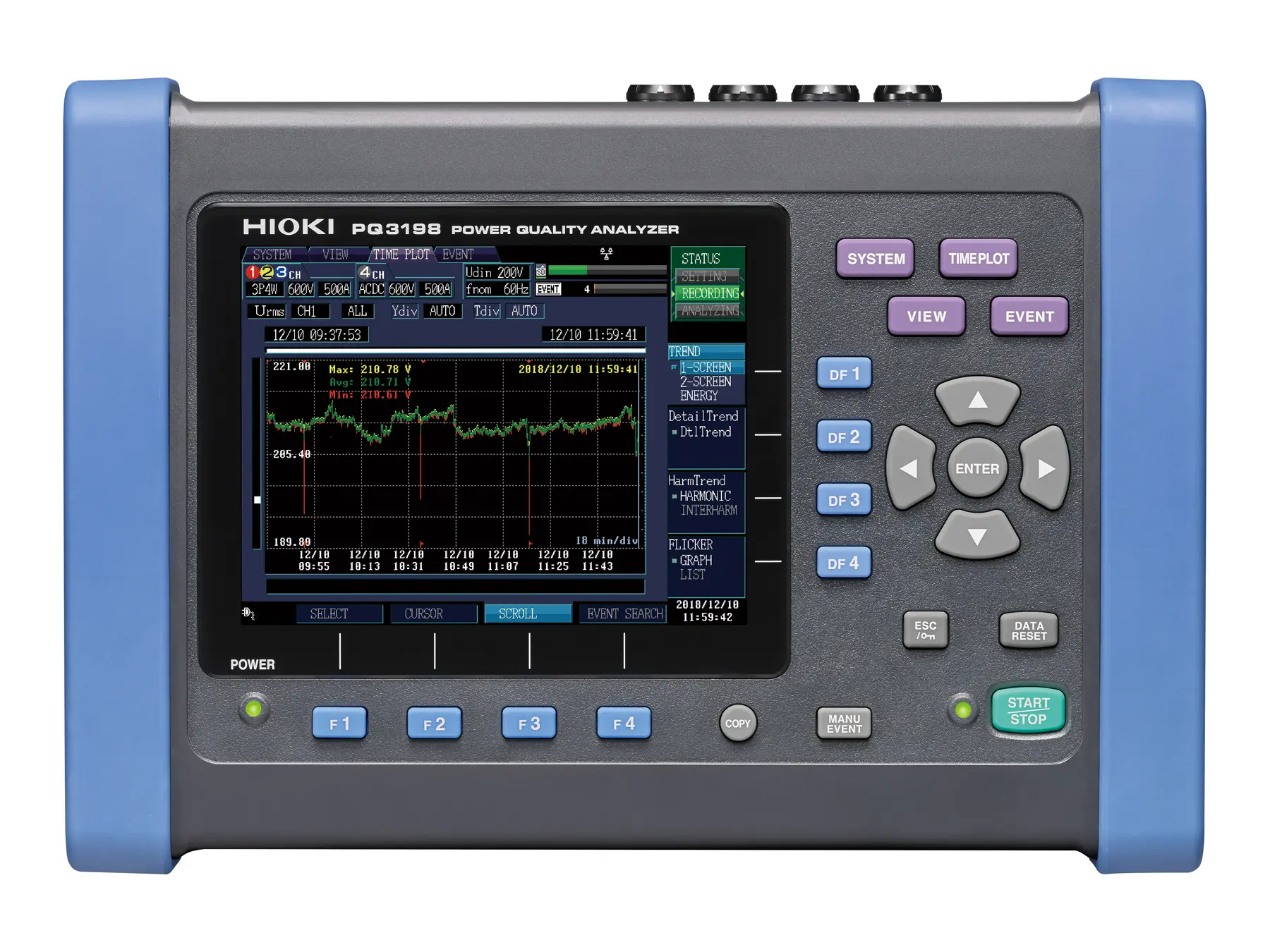

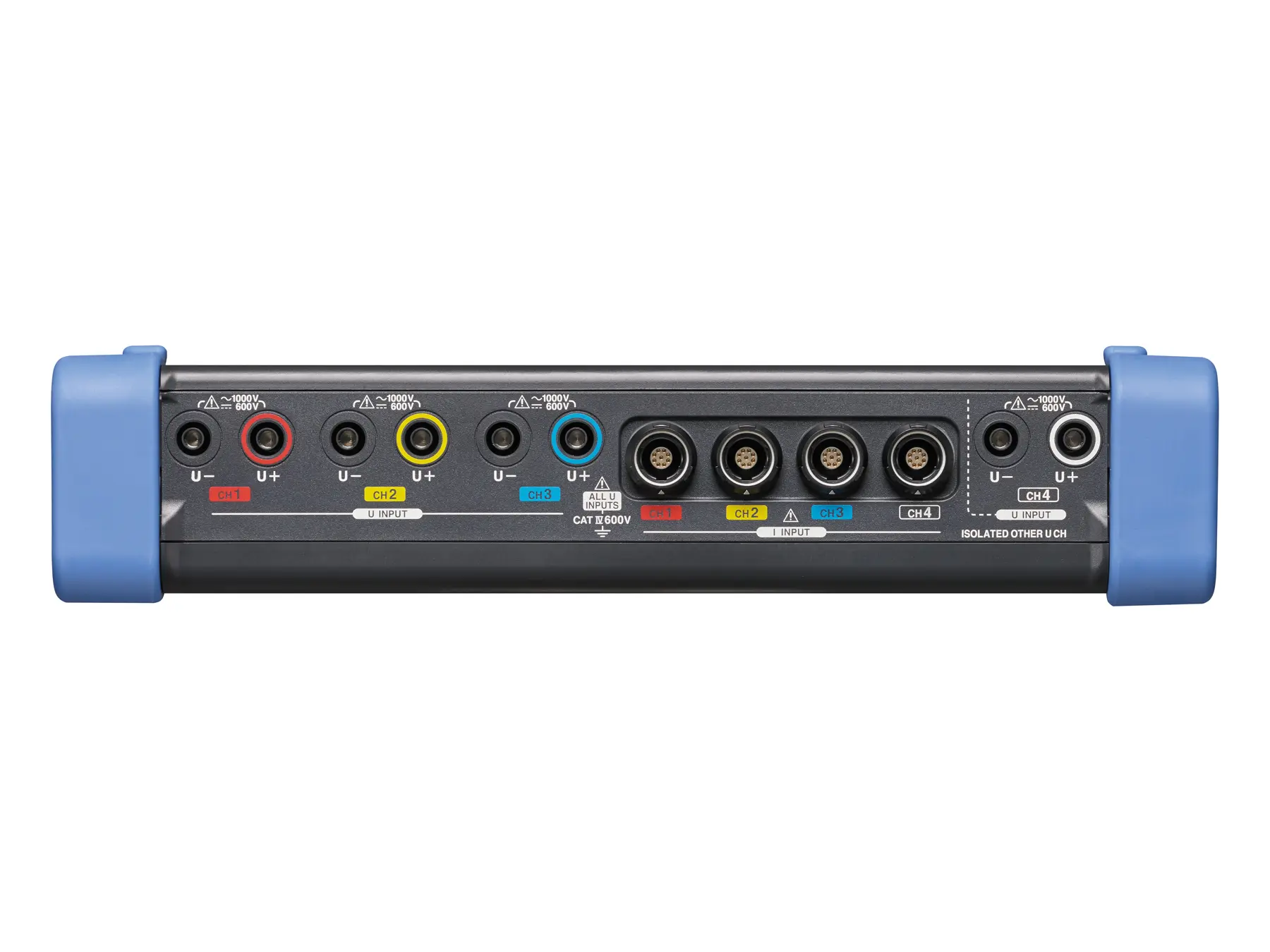

The PQ3198 enables simultaneous recording of voltage, current, power, harmonics, flicker, and transients with high accuracy. It captures power disturbances such as voltage dips, swells, interruptions, and frequency variations while continuously logging trend data. With detailed waveform recording and advanced harmonic analysis, the system provides full visibility into network behavior.
The -92 kit configuration is specifically designed for applications up to 100 A and is ideal for building installations, distribution panels, and precise energy analysis. Supplied in a durable, padded carrying bag, the kit is ideal for mobile use and fast deployment on site.
What's in the Box
- PQ3198 Power Quality Analyzer
- L1000 Voltage Cord (1 set)
- Z1002 AC Adapter (incl. power cord)
- Z1003 Battery Pack (Ni-MH, 7.2 V / 4500 mAh)
- USB Cable
- Z4001 SD Memory Card 2 GB
- 4 × AC Current Sensor CT7136 (100 A)
- 3 × Patch Cord L1021-02
- Carrying Bag C1009
- Colored clips (red, yellow, blue, white): 2 each Strap
- Instruction Manual
- Measurement Guide
- Operating Precautions (0990A903)
- CD (PC application software)
-
Product catalog with datasheet, Selection guide, Power Quality Analyzers / Power Loggers (English)3,380 KB pdf
-
Product brochure with data sheet, POWER QUALITY ANALYZER PQ3100, PQ3198 (English)14,258 KB pdf
-
Instruction Manual, POWER QUALITY ANALYZER PQ3198 (English)11,173 KB pdf
-
Instruction Manual, POWER QUALITY ANALYZER PQ3198 (Spanish)11,270 KB pdf
