MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design
Promotion bundle content: MR8848 Memory Recorde, 9784 DC Power Unit
Product information "MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design"
Promotion bundle content
- MR8848 Memory Recorder
- 9784 DC Power Unit
In detail:
The MR8848-Promotion2025 bundle combines rugged high-speed data logging with full power flexibility. For a limited time, when you purchase the MR8848-Promotion2025 bundle, the 9784 DC Power Unit is included free of charge – allowing you to operate the recorder directly from DC sources such as vehicle batteries or portable power packs.
The MR8848-Promotion2025 bundle combines rugged high-speed data logging with full power flexibility. For a limited time, when you purchase the MR8848-Promotion2025 bundle, the 9784 DC Power Unit is included free of charge – allowing you to operate the recorder directly from DC sources such as vehicle batteries or portable power packs.

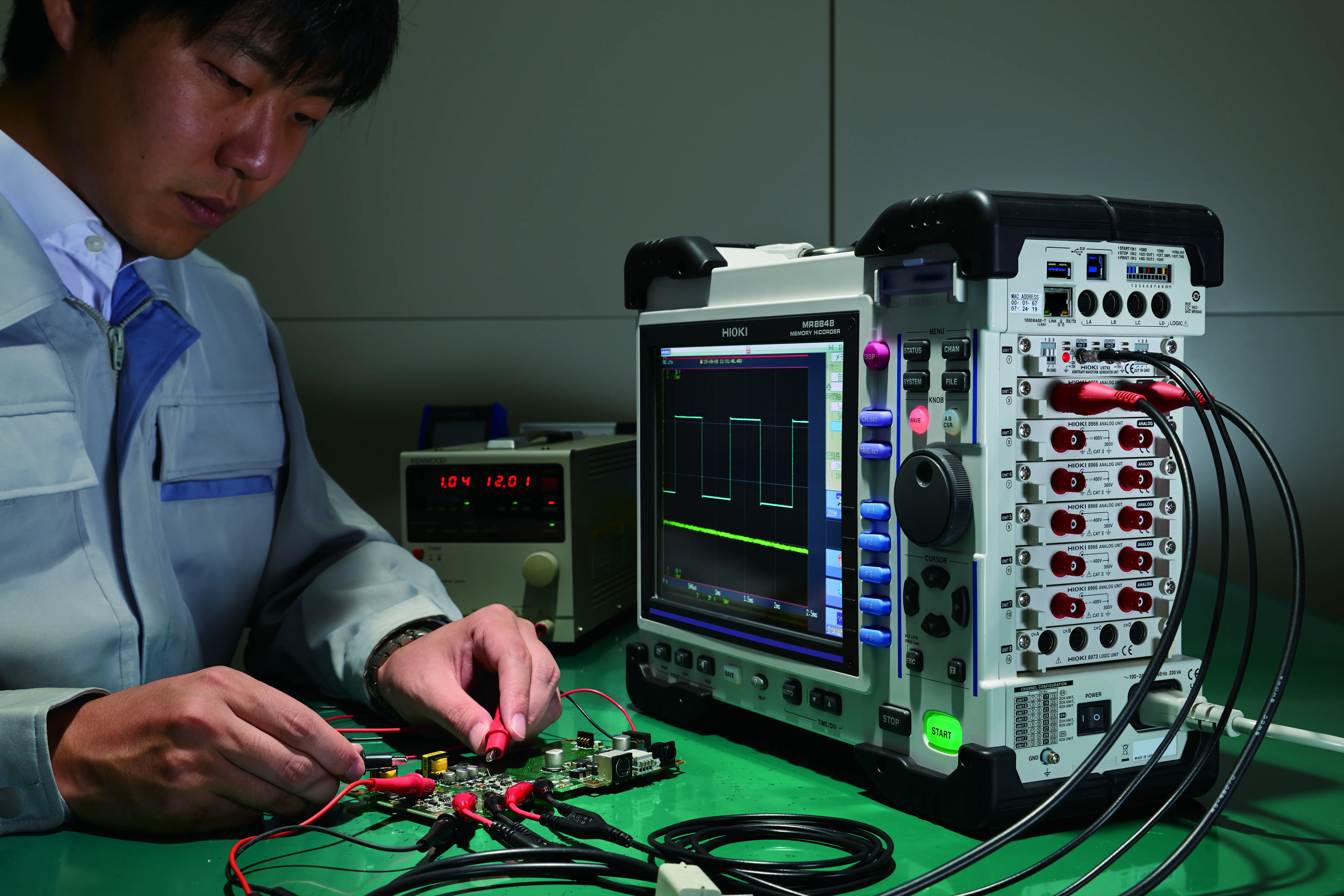

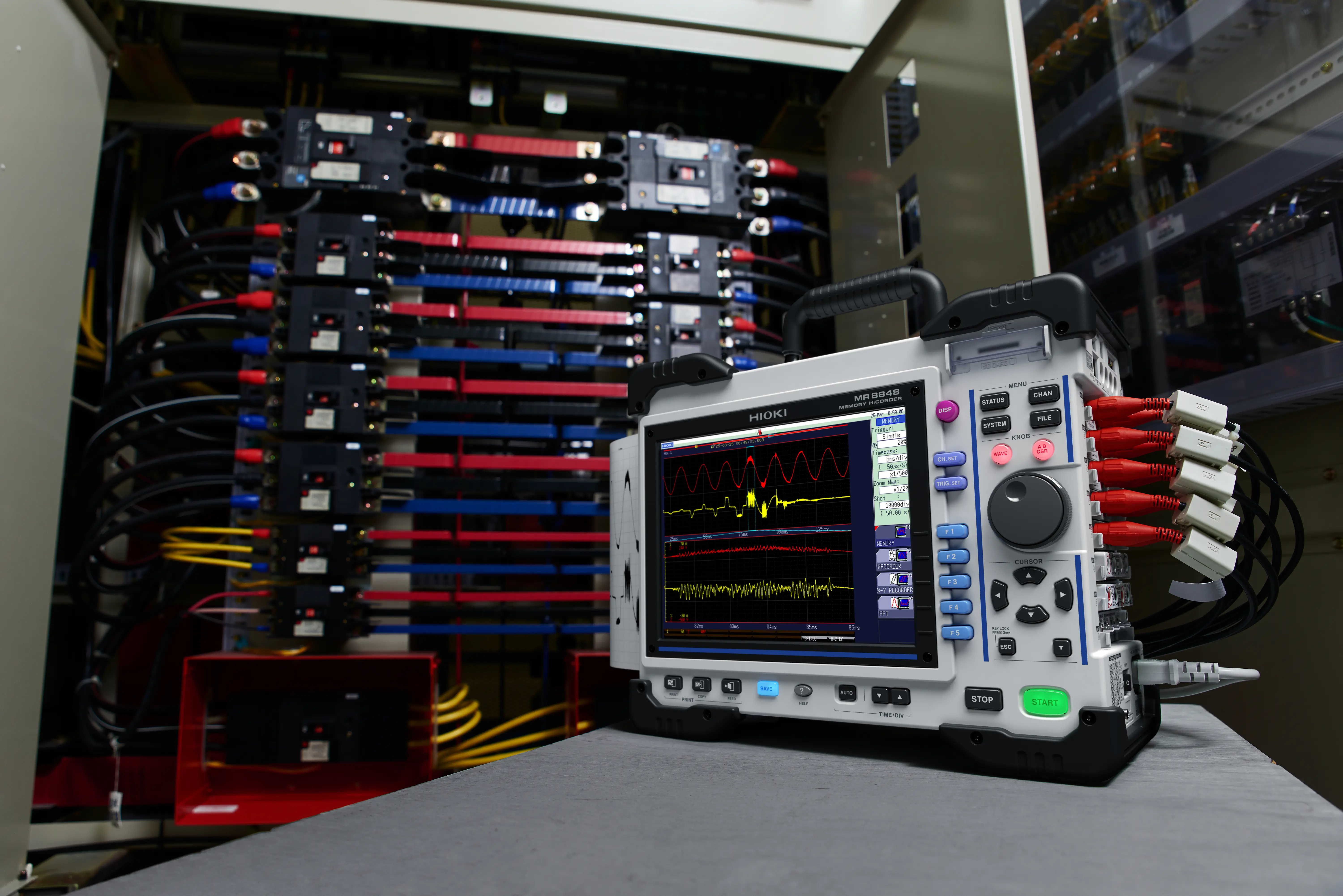

The MR8848 is a modular memory recorder built for high-speed, multi-channel waveform capture under demanding conditions. Its compact, shock-resistant design and versatile input options make it ideal for field and maintenance applications.
- Up to 32 isolated analog and 16 logic channels
- Max. 20 MS/s sampling and 1000 VDC / 700 VAC direct input
- Real-time saving to optional 1 TB SSD
- Supports voltage, current, temperature, logic, strain, and more

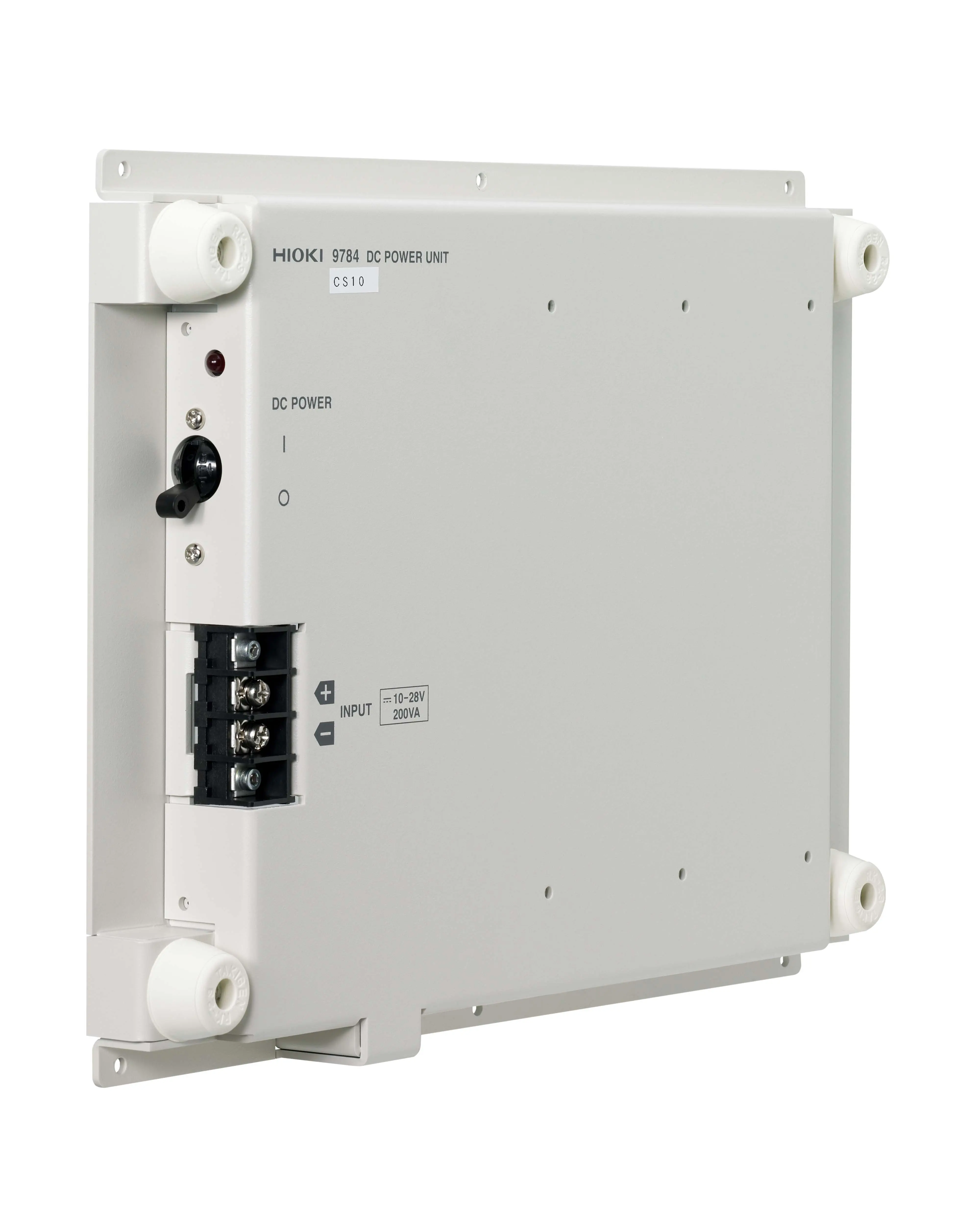

The 9784 enables the MR8848 to operate directly from a DC power source, such as a vehicle battery – ideal for remote or in-vehicle measurements.
- Wide DC input range: 10–28 V
- Eliminates the need for AC power or external converters
This ensures continuous operation even in environments without grid access, reduces setup complexity, and increases mobility for on-site testing scenarios.

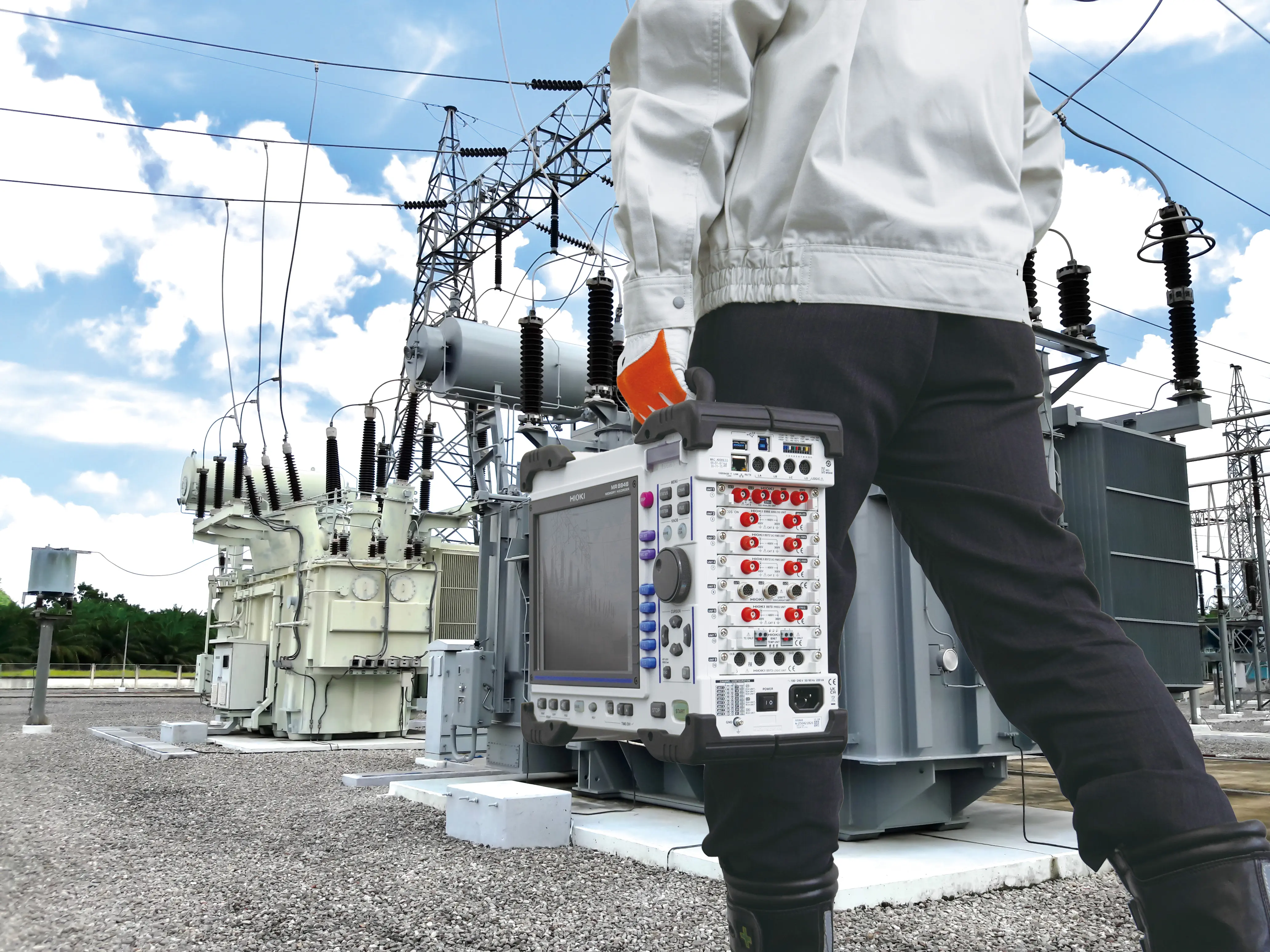

Whether you're monitoring vibration and brake signals on railways, or verifying high-voltage circuit breaker timing, the MR8848 delivers reliable, isolated measurements across multiple signal types – including voltage, current, temperature, strain, and logic.
Bundle products
- MR8848 Memory Recorder
- 9784 DC Power Unit
- MR8848 Memory Recorder
- 9784 DC Power Unit
Related products
MR8848
MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design
Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply
9784
9784 - DC Power Unit for MR8848, factory-installed option
DC Power Unit for MR8848, factory-installed option, 10 to 28 VDC
