L4939 - Breaker Pin Set for Circuit Breaker Measurements
Test pin set for breaker and relay terminals, compatible with test leads using 4 mm banana plugs
Available stock:
22
Product details
Product number:
L4939
EAN:
4536036002184
Length:
16 mm
Width:
100 mm
Height:
200 mm
Weight:
0.02 kg
Product information "L4939 - Breaker Pin Set for Circuit Breaker Measurements"

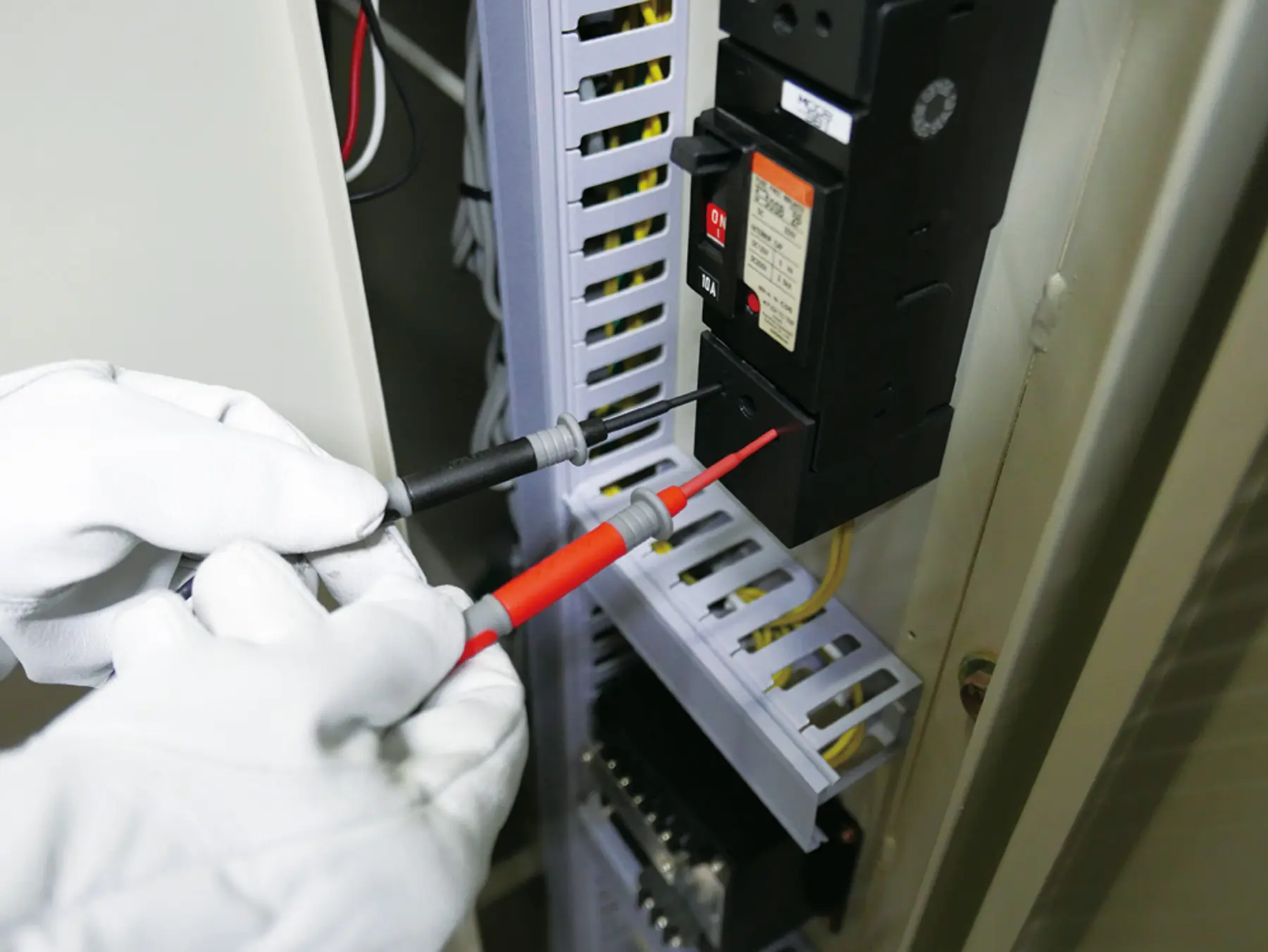

The L4939 is a breaker pin set designed for testing at circuit breaker and protective relay terminals. It consists of one red and one black tip (total length 128 mm) with a tip diameter of 2.6 mm. The set is rated CAT III 600 V and 10 A. The pins are connected to the ends of compatible measurement leads such as the Hioki L4930 or L4940, which feature 4 mm banana plugs, including safety plugs with retractable sleeves.
This accessory is suitable for a variety of Hioki digital multimeters and clamp meters with 4 mm banana type connectors, including DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282, CM3286, CM4141, CM4371, CM4373, and CM4375.
- L4939 Breaker Pin Set (1 red, 1 black)
